Toyota Land Cruiser
1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General
Discontinued model
Data version 2007-10

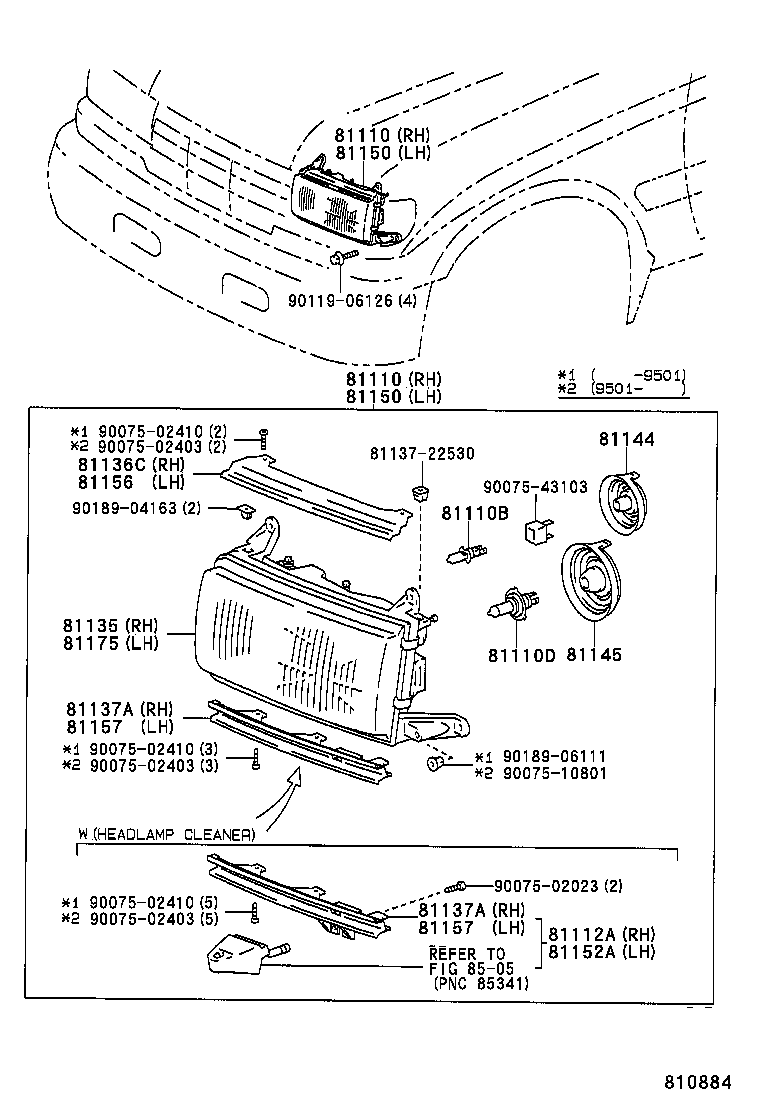

Headlamp
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81105 | Housing Sub-assy, Headlamp, RH |
| 81106 | Housing Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81110S | Sealed Beam Unit, NO.1 |
| 81110T | Sealed Beam Unit, NO.2 |
| 81111A | Ring, Sealed Beam Retaining, NO.1 RH |
| 81112A | Rim, Headlamp, RH |
| 81113 | Ring, Sealed Beam Mounting, NO.1 RH |
| 81114 | Ring, Sealed Beam Mounting, NO.2 RH |
| 81121 | Spring, Headlamp Tension |
| 81131 | Screw, Headlamp Adjusting |
| 81135 | Unit Assy, Headlamp, RH |
| 81136C | Rim, Headlamp, RH |
| 81137A | Rim, Headlamp, RH |
| 81144 | Cover, Headlamp, NO.1 |
| 81145 | Cover, Headlamp, NO.2 |
| 81150 | Headlamp Assy, LH |
| 81151A | Ring, Sealed Beam Retaining, NO.1 LH |
| 81152A | Rim, Headlamp, LH |
| 81153 | Ring, Sealed Beam Mounting, NO.1 LH |
| 81154 | Ring, Sealed Beam Mounting, NO.2 LH |
| 81156 | Rim, Headlamp, LH |
| 81157 | Rim, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
