Toyota Land Cruiser

1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

141 part groups · 18 illustrations

Illustrations

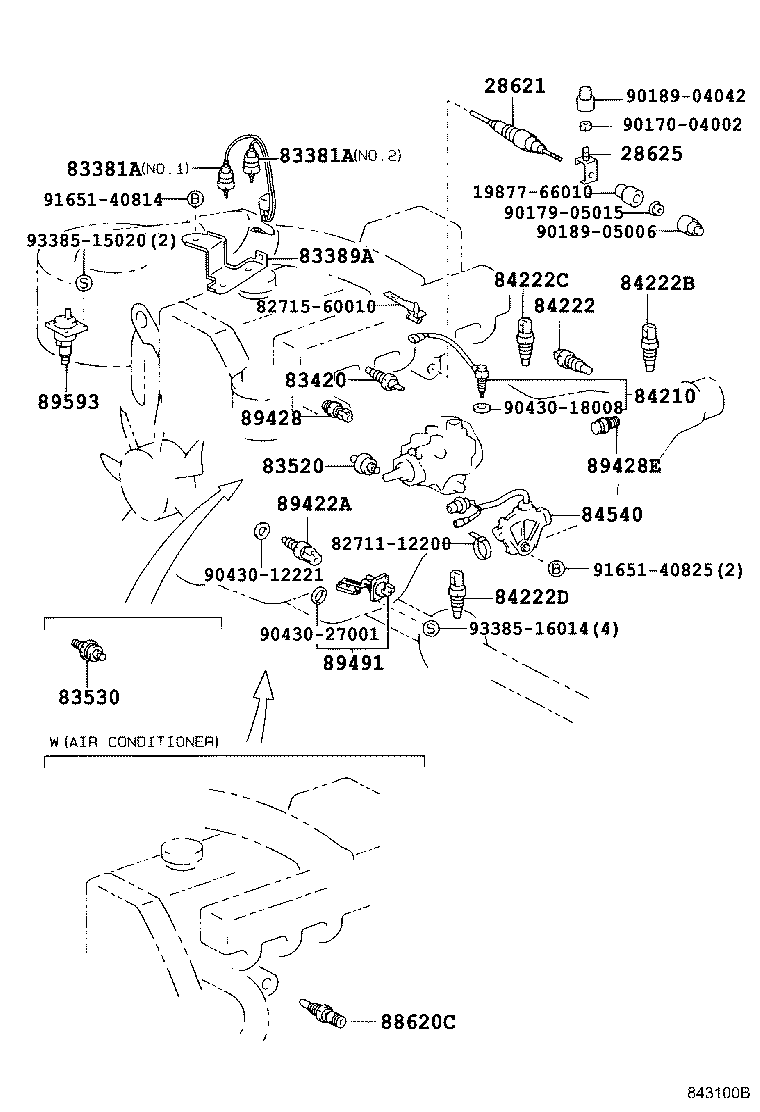

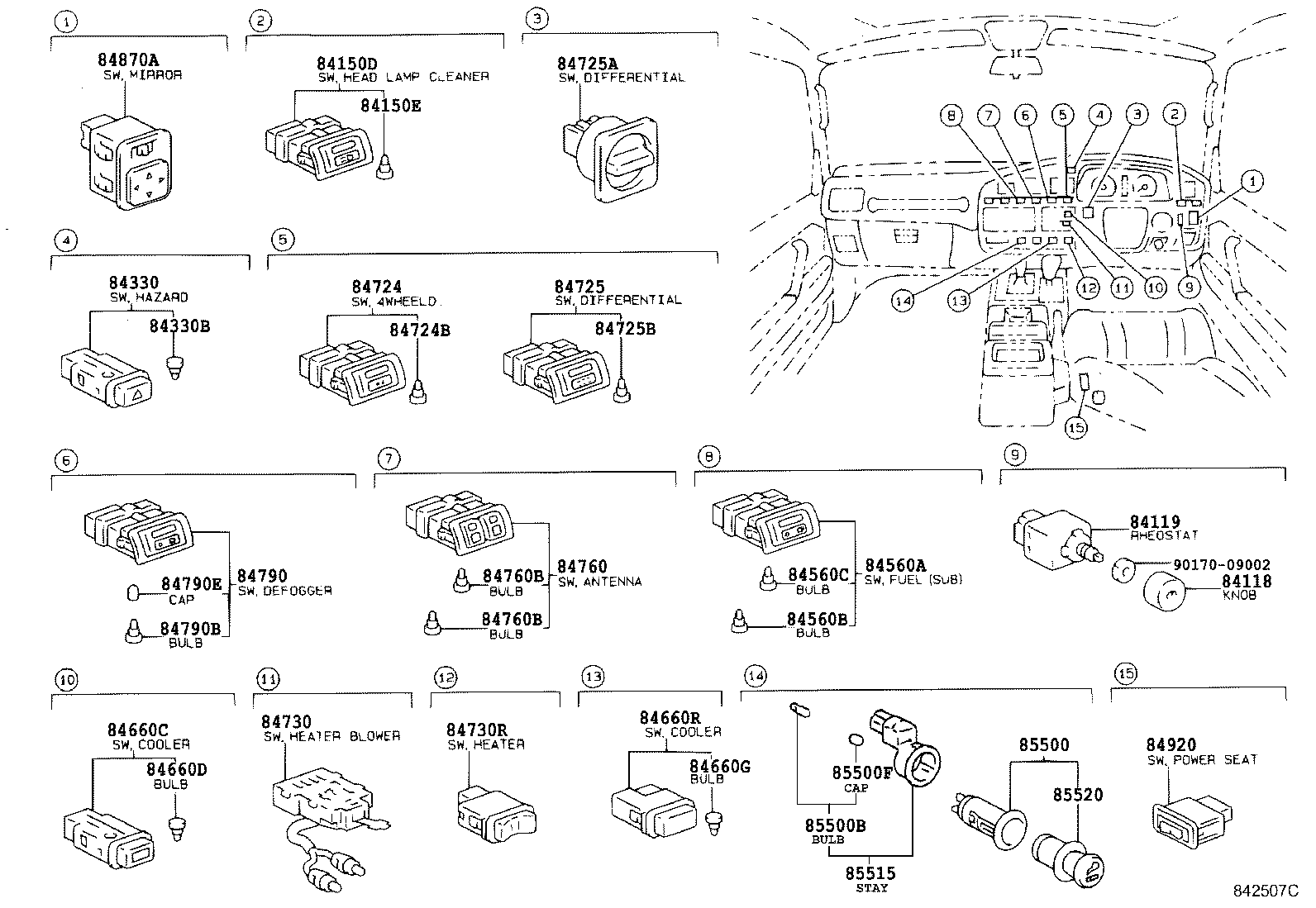

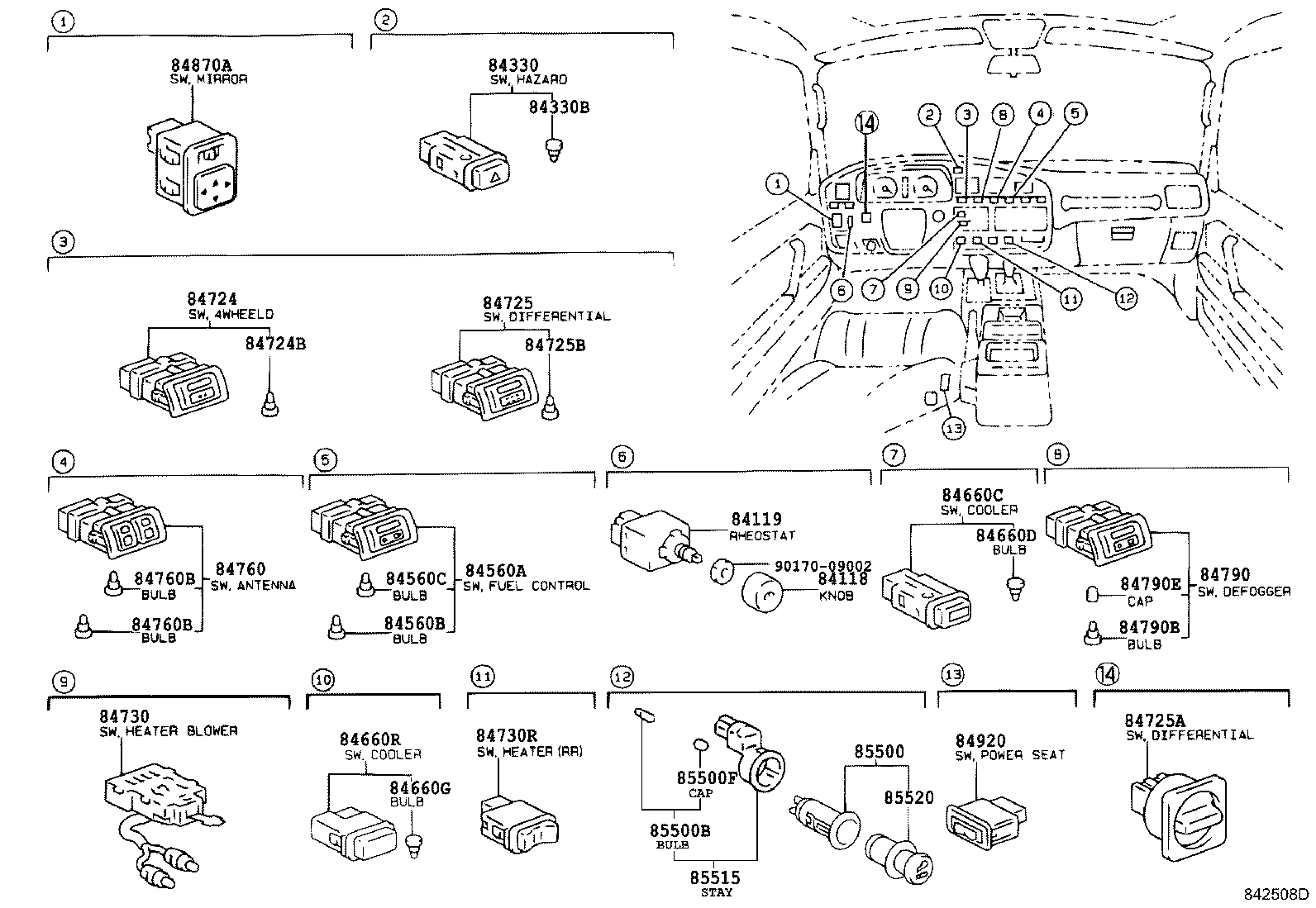

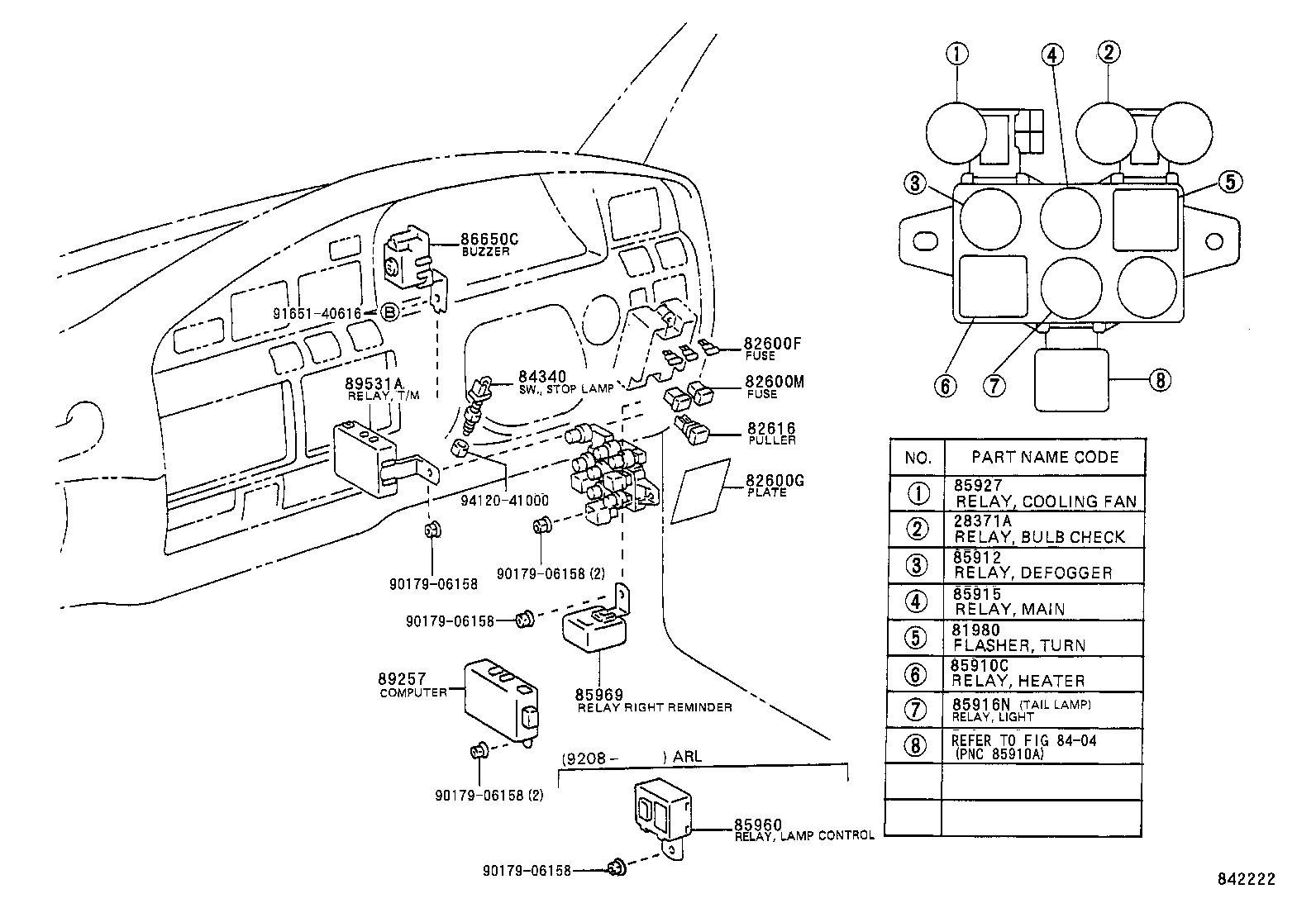

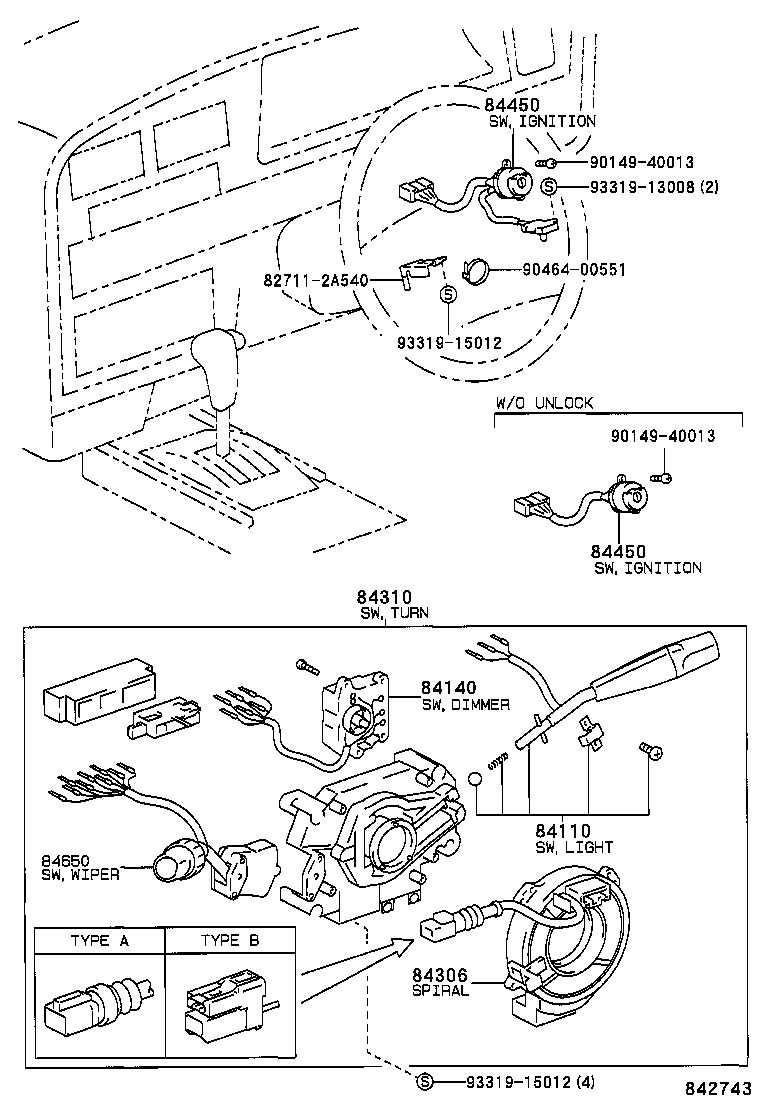

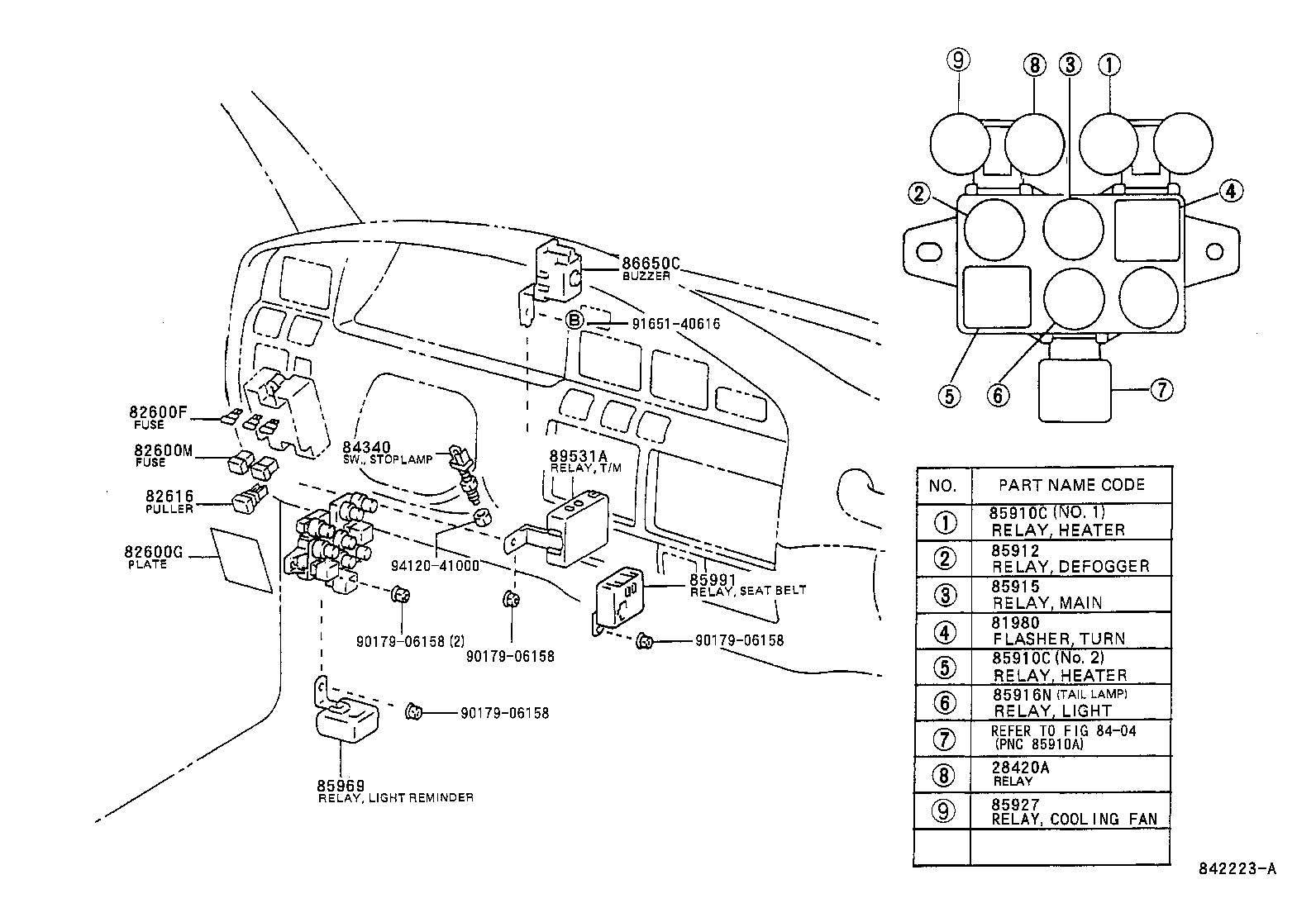

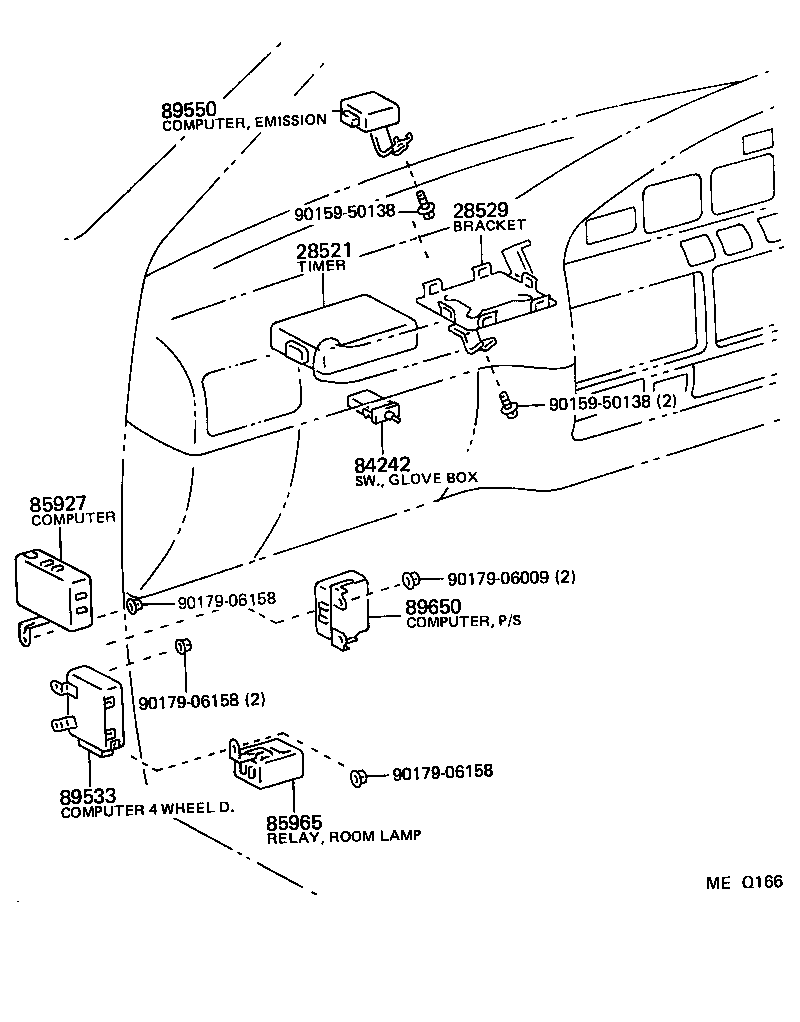

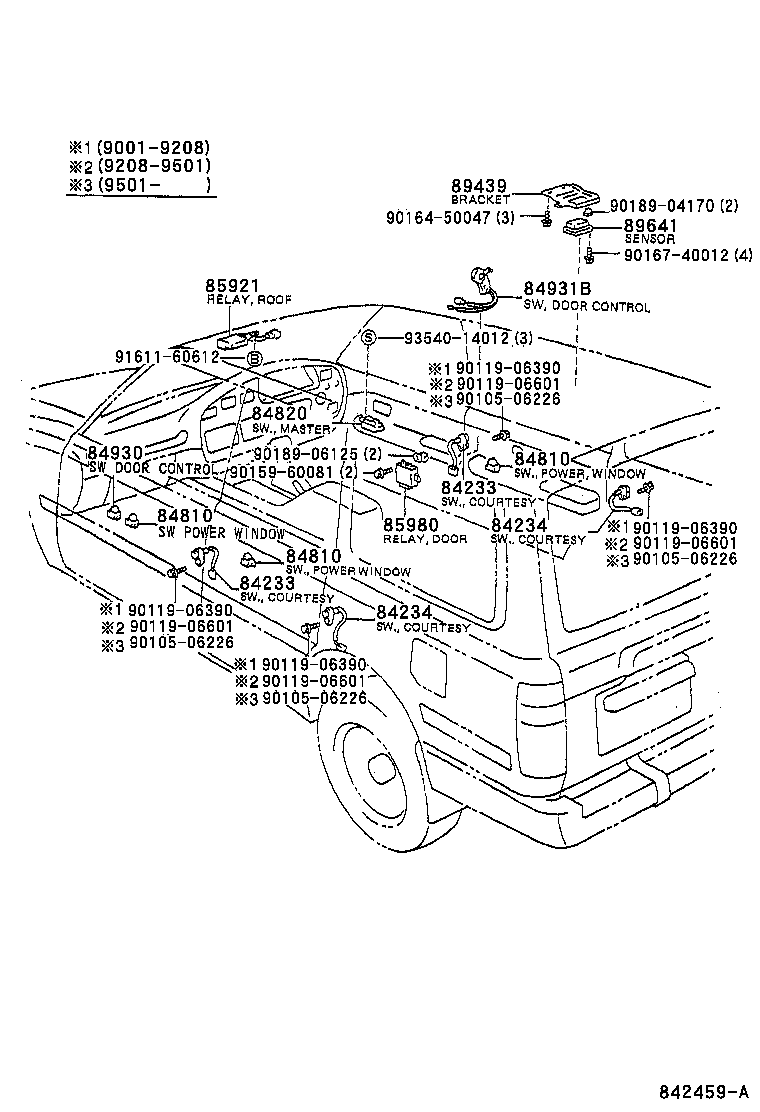

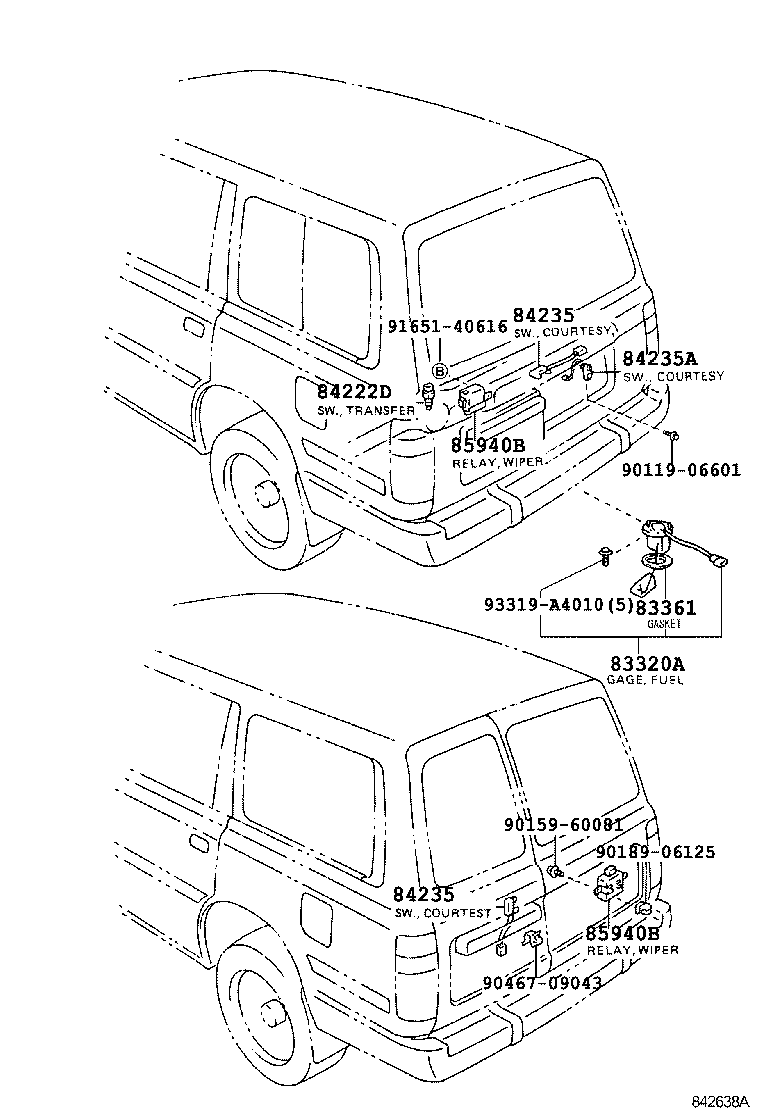

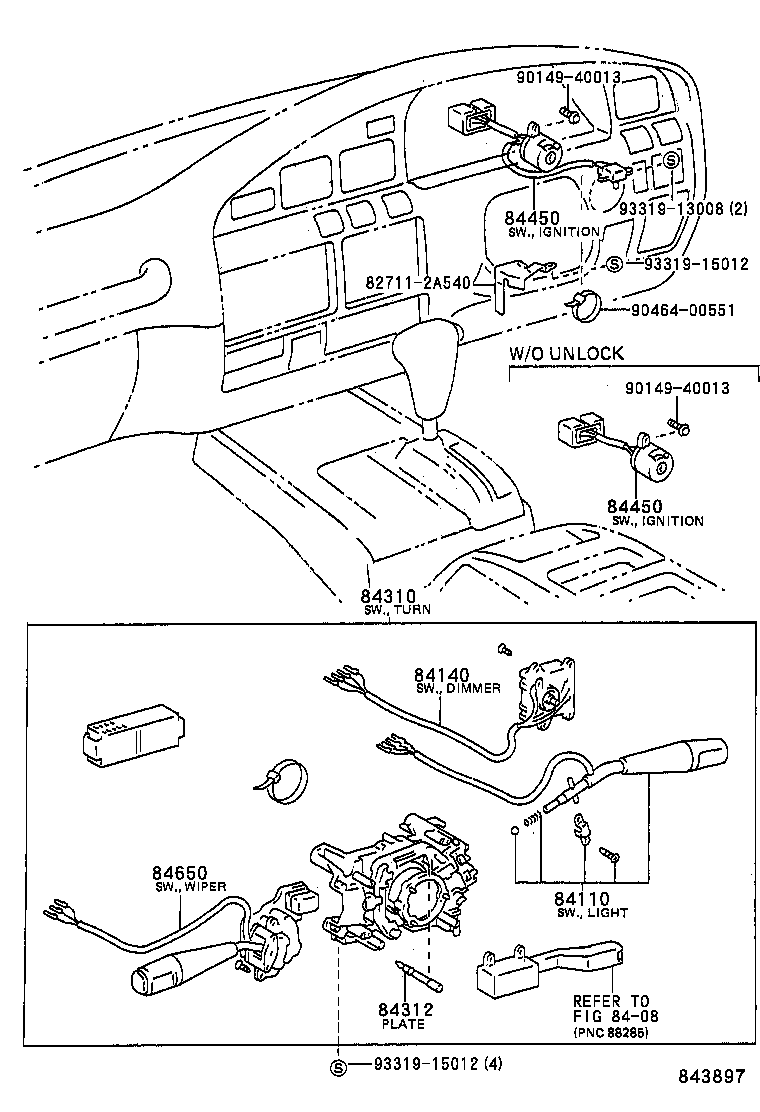

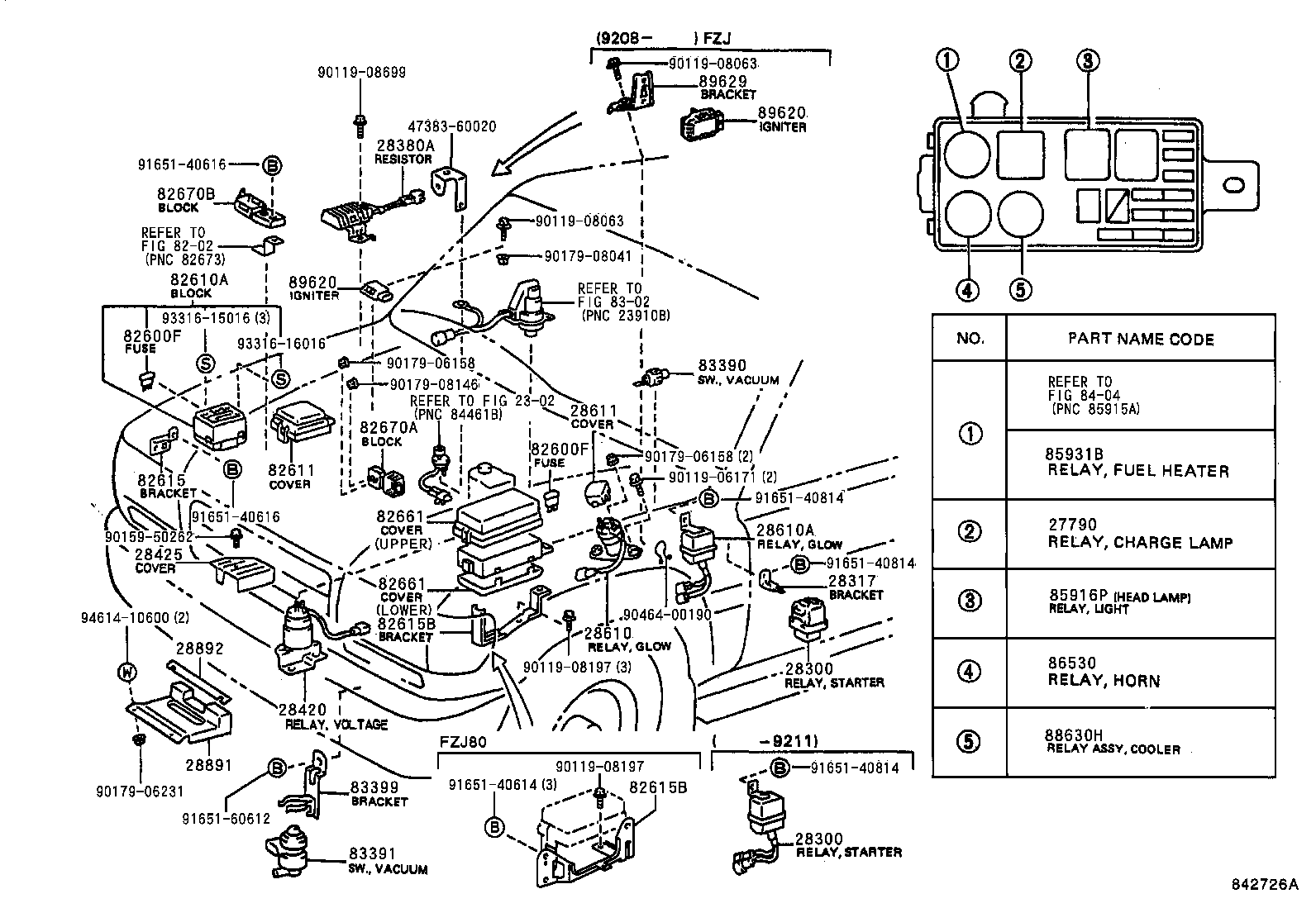

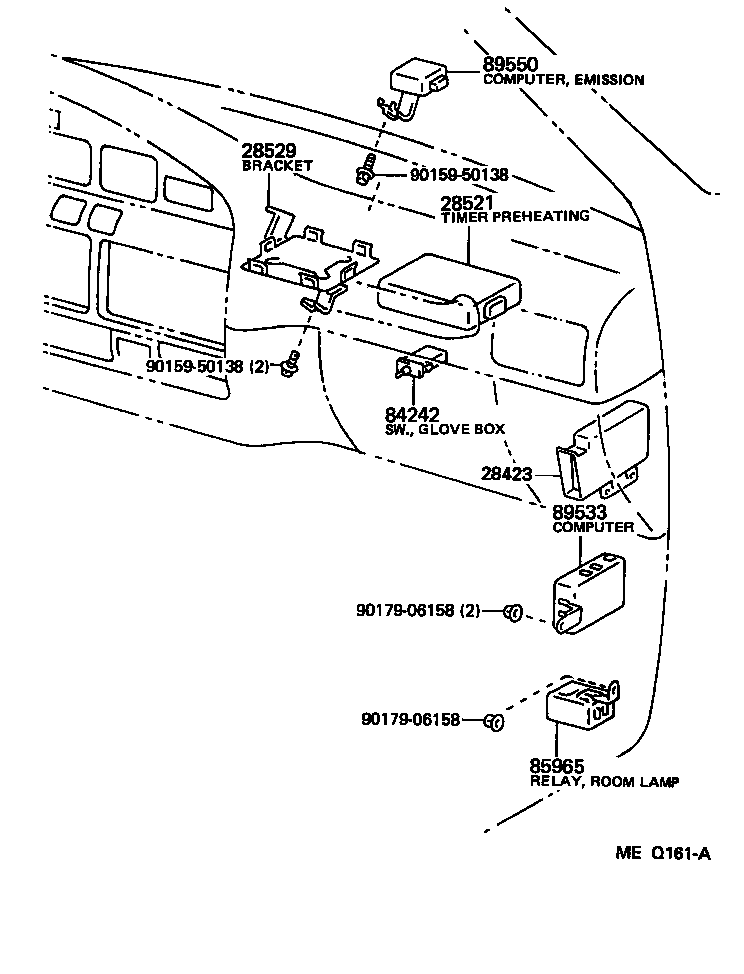

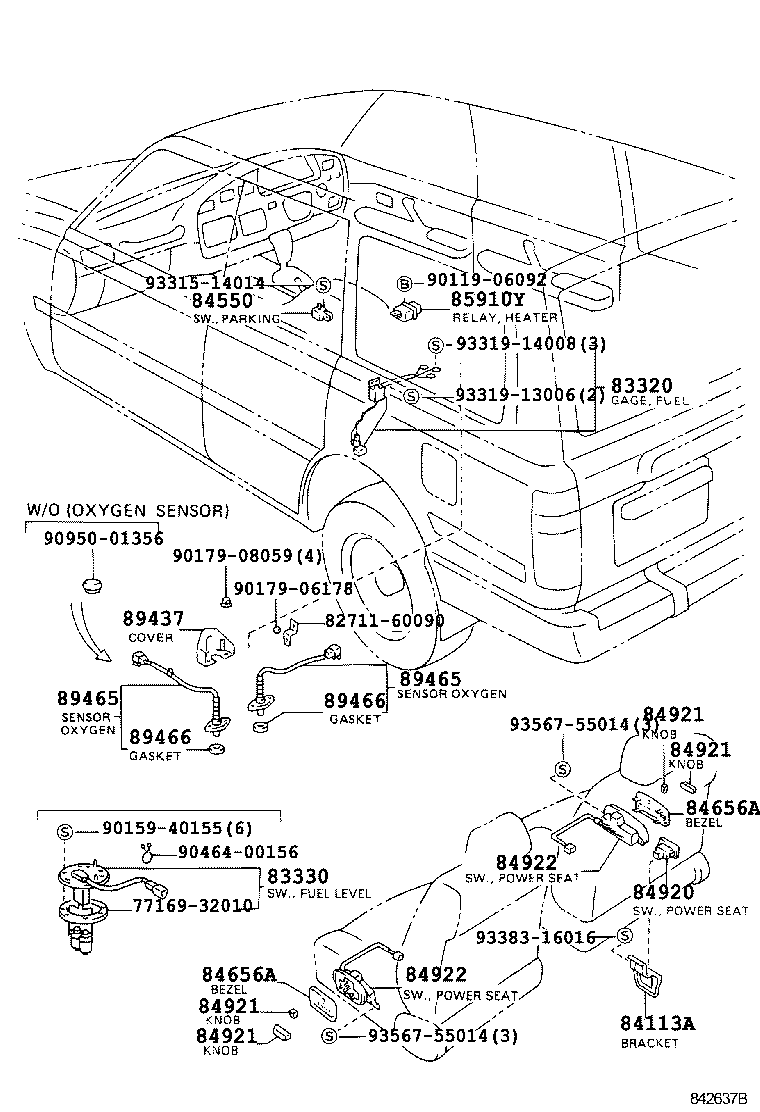

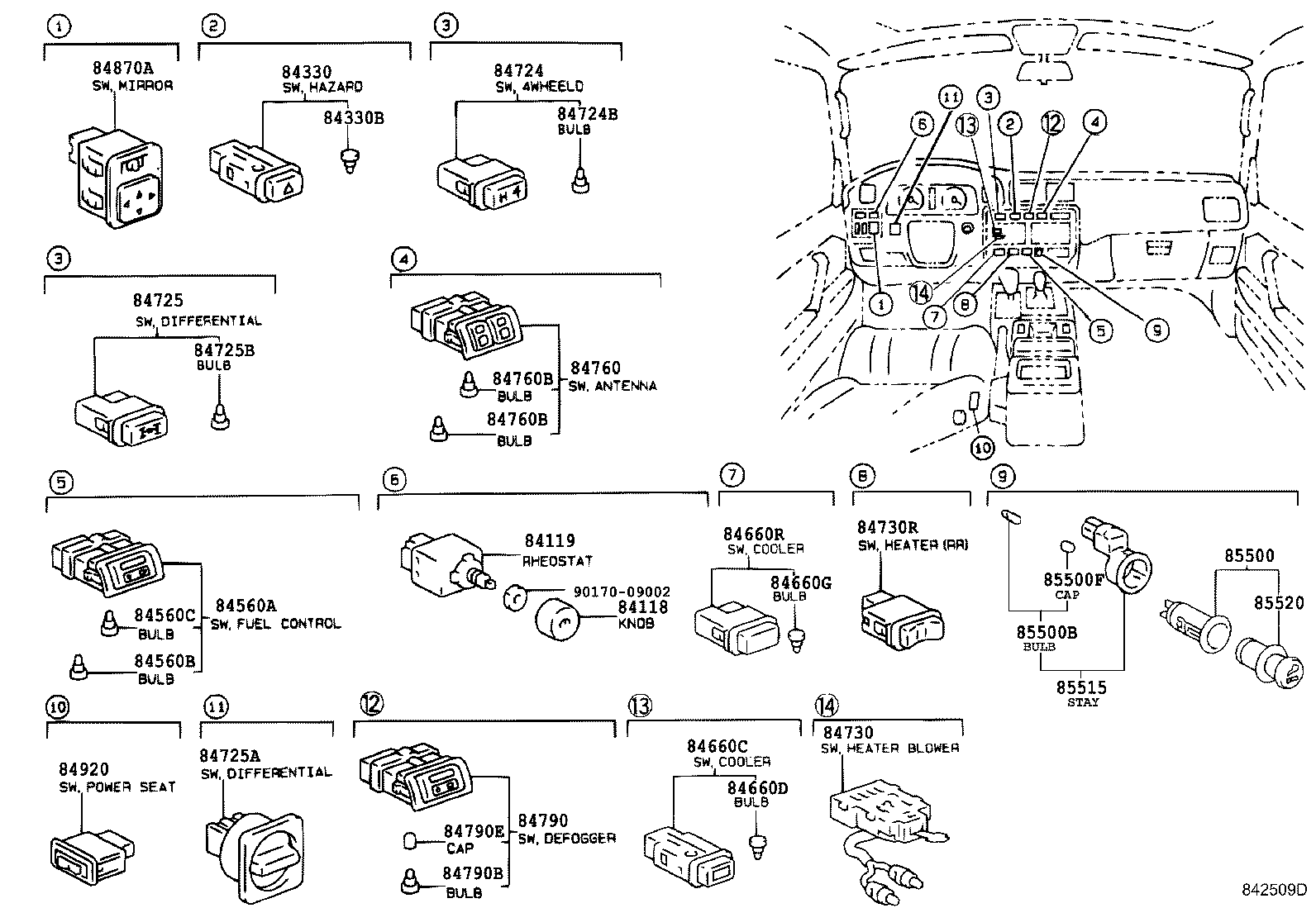

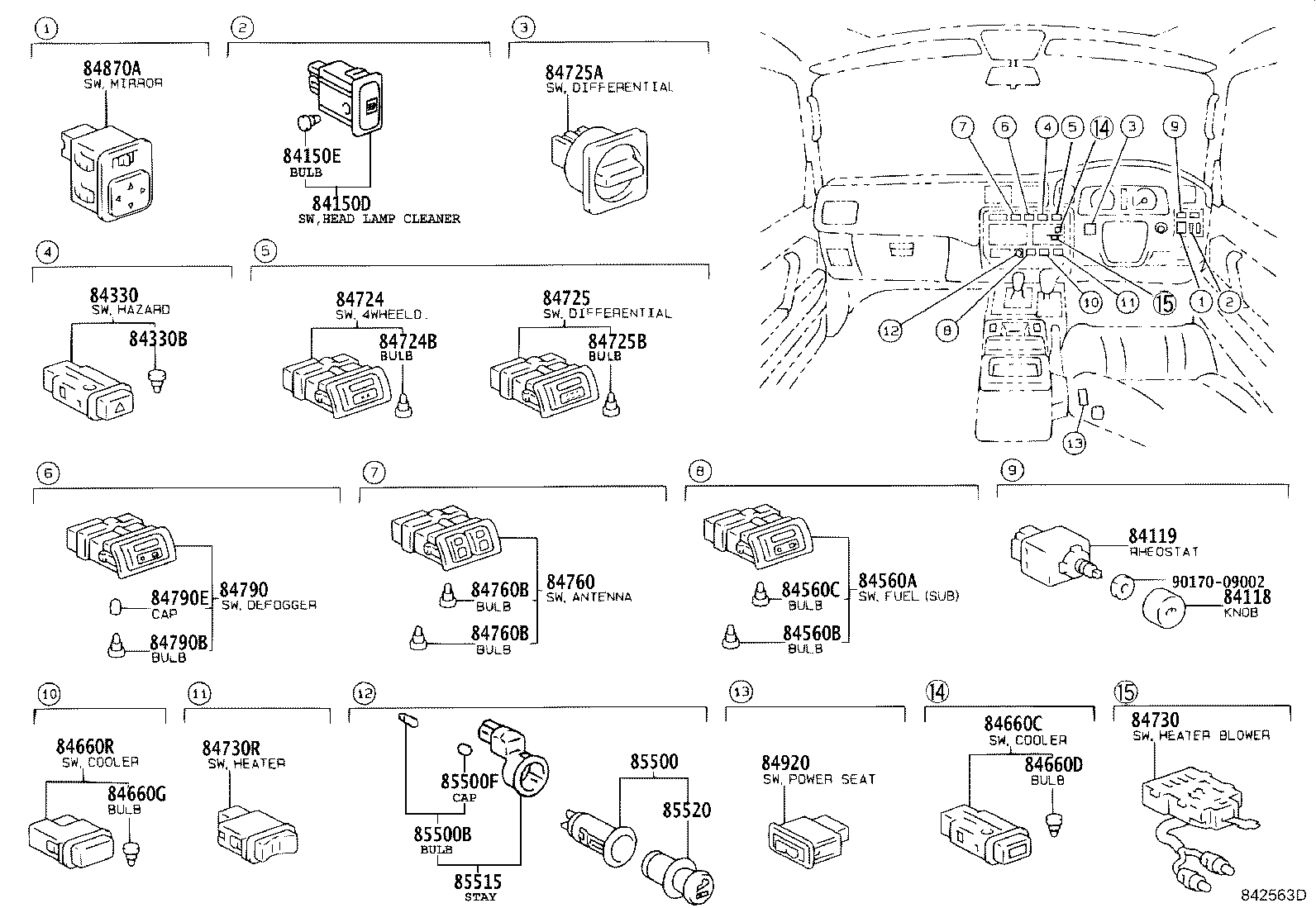

Figure 846842A 846842A 1990-01 → — Figure 843100B 843100B 1990-01 → — Figure 842726A 842726A 1990-01 → — Figure 842222 842222 1990-01 → — Figure MEQ161A MEQ161A 1990-01 → — Figure MEQ166 MEQ166 1990-01 → — Figure 842223A 842223A 1990-01 → — Figure 842507C 842507C 1990-01 → 1995-01 Figure 842563D 842563D 1995-01 → — Figure 842508D 842508D 1990-01 → 1995-01 Figure 842508D 842508D 1997-11 → — Figure 842509D 842509D 1995-01 → 1997-11 Figure 842509D 842509D 1997-11 → — Figure 843897 843897 1990-01 → — Figure 842743 842743 1995-01 → — Figure 842459A 842459A 1990-01 → — Figure 842637B 842637B 1990-01 → — Figure 842638A 842638A 1990-01 → —

Part groups

PNCDescription
27790 Relay Assy, Charge Lamp
28300 Relay Assy, Starter
28317 Bracket, Starter Relay
28371A Relay, Bulb Check
28380A Resister, Fuel Pump
28420 Relay Assy, Voltage Converter
28420A Relay, 24V Hold Warning
28423 Timer, Voltage Converter
28425 Cover, Voltage Converter Relay
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
28610A Relay Assy, Glow Plug(SUB)
28611 Cover, Glow Plug Relay
28621 Resistor, Glow Plug
28625 Plate, Glow Plug Resistor
28891 Cover, Battery Terminal
28892 Plate, Battery Terminal Cover
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82600M Fuse, Medium Current
82610A Block Assy, Fuse
82611 Cover, Fuse Block
82615 Bracket, Fuse
82615B Bracket, Fuse NO.2
82616 Puller, Fuse
82661 Cover, Relay Block, NO.1
82670A Block Assy, Junction, NO.1
82670B Block Assy, Junction, NO.2
83320 Gage Assy, Fuel Sender
83320A Gage Assy, Fuel Sender (FOR FUEL SUB-TANK)
83330 Switch Assy, Fuel Level
83361 Gasket, Fuel Sender Gage
83381A Switch, Pressure
83389A Bracket, Pressure Switch
83390 Switch Assy, Vacuum Warning
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84110 Switch Assy, Light Control, NO.1
84113A Bracket, Switch, NO.1
84118 Knob, Light Control Rheostat
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84150E Bulb, Headlamp Cleaner Switch
84210 Switch Assy, Back-up Lamp
84210T Sensor Assy, Shift Point
84222 Switch, Transfer Indicator, NO.1
84222B Switch, Transfer Indicator, NO.2
84222C Switch, Transfer Indicator, NO.3
84222D Switch, Transfer Indicator, NO.4
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84235A Switch, Courtesy Lamp
84242 Switch, Glove Box Lamp
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84560A Switch Assy, Fuel Control
84560B Bulb, Fuel Control Switch
84560C Cap, Fuel Control Switch Bulb
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84660C Switch, Cooler
84660D Bulb(FOR COOLER SWITCH)
84660G Bulb(FOR REAR COOLER SWITCH)
84660R Switch, Cooler(REAR)
84724 Switch, 4 Wheel Drive Control
84724B Bulb, 4 Wheel Drive Control Switch
84725 Switch, Center Differential Lock
84725A Switch, Differential Lock
84725B Blub, Differential Lock Switch
84730 Switch Assy, Heater Blower
84730R Switch Assy, Heater Blower
84760 Switch Assy, Antenna
84760B Bulb, Antenna Switch
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84790E Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
84921 Knob, Power Seat Switch
84922 Switch, Front Power Seat
84930 Switch Assy, Door Control
84931B Switch, Door Control
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85500F Cap, Cigarette Lighter Bulb
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910Y Relay, Rear Heater
85912 Relay, Defogger
85915 Relay, Main
85916N Relay, Taillamp
85916P Relay, Headlamp
85921 Relay, Sliding Roof Control
85927 Relay, Cooling Fan
85931B Relay, Fuel Heater
85940B Relay Assy, Rear Wiper
85960 Relay Assy, Lamp Control
85965 Relay, Room Lamp Control
85969 Relay, Light Reminder
85980 Relay Assy, Door Control
85991 Relay, Seat Belt Warning
86530 Relay Assy, Horn
86650C Buzzer Assy, Sedimenter Warning
88620C Thermo Switch Assy
88630H Relay Assy, Cooler
89257 Computer, Cooling Fan
89422A Sensor, Water Temperature
89423A Sensor, Manifold Temperature
89428 Switch, Temperature Detect, NO.2
89428E Switch, Temperature, NO.2 (FOR TRANSMISSION)
89437 Cover, Sensor
89439 Bracket, Sensor
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89491 Sensor, Engine Oil Level
89531A Relay, Transmission Control
89533 Computer, 4 Wheel Drive Control
89550 Computer Assy, Emission Control
89593 Sensor, Air Cleaner Warning
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
89641 Sensor, Magnetic Field
89650 Computer Assy, Power Steering
