Toyota Land Cruiser
1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General
Discontinued model
Data version 2007-10
Abs & Vsc

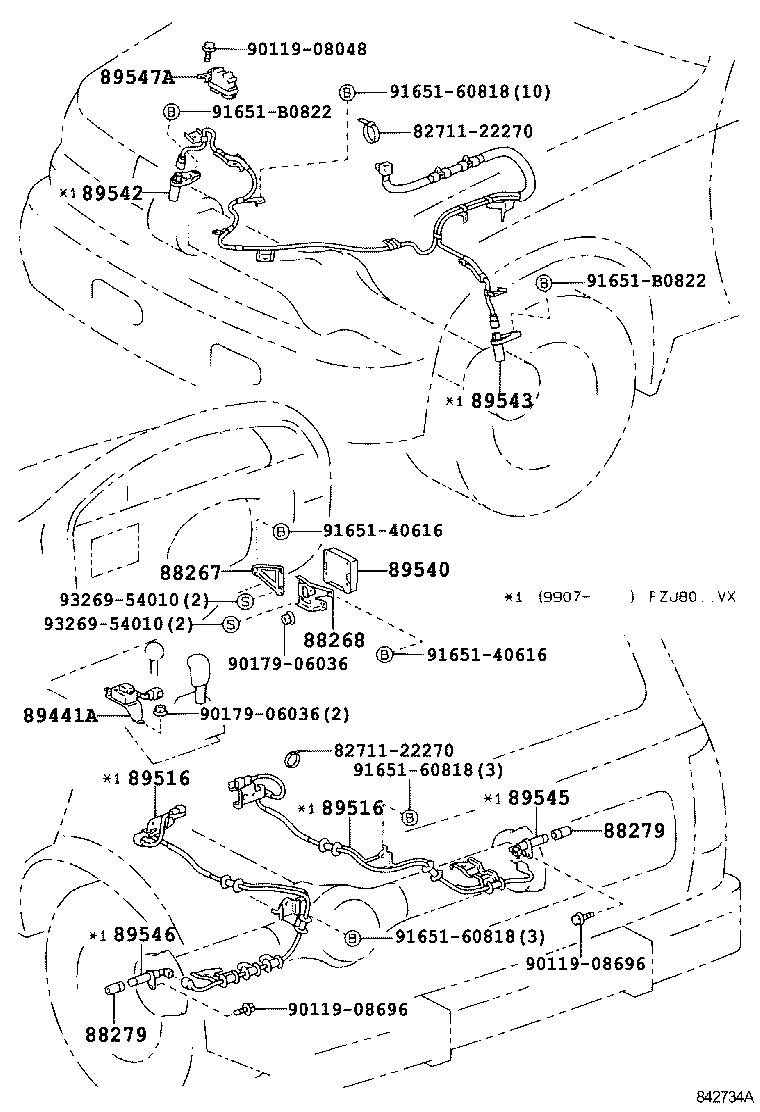

13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04895 | Speed Sensor Kit, Abs |
| 88267 | Bracket, Skid Control Computer, NO.1 |
| 88268 | Bracket, Skid Control Computer, NO.2 |
| 88279 | Guide, Skid Control Sensor |
| 89441A | Sensor, Deceleration |
| 89516 | Wire, Skid Control Sensor |
| 89517 | Spacer, Skid Control Sensor |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89547A | Relay, Skid Control W/Bracket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
