Toyota Land Cruiser

1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

13 part groups · 6 illustrations

Illustrations

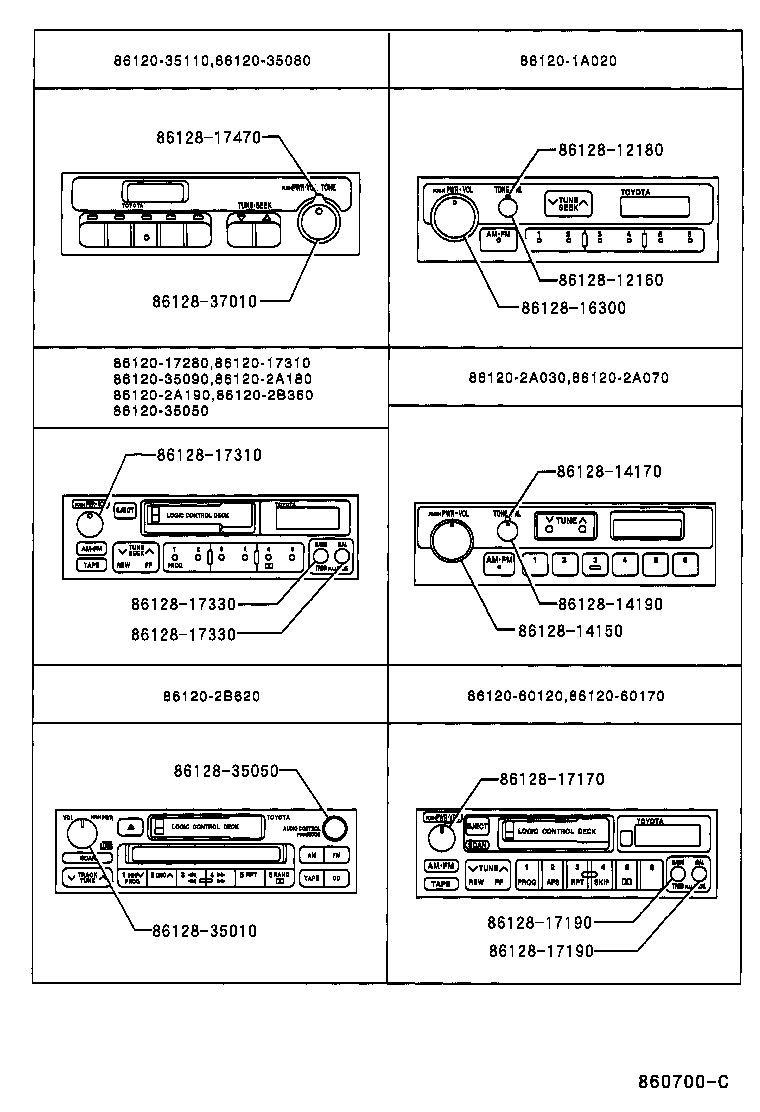

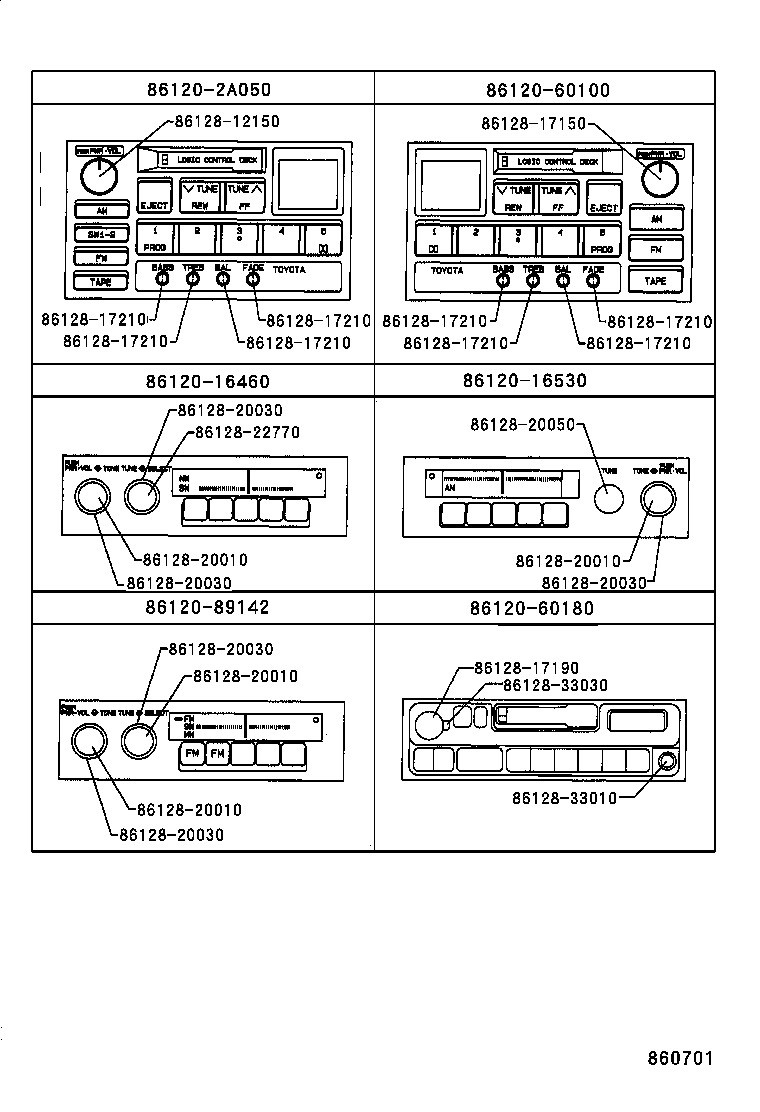

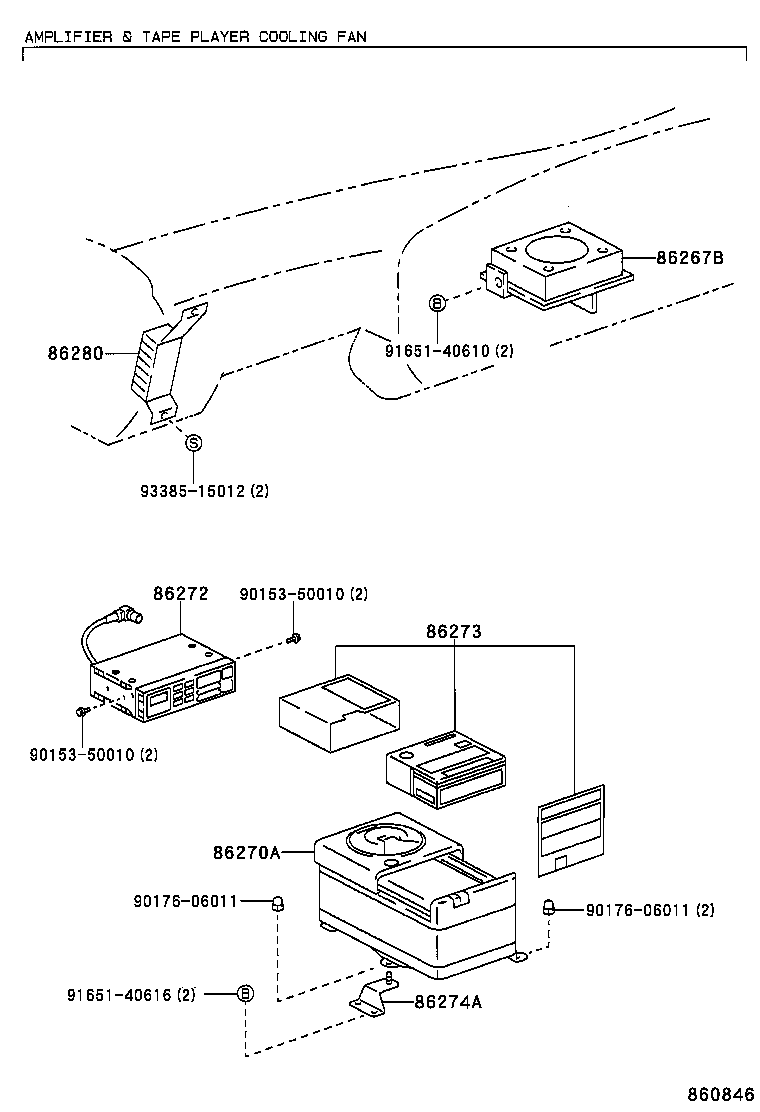

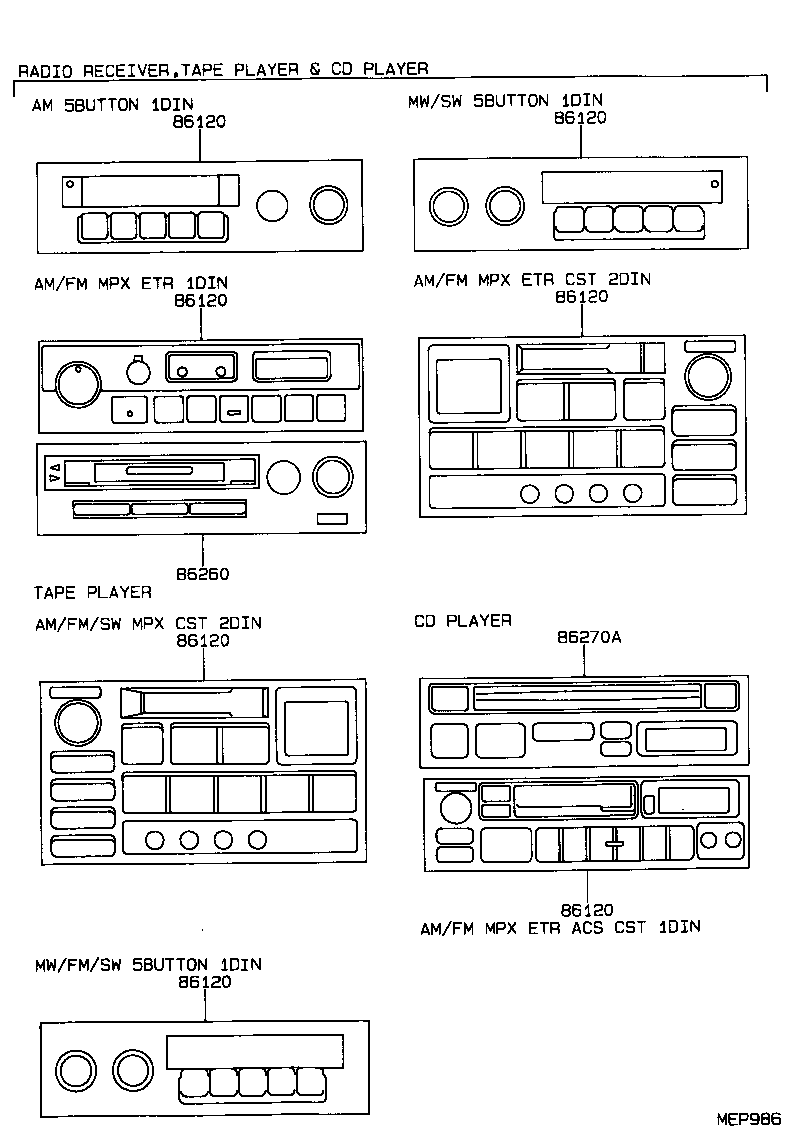

Figure 861331 861331 1990-01 → — Figure 860846 860846 1990-01 → — Figure MEP986 MEP986 1990-01 → — Figure 860700C 860700C 1990-01 → — Figure 860701 860701 1990-01 → — Figure 860963A 860963A 1990-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86237 Wire, Condenser
86260 Tape Player Assy
86267B Fan, Tape Player Cooling
86270A Disc Player Assy
86272 Controller, Disc Player
86273 Magazine, Disc Player
86274A Bracket, Disc Player
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
