Toyota Land Cruiser

1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

48 part groups · 7 illustrations

Illustrations

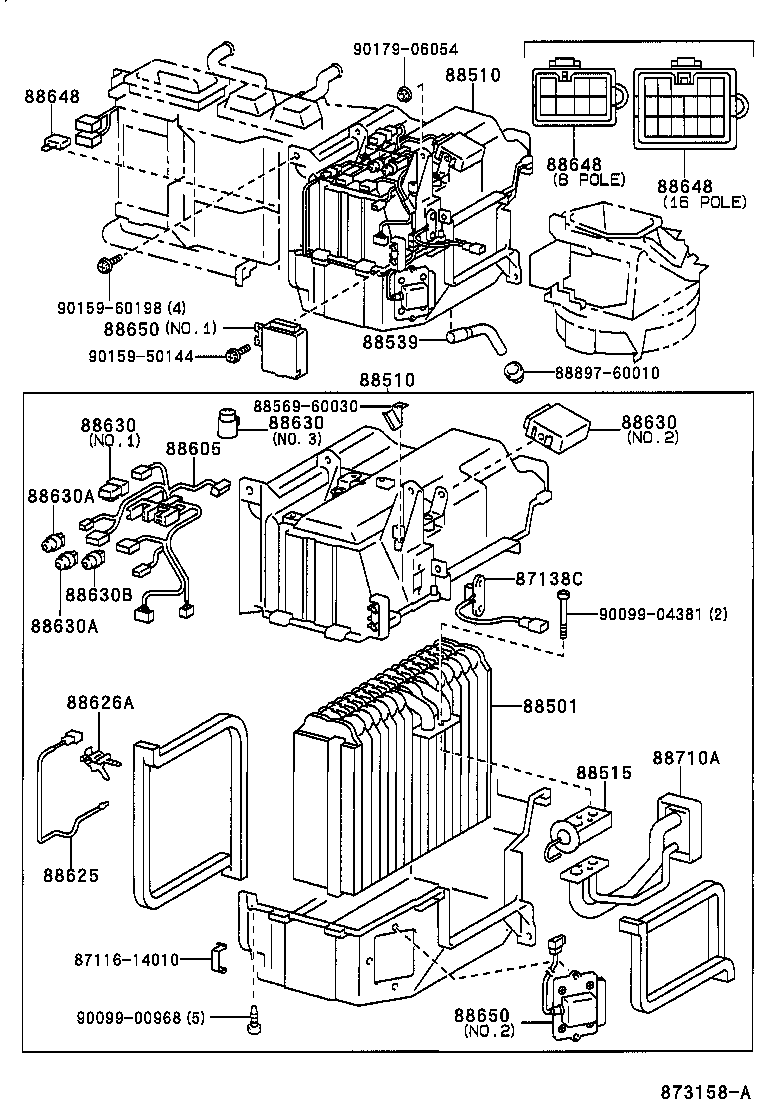

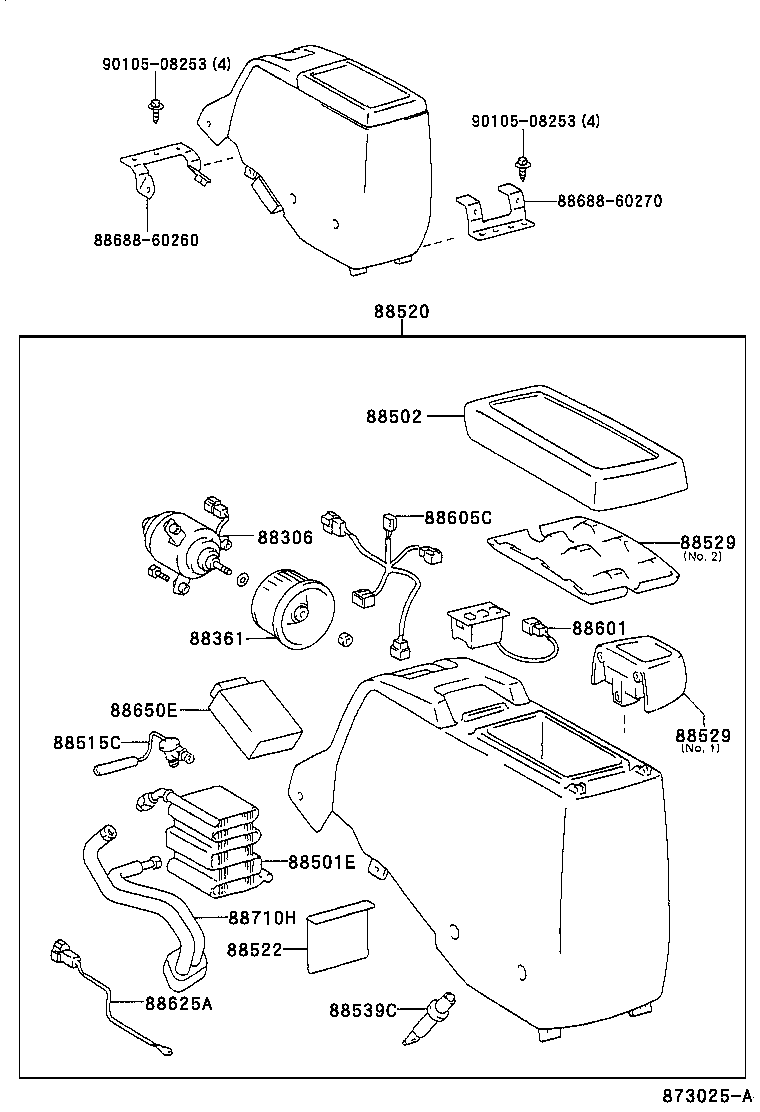

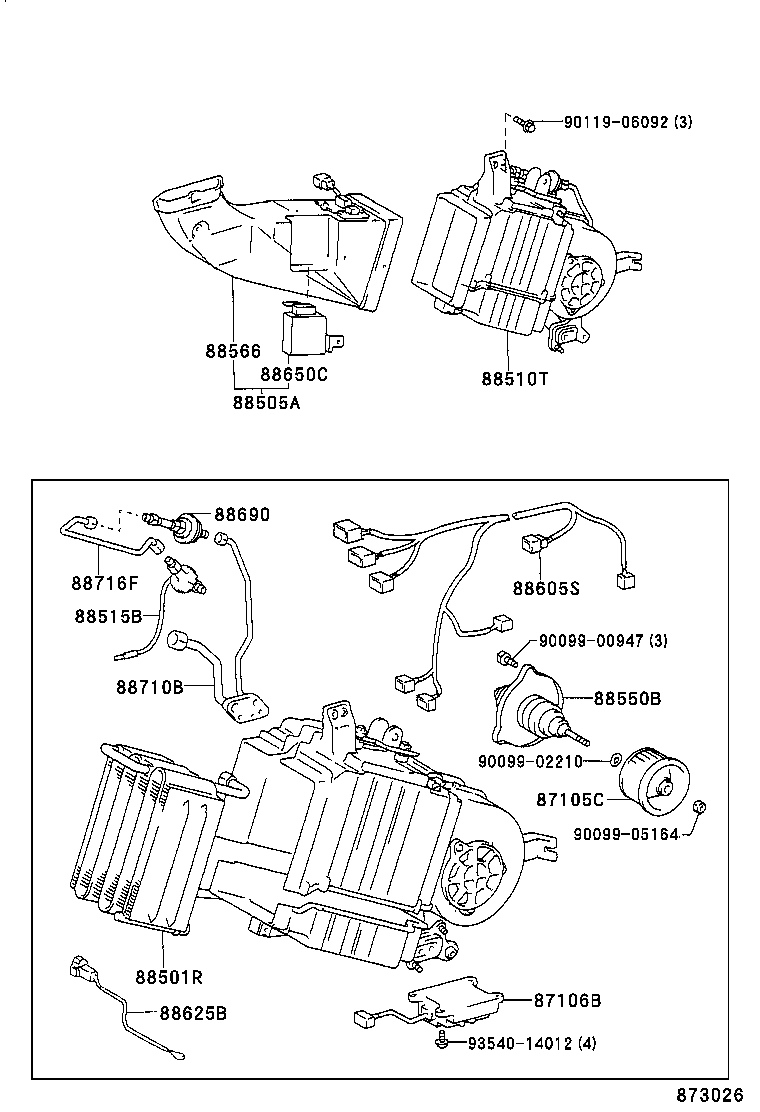

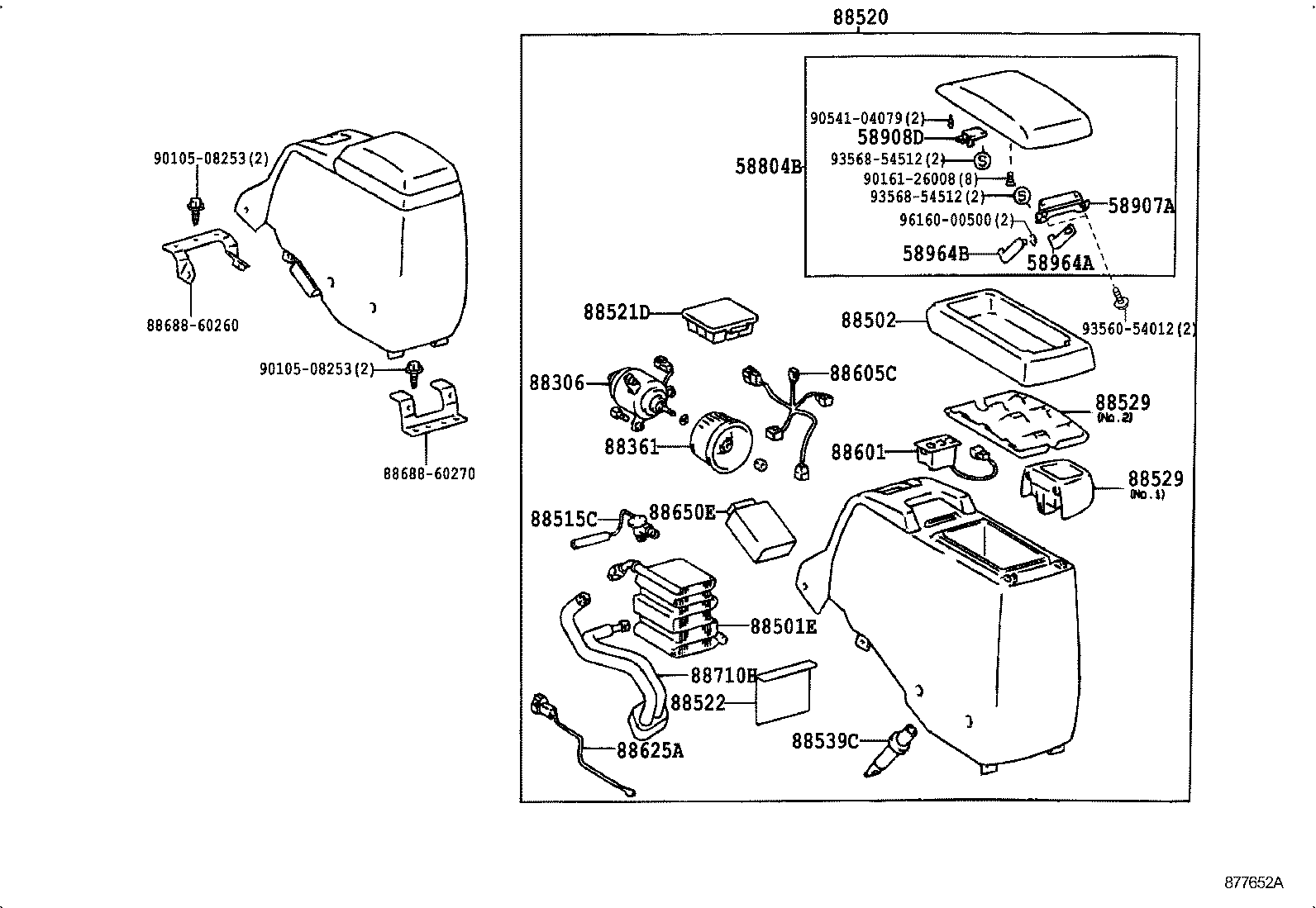

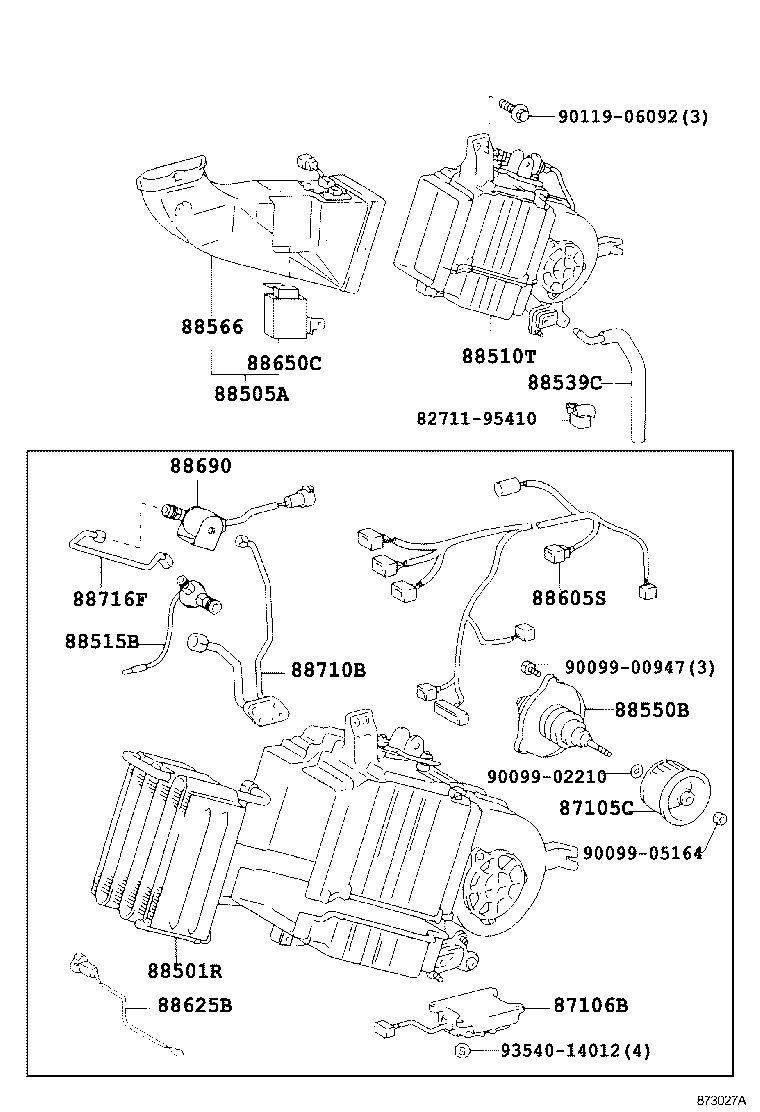

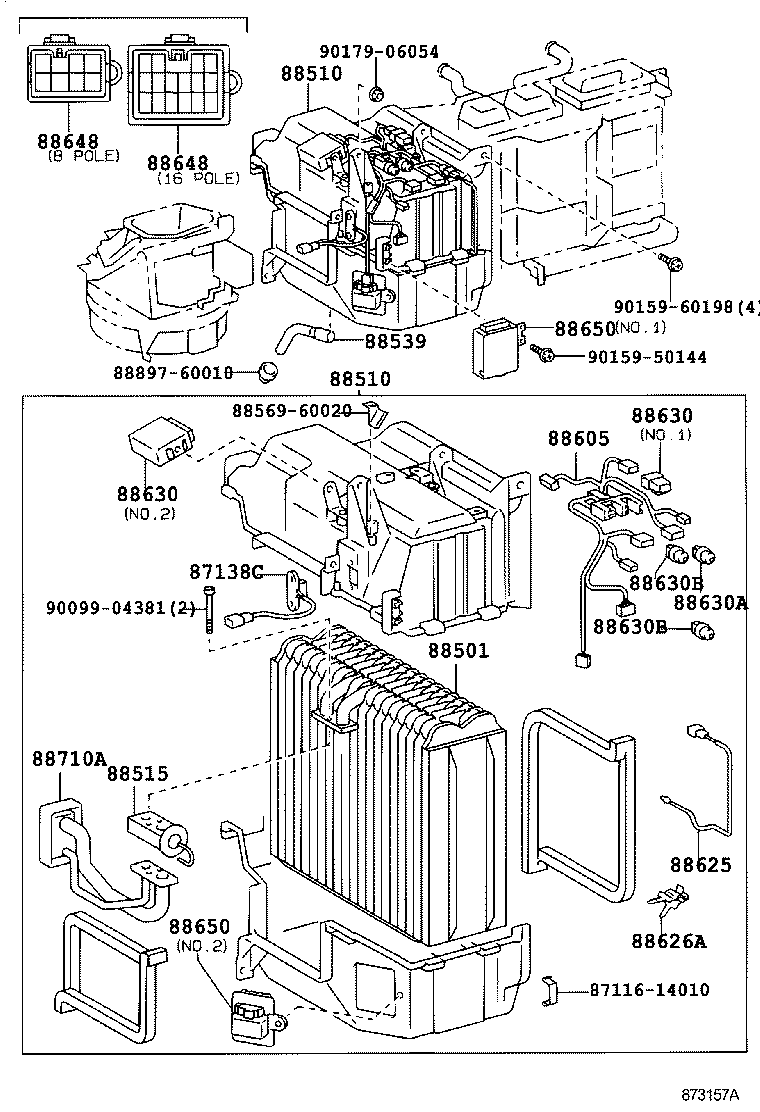

Figure MEQ425C MEQ425C 1990-01 → — Figure 873157A 873157A 1990-01 → — Figure 873158A 873158A 1990-01 → — Figure 873026 873026 1990-01 → 1993-05 Figure 873027A 873027A 1993-05 → — Figure 873025A 873025A 1990-01 → 1992-08 Figure 877652A 877652A 1992-08 → —

Part groups

PNCDescription
58804B Panel Sub-assy, Cooling Box, Upper
58907A Hinge Sub-assy, Cooling Box Door
58908D Lock Sub-assy, Cooling Box Door
58964A Stopper, Cooling Box Door, NO.1
58964B Stopper, Cooling Box Door, NO.2
87105C Fan Sub-assy, Blower, Rear
87106B Servo Sub-assy, Damper(FOR COOLING UNIT)
87138C Resistor, Blower
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88501 Evaporator Sub-assy, Cooler, NO.1
88501E Evapolator Sub-assy, Cooler (COOL BOX)
88501R Evaporator Sub-assy (REAR)
88502 Case Sub-assy, Cooling Unit
88505A Duct Sub-assy, Air Conditioner
88510 Unit Assy, Cooler
88510T Unit Assy, Cooling (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88515C Valve, Cooling Box Expansion
88520 Box Assy, Cooling
88521D Case, Ice
88522 Door, Cooling Unit
88529 Tray, Cooling Box
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88550B Motor Assy, Blower
88566 Duct, Cooler Air, NO.1
88601 Switch Sub-assy, Cooler Control
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88605S Harness Sub-assy, Wiring Air Conditioner
88625 Thermistor, Cooler, NO.1
88625A Thermistor, Cooler NO.2
88625B Thermistor, Cooler NO.3
88626A Holder, Thermistor
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88650C Amplifier Sub-assy, Airconditioner
88650E Amplifier Assy, Air Conditioner, NO.1
88690 Valve Assy, Cooler Magnet
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88716F Pipe, Cooler Refrigerant Liquid, F
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
