Toyota Land Cruiser

1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

31 part groups · 7 illustrations

Illustrations

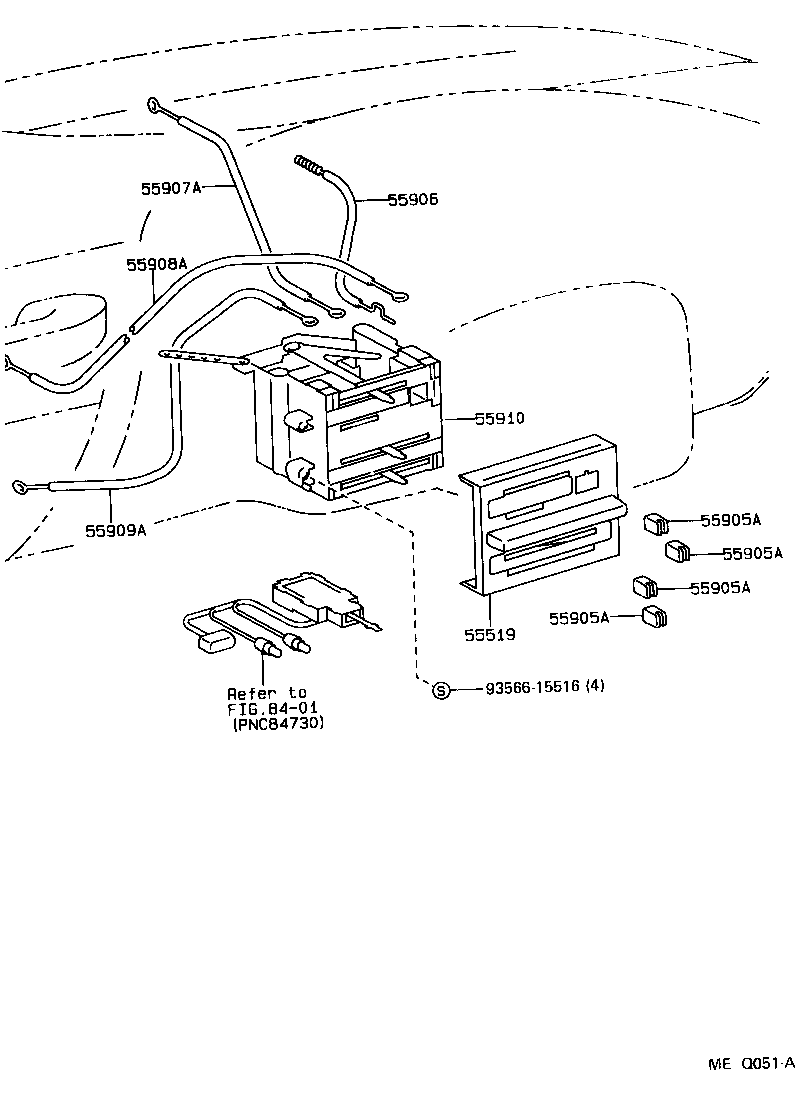

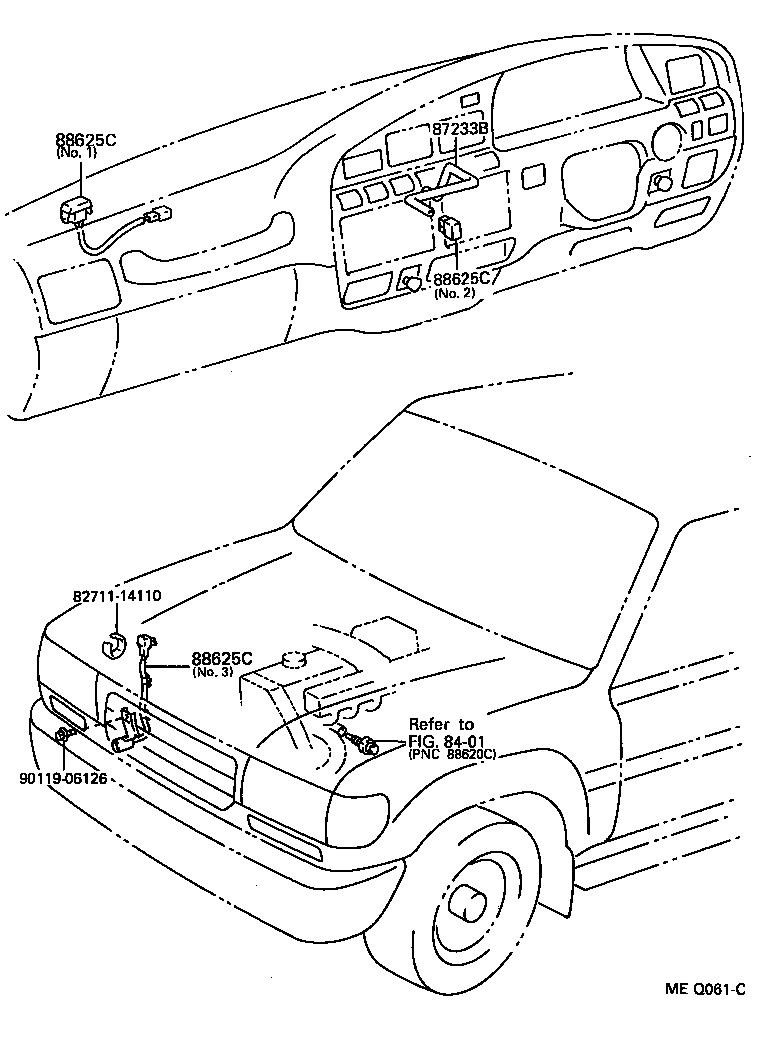

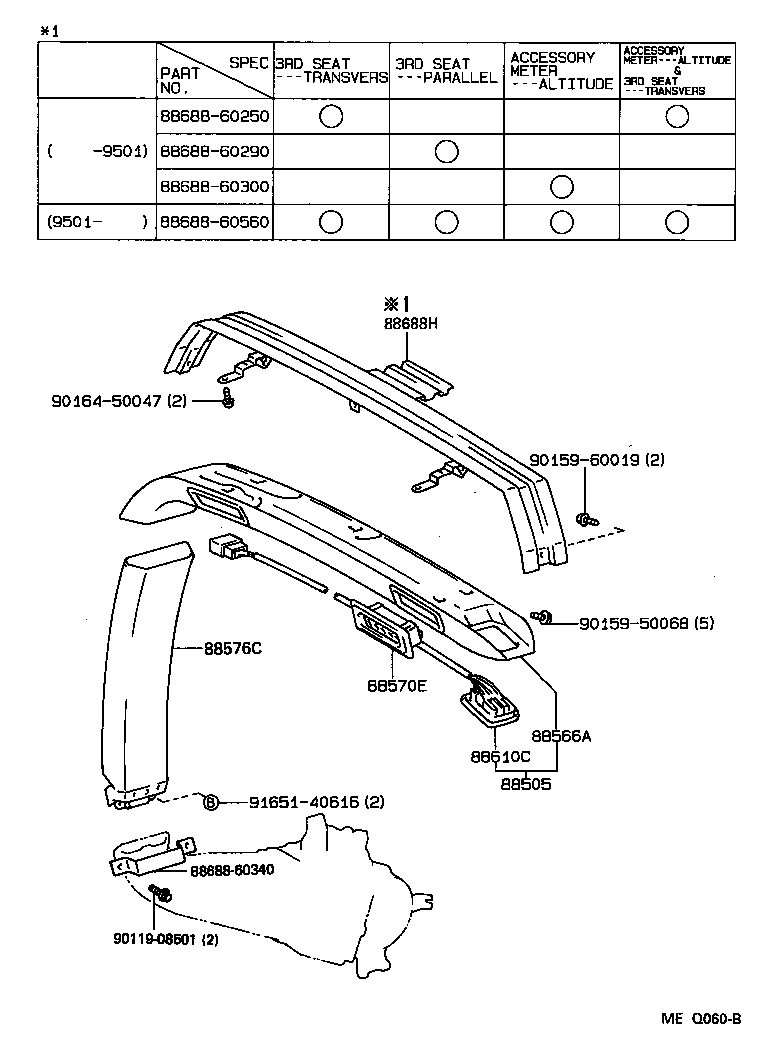

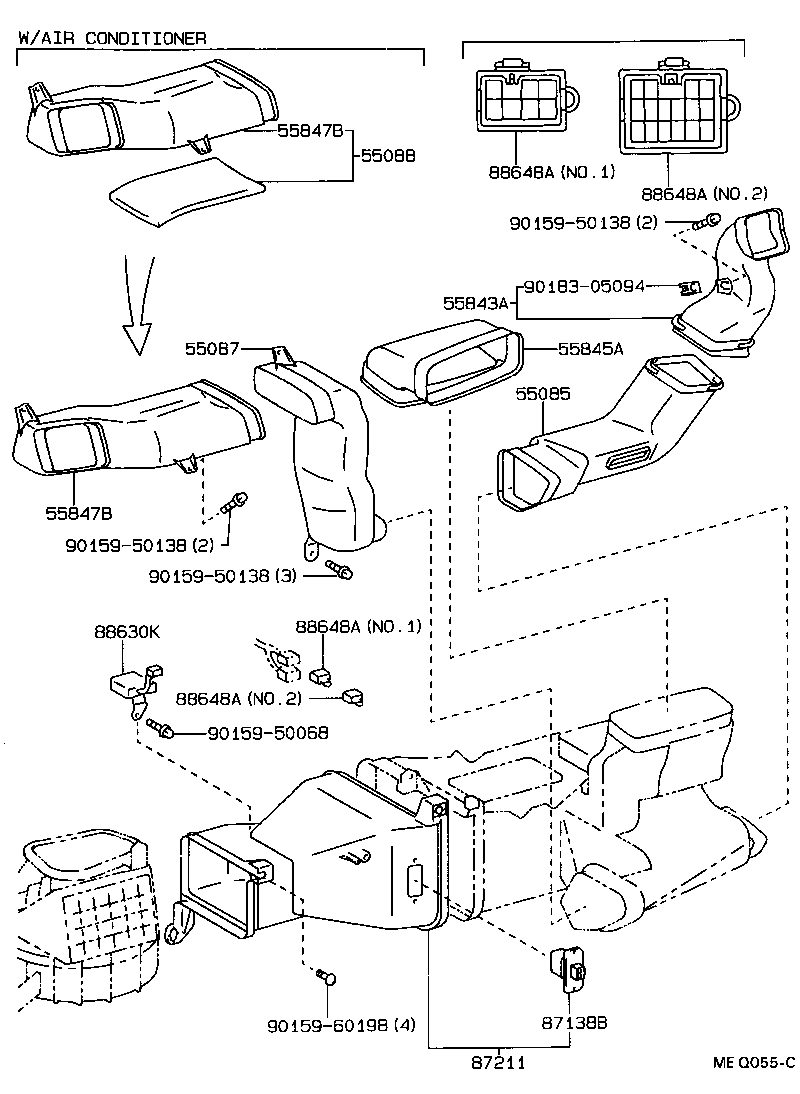

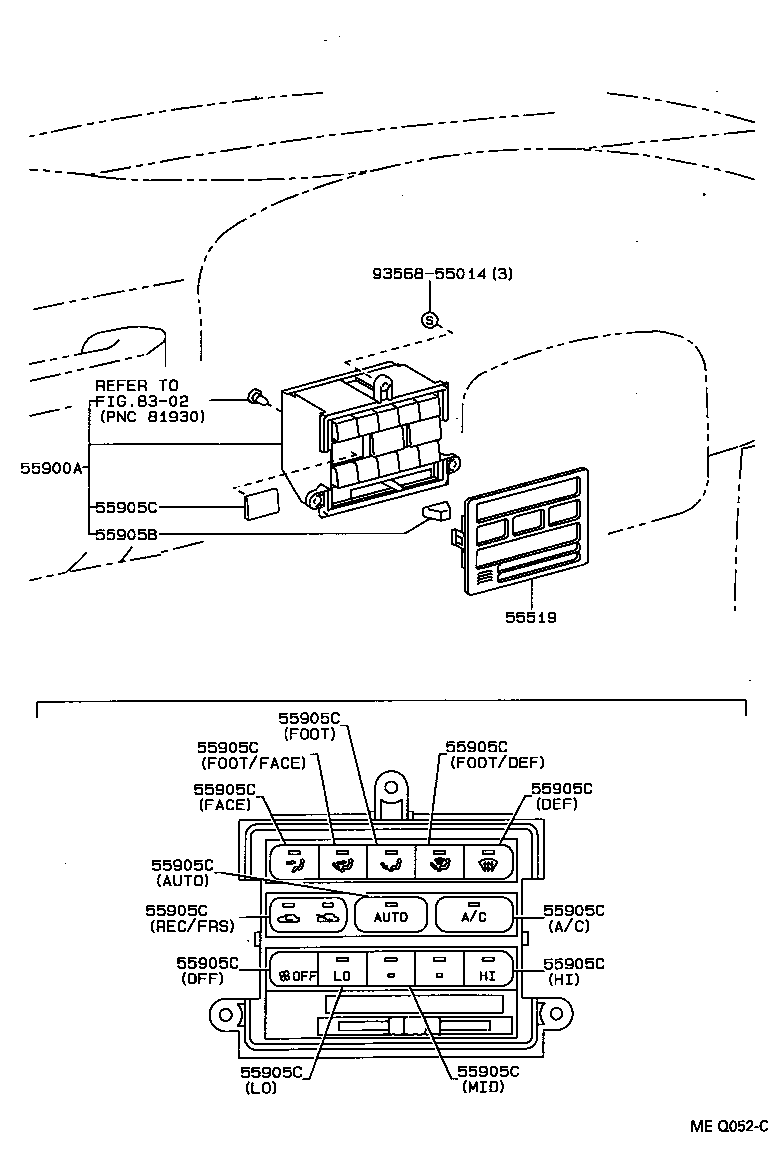

Figure MEQ053A MEQ053A 1990-01 → — Figure MEQ051A MEQ051A 1990-01 → — Figure MEQ052C MEQ052C 1990-01 → — Figure MEQ055C MEQ055C 1990-01 → — Figure MEQ058A MEQ058A 1990-01 → — Figure MEQ060B MEQ060B 1990-01 → — Figure MEQ061C MEQ061C 1990-01 → —

Part groups

PNCDescription
55085 Duct Sub-assy, Heater TO Register, NO.2
55087 Duct Sub-assy, Heater TO Register, NO.4
55088 Duct Sub-assy, Heater TO Register, NO.5
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55845A Duct, Heater TO Register, NO.3
55847B Duct, Heater TO Register, NO.5
55900A Control & Accessory Assy, Heater
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55906 Cable Sub-assy, Heater Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87138B Resistor, Heater Blower
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87233B Hose, Air
87284 Resistor Sub-assy, Variable
88505 Duct Sub-assy,Air Conditioner
88566A Duct, Cooler Air, NO.1
88570E Grille Assy, Air Outlet
88576C Duct, Cooler Air, NO.1
88610C Switch Assy, Cooler Control
88625C Thermistor, Cooler
88630K Relay Assy
88648A Wiring, Cooler
88688H Bracket, Cooler Air Duct, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
