Toyota Land Cruiser 100

1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General

Discontinued model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

26 part groups · 13 illustrations

Illustrations

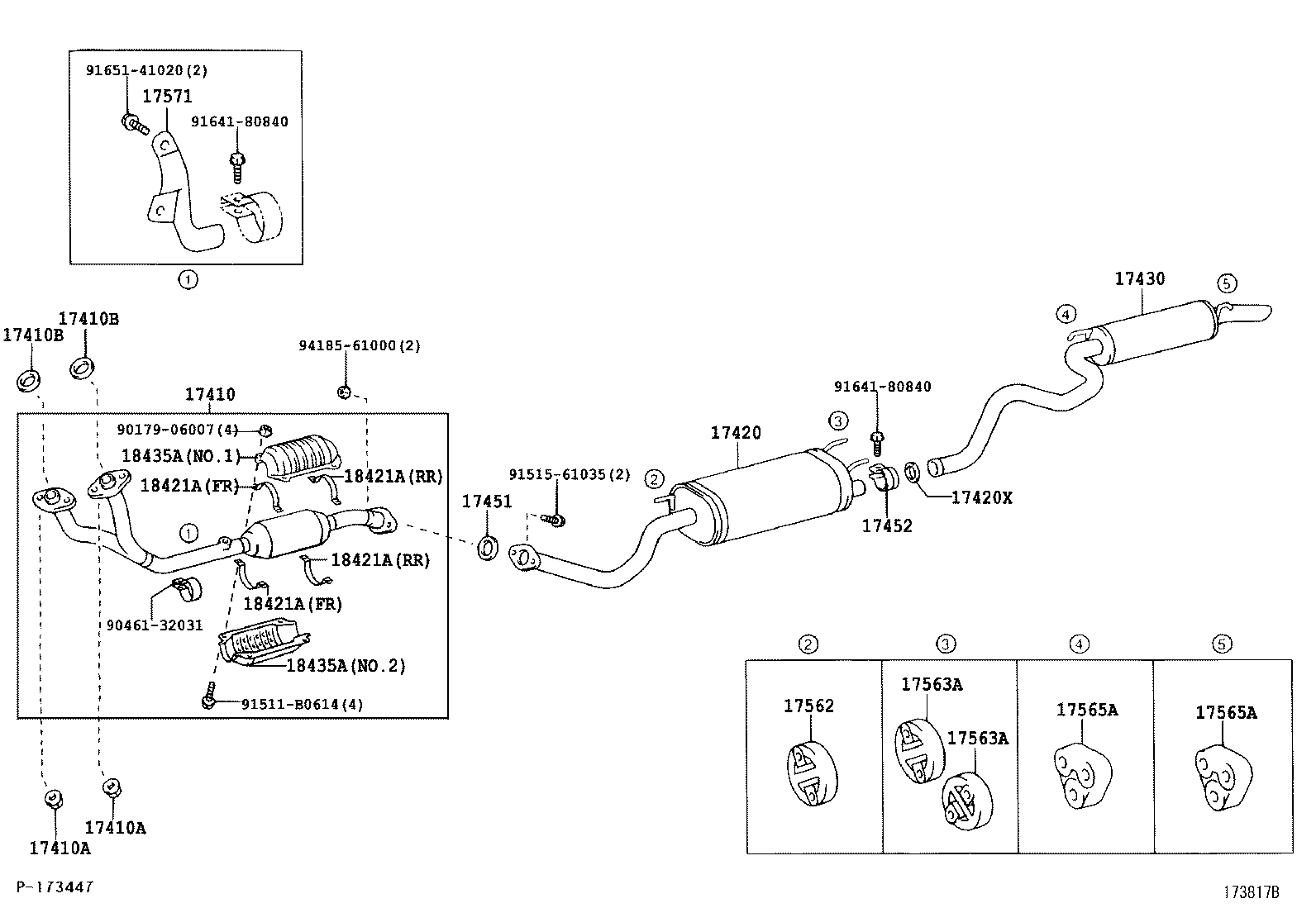

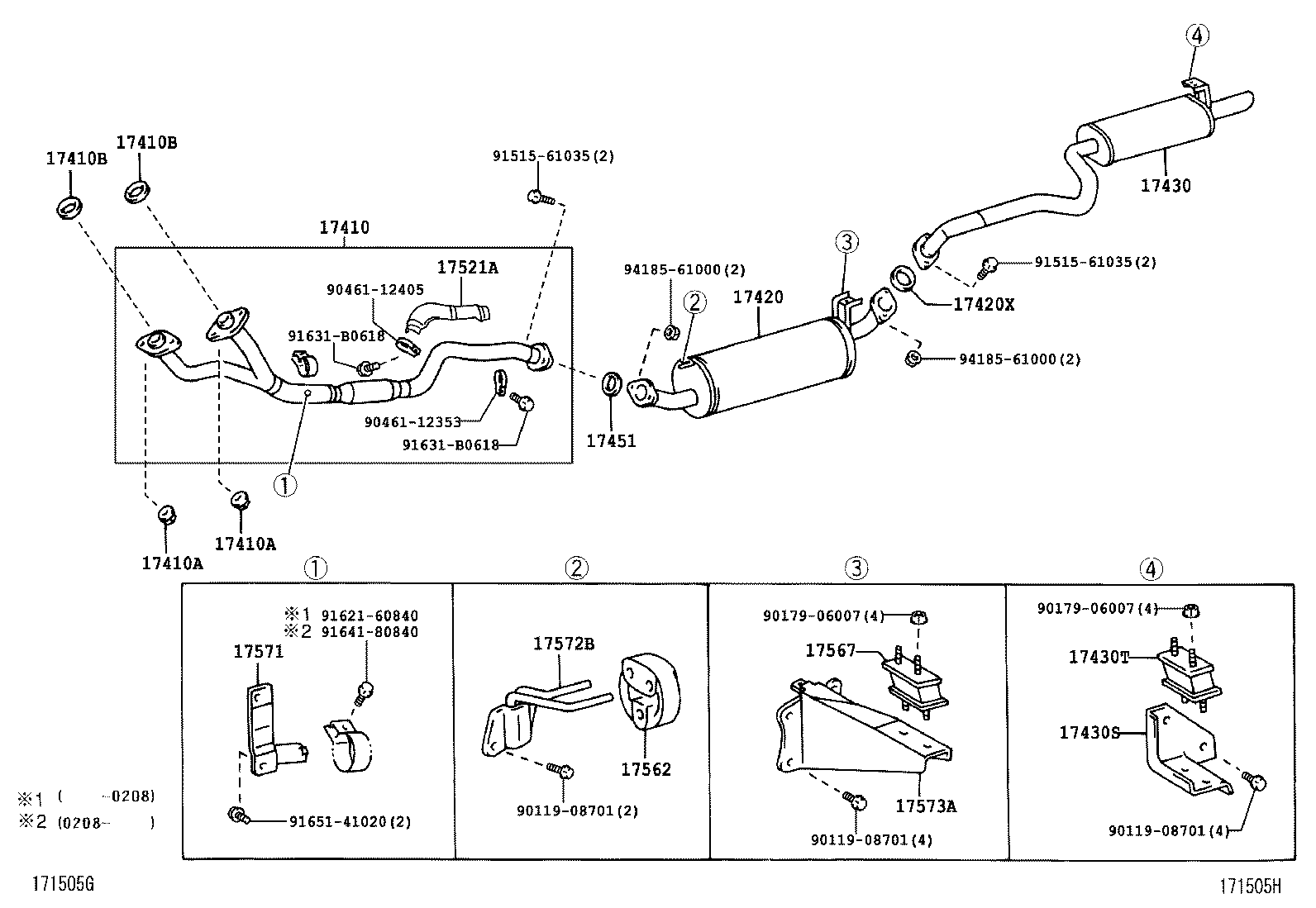

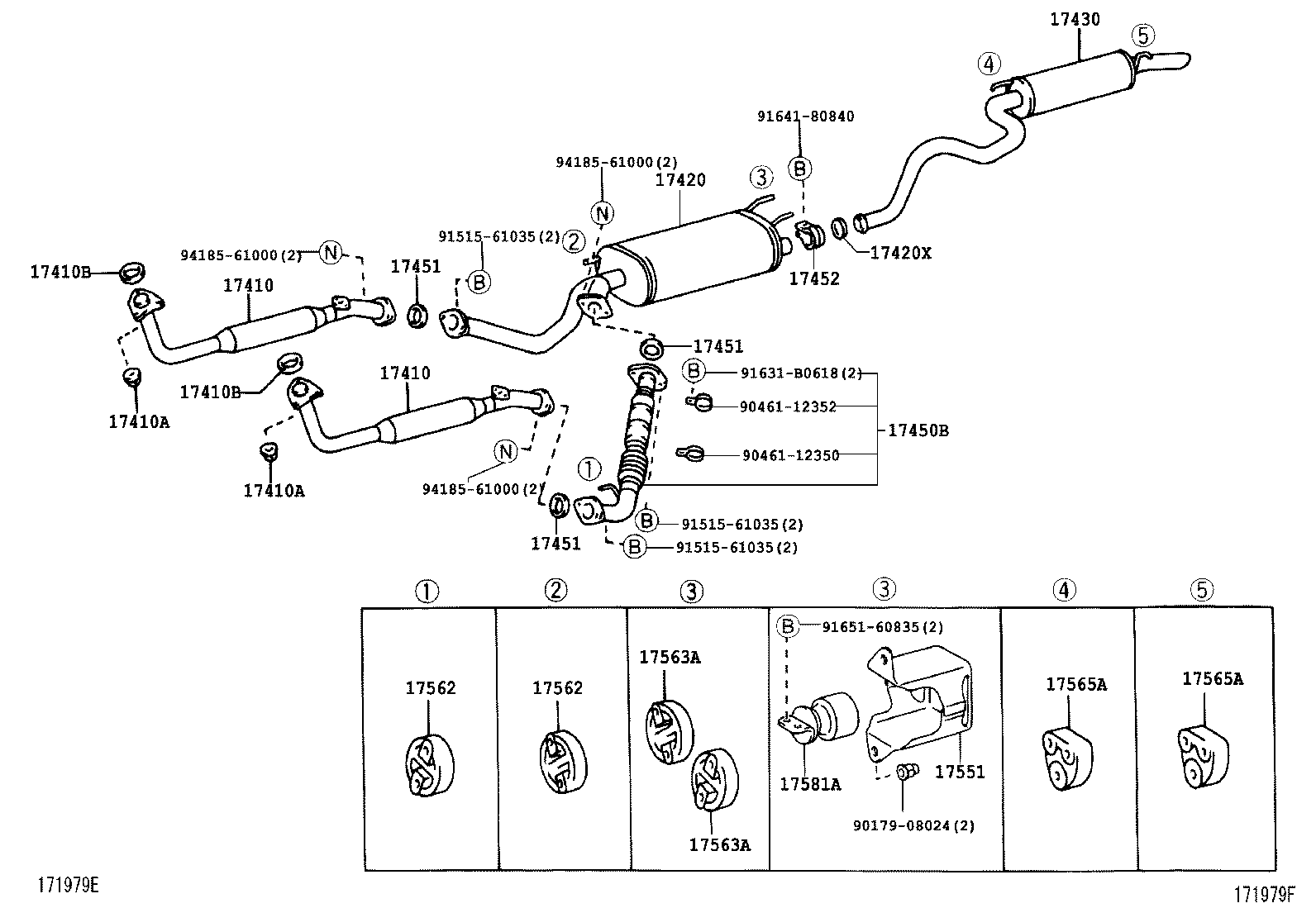

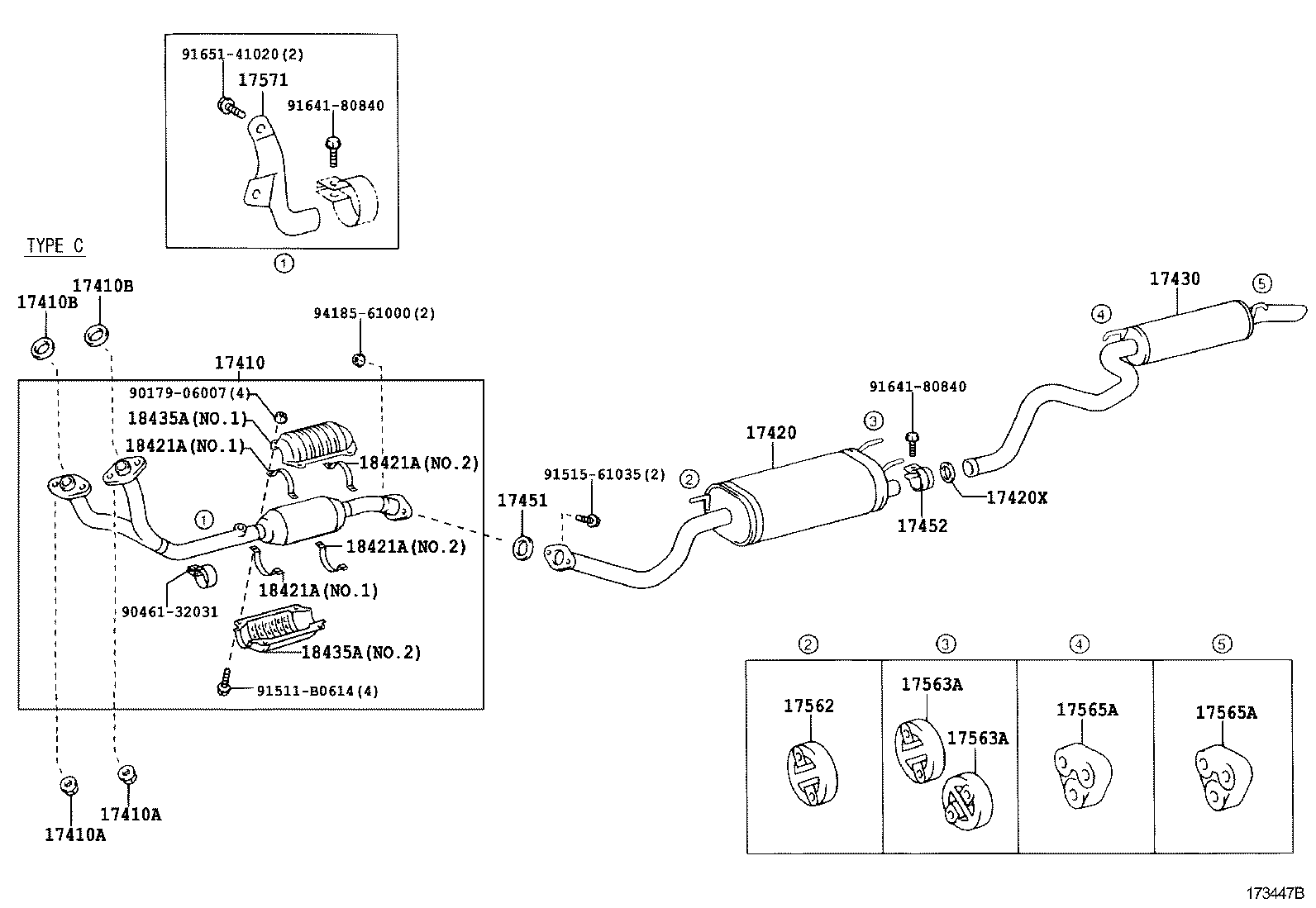

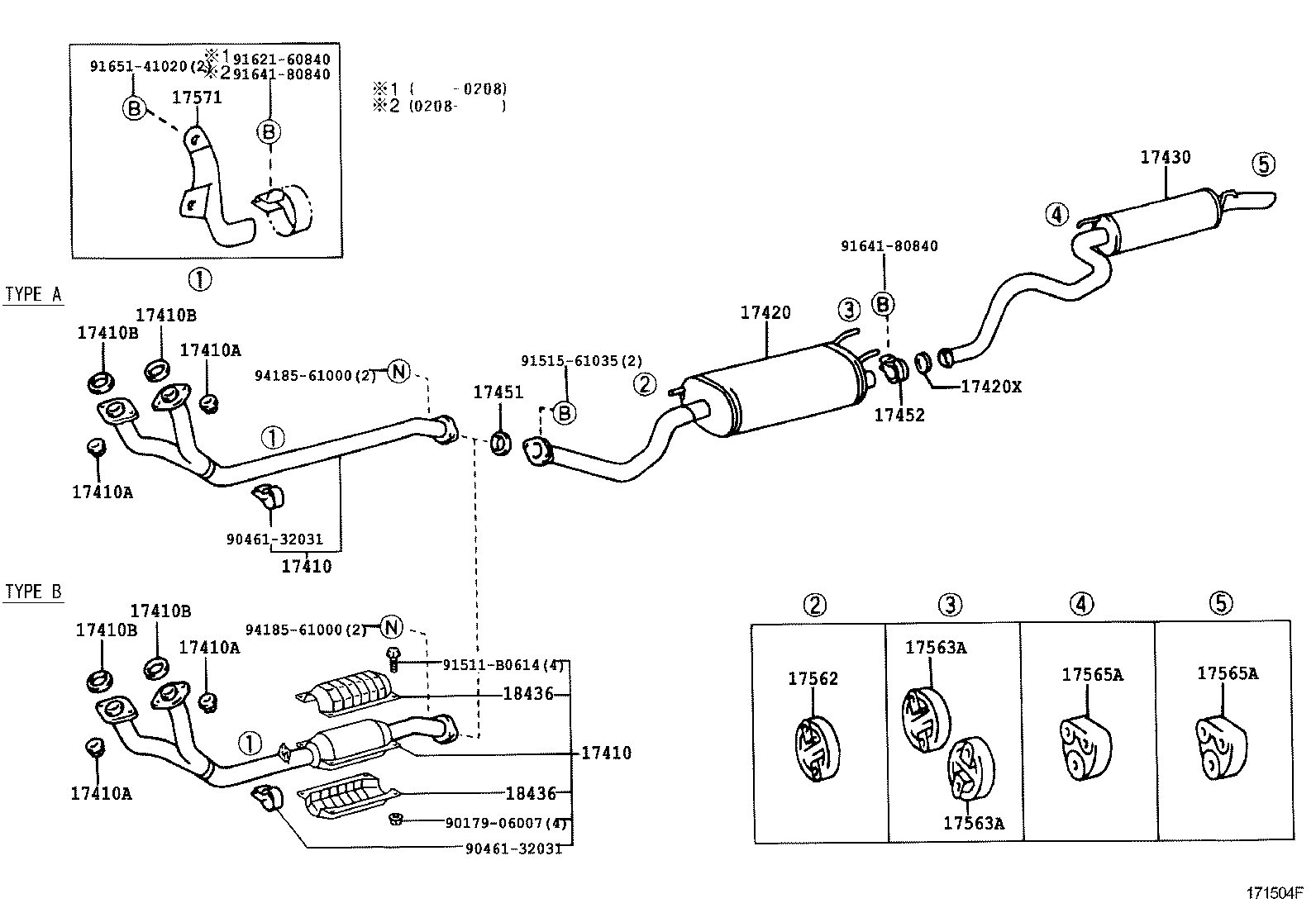

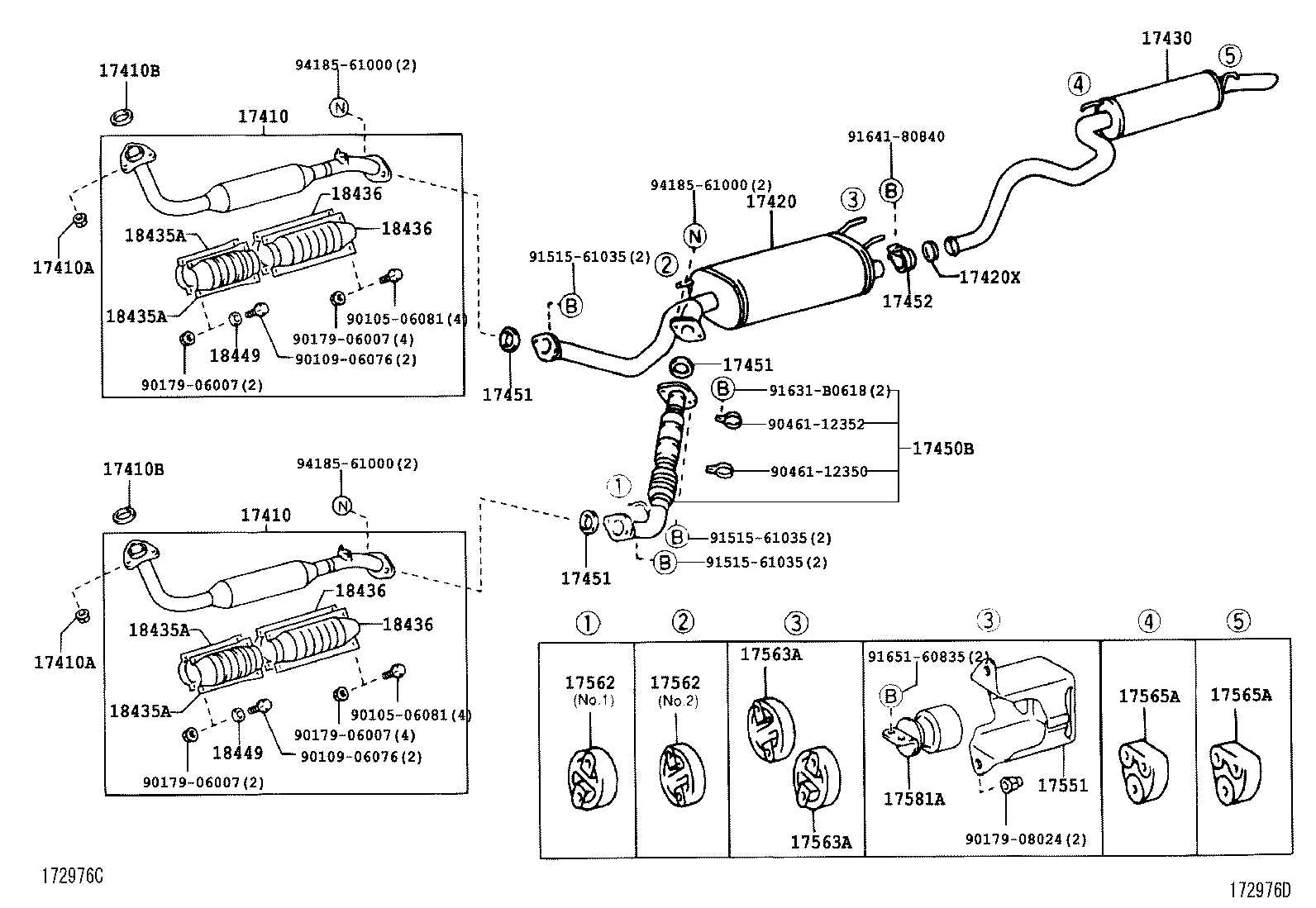

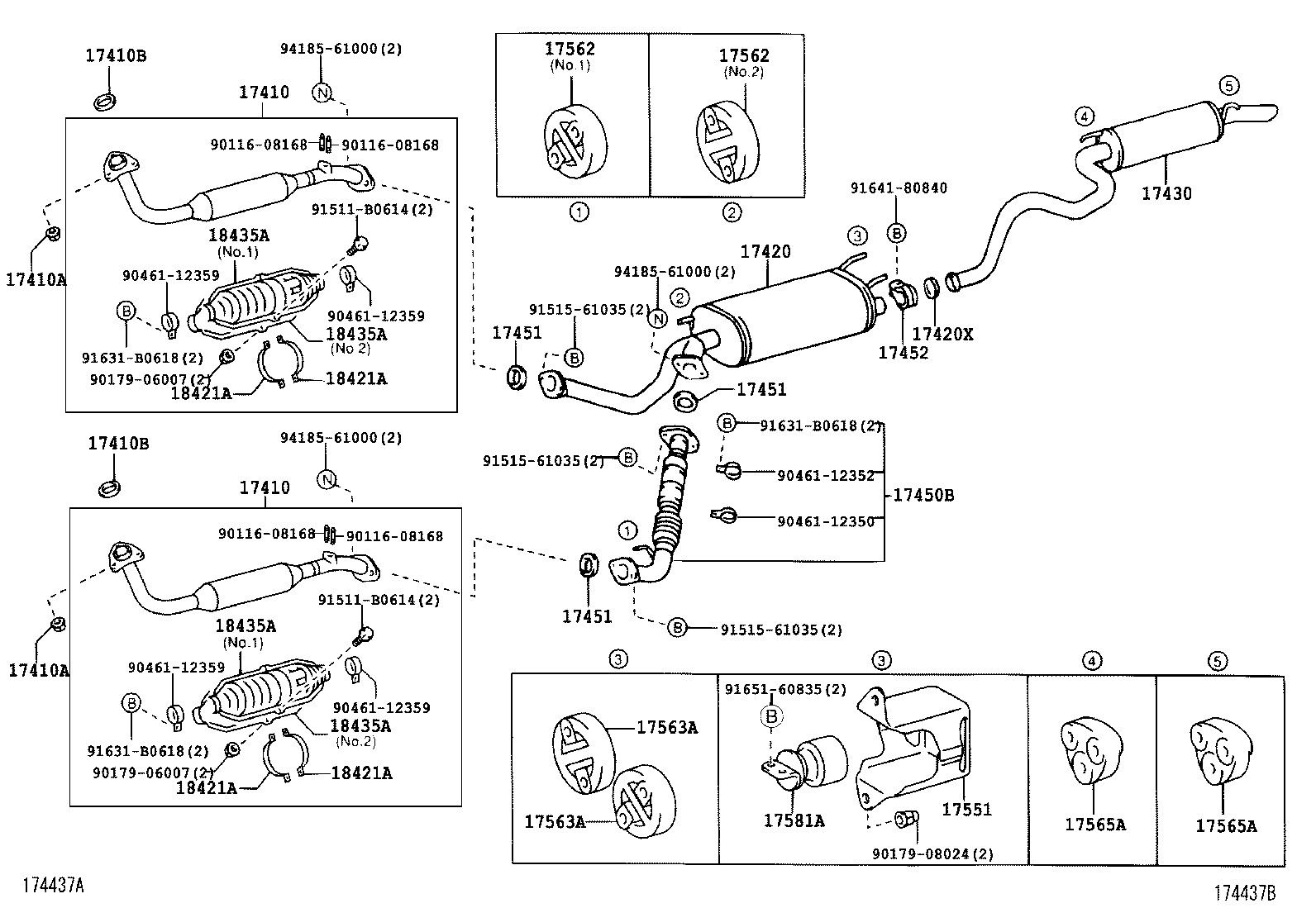

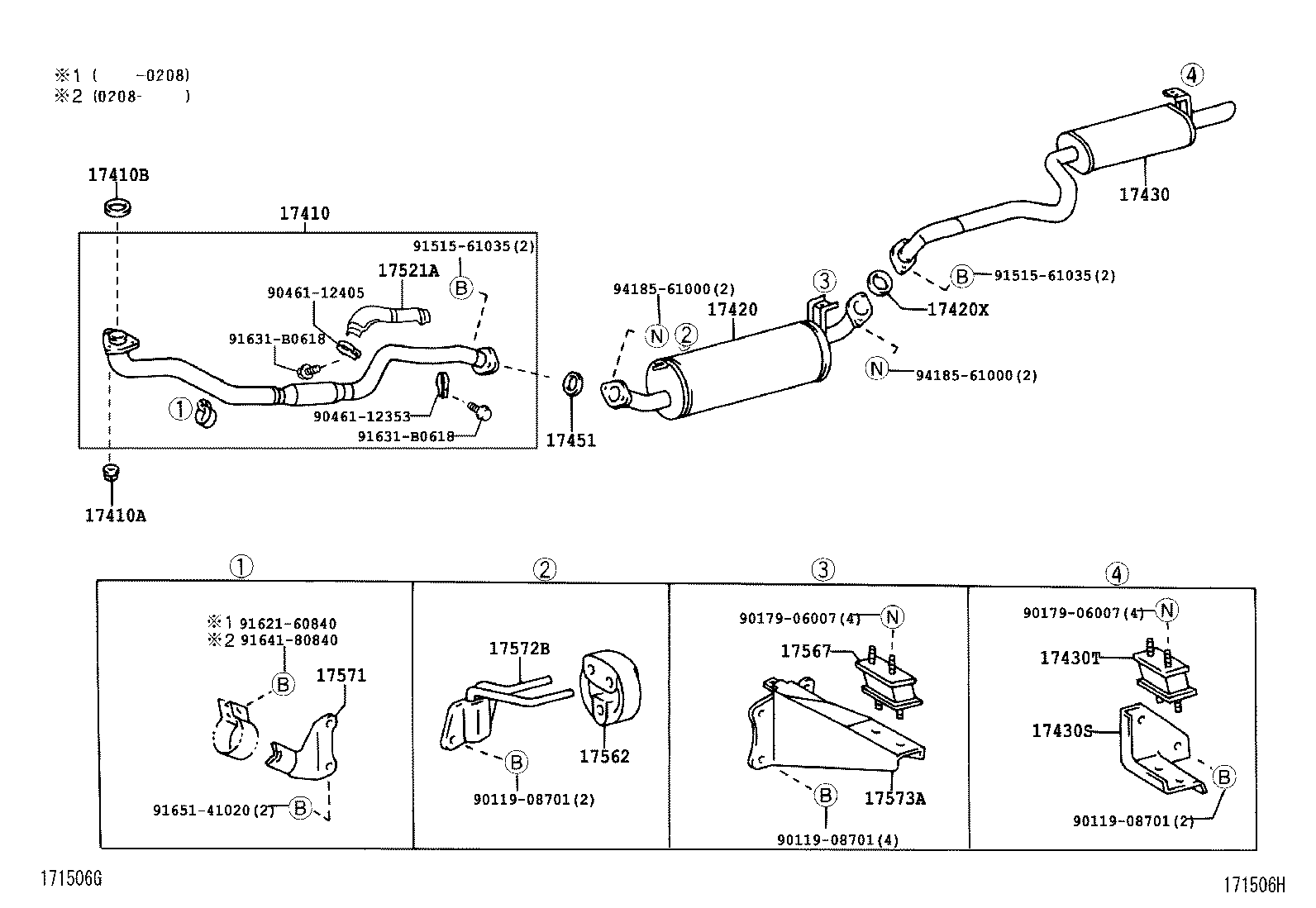

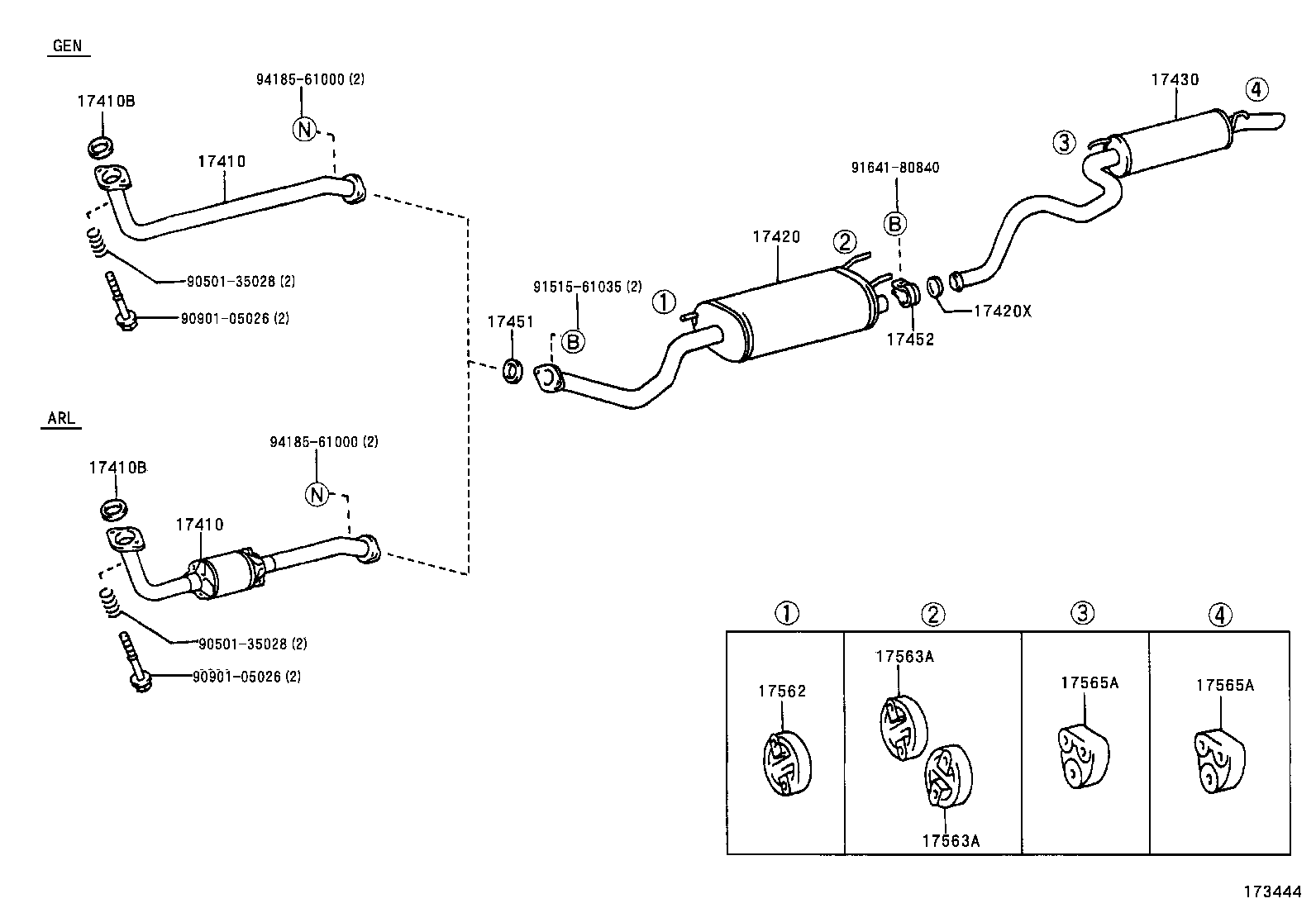

Figure 171502C 171502C 1998-01 → 2002-08 Figure 173444 173444 2002-08 → — Figure 172976D 172976D 2001-08 → 2002-08 Figure 171979F 171979F 1998-01 → 2002-08 Figure 171979F 171979F 1998-01 → — Figure 173445A 173445A 2002-08 → — Figure 174437B 174437B 2002-08 → — Figure 174437B 174437B 2003-09 → — Figure 171504F 171504F 1998-01 → — Figure 173447B 173447B 2002-08 → — Figure 173817B 173817B 2003-09 → — Figure 171505H 171505H 1998-01 → — Figure 171506H 171506H 1998-01 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17521A Protector, Exhaust Pipe, Upper NO.1
17551 Insulator, Exhaust Pipe Heat, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17567 Cushion, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17581A Damper, Exhaust Pipe
17593C Protector, Exhaust Pipe, Lower NO.1
18421A Stay, Converter Protector, LH
18435A Protector, Monolithic Converter
18436 Protector, Monolithic Converter, NO.1
18449 Spacer, Converter Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
