Toyota Land Cruiser 100
1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General
Discontinued model
Data version 2008-07

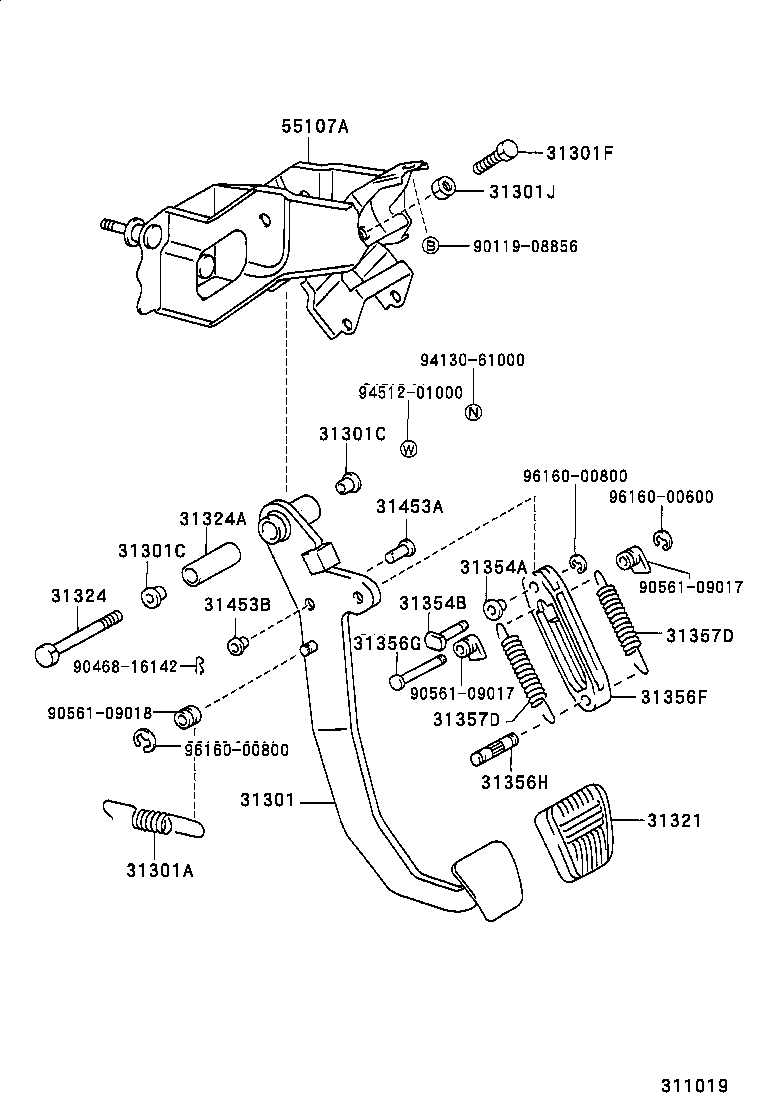

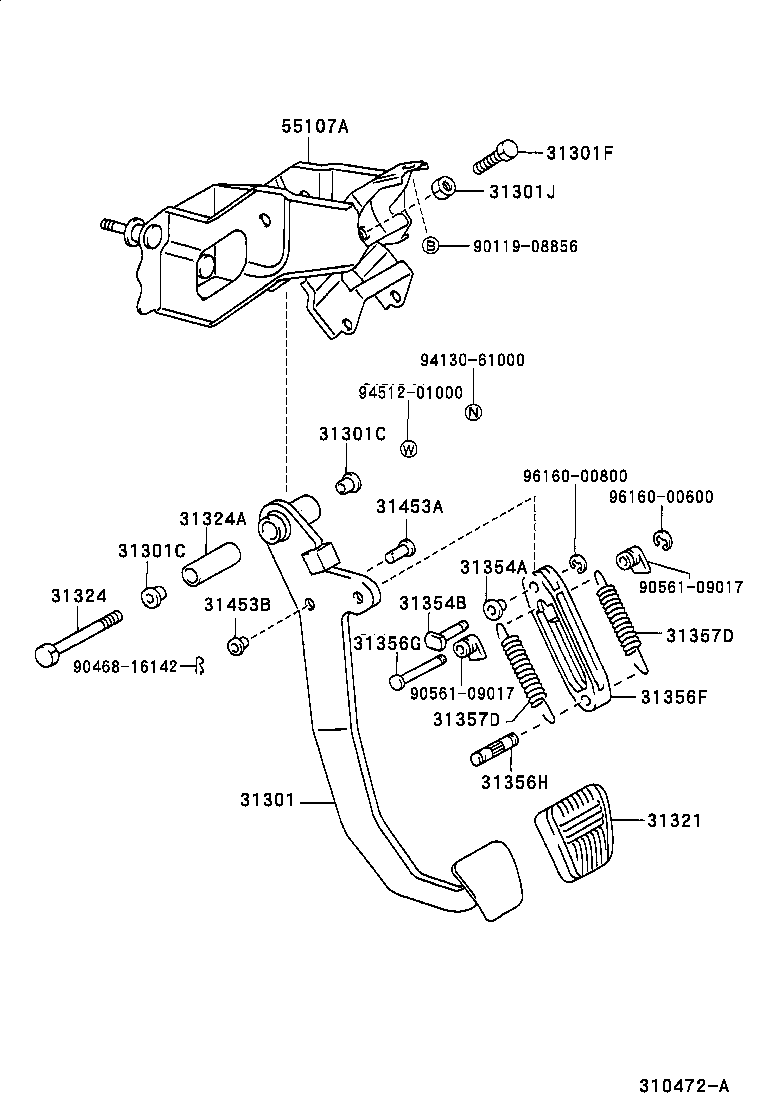

Clutch Pedal & Flexible Hose
27 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31301J | Nut(FOR CLUTCH PEDAL STOPPER) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31354A | Bush(FOR CLUTCH PEDAL SPRING SEAT UPPER) |
| 31354B | Pin, W/Hole(FOR CLUTCH PEDAL SPRING SEAT UPPER) |
| 31356F | Plate, Clutch Pedal Over Center, NO.1 |
| 31356G | Pin(FOR CLUTCH PEDAL SUPPORT OVER CENTER PLATE) |
| 31356H | Pin, NO.2(FOR CLUTCH PEDAL SUPPORT OVER CENTER PLATE) |
| 31357D | Spring, Compression(FOR OVER CENTER ADJUSTING ROD) |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |

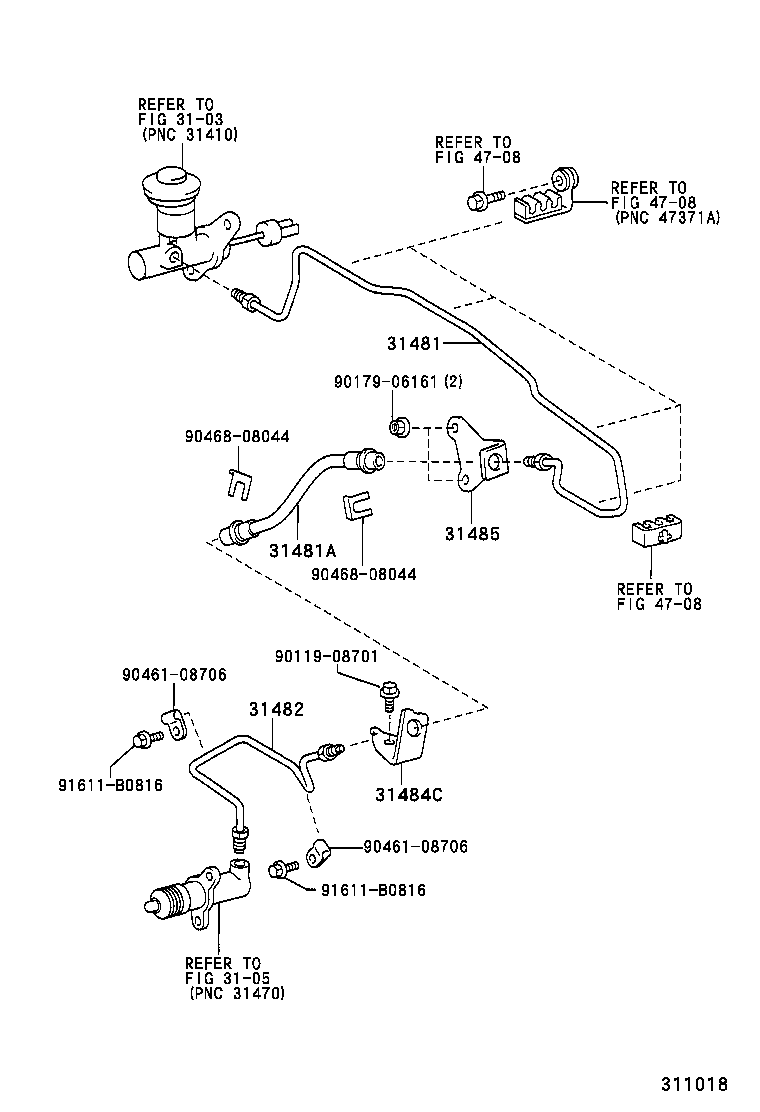

| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481A | Hose, Clutch, NO.1 |
| 31481M | Clamp(FOR CLUTCH MASTER CYLINDER TUBE) |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31482B | Hose, Clutch, NO.2 |
| 31482D | Tube, Clutch Release Cylinder TO Accumulator |
| 31484C | Bracket, Clutch Tube, NO.1 |
| 31485 | Bracket, Flexible Hose, NO.2(FOR CLUTCH) |
| 31490 | Accumulator Assy, Clutch |
| 31490C | Bolt, Union(FOR CLUTCH ACCUMULATOR) |
| 55107A | Support Sub-assy, Clutch Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
