Toyota Land Cruiser 100
1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General
Discontinued model
Data version 2008-07

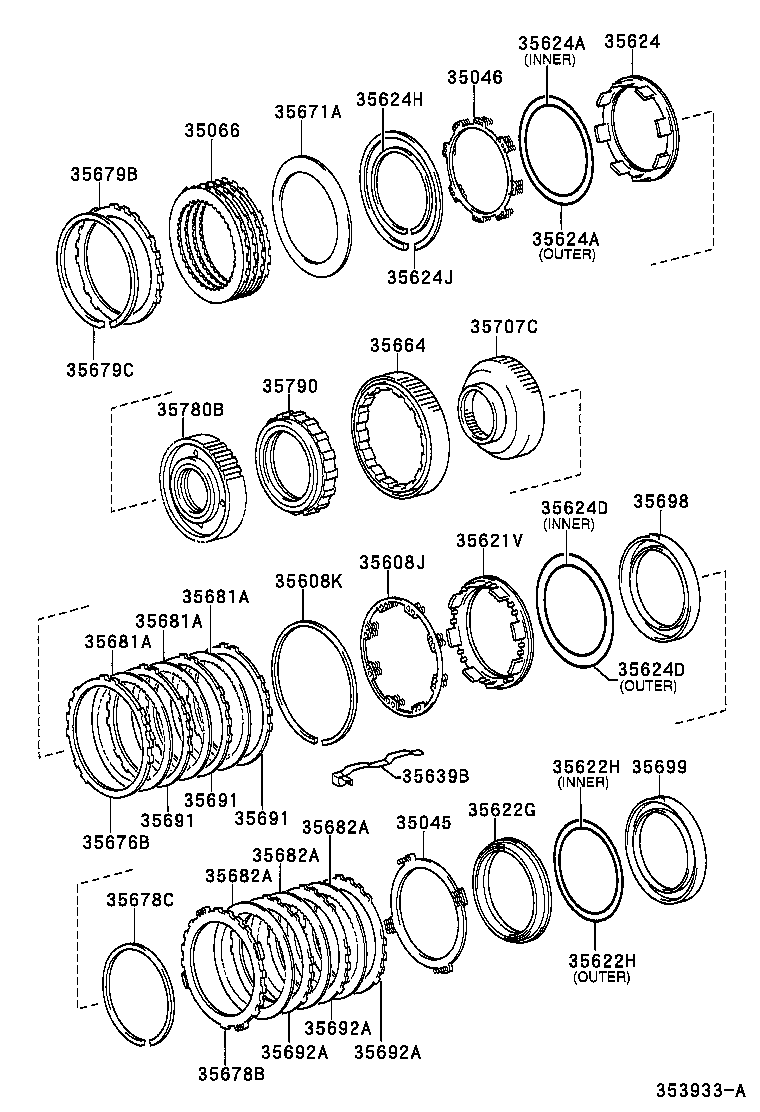

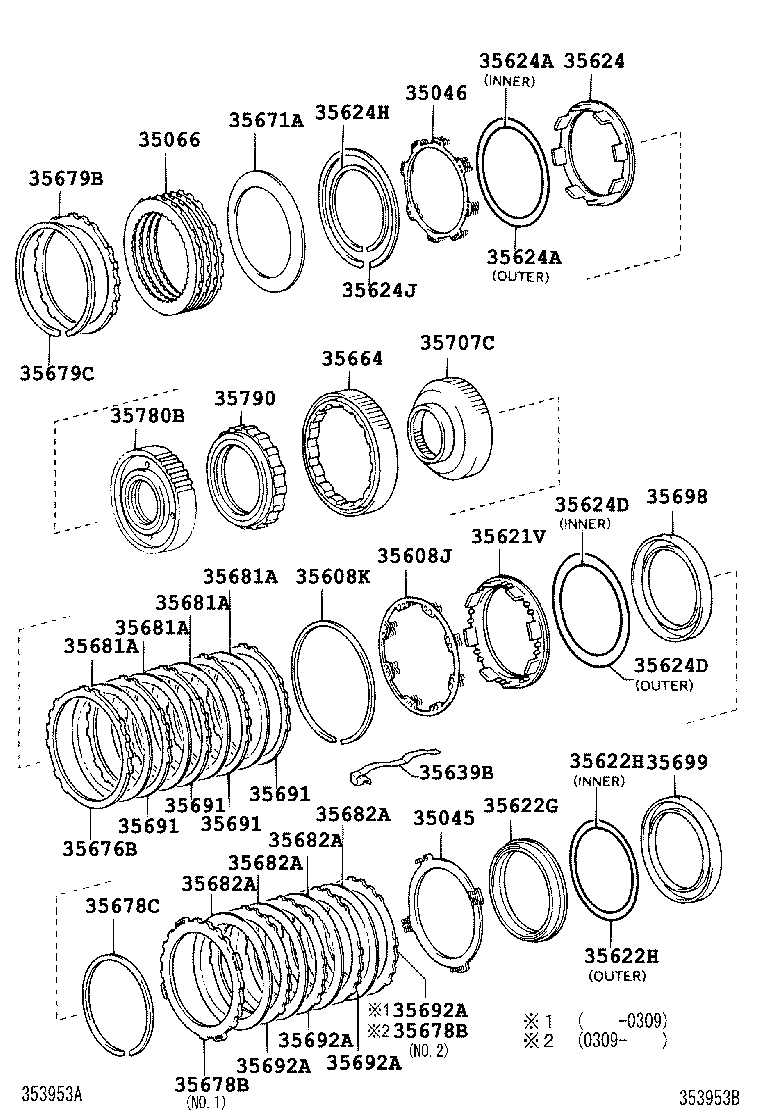

Center Support & Planetary Sun Gear (ATM)
47 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35045 | Spring Sub-assy, Brake Piston Return,NO.2 |
| 35046 | Spring Sub-assy, Brake Piston Return, NO.3 |
| 35066 | Disc Set, 2ND Brake |
| 35608 | Spring Sub-assy, 2ND Brake Piston Return |
| 35608J | Spring Sub-assy, Brake Piston Return |
| 35608K | Ring, Snap (FOR BRAKE PISTON RETURN SPRING) |
| 35620E | Ring, Hole Snap (FOR BRAKE PISTON RETURN SPRING) |
| 35620F | Ring, Hole Snap (FOR BRAKE NO.1 FLANGE) |
| 35621 | Piston, Brake, NO.1 |
| 35621A | Ring, O (FOR BRAKE PISTON OUTER) |
| 35621B | Ring, O (FOR BRAKE PISTON INNER) |
| 35621V | Piston, Brake, NO.1 |
| 35622G | Piston, Brake, NO.2 |
| 35622H | Ring, O (FOR BRAKE PISTON NO.2) |
| 35624 | Piston, 2ND Brake |
| 35624A | Ring, O (FOR 2ND BRAKE PISTON) |
| 35624D | Ring, O (FOR BRAKE PISTON NO.4) |
| 35624H | Ring, Snap (FOR 2ND BRAKE PISTON) |
| 35624J | Ring, Hole Snap (FOR 2ND BRAKE PISTON) |
| 35632 | Plate, Brake |
| 35632C | Disc, Clutch (FOR BRAKE) |
| 35639B | Spring, Brake Plate Stopper |
| 35664 | Cylinder, 2ND Brake |
| 35671A | Plate, Brake Cushion |
| 35676B | Flange, Brake, NO.1 |
| 35678B | Flange, Brake, NO.2 |
| 35678C | Ring, Snap (FOR BRAKE NO.2) |
| 35679B | Flange, Brake, NO.3 |
| 35679C | Ring, Snap (FOR BRAKE NO.3) |
| 35681A | Disc, Brake, NO.1 |
| 35682A | Disc, Brake, NO.2 |
| 35691 | Plate, Brake, NO.1 |
| 35692A | Plate, Brake, NO.2 |
| 35698 | Cylinder, Brake, NO.1 |
| 35699 | Cylinder, Brake, NO.2 |
| 35706H | Gear Sub-assy, Planetary Sun |
| 35706Q | Ring, Shaft Snap (FOR FRONT PLANETARY SUN GEAR) |
| 35707C | Race Sub-assy, 1 Way Clutch, Inner |
| 35709 | Support Sub-assy, Center |
| 35709B | Ring, O (FOR CENTER SUPPORT) |
| 35709C | Ring, Oil Seal (FOR CENTER SUPPORT) |
| 35709E | Washer (FOR CENTER SUPPORT) |
| 35709H | Bolt (FOR CENTER SUPPORT) |
| 35719A | Gear, Rear Planetary Sun |
| 35780B | Clutch Assy, 1 Way N0.2 |
| 35785 | Retainer, Center Support Ring |
| 35790 | Clutch Assy, 1 Way |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
