Valve Body & Oil Strainer (ATM)

164 part groups · 14 illustrations

Illustrations

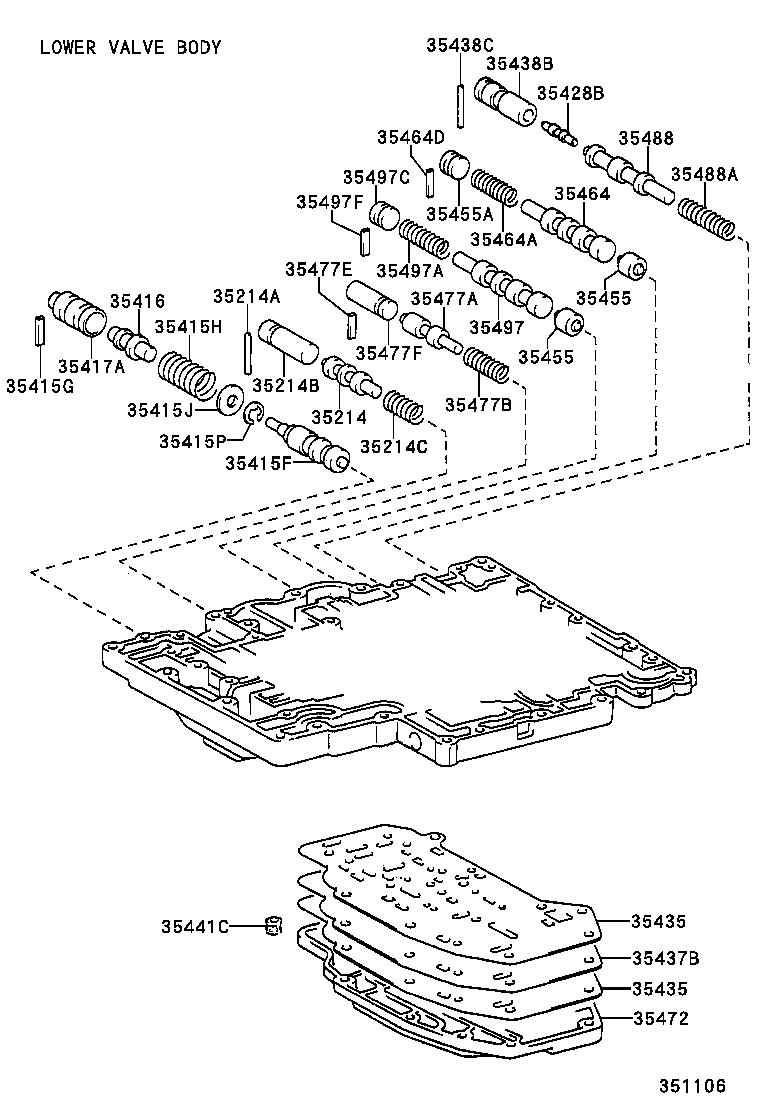

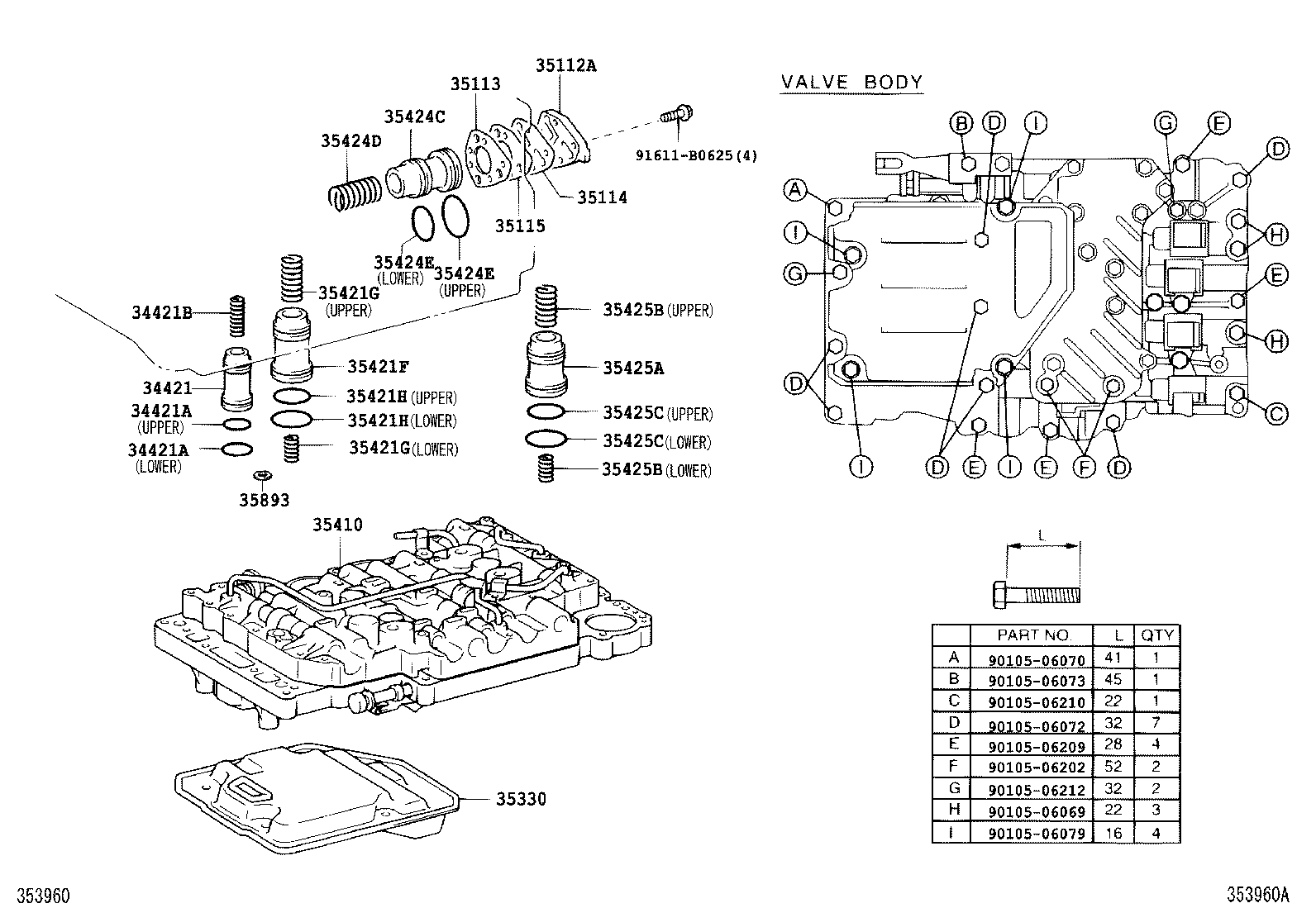

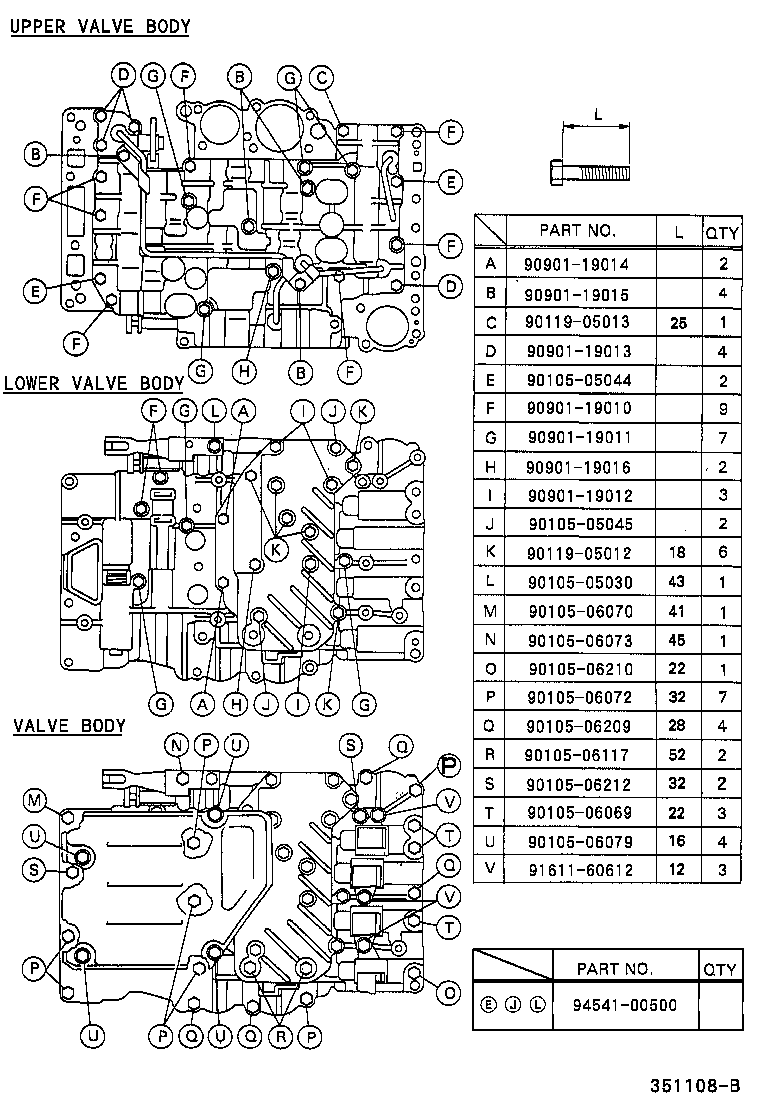

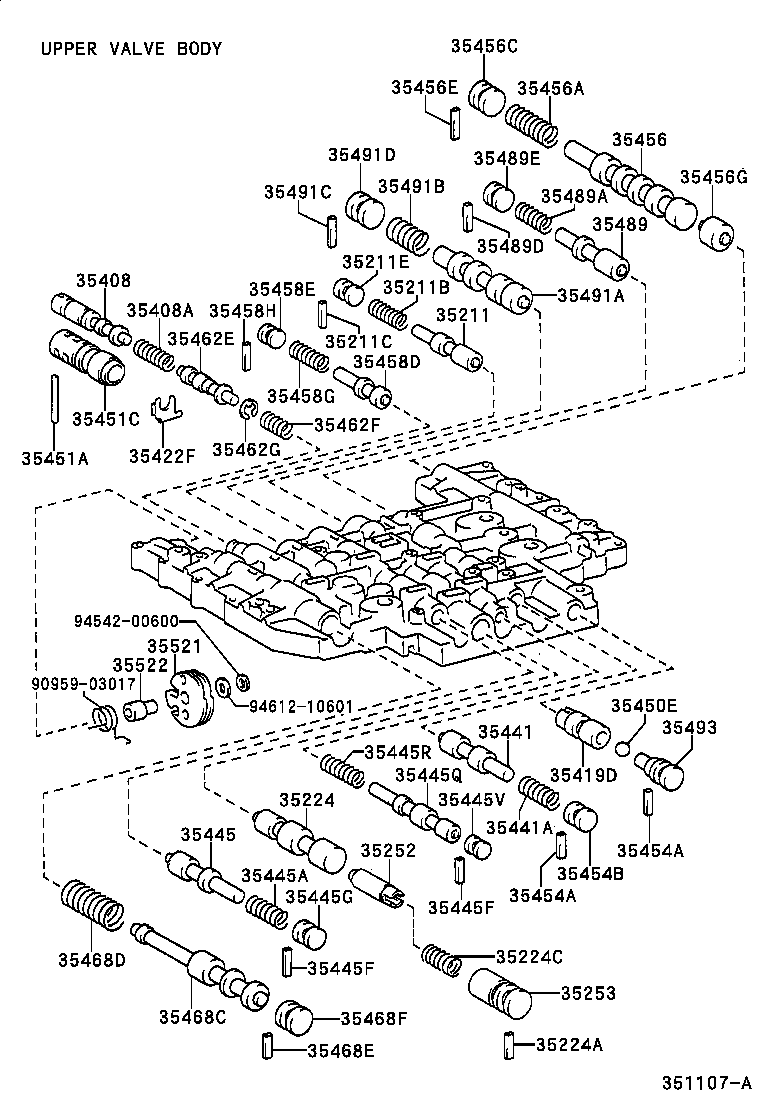

Figure 351102A 351102A 1998-01 → 2002-08 Figure 351107A 351107A 1998-01 → 2002-08 Figure 351106 351106 1998-01 → 2002-08 Figure 351108B 351108B 1998-01 → 2002-08 Figure 351288B 351288B 1998-01 → 2002-08 Figure 351288B 351288B 2000-08 → 2002-08 Figure 351289 351289 1998-01 → 2002-08 Figure 351289 351289 2000-08 → 2002-08 Figure 351290 351290 1998-01 → 2002-08 Figure 351290 351290 2000-08 → 2002-08 Figure 351291 351291 1998-01 → 2002-08 Figure 351291 351291 2000-08 → 2002-08 Figure 353960A 353960A 2002-08 → — Figure 353936E 353936E 2002-08 → —

Part groups

PNCDescription
32912A Cage, Check Valve(FOR VALVE BODY)
34421 Piston, Overdrive Brake Accumulator
34421A Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
34421B Spring (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
35112A Cover, Front Clutch Accumulator
35113 Gasket, Front Clutch Accumlator, NO.2
35114 Gasket, Front Clutch Accumlator, NO.1
35115 Plate, Front Clutch Accumulator
35205A Spring Sub-assy, B-3 Accumulator
35205B Ring, Hole Snap (FOR B-3 ACCUMULATOR SPRING)
35207B Spring Sub-assy, C-2 Accumulator
35207C Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35208B Spring Sub-assy, C-3 Accumulator
35208C Ring, Hole Snap (FOR C-3 ACCUMULATOR SPRING)
35210 Solenoid Assy, Clutch Control, NO.1
35211 Valve, Lock UP Signal
35211B Spring, Compression (FOR LOCK UP SIGNAL VALVE)
35211C Key, Straight (FOR LOCK UP SIGNAL VALVE)
35211E Plug (FOR LOCK UP SIGNAL VALVE)
35214 Valve, Lock UP Control
35214A Key, Straight (FOR LOCK UP CONTROL VALVE)
35214B Plug (FOR LOCK UP CONTROL VALVE)
35214C Spring, Compression (FOR LOCK UP CONTROL VALVE)
35220 Solenoid Assy, Clutch Control, NO.2
35222 Plate, Lock UP Relay Valve Body
35223 Gasket, Lock UP Relay Valve Body
35224 Valve, Reverse Control
35224A Key, Straight (FOR REVERSE CONTROL VALVE)
35224C Spring, Compression (FOR REVERSE CONTROL VALVE)
35230 Solenoid Assy, Transmission 3Way, NO.2
35240 Solenoid Assy, Automatic Transmission 3Way
35250A Solenoid Assy, Transmission, NO.3
35250B Ring, O NO.3(FOR TRANSMISSION SOLENOID)
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35252 Plunger, Reverse Control Valve
35253 Sleeve, Reverse Control Valve Plunger
35261A Cylinder, Throttle Pressure Accumulator
35280 Solenoid Assy, Lock UP Control
35285 Plate, Solenoid Lock
35290 Solenoid Assy, Line Pressure Control
35290B Pin, Straight (FOR LINE PRESSURE CONTOROL SOLENOID)
35330 Strainer Assy, Valve Body Oil
35330A Ring, O (FOR OIL STRAINER)
35396 Strainer, Throttle Oil
35408 Plug Sub-assy, Primary Down Shift
35408A Spring, Compression (FOR PRIMARY DOWN SHIFT PLUG)
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35415F Valve, Primary Regulator
35415G Key, Straight (FOR PRIMARY REGULATOR VALVE)
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J Washer (FOR PRIMARY REGULATOR VALVE)
35415P Ring, E (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417A Sleeve, Primary Regulator Valve
35418 Valve, Manual
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35419D Valve, Check, NO.2
35419H Valve, Check, NO.5
35419J Valve, Check, NO.6
35419K Spring, Compression (FOR CHECK VALVE NO.2)
35419L Spring, Compression (FOR CHECK VALVE NO.3)
35419M Spring, Compression (FOR CHECK VALVE NO.4)
35420F Ball, Check, NO.1
35420G Spring, Barrel Shaped
35421F Piston, Accumulator, NO.2
35421G Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
35421H Ring (FOR ACCUMULATOR PISTON NO.2)
35422F Stopper, Valve Vibrating
35424C Piston, C-1 Accumulator
35424D Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E Ring, O (FOR C-1 ACCUMULATOR PISTON)
35424F Valve, C-1 Accumulator
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426D Piston, C-3 Accumulator
35426E Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
35426F Ring, O (FOR C-3 ACCUMULATOR PISTON)
35427K Piston, B-3 Accumulator
35427L Spring, Compression (FOR B-3 ACCUMULATOR PISTON)
35427M Ring, O (FOR B-3 ACCUMULATOR PISTON)
35428B Plug, 2-3 Shift Timing Valve
35429 Tube, Line Pressure
35429A Tube, Line Pressure
35430A Ball (FOR REAR UPPER VALVE BODY)
35432 Plate, Valve Body, NO.1
35433 Gasket, Valve Body, NO.1
35434 Gasket, Valve Body, NO.2
35435 Gasket, Valve Body Plate, NO.3
35437B Plate, Valve Body Cover
35438B Sleeve, 2-3 Shift Timing Valve Plug
35438C Pin, Straight (FOR 2-3 SHIFT TIMING VALVE PLUG SLEEVE)
35441 Valve, Low Coast Shift Control
35441A Spring, Compression (FOR LOW COAST SHIFT CONTROL VALVE)
35441C Strainer, Solenoid Oil
35445 Valve, Low Modulator
35445A Spring, Compression (FOR LOW MODULATOR VALVE)
35445F Key, Straight (FOR LOW MODULATOR VALVE)
35445G Plug (FOR LOW MODULATOR VALVE)
35445Q Valve, Low Coast Modulator
35445R Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35445V Plug (FOR LOW COAST MODULATOR VALVE)
35448 Tube, 2-3 Shift Valve Apply
35448A Tube, Primary Regulator Valve Apply
35448B Tube, Primary Regulator Valve Apply
35450E Ball (FOR UPPER VALVE BODY)
35451A Pin, Straight (FOR THROTTLE VALVE SLEEVE)
35451C Sleeve, Throttle Valve, NO.1
35454A Key, Straight (FOR LOW COAST SHIFT VALVE)
35454B Plug (FOR LOW COAST SHIFT VALVE)
35455 Plug, 1-2 Shift Valve Low
35455A Plug (FOR 1-2 SHIFT VALVE LOW PLUG)
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456E Pin, Straight (FOR 2-3 SHIFT VALVE)
35456G Plug (FOR 2-3 SHIFT VALVE)
35458D Valve, Cut Back
35458E Plug (FOR CUT BACK VALVE)
35458G Spring, Compression (FOR CUT BACK VALVE)
35458H Key, Straight (FOR CUT BACK VALVE)
35458J Valve, Cut Back
35459A Sleeve, Throttle Valve, NO.2
35462E Valve, Primary Throttle
35462F Spring, Compression (FOR PRIMARY THROTTLE VALVE)
35462G Ring, E (FOR PRIMARY THROTTLE VALVE)
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464D Key, Straight (FOR 1-2 SHIFT VALVE)
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35472 Cover, Valve Body, NO.2
35477A Valve, Overdrive Clutch Exhaust
35477B Spring, Compression (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477E Key, Straight (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477F Plug (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35481B Clamp, Valve Body Wire Harness
35482B Clamp, Temperature Sensor
35488 Valve, 2-3 Shift Timing
35488A Spring, Compression (FOR 2-3 SHIFT TIMING VALVE)
35489 Valve, 3-2 Kick Down Orifice Control
35489A Spring (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35489D Key, Straight (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35489E Plug (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D Plug (FOR ACCUMULATOR CONTROL VALVE NO.1)
35493 Seat, Shift Valve Spring
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497F Key, Straight (FOR 3-4 SHIFT VALVE)
35521 Cam, Throttle Valve
35522 Pin, Throttle Valve Cam
35599 Cover, Manual Detent Spring
35844A Tube, Accumulator Back Pressure, NO.1
35891 Tube, Overdrive Direct Clutch
35893 Gasket, Center Support Apply
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
