Toyota Land Cruiser 100
1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General
Discontinued model
Data version 2008-07

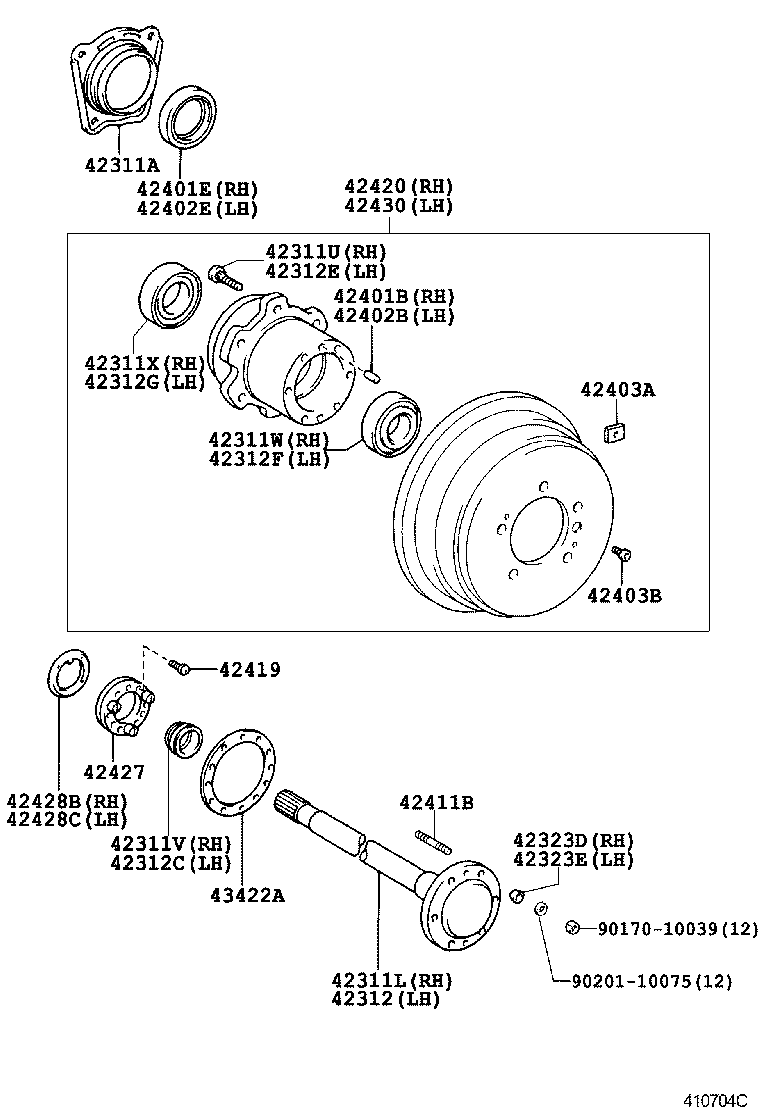

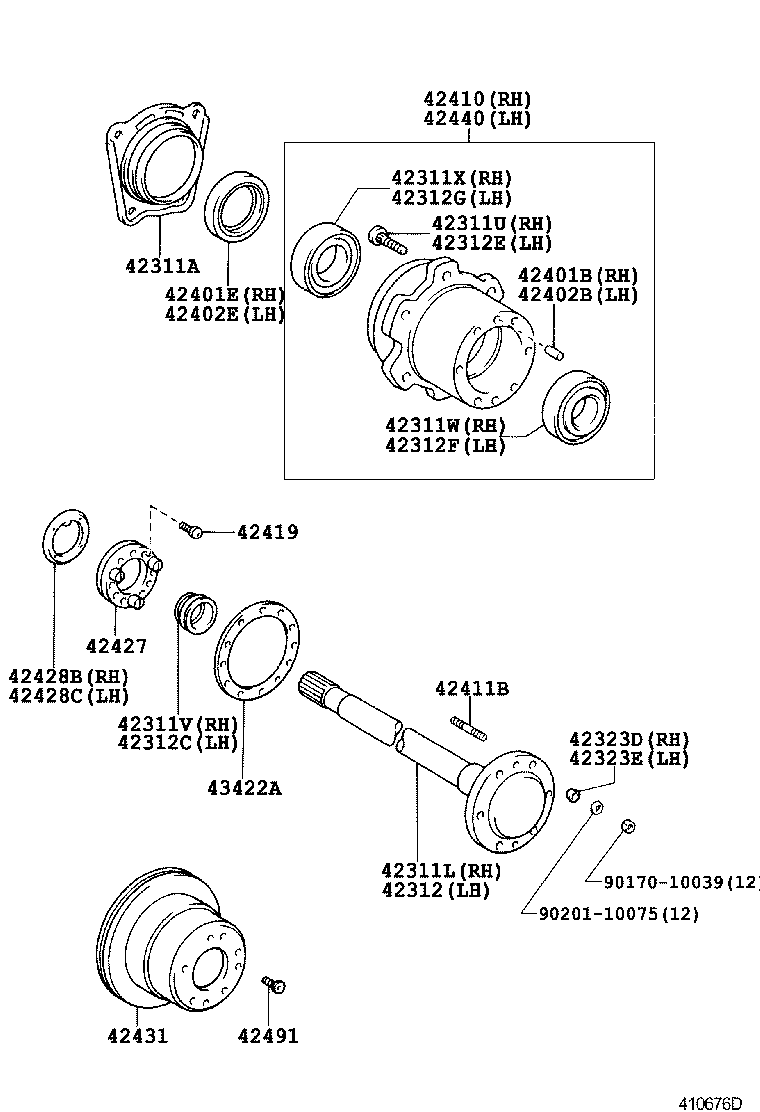

Rear Axle Shaft & Hub
52 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 42311A | Seal, Oil(FOR REAR AXLE SHAFT) |
| 42311E | Seal, Oil(FOR REAR AXLE SHAFT OUTER) |
| 42311L | Shaft, Rear Axle, RH |
| 42311M | Bearing(FOR REAR AXLE SHAFT RH) |
| 42311T | Ring, Snap(FOR REAR AXLE SHAFT RH) |
| 42311U | Bolt, Hub(FOR REAR AXLE RH) |
| 42311V | Seal, Oil(FOR REAR AXLE SHAFT RH) |
| 42311W | Bearing(FOR REAR AXLE SHAFT OUTER RH) |
| 42311X | Bearing(FOR REAR AXLE SHAFT INNER RH) |
| 42311Z | Washer(FOR REAR AXLE SHAFT RH) |
| 42312 | Shaft, Rear Axle, LH |
| 42312A | Bearing(FOR REAR AXLE SHAFT LH) |
| 42312C | Seal, Oil(FOR REAR AXLE SHAFT LH) |
| 42312D | Ring, Snap(FOR REAR AXLE SHAFT LH) |
| 42312E | Bolt, Hub(FOR REAR AXLE LH) |
| 42312F | Bearing(FOR REAR AXLE SHAFT OUTER LH) |
| 42312G | Bearing(FOR REAR AXLE SHAFT INNER LH) |
| 42312J | Washer(FOR REAR AXLE SHAFT LH) |
| 42323D | Washer, Cone (FOR REAR AXLE SHAFT RH) |
| 42323E | Washer, Cone (FOR REAR AXLE SHAFT LH) |
| 42401B | Pin, Straight (FOR REAR AXLE HUB RH) |
| 42401E | Seal, Oil (FOR REAR AXLE HUB RH) |
| 42402B | Pin, Straight (FOR REAR AXLE HUB LH) |
| 42402E | Seal, Oil (FOR REAR AXLE HUB LH) |
| 42403 | Drum Sub-assy, Rear Brake |
| 42403A | Piece, Balance (FOR REAR BRAKE DRUM) |
| 42403B | Bolt, Set (FOR REAR BRAKE DRUM SETTING) |
| 42410 | Hub & Bearing Assy, Rear Axle, RH |
| 42411B | Bolt, Stud (FOR REAR AXLE HUB) |
| 42419 | Screw, Rear Axle Bearing Lock Nut |
| 42420 | Hub (OR SHAFT) & Brake Drum Rear Axle, RH |
| 42421A | Bolt (FOR REAR AXLE BEARING CASE) |
| 42421D | Case, Rear Axle Bearing, RH |
| 42421F | Ring, O (FOR REAR AXLE BEARING CASE RH) |
| 42422 | Case, Rear Axle Bearing, LH |
| 42422B | Ring, O (FOR REAR AXLE BEARING CASE LH) |
| 42423A | Retainer, Rear Axle Bearing, Inner RH |
| 42423B | Retainer, Rear Axle Bearing, Inner LH |
| 42427 | Nut, Rear Axle Bearing Lock |
| 42428B | Plate, Rear Axle Lock Nut, RH |
| 42428C | Plate, Rear Axle Lock Nut, LH |
| 42430 | Hub (OR SHAFT) & Brake Drum Rear Axle, LH |
| 42431 | Disc, Rear |
| 42440 | Hub & Bearing Assy, Rear Axle, LH |
| 42441A | Deflector, Brake Drum Oil RH |
| 42441B | Deflector, Brake Drum Oil LH |
| 42443A | Gasket, Brake Drum Oil Deflector, RH |
| 42443B | Gasket, Brake Drum Oil Deflector, LH |
| 42444R | Gasket, Brake Drum (FOR REAR AXLE) |
| 42491 | Plug, Shoe Adjusting Hole (FOR PARKING BRAKE) |
| 43422A | Gasket, Rear Axle Outer Shaft Flange |
| 43517 | Rotor, Skid Control, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
