Toyota Land Cruiser 100
1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General
Discontinued model
Data version 2008-07

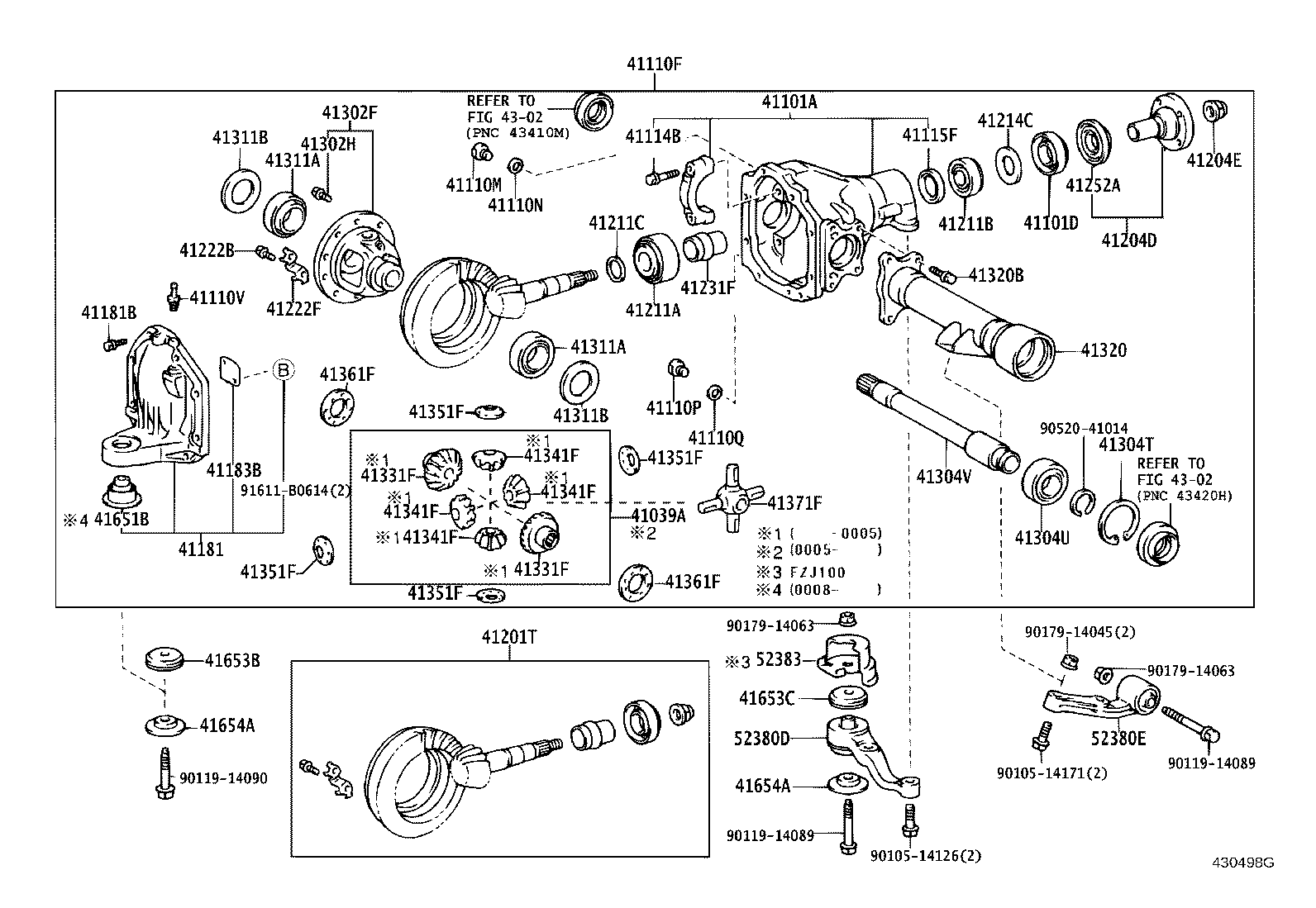

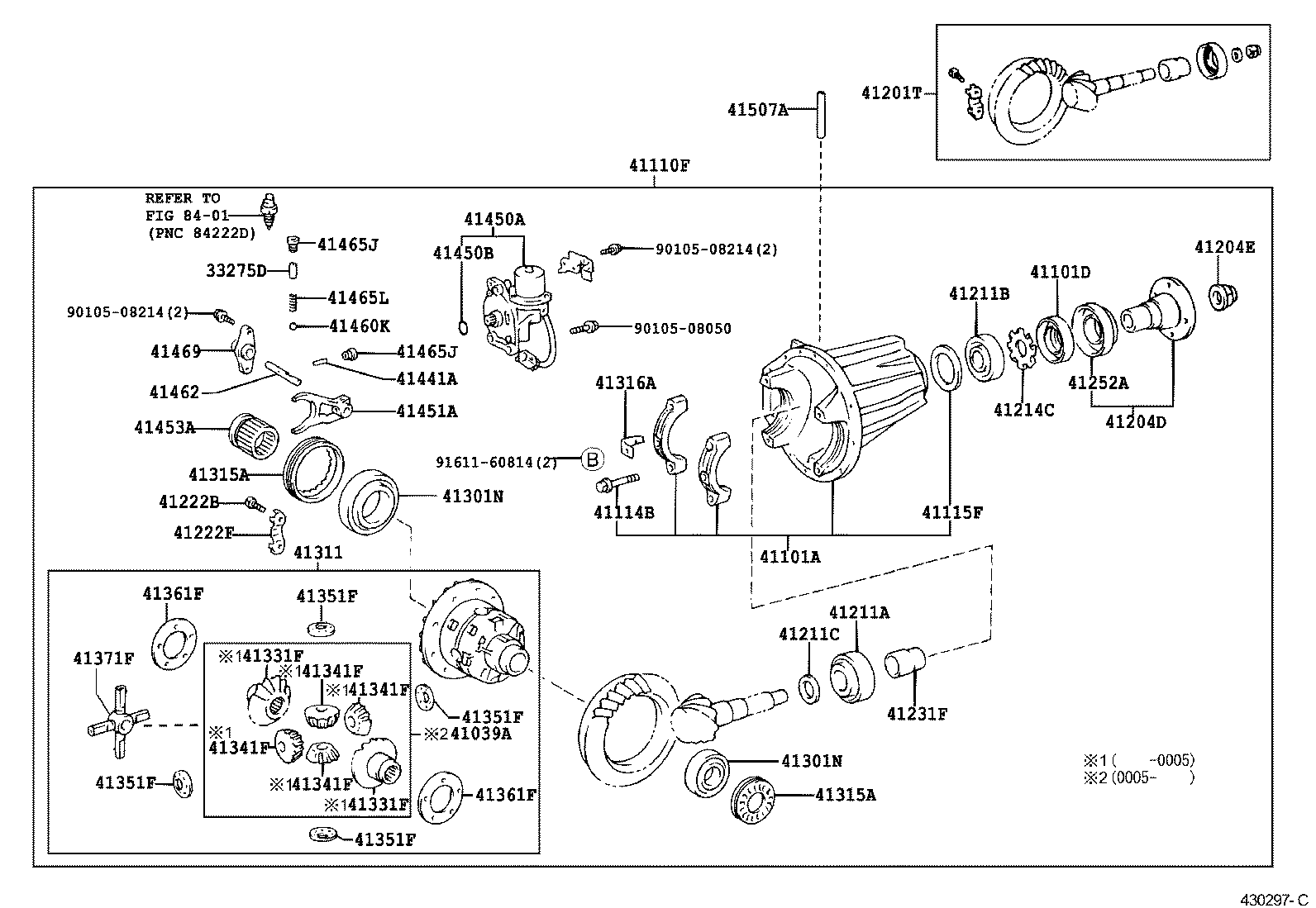

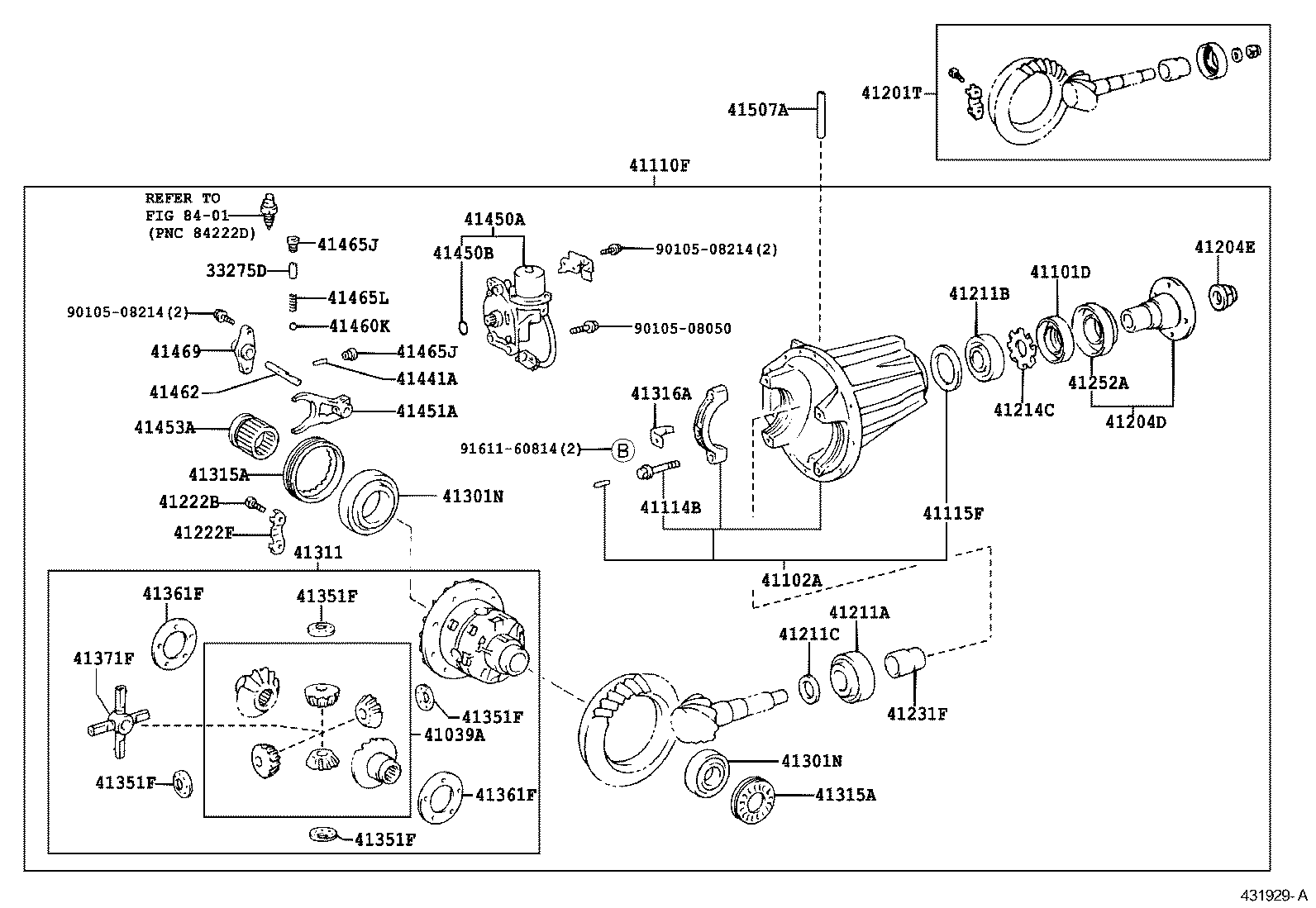

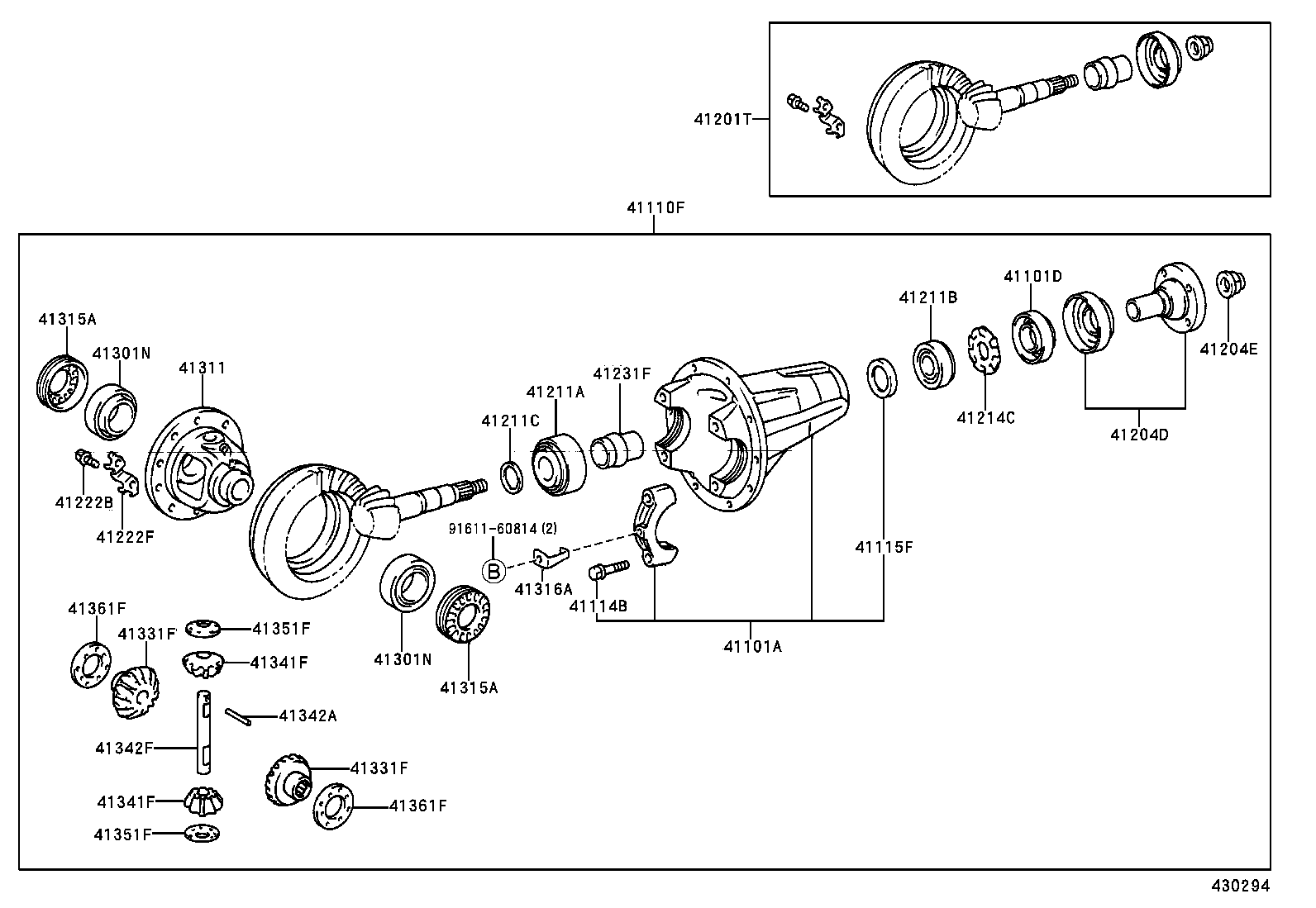

Front Axle Housing & Differential
78 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 33275D | Seat, Shift Detent Ball Spring |
| 41039A | Gear Kit, Differential |
| 41101A | Carrier Sub-assy, Differential, Front |
| 41101D | Seal, Oil (FOR FRONT DIFFERENTIAL CARRIER) |
| 41102A | Carrier Sub-assy, Differential, Front W/Pin |
| 41110C | Bolt, Stud (FOR FRONT DIFFERENTIAL CARRIER) |
| 41110F | Carrier Assy, Differential, Front |
| 41110M | Plug, Front Differential Filler |
| 41110N | Gasket, Front Differential Filler Plug |
| 41110P | Plug, Front Differential Drain |
| 41110Q | Gasket, Front Differential Drain Plug |

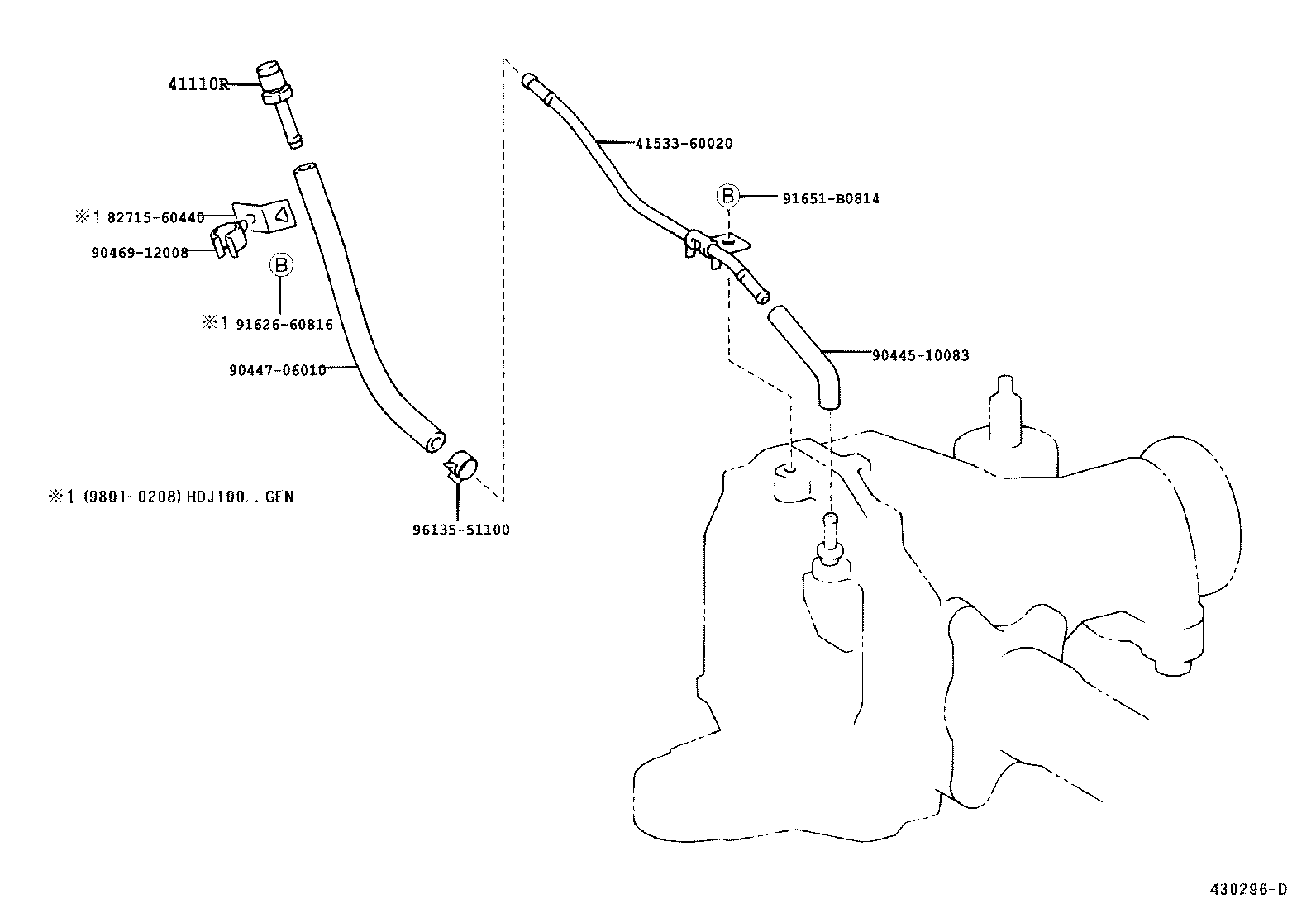

| 41110R | Plug, Breather (FOR FRONT DIFFERENTIAL) |
| 41110V | Union (FOR FRONT DIFFERENTIAL) |
| 41114B | Bolt, Front Differential Bearing Cap |
| 41115F | Ring, Front Differential Oil Storage |
| 41181 | Cover, Front Differential Carrier |
| 41181B | Bolt (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) |
| 41183B | Deflector, Front Differential Side Bearing Retainer |
| 41201T | Final Gear Kit, Differential, Front |
| 41204D | Flange Sub-assy, Front Drive Pinion Companion, Front |
| 41204E | Nut (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41211C | Gear, Differential Ring |
| 41214C | Slinger, Front Differential Drive Pinion Oil |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41222F | Plate, Fornt Differential Ring Gear Set Bolt Lock |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41252A | Deflector, Dust (FOR FRONT DIFFERENTIAL) |
| 41301N | Bearing(FOR FRONT DIFFERENTIAL CASE) |
| 41302F | Case Sub-assy, Front Differential |
| 41302H | Bolt(FOR FRONT DIFFERENTIAL CASE) |
| 41304T | Ring, Shaft Snap (FOR DIFFERENTIAL SIDE GEAR SHAFT LH) |
| 41304U | Bearing (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT LH) |
| 41304V | Shaft Sub-assy, Differential Side Gear, LH |
| 41311 | Case, Front Differential |
| 41311A | Bearing (FOR FRONT DIFFERENTIAL CASE) |
| 41311B | Washer, Plate (FOR FRONT DIFFERENTIAL CASE) |
| 41315A | Nut, Front Differential Bearing Adjusting |
| 41316A | Lock, Front Differential Bearing Adjusting Nut |
| 41320 | Tube Assy, Front Differential |
| 41320B | Bolt (FOR FRONT DIFFERENTIAL TUBE) |
| 41331F | Gear, Front Differential Side |
| 41341F | Pinion, Front Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 41371F | Spider, Front Differential |
| 41441A | Pin, Slotted Spring (FOR DIFFERENTIAL SHIFT FORK) |
| 41450A | Actuator, Differential Lock Shift, NO.2 |
| 41450B | Ring, O (FOR DIFFERENTIAL LOCK SHAFT RETAINER) |
| 41451A | Fork, Front Differential Lock Shift |
| 41453A | Sleeve, Front Differential Lock |
| 41460K | Ball (FOR FRONT DIFFERENTIAL LOCK CYLINDER) |
| 41462 | Shaft, Front Differential Lock Shift Fork |
| 41465J | Plug (FOR FRONT DIFFERENTIAL LOCK CYLINDER) |
| 41465L | Spring, Compression(FOR FRONT DIFFERENTIAL LOCK RETAINER) |
| 41469 | Retainer, Differential Lock Shaft |
| 41507A | Tube, Front Differential Lock Actuator Breather, NO.2 |
| 41651B | Cushion, Front Differential Mount, NO.1 |
| 41653B | Stopper, Differential Mount, Upper |
| 41653C | Stopper, Front Differential Mount, Upper |
| 41654A | Stopper, Differential Mount, Lower |
| 43110 | Housing Assy, Front Axle |
| 43110A | Plug Sub-assy, Drain |
| 43110B | Gasket, Drain |
| 43110C | Plug (FOR FRONT AXLE HOUSING) |
| 43110D | Gasket (FOR FRONT AXLE HOUSING PLUG) |
| 43110F | Gasket, Front Differential Carrier |
| 43208 | Tank Sub-assy, Front Axle Breather |
| 43209A | Union (FOR FRONT AXLE BREATHER HOSE) |
| 43209B | Clamp (FOR FRONT AXLE BREATHER HOSE) |
| 43209C | Clip, Hose (FOR FRONT AXLE BREATHER HOSE) |
| 43290 | Hose Assy, Front Axle Breather |
| 52380D | Support Assy, Front Differential |
| 52380E | Support Assy, Differential |
| 52383 | Protector, Front Differential Support, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
