Toyota Land Cruiser 100

1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General

Discontinued model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

16 part groups · 15 illustrations

Illustrations

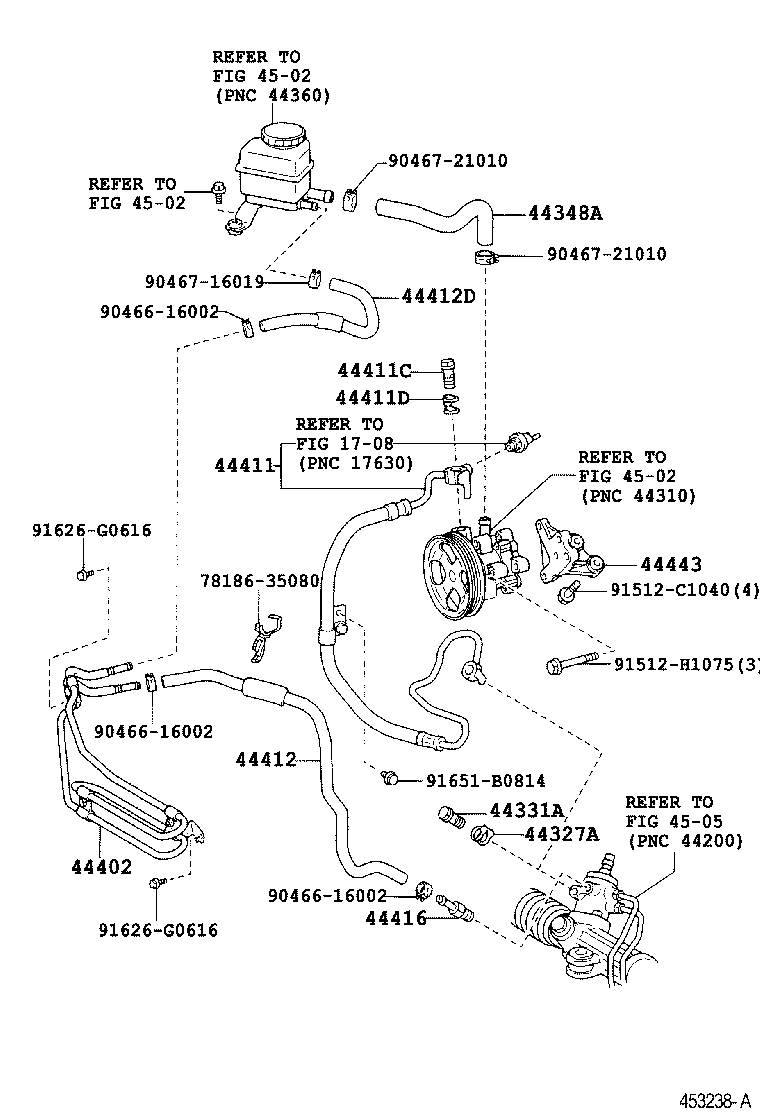

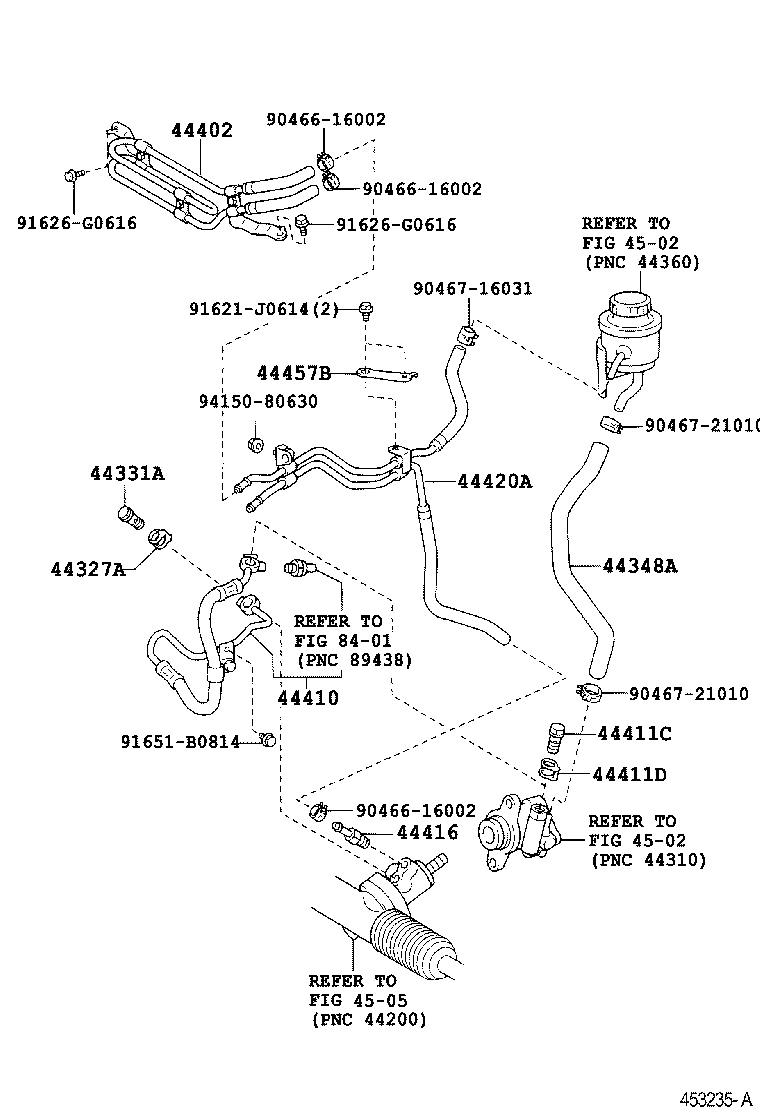

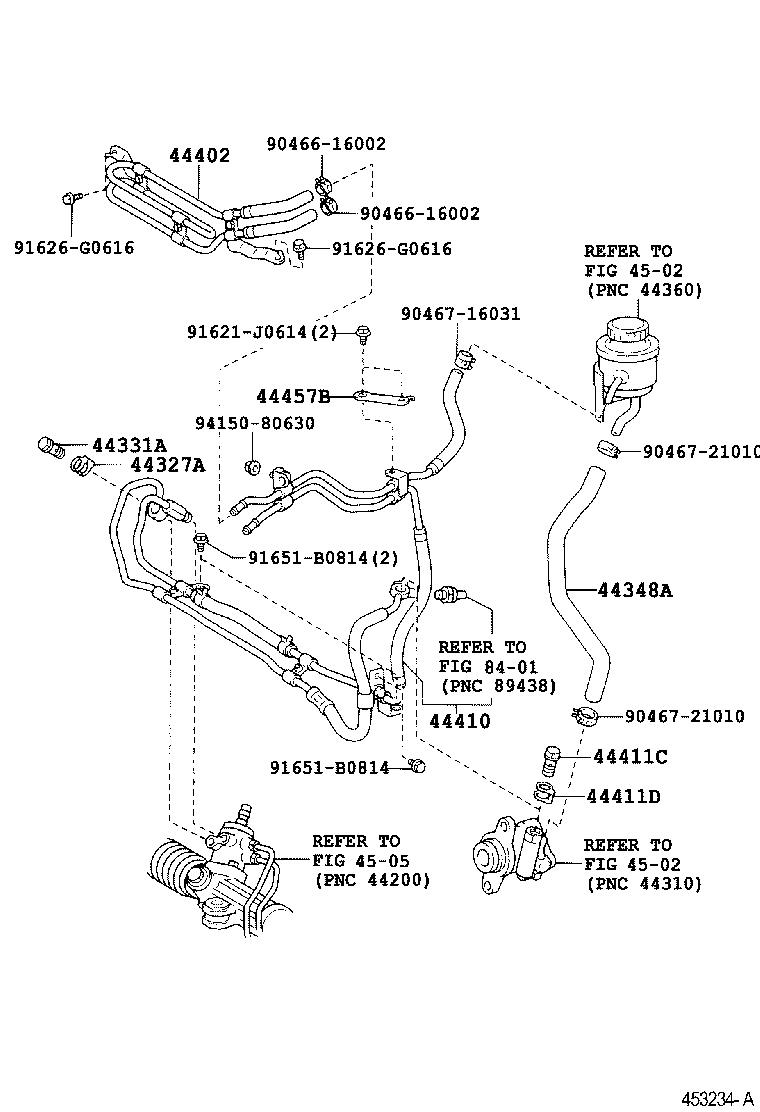

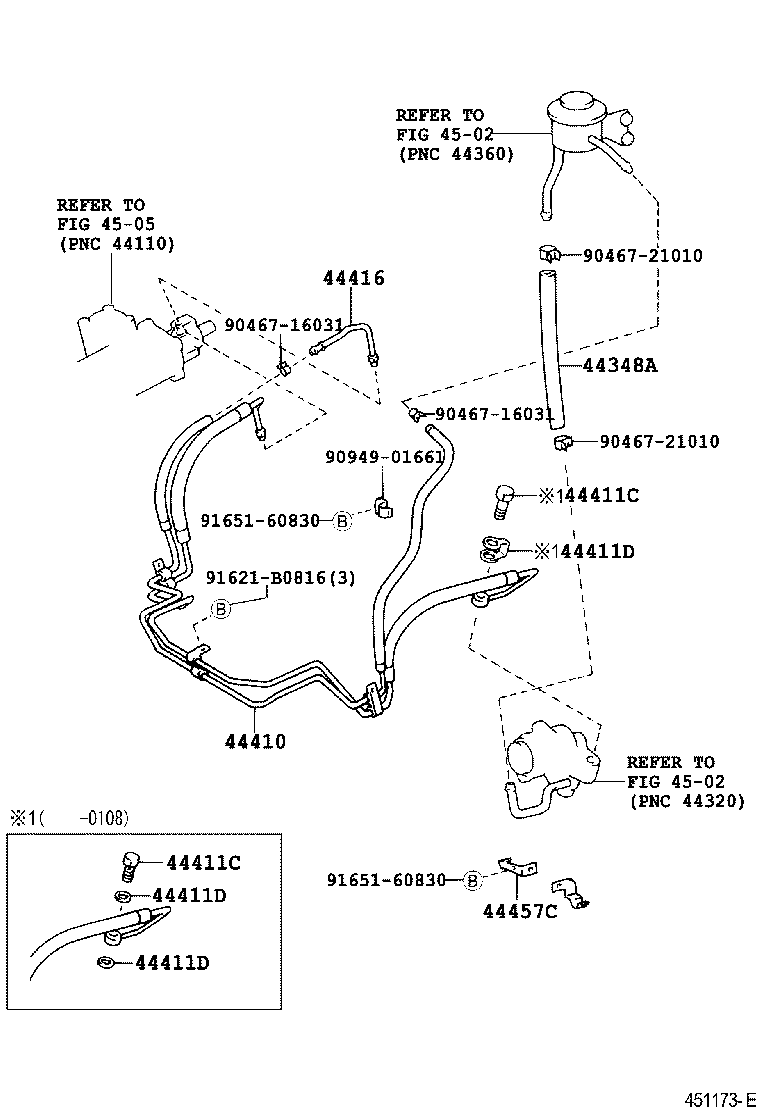

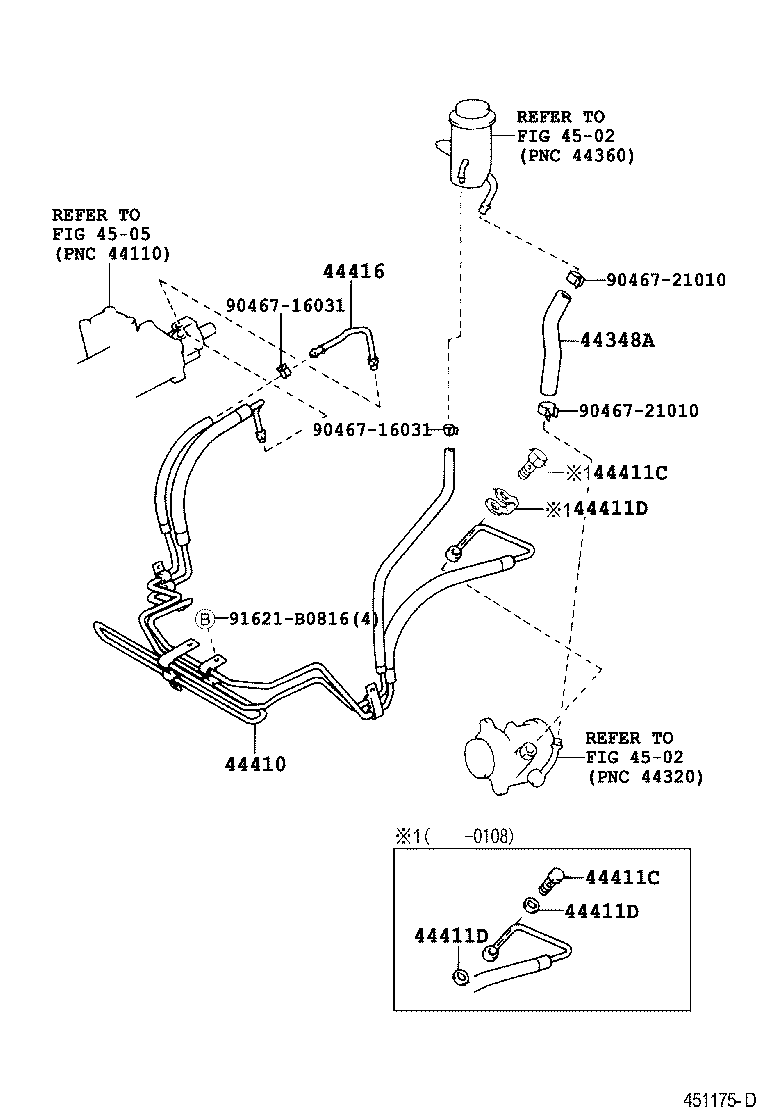

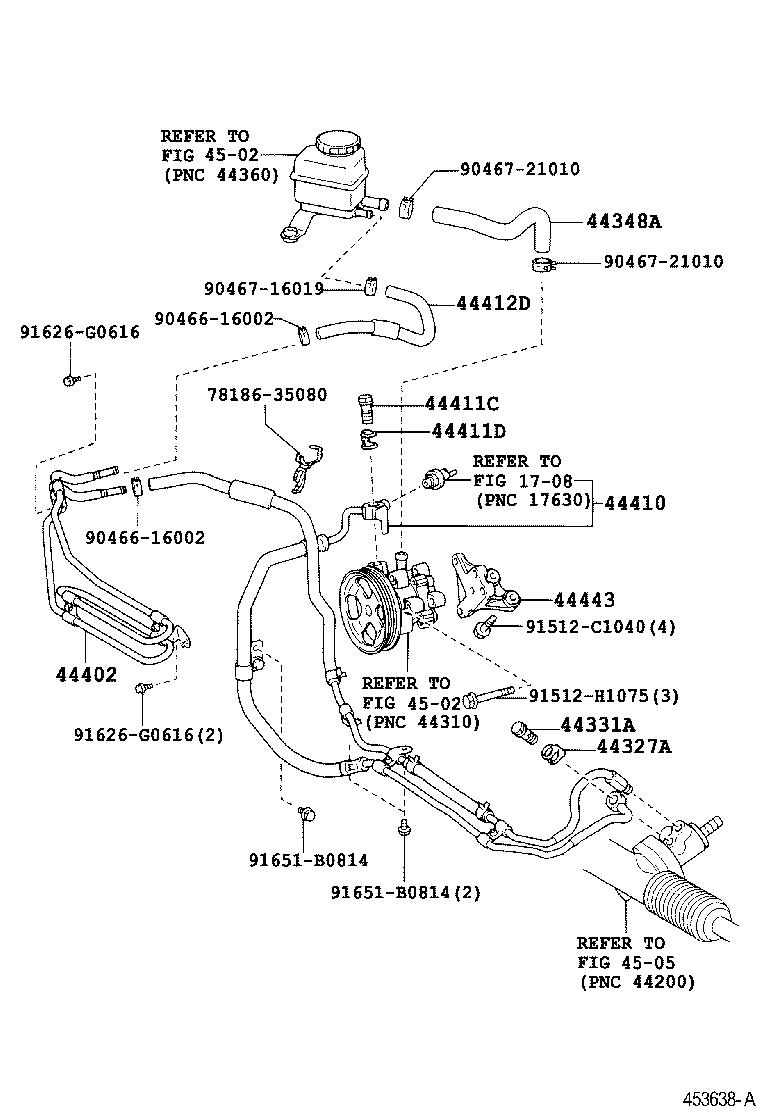

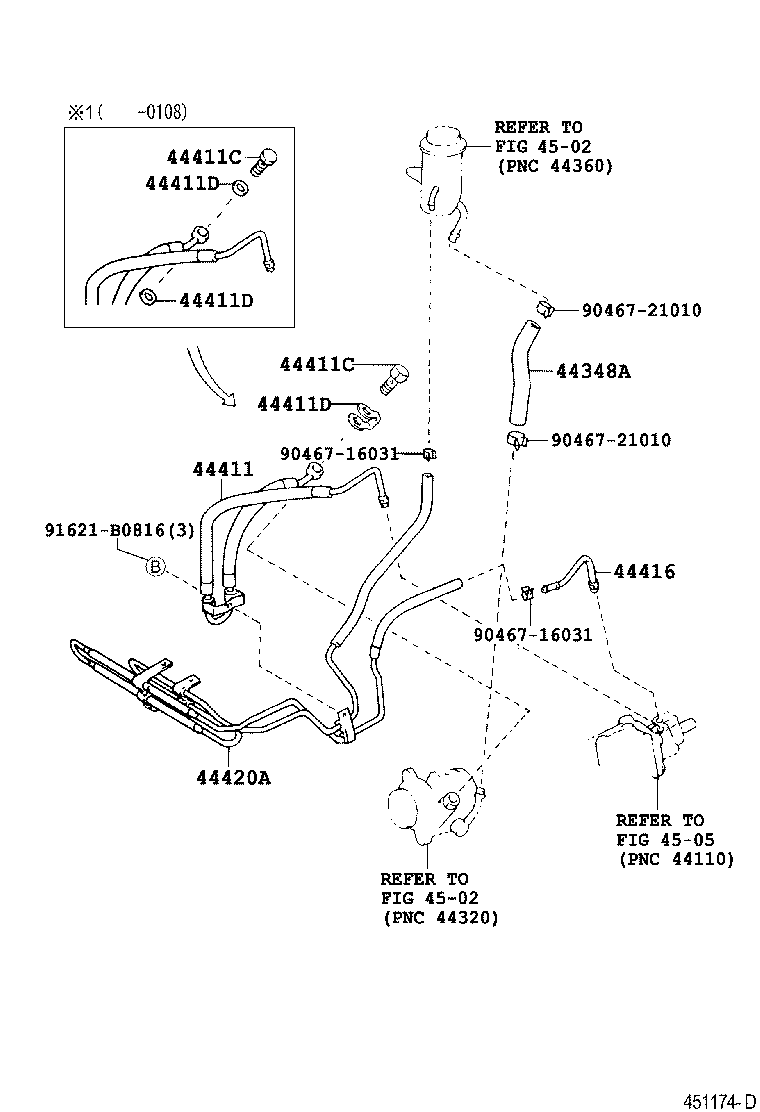

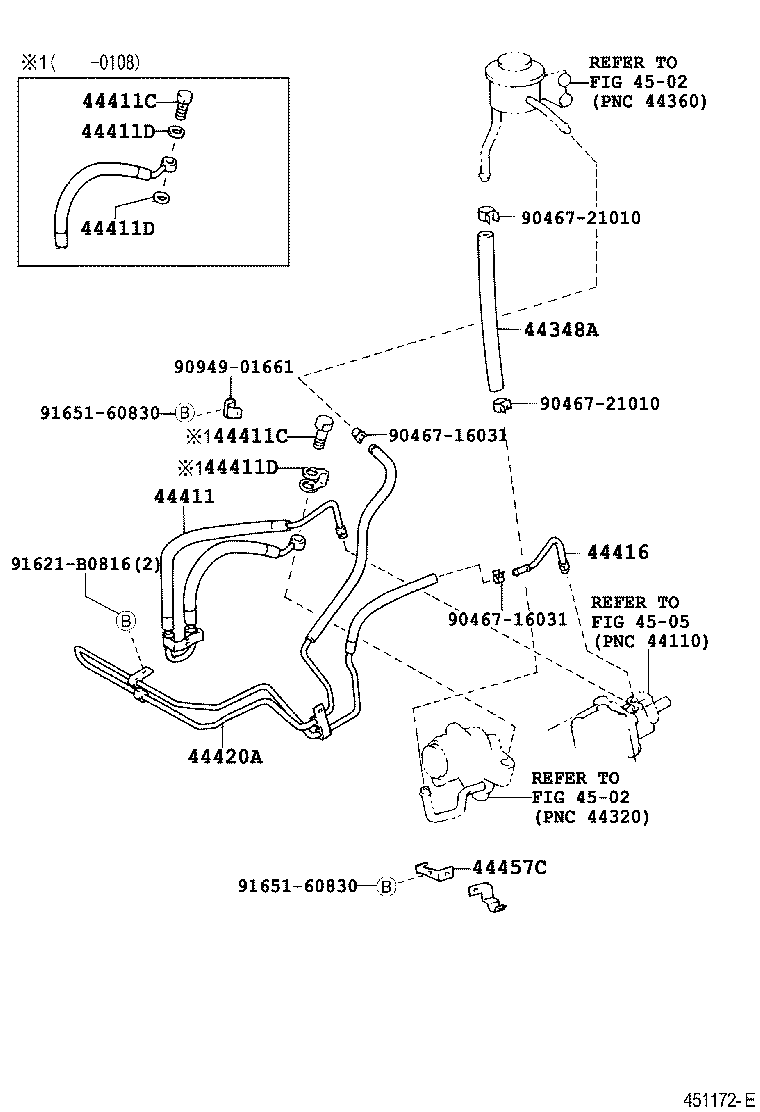

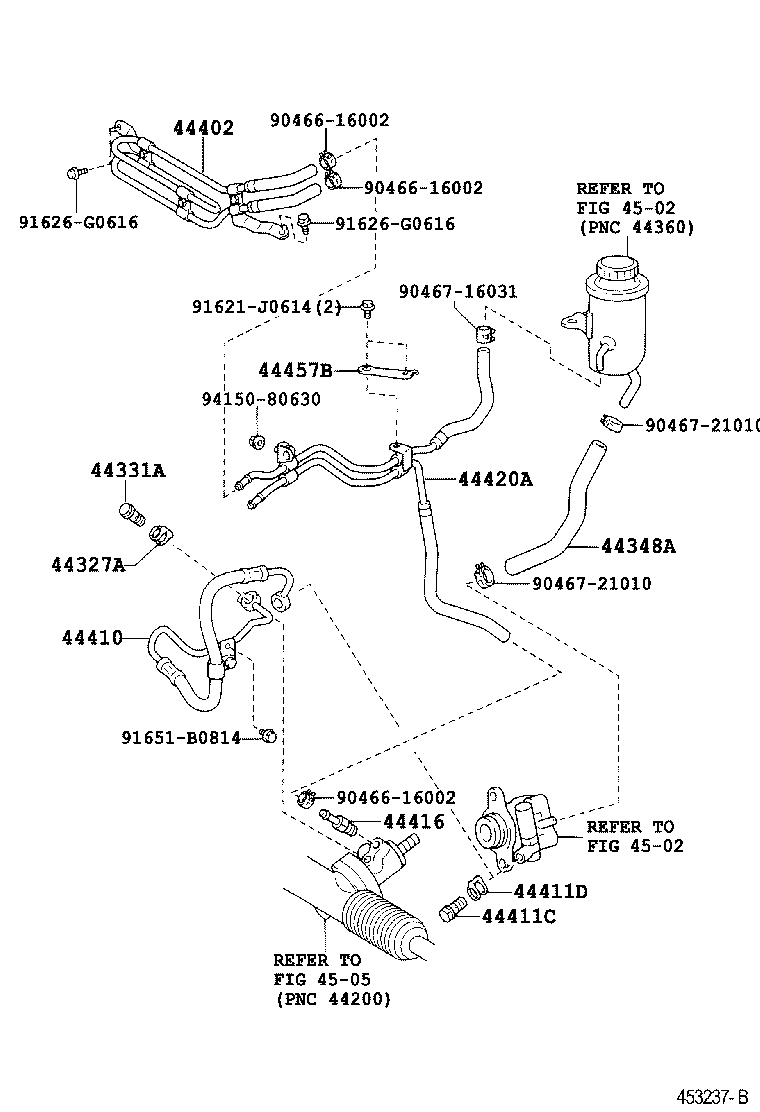

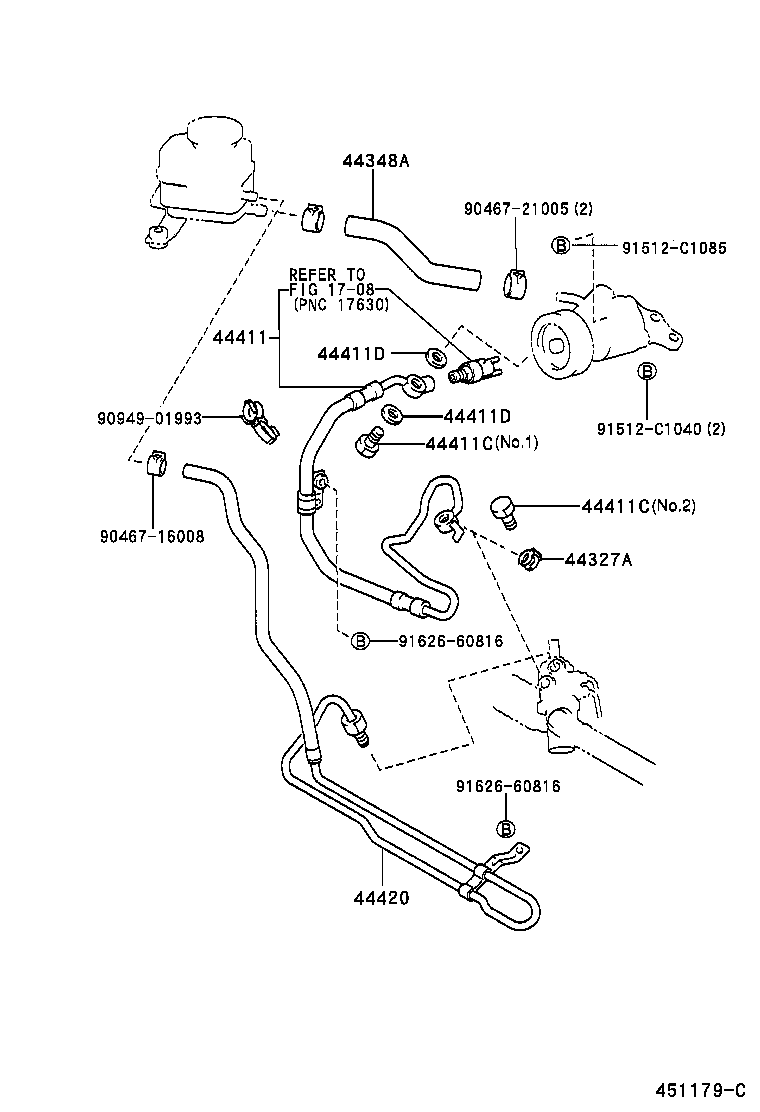

Figure 451180C 451180C 1998-01 → 2002-08 Figure 451179C 451179C 1998-01 → 2000-08 Figure 451176C 451176C 1998-01 → 2002-08 Figure 451177D 451177D 1998-01 → 2002-08 Figure 452371A 452371A 2000-08 → 2002-08 Figure 451178D 451178D 1998-01 → 2002-08 Figure 451174D 451174D 1998-01 → — Figure 451175D 451175D 1998-01 → — Figure 451172E 451172E 1998-01 → — Figure 451173E 451173E 1998-01 → — Figure 453237B 453237B 2002-08 → — Figure 453235A 453235A 2002-08 → — Figure 453234A 453234A 2002-08 → — Figure 453638A 453638A 2002-08 → — Figure 453238A 453238A 2002-08 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44331A Valve, Power Steering & Suspension Control Check
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412D Hose, Return, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420 Cooler Assy, Oil
44420A Tube Assy, Return
44443 Bracket, Pump
44457B Bracket, Power Steering Tube Support, NO.2
44457C Bracket, Power Steering Tube Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
