Toyota Land Cruiser 100
1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General
Discontinued model
Data version 2008-07
Brake Tube & Clamp

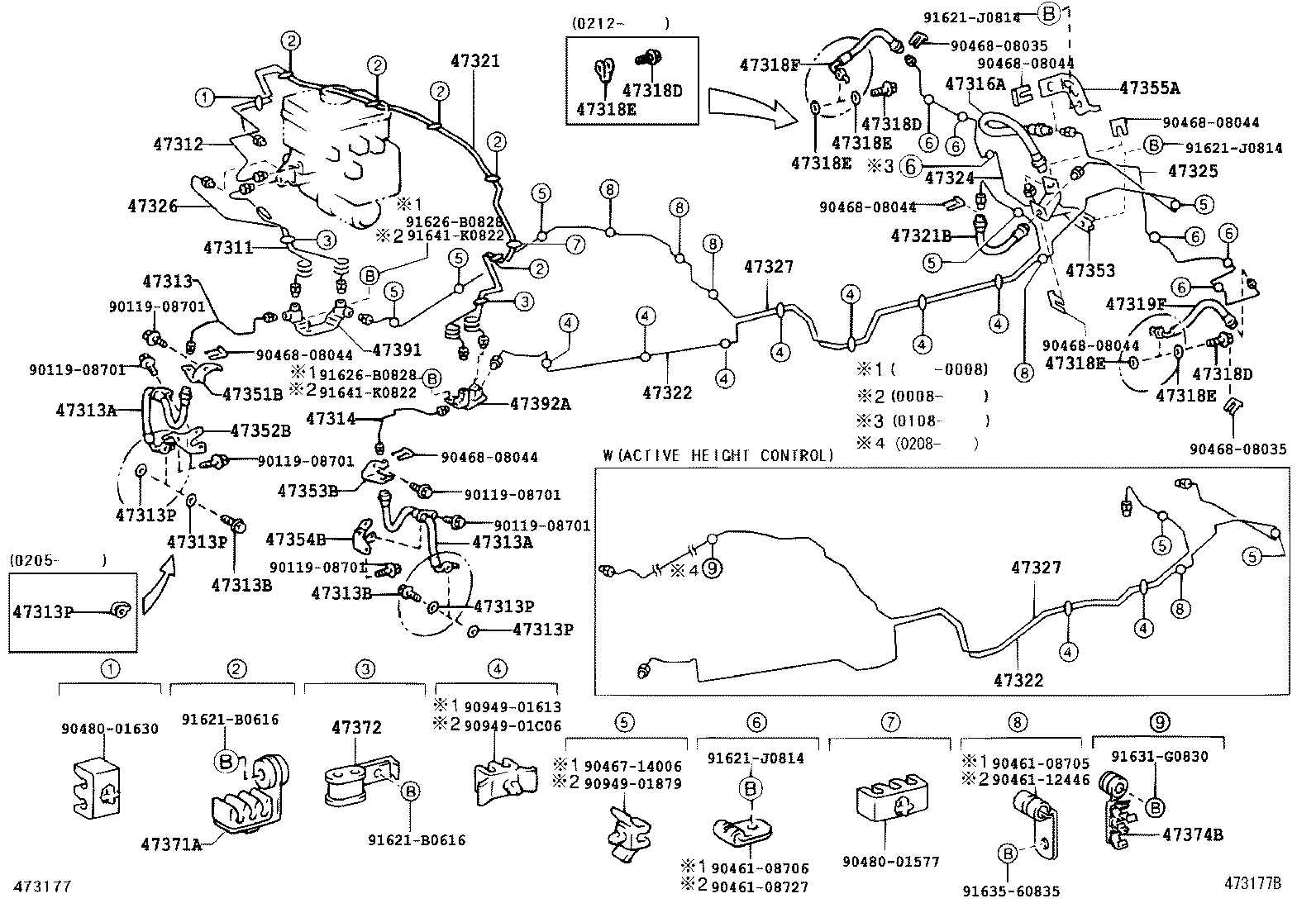

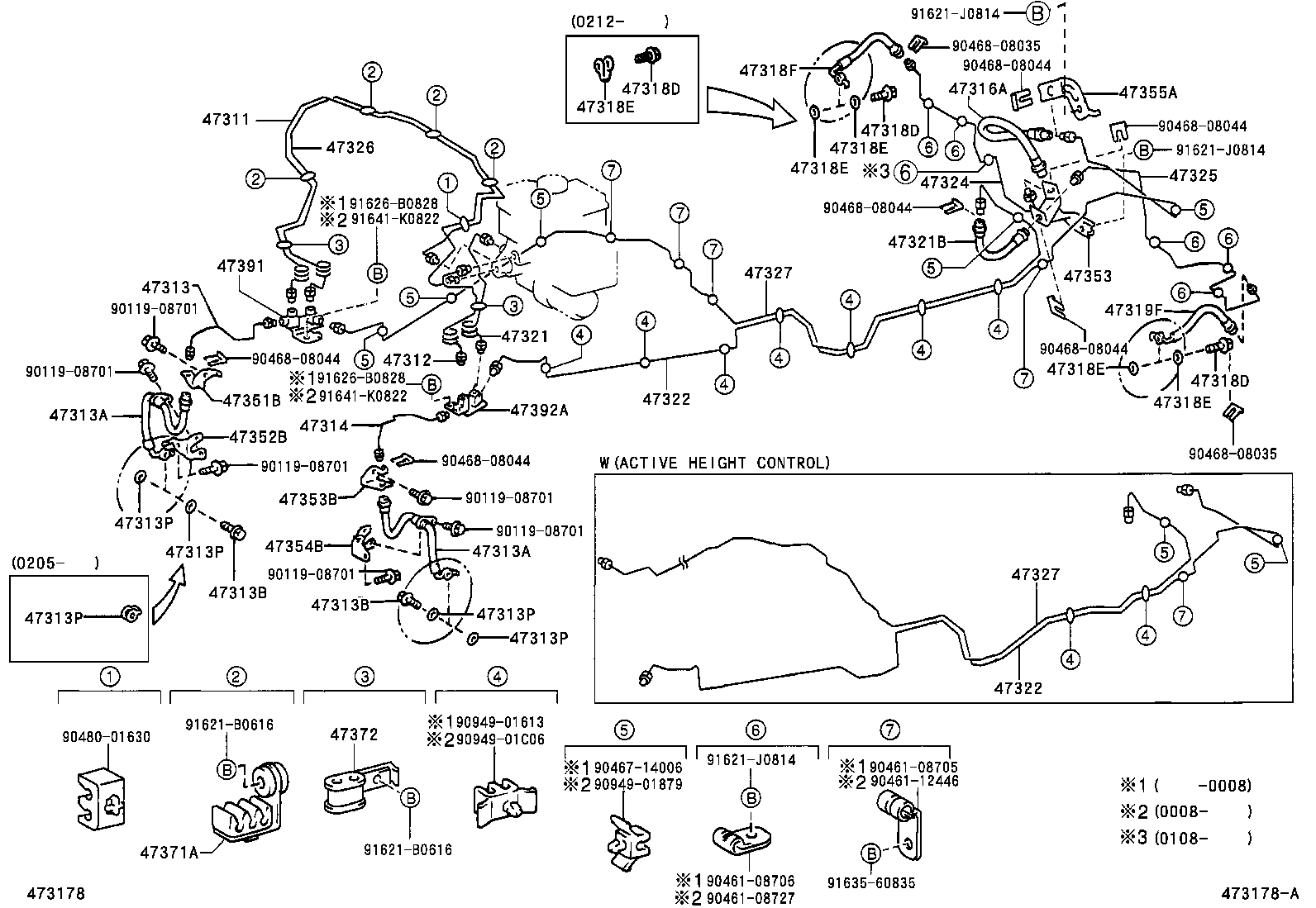

61 part groups · 15 illustrations

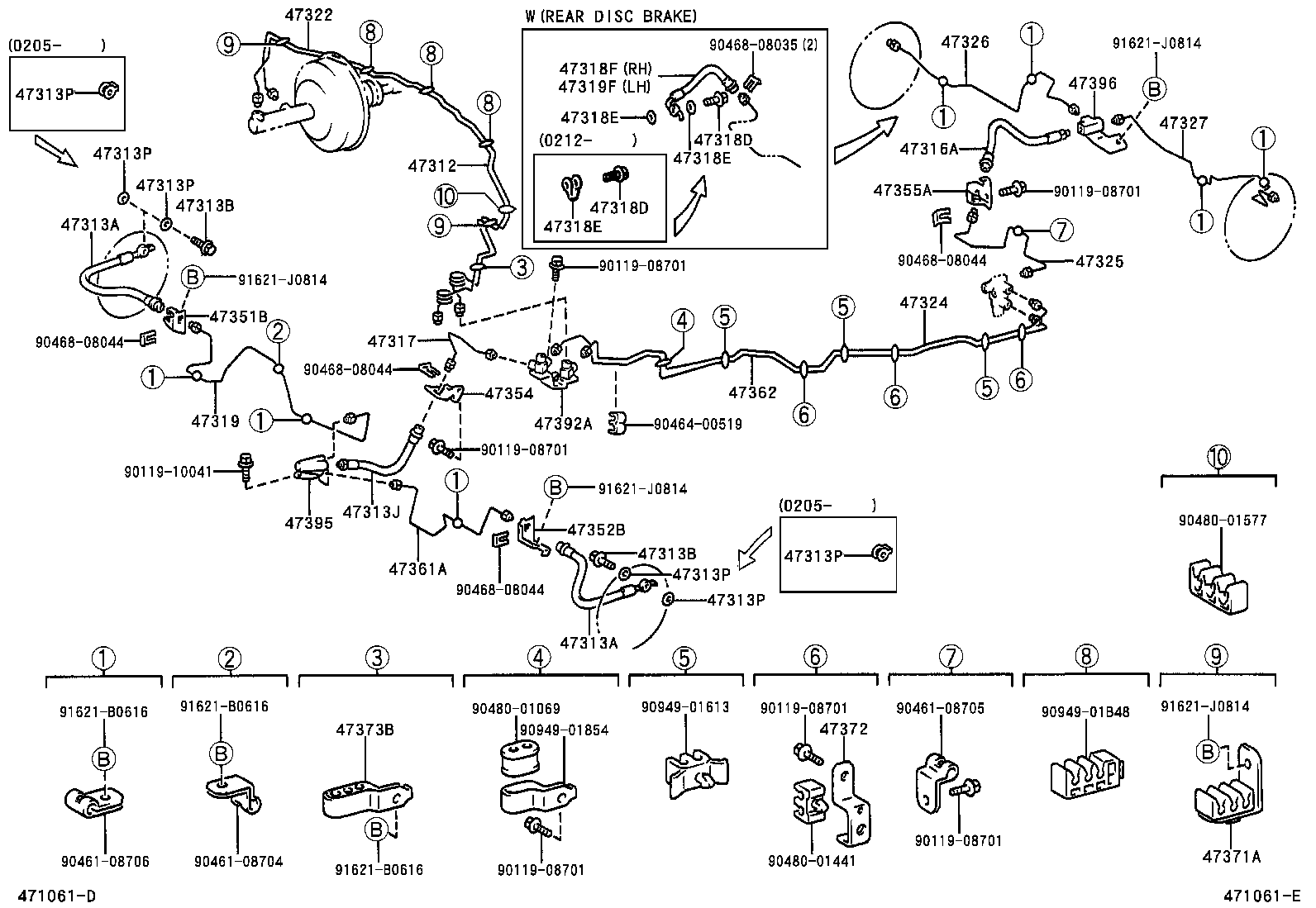

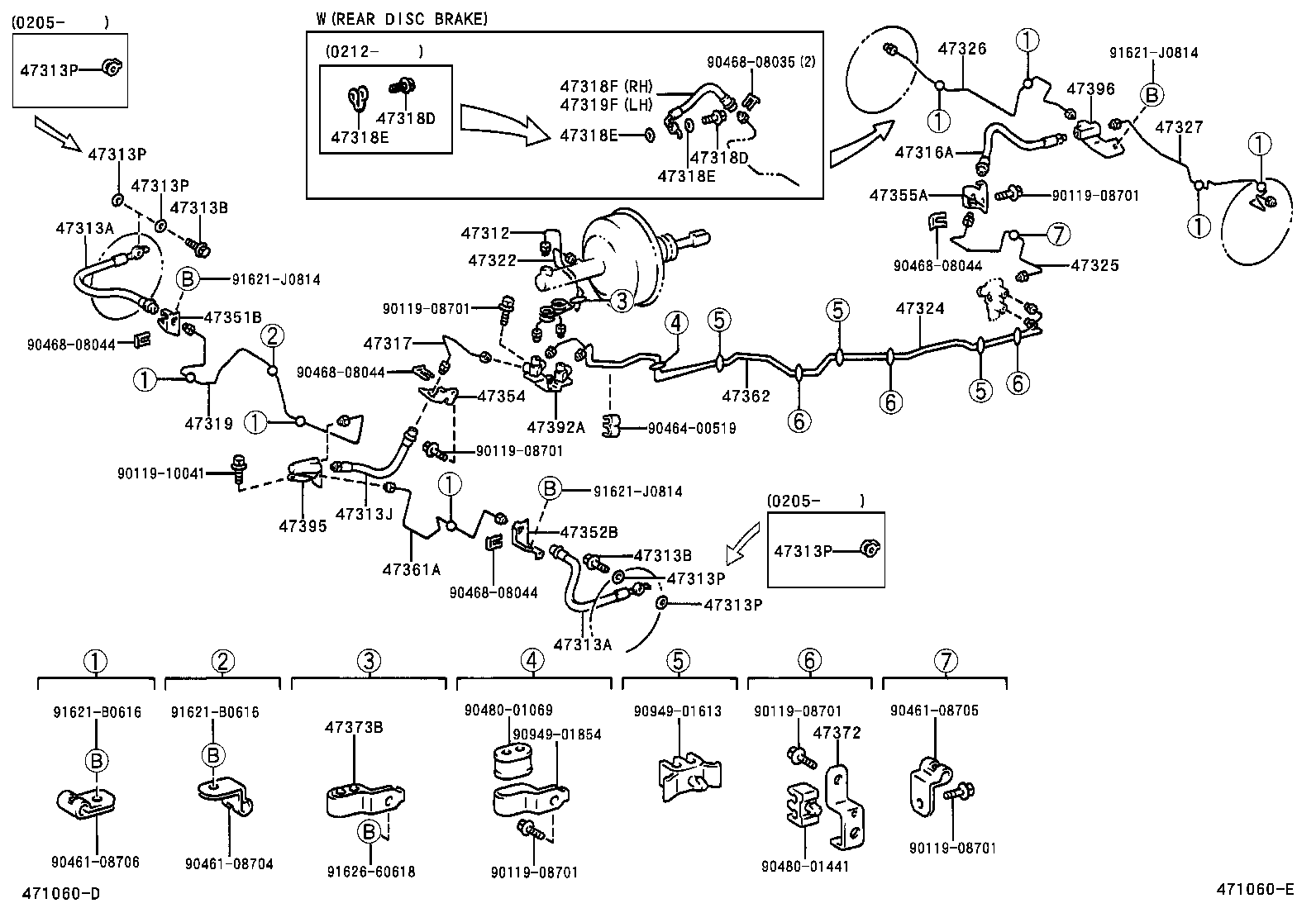

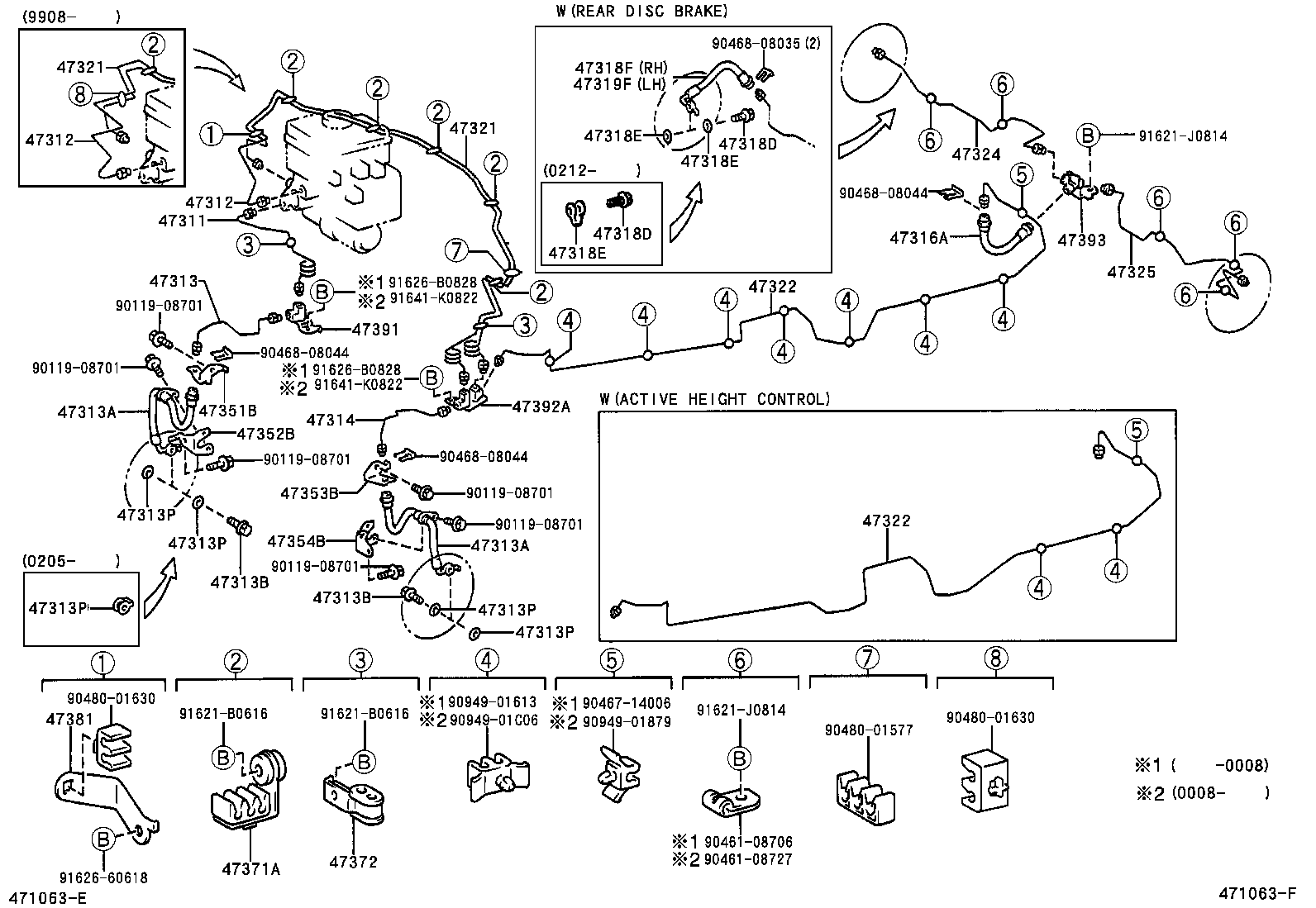

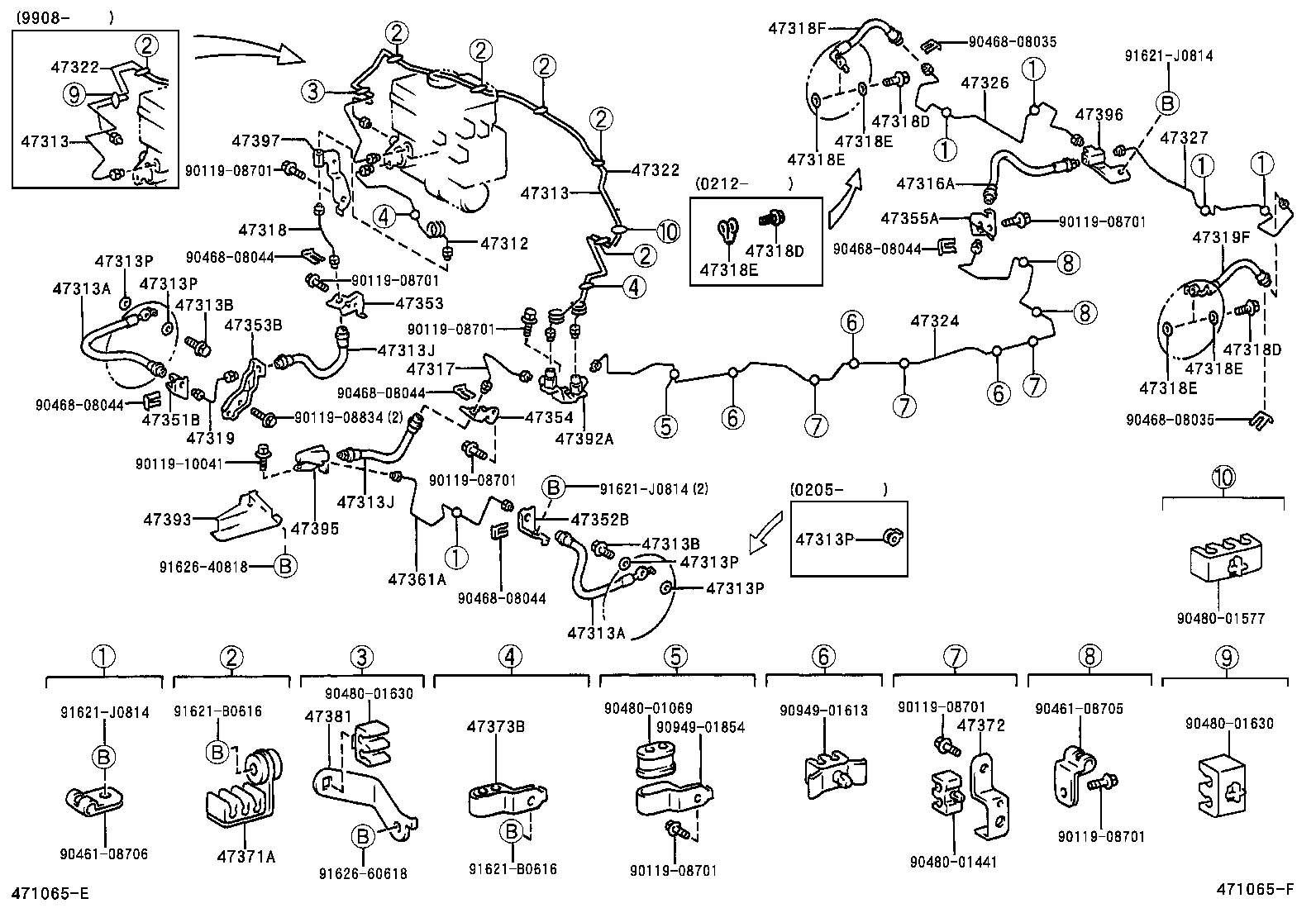

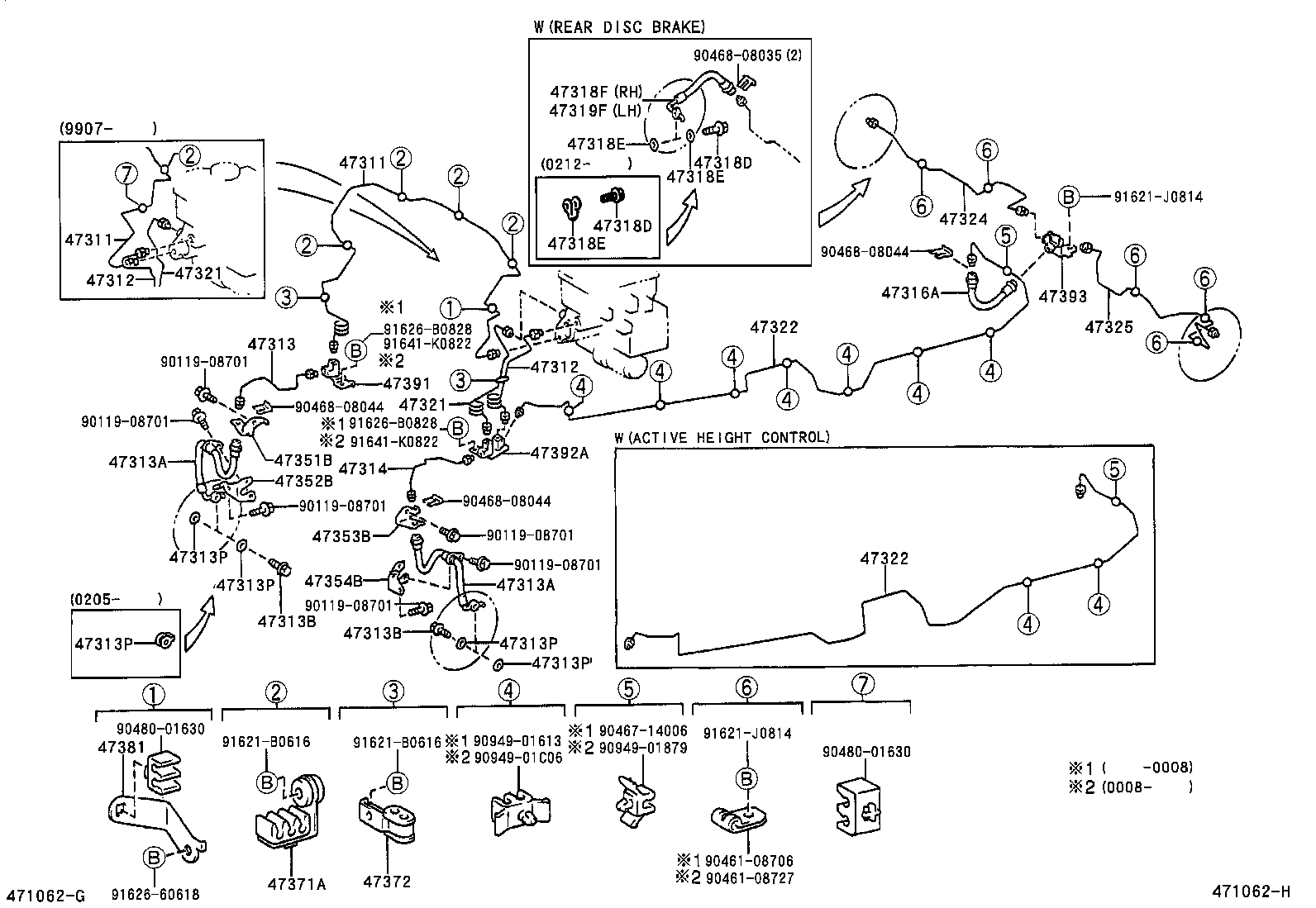

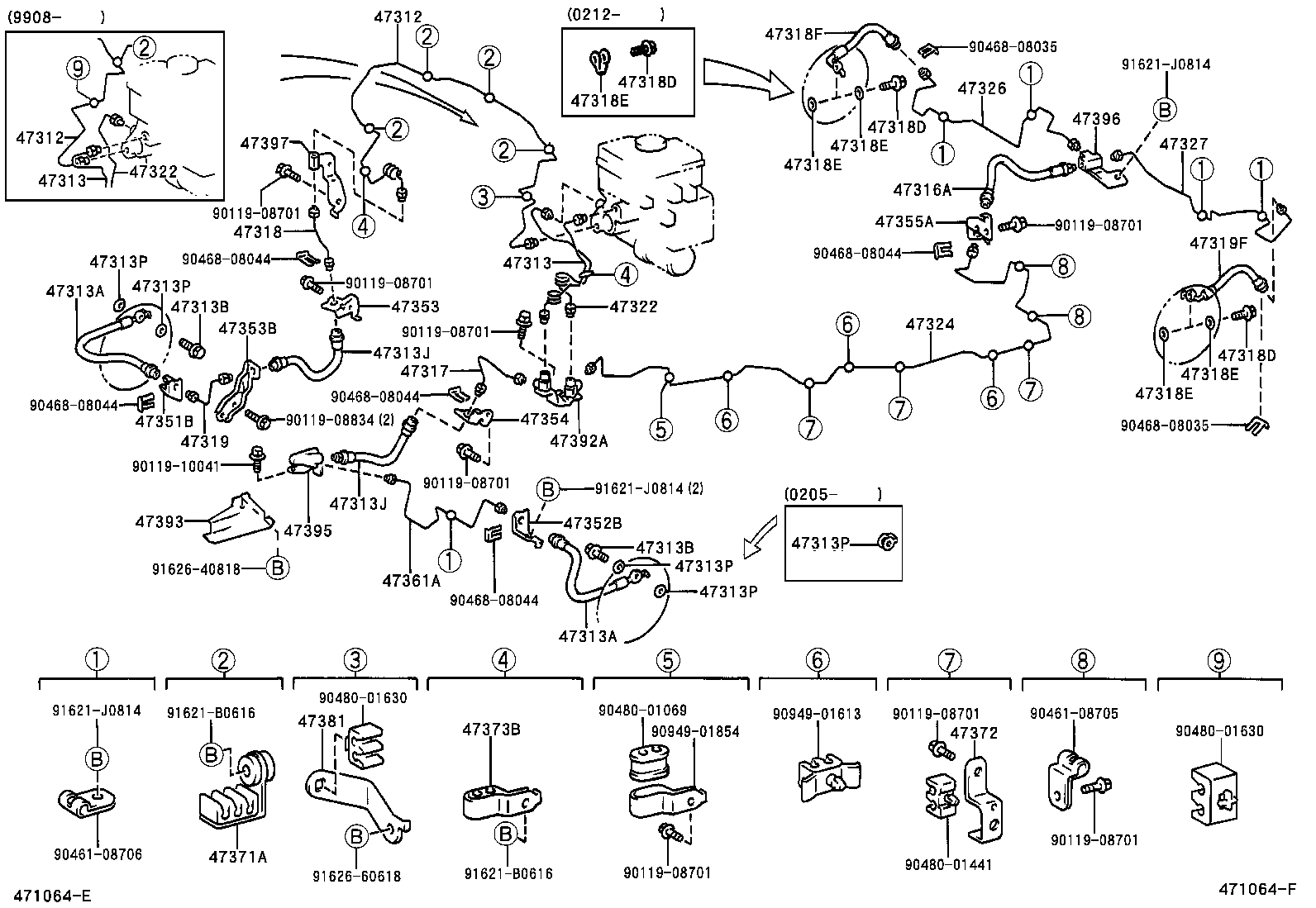

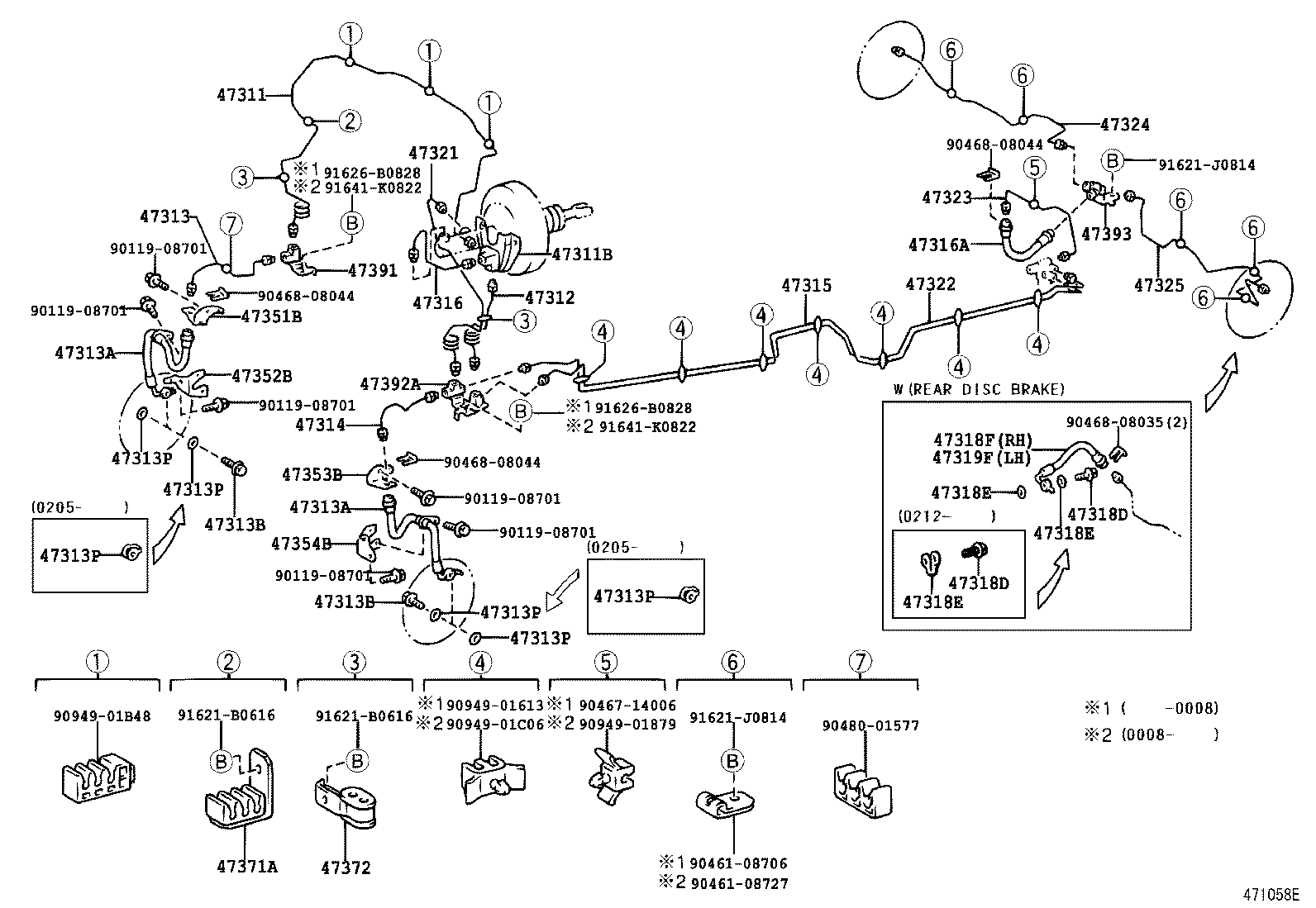

Illustrations
Part groups

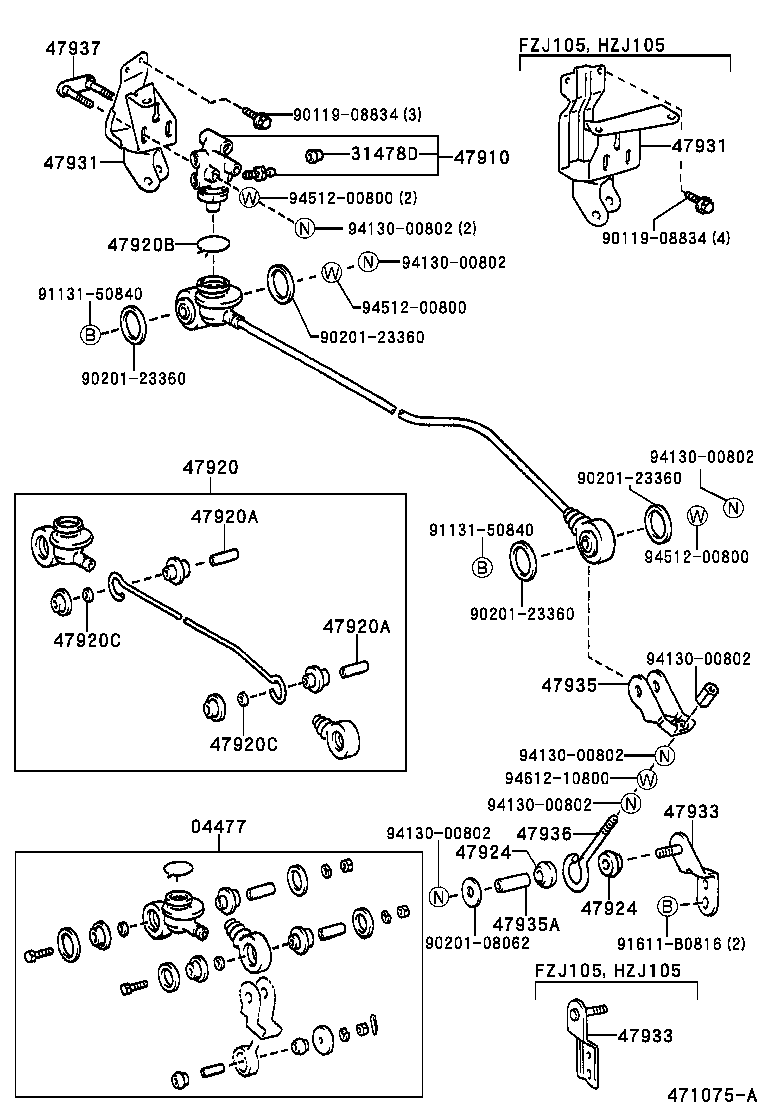

| PNC | Description |
|---|---|
| 04477 | Bush & Boot Kit, Load Sensing Spring |
| 31478D | Cap, Bleeder Plug(FOR LSPV) |
| 47311 | Tube, Front Brake, NO.1 |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313J | Hose, Flexible, NO.2(FOR FRONT) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47317 | Tube, Front Brake, NO.7 |
| 47318 | Tube, Front Brake, NO.8 |
| 47318D | Bolt, Union(FOR REAR FLEXIBLE HOSE) |
| 47318E | Gasket(FOR REAR FLEXIBLE HOSE) |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319 | Tube, Front Brake, NO.9 |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321B | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47327 | Tube, Rear Brake, NO.7 |
| 47351B | Bracket, Flexible Hose, NO.1 |
| 47352B | Bracket, Flexible Hose, NO.2 |
| 47353 | Bracket, Flexible Hose(FOR REAR) |
| 47353B | Bracket, Flexible Hose, NO.3 |
| 47354 | Bracket, Front Flexible Hose |
| 47354B | Bracket, Flexible Hose, NO.4 |
| 47355A | Bracket, Flexible Hose, NO.5 |
| 47361A | Tube, Front Brake, NO.10 |
| 47362 | Tube, Front Brake, NO.11 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47381 | Bracket, Brake Tube Clamp NO.1 |
| 47391 | Way, Brake Tube |
| 47392A | Way, Brake Tube, NO.2 |
| 47393 | Insulator, Brake Tube Heat |
| 47395 | Way, Brake Tube, NO.3 |
| 47396 | Way, Brake Tube, NO.4 |
| 47397 | Way, Brake Tube, NO.5 |
| 47910 | Valve Assy, Load Sensing Proportioning |
| 47920 | Spring Assy, Load Sensing |
| 47920A | Collar(FOR LOAD SENSING SPRING) |
| 47920B | Clip(FOR LOAD SENSING VALVE BOOT) |
| 47920C | Washer(FOR LOAD SENSING SPRING) |
| 47924 | Bush, Load Sensing Valve |
| 47931 | Bracket, Load Sensing Valve |
| 47933 | Bracket, Load Sensing Shackle, NO.1 |
| 47935 | Shackle, Load Sensing Spring, NO.1 |
| 47935A | Collar(FOR LOAD SENSING SPRING SHACKLE) |
| 47936 | Shackle, Load Sensing Spring, NO.2 |
| 47937 | Plate, Load Sensing Valve Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
