Toyota Land Cruiser 100

1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General

Discontinued model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

39 part groups · 7 illustrations

Illustrations

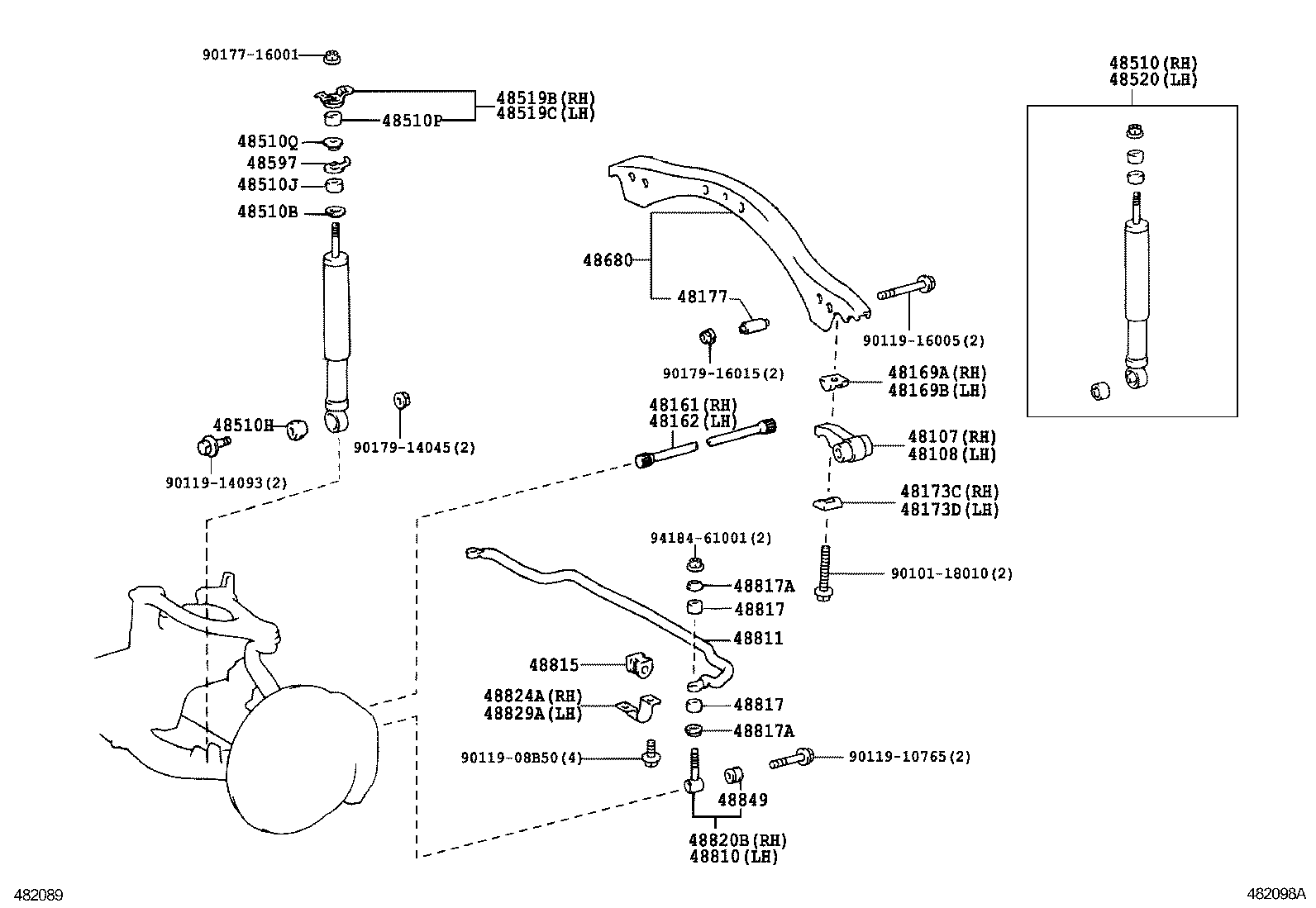

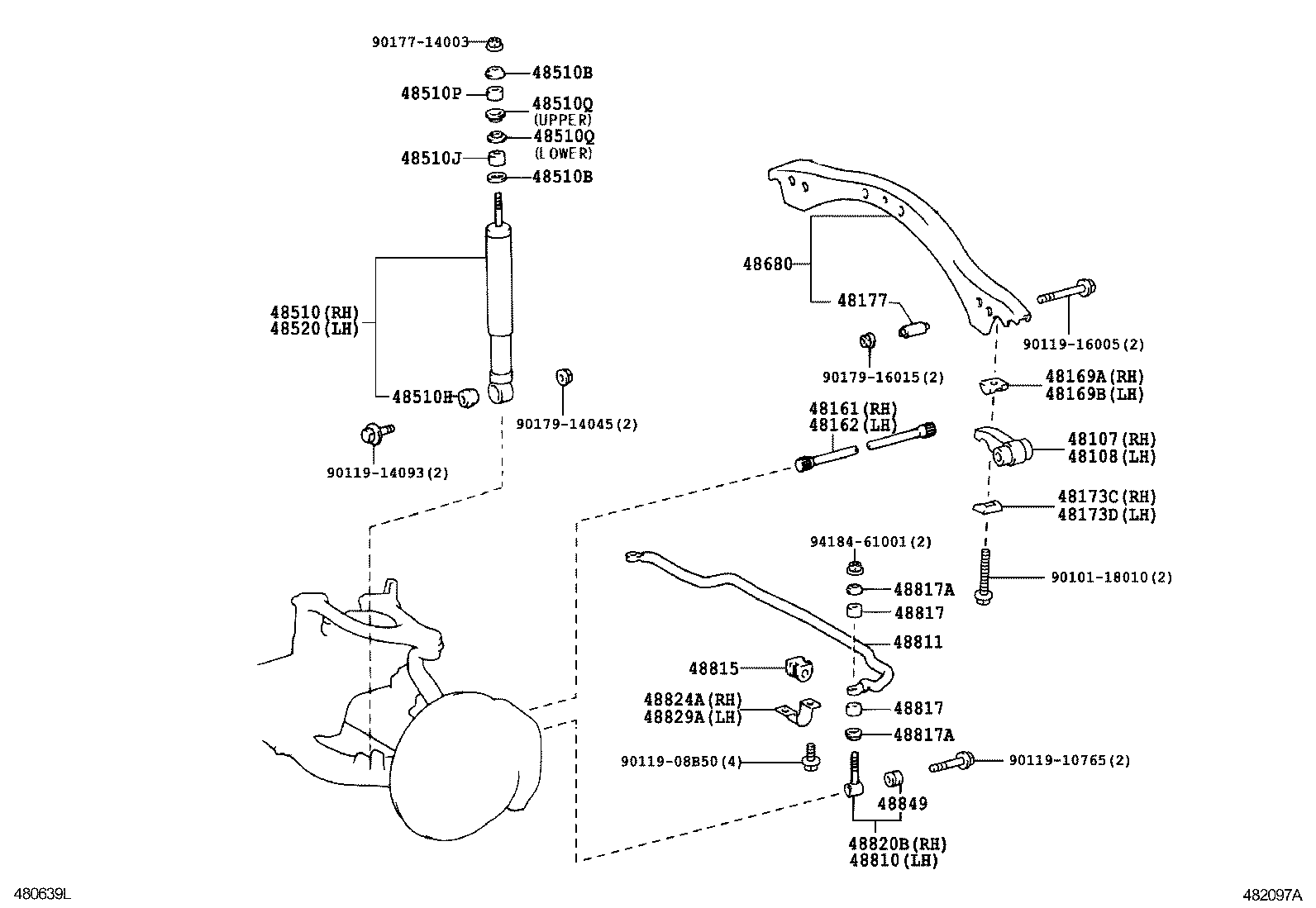

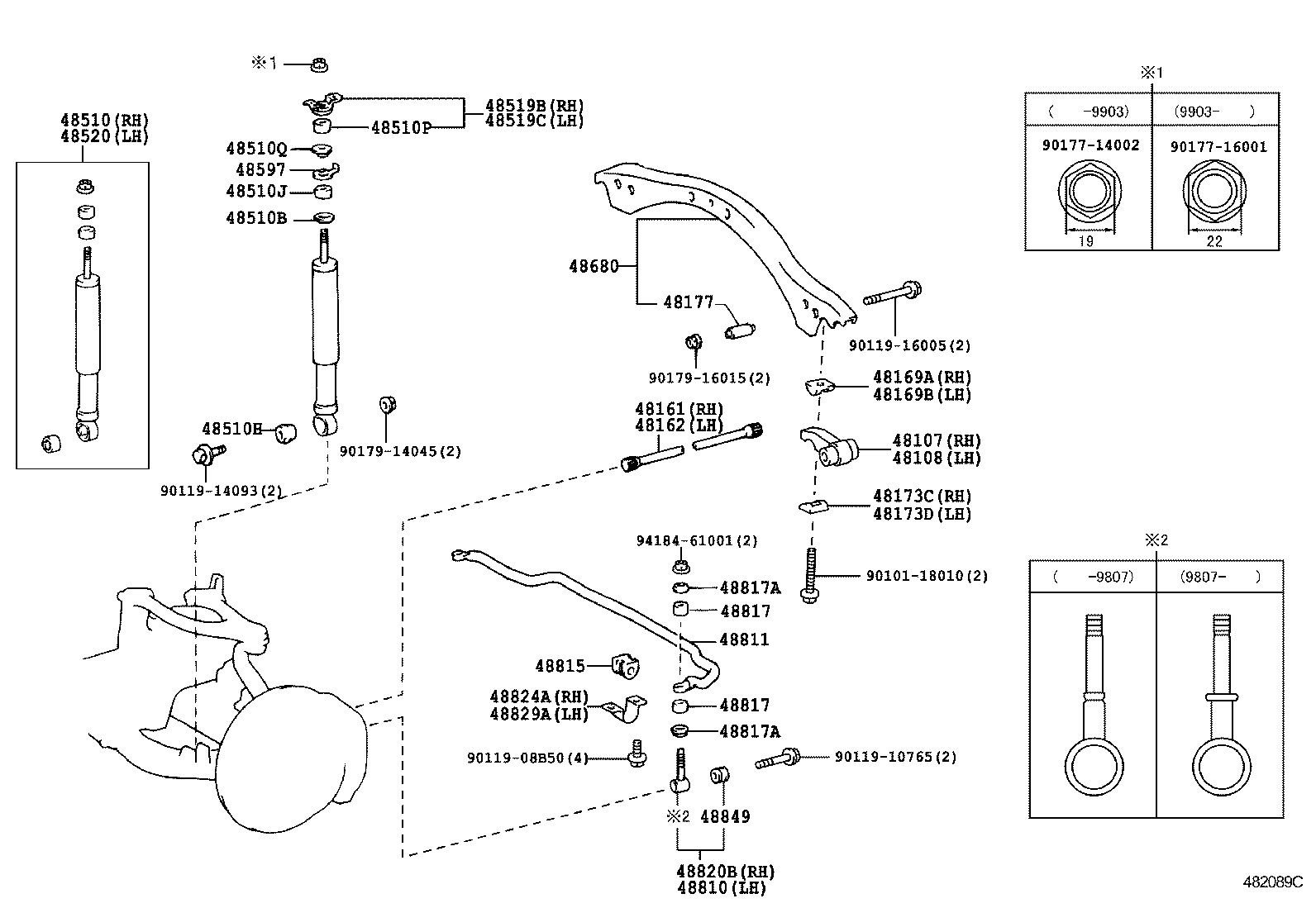

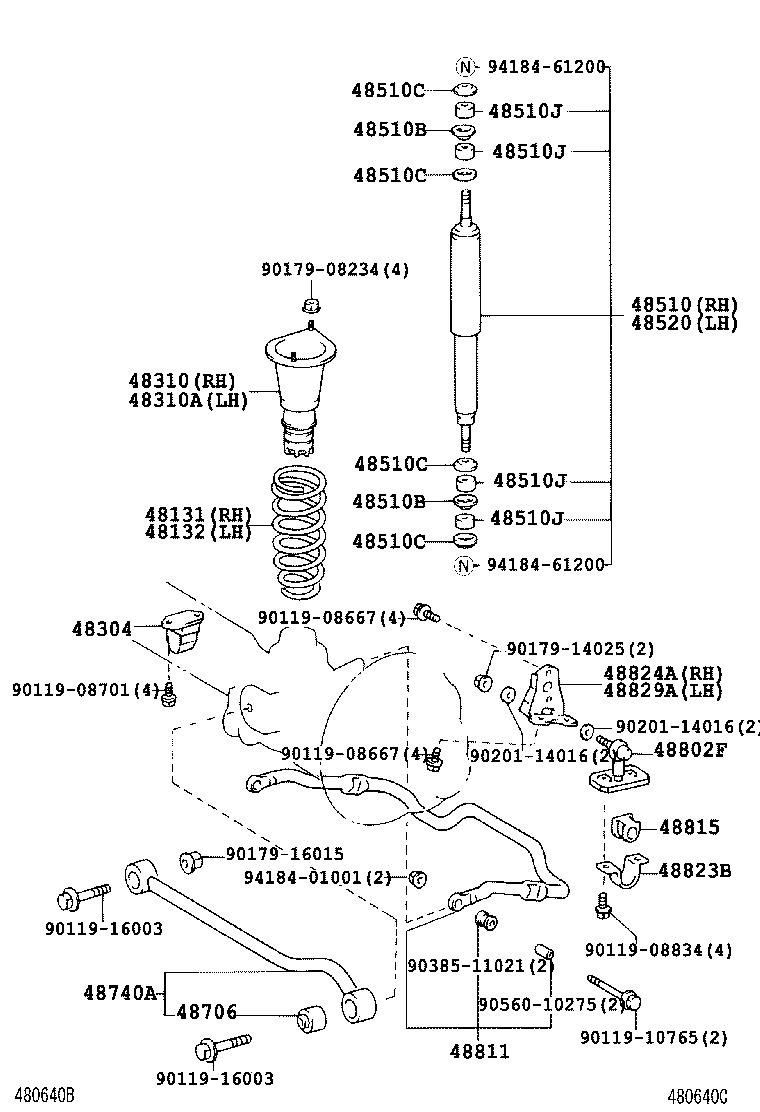

Figure 483056A 483056A 1998-01 → — Figure 483056A 483056A 2003-09 → 2005-06 Figure 482089C 482089C 1998-01 → — Figure 482089C 482089C 2003-09 → 2005-06 Figure 482097A 482097A 2005-06 → — Figure 482098A 482098A 2005-06 → — Figure 480640C 480640C 1998-01 → —

Part groups

PNCDescription
48107 Arm Sub-assy, Anchor, RH
48108 Arm Sub-assy, Anchor, LH
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48161 Spring, Torsion Bar, RH
48162 Spring, Torsion Bar, LH
48169A Swivel, Anchor Arm, RH
48169B Swivel, Anchor Arm, LH
48173C Seat, Anchor Arm Adjuster, RH
48173D Seat, Anchor Arm Adjuster, LH
48177 Bush, Anchor Arm Bracket
48304 Bumper Sub-assy, Front Spring, NO.1
48310 Spring Assy, Front Suspension Hollow, RH
48310A Spring Assy, Front Suspension Hollow, LH
48510 Absorber Assy, Shock, Front RH
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510H Bush(FOR FRONT SHOCK ABSORBER)
48510J Cushion, Front Shock Absorber, NO.1
48510P Cushion, Front Shock Absorber, NO.2
48510Q Retainer, Cushion, NO.3(FOR FRONT SHOCK ABSORBER)
48519B Bracket, Actuator Support, Front RH
48519C Bracket, Actuator Support, Front LH
48520 Absorber Assy, Shock, Front LH
48597 Retainer, Shock Absorber Cushion
48680 Support Assy, Front Suspension
48706 Bush Sub-assy, Front Lateral Control Rod
48740A Rod Assy, Front Lateral Control
48802F Link Sub-assy, Front Stabilizer
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48817A Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48820B Link Assy, Front Stabilizer, RH
48823B Cover, Front Stabilizer Bracket
48824A Bracket, Front Stabilizer, NO.1 RH
48829A Bracket, Front Stabilizer, NO.1 LH
48849 Bush, Stabilizer Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
