Toyota Land Cruiser 100
1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General
Discontinued model
Data version 2008-07

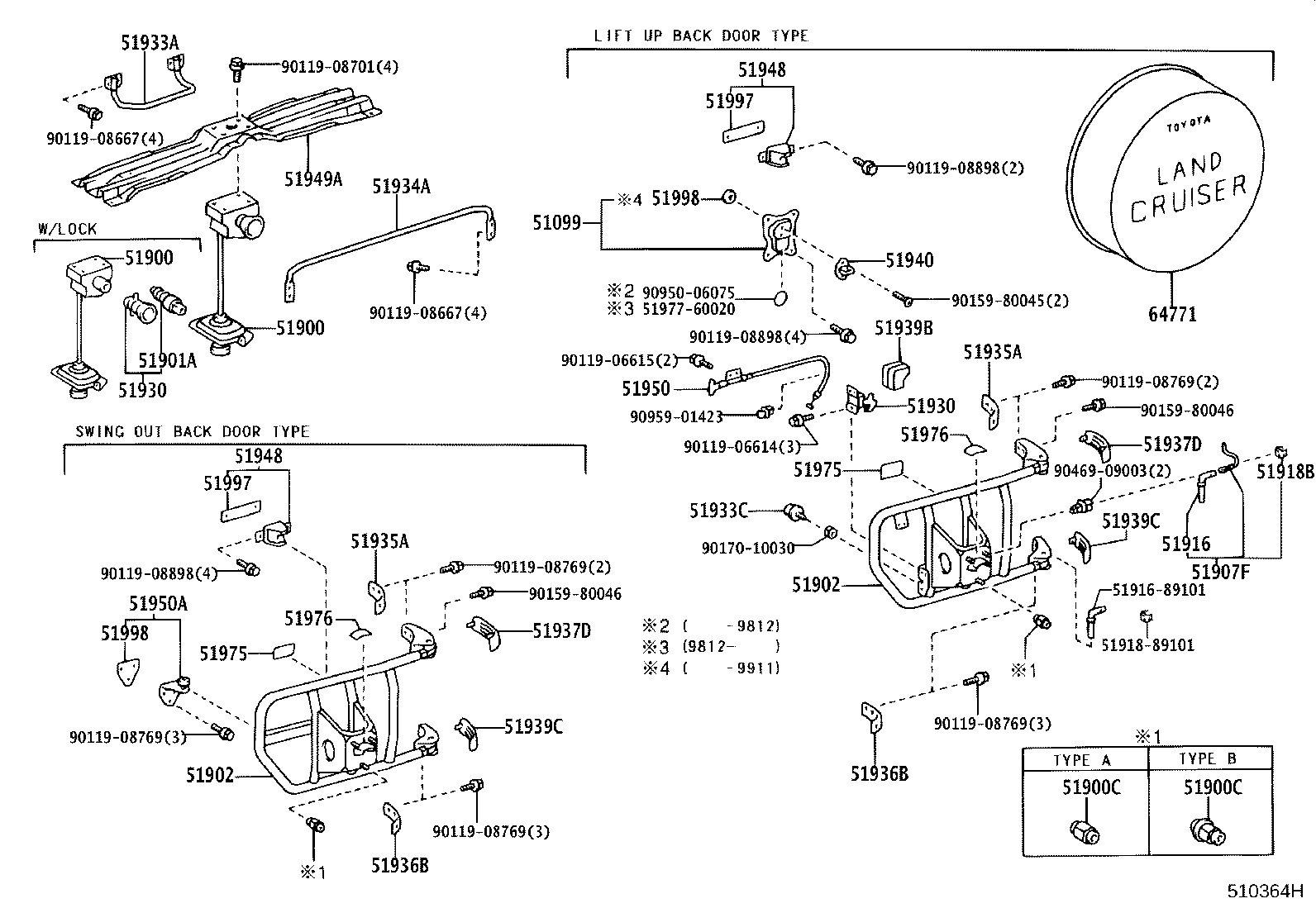

Spare Wheel Carrier
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51099 | Plate Sub-assy, Spare |
| 51900 | Carrier Assy, Spare Wheel |
| 51900C | Nut, Spare Wheel, Hub |
| 51901A | Key Sub-assy, Spare Wheel Carrier |
| 51902 | Carrier Sub-assy, Spare Wheel |
| 51907F | Stopper Sub-assy, Spare Wheel Carrier |
| 51916 | Pin, Spare Tire Carrier |
| 51918 | Bracket, Spare Wheel Stopper |
| 51918B | Clamp, Spare Wheel Carrier Stopper Pin Cord |
| 51930 | Lock Assy, Spare Wheel Carrier |
| 51933A | Stopper, Spare Wheel, NO.1 |
| 51933C | Stopper, Spare Wheel |
| 51934A | Stopper, Spare Wheel, NO.2 |
| 51935A | Cushion, Spare Wheel Carrier Hinge, Upper |
| 51936B | Cushion, Spare Wheel Carrier Hinge, Lower |
| 51937D | Cover, Spare Wheel Carrier Hinge, Upper |
| 51939B | Cover, Spare Wheel Carrier Lock |
| 51939C | Cover, Spare Wheel Carrier Hinge |
| 51940 | Striker Assy, Spare Wheel Carrier Lock |
| 51948 | Stopper, Spare Wheel Carrier Auxiliary |
| 51949A | Crossmember, Spare Wheel Carrier |
| 51950 | Cable Assy, Spare Wheel Carrier Lock Control |
| 51950A | Roller Assy, Spare Wheel Carrier Guide |
| 51975 | Film, Spare Wheel Carrier |
| 51976 | Film, Spare Wheel Carrier, NO.2 |
| 51997 | Pad, Spare Wheel Stopper |
| 51998 | Pad, Spare Wheel Bracket |
| 64771 | Cover, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
