Toyota Land Cruiser 100

1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General

Discontinued model Data version 2008-07

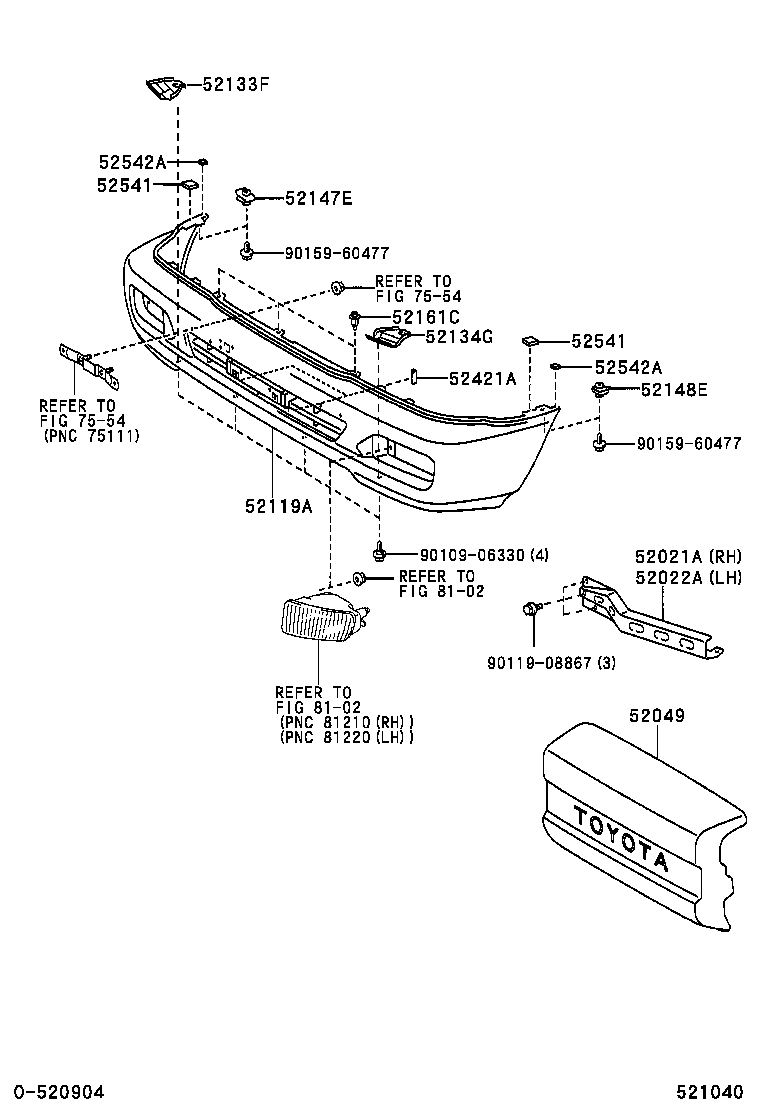

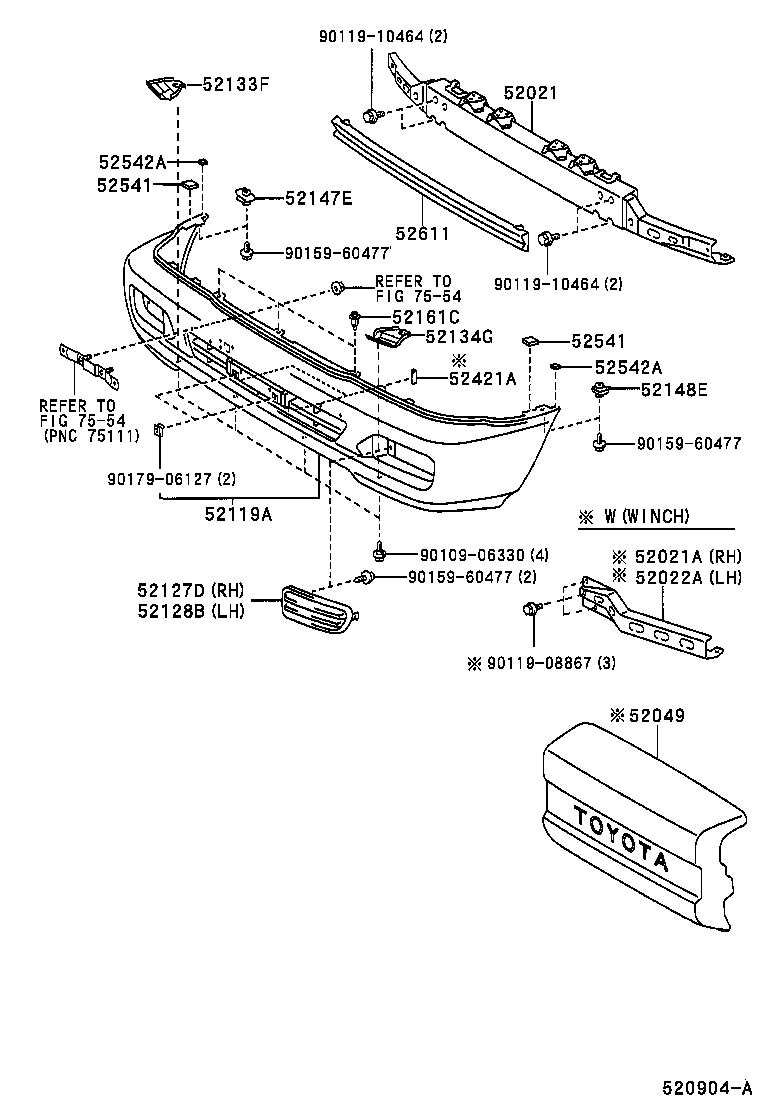

Front Bumper & Bumper Stay

40 part groups · 4 illustrations

PNC	Description
52021	Reinforcement Sub-assy, Front Bumper
52021A	Reinforcement Sub-assy, Front Bumper, RH
52022A	Reinforcement Sub-assy, Front Bumper, LH
52049	Cover Sub-assy, Front Bumper Winch
52116A	Support, Front Bumper Side, LH
52119A	Cover, Front Bumper
52121B	Bracket, Front Licence Plate Mounting
52127D	Cover, Front Bumper Hole, RH
52128B	Cover, Front Bumper Hole, LH
52133F	Bracket, Front Bumper, RH
52134G	Bracket, Front Bumper, LH
52137F	Bracket, Front Bumper Arm Mounting, NO.3
52138D	Bracket, Front Bumper Arm Mounting, NO.4
52143A	Arm, Front Bumper, Inner RH
52144A	Arm, Front Bumper, Inner LH
52147E	Bracket, Front Bumper Mounting, RH
52148E	Bracket, Front Bumper Mounting, LH
52161C	Piece, Front Bumper
52197D	Reinforcement, Front Bumper Arm
52401A	Guard Sub-assy, Front Bumper, RH
52402A	Guard Sub-assy, Front Bumper, LH
52411	Guard, Front Bumper
52412	Guard, Front Bumper, NO.2
52421A	Pad, Front Bumper
52431	Retainer, Front Bumper Guard
52432	Retainer, Front Bumper Guard
52433	Support, Front Bumper Guard, RH
52434	Support, Front Bumper Guard, LH
52435	Garnish, Front Bumper Guard
52436	Protector, Front Bumper Guard
52439A	Tape, Front Bumper Guard Prtector
52441	Base, Front Bumper Guard, NO.1 RH
52442	Base, Front Bumper Guard, NO.1 LH
52447	Pad, Front Bumper Guard, NO.2 RH
52477	Guard, Front Bumper, NO.3
52478	Guard, Front Bumper, NO.4
52525	Retainer, Front Bumper, Lower Center
52541	Protector, Front Bumper
52542A	Protector, Front Bumper, NO.2
52611	Absorber, Front Bumper Energy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
