Toyota Land Cruiser 100

1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General

Discontinued model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

21 part groups · 3 illustrations

Illustrations

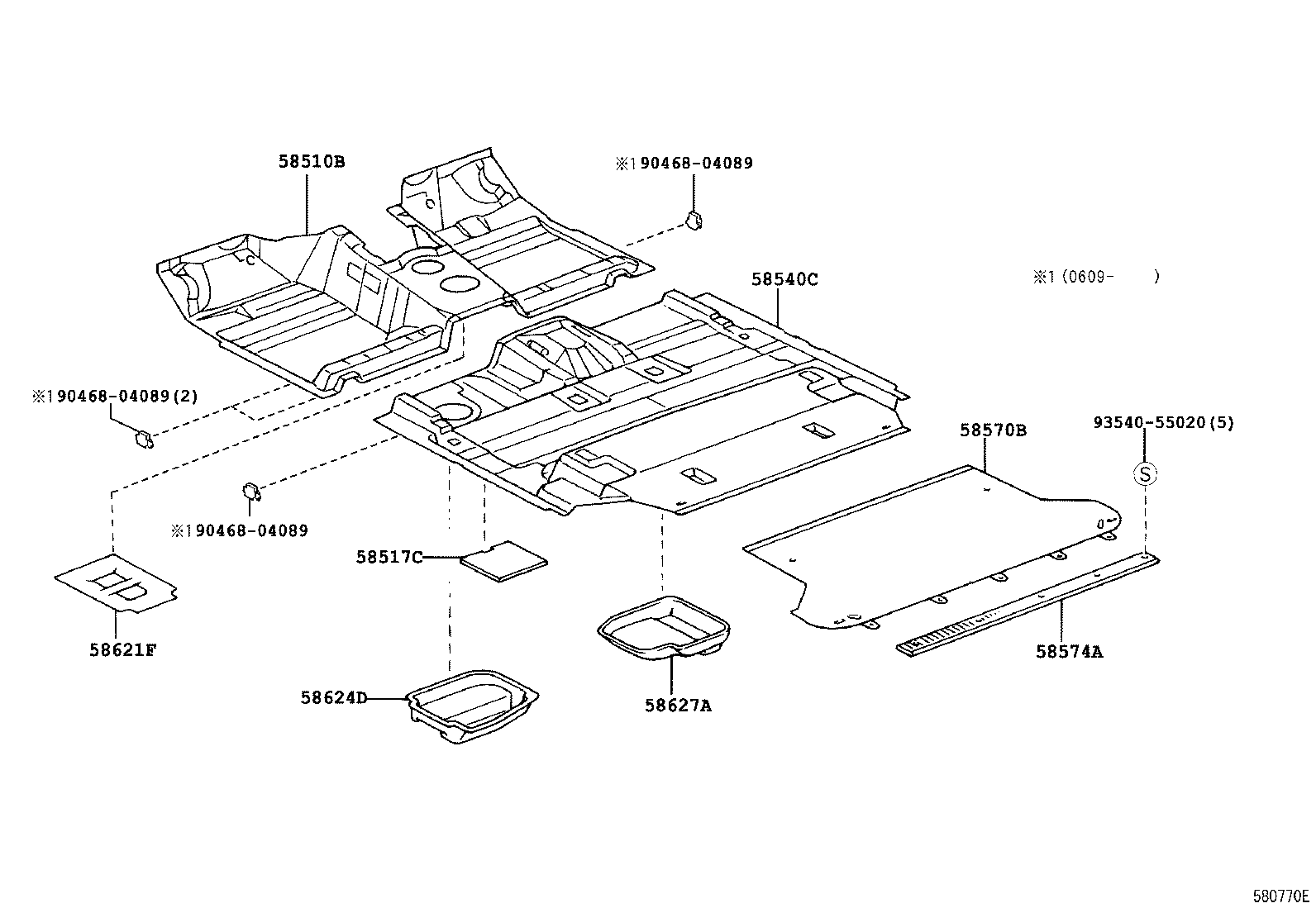

Figure 580768J 580768J 1998-01 → — Figure 580770E 580770E 1998-01 → — Figure 580770E 580770E 2001-10 → —

Part groups

PNCDescription
58371F Cover, Rear Floor Step, NO.1
58510B Mat, Front Floor, Front
58510D Carpet Assy, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58517C Pad, Front Floor Mat
58521B Hook, Floor Carpet
58533A Cover, Floor Carpet, Center RH
58533B Clip(FOR FLOOR CARPET COVER)
58540C Mat Assy, Floor, Rear
58555A Mat, Front, RH
58556A Mat, Front, LH
58557A Mat, Rear
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58574A Plate, Rear Floor Mat Support, Rear
58621F Silencer, Center Console, NO.1
58624D Pad, Center Floor Silencer
58624G Pad, Front Floor Silencer
58625D Plate, Rear Floor Mat, NO.1
58626D Plate, Rear Floor Mat, NO.2
58627A Pad, Center Floor Silencer, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
