Toyota Land Cruiser 100

1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General

Discontinued model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

21 part groups · 13 illustrations

Illustrations

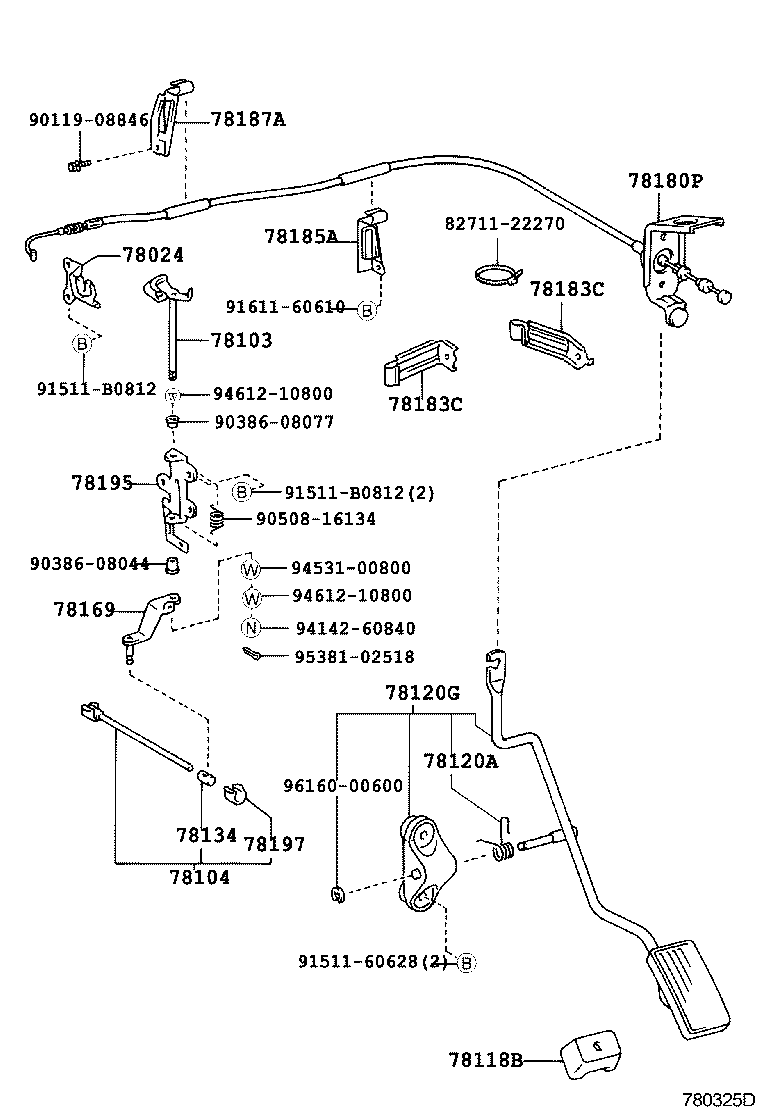

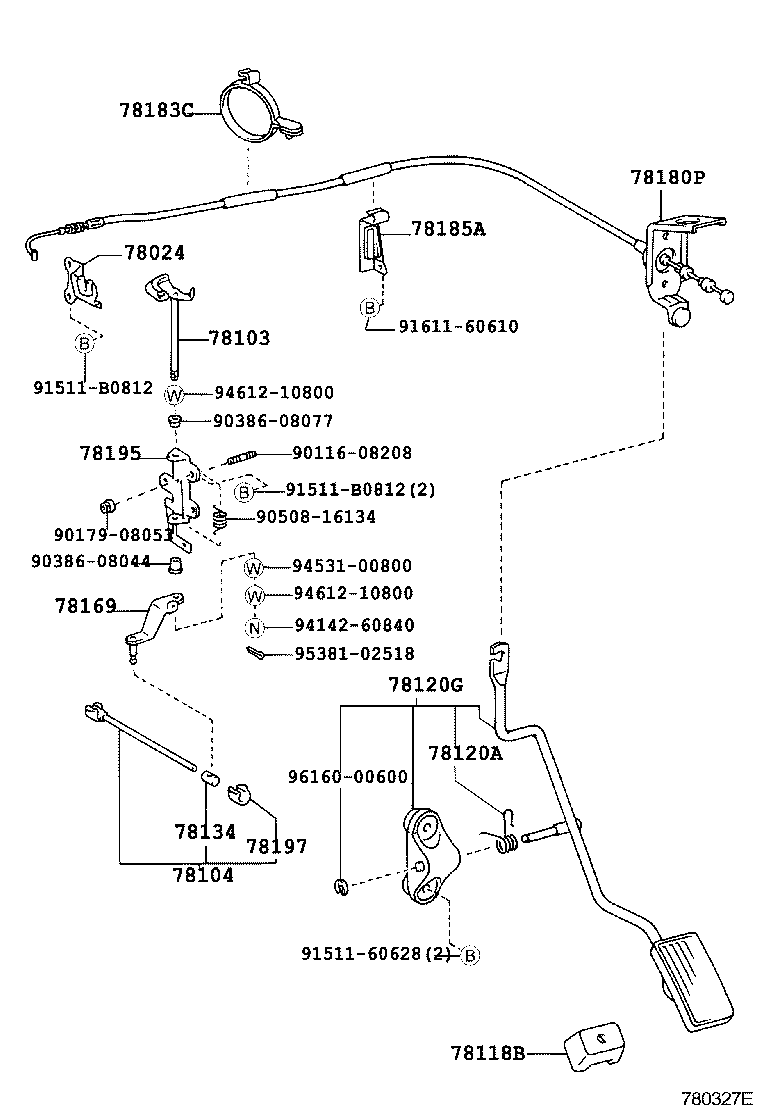

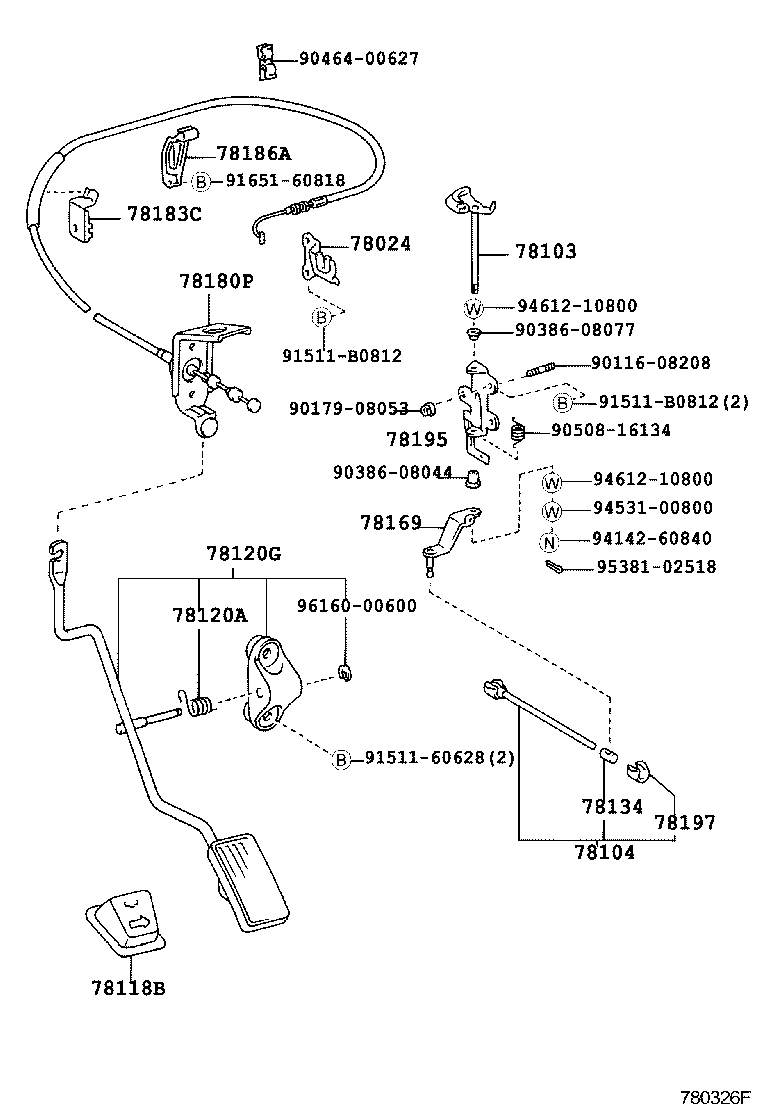

Figure 780321E 780321E 1998-01 → 2002-08 Figure 780320F 780320F 1998-01 → 2002-08 Figure 780688C 780688C 2002-08 → — Figure 780710A 780710A 2002-08 → — Figure 780323E 780323E 1998-01 → — Figure 780324F 780324F 1998-01 → — Figure 780325D 780325D 1998-01 → 2002-08 Figure 780326F 780326F 1998-01 → — Figure 780328E 780328E 1998-01 → — Figure 780327E 780327E 1998-01 → — Figure 780319B 780319B 2000-08 → 2002-08 Figure 780709B 780709B 2002-08 → — Figure 780706B 780706B 2002-08 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78118B Stopper, Accelerator Pedal
78120A Spring, Compression (FOR ACCELERATOR LINK ROD)
78120G Rod Assy, Accelerator Pedal
78134 End, Accelerator Connecting Rod
78169 Hanger, Accelerator Spring
78180P Cable Assy, Accelerator Control
78183C Clamp, Accelerator Control Cable
78183D Clamp, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186 Support, Accelerator Control Cable, NO.1
78186A Clamp, Accelerator Control Cable, NO.3
78187A Clamp, Accelerator Control Cable, NO.4
78195 Bracket, Accelerator Link
78197 Clip, Accelerator Joint Ball
78407 Arm Sub-assy, Throttle Control
78410 Cable Assy, Throttle Control
78411A Knob, Throttle Control Cable
78481 Clamp, Throttle Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
