Toyota Land Cruiser 100

1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General

Discontinued model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

24 part groups · 6 illustrations

Illustrations

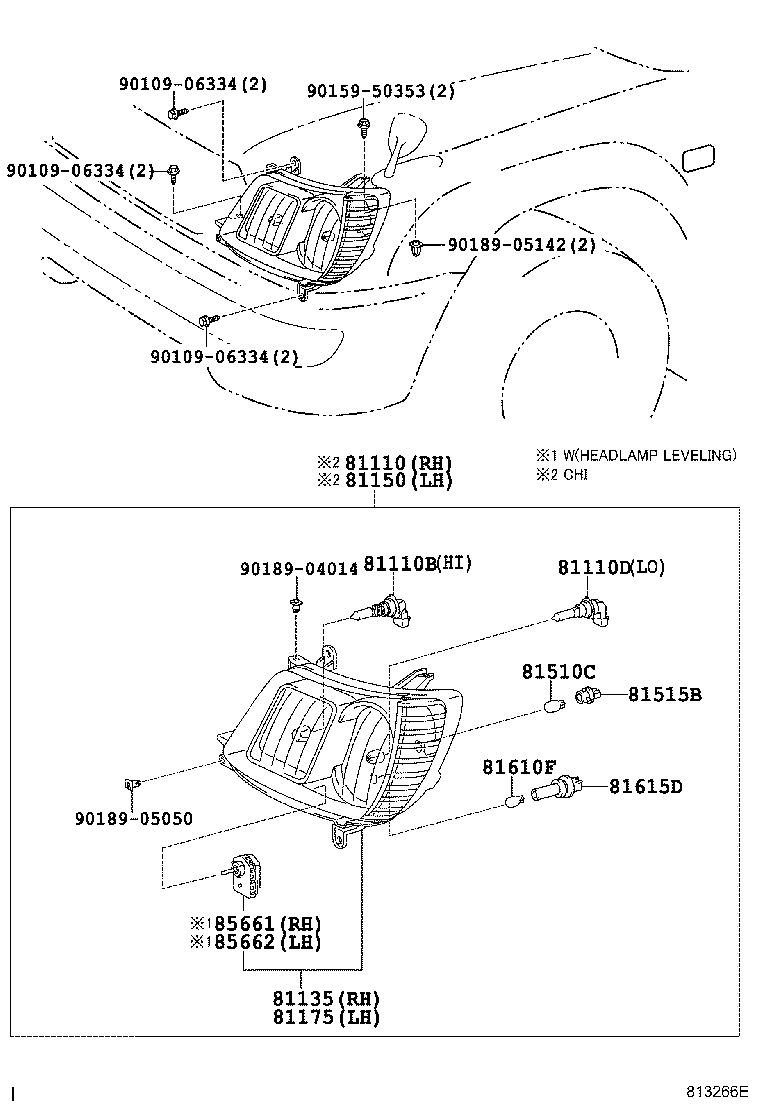

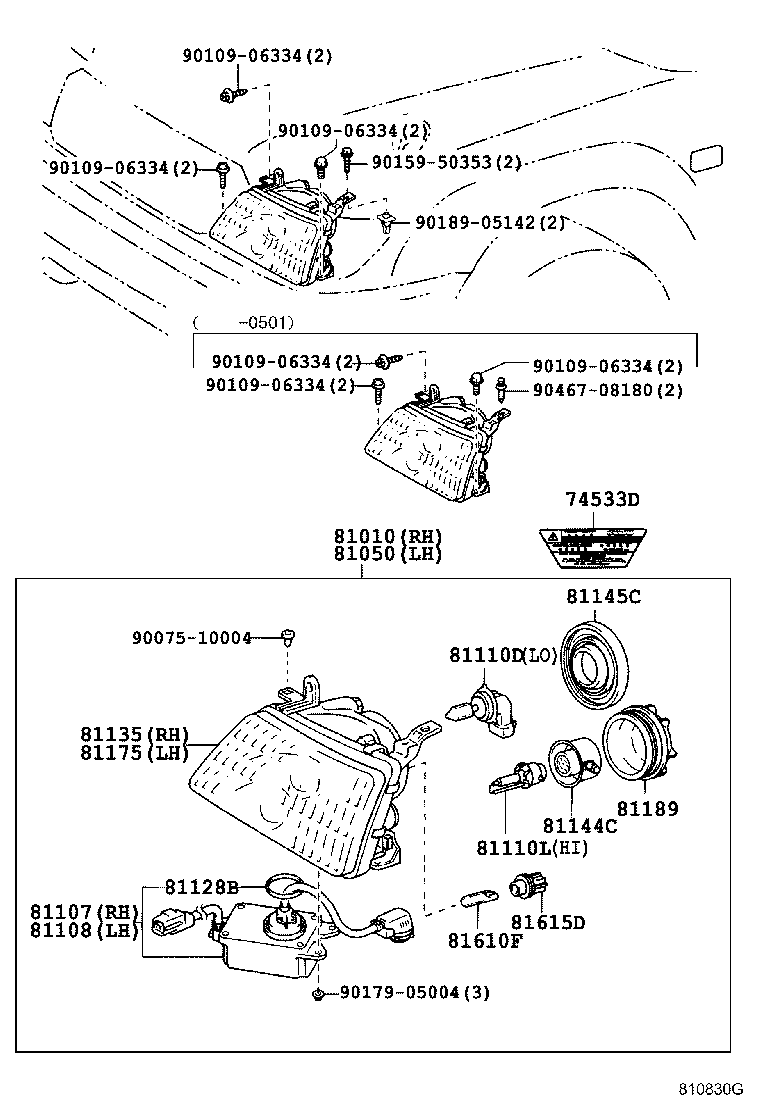

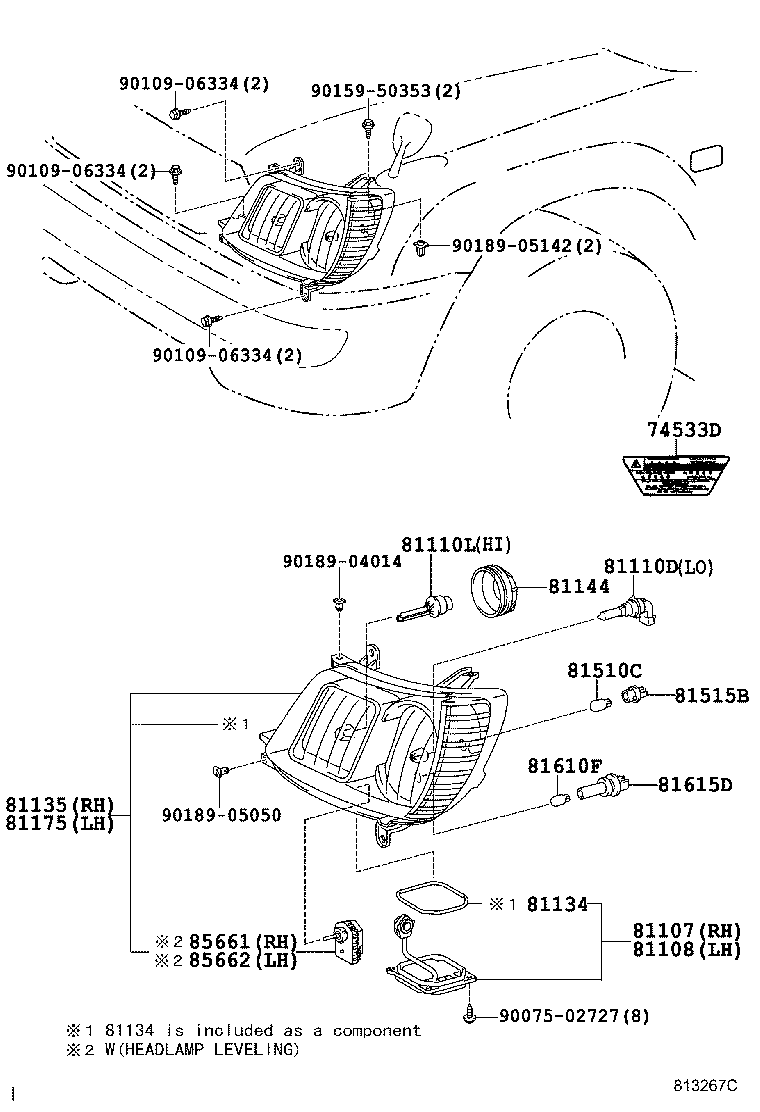

Figure 810829J 810829J 1998-01 → 2005-05 Figure 810829J 810829J 2005-05 → 2005-06 Figure 810830G 810830G 1998-01 → 2005-05 Figure 813266E 813266E 2005-05 → 2005-06 Figure 813266E 813266E 2005-06 → — Figure 813267C 813267C 2005-05 → —

Part groups

PNCDescription
74533D Label, Headlamp Voltage Caution
81010 Headlamp Assy, W/Clearance, RH
81050 Headlamp Assy, W/Clearance, LH
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81128B Packing, Headlamp (FOR BALLAST)
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81144C Cover, Headlamp Socket
81145C Cover, Headlamp Socket, NO.2
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81189 Cover, Headlamp
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
