Toyota Land Cruiser 100

1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General

Discontinued model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

7 part groups · 4 illustrations

Illustrations

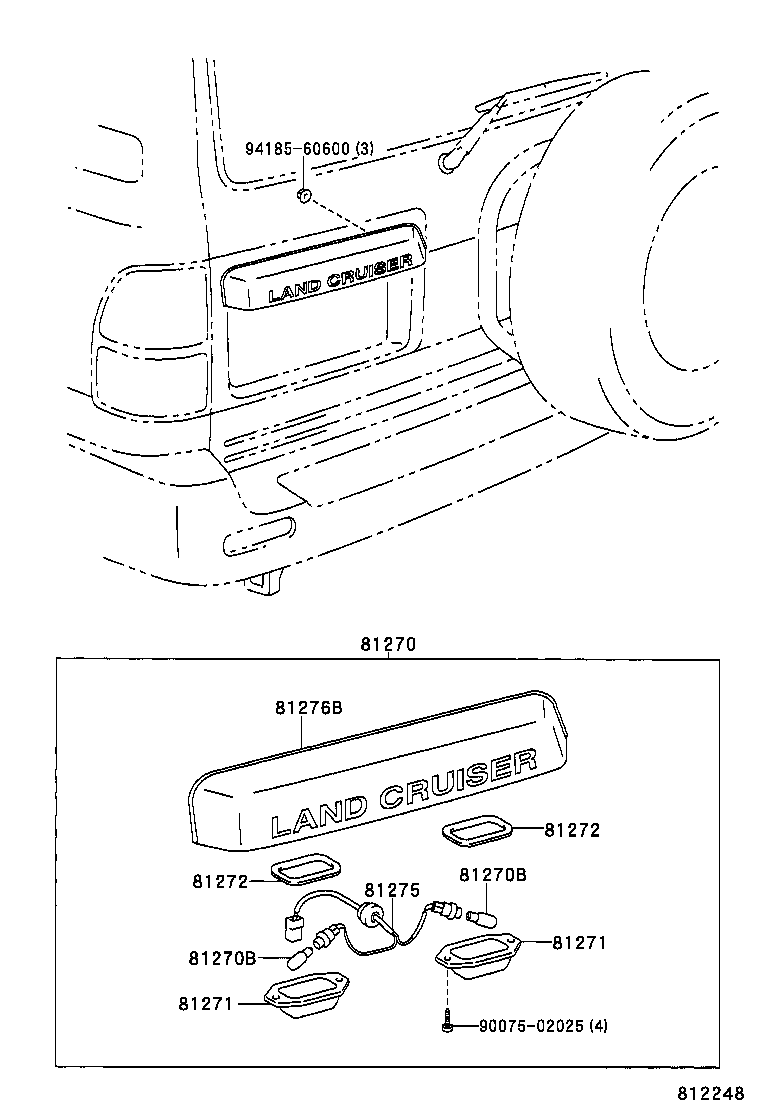

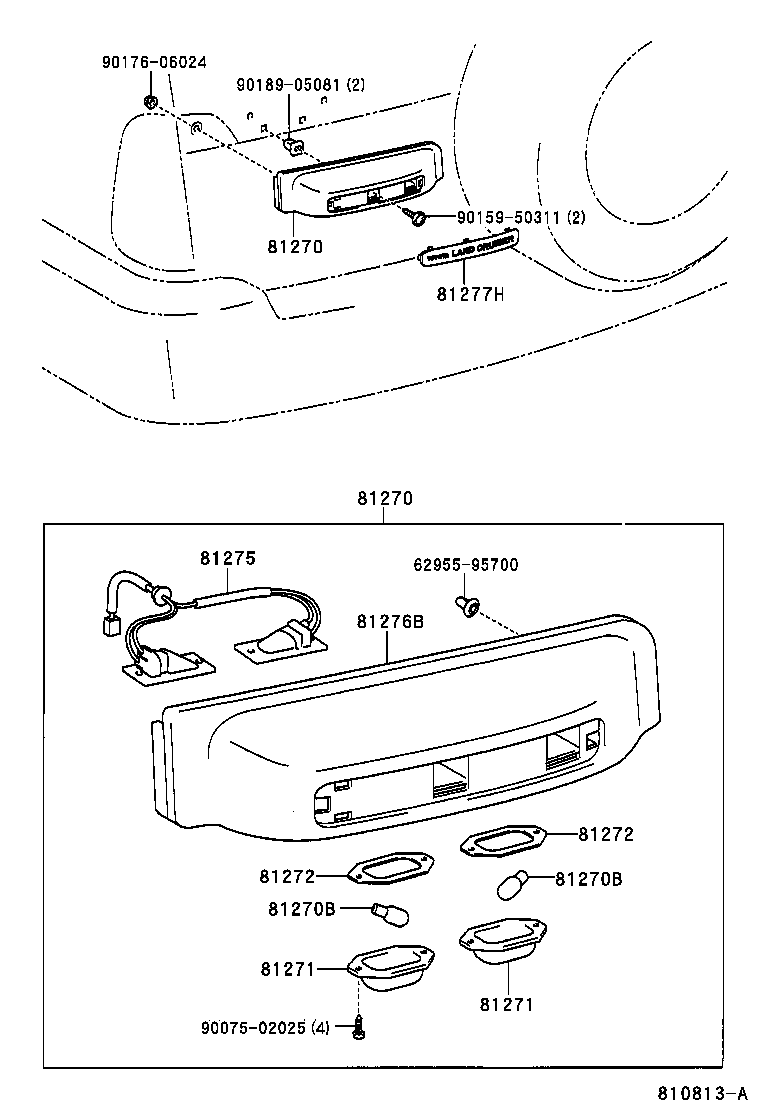

Figure 810814 810814 1998-01 → 2002-08 Figure 810812B 810812B 1998-01 → — Figure 812248 812248 2002-08 → — Figure 810813A 810813A 1998-01 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81275 Socket And Wire, License Plate Lamp
81276B Cover, License Plate Lamp
81277H Cap, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
