Toyota Land Cruiser 100

1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General

Discontinued model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

86 part groups · 34 illustrations

Illustrations

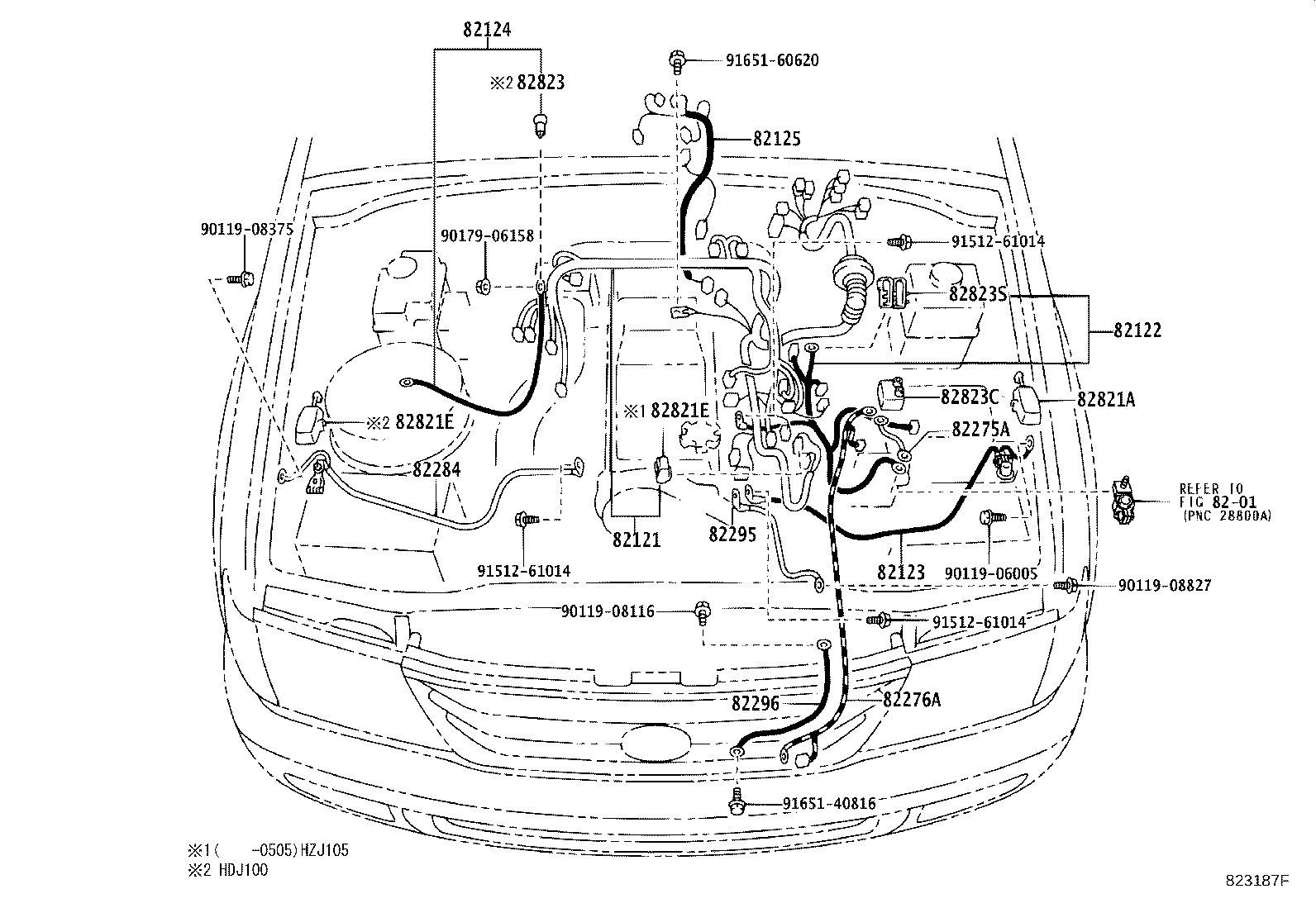

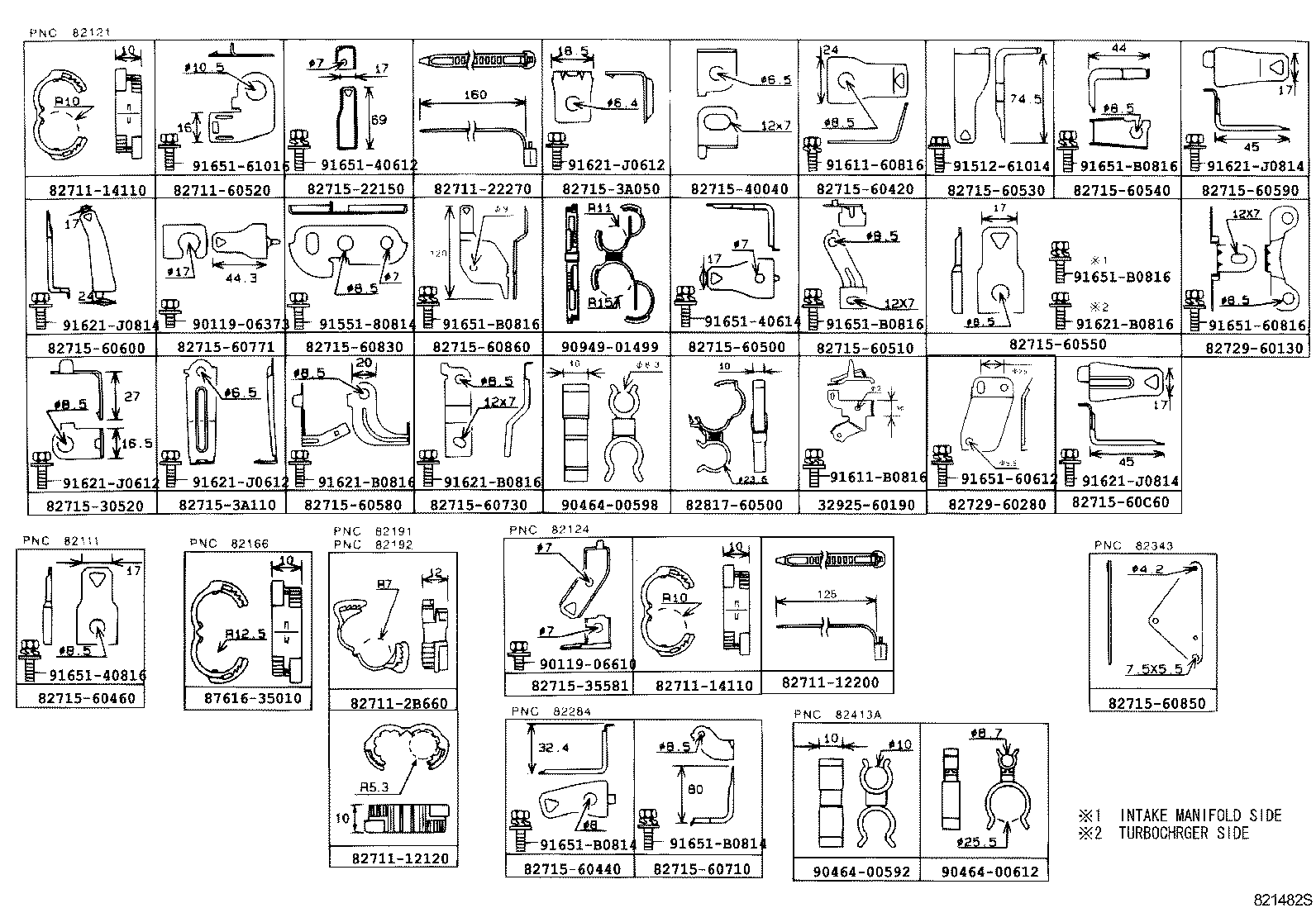

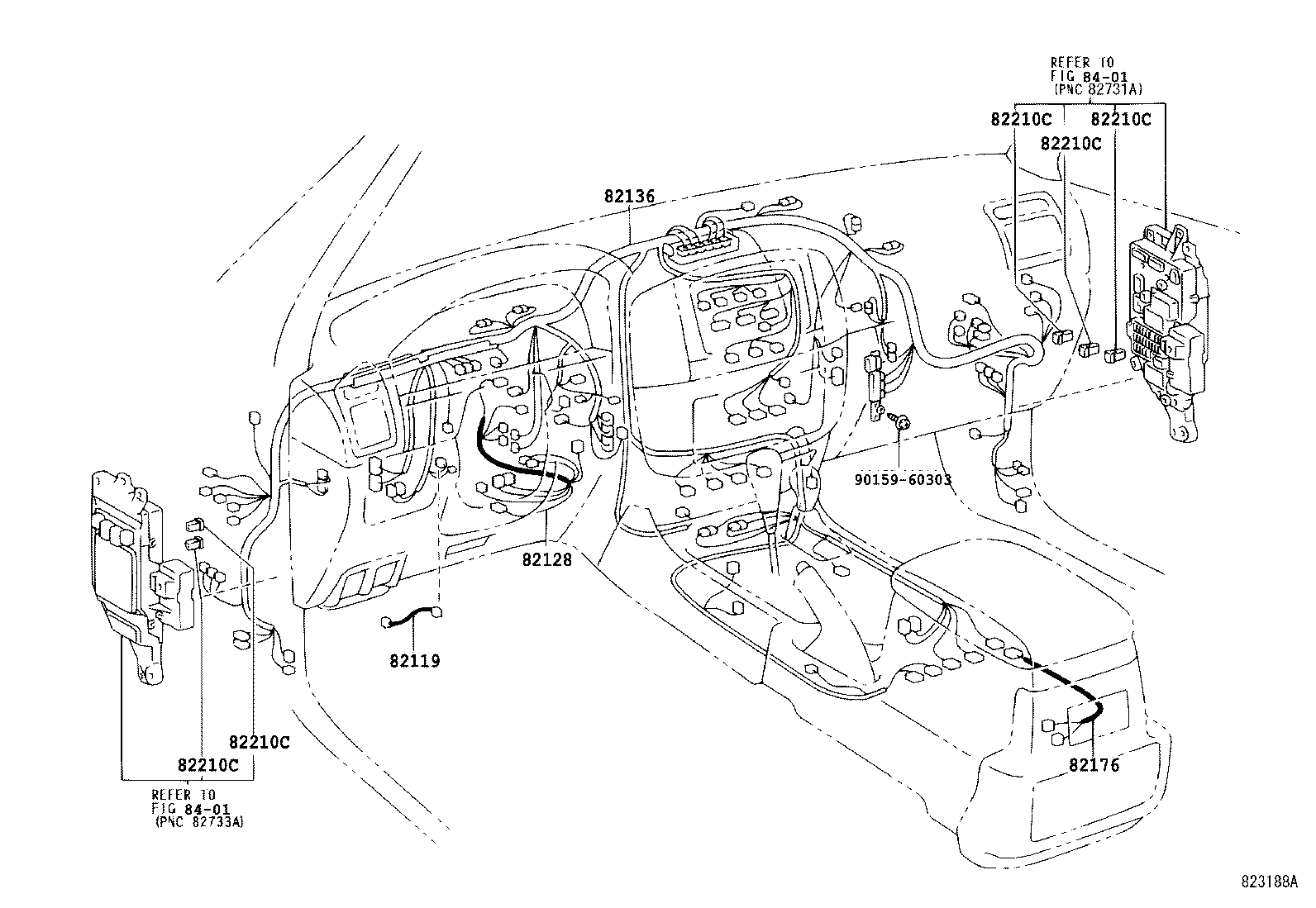

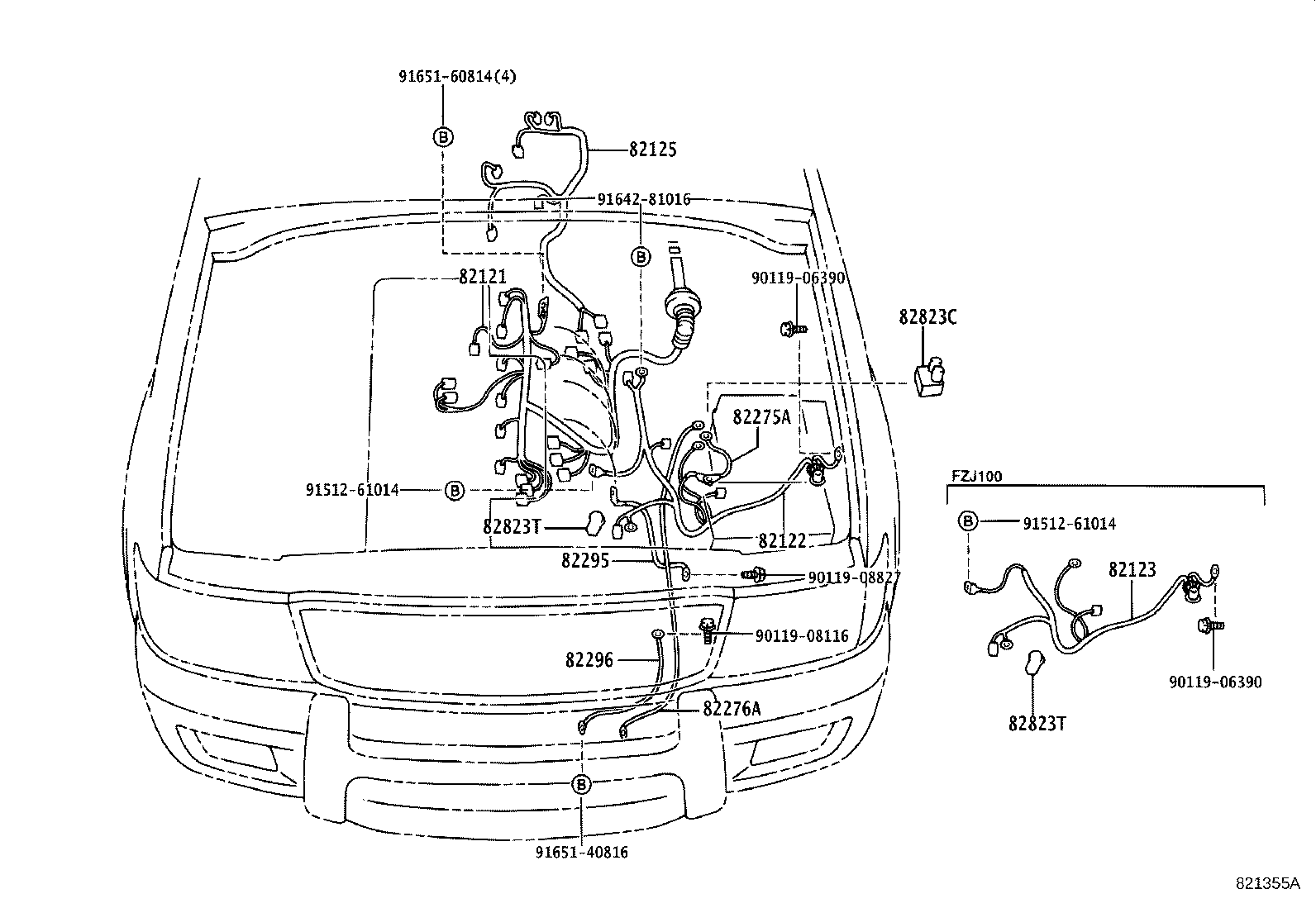

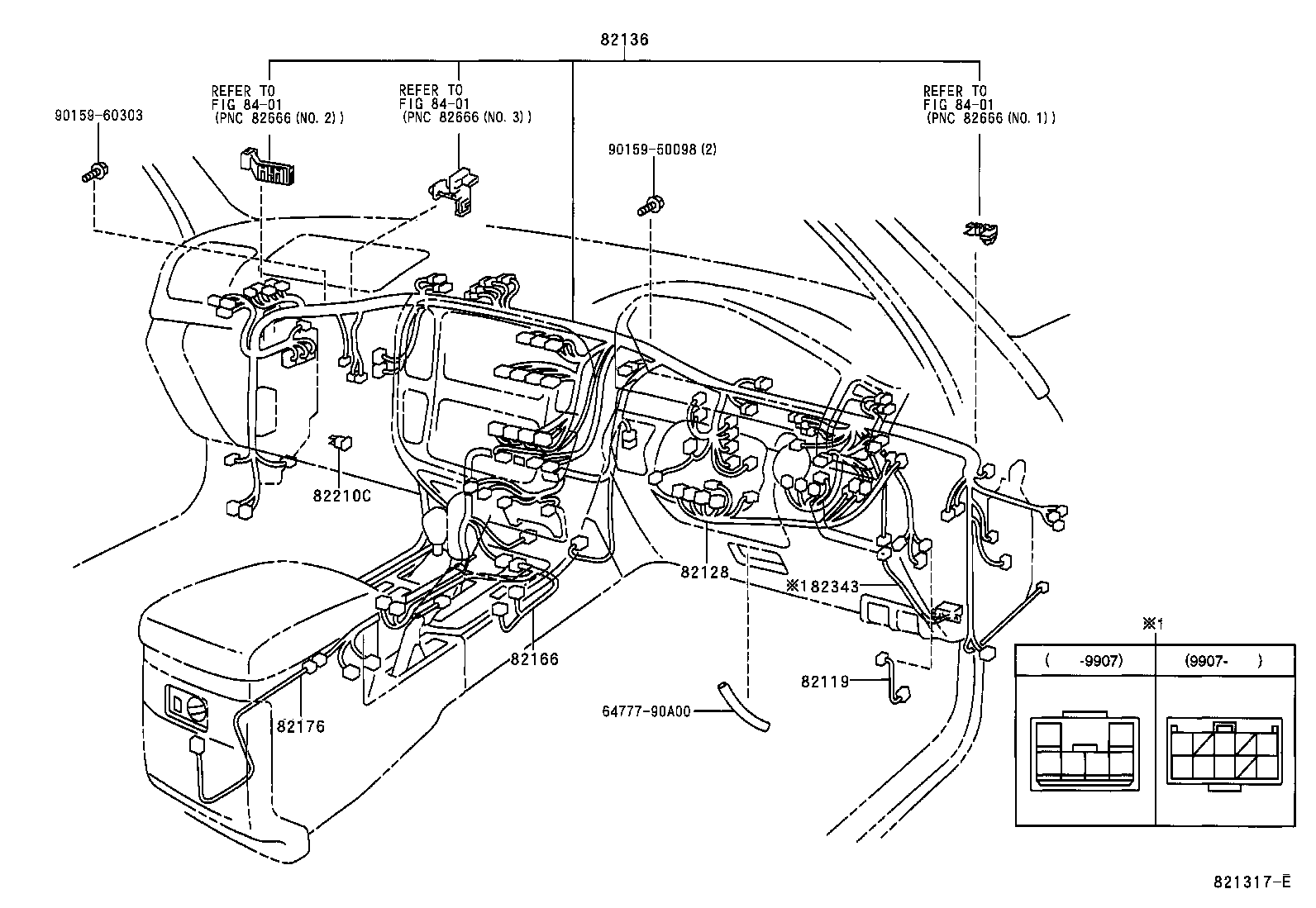

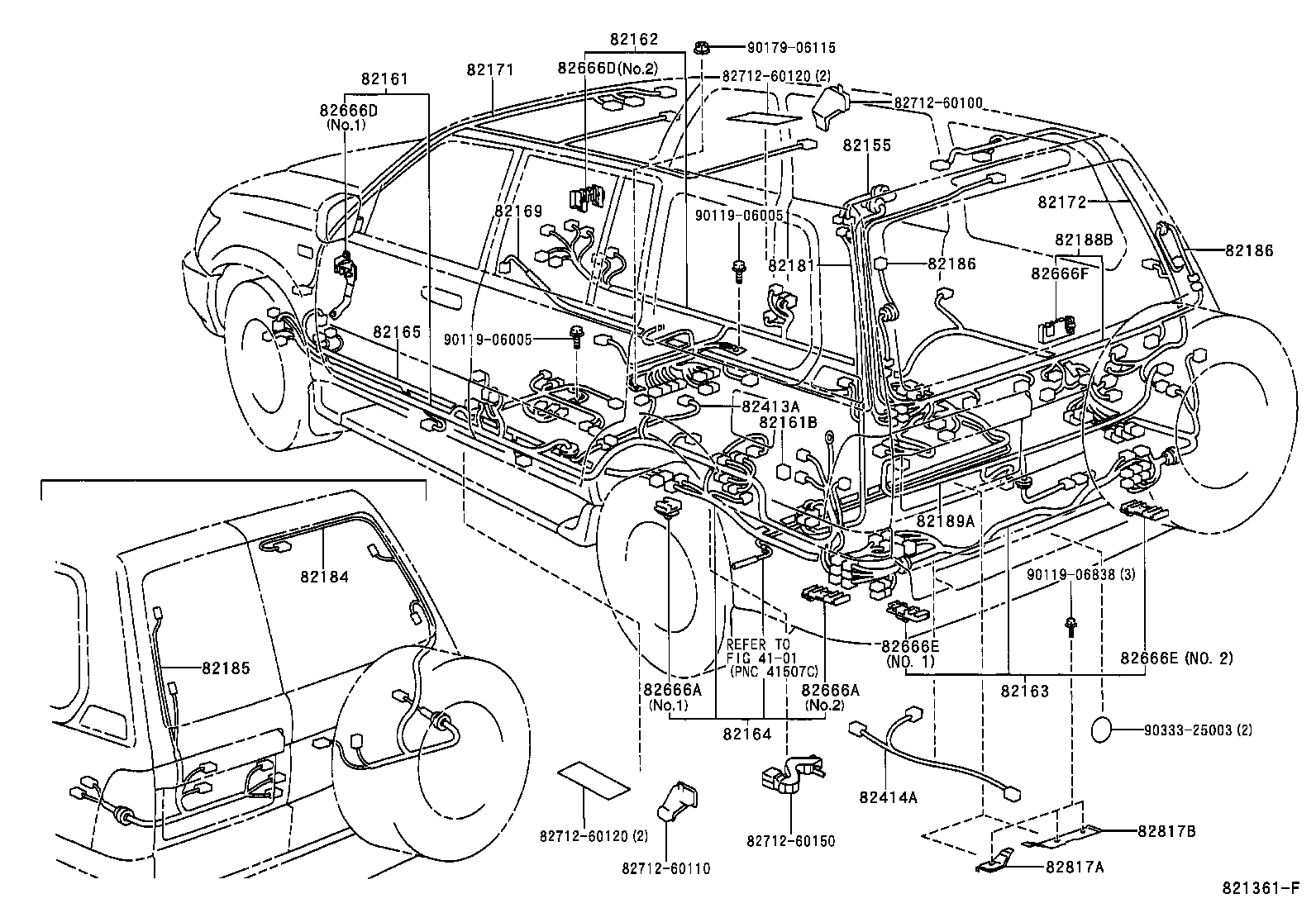

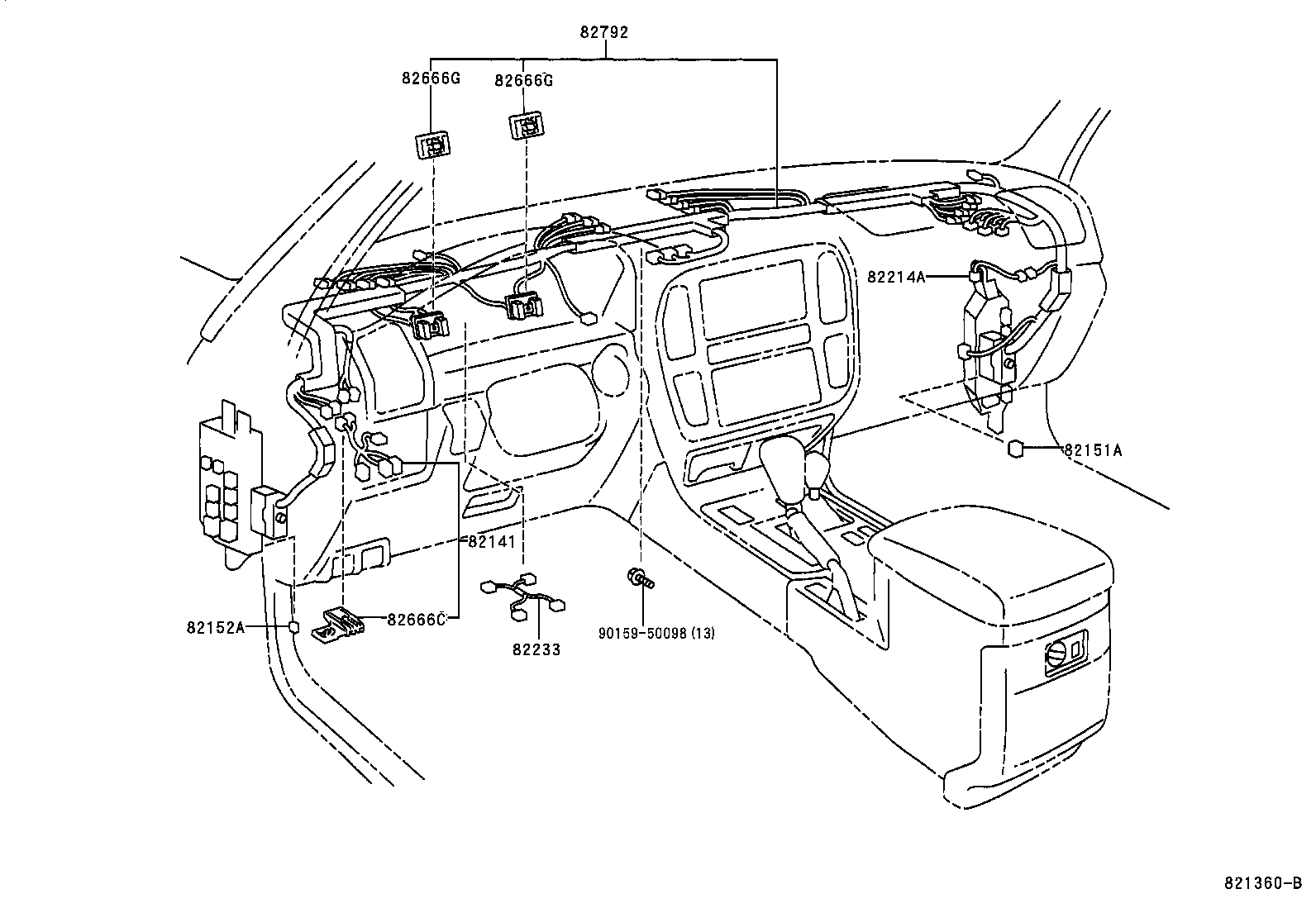

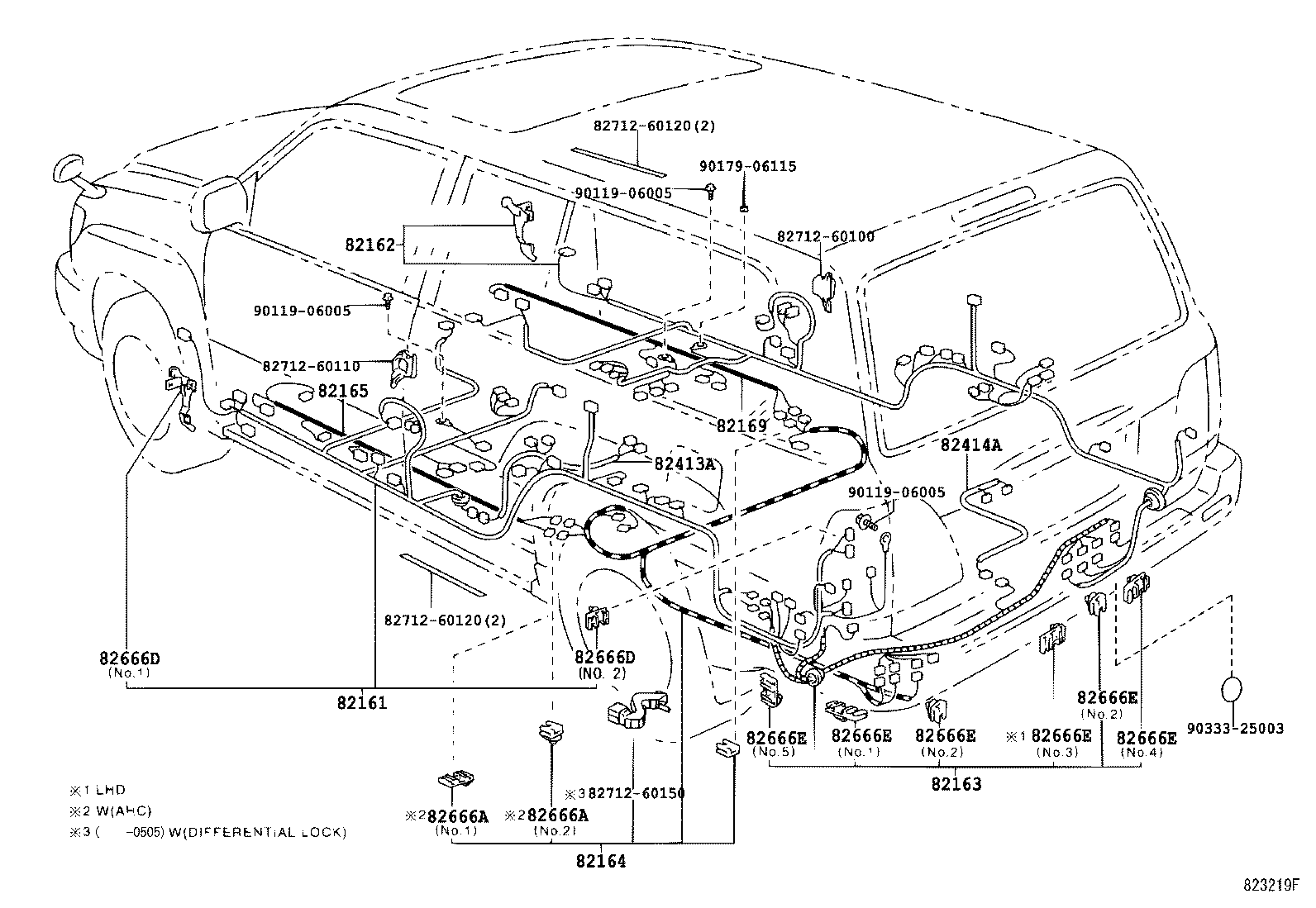

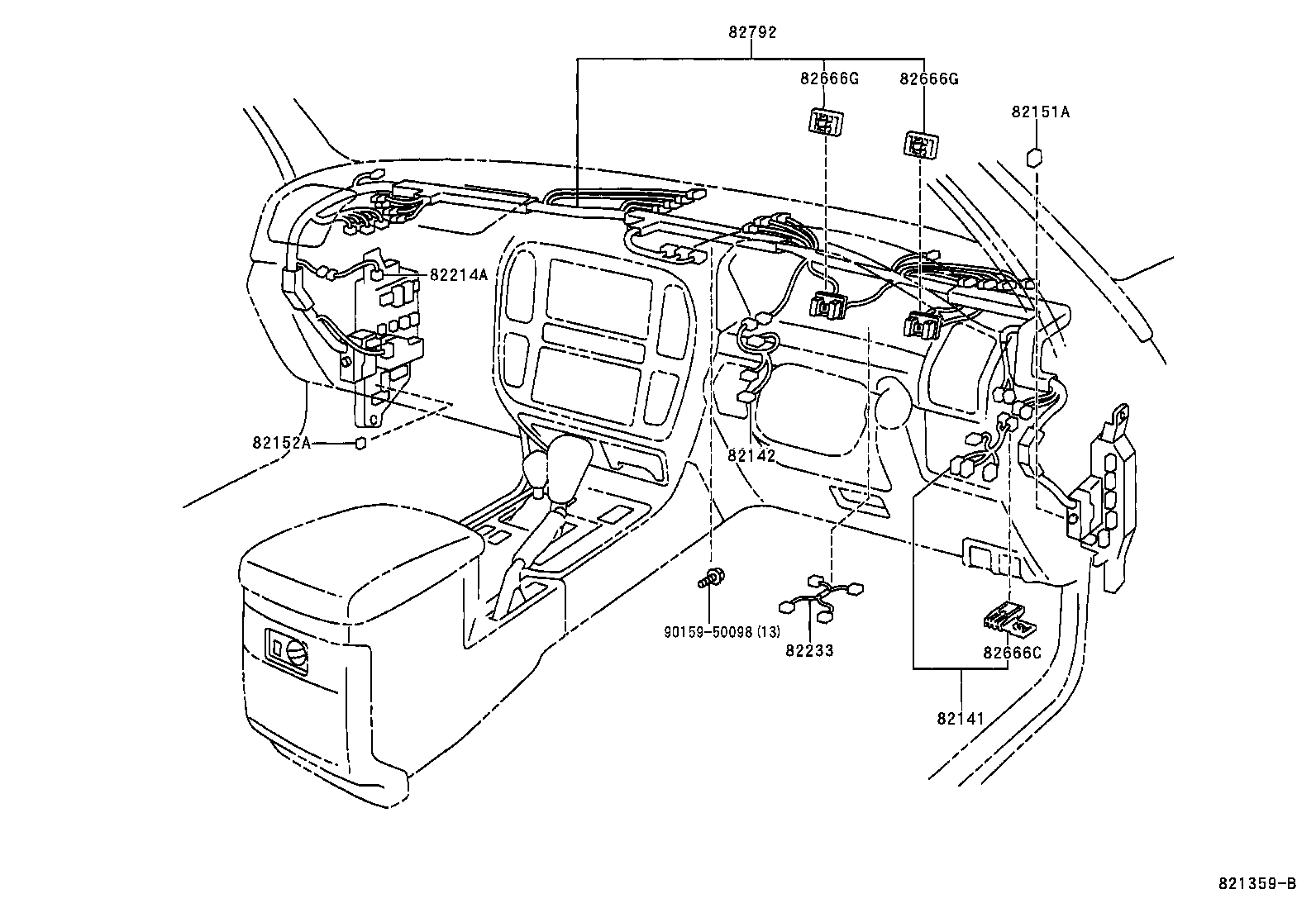

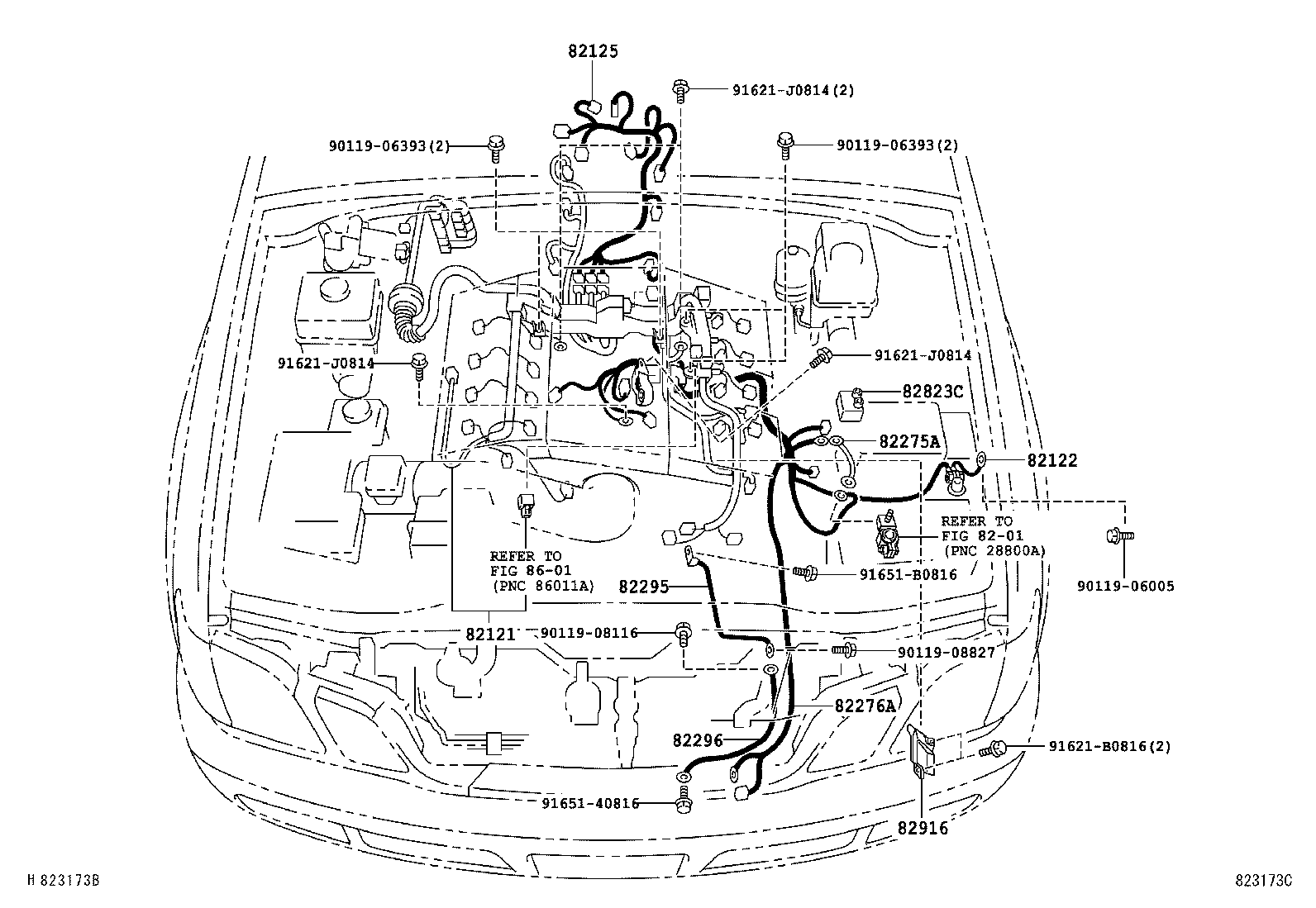

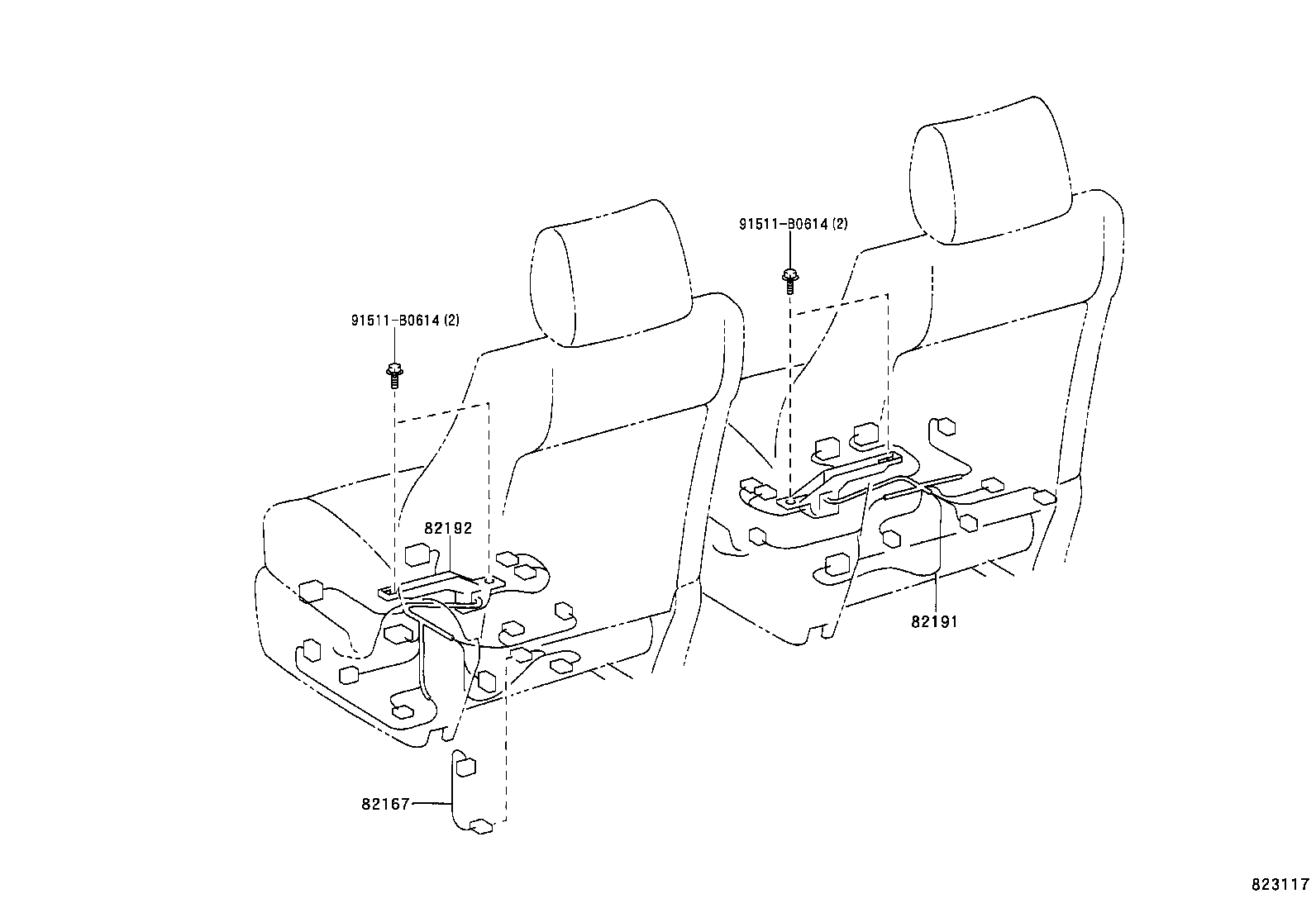

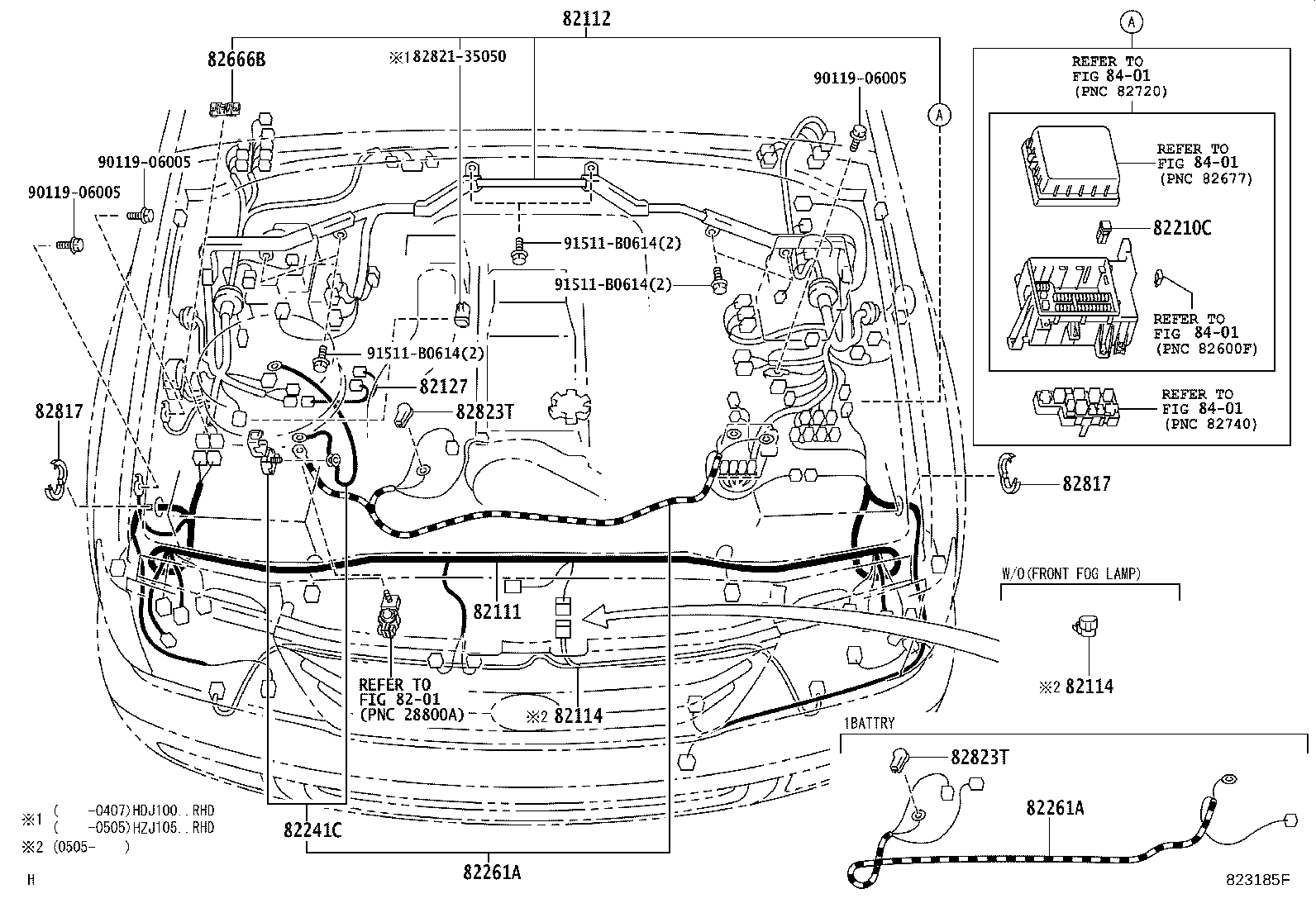

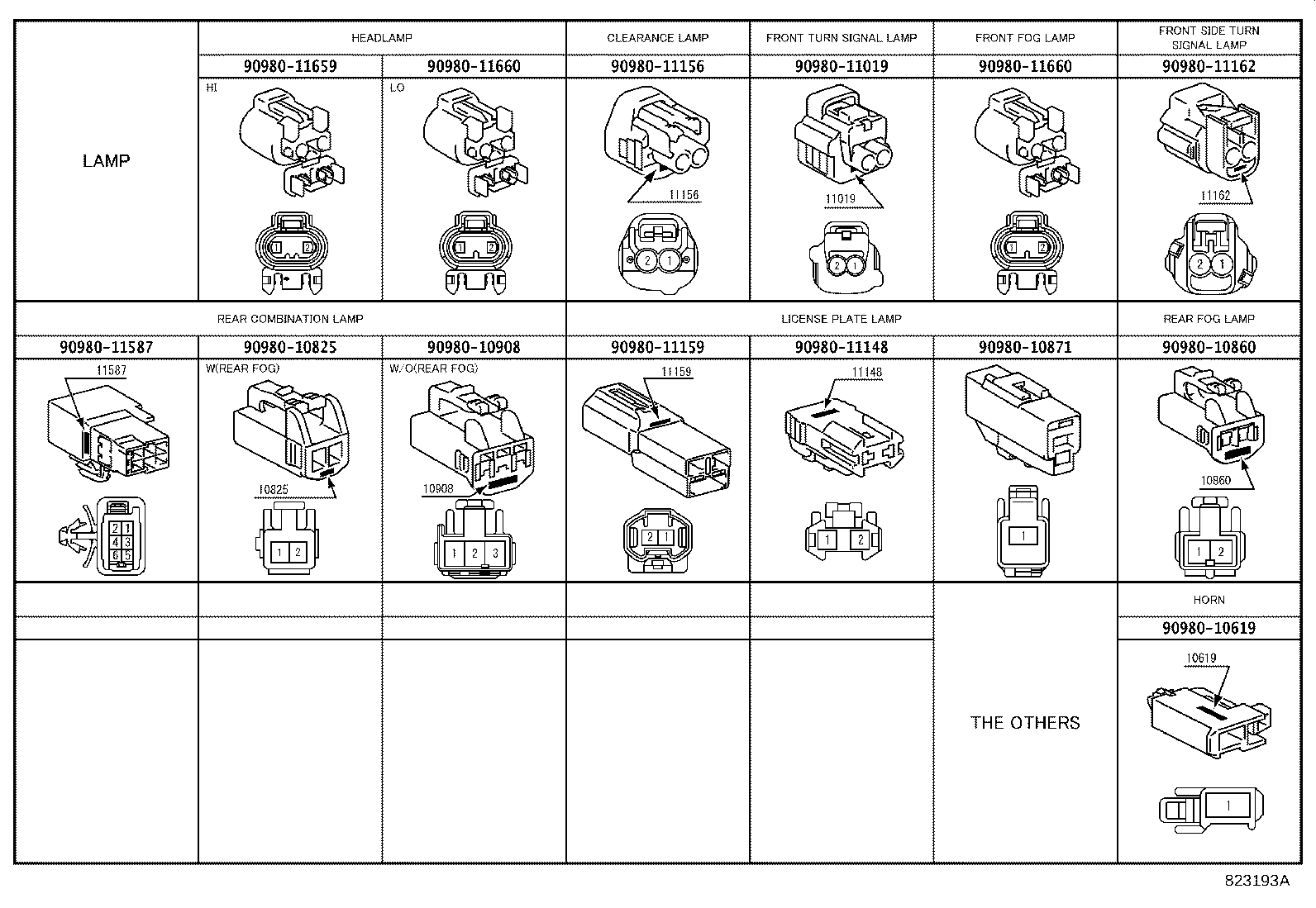

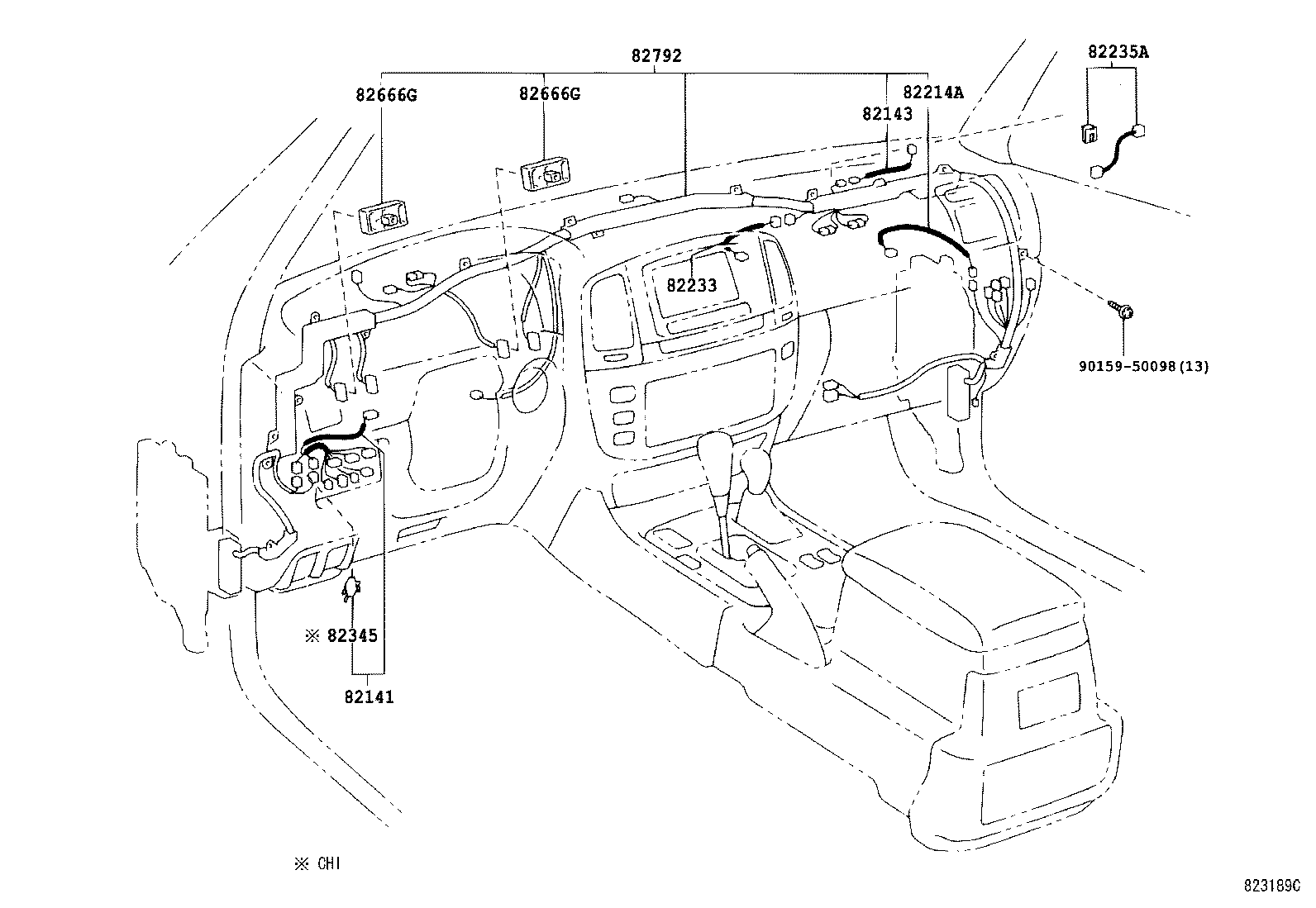

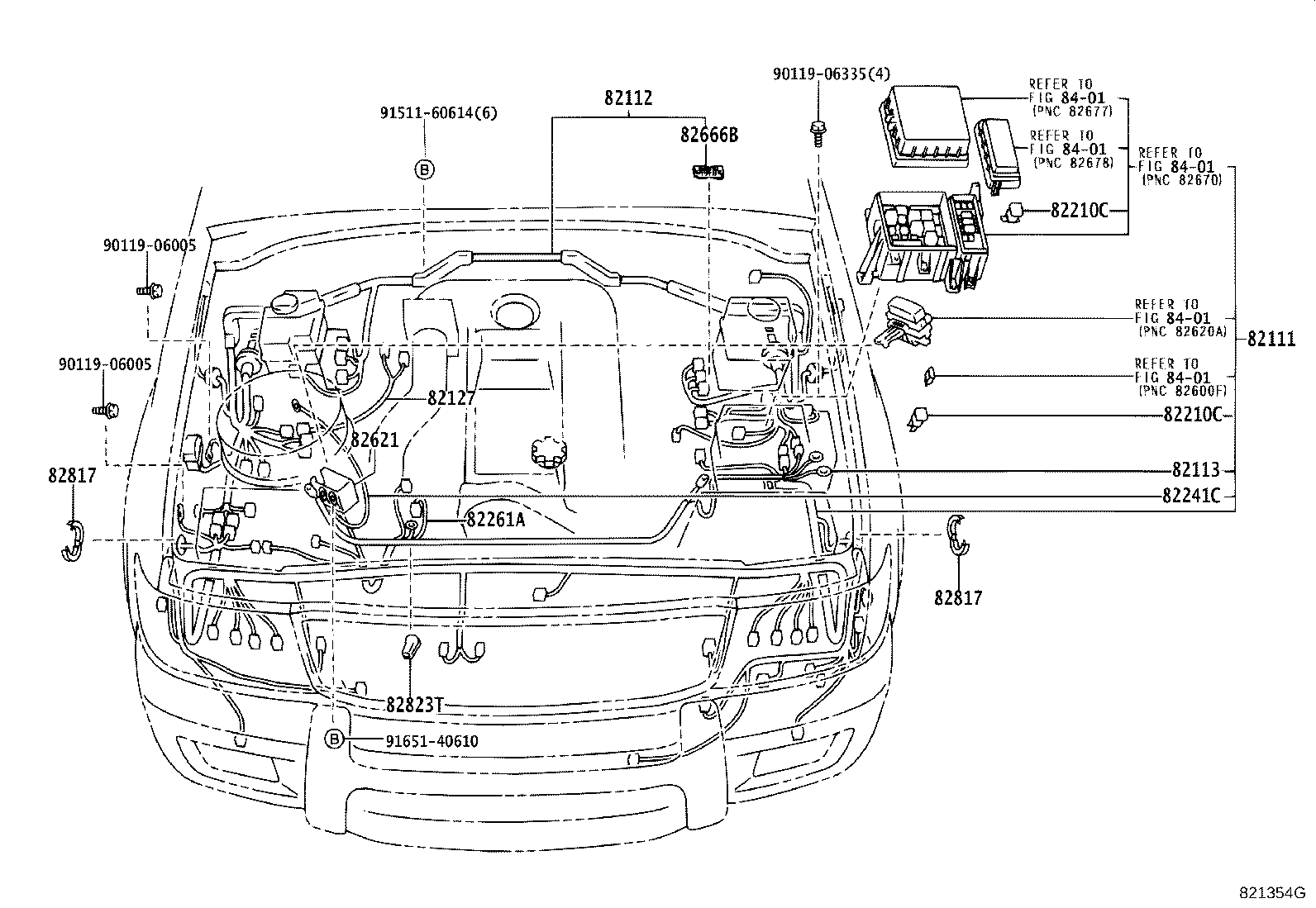

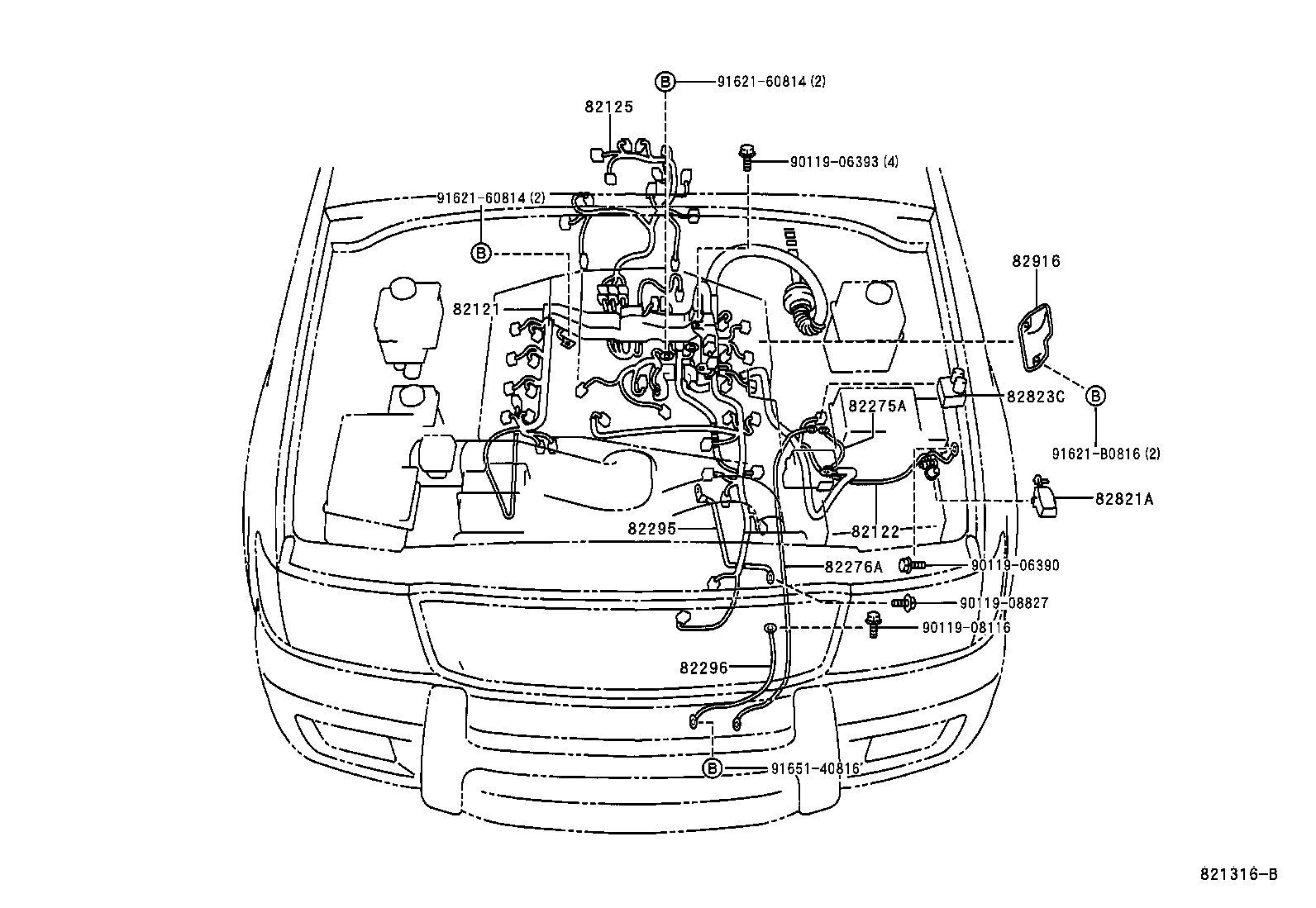

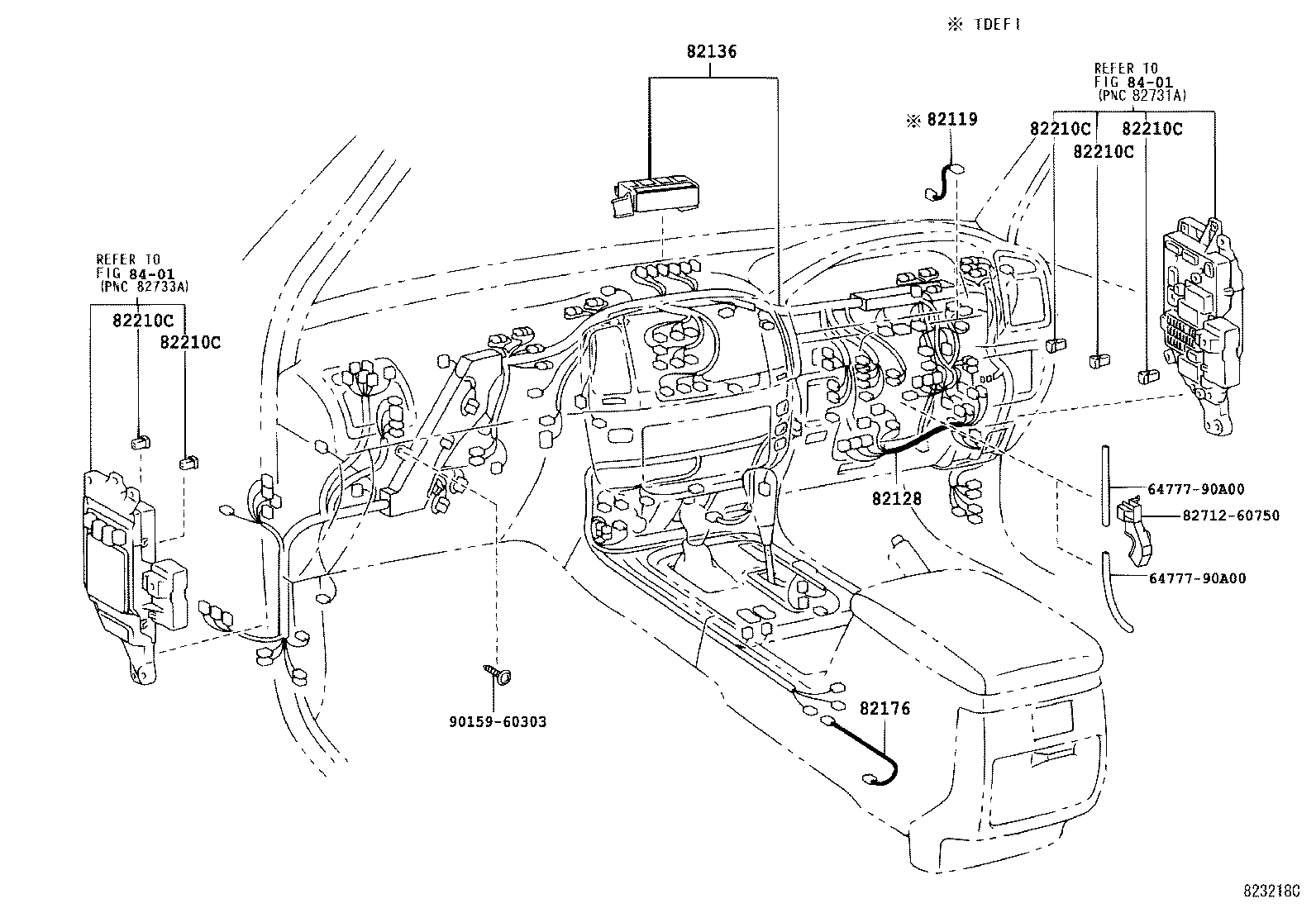

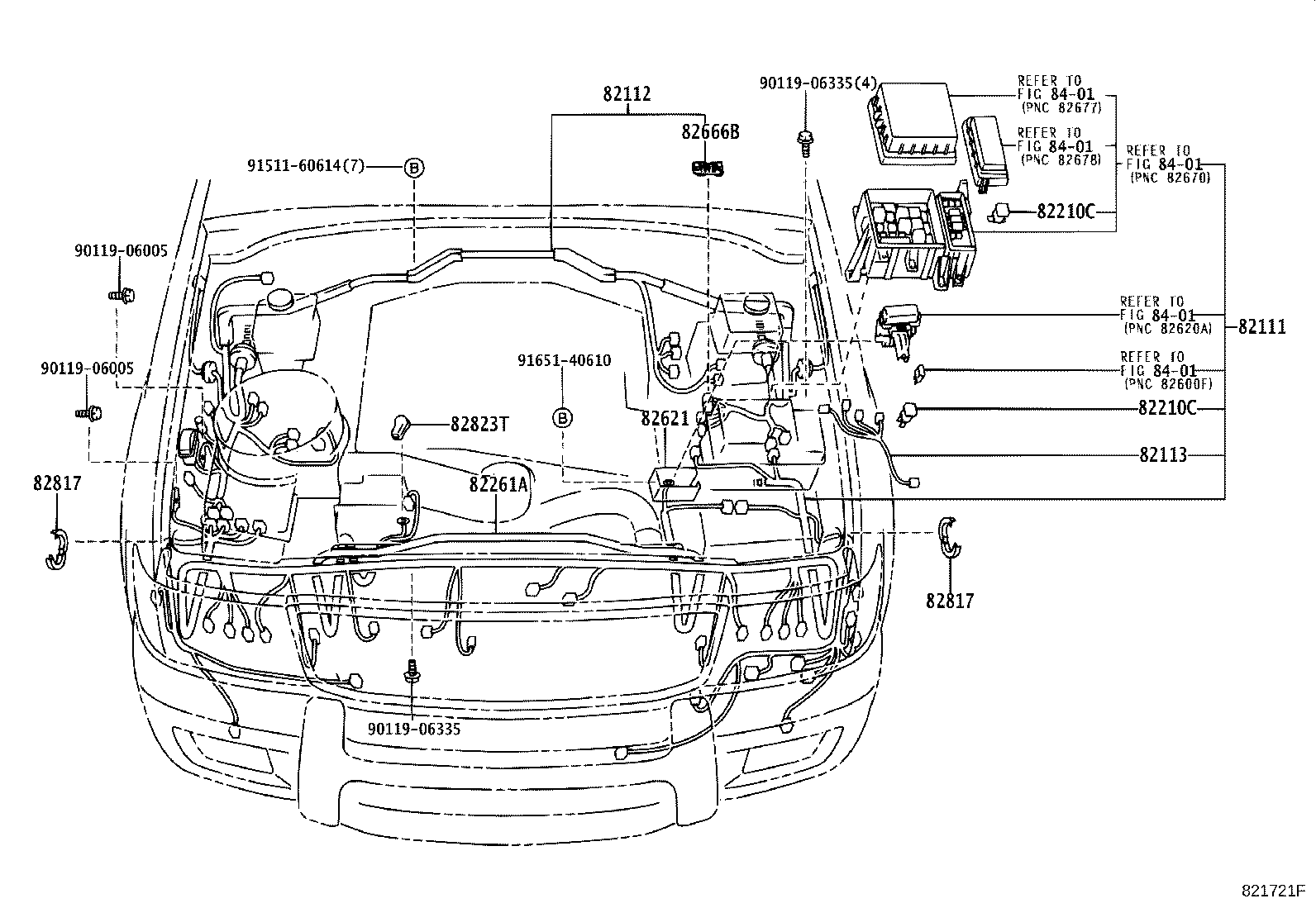

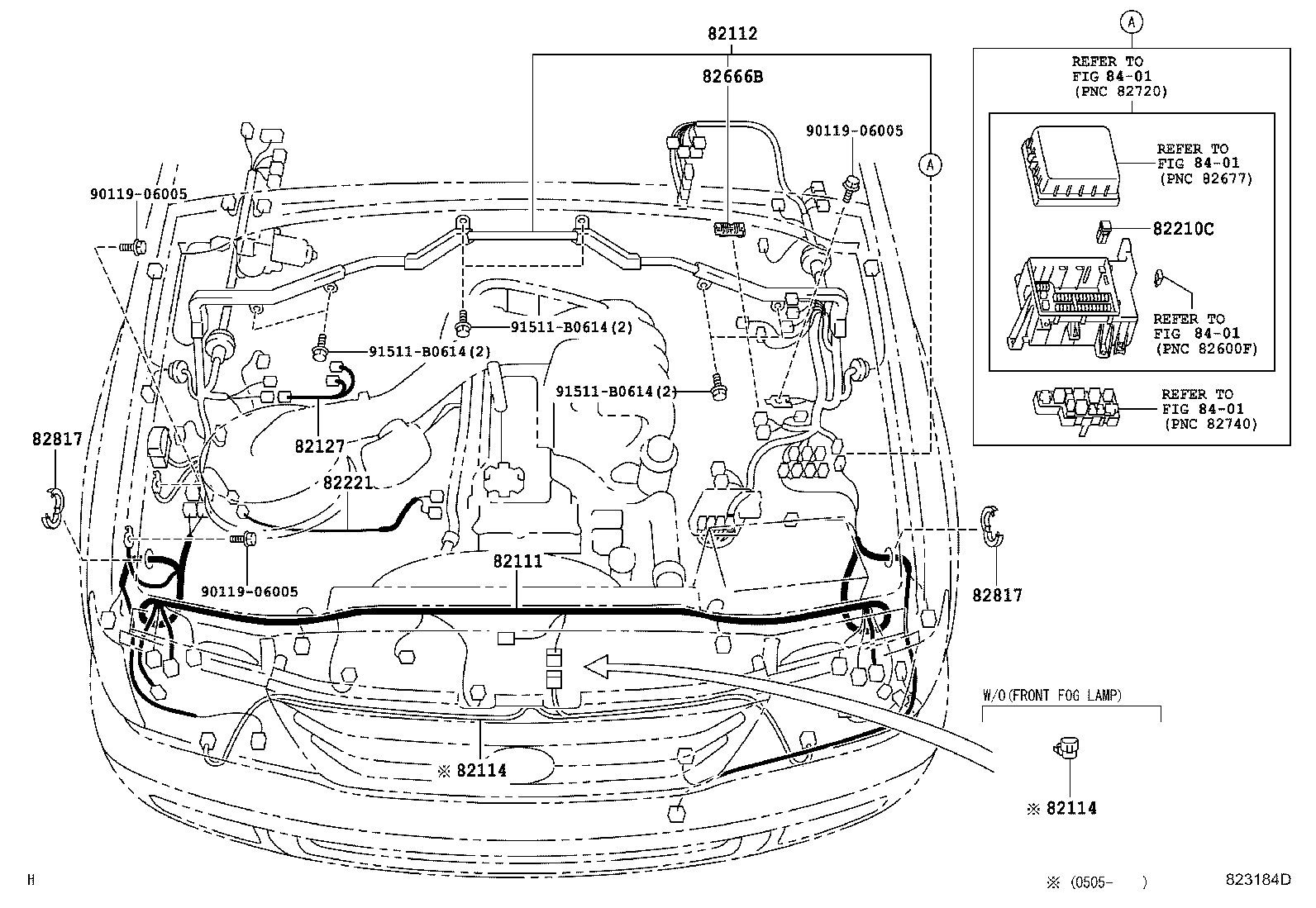

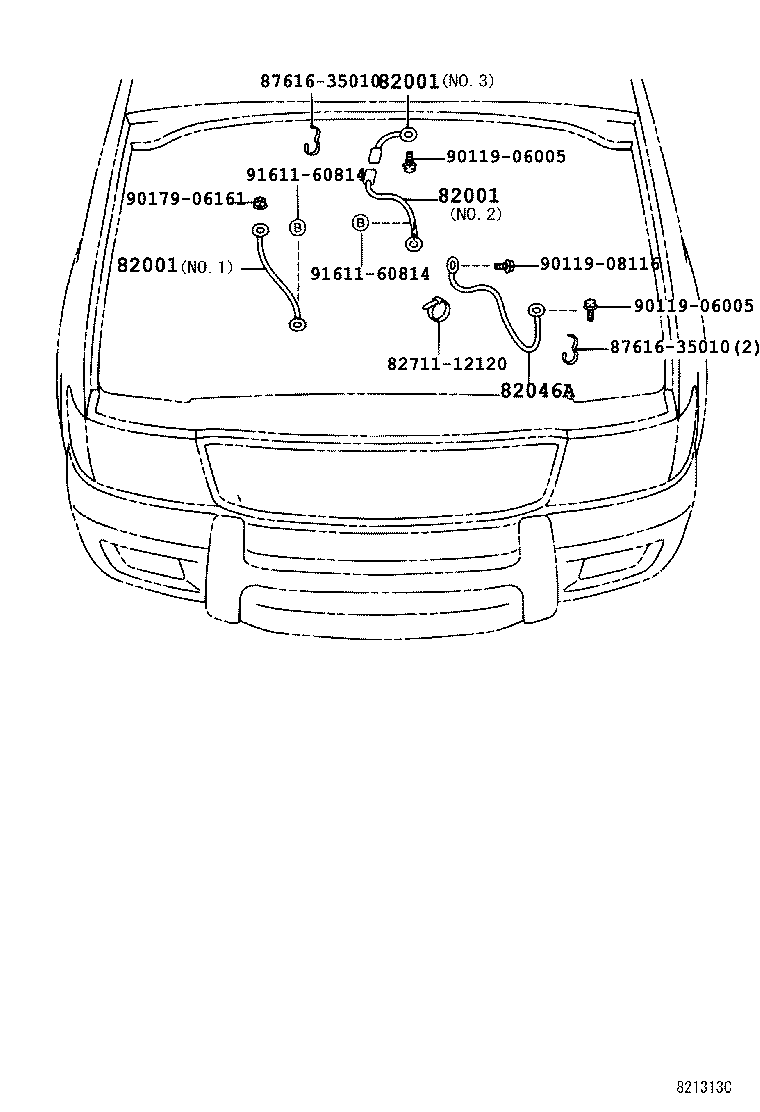

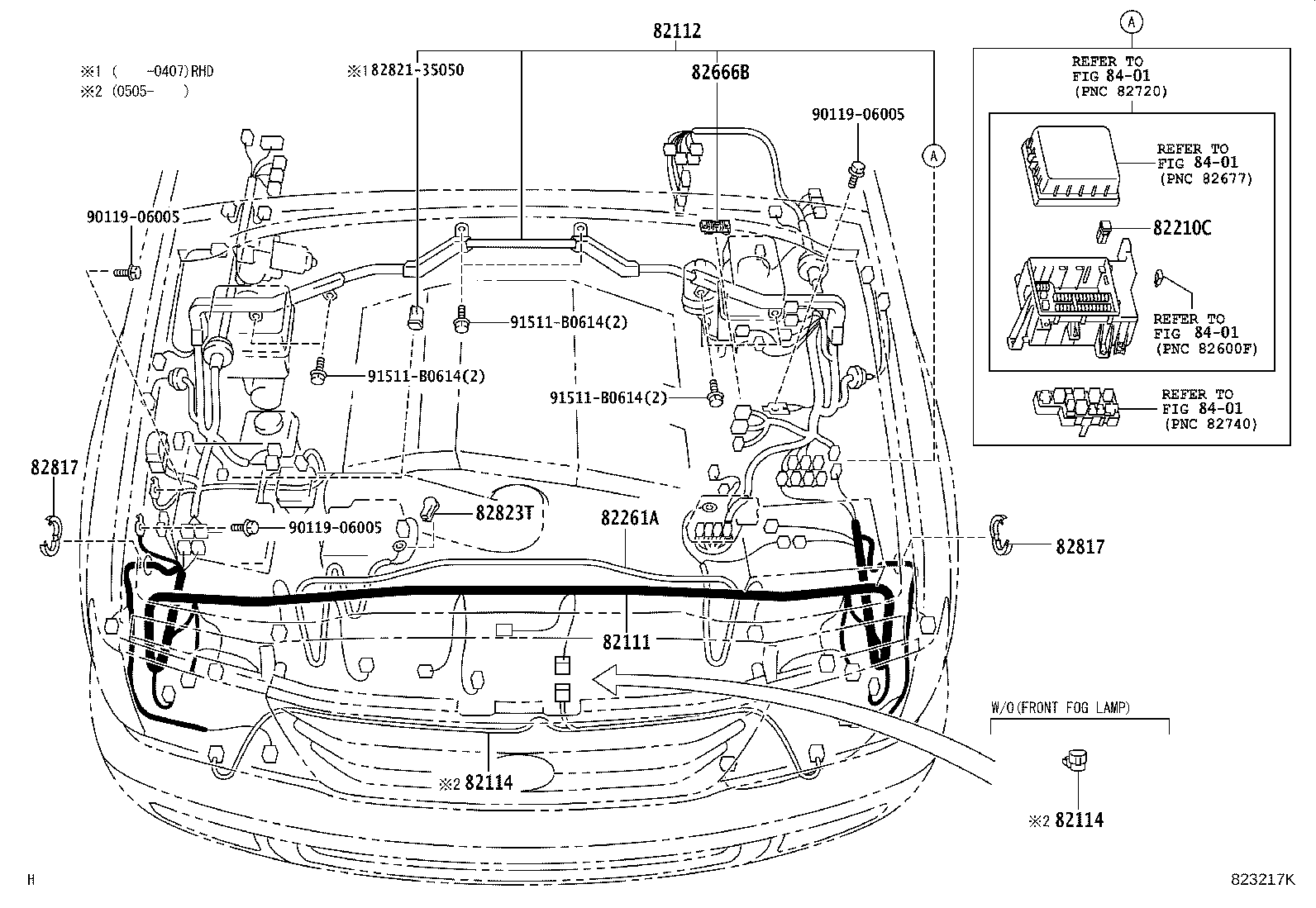

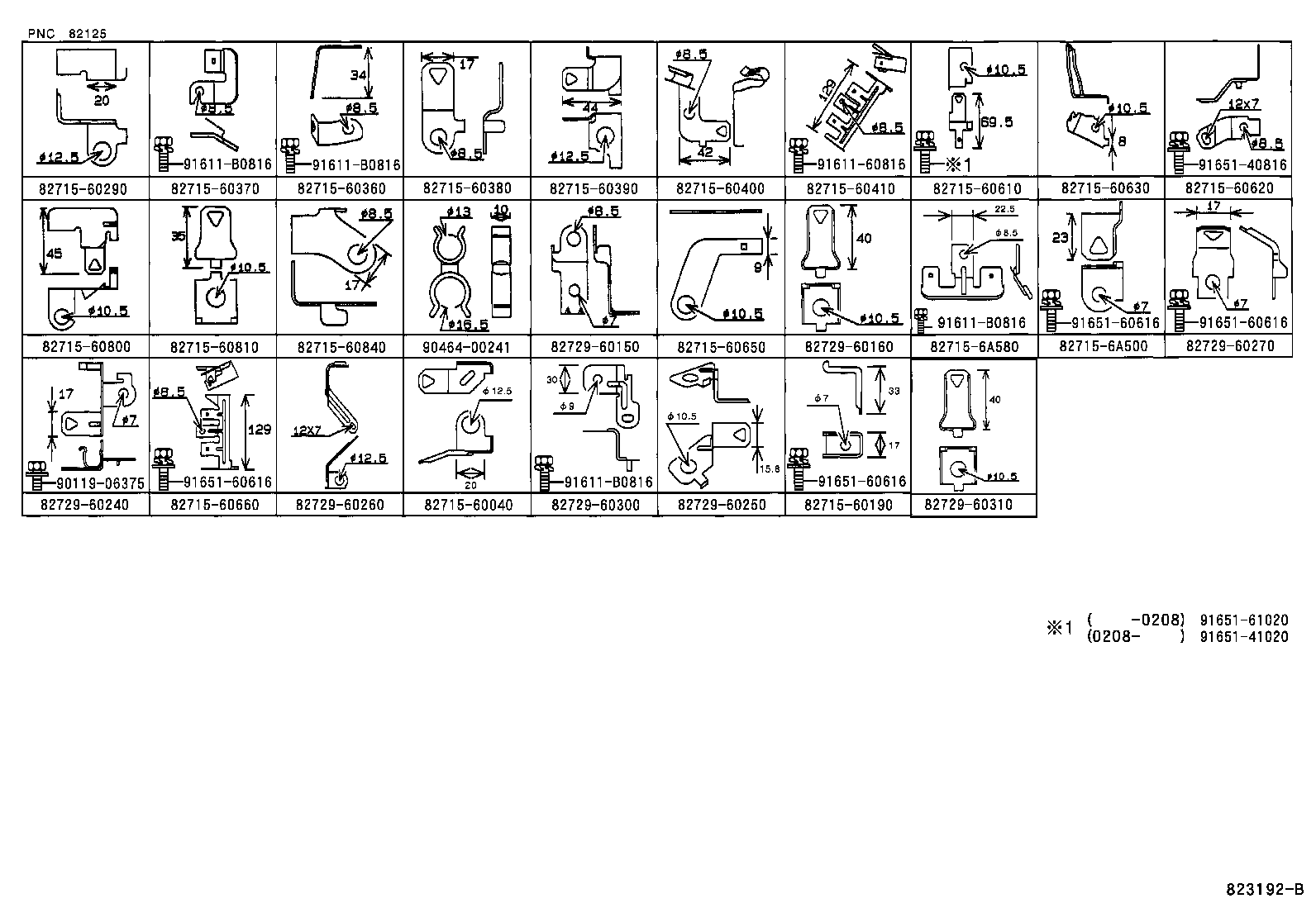

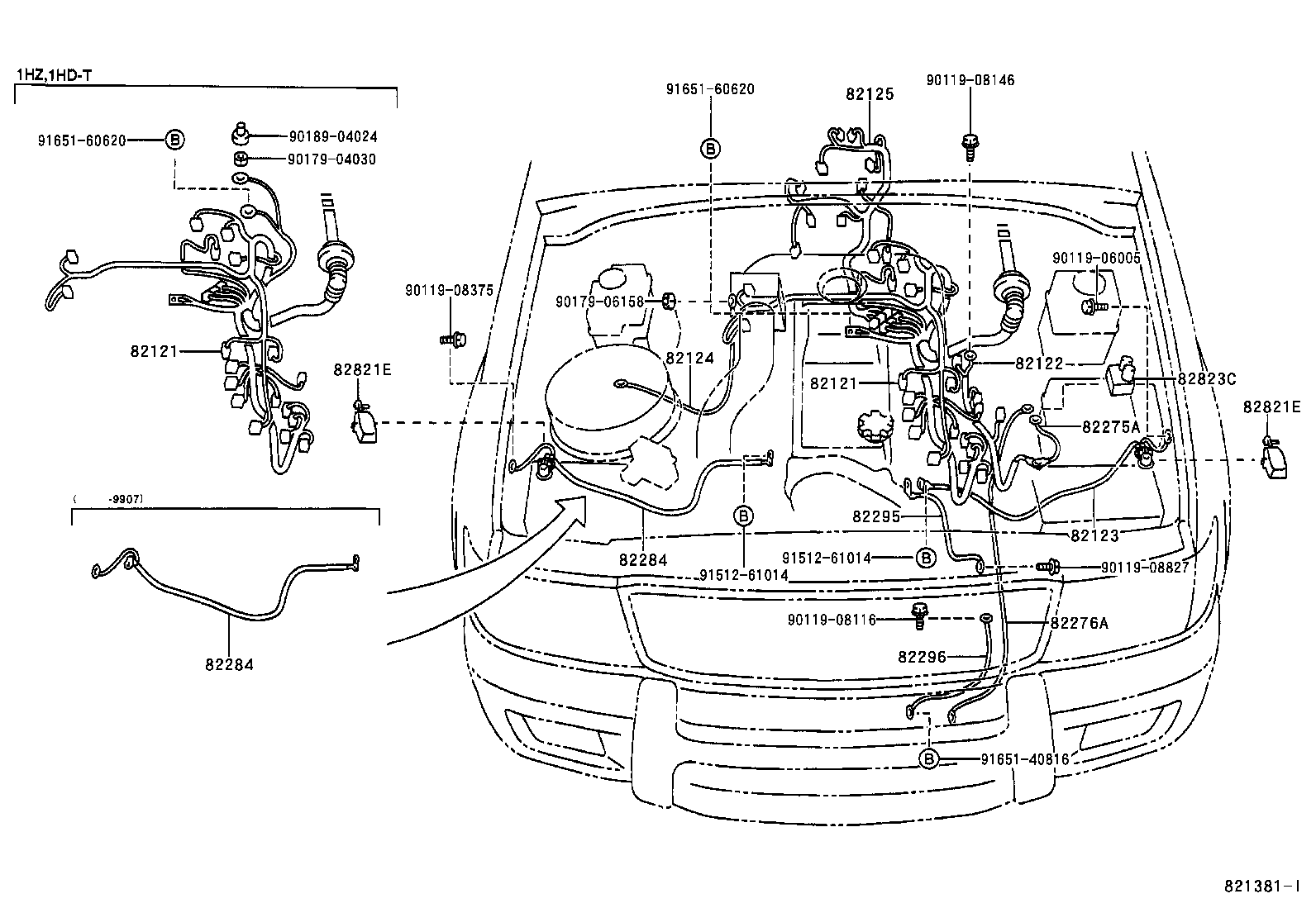

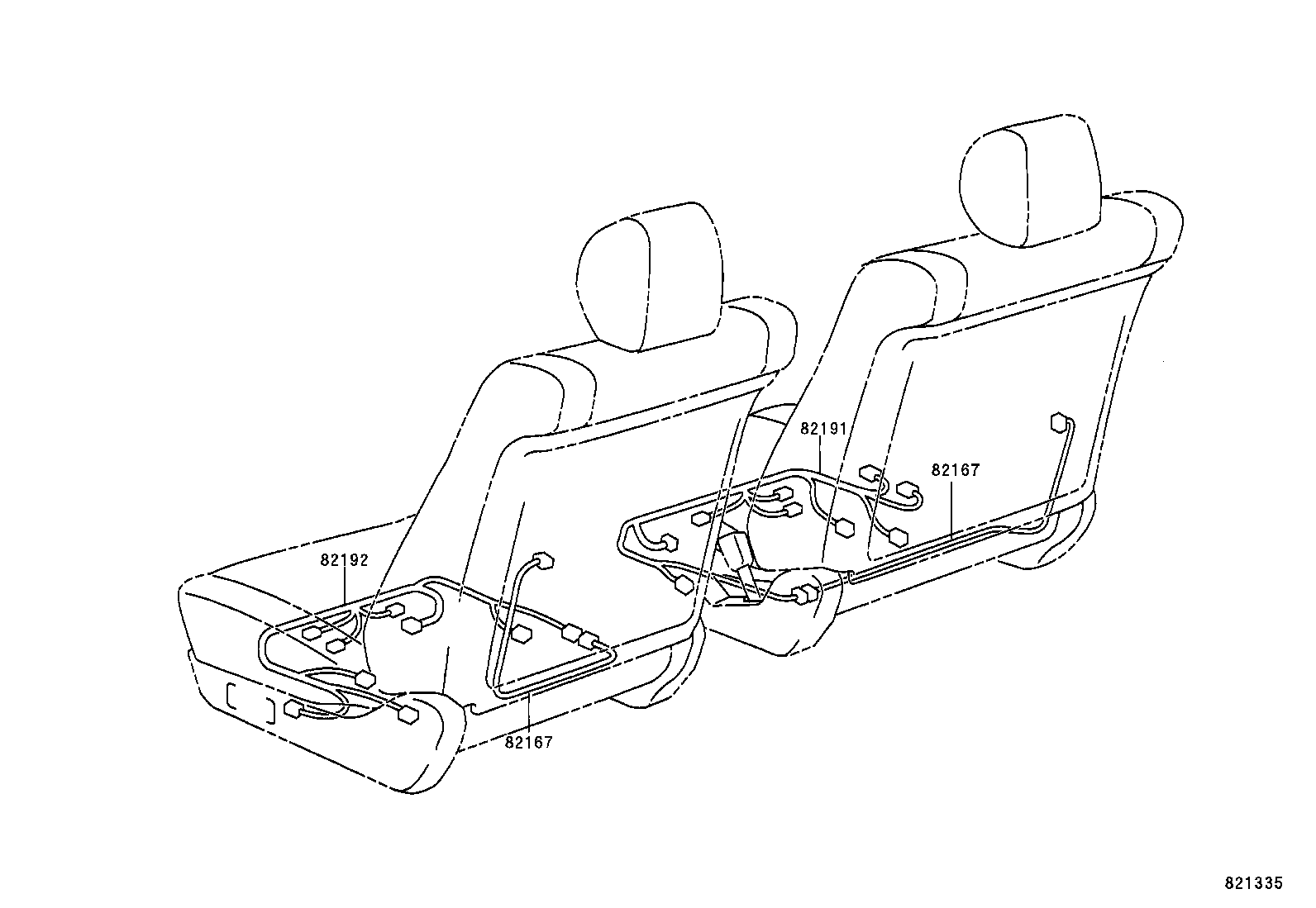

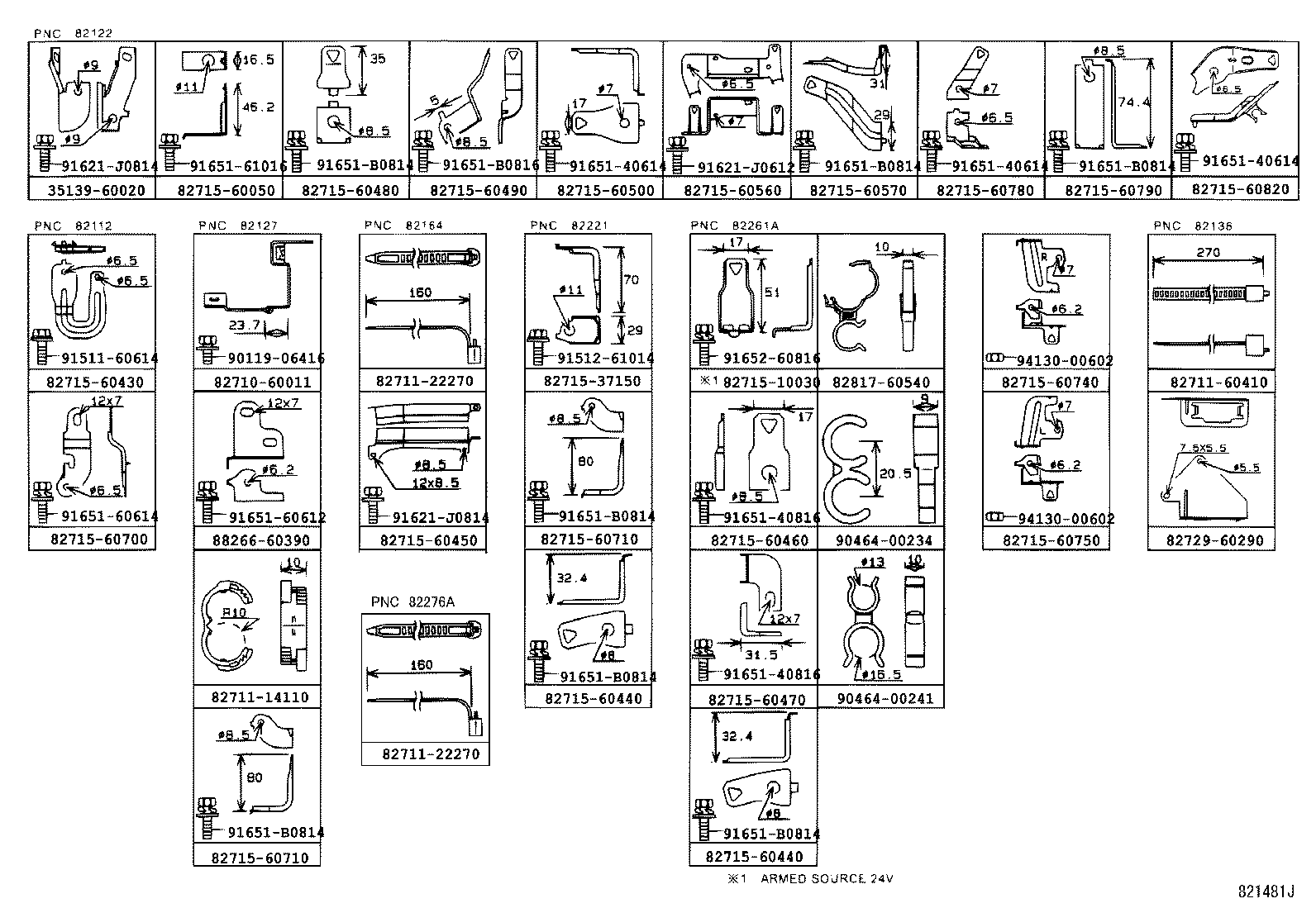

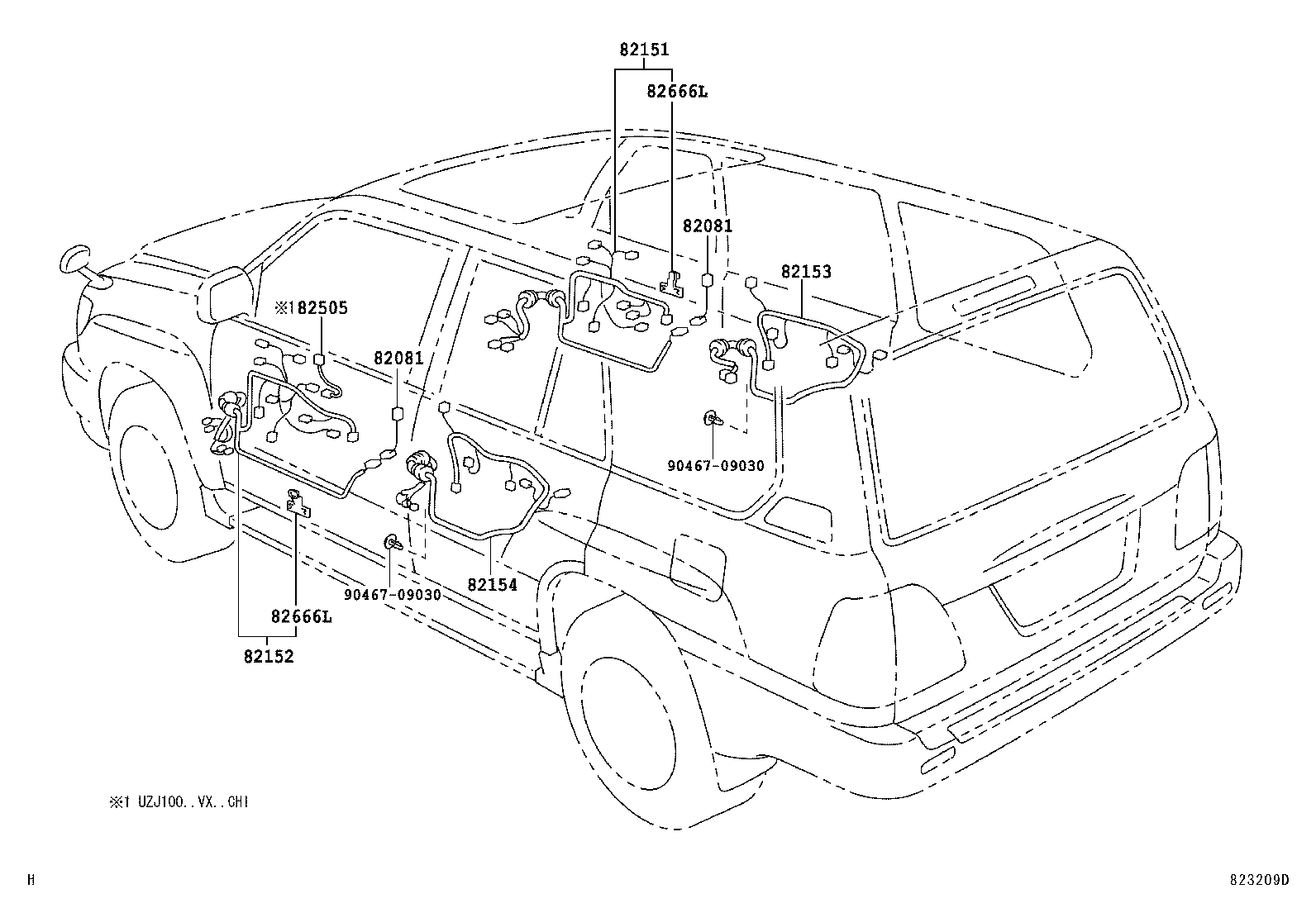

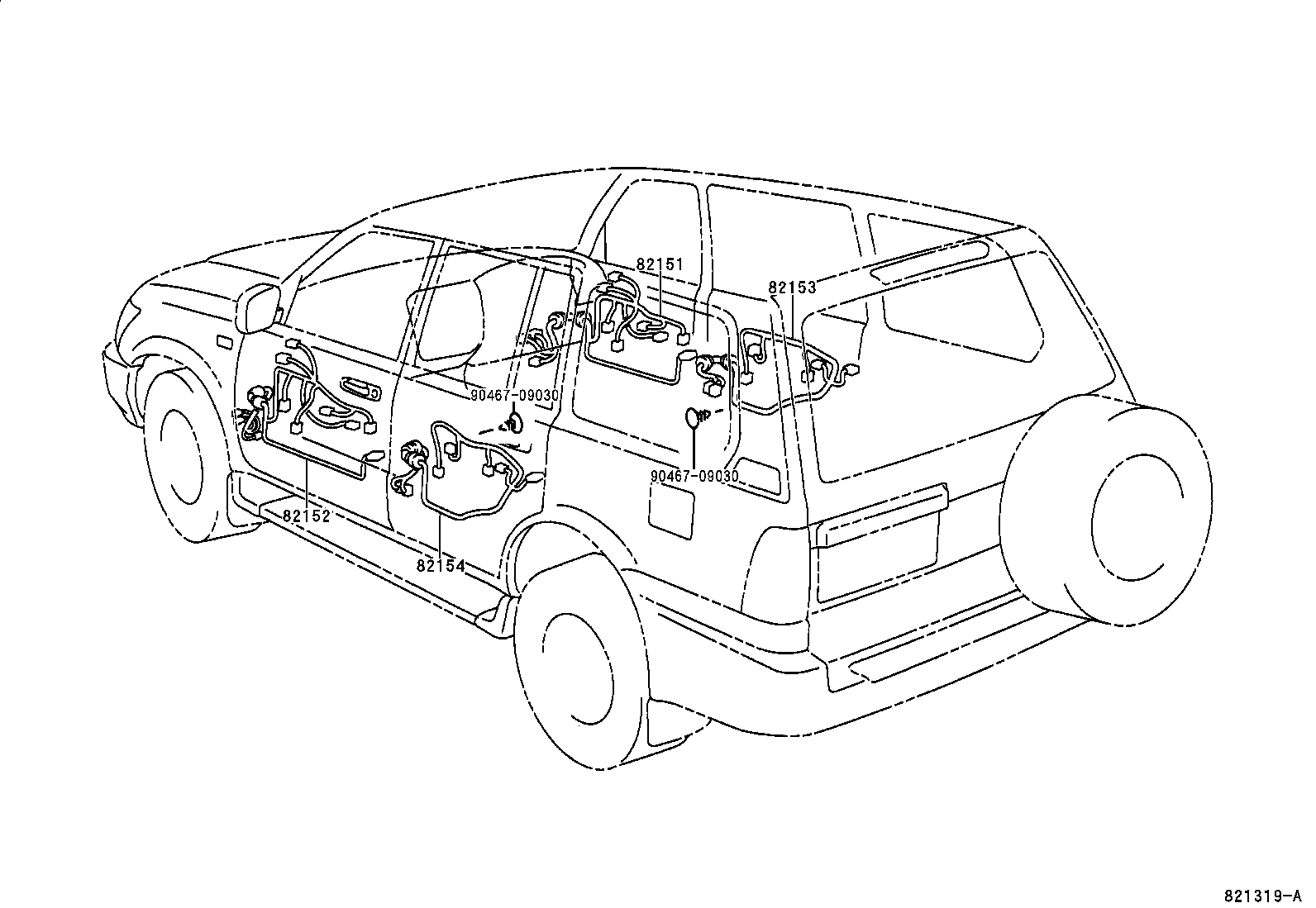

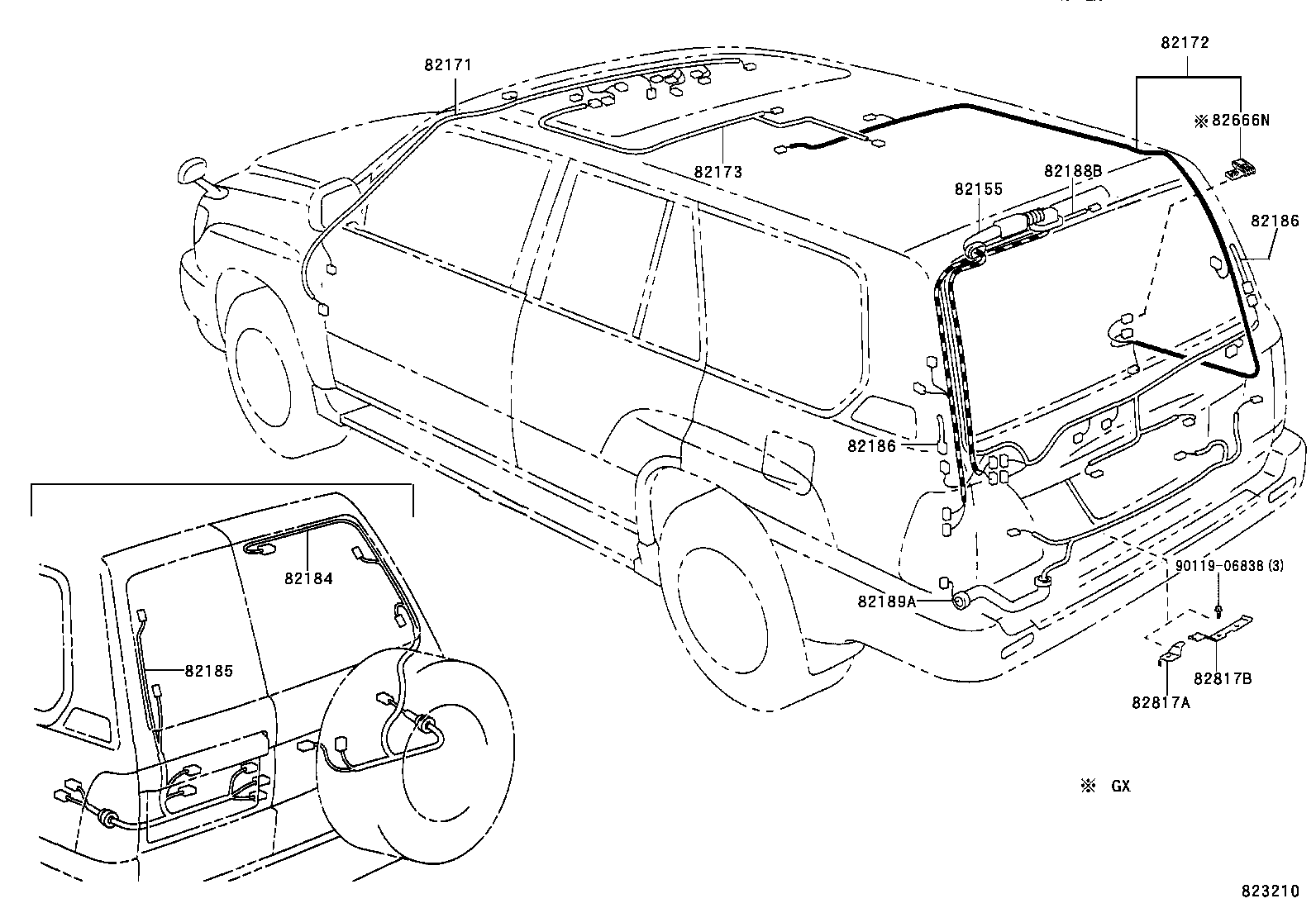

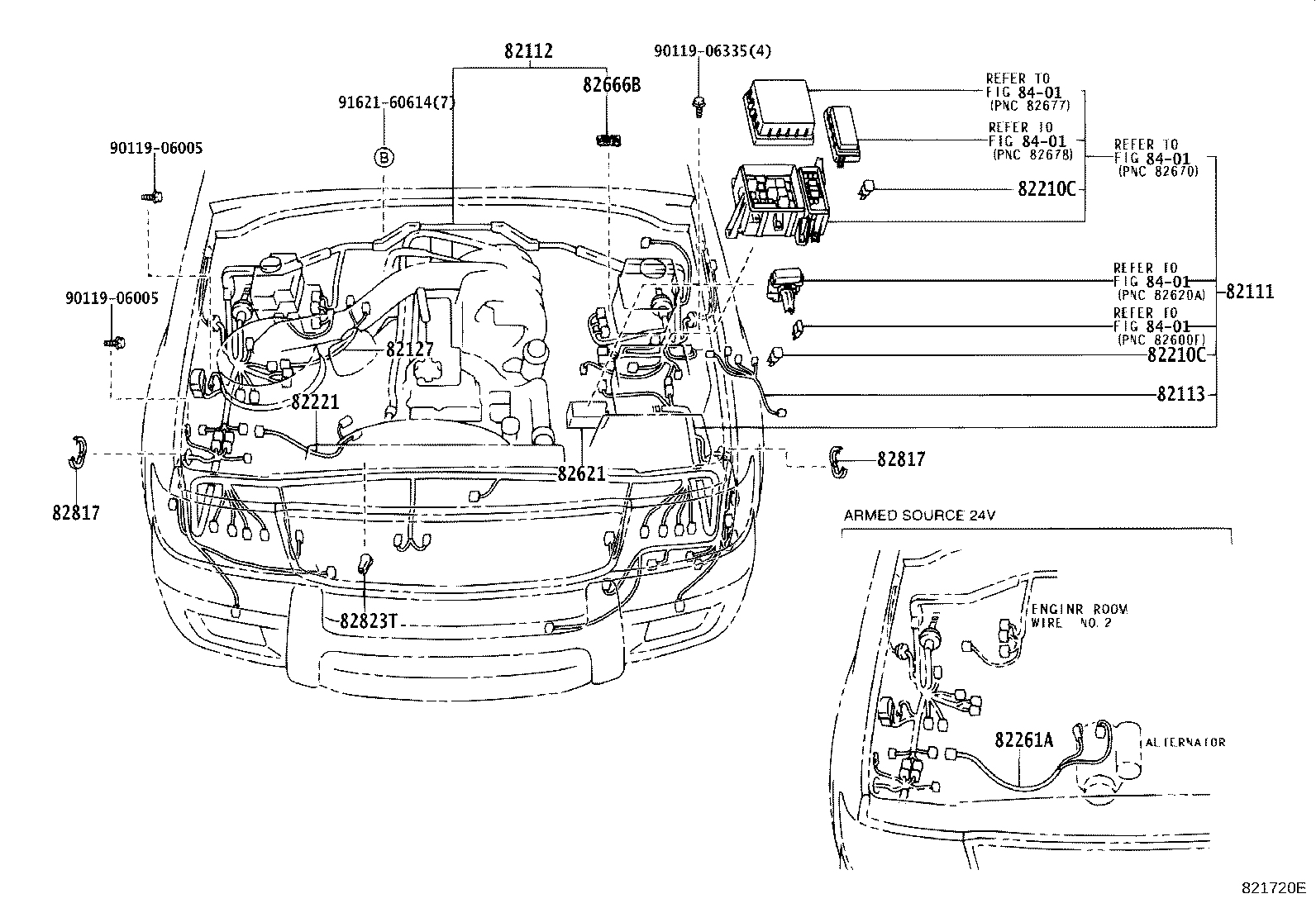

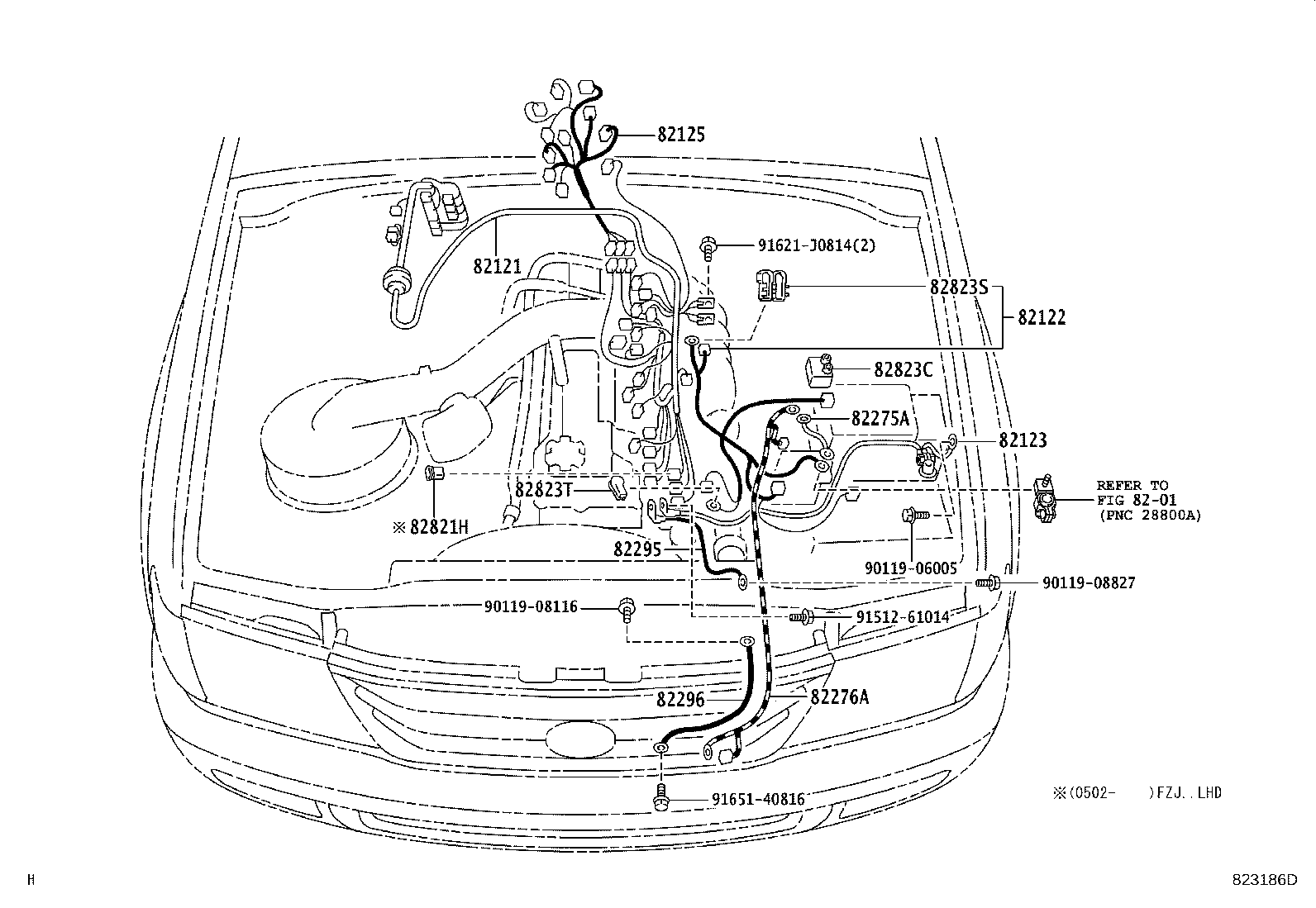

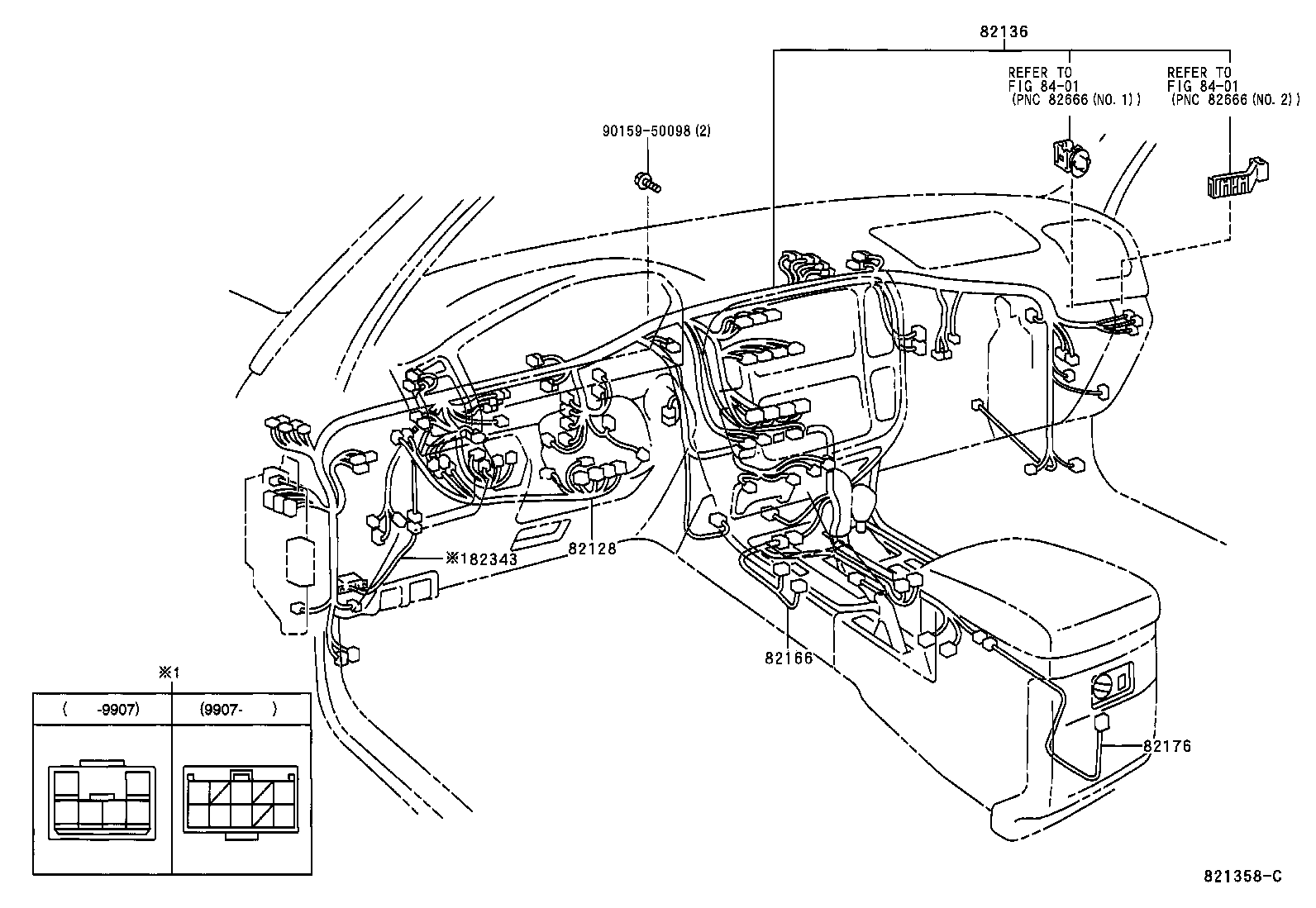

Figure 821719C 821719C 1998-01 → 2002-08 Figure 821354G 821354G 1998-01 → 2002-08 Figure 821720E 821720E 1998-01 → 2002-08 Figure 821721F 821721F 1998-01 → 2002-08 Figure 823185F 823185F 2002-08 → — Figure 823184D 823184D 2002-08 → — Figure 823217K 823217K 2002-08 → — Figure 821355A 821355A 1998-01 → 2002-08 Figure 821381I 821381I 1998-01 → 2002-08 Figure 821316B 821316B 1998-01 → 2002-08 Figure 823187F 823187F 2002-08 → — Figure 823186D 823186D 2002-08 → — Figure 823173C 823173C 2002-08 → — Figure 821317E 821317E 1998-01 → 2002-08 Figure 821358C 821358C 1998-01 → 2002-08 Figure 823218C 823218C 2002-08 → — Figure 823188A 823188A 2002-08 → — Figure 821359B 821359B 1998-01 → 2002-08 Figure 821360B 821360B 1998-01 → 2002-08 Figure 823175 823175 2002-08 → — Figure 823189C 823189C 2002-08 → — Figure 821319A 821319A 1998-01 → 2002-08 Figure 823209D 823209D 2002-08 → — Figure 821335 821335 1998-01 → 2002-08 Figure 823117 823117 2002-08 → — Figure 821361F 821361F 1998-01 → 2002-08 Figure 823219F 823219F 2002-08 → — Figure 823210 823210 2002-08 → — Figure 821481J 821481J 1998-01 → — Figure 821482S 821482S 1998-01 → — Figure 823192B 823192B 1998-01 → — Figure 821313C 821313C 1998-01 → — Figure 821991A 821991A 1998-01 → — Figure 823193A 823193A 1998-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046A Wire Sub-assy, Body Ground, NO.1
82081 Wiring Assy, Door Lock
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82119 Wire, Sensor
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82127 Wire, Differential
82128 Wire, Column
82136 Wire, Dash
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82155 Wire, Center Piller, NO.1
82161 Wire, Floor
82161B Wire, Floor (SHORT PIN)
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82176 Wire, Rear Console Box
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82188B Wire, Back Door, Upper
82189A Wire, Back Door, Lower
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82210C Fusible Link
82214A Wire, Lamp
82221 Wire, Oil Pressure Switch
82233 Wire, Computer
82235A Wire, Computer, NO.3
82241C Wire, Relay
82261A Wire, Alternator
82275A Cable, Battery TO Magnet Switch
82276A Cable, Magnet Switch TO Winch
82284 Wire, Earth
82295 Wire, Winch Earth
82296 Wire, Winch Earth, NO.2
82343 Wire, Detector
82345 Diode
82413A Wire, Fuel Tank
82414A Wire, Fuel Tank, NO.2
82505 Wiring Sub-assy, Front Door, RH
82621 Cover, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82792 Wire, Instrument Panel Integration
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82823 Cap, Terminal, NO.1
82823C Cap, Terminal, NO.4
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82916 Insulator, Wiring Harness Heat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
