Toyota Land Cruiser 100
1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General
Discontinued model
Data version 2008-07
Abs & Vsc

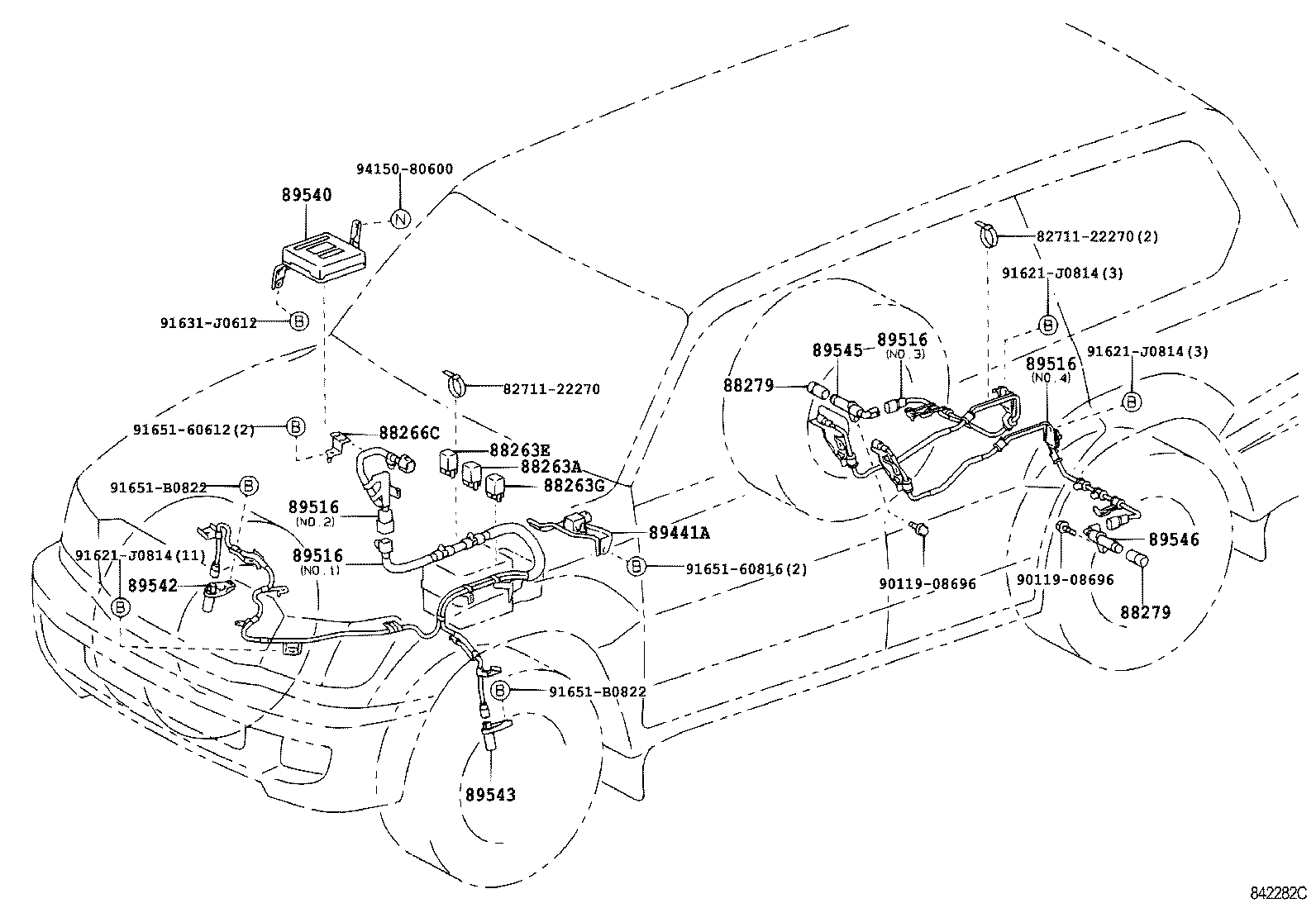

15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86652A | Buzzer Assy, Skid Control |
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 88263G | Relay, Skid Control |
| 88266B | Clamp, Skid Control Sensor, NO.1 |
| 88266C | Clamp, Skid Control Sensor, NO.2 |
| 88279 | Guide, Skid Control Sensor |
| 89183A | Sensor, Yawrate |
| 89441A | Sensor, Deceleration |
| 89516 | Wire, Skid Control Sensor |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
