Toyota Land Cruiser 100

1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General

Discontinued model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

13 part groups · 6 illustrations

Illustrations

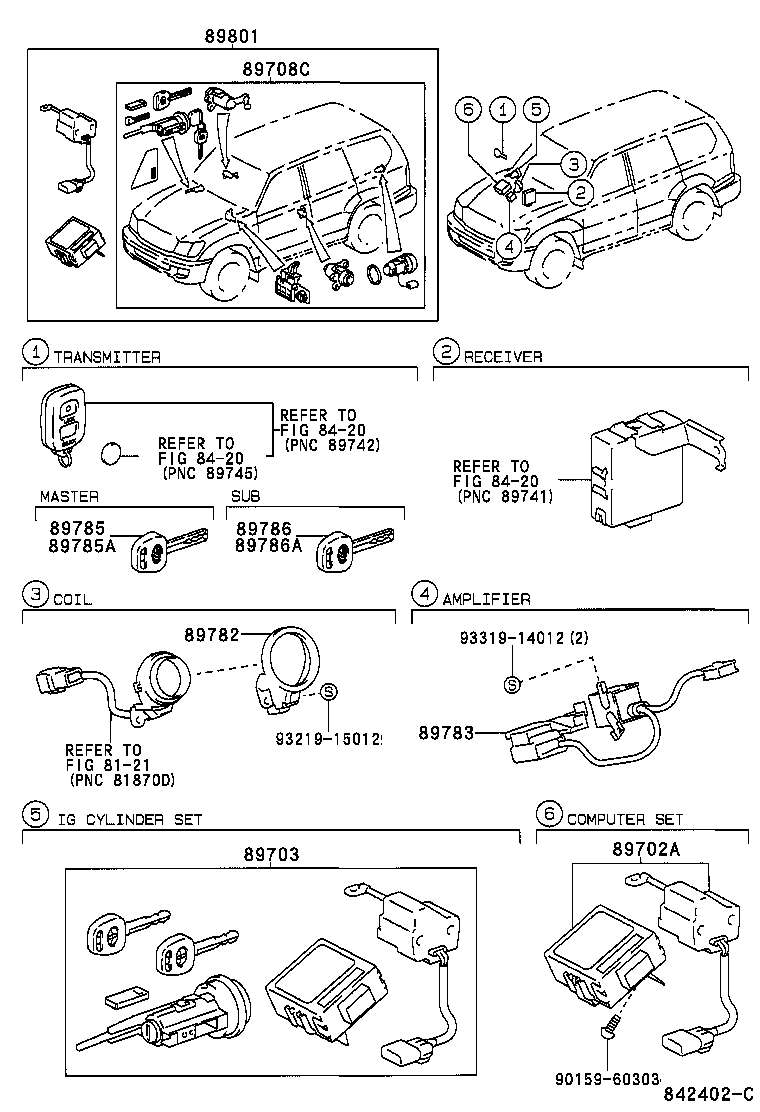

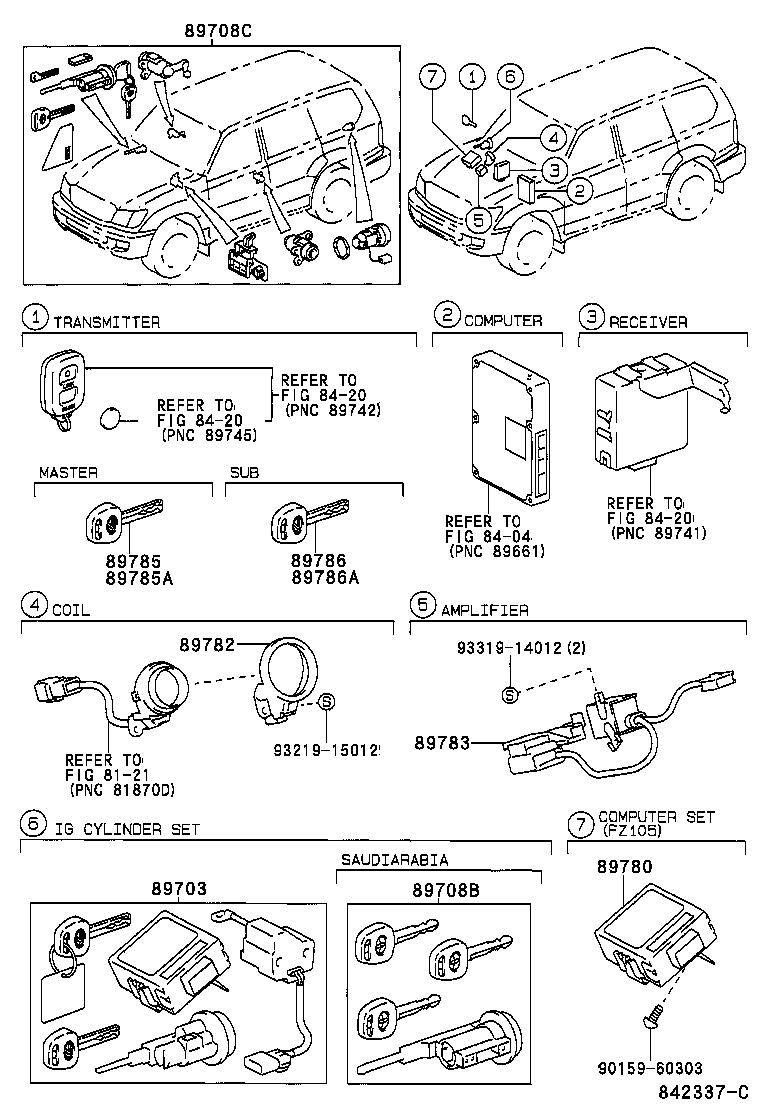

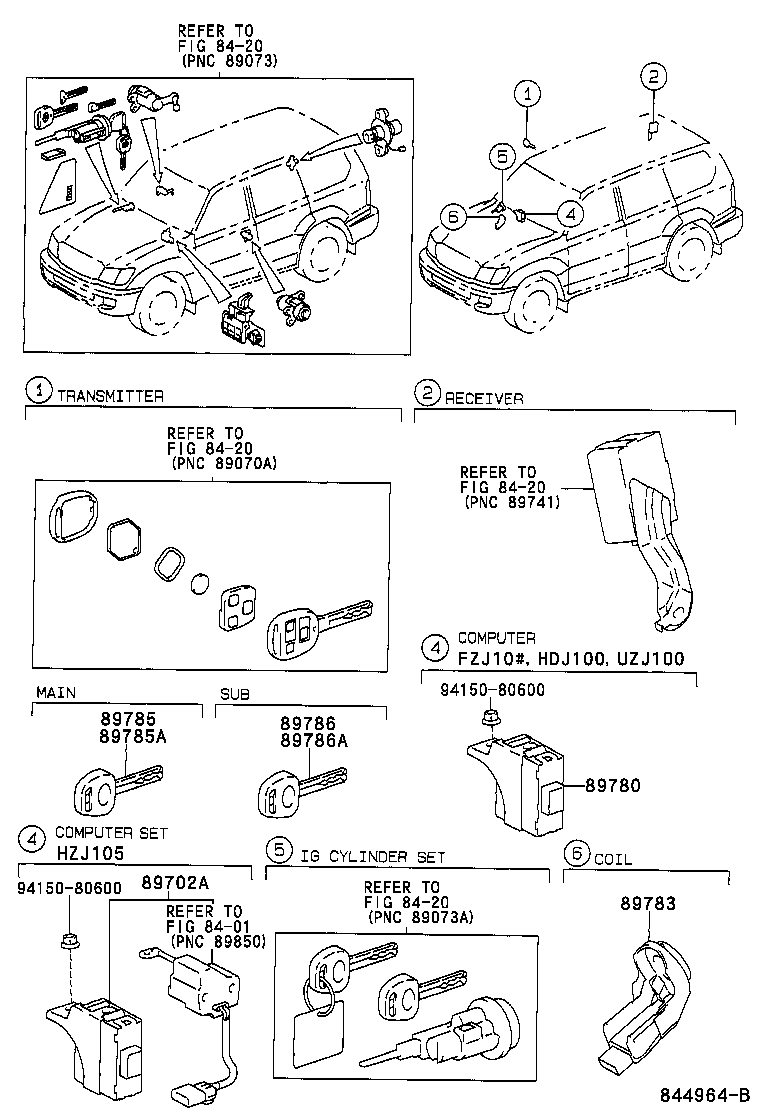

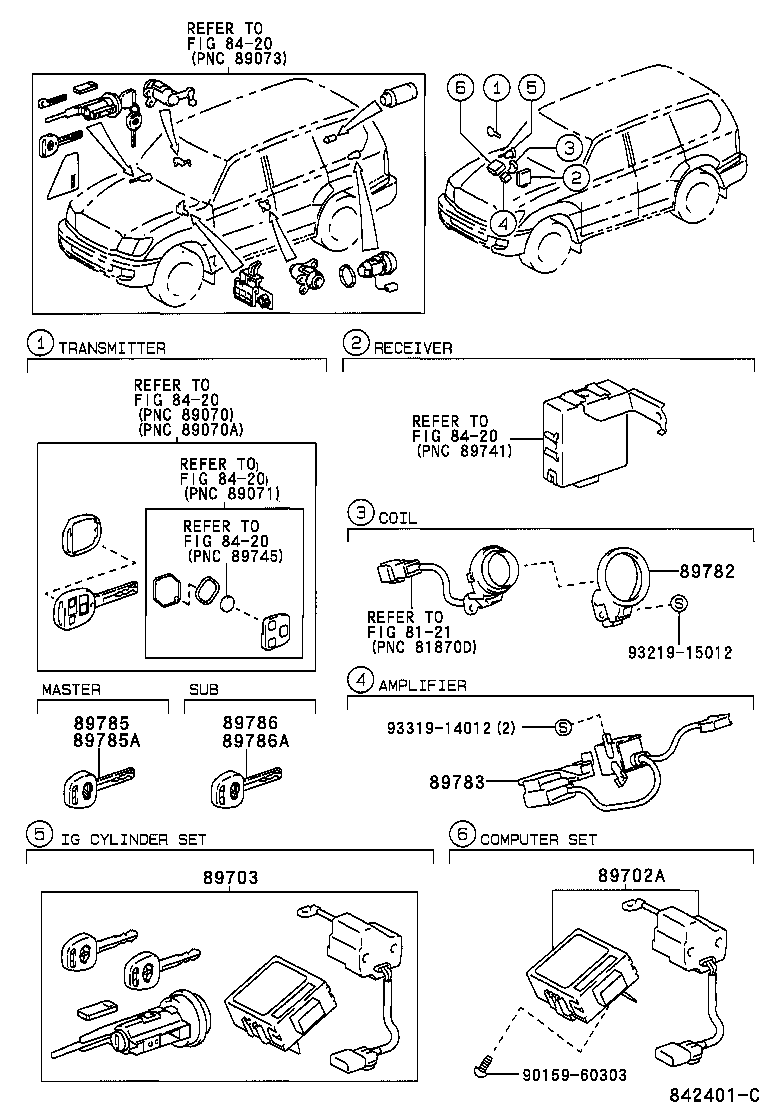

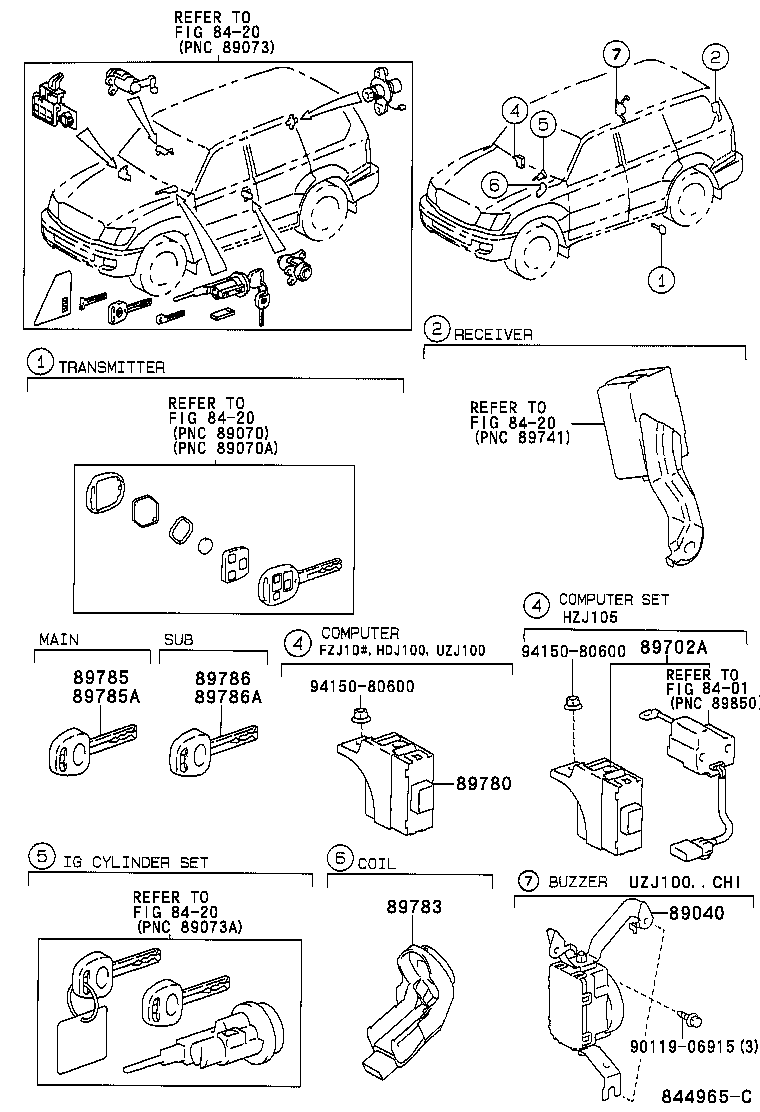

Figure 842332C 842332C 1998-01 → 2002-08 Figure 842337C 842337C 1998-01 → 2002-08 Figure 842401C 842401C 1998-01 → 2002-08 Figure 842402C 842402C 1998-01 → 2002-08 Figure 844964B 844964B 2002-08 → — Figure 844965C 844965C 2002-08 → —

Part groups

PNCDescription
89040 Siren Assy, Theft Warning
89702A Computer Set, Transponder W/Valve Control
89703 Cylinder & Key Set, Ignition W/Transponder
89708B Cylinder & Transmitter Set, Wireless Door Lock
89708C Cylinder Set, Lock W/Transponder Key Transmitter
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
89785 Transmitter, Transponder Key Master
89785A Transmitter, Transponder Cut Key Master
89786 Transmitter, Transponder Key Sub
89786A Transmitter, Transponder Cut Key Sub
89801 Computer Set, Transponder Key Diesel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
