Toyota Land Cruiser 100

1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General

Discontinued model Data version 2008-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

5 part groups · 2 illustrations

Illustrations

Figure 860621B

860621B 1998-01 → —

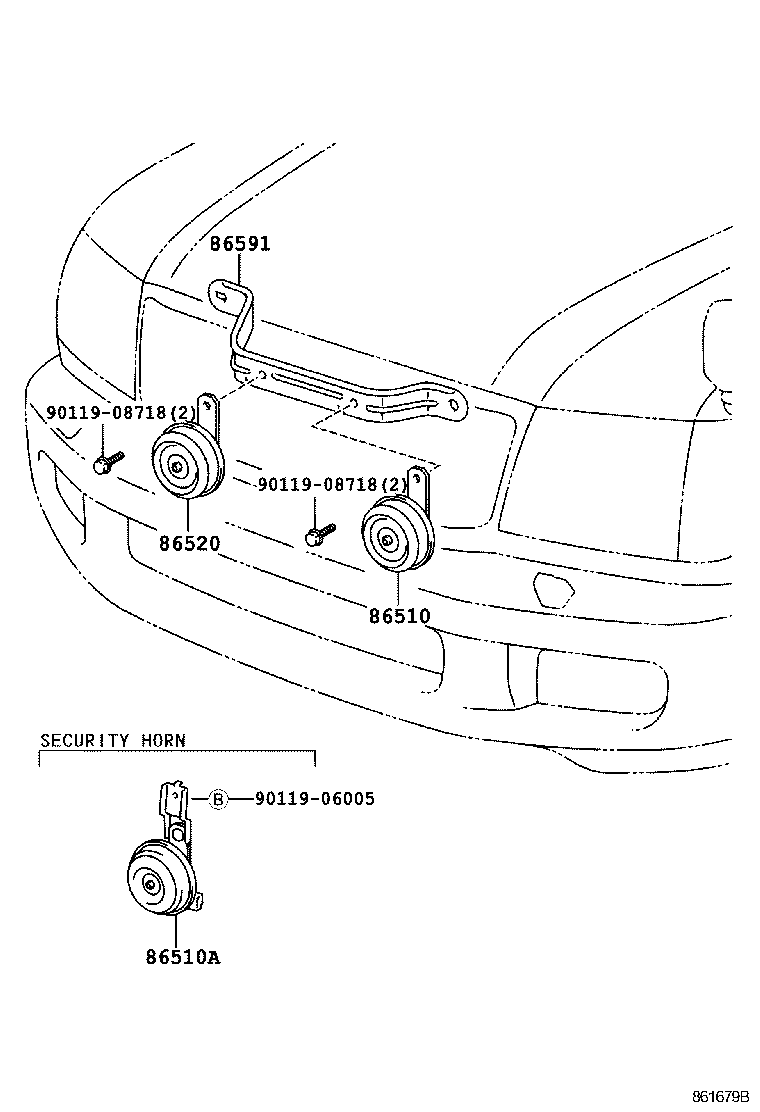

Figure 861679B

861679B 2000-08 → —

Part groups

PNC	Description
86510	Horn Assy, High Pitched
86510A	Horn Assy, Security
86520	Horn Assy, Low Pitched
86524	Spacer, Horn
86591	Bracket, Horn

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
