Toyota Land Cruiser 100

1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General

Discontinued model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

20 part groups · 11 illustrations

Illustrations

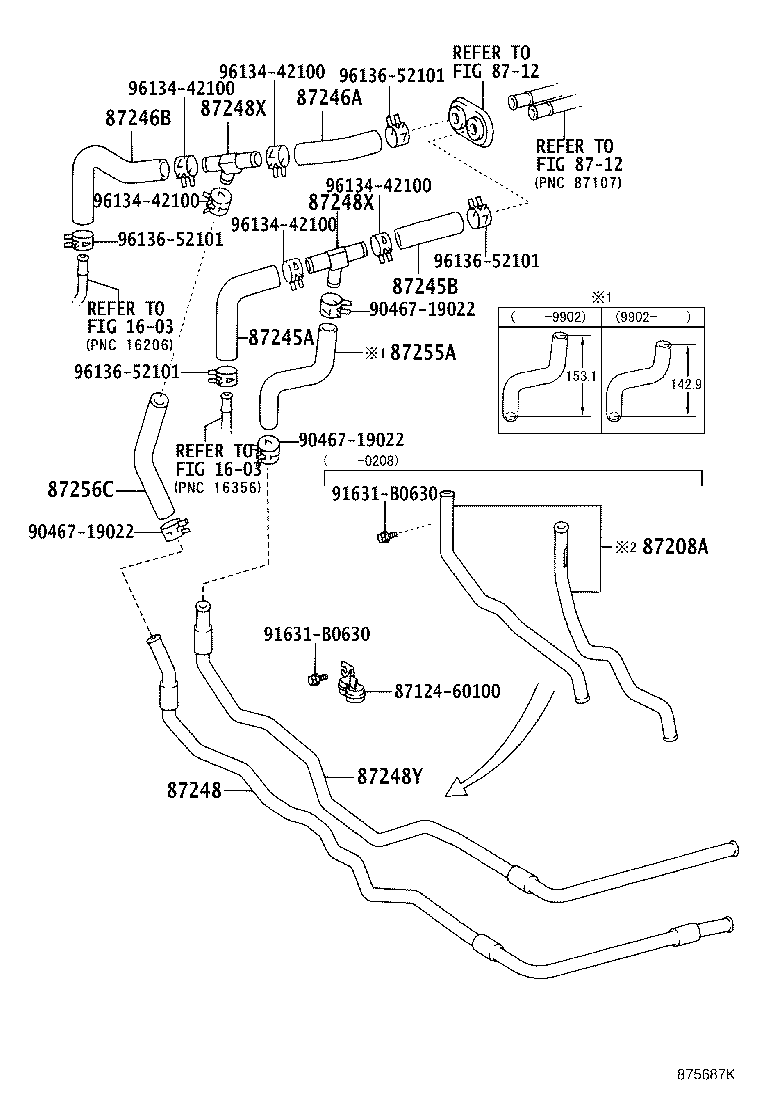

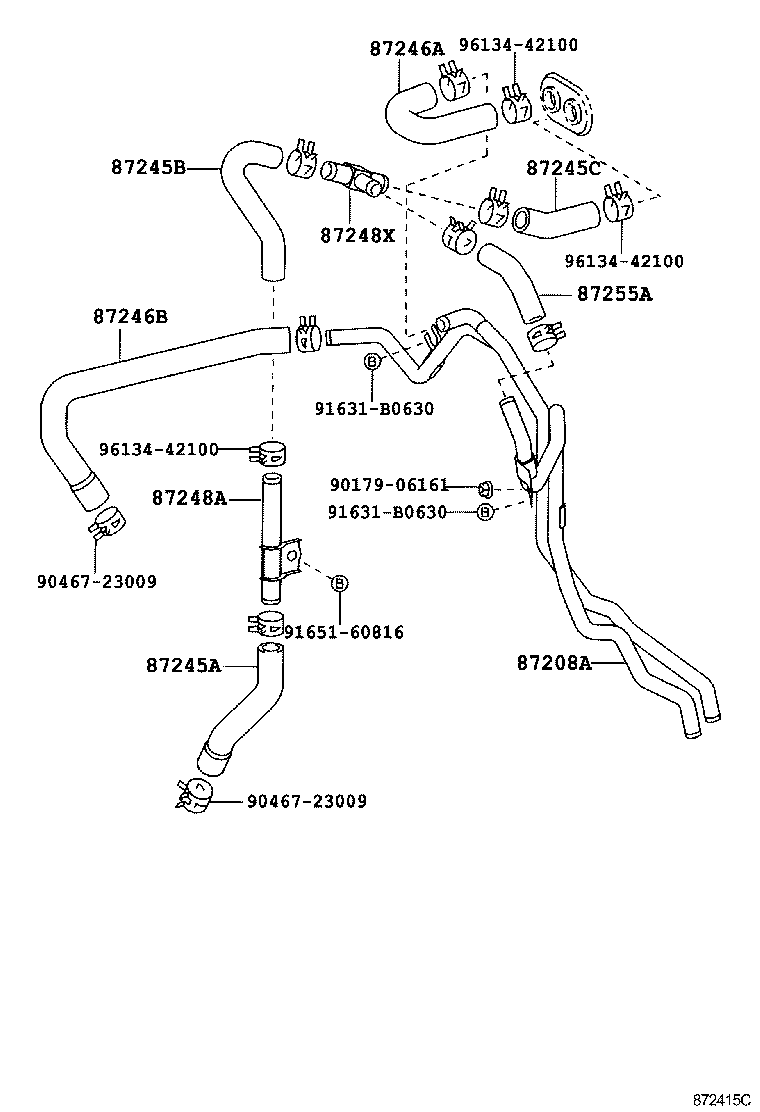

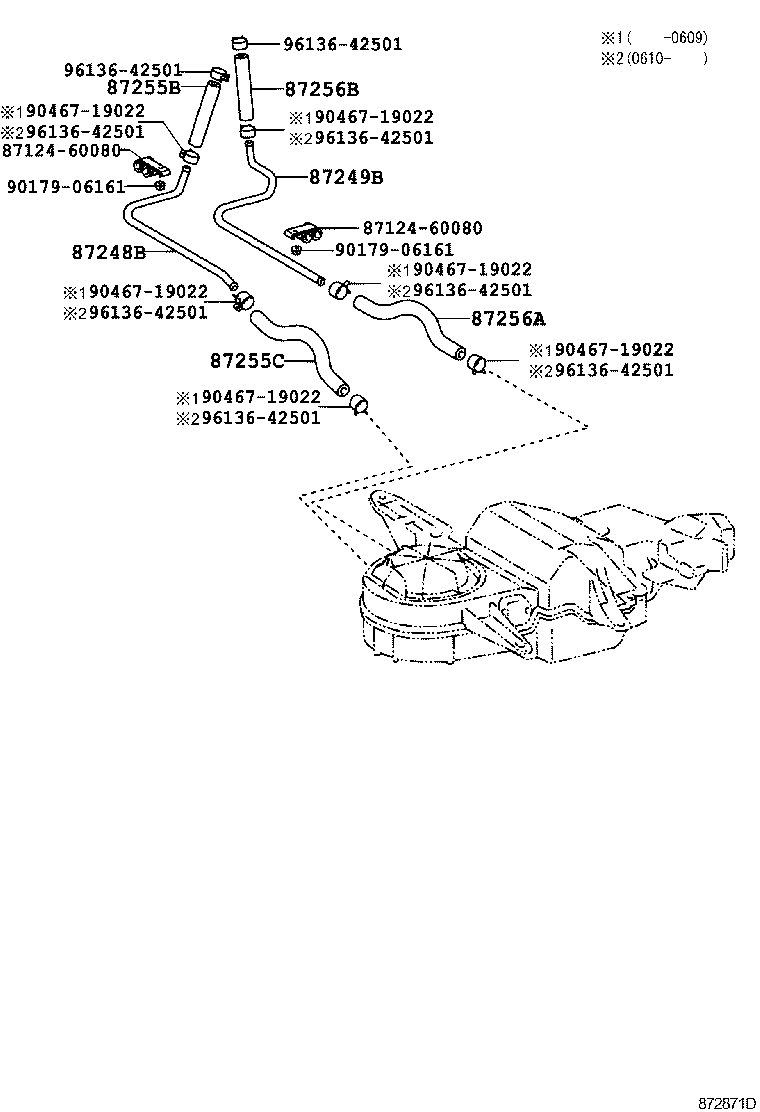

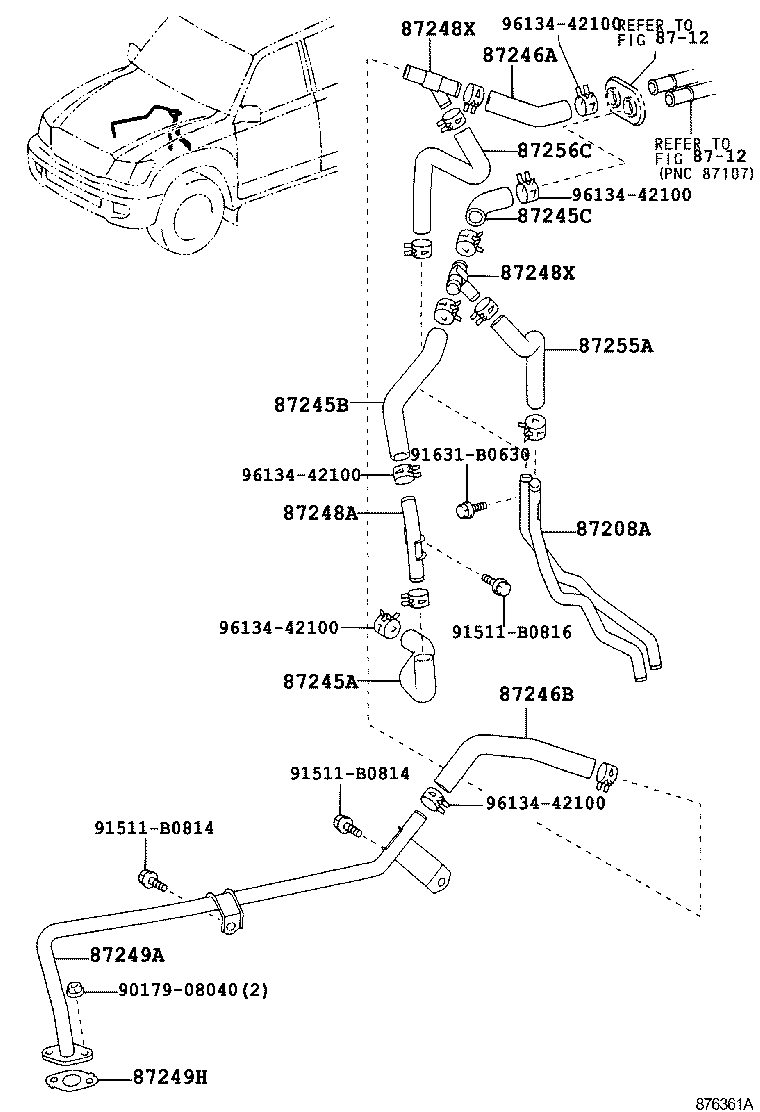

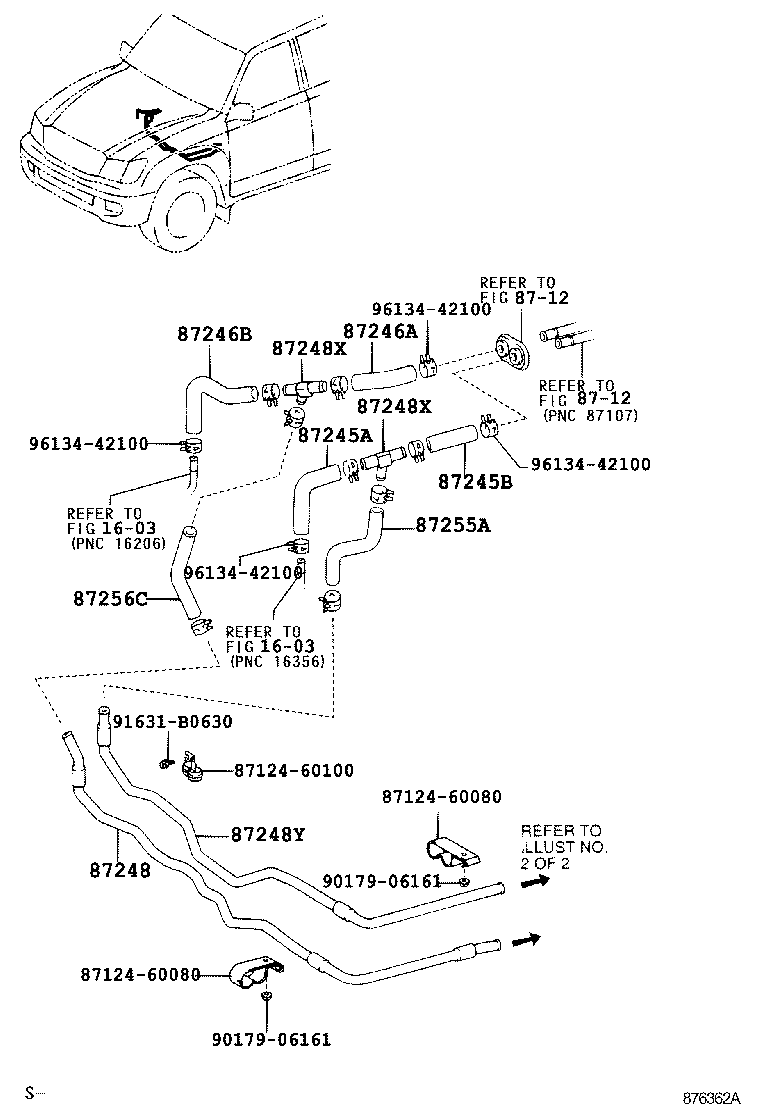

Figure 872350D 872350D 1998-01 → — Figure 872415C 872415C 1998-01 → — Figure 872351D 872351D 1998-01 → — Figure 872352E 872352E 1998-01 → — Figure 872353A 872353A 1998-01 → — Figure 875687K 875687K 1998-01 → — Figure 876361A 876361A 2003-09 → — Figure 876362A 876362A 2003-09 → — Figure 872871D 872871D 1998-01 → 2002-08 Figure 872871D 872871D 2002-08 → — Figure 876360 876360 2003-09 → —

Part groups

PNCDescription
87208A Pipe Sub-assy, Heater Water, A
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87248 Pipe Sub-assy, Water
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248X Pipe, Heater Water
87248Y Pipe, Heater Water, NO.2
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249H Gasket, Water Outlet Pipe
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
