Toyota Land Cruiser 100

1998-01 → 2007-09 · chassis FZJ10#,HDJ100,HZJ105,UZJ100 · catalogue 791350 · General

Discontinued model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

44 part groups · 44 illustrations

Illustrations

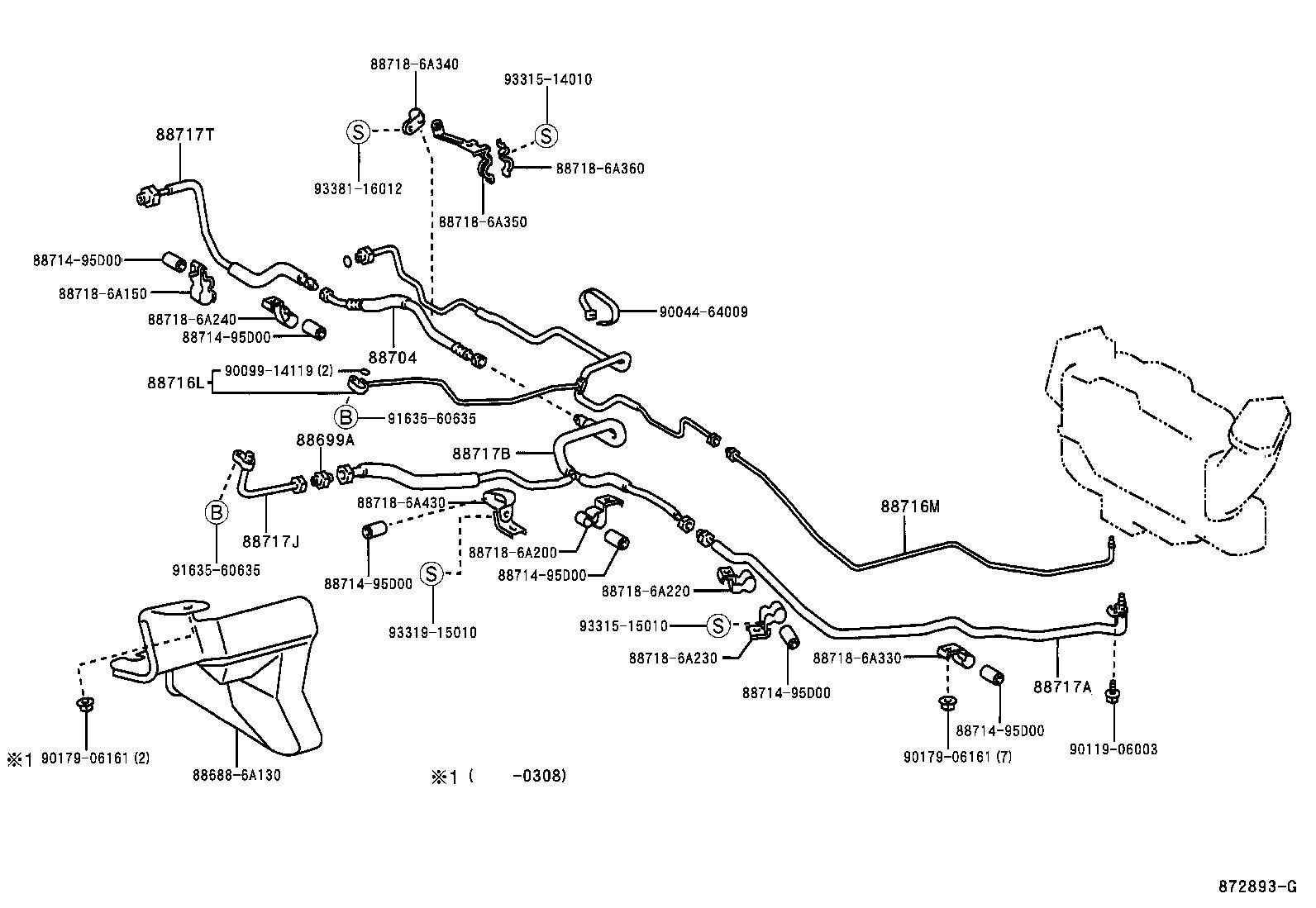

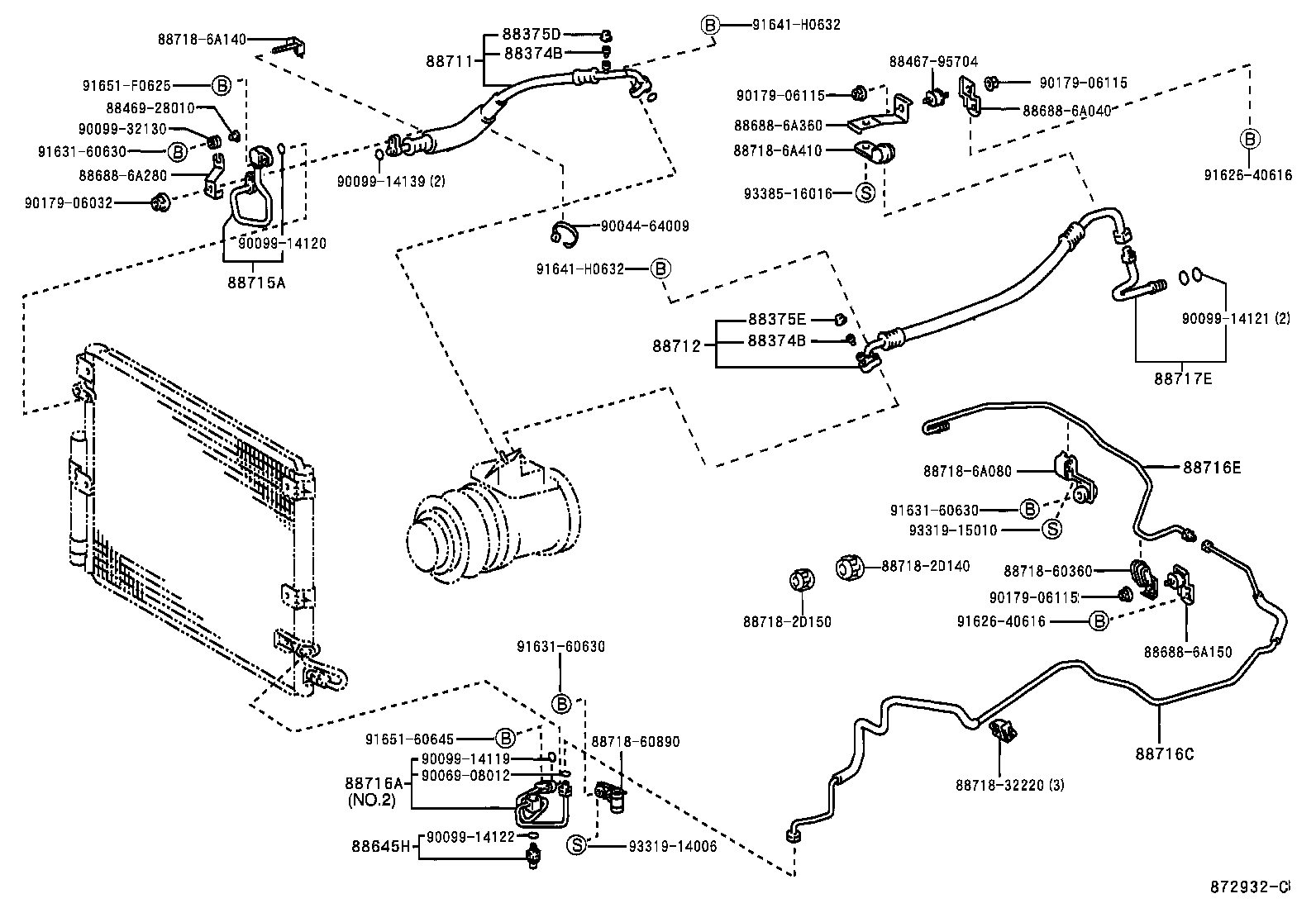

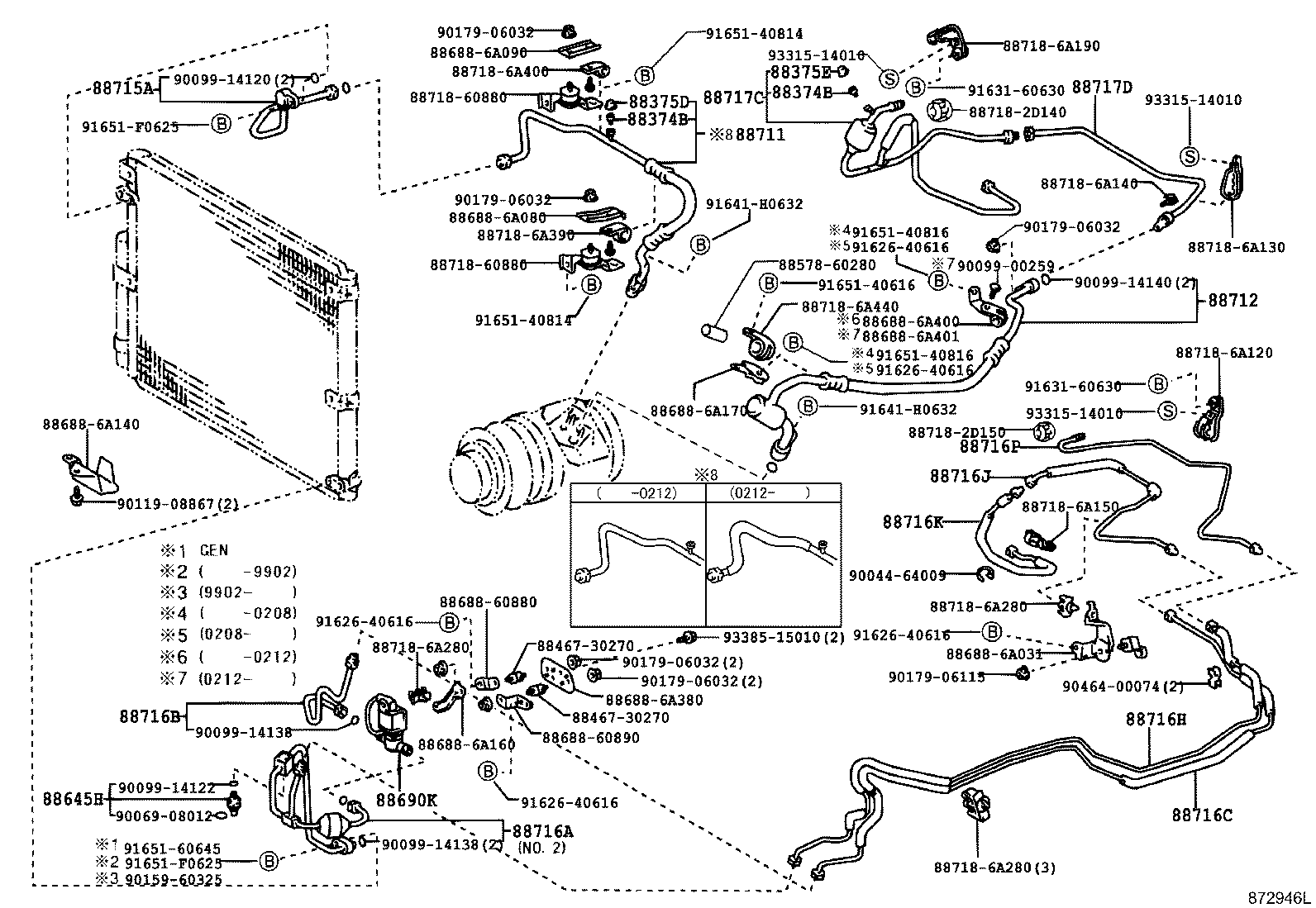

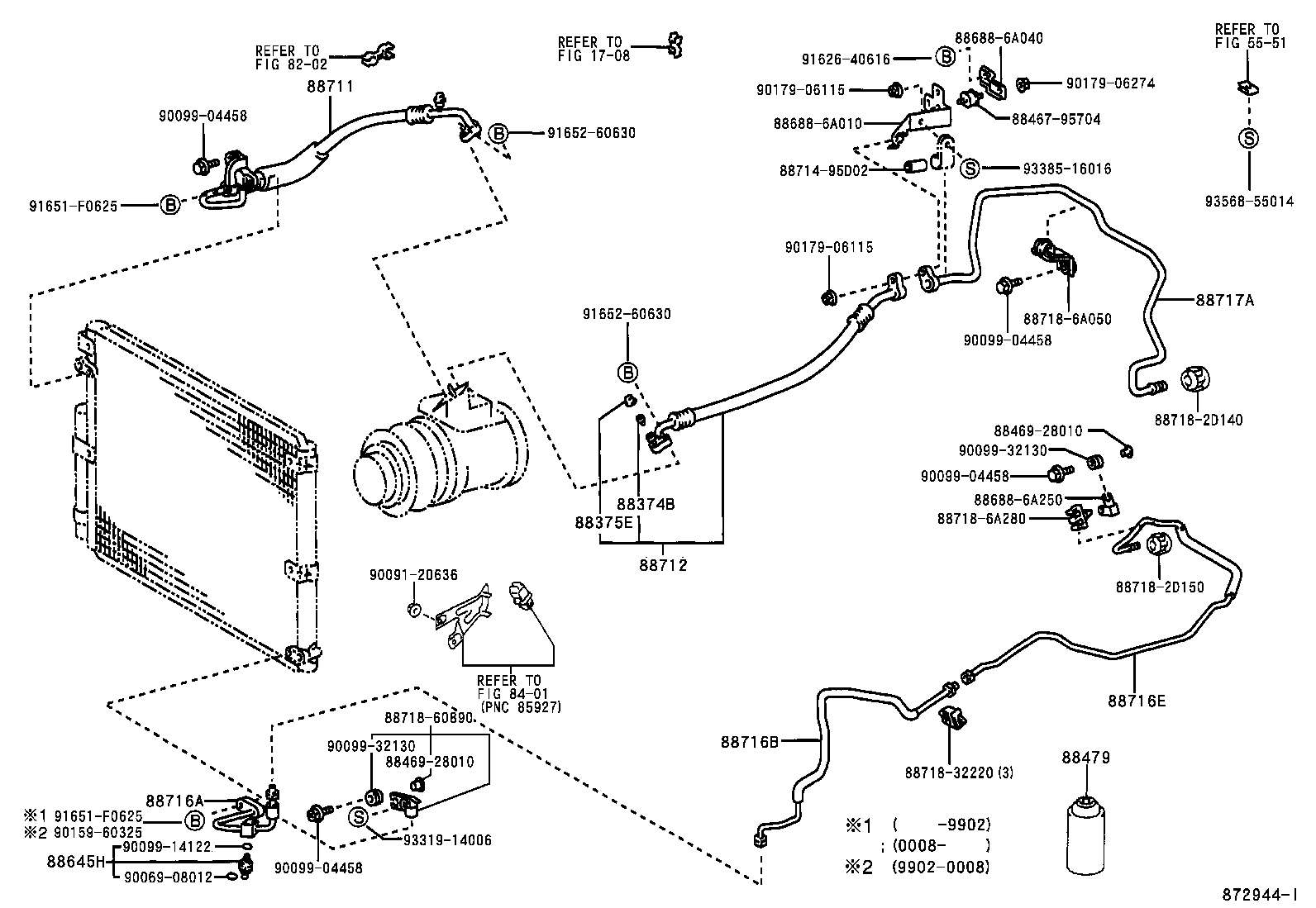

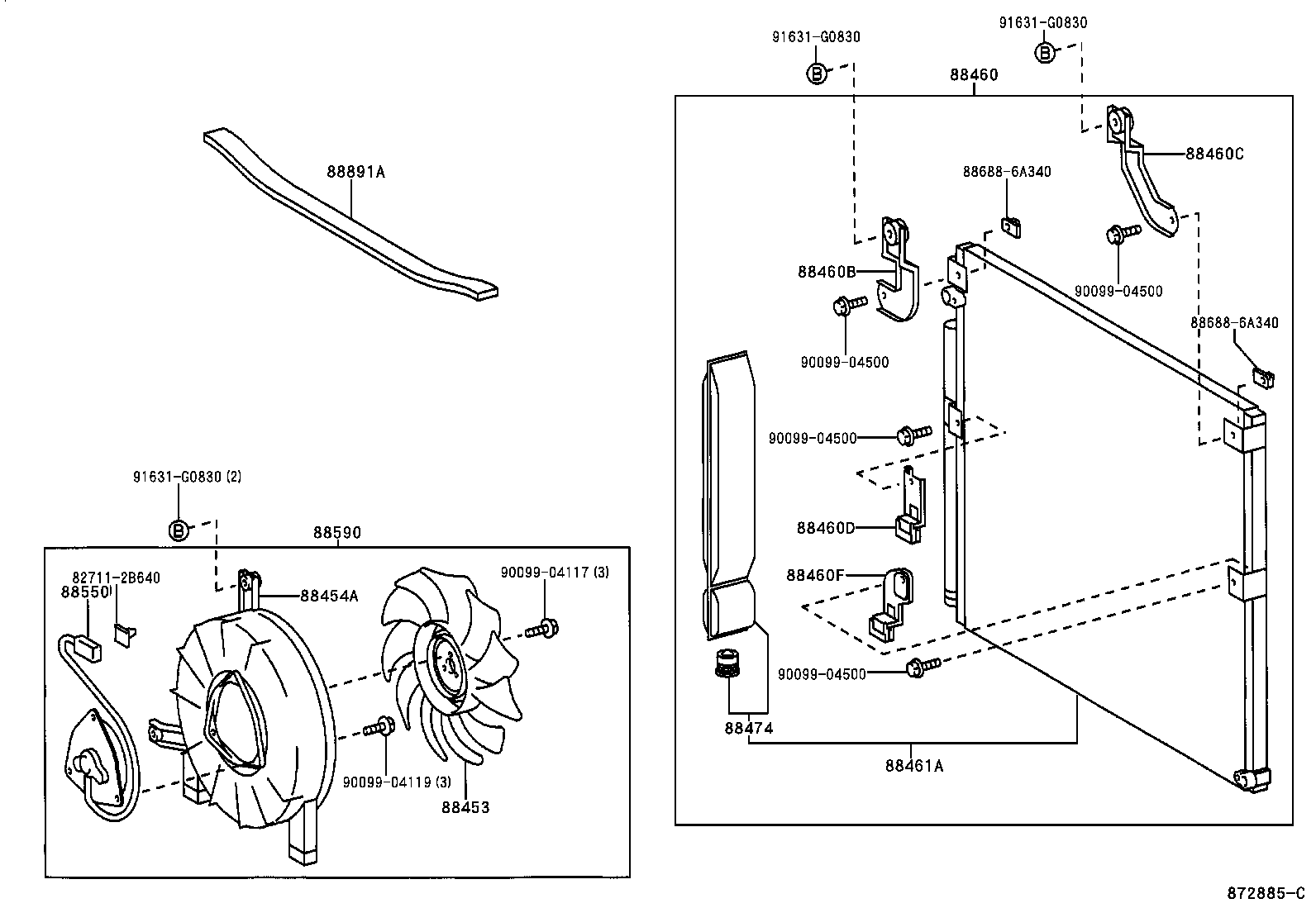

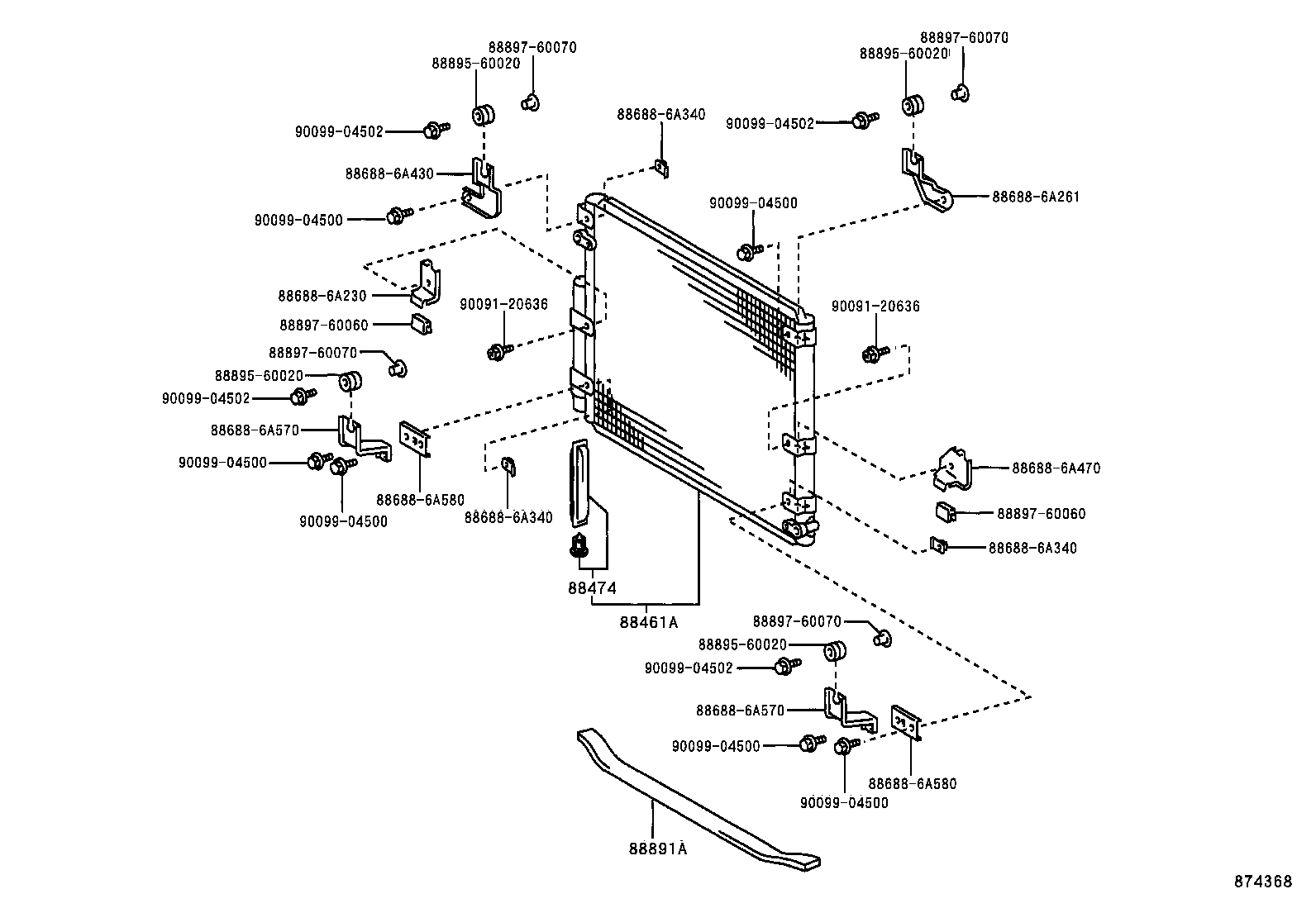

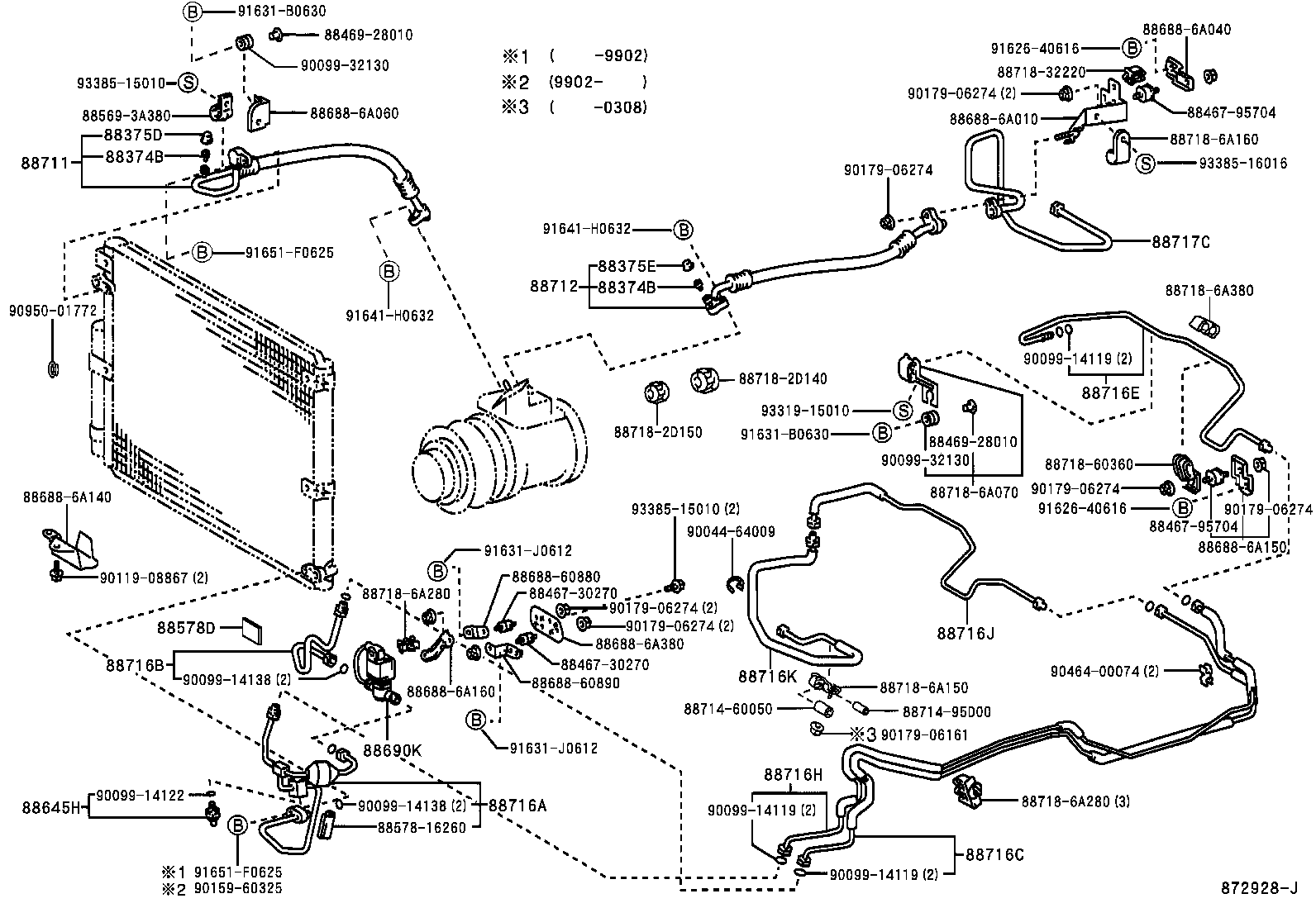

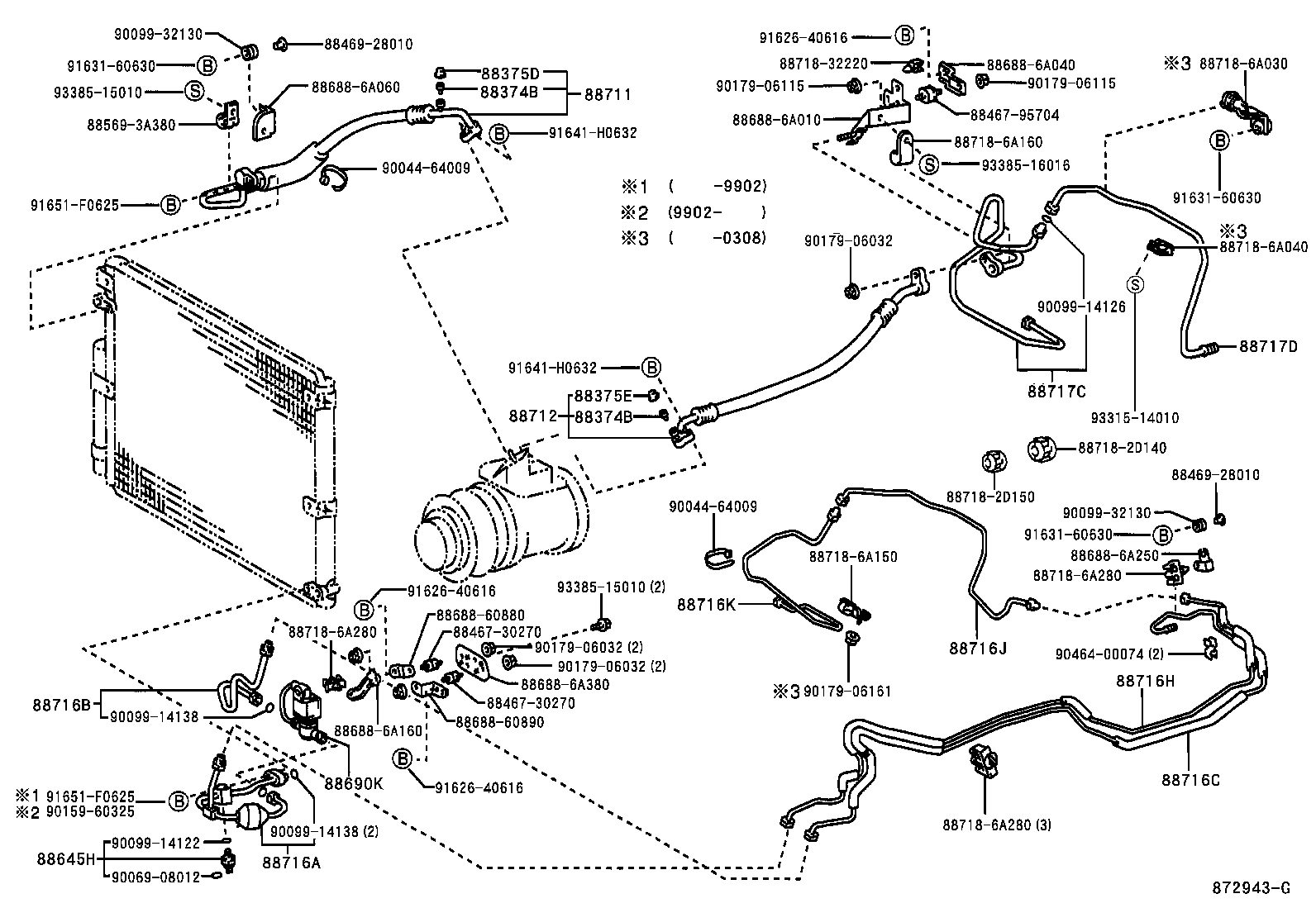

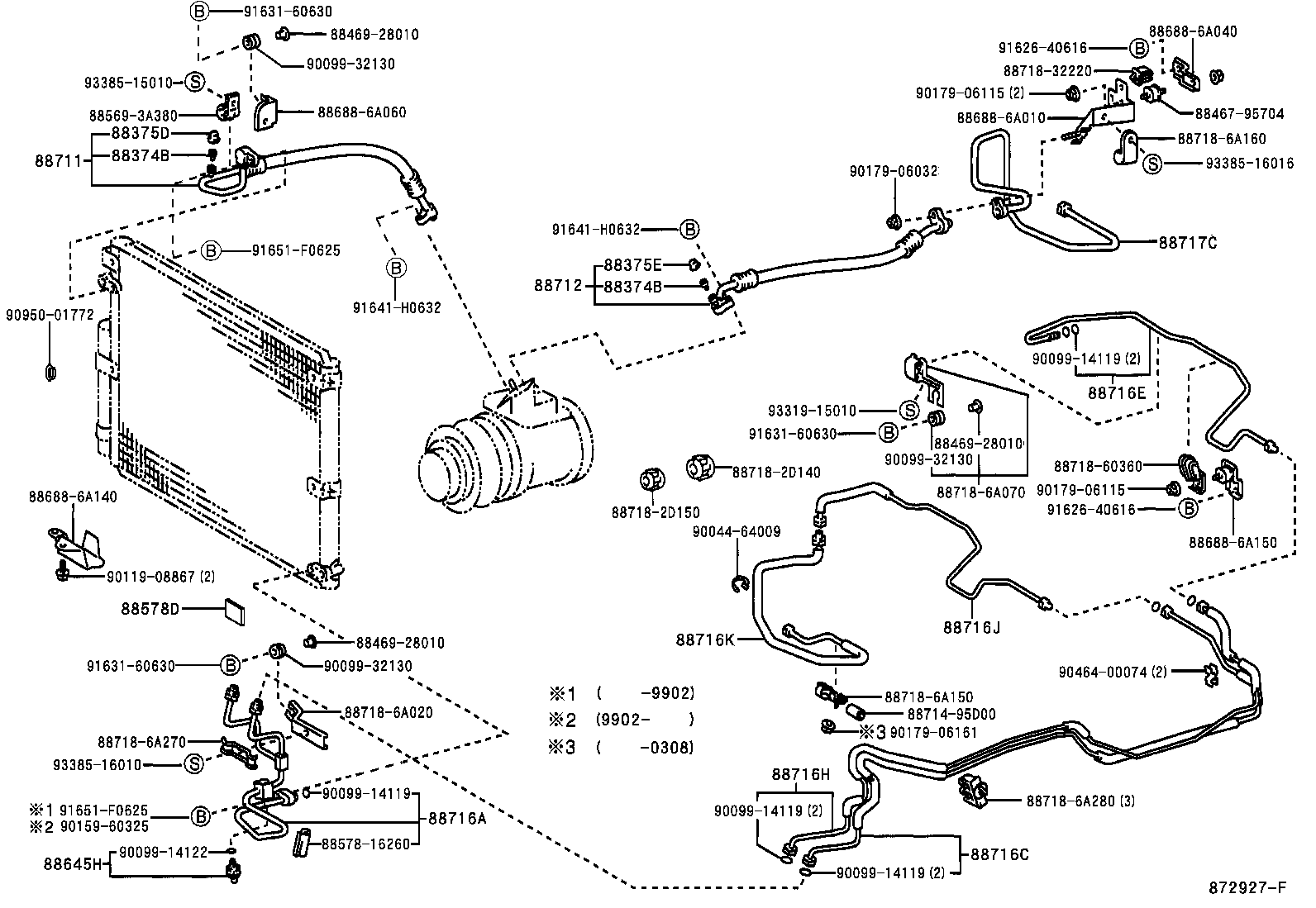

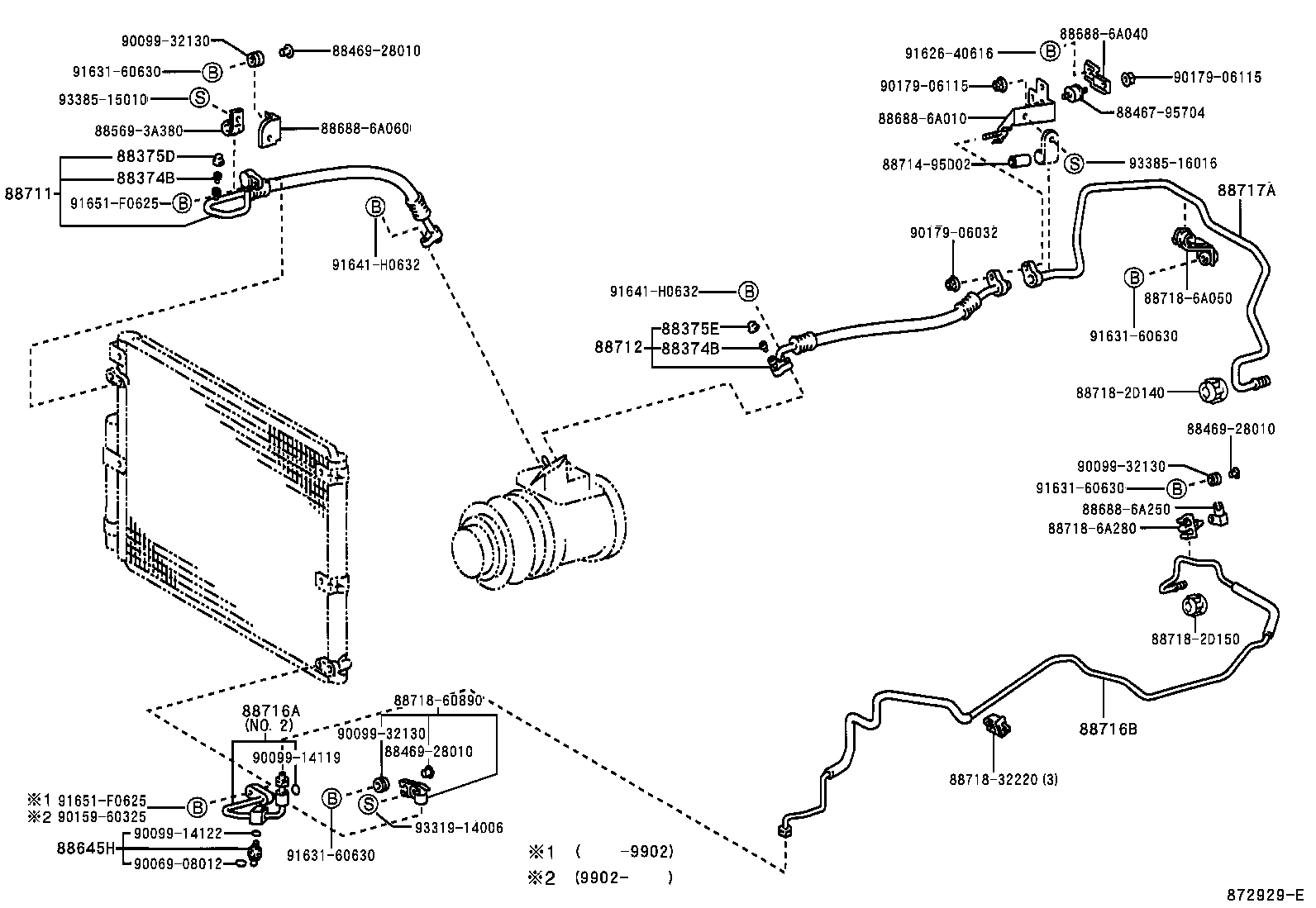

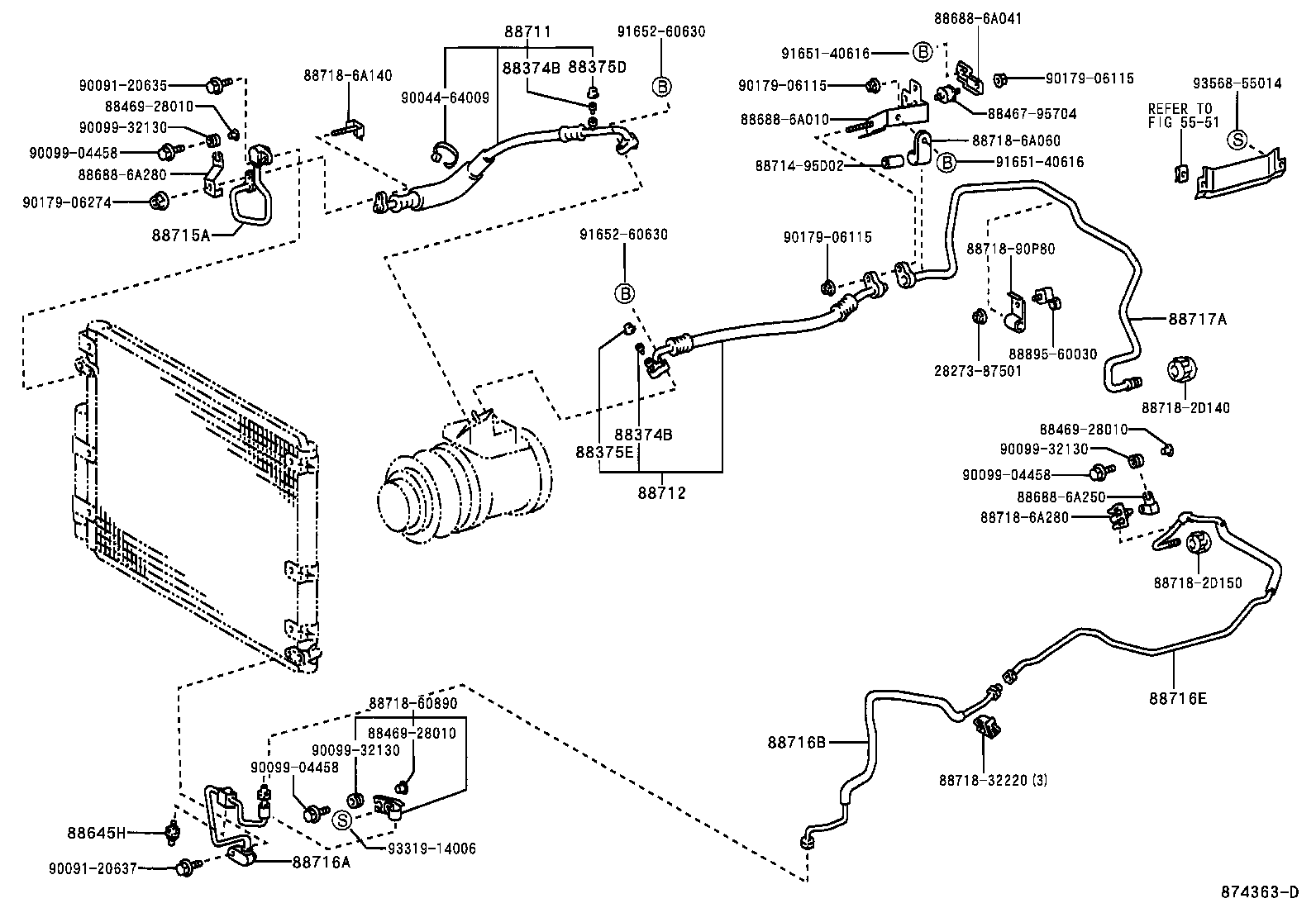

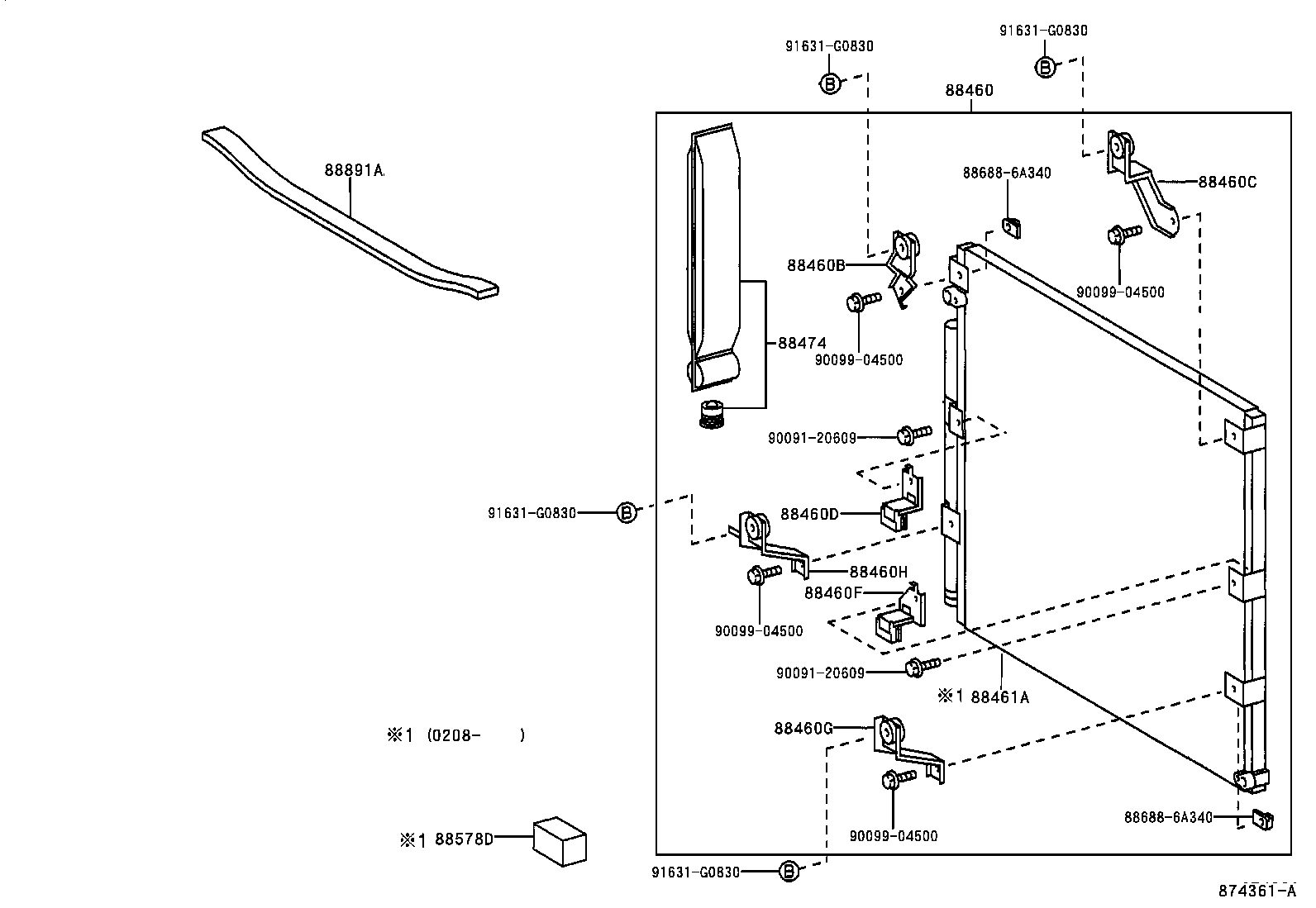

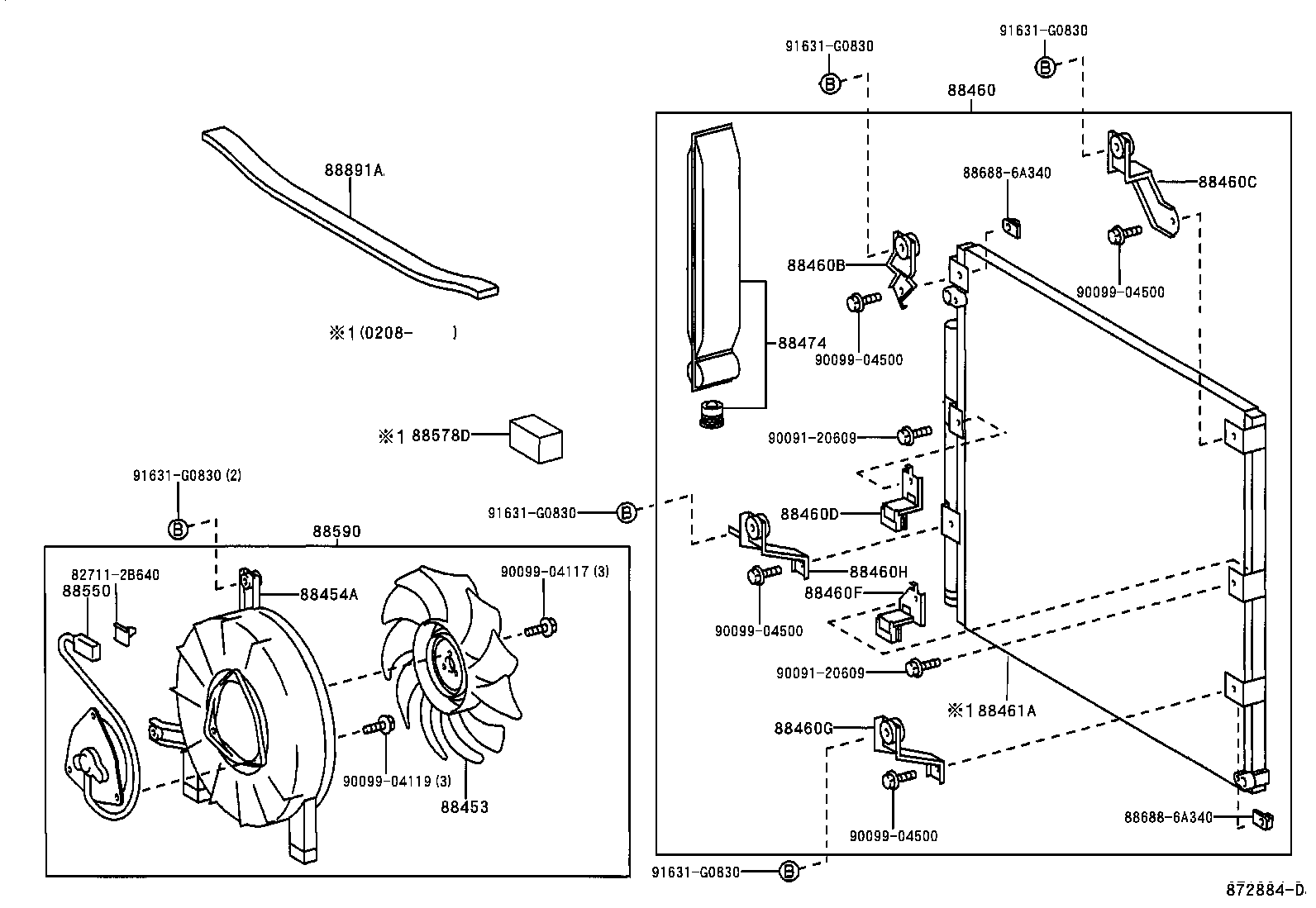

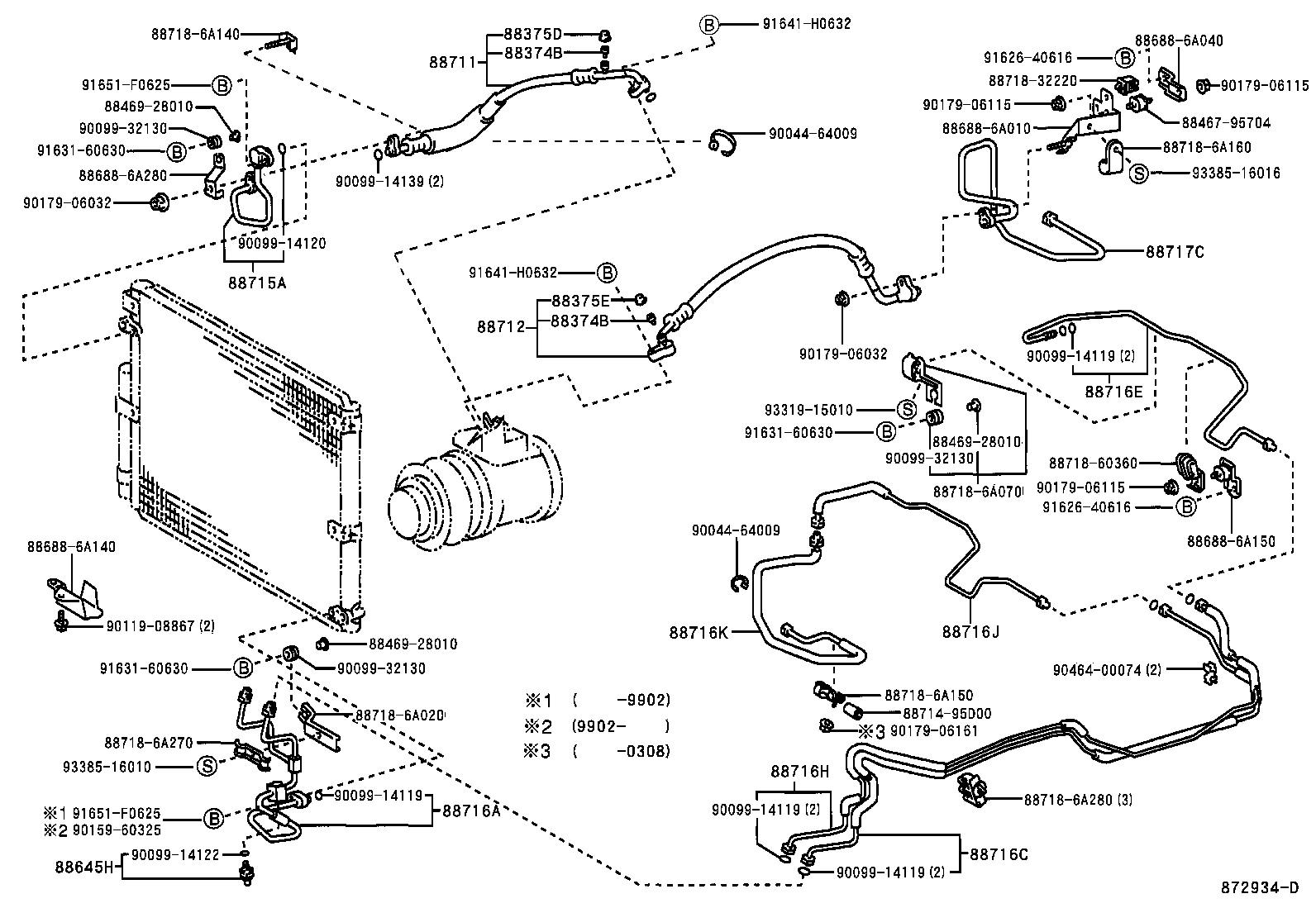

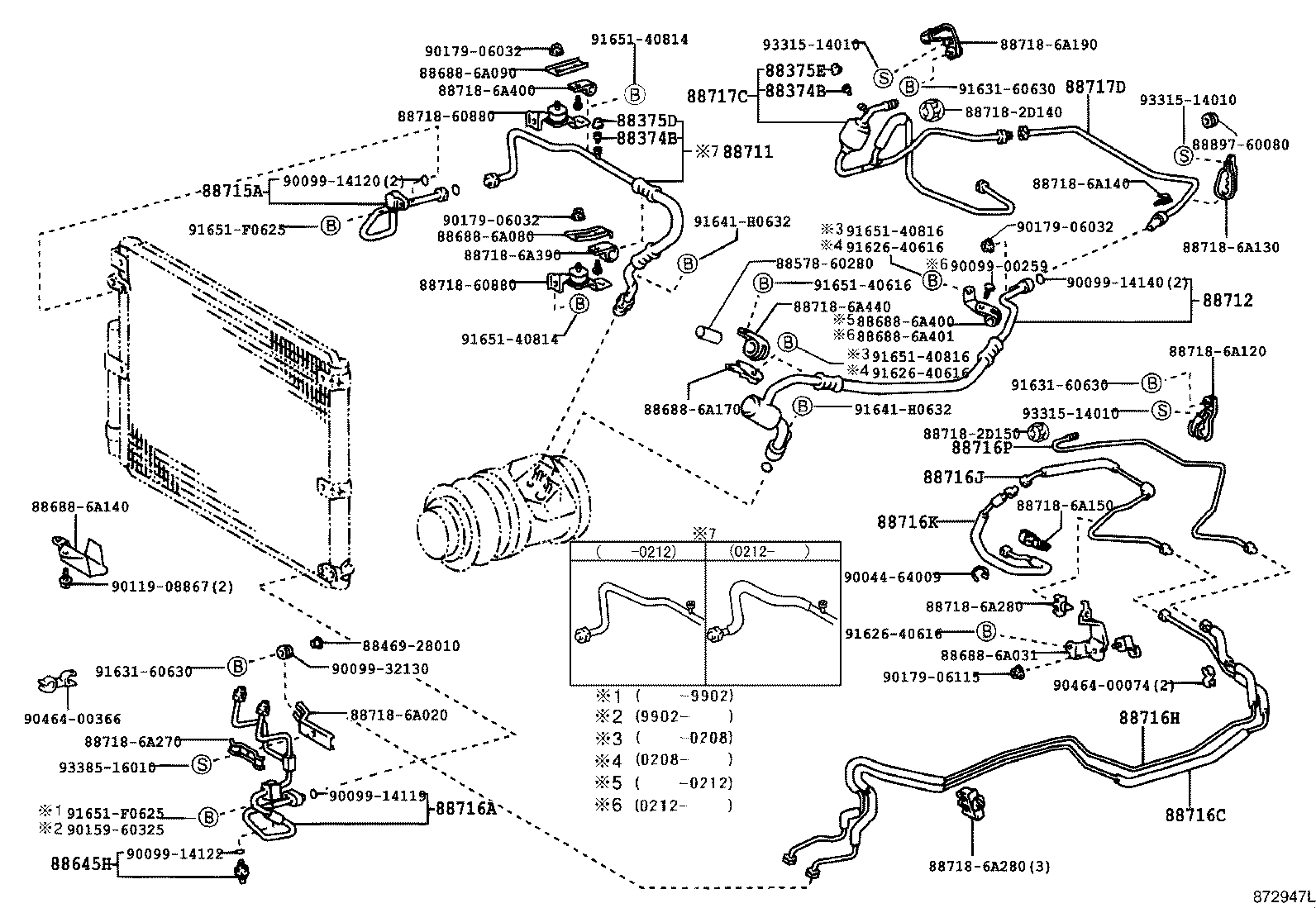

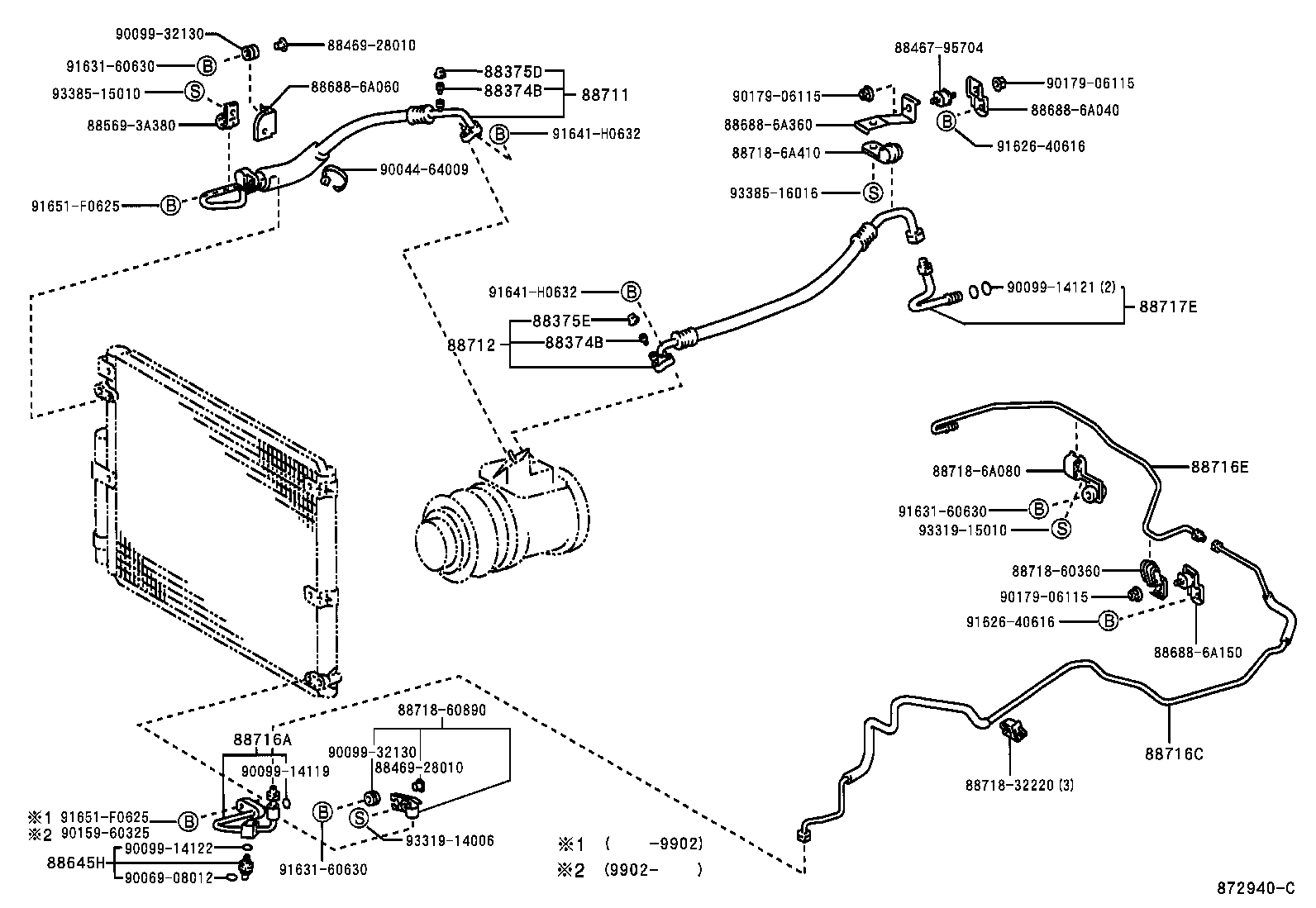

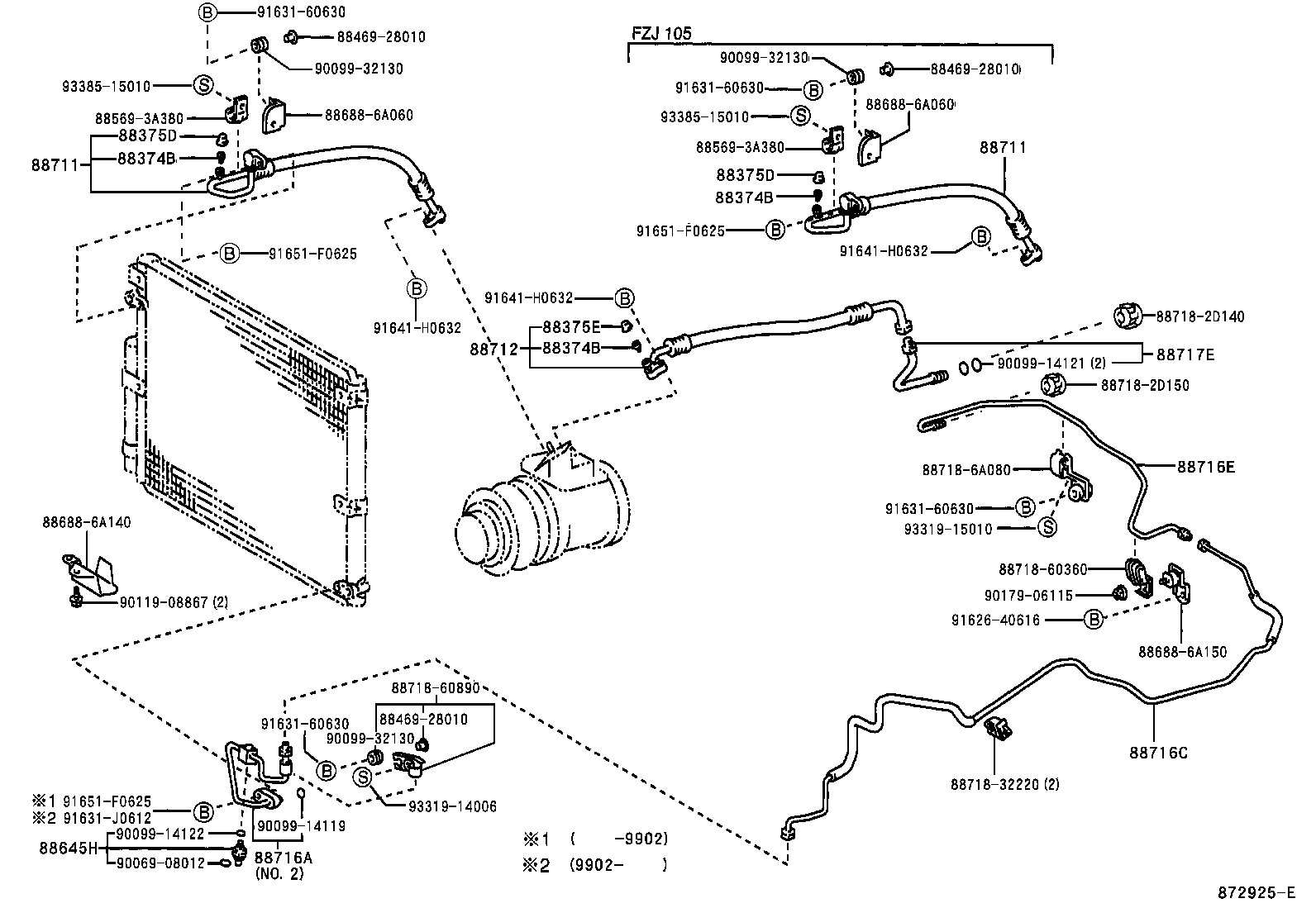

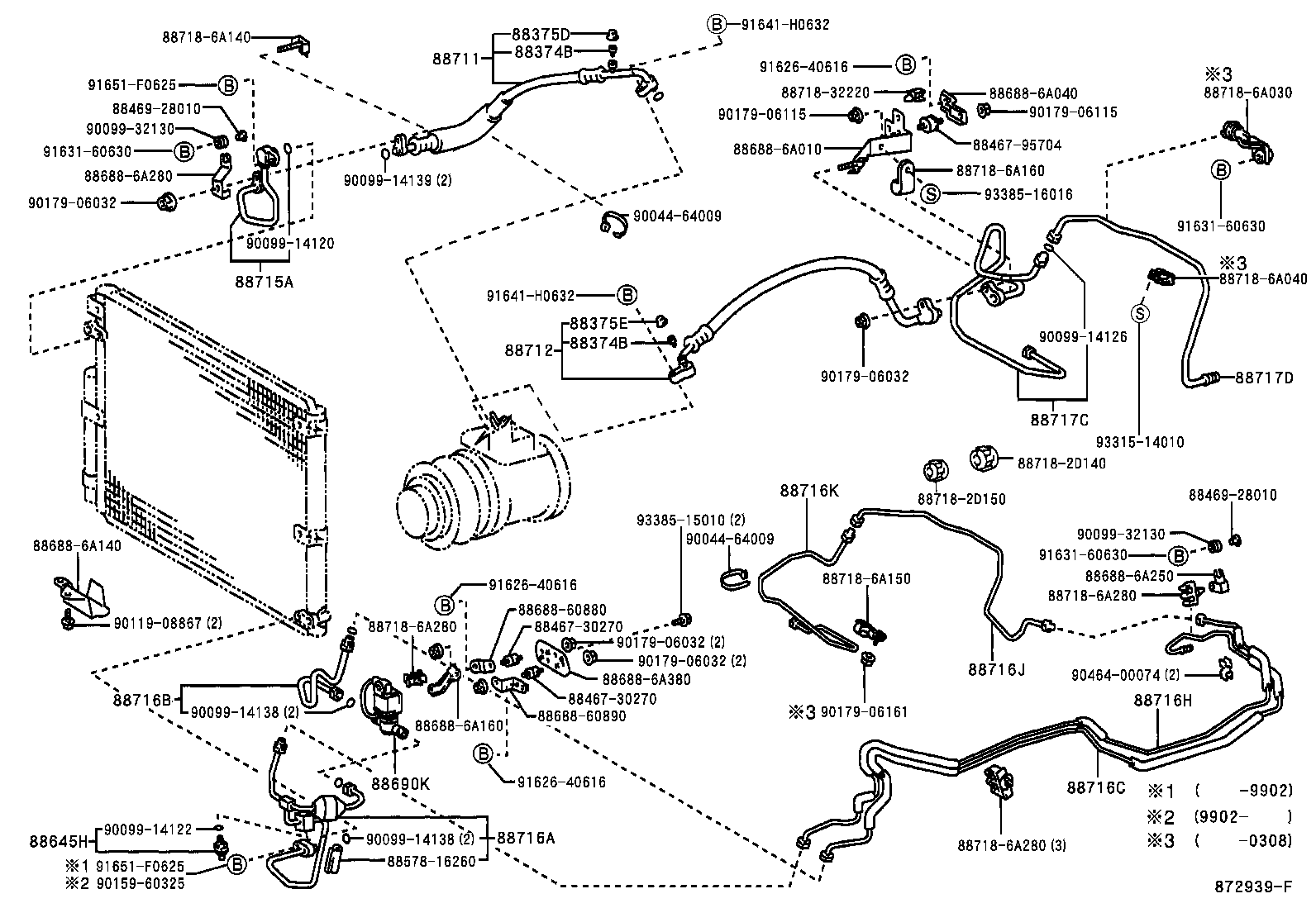

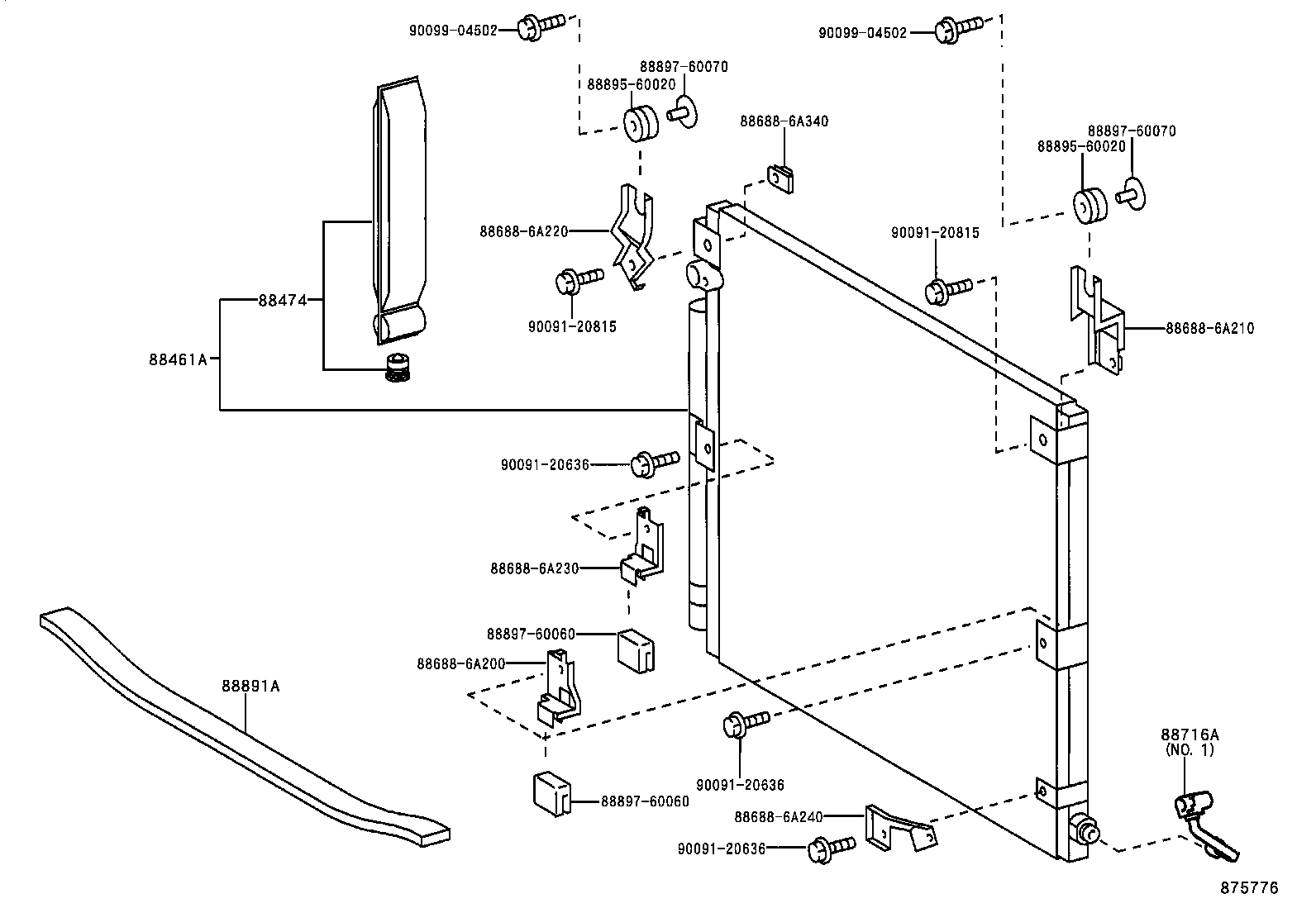

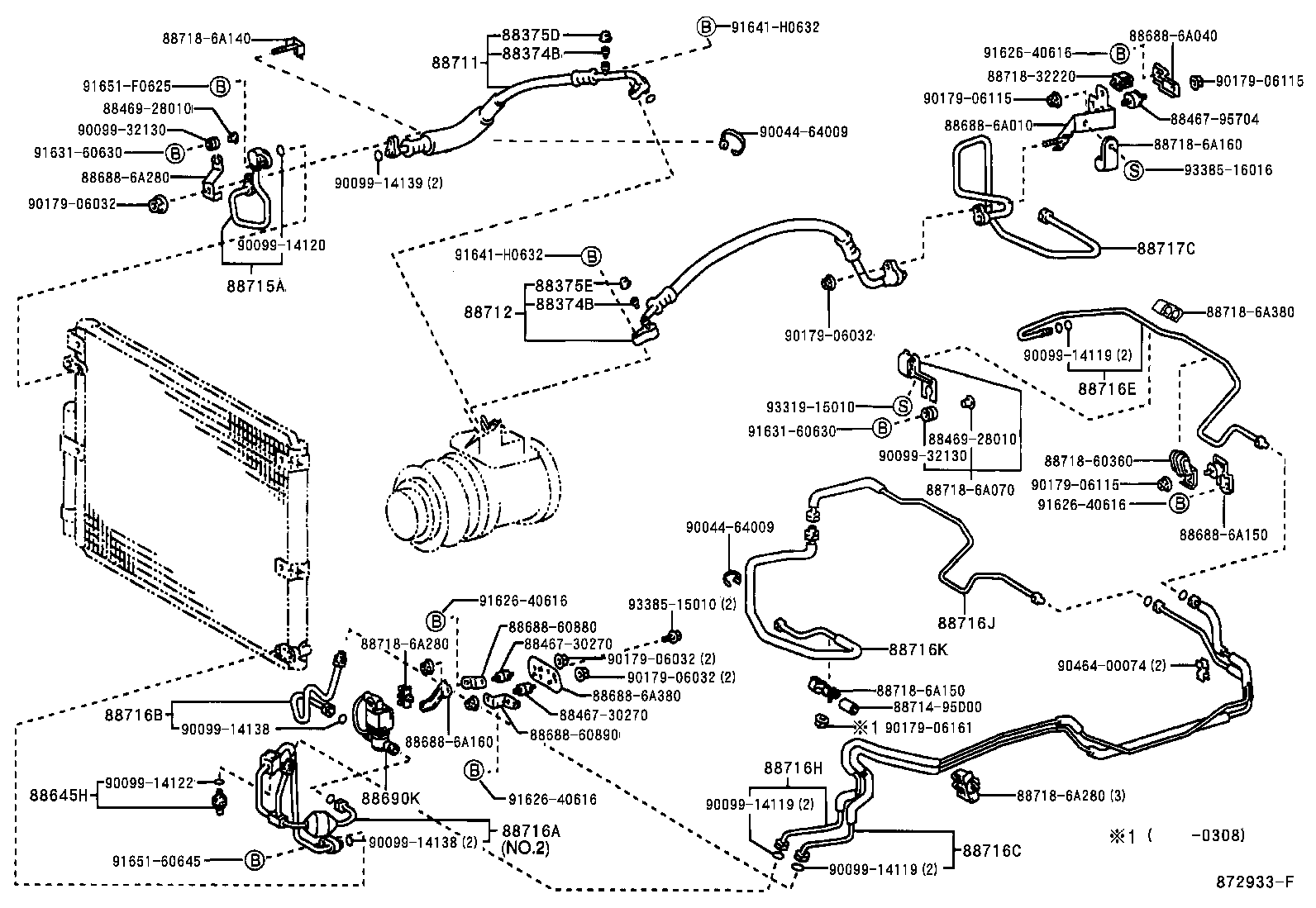

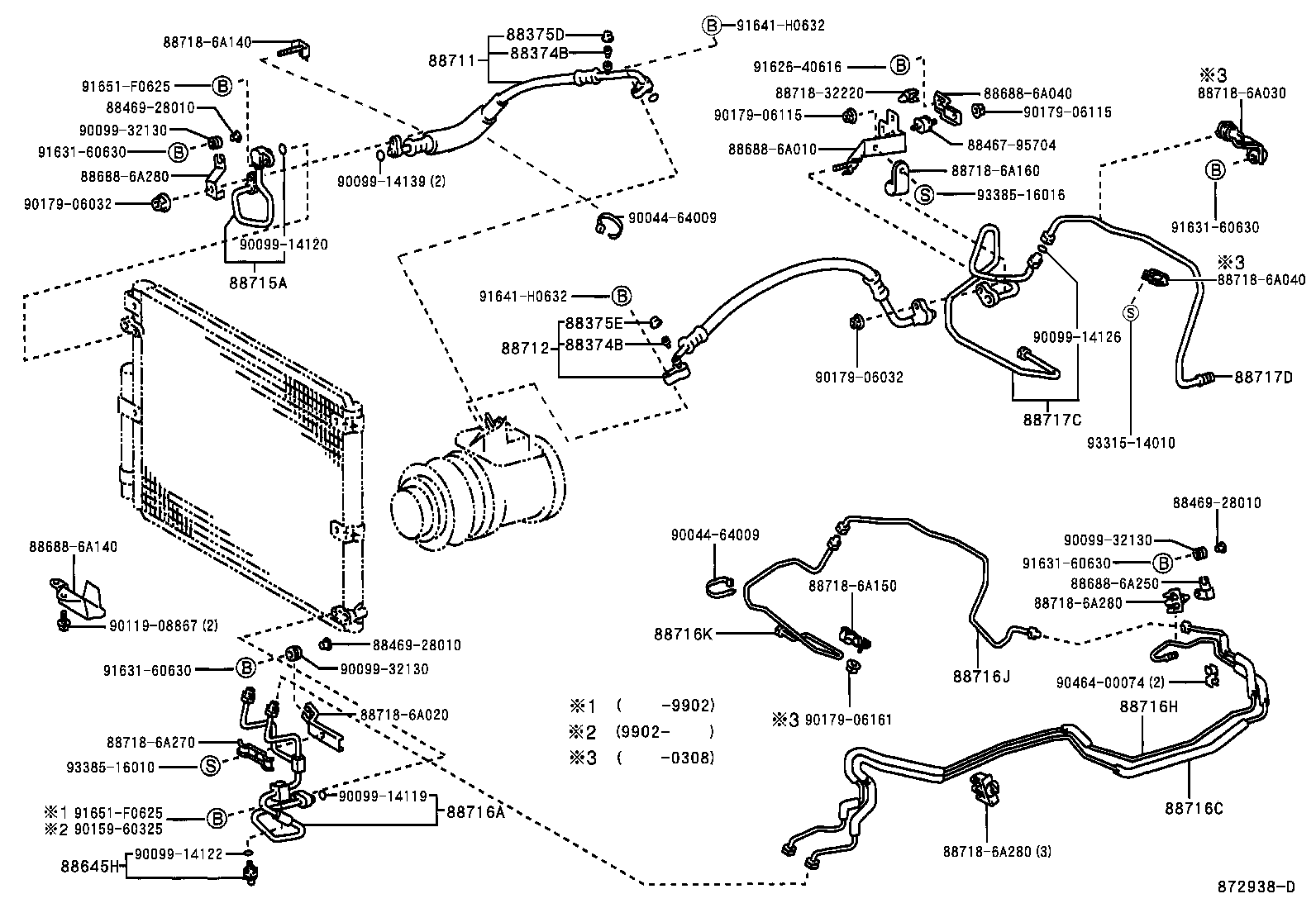

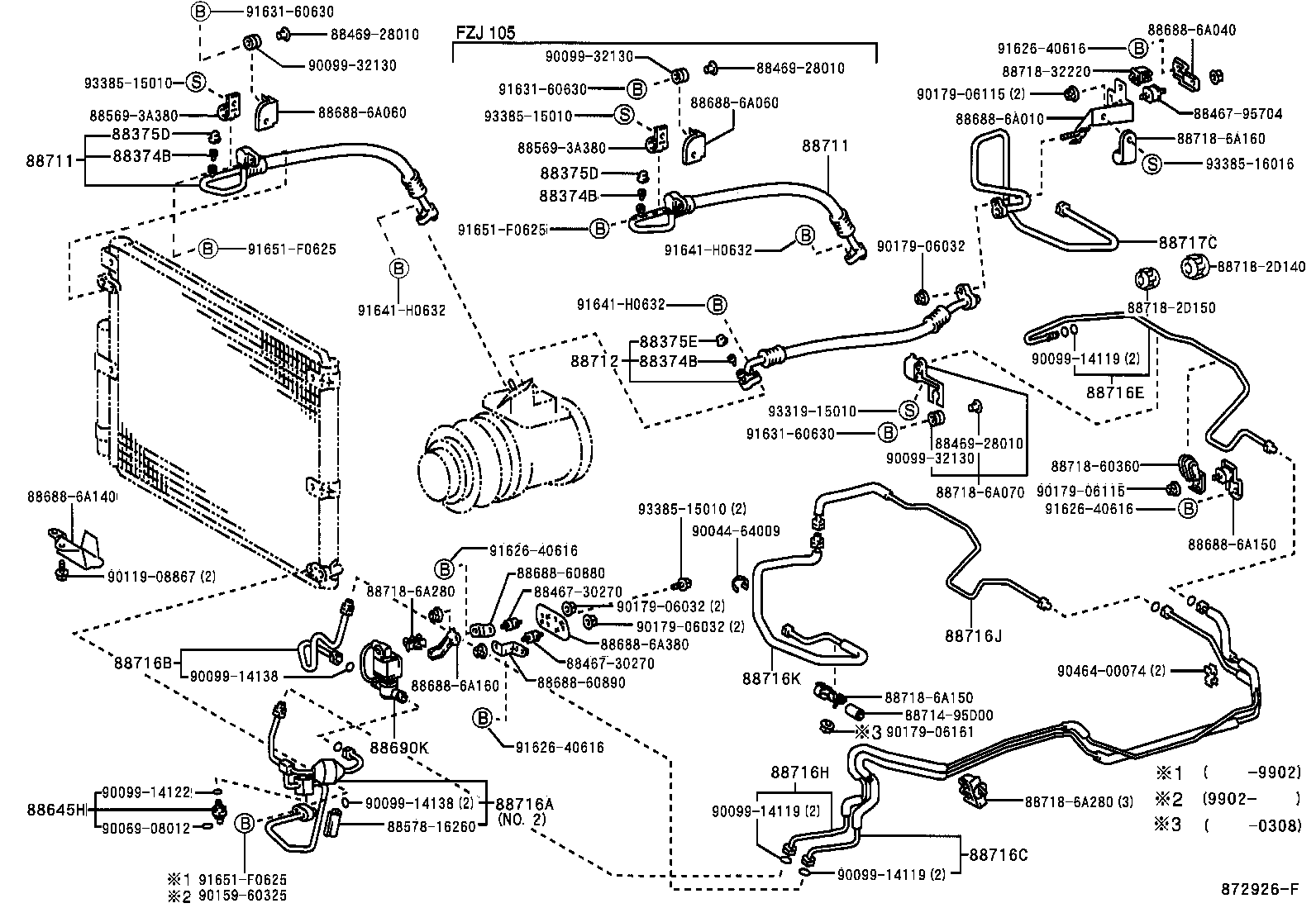

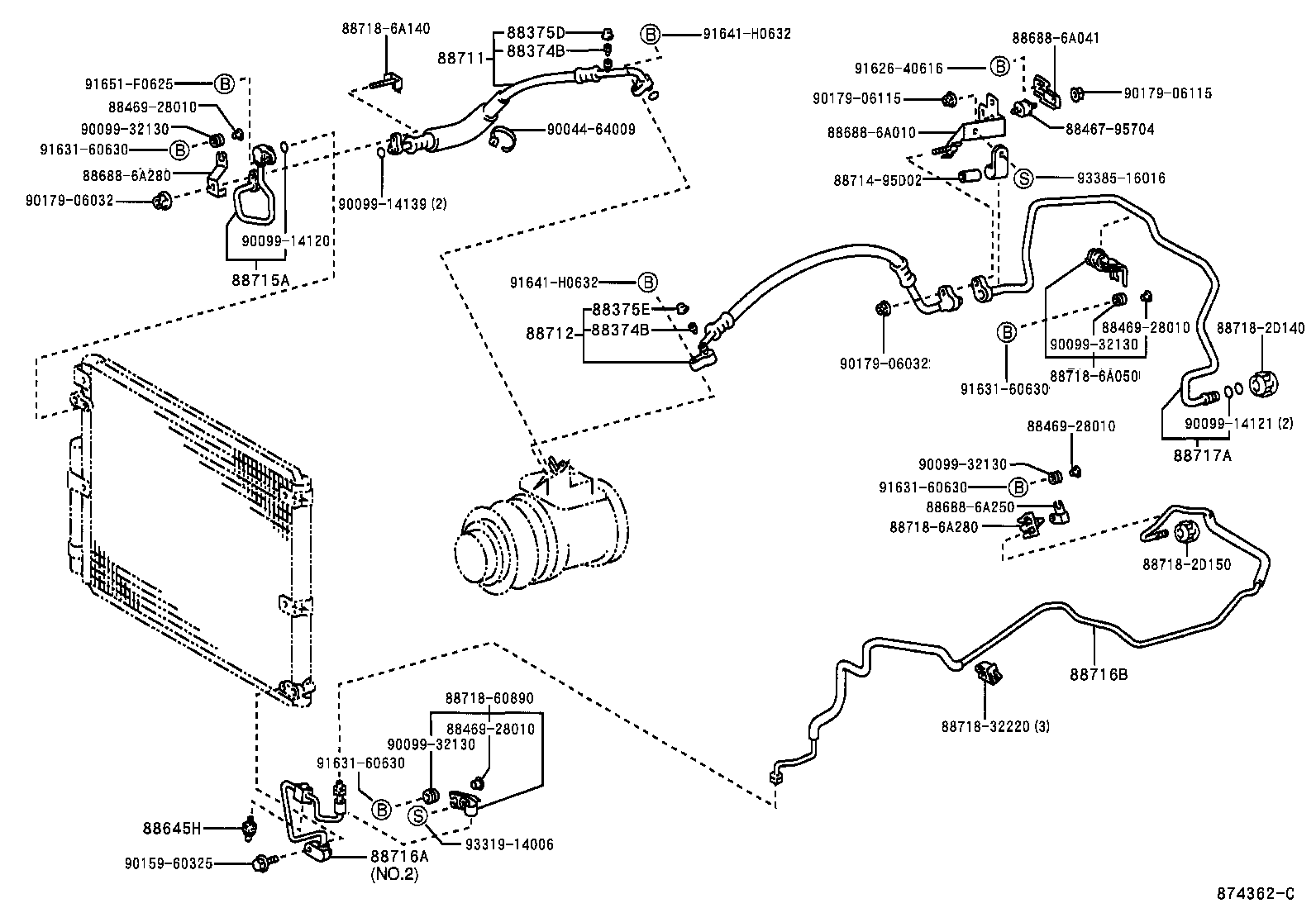

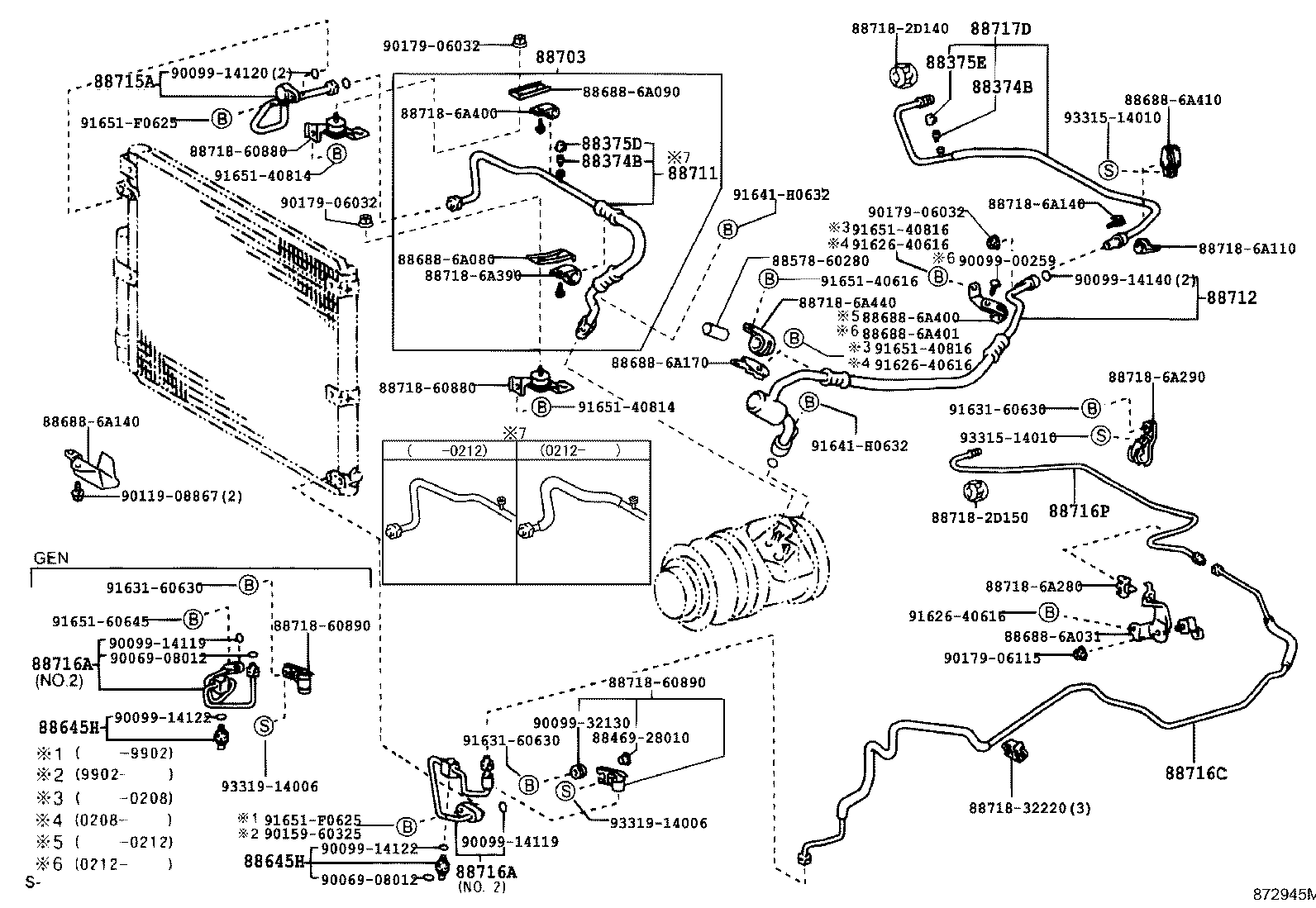

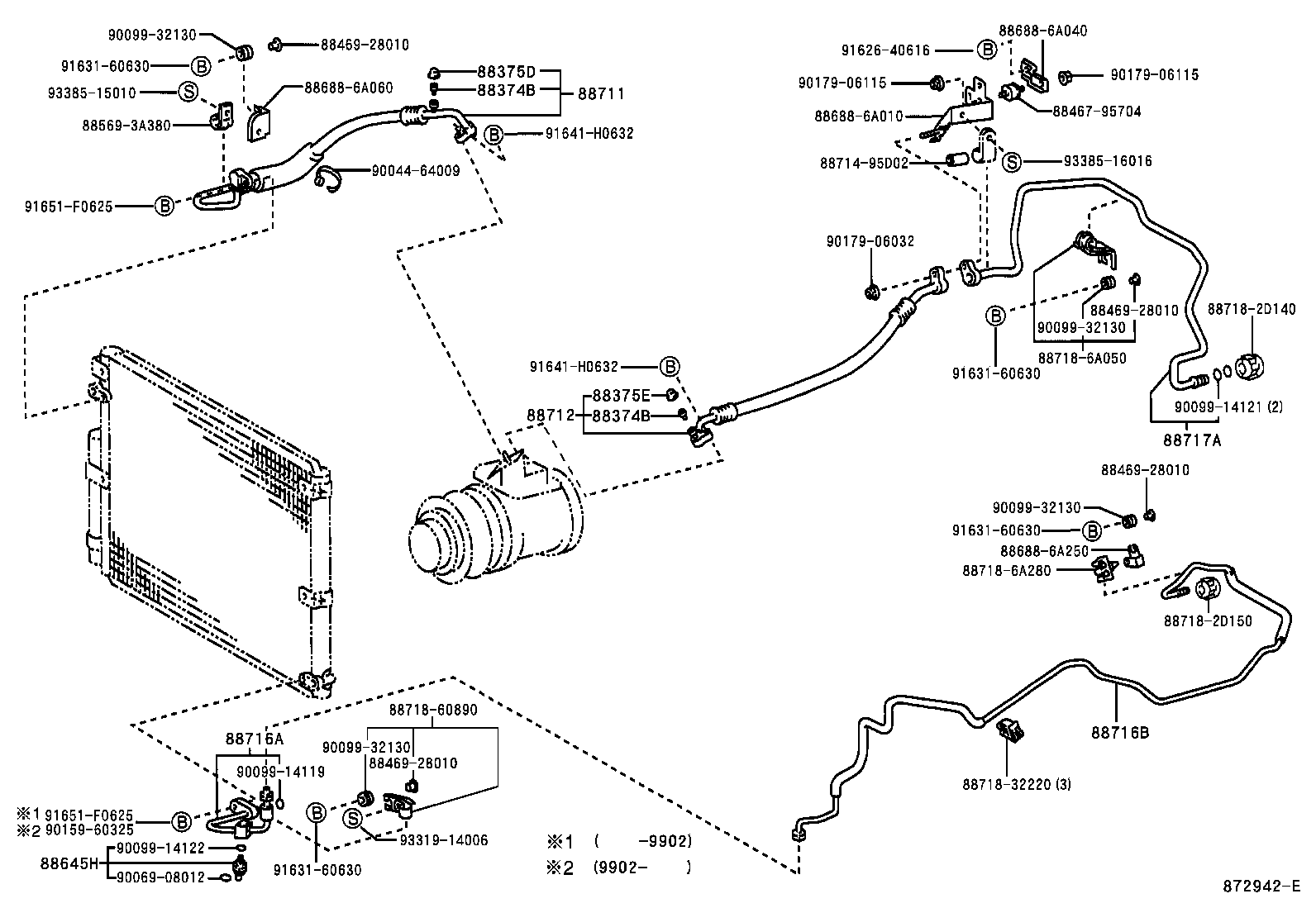

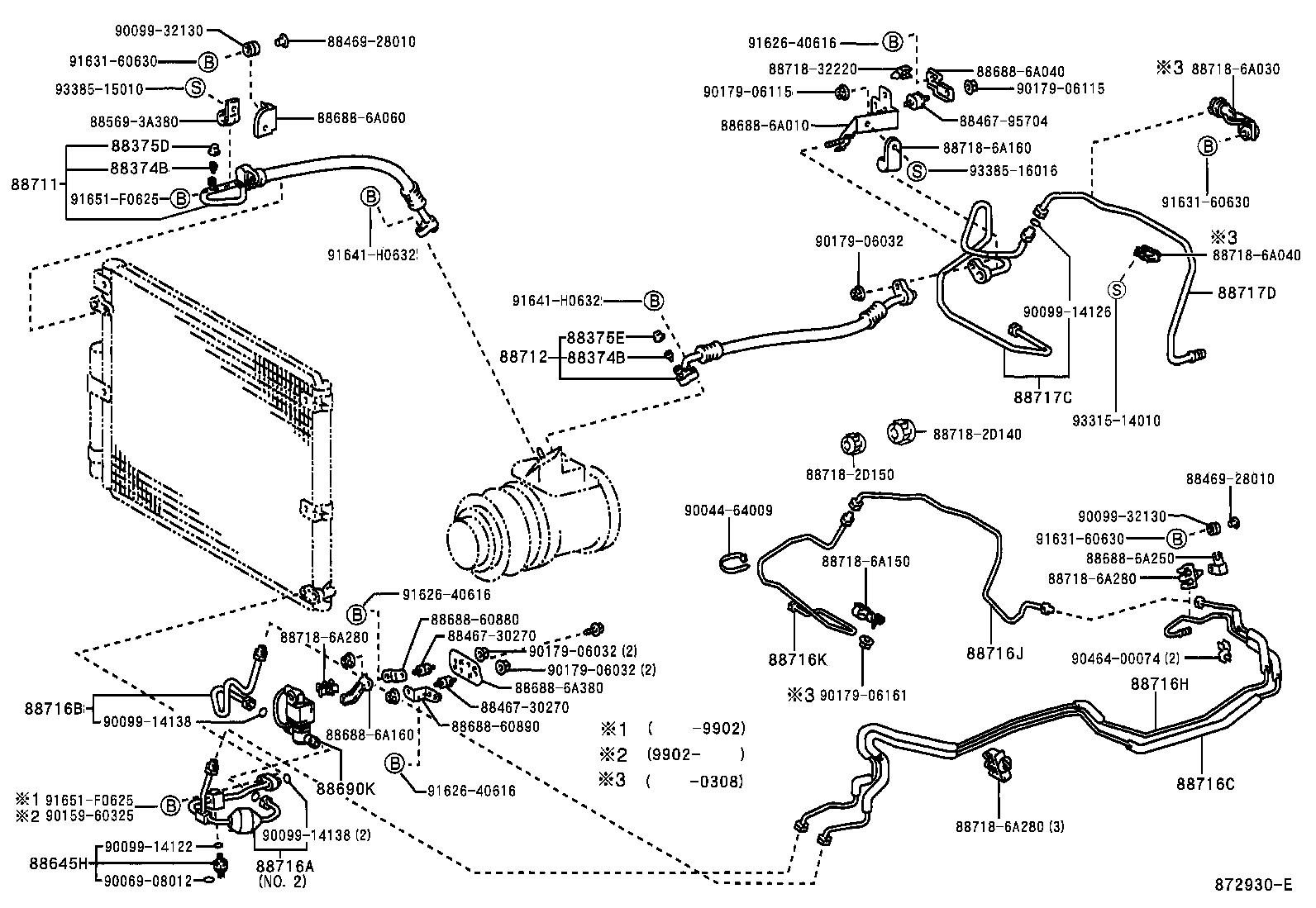

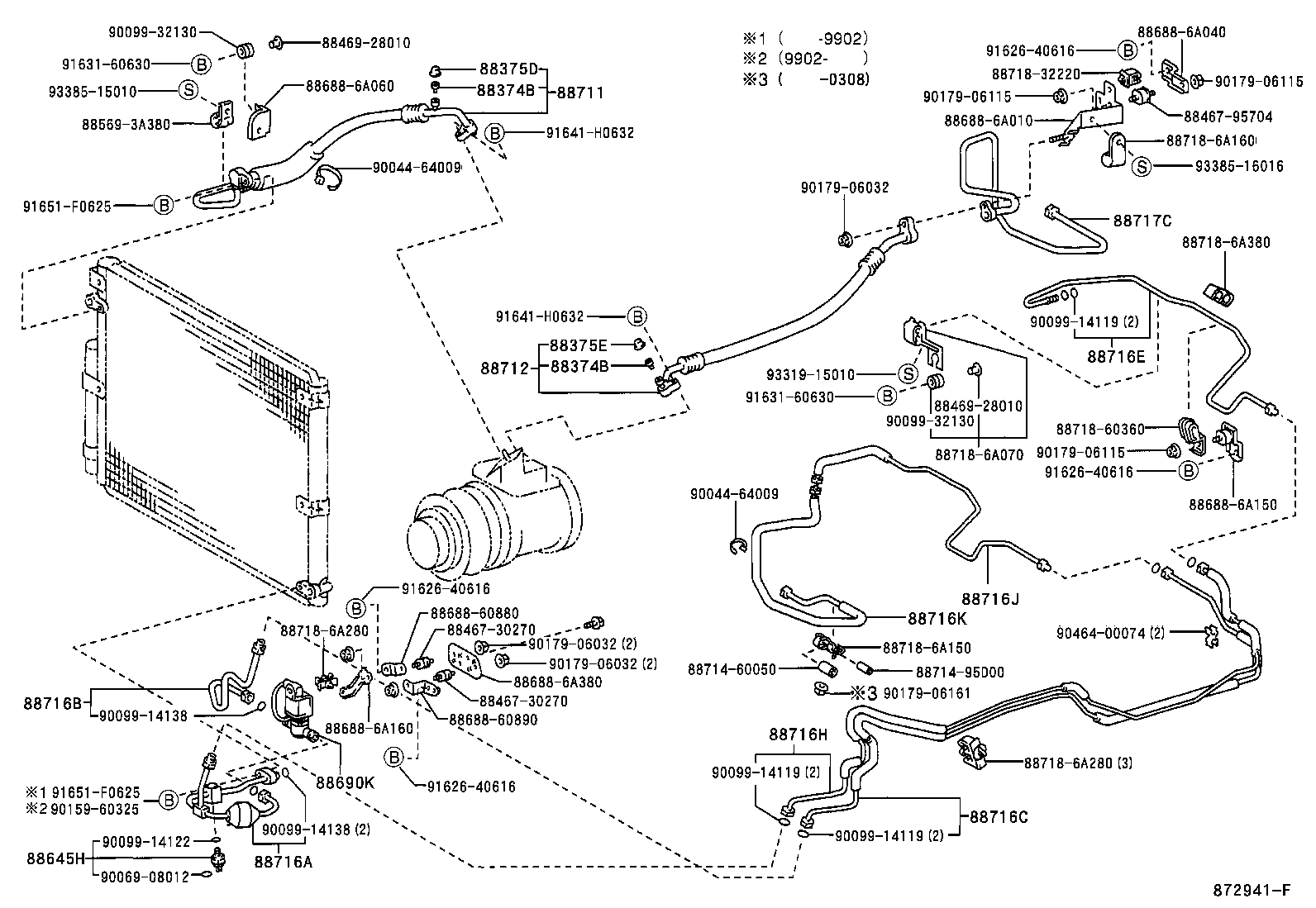

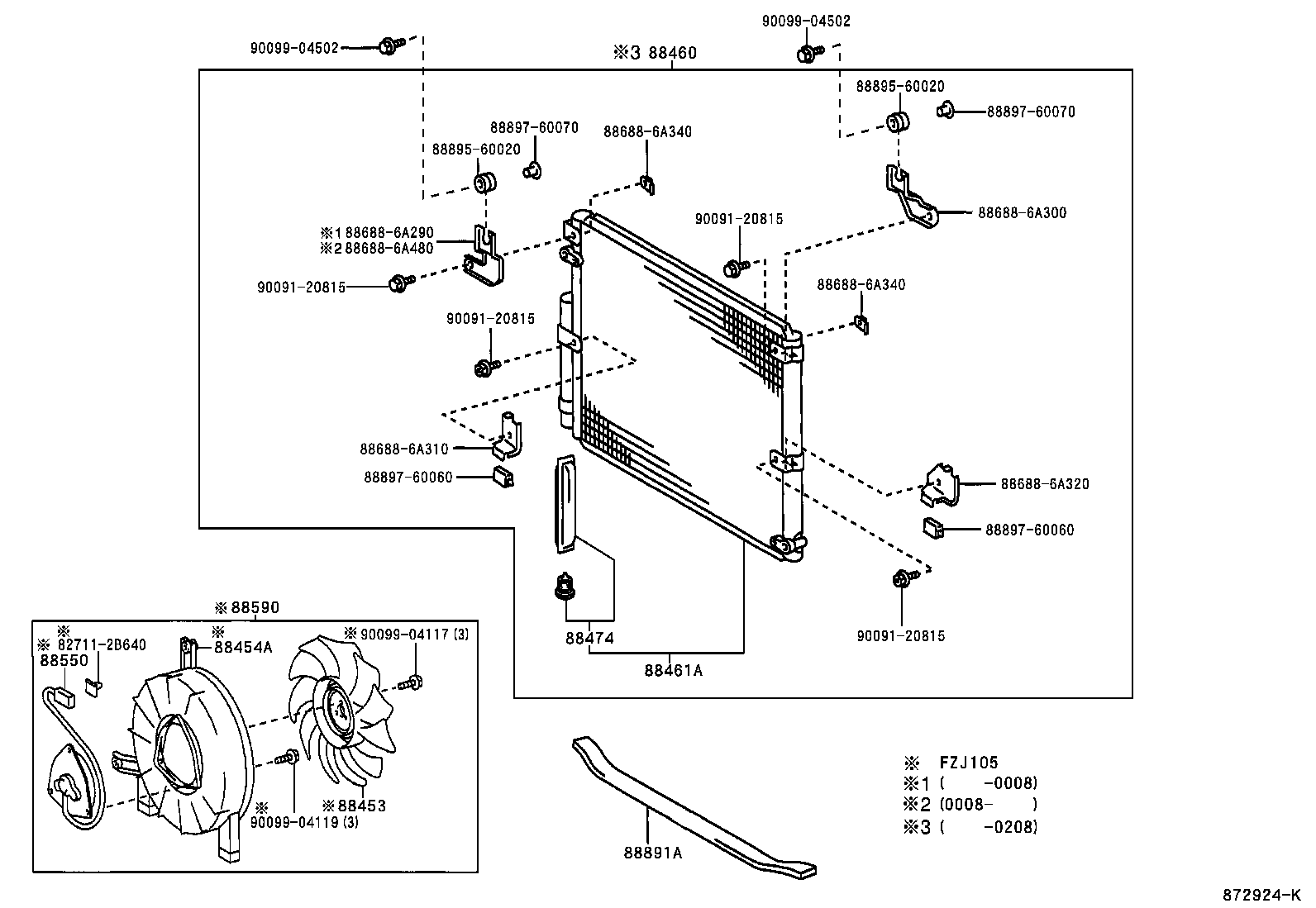

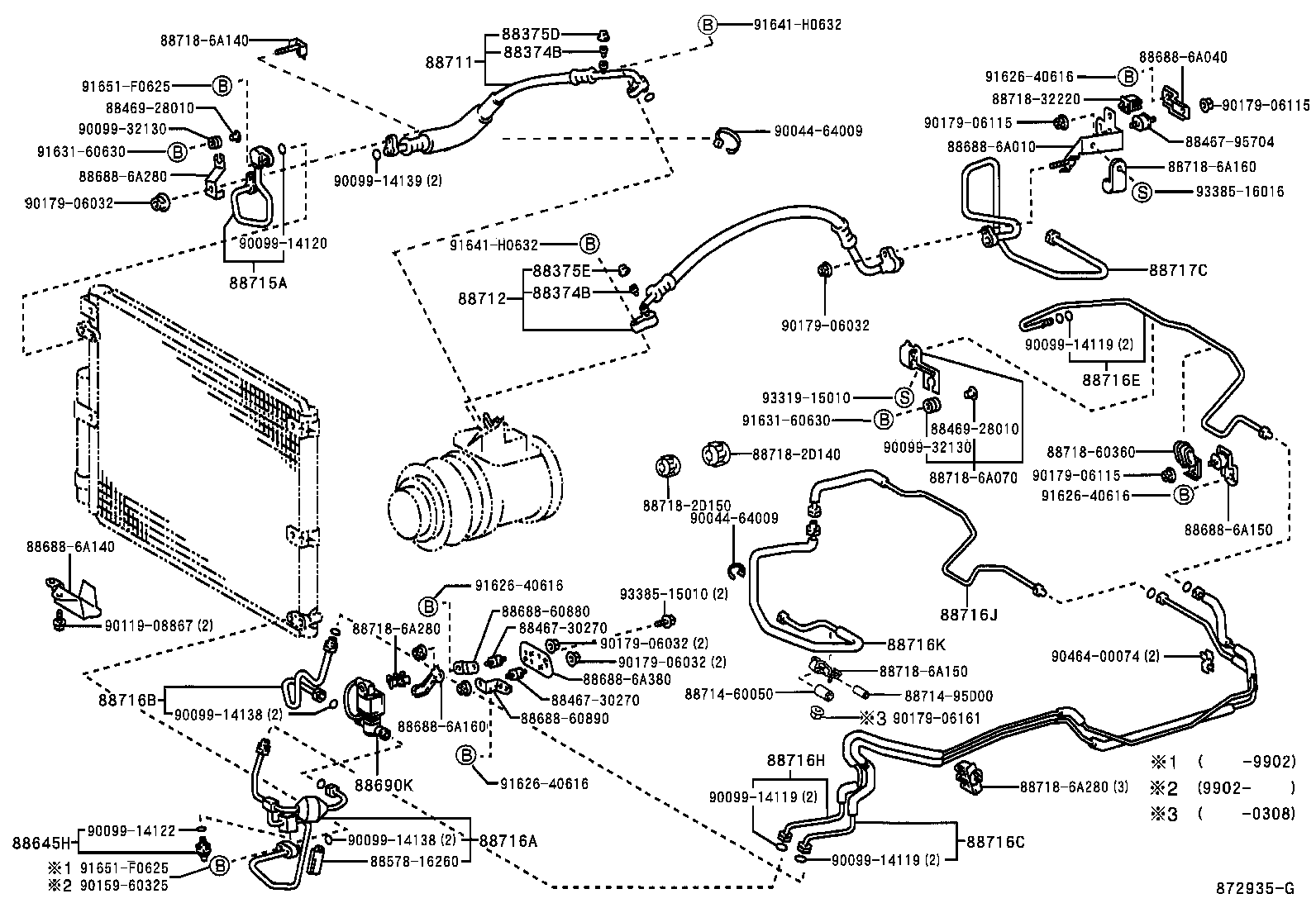

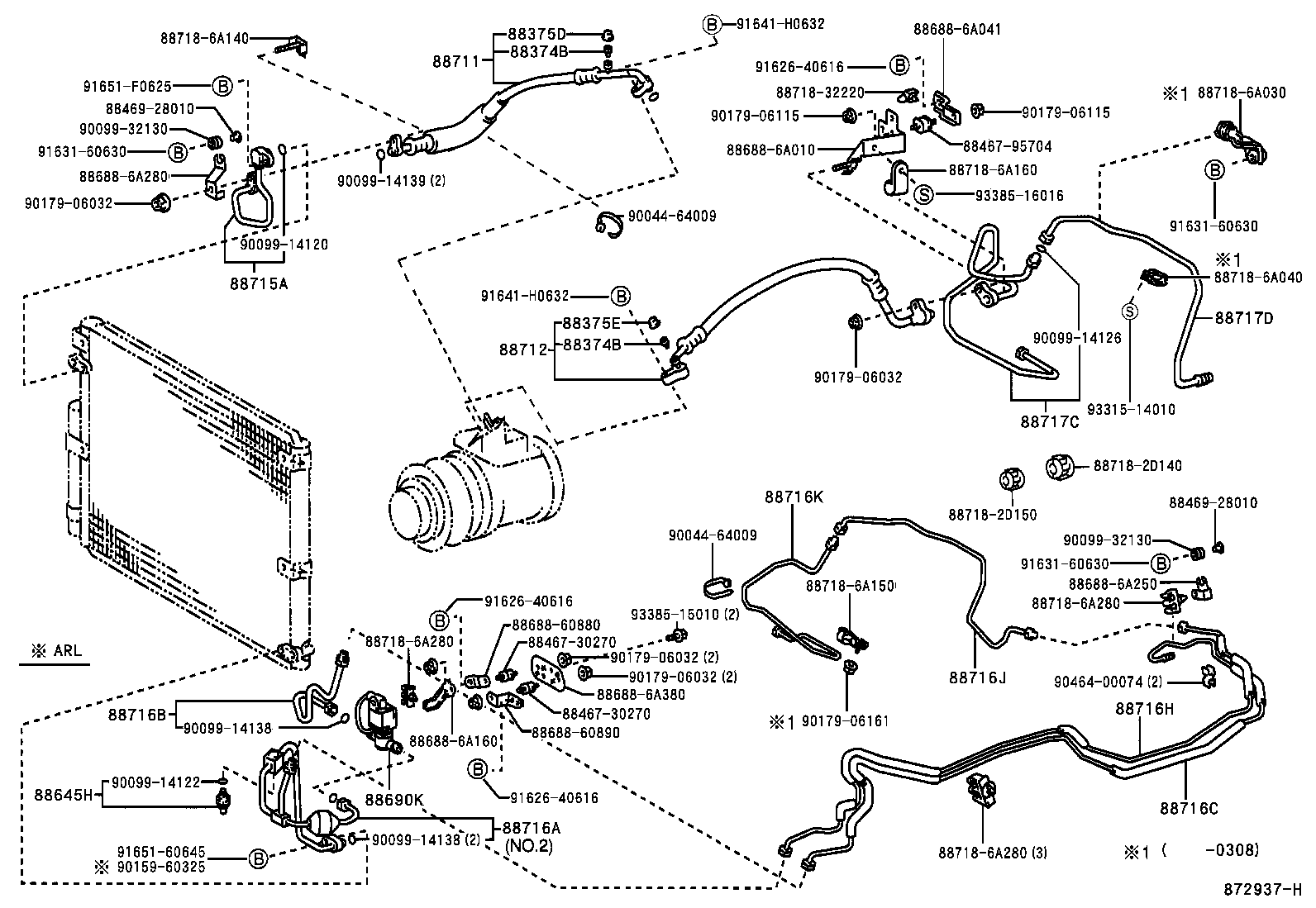

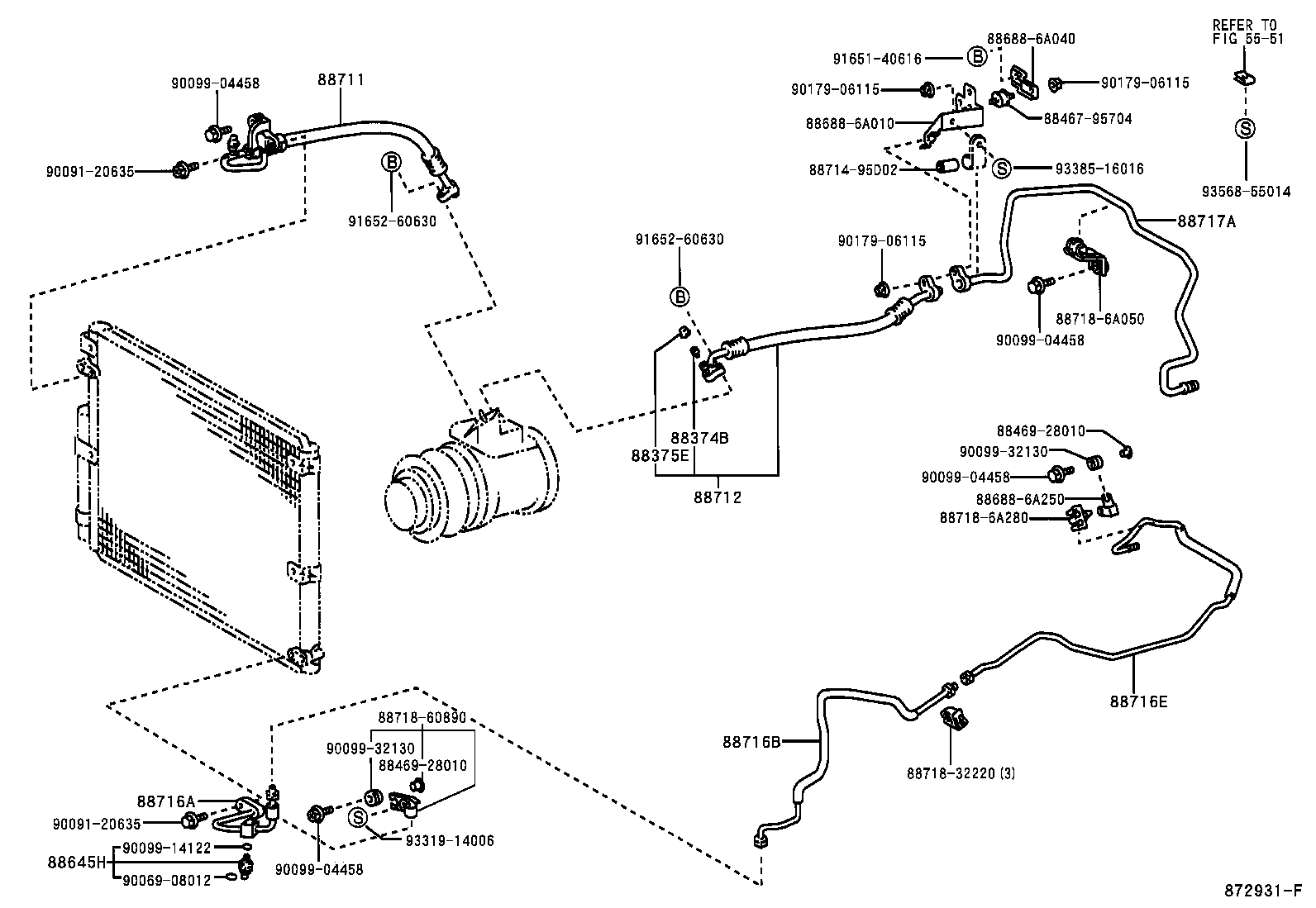

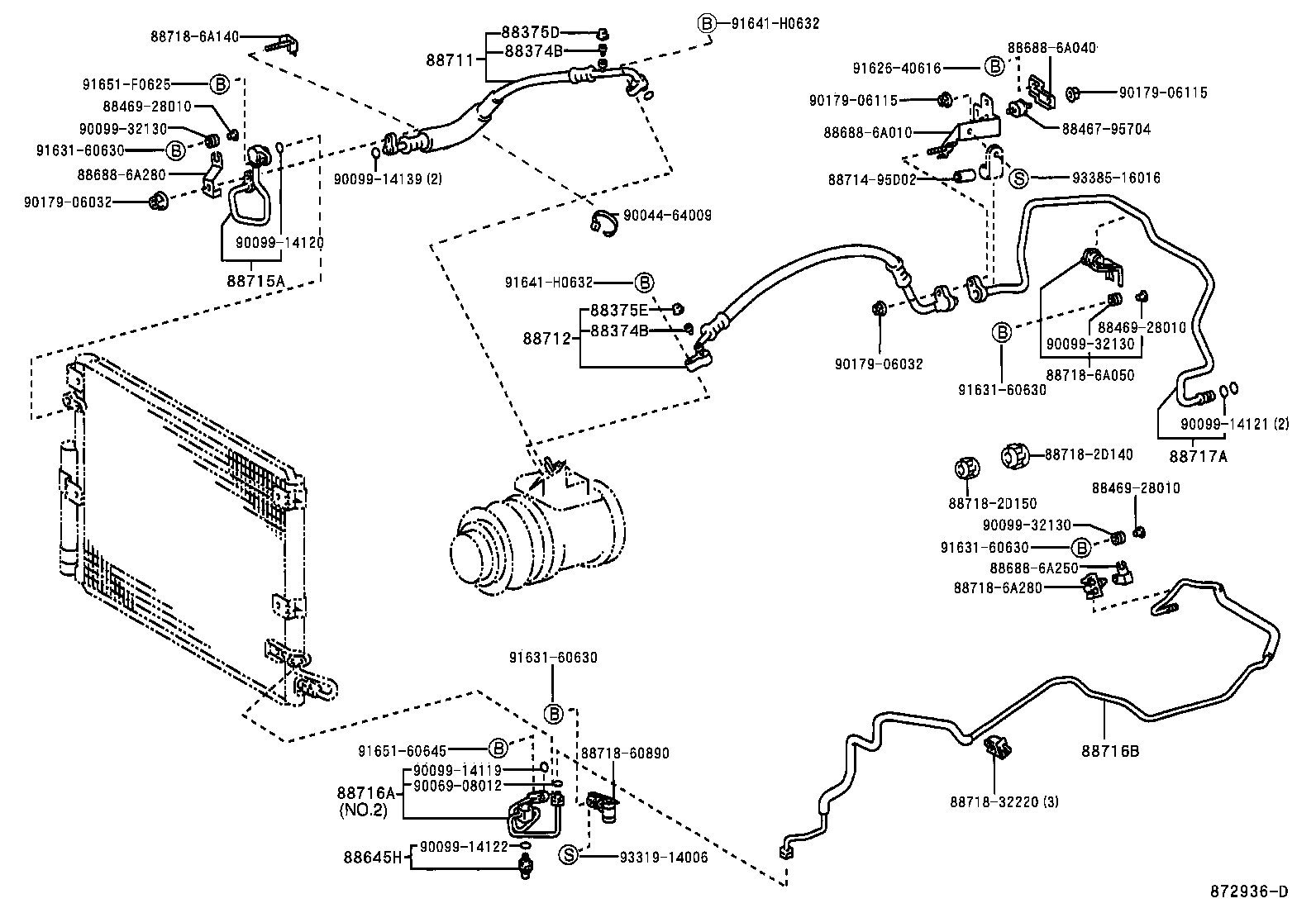

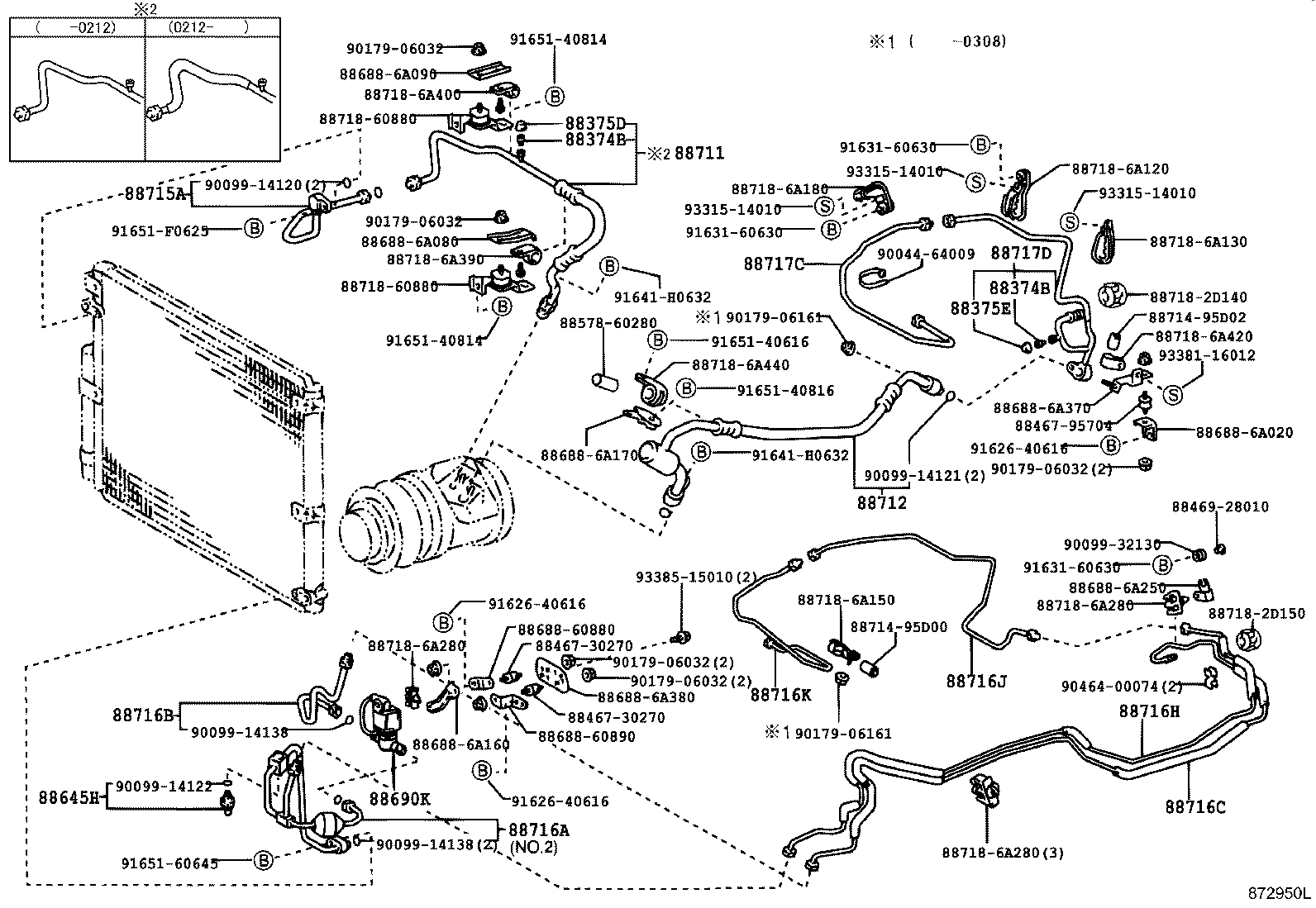

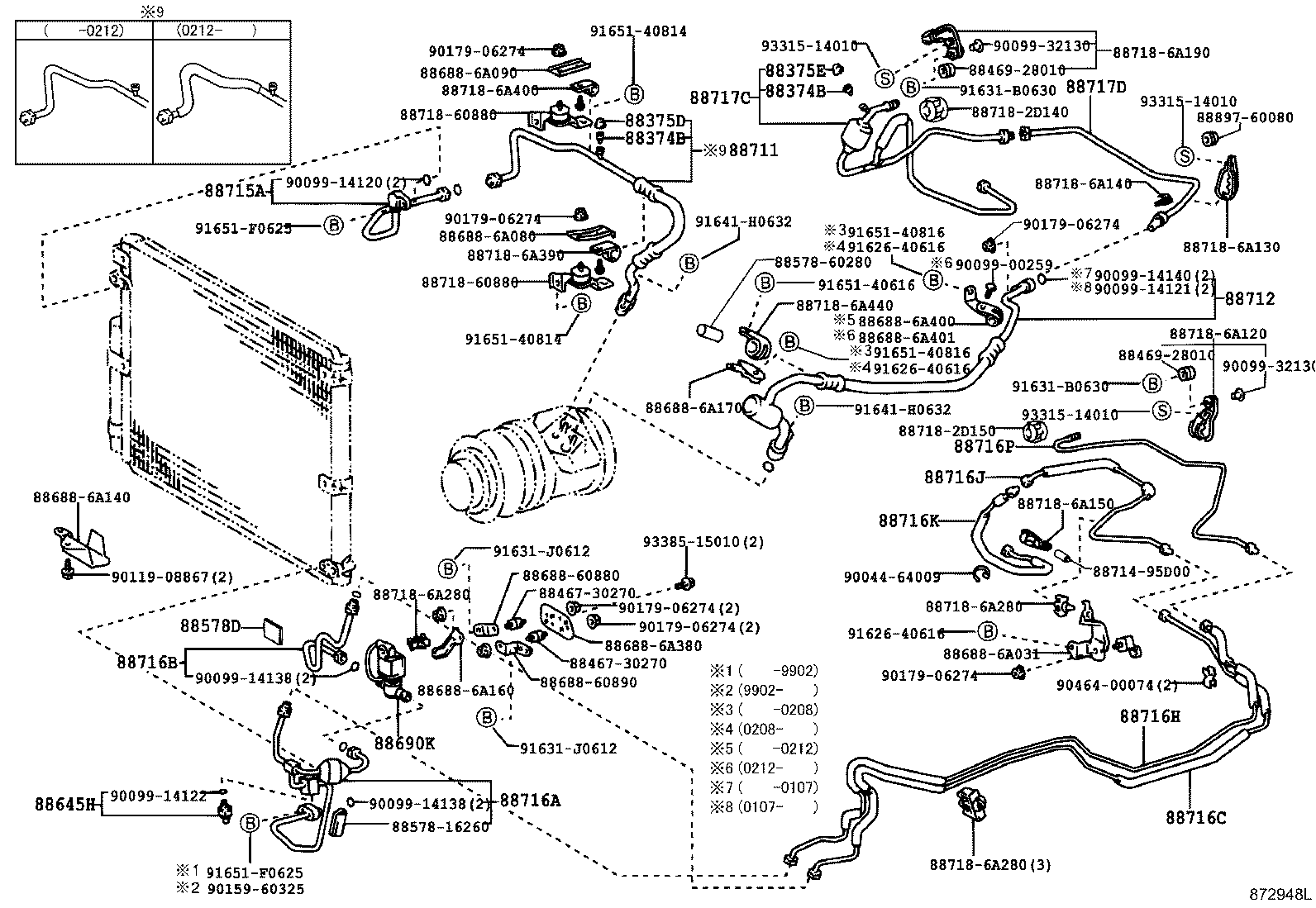

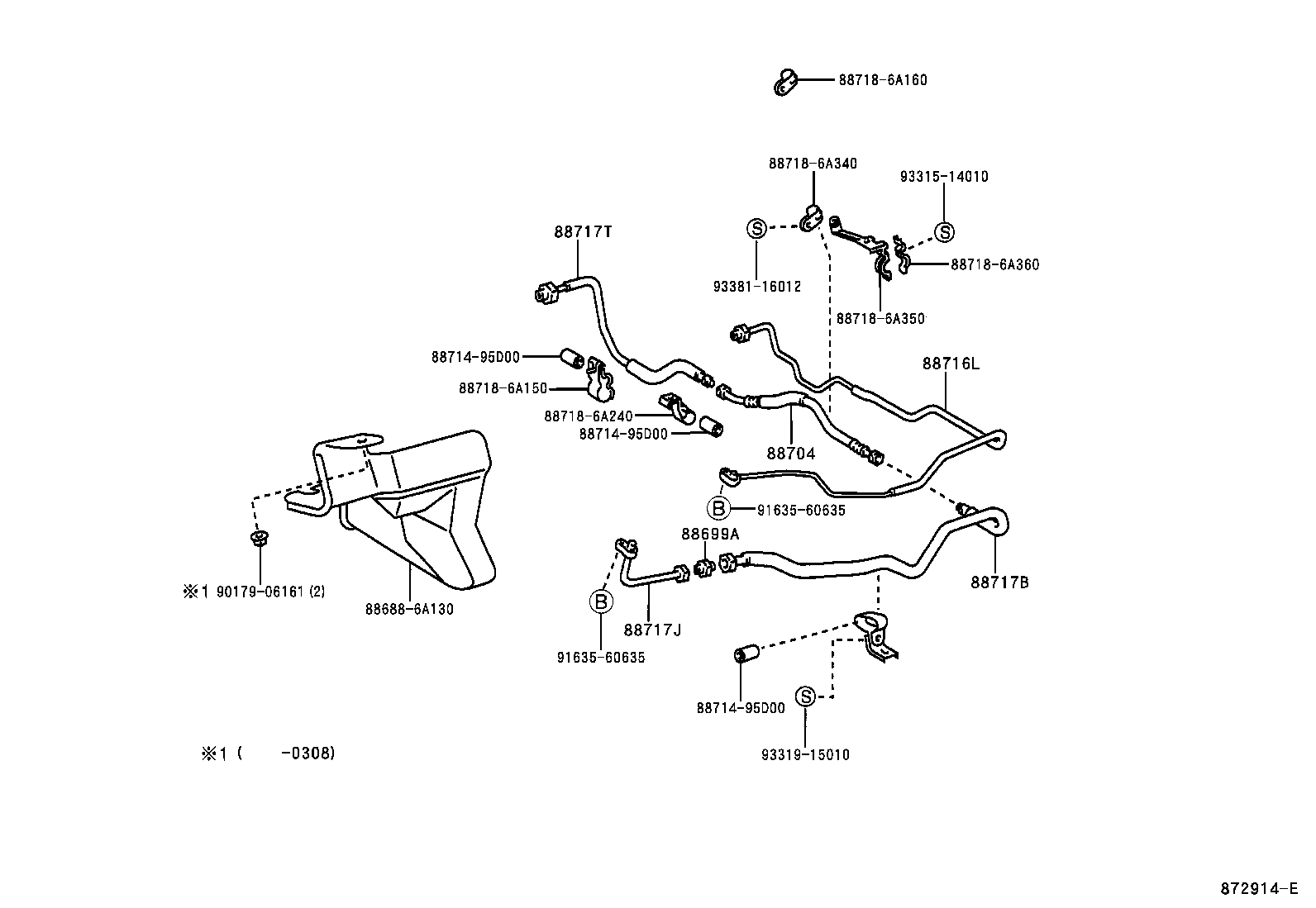

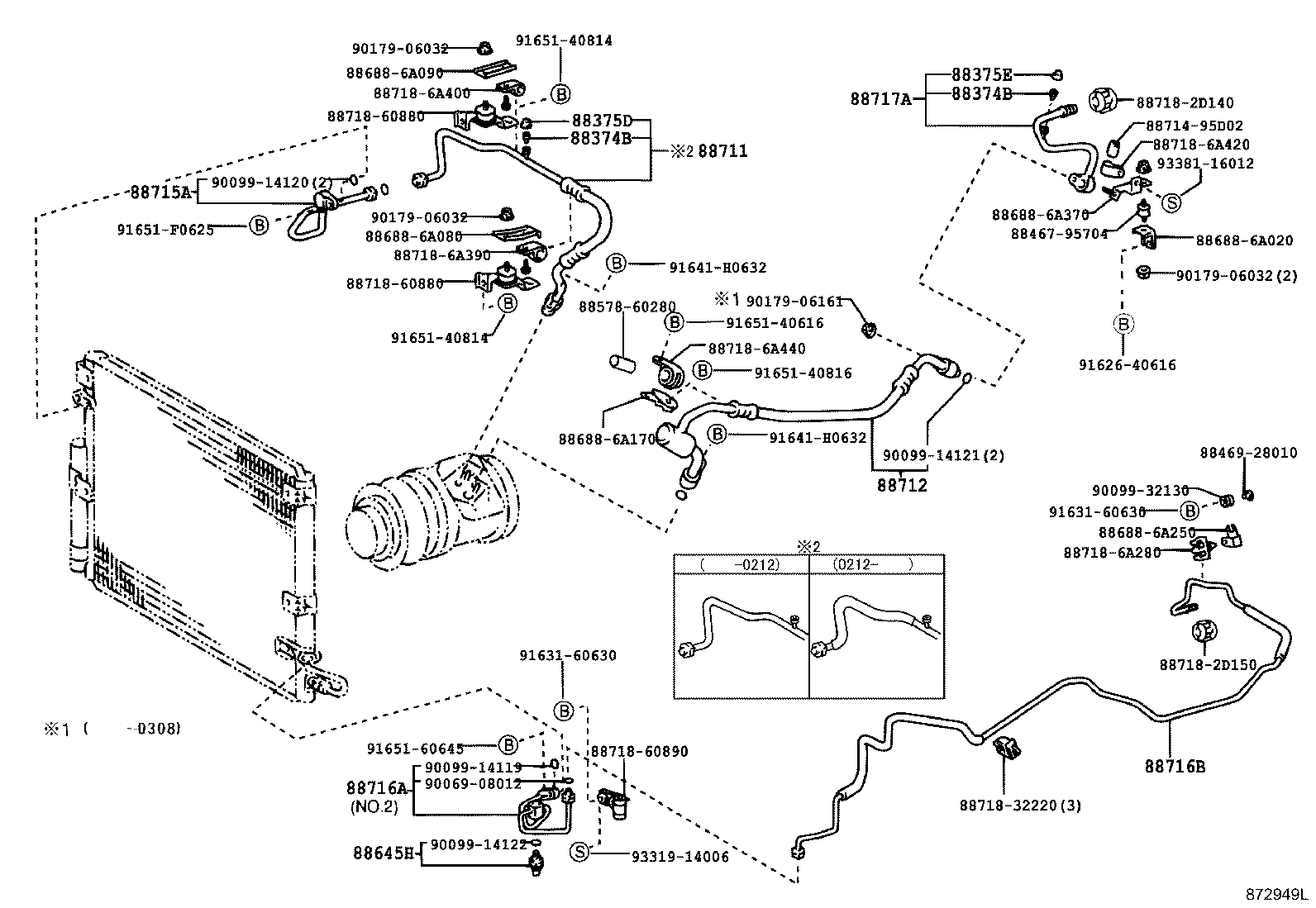

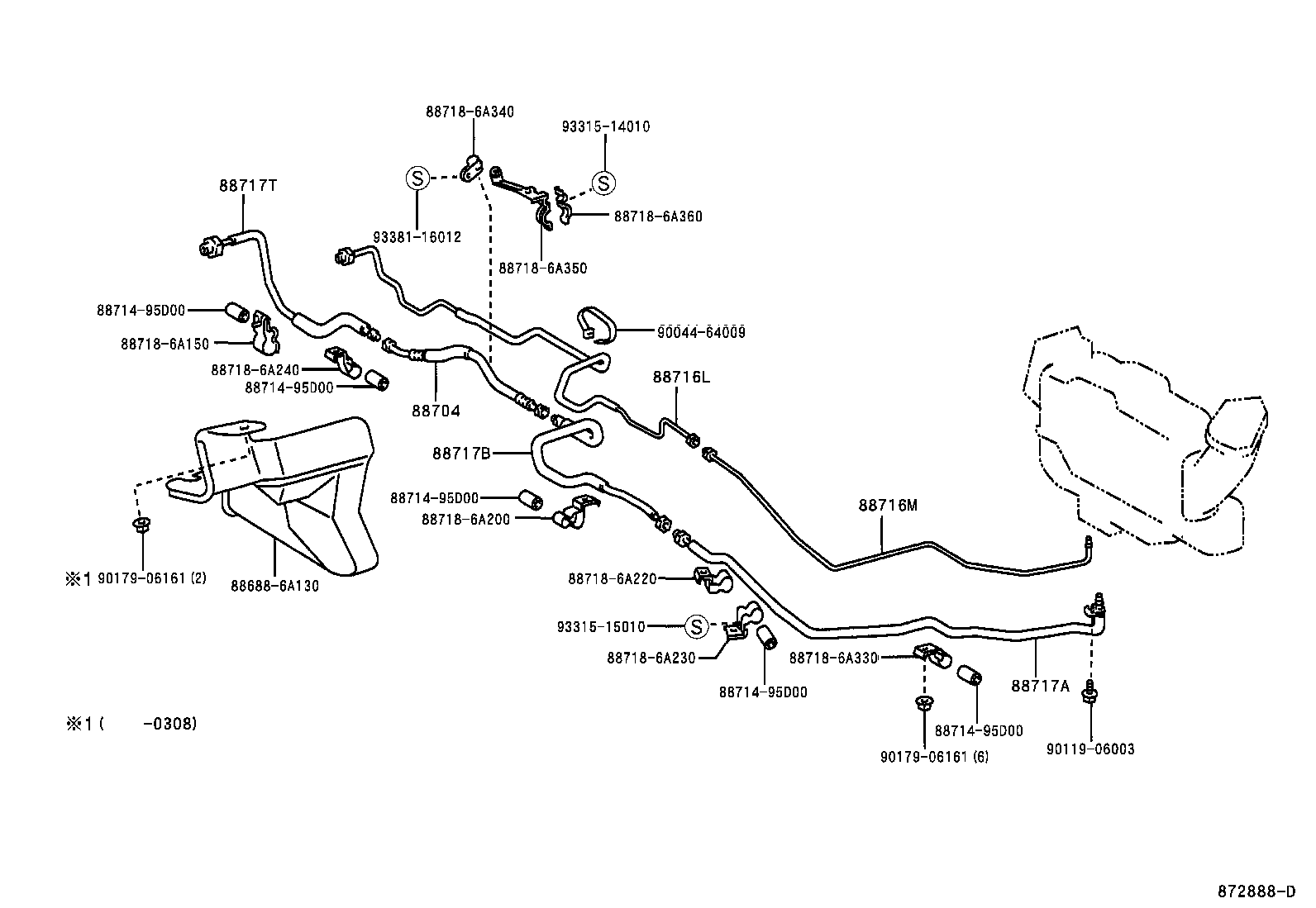

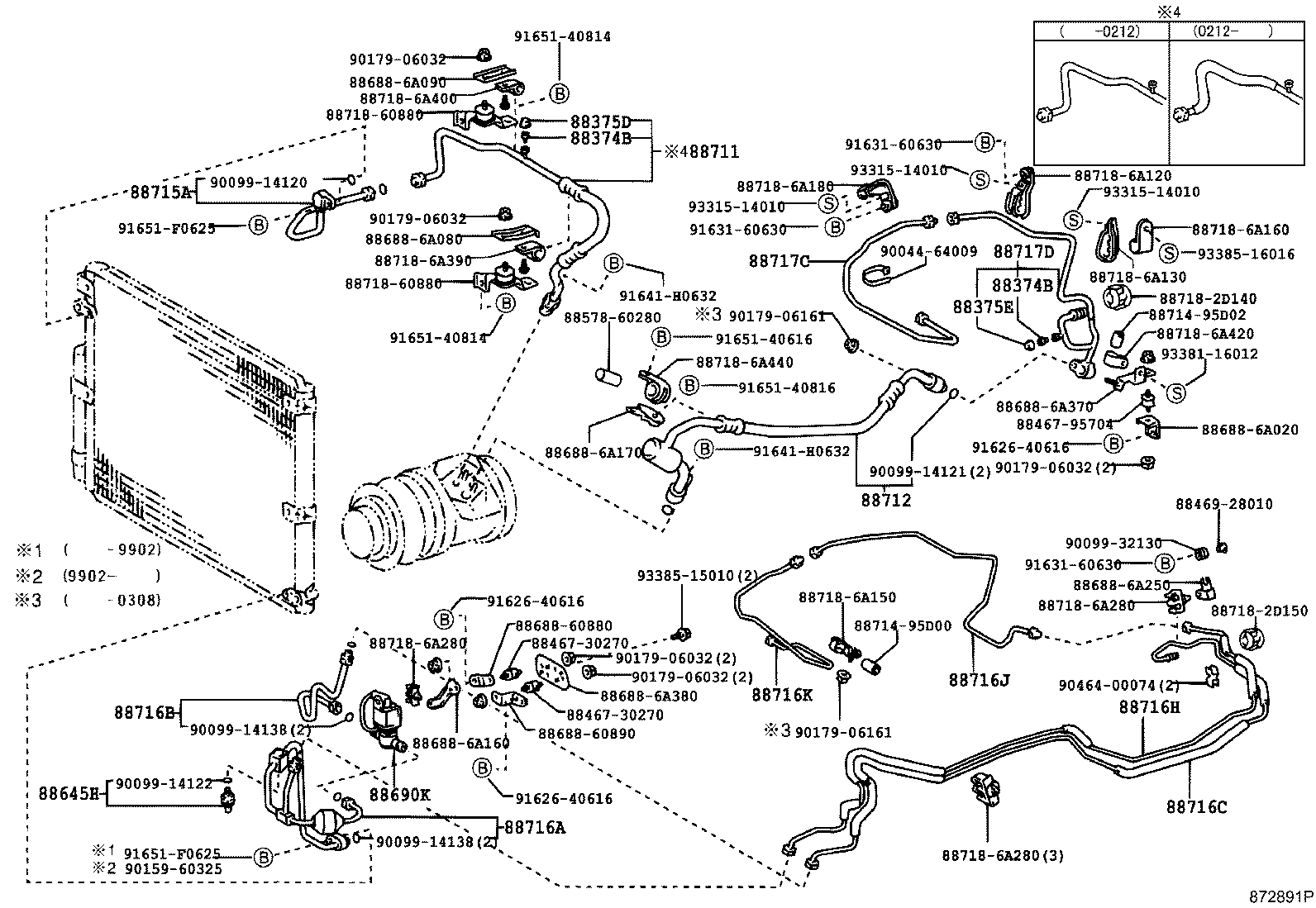

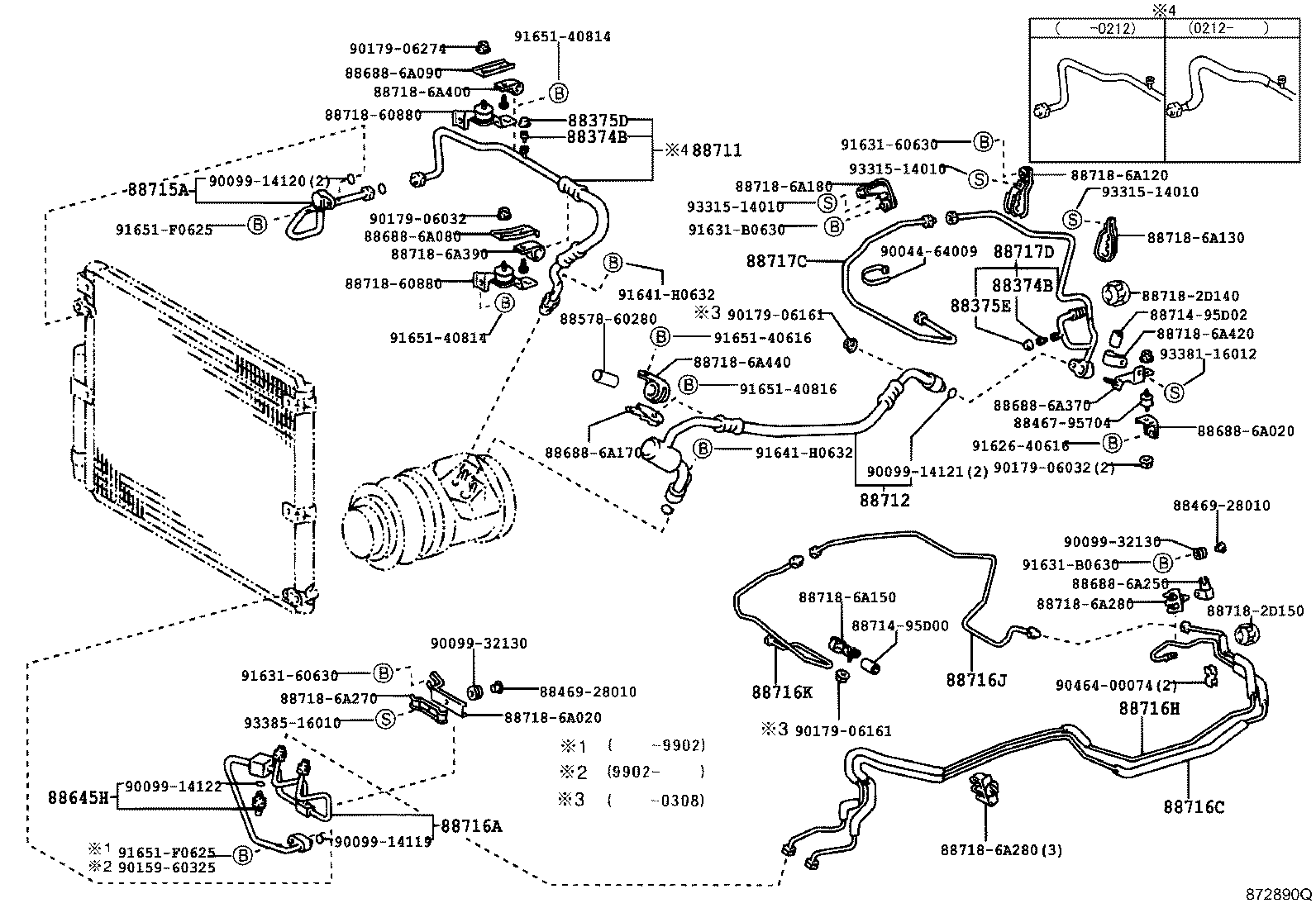

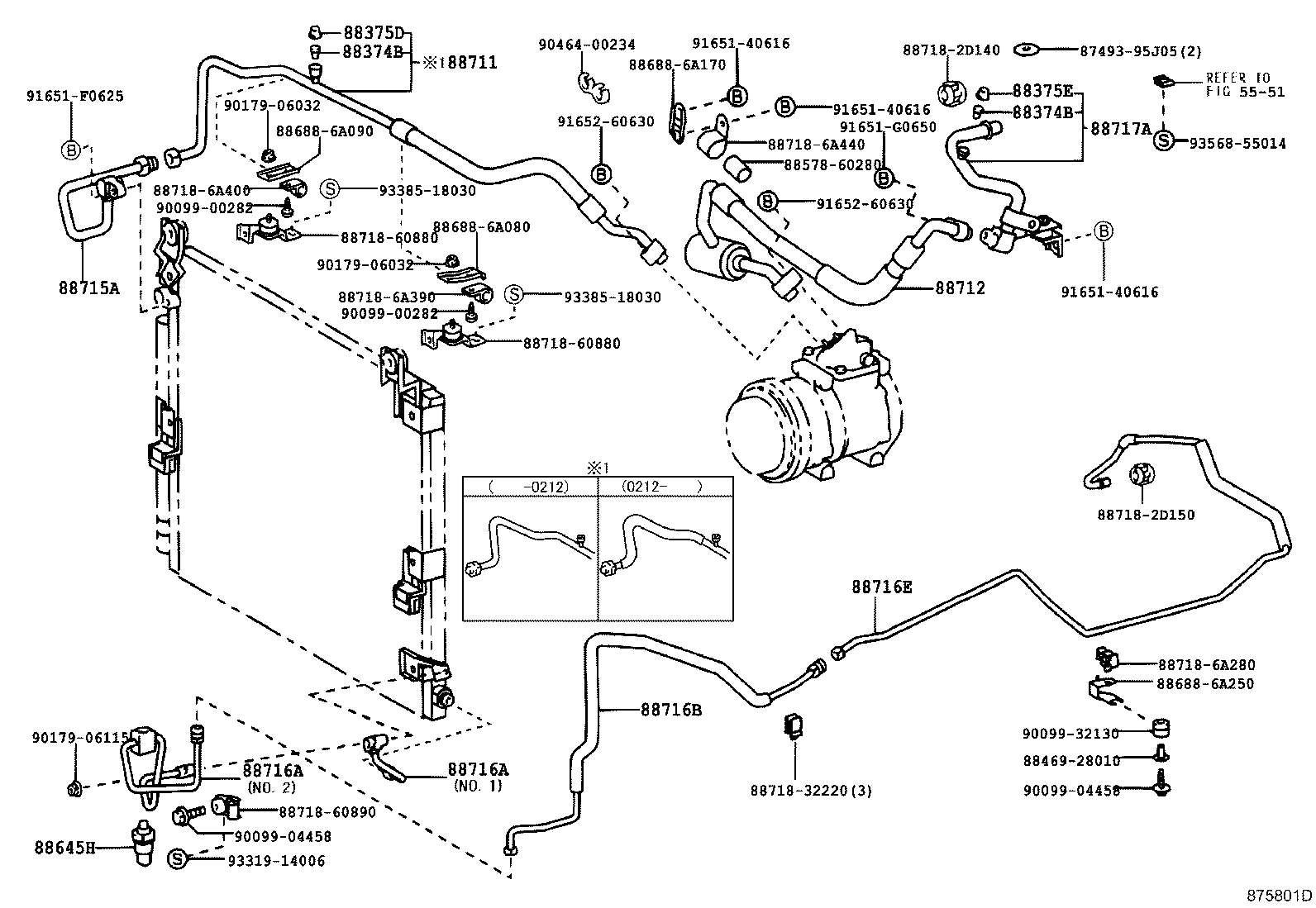

Figure 872883D 872883D 1998-01 → 2000-08 Figure 872883D 872883D 2000-08 → — Figure 874361A 874361A 1998-01 → — Figure 874361A 874361A 2000-08 → — Figure 872884D 872884D 1998-01 → — Figure 872885C 872885C 1998-01 → — Figure 872924K 872924K 1998-01 → — Figure 874368A 874368A 2000-08 → — Figure 875776 875776 2002-08 → — Figure 872925E 872925E 1998-01 → — Figure 872926F 872926F 1998-01 → — Figure 872927F 872927F 1998-01 → — Figure 872928J 872928J 1998-01 → — Figure 872929E 872929E 1998-01 → — Figure 872930E 872930E 1998-01 → — Figure 872931F 872931F 1998-01 → — Figure 872932C 872932C 1998-01 → — Figure 872933F 872933F 1998-01 → — Figure 872934D 872934D 1998-01 → — Figure 872935G 872935G 1998-01 → — Figure 872936D 872936D 1998-01 → — Figure 872937H 872937H 1998-01 → — Figure 872938D 872938D 1998-01 → — Figure 872939F 872939F 1998-01 → — Figure 874362C 874362C 2000-08 → — Figure 874363D 874363D 2000-08 → — Figure 872940C 872940C 1998-01 → — Figure 872941F 872941F 1998-01 → — Figure 872942E 872942E 1998-01 → — Figure 872943G 872943G 1998-01 → — Figure 872944I 872944I 1998-01 → — Figure 872945M 872945M 1998-01 → — Figure 872946L 872946L 1998-01 → — Figure 872947L 872947L 1998-01 → — Figure 872948L 872948L 1998-01 → — Figure 872949L 872949L 1998-01 → — Figure 872950L 872950L 1998-01 → — Figure 872890Q 872890Q 1998-01 → — Figure 872891P 872891P 1998-01 → — Figure 875801D 875801D 2002-08 → — Figure 872914E 872914E 1998-01 → — Figure 872888D 872888D 1998-01 → — Figure 872893G 872893G 1998-01 → — Figure 873011B 873011B 1998-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375D Cap, Service Valve, NO.2
88375E Plug
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460D Bracket, Cooler Condenser, NO.3
88460F Bracket, Cooler Condenser, NO.4
88460G Bracket, Cooler Condenser, NO.5
88460H Bracket, Cooler Condenser, NO.6
88461A Core, Cooler Condenser
88474 Dryer, Cooler
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88578D Packing, Cooler Pipe, NO.1
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88690K Valve Assy, Magnet
88699A Valve, Air
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88716K Pipe, Cooler Refrigerant Liquid, K
88716L Pipe, Cooler Refrigerant Liquid, L
88716M Pipe, Cooler Refrigerant Liquid, M
88716P Pipe, Cooler Refrigerant Liquid, P
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88717E Pipe, Cooler Refrigerant Suction, E
88717J Pipe, Cooler Refrigerant Suction, J
88717T Pipe, Cooler Refrigerant Suction, T
88891A Packing A (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
