Toyota Land Cruiser

2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

22 part groups · 6 illustrations

Illustrations

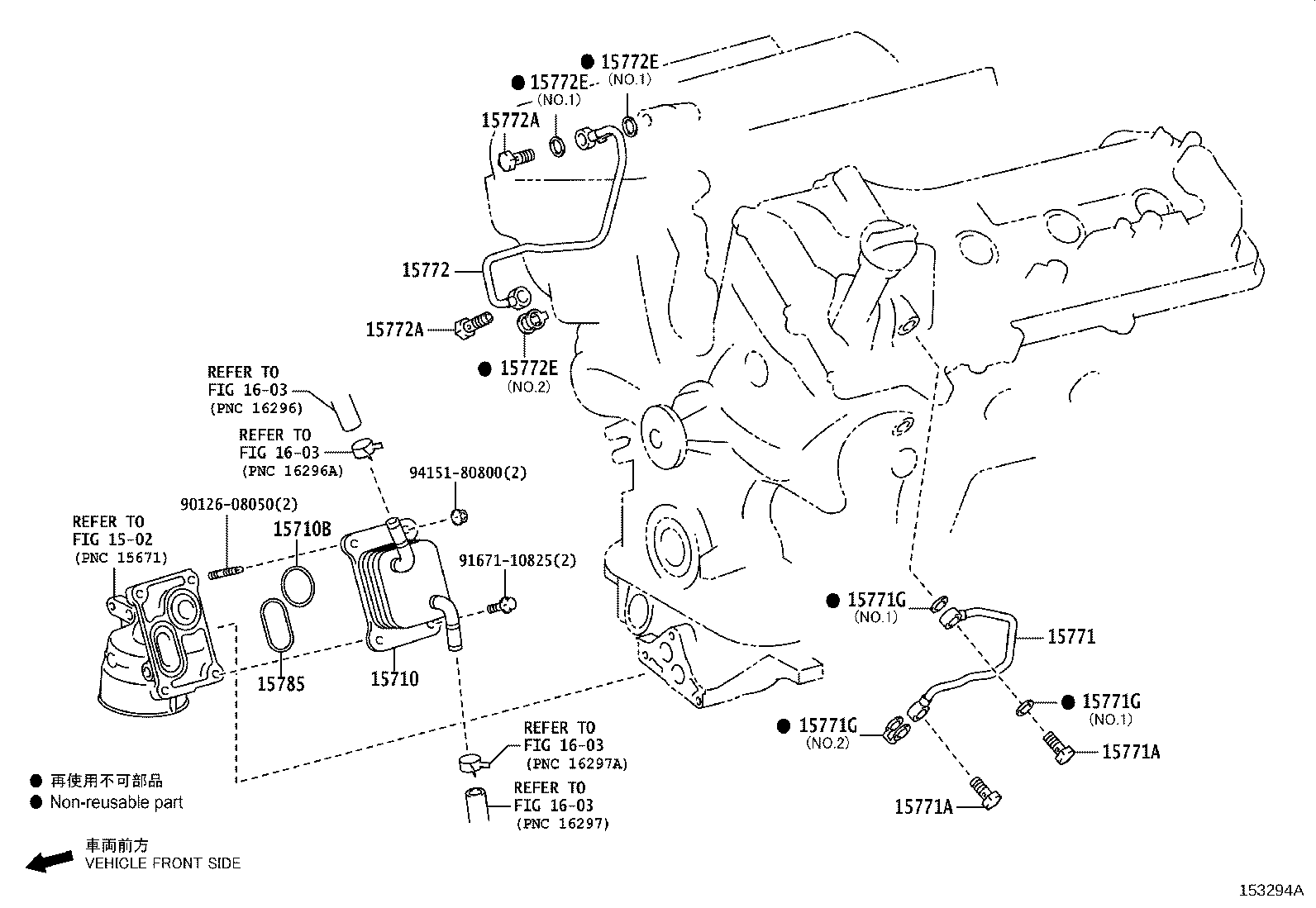

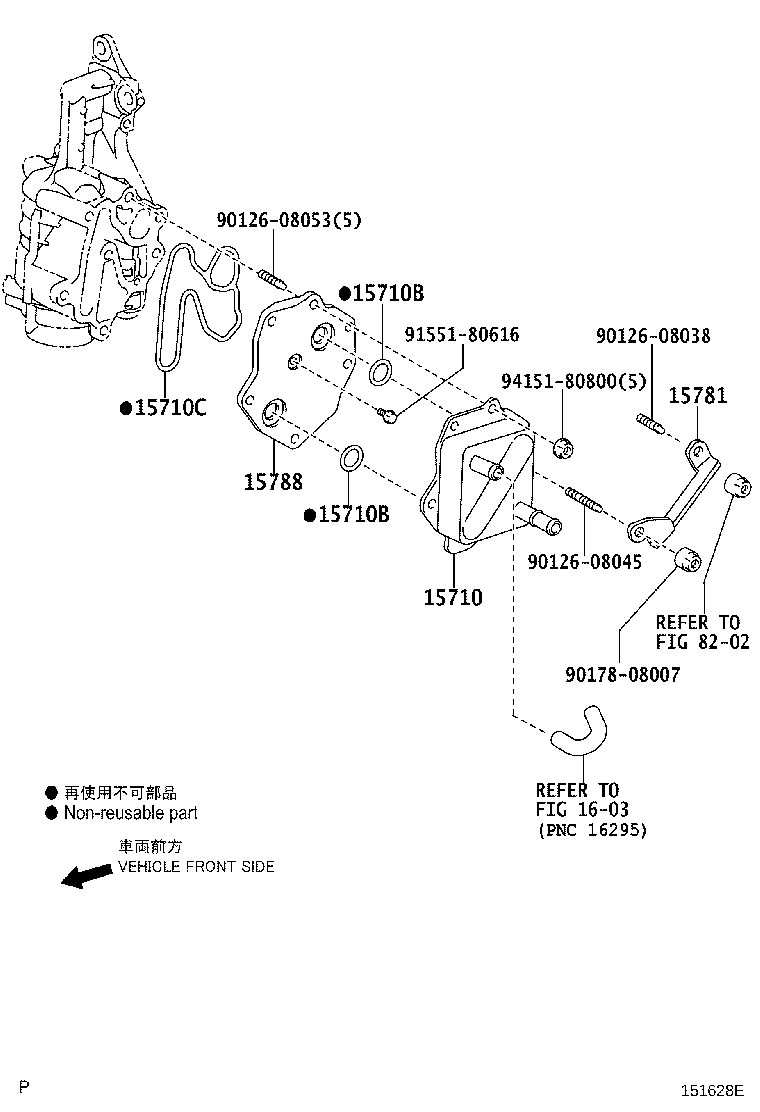

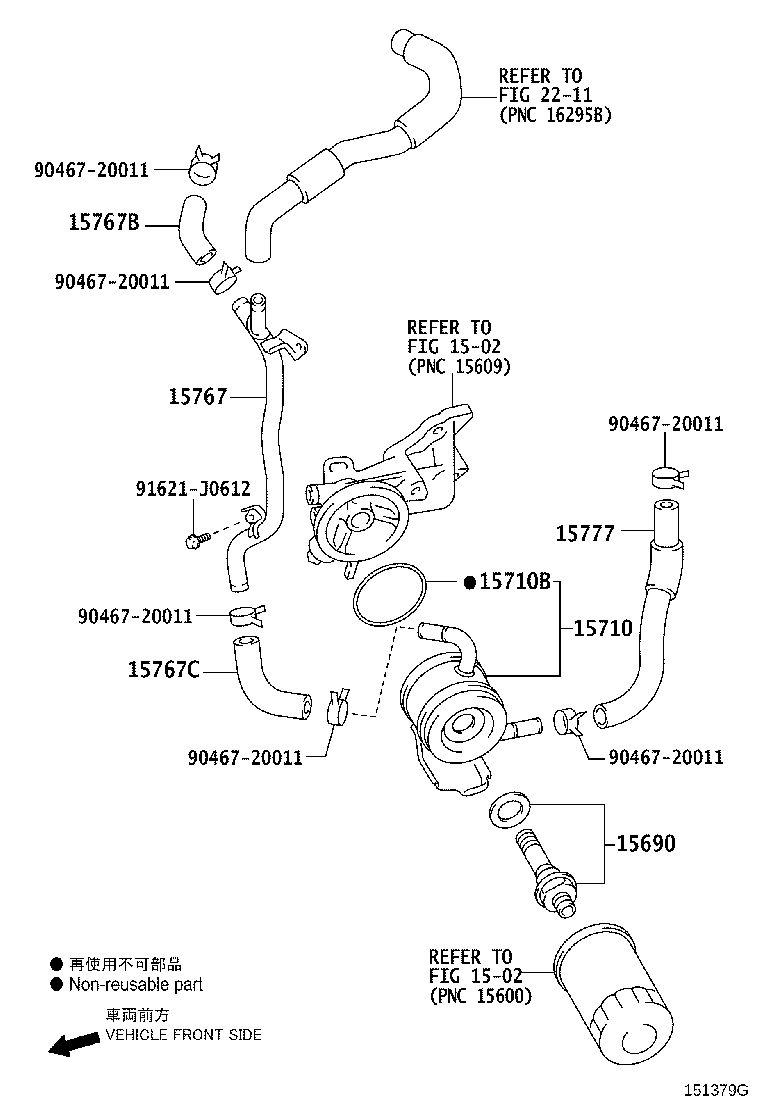

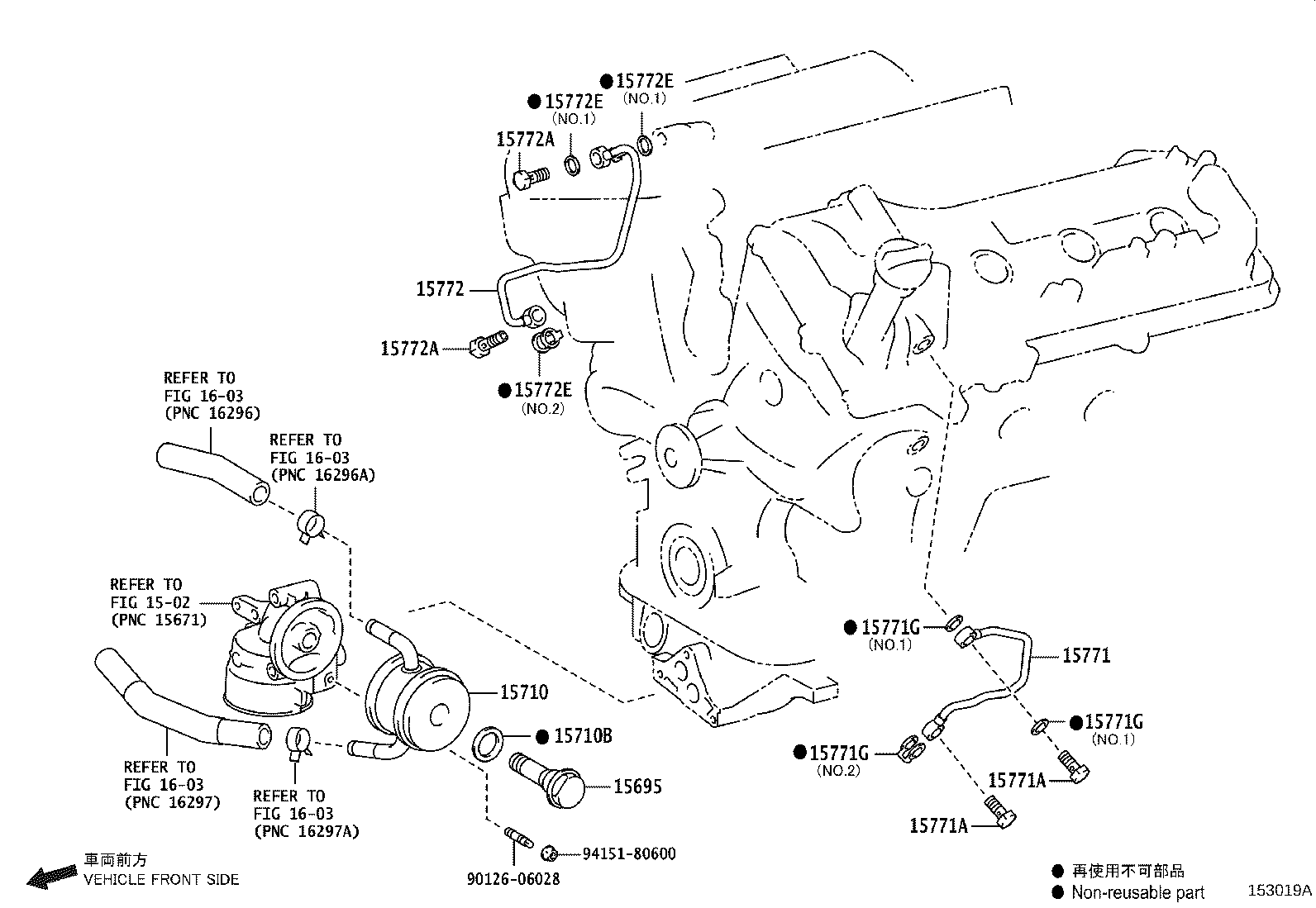

Figure 153020 153020 2007-09 → 2012-01 Figure 153019A 153019A 2012-01 → 2020-11 Figure 153294A 153294A 2020-11 → — Figure 151379G 151379G 2007-09 → 2012-01 Figure 151628E 151628E 2010-07 → — Figure 151383C 151383C 2007-09 → —

Part groups

PNCDescription
15690 Valve Assy, Oil Cooler Relief
15690A Gasket(FOR OIL COOLER RELIEF VALVE)
15695 Bolt, Oil Cooler Union
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15767 Pipe, Oil Cooler
15767B Hose, Water By-pass, NO.4
15767C Hose, Water By-pass, NO.5
15771 Pipe, Oil, NO.1
15771A Union(FOR OIL PIPE)
15771G Gasket
15772 Pipe, Oil, NO.2
15772A Union(FOR OIL PIPE)
15772E Gasket(FOR OIL PIPE)
15777 Hose, Oil Cooler
15777G Clamp OR Crip, Hose
15777S Clamp OR Clip, Hose
15778 Hose, Oil Cooler, NO.2
15781 Bracket, Oil Cooler, NO.1
15785 Gasket, Oil Cooler
15788 Spacer, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
