Toyota Land Cruiser

2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 8 illustrations

Illustrations

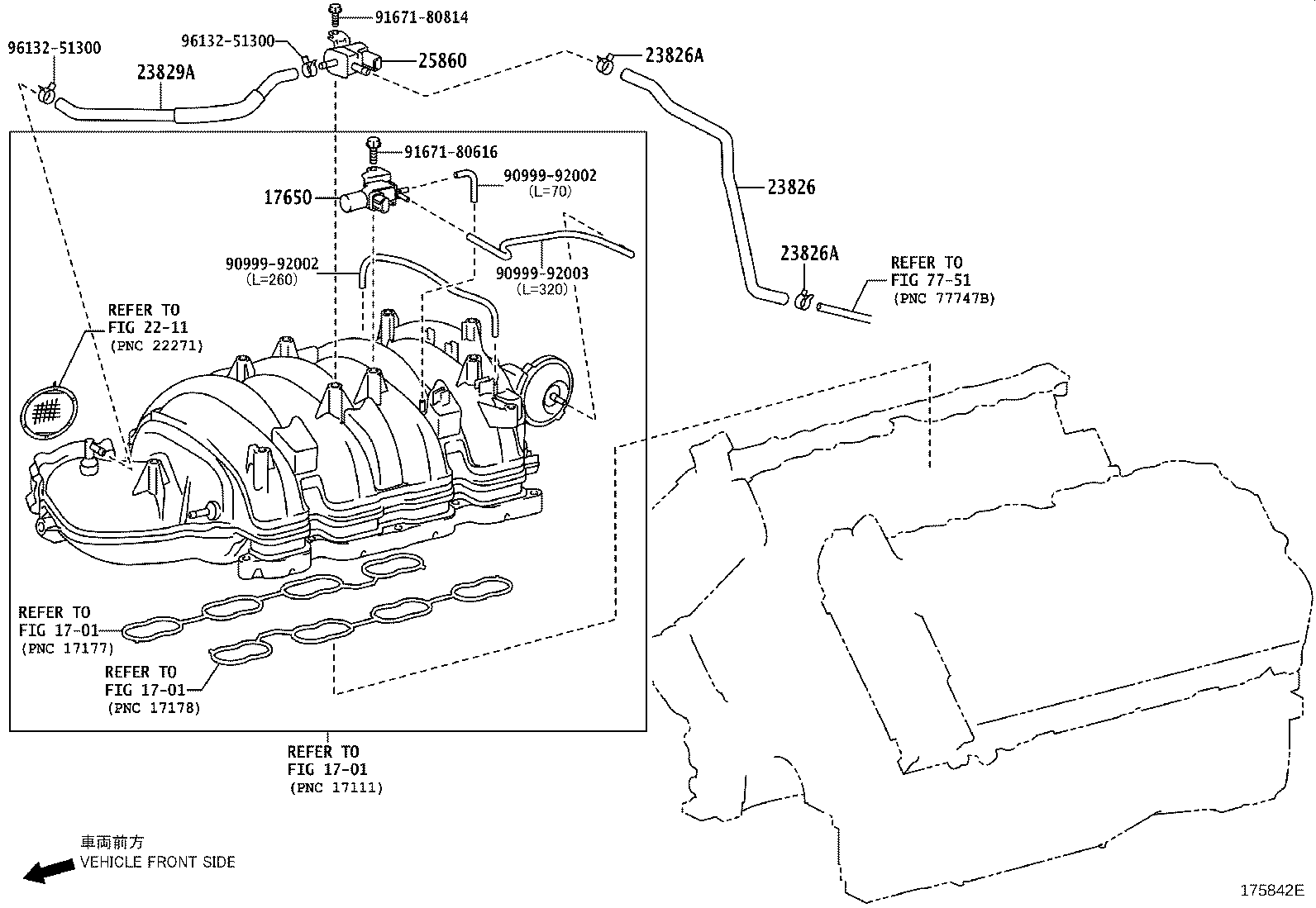

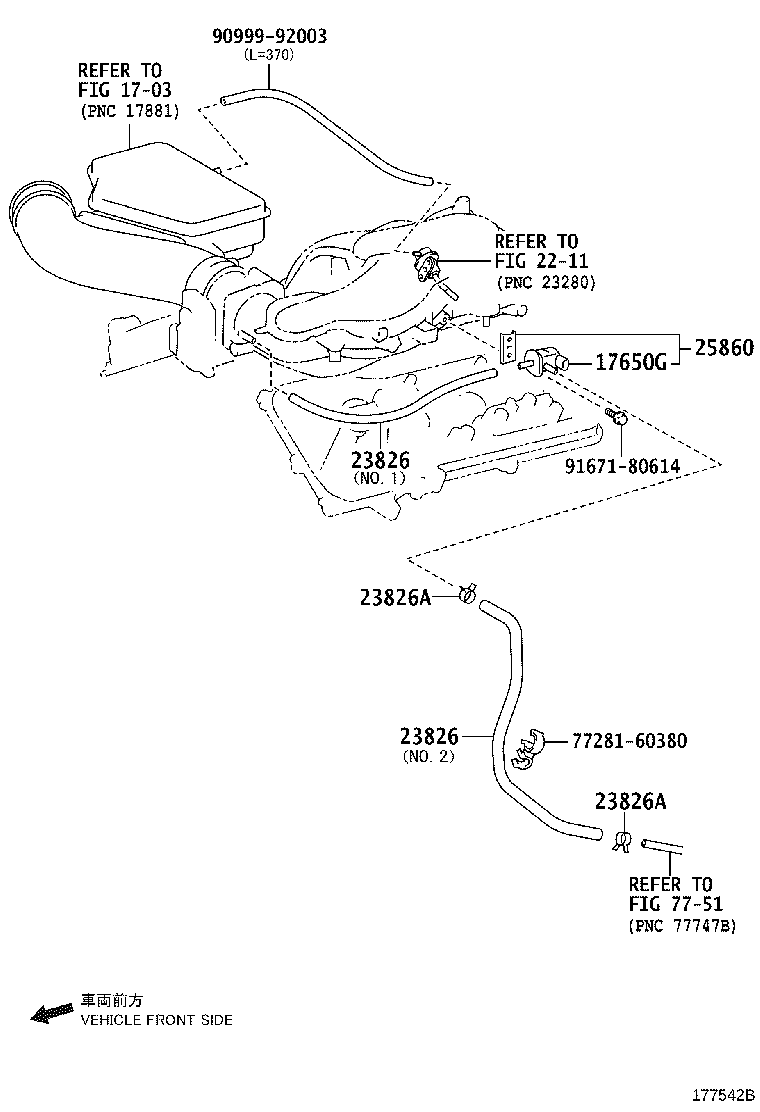

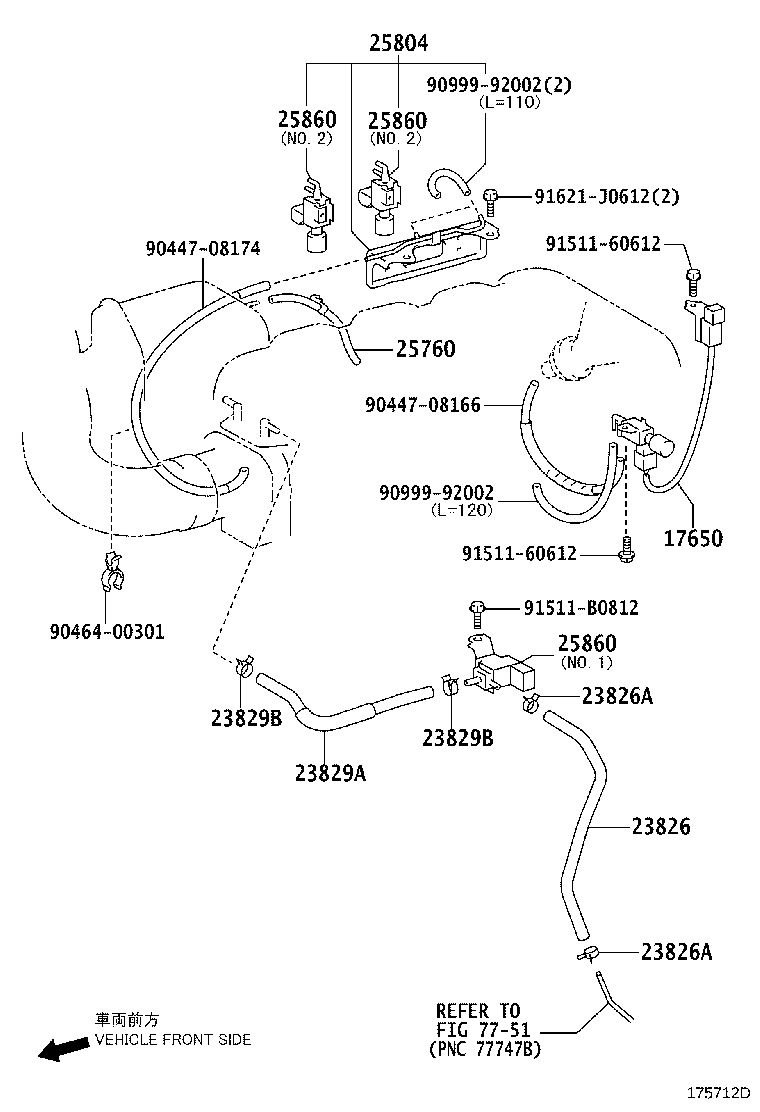

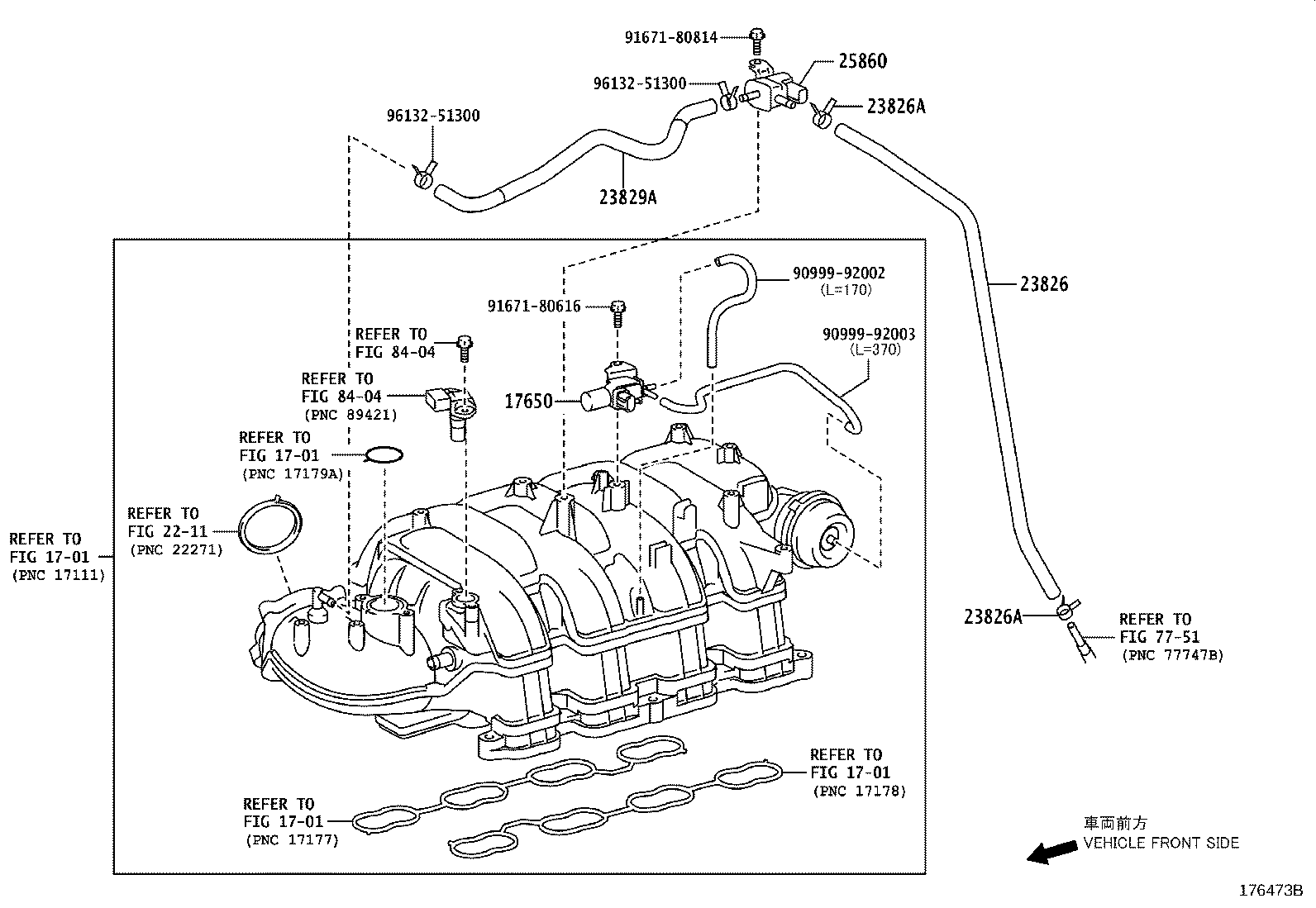

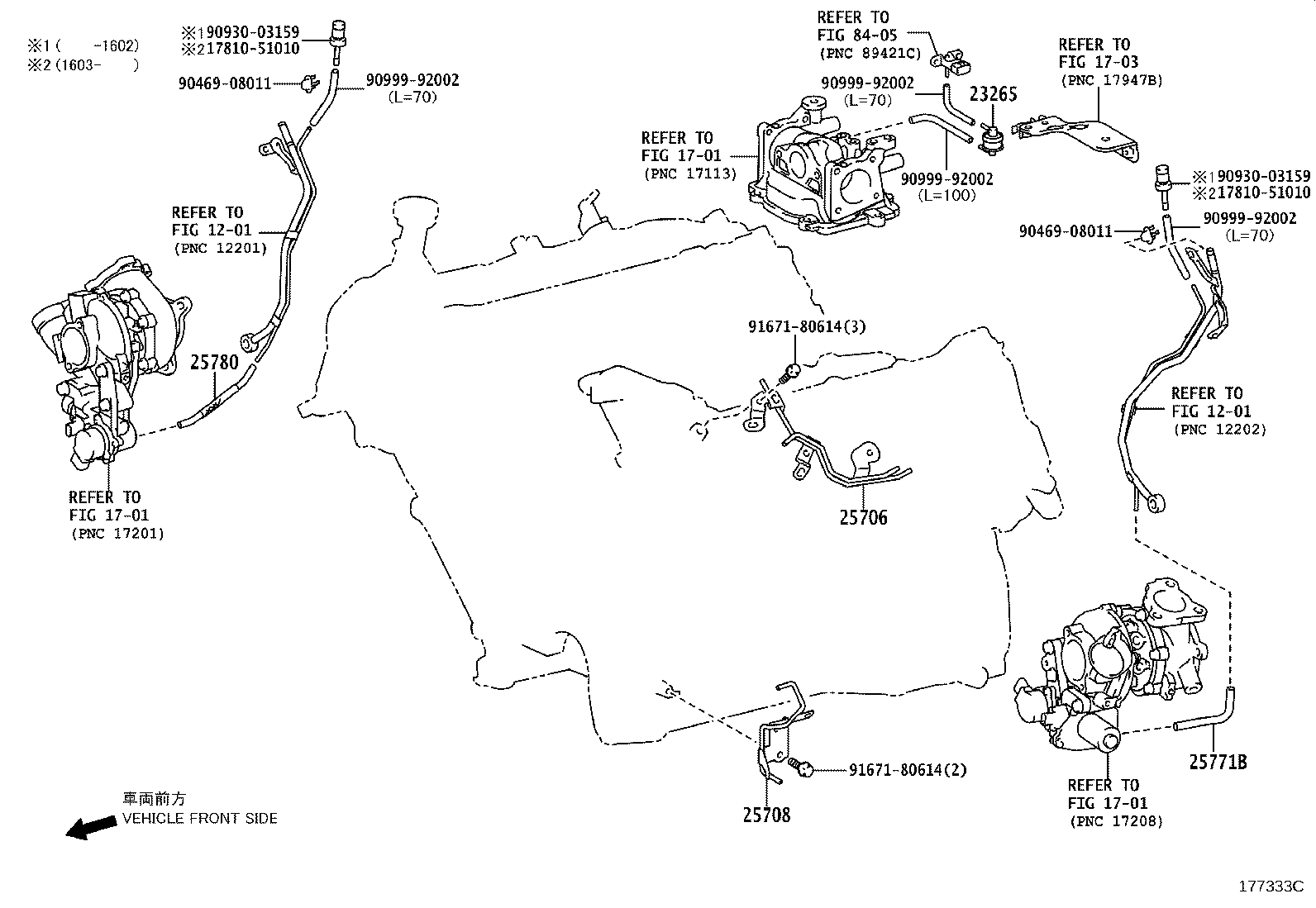

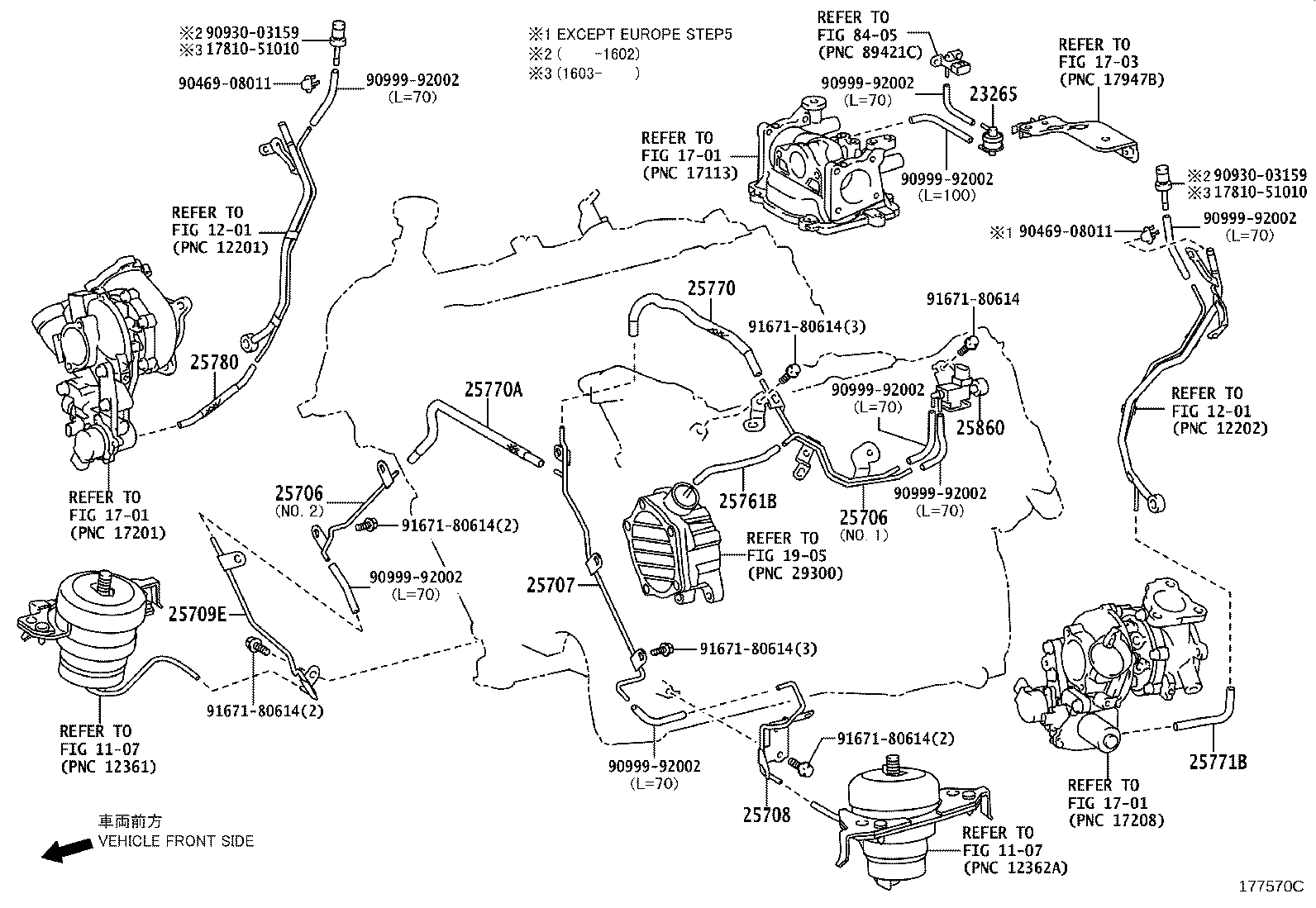

Figure 17A253 17A253 2007-09 → 2012-01 Figure 177542B 177542B 2012-01 → — Figure 175732C 175732C 2007-09 → 2012-01 Figure 175712D 175712D 2007-09 → 2012-01 Figure 175842E 175842E 2010-07 → — Figure 176473B 176473B 2012-01 → — Figure 177570C 177570C 2007-09 → — Figure 177333C 177333C 2011-09 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
17650G Valve, Duty Vacuum Switching
23265 Filter, Gas, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25709E Pipe Sub-assy, Vacuum Transmitting, NO.4
25760 Hose Assy, Vacuum Transmitting
25761B Hose, Vaccum Transmitting, NO.1
25770 Hose Assy, Vacuum Transmitting, NO.2
25770A Hose Assy, Vacuum Transmitting, NO.2
25771B Hose, Vaccum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
