Toyota Land Cruiser

2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

35 part groups · 10 illustrations

Illustrations

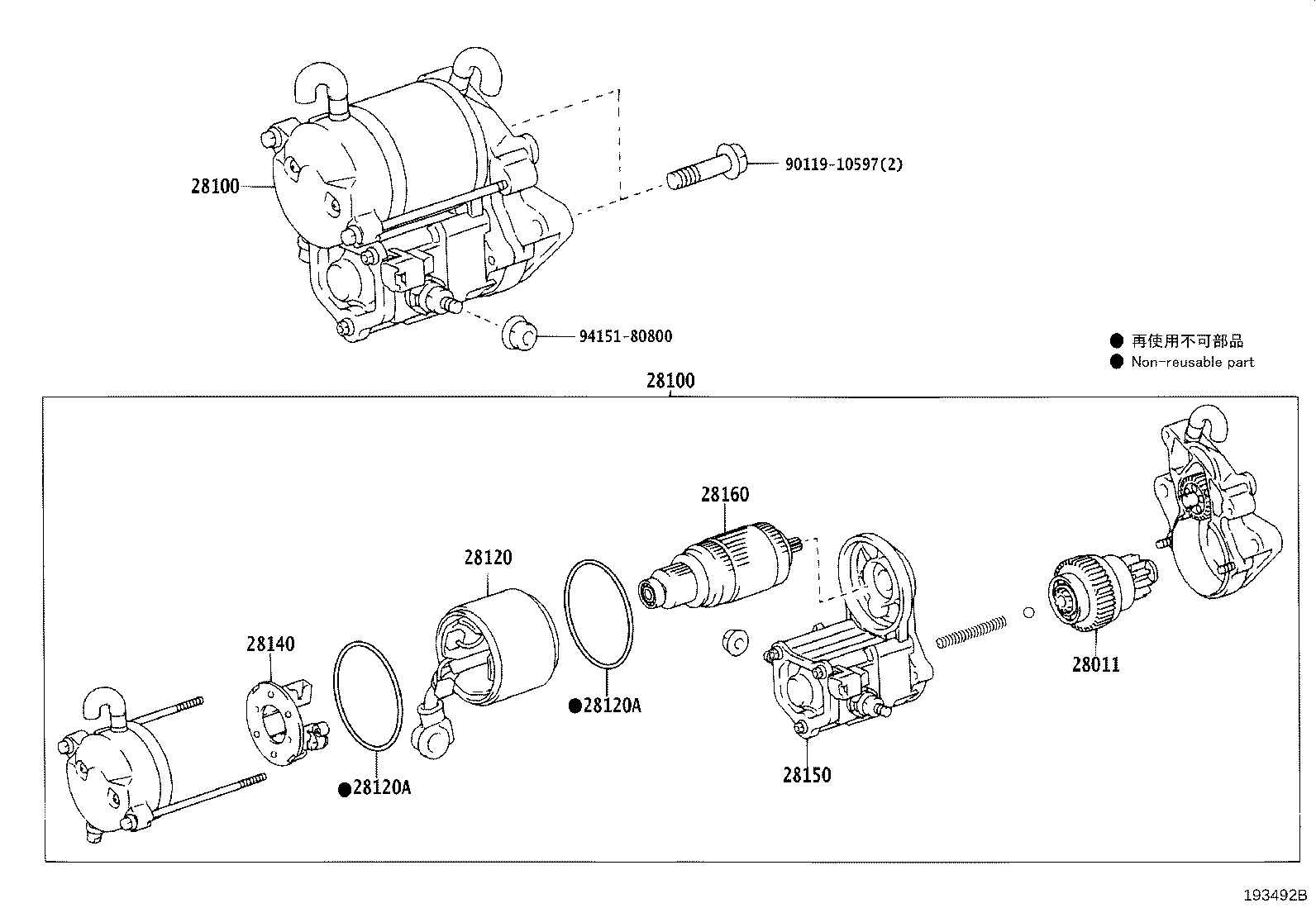

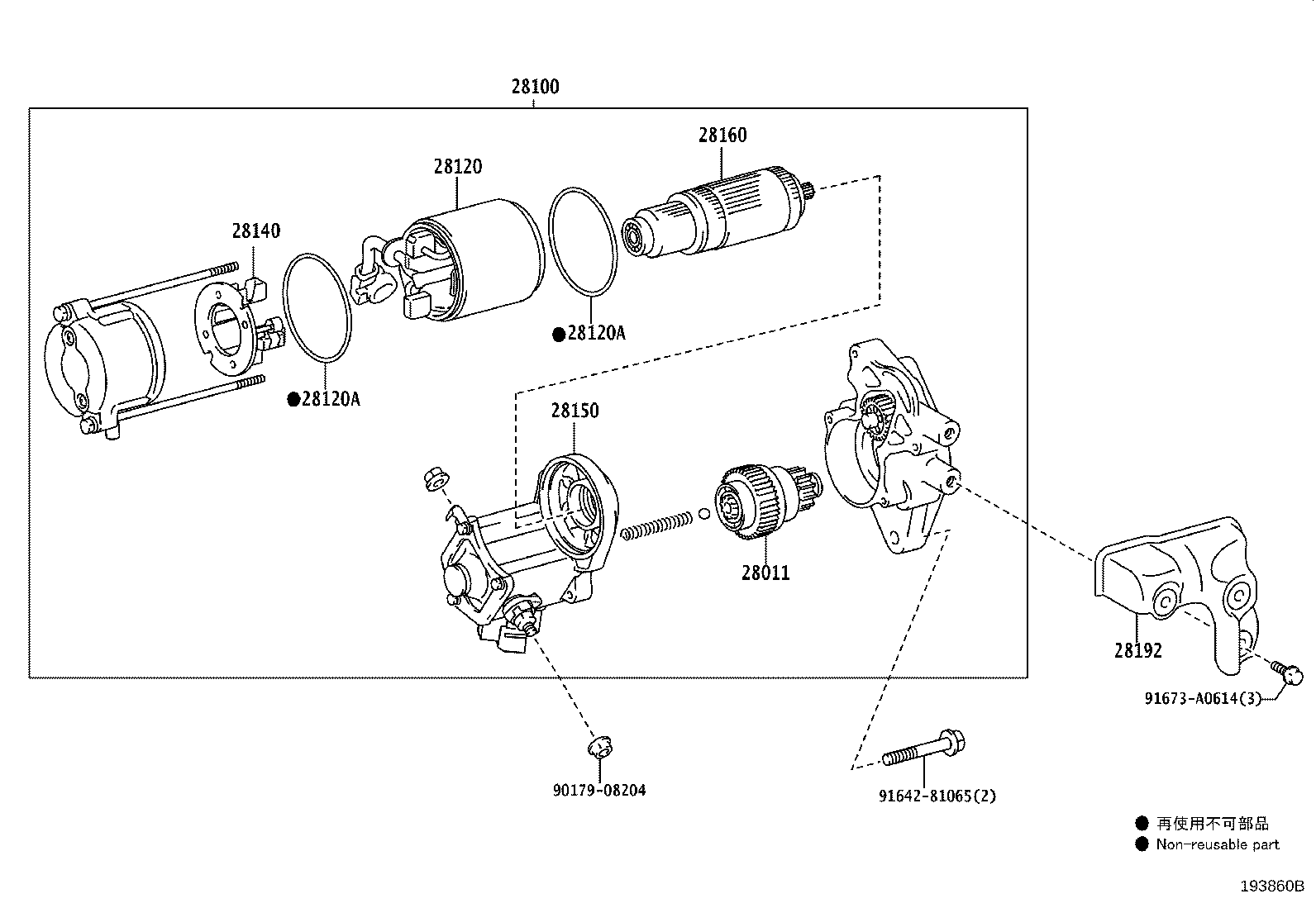

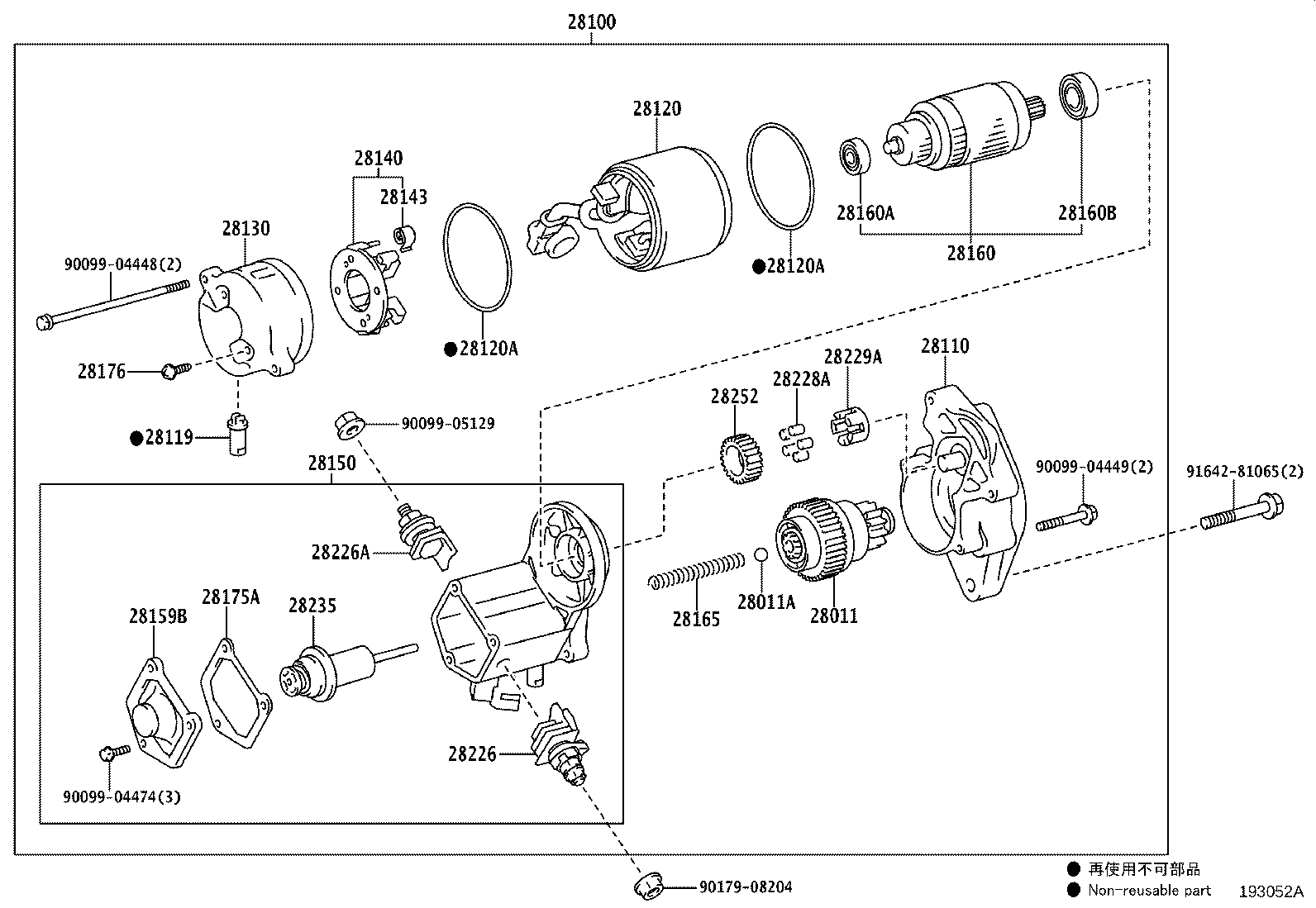

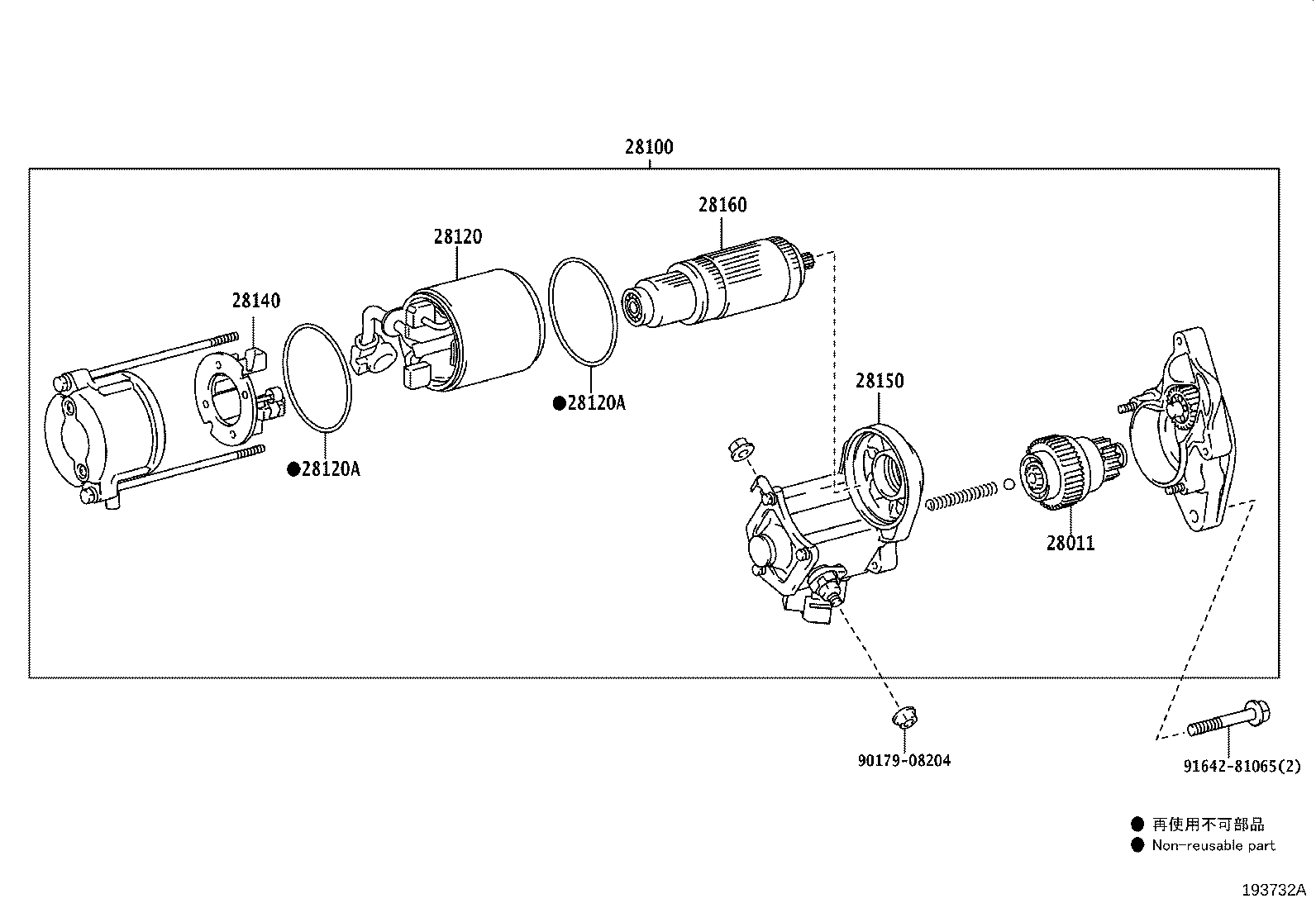

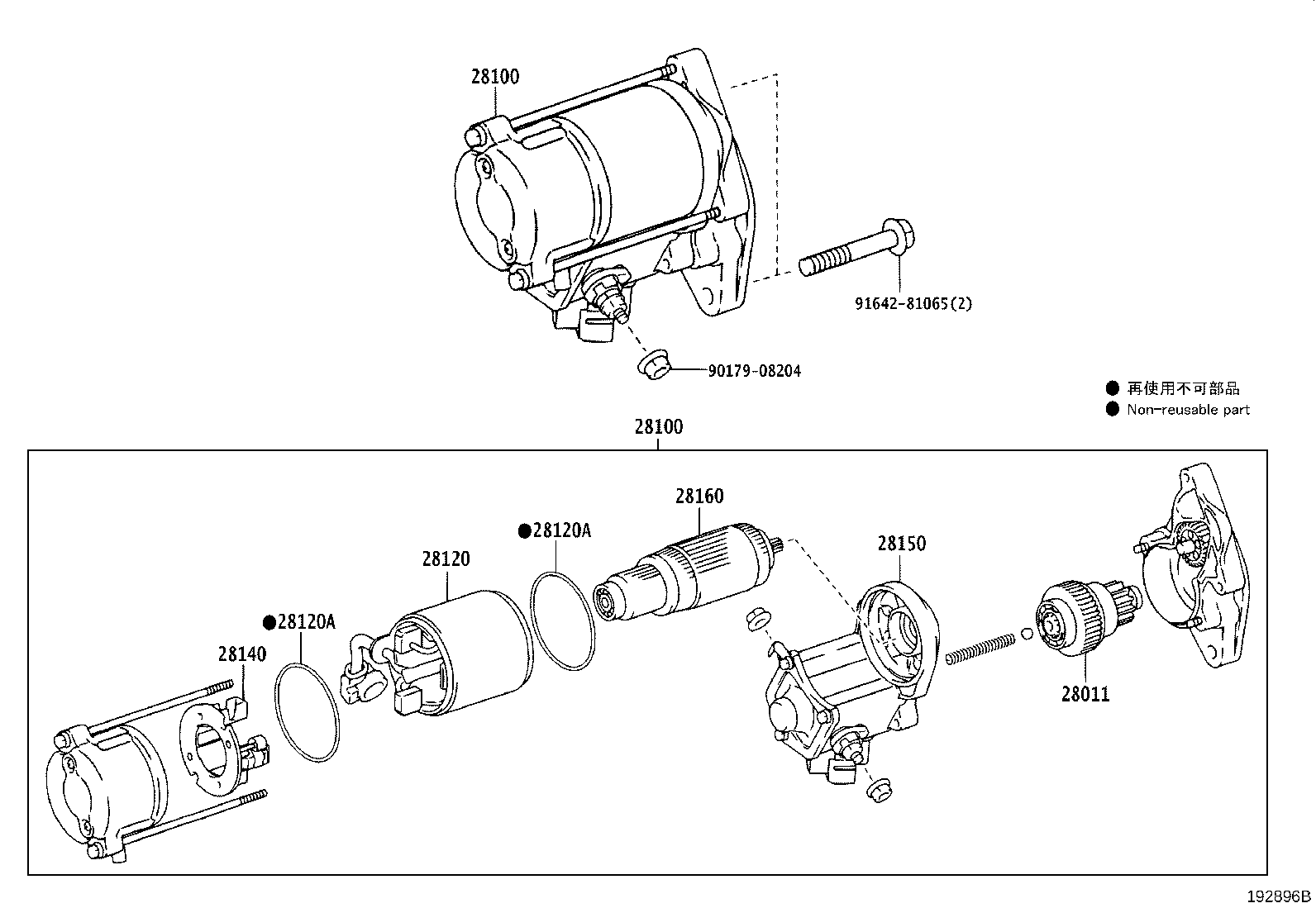

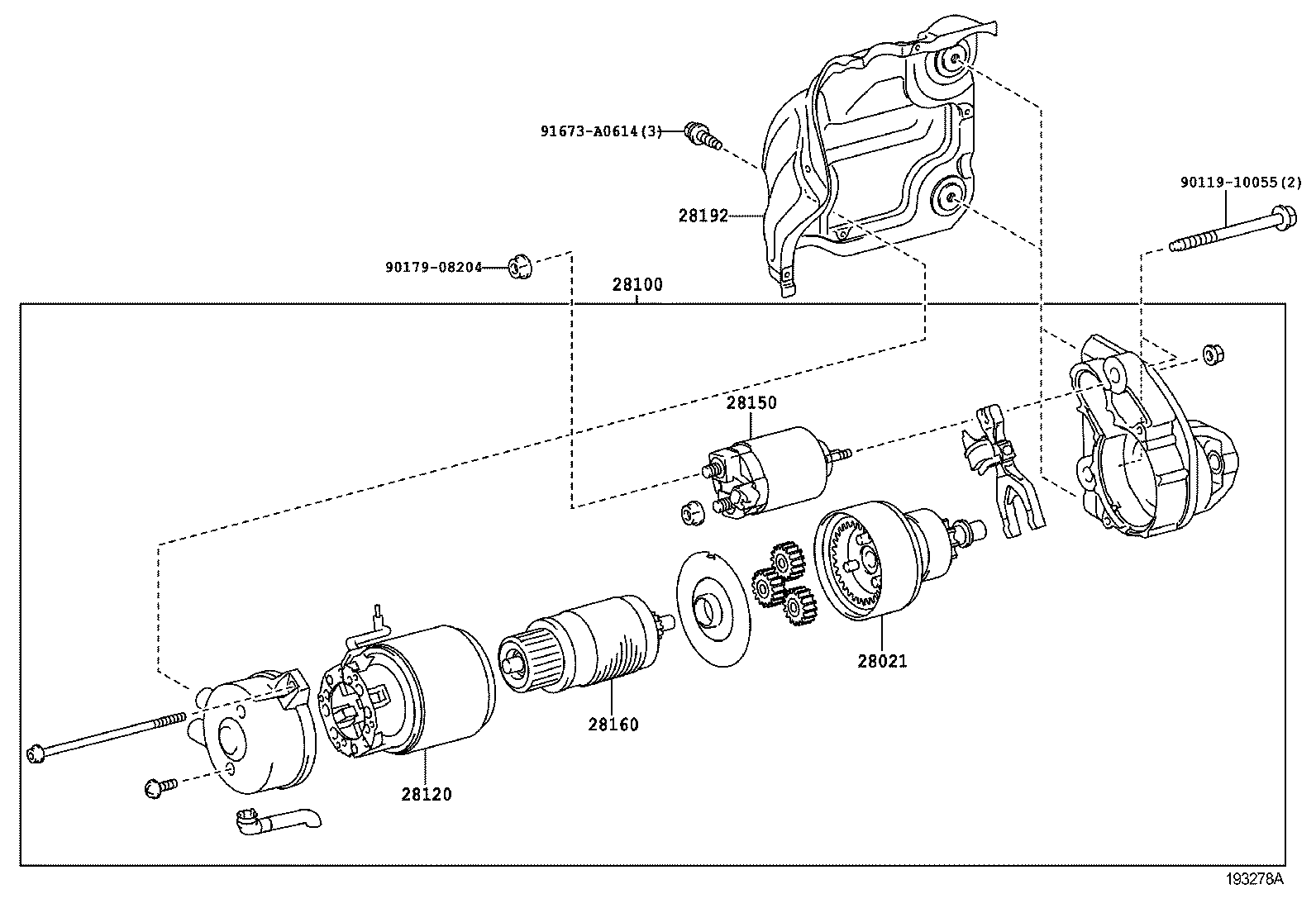

Figure 192895A 192895A 2007-09 → 2008-04 Figure 192896B 192896B 2007-09 → 2012-01 Figure 193738B 193738B 2007-09 → — Figure 193492B 193492B 2007-09 → 2012-01 Figure 193052A 193052A 2008-04 → 2010-07 Figure 193732A 193732A 2010-07 → 2012-01 Figure 193278A 193278A 2010-07 → 2011-07 Figure 193737A 193737A 2011-07 → — Figure 193737A 193737A 2012-01 → — Figure 193860B 193860B 2012-01 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28011A Ball, Starter Clutch
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28113 Lever, Starter Pinion Drive
28114 Pin, Starter Drive Lever Set
28117 Rubber(FOR STARTER YOKE)
28119 Cover, Starter End Frame
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28140 Holder Assy, Starter Brush
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28159B Cover, Magnet Switch
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28160B Bearing, Starter Armature, NO.2
28165 Spring, Starter Magnet Switch Return
28175A Gasket, Magnet Switch Cover
28176 Screw, Starter
28177 Plate(FOR STARTER ARMATURE)
28192 Cover, Starter
28213 Pinion, Starter Clutch
28226 Starter Kit, Battery Terminal
28226A Starter Kit, Motor Terminal
28226B Starter Kit, Repair Service
28228A Roller, Starter Clutch
28229A Retainer, Starter Idle Gear
28235 Plunger, Magnet Switch
28252 Gear, Starter Idle
28255 Gear, Planet
28256 Gear, Starter Internal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
