Toyota Land Cruiser

2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

11 part groups · 3 illustrations

Illustrations

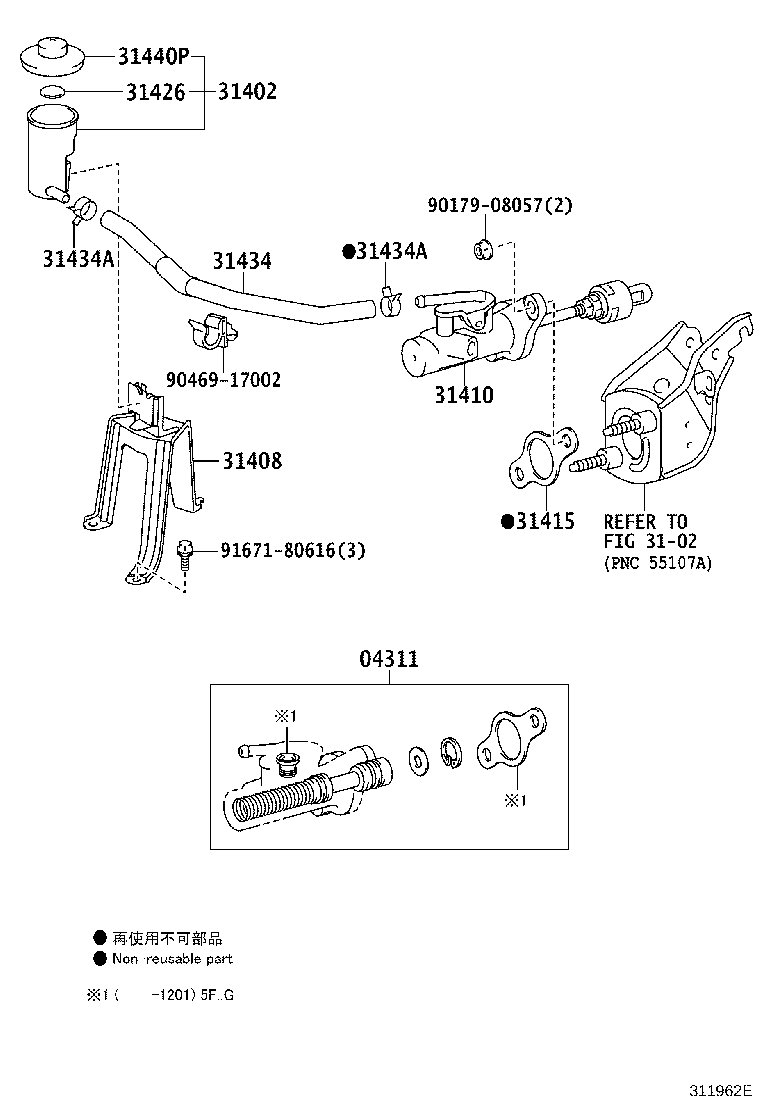

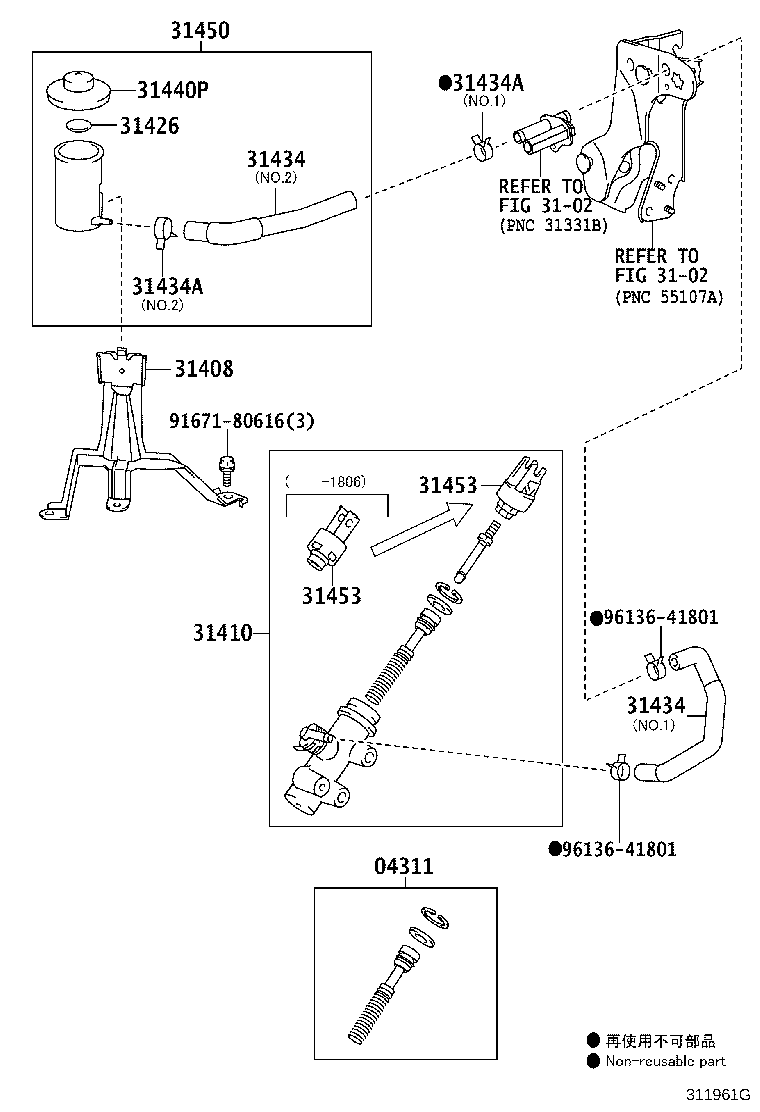

Figure 311960G 311960G 2007-09 → — Figure 311961G 311961G 2007-09 → — Figure 311962E 311962E 2007-09 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
31402 Reservoir Sub-assy, Clutch Master Cylinder
31408 Holder Sub-assy, Clutch Reservoir
31410 Cylinder Assy, Clutch Master
31415 Gasket, Clutch Master Cylinder
31426 Float, Clutch Master Cylinder Reservoir
31434 Tube, Clutch Reservoir
31434A Clip(FOR CLUTCH RESERVOIR TUBE)
31440P Cap Assy, Clutch Master Cylinder Reservoir Filler
31450 Reservoir Assy, Clutch Master Cylinder W/Bracket
31453 Clevis, Clutch Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
