Toyota Land Cruiser
2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General
Supported model
Data version 2018-08

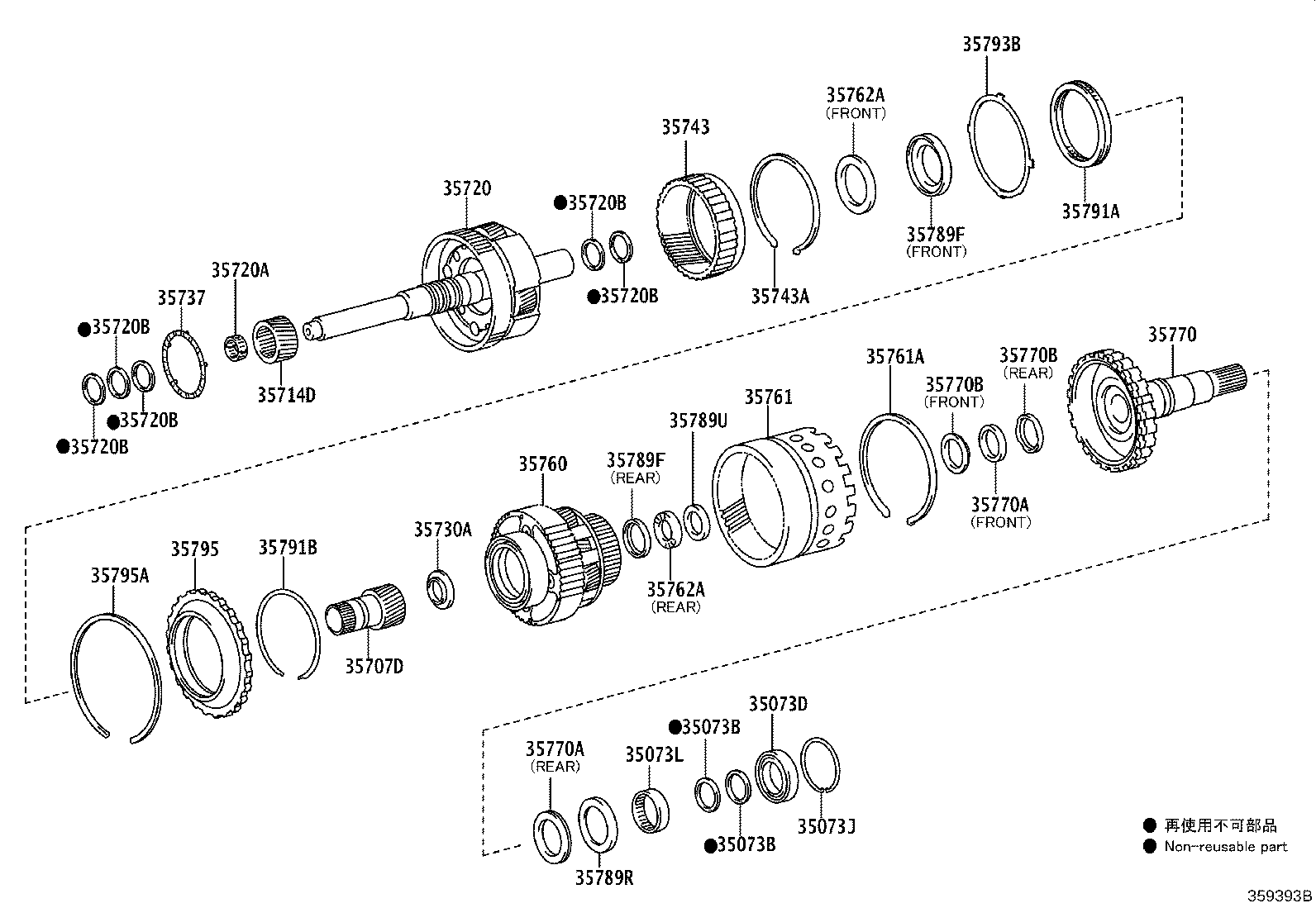

Planetary Gear, Reverse Piston & Counter Gear(ATM)
60 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 35073B | Ring, O (FOR OUTPUT SHAFT) |
| 35073D | Bearing, Radial Ball (FOR OUTPUT SHAFT REAR) |
| 35073J | Ring, Hole Snap (FOR OUTPUT SHAFT) |
| 35073L | Bearing, Needle Roller (FOR OUTPUT SHAFT) |
| 35076C | Flange Sub-assy, Front Planetary Ring Gear |
| 35077D | Flange Sub-assy, RR Planetary Ring Gear |
| 35077E | Ring, Snap (FOR REAR PLANETARY RING GEAR FLANGE) |
| 35616D | Washer, Clutch Drum Thrust |
| 35686A | Washer, Clutch Drum Thrust, NO.2 |
| 35707D | Gear Sub-assy, Rear Planetary Sun |
| 35713 | Shaft, Intermediate |
| 35714D | Gear, FR Planetary Sun |
| 35719B | Gear, Planetary Sun |
| 35720 | Gear Assy, Front Planetary |
| 35720A | Bearing, Thrust Needle Roller (FOR FRONT PLANETARY GEAR) |
| 35720B | Ring, Shaft Snap (FOR FRONT PLANETARY GEAR) |
| 35730A | Race, Thrust Bearing (FOR REAR PLANETARY SUN GEAR) |
| 35737 | Washer, Planetary Carrier Thrust |
| 35737A | Washer, Planetary Carrier Thrust, NO.1 |
| 35738 | Washer, Planetary Carrier Thrust, NO.2 |
| 35743 | Gear, Front Planetary Ring |
| 35743A | Ring, Shaft Snap (FOR FRONT PLANETARY RING GEAR) |
| 35743L | Ring, Snap (FOR PLANETARY RING GEAR) |
| 35745 | Flange, Front Planetary Ring Gear |
| 35750 | Gear Assy, Center Planetary |
| 35750A | Bearing, Thrust Needle Roller(FOR CENTER PLANETARY GEAR) |
| 35760 | Gear Assy, Rear Planetary |
| 35760C | Bearing, Thrust Needle Roller(FOR REAR PLANETARY GEAR) |
| 35761 | Gear, Rear Planetary Ring |
| 35761A | Ring, Hole Snap (FOR REAR PLANETARY RING GEAR) |
| 35762A | Bearing, Thrust Needle Roller (FOR REAR PLANETARY FLANGE) |
| 35763 | Gear, Center Planetary Ring |
| 35763A | Ring, Snap(FOR CENTER PLANETARY RING GEAR) |
| 35769 | Flange, Planetary Ring Gear, Ctr |
| 35770 | Shaft Assy, Output |
| 35770A | Bearing, Thrust (FOR OUTPUT SHAFT) |
| 35770B | Race, Thrust Bearing (FOR OUTPUT SHAFT) |
| 35775K | Race, Thrust Bearing, NO.5 |
| 35776A | Race, Thrust Bearing, NO.6 |
| 35777 | Race, Thrust Bearing, NO.7 |
| 35778 | Race, Thrust Bearing, NO.8 |
| 35778A | Bearing, Thrust Needle Roller |
| 35779A | Race, Thrust Bearing, NO.9 |
| 35779B | Bearing, Thrust Needle Roller |
| 35785B | Race, Thrust Bearing, NO.4 |
| 35785C | Bearing, Thrust Needle Roller |
| 35788D | Race, Thrust Bearing, NO.3 |
| 35788E | Bearing, Thrust Needle Roller |
| 35789C | Race, Thrust Bearing (FOR FRONT PLANETARY GEAR FRONT) |
| 35789D | Race, Thrust Bearing (FOR FRONT PLANETARY GEAR REAR) |
| 35789F | Race, Thrust Bearing (FOR REAR PLANETARY FLANGE) |
| 35789M | Bearing, Thrust Needle Roller |
| 35789R | Race, Thrust Bearing (FOR REAR OUTPUT SHAFT) |
| 35789U | Race, Thrust Bearing |
| 35789X | Race, Thrust Bearing |
| 35791A | Clutch, 1 Way, NO.1 |
| 35791B | Ring, Hole Snap(FOR 1 WAY CLUTCH) |
| 35793B | Retainer, 1 Way Clutch |
| 35795 | Race, 1 Way Clutch Outer |
| 35795A | Ring, Hole Snap (FOR 1 WAY CLUTCH OUTER RACE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
