Toyota Land Cruiser

2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

10 part groups · 20 illustrations

Illustrations

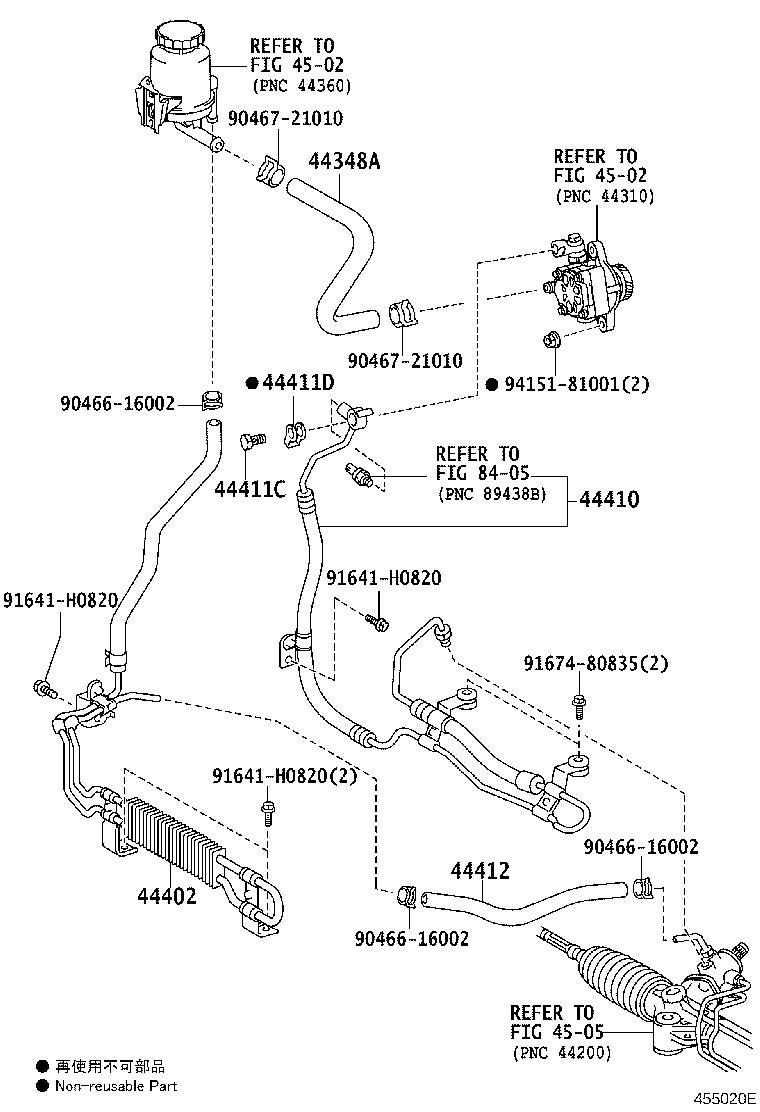

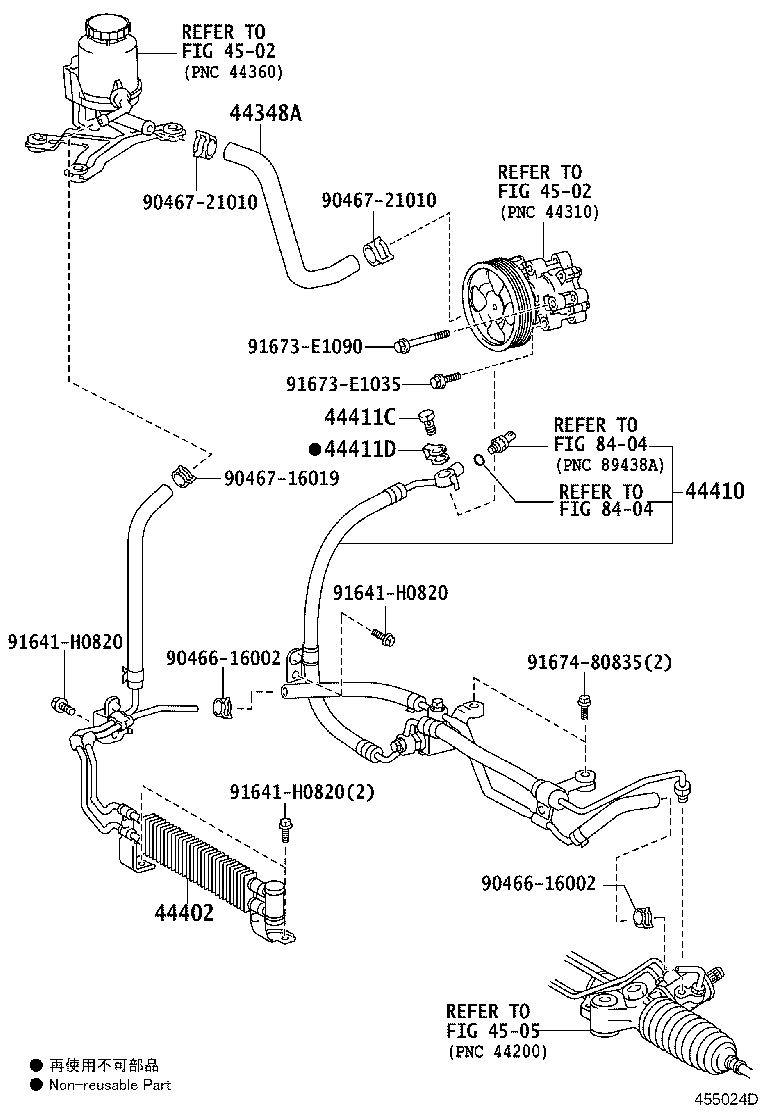

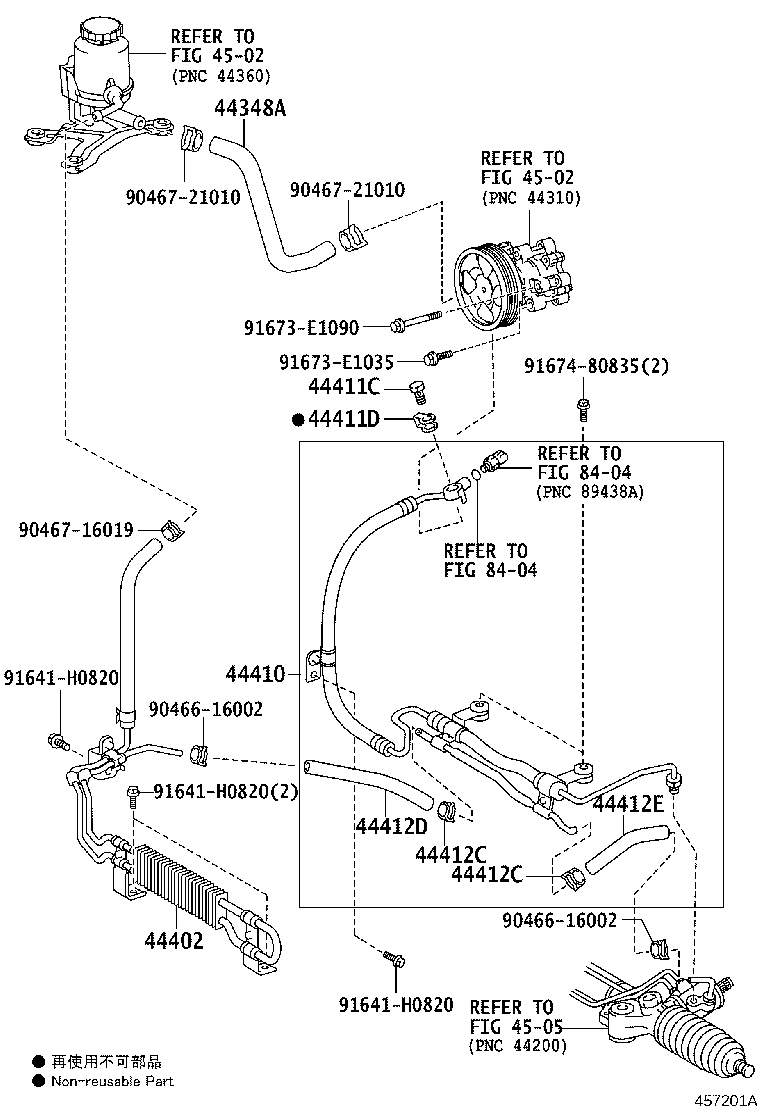

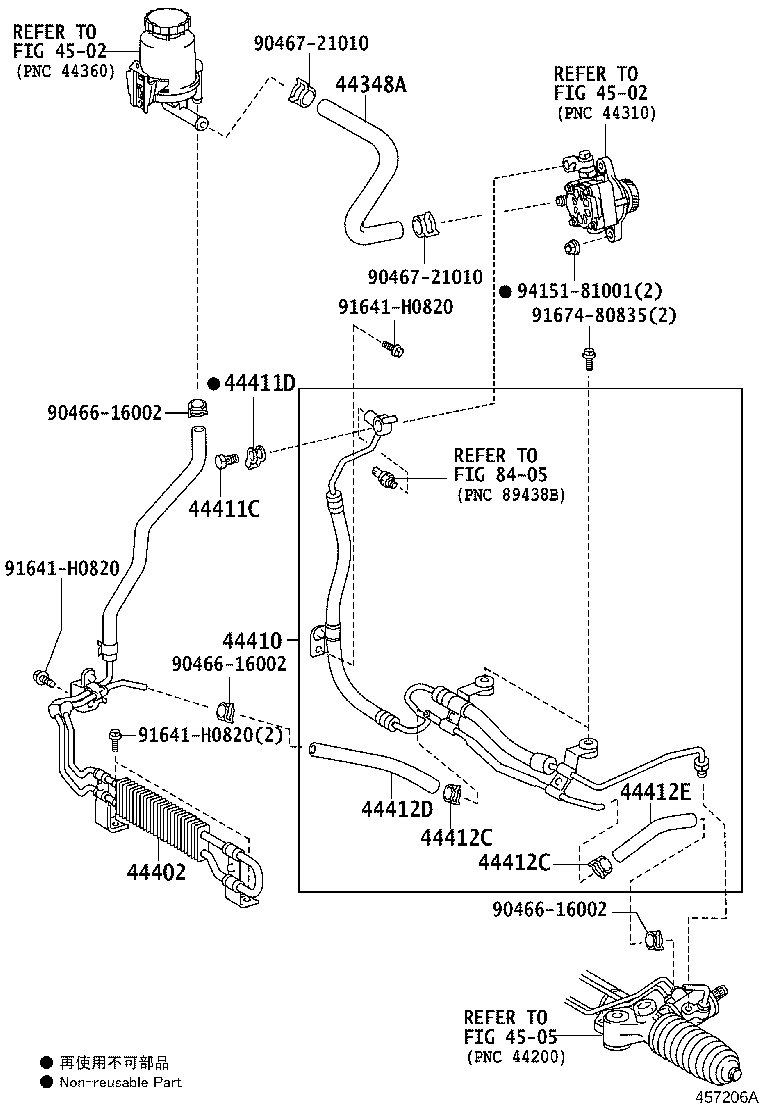

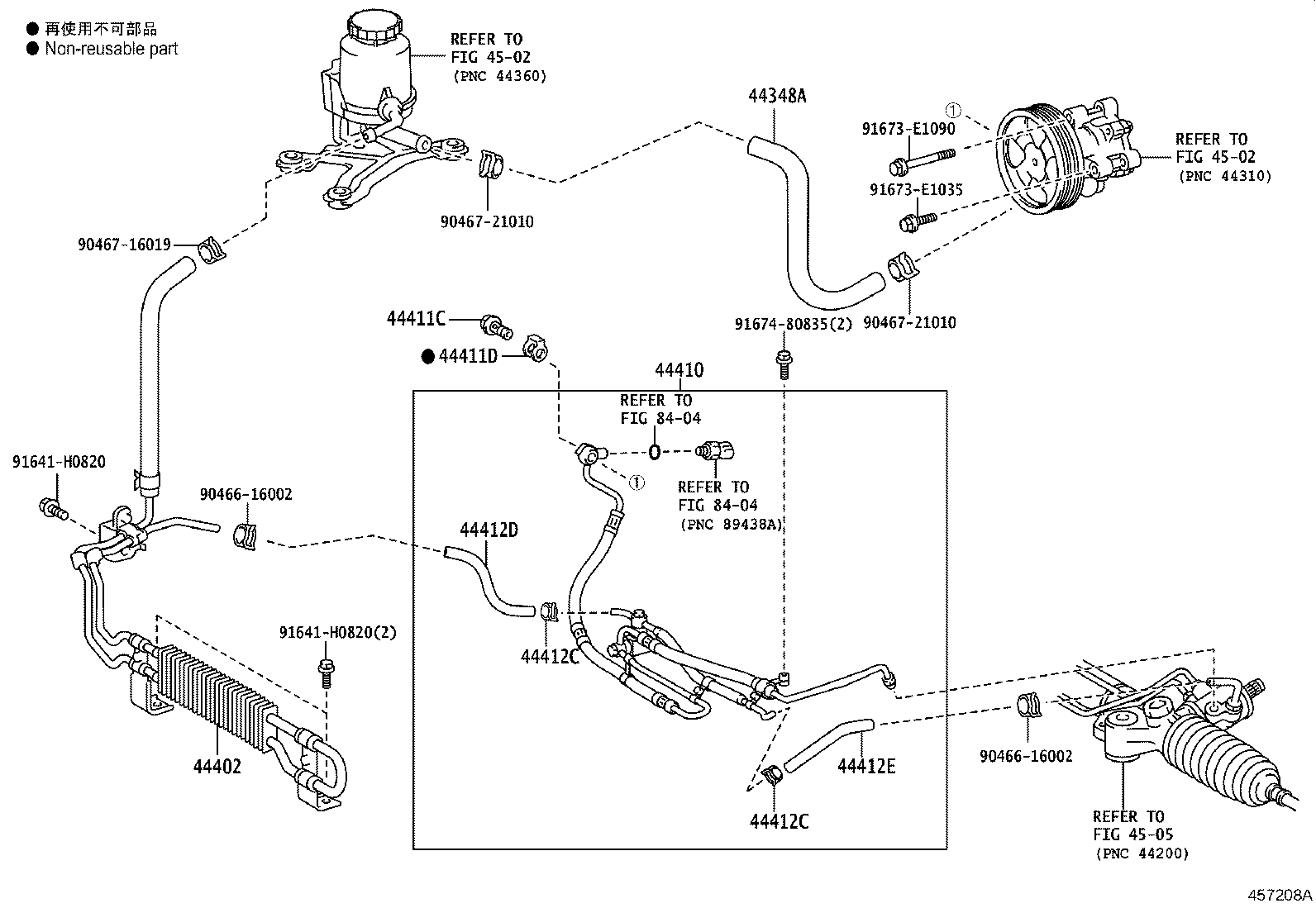

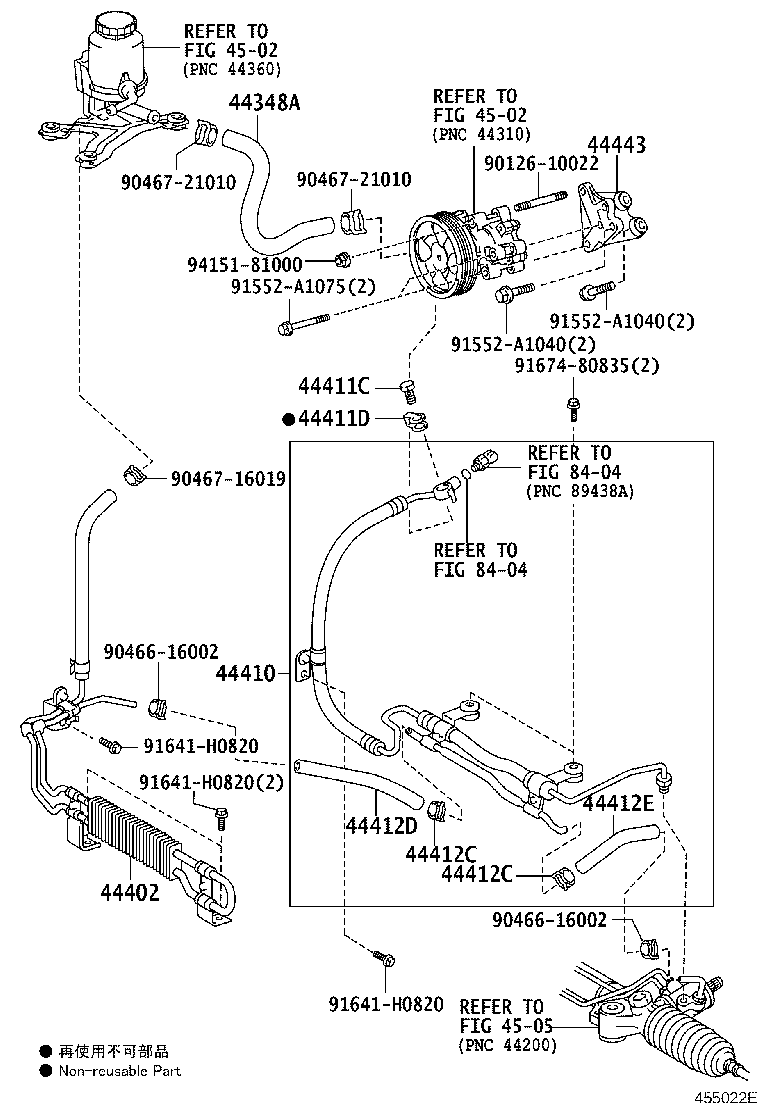

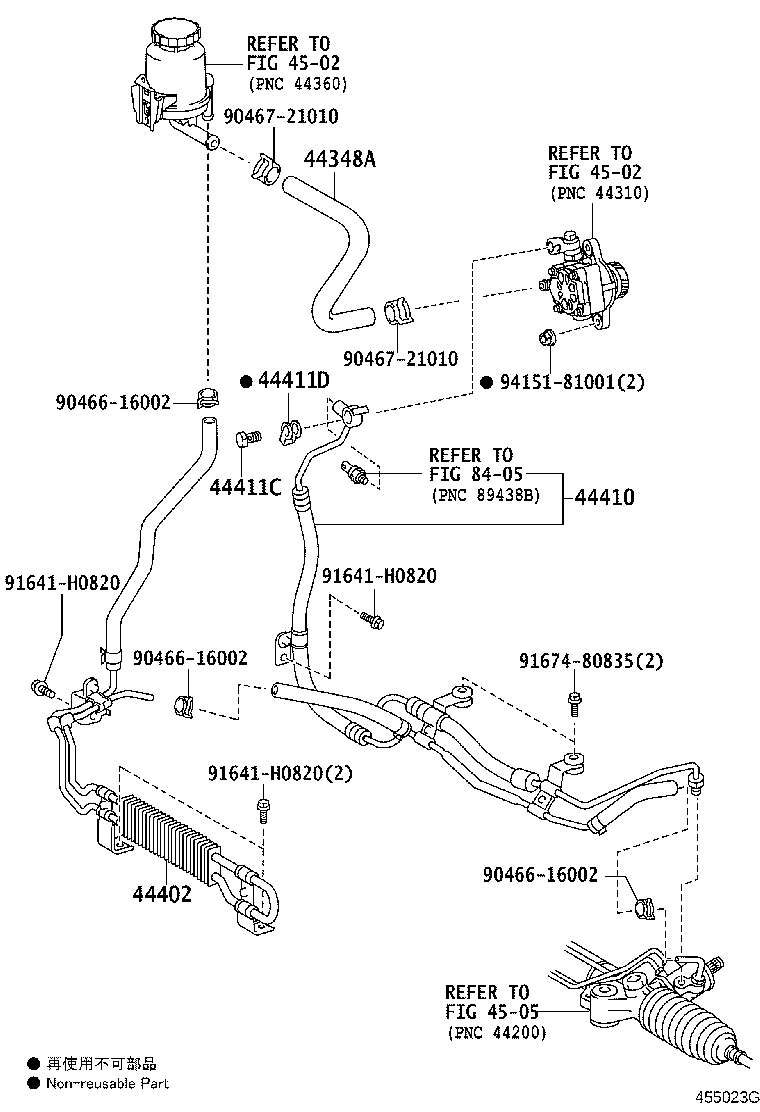

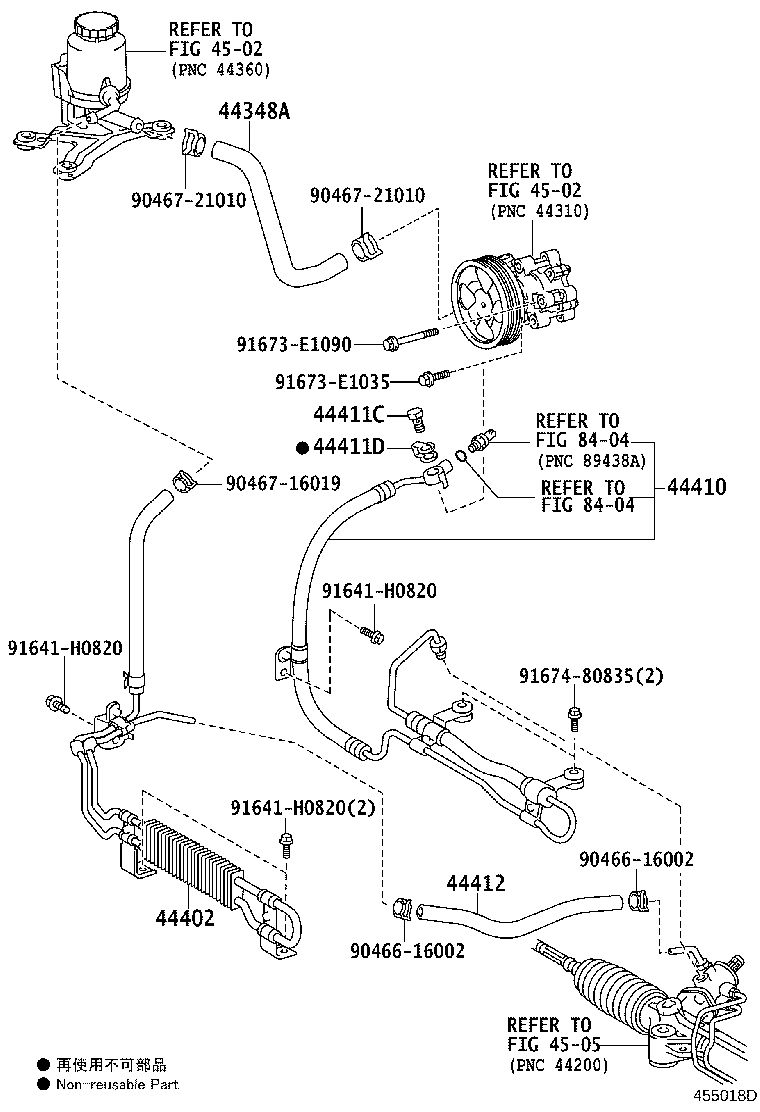

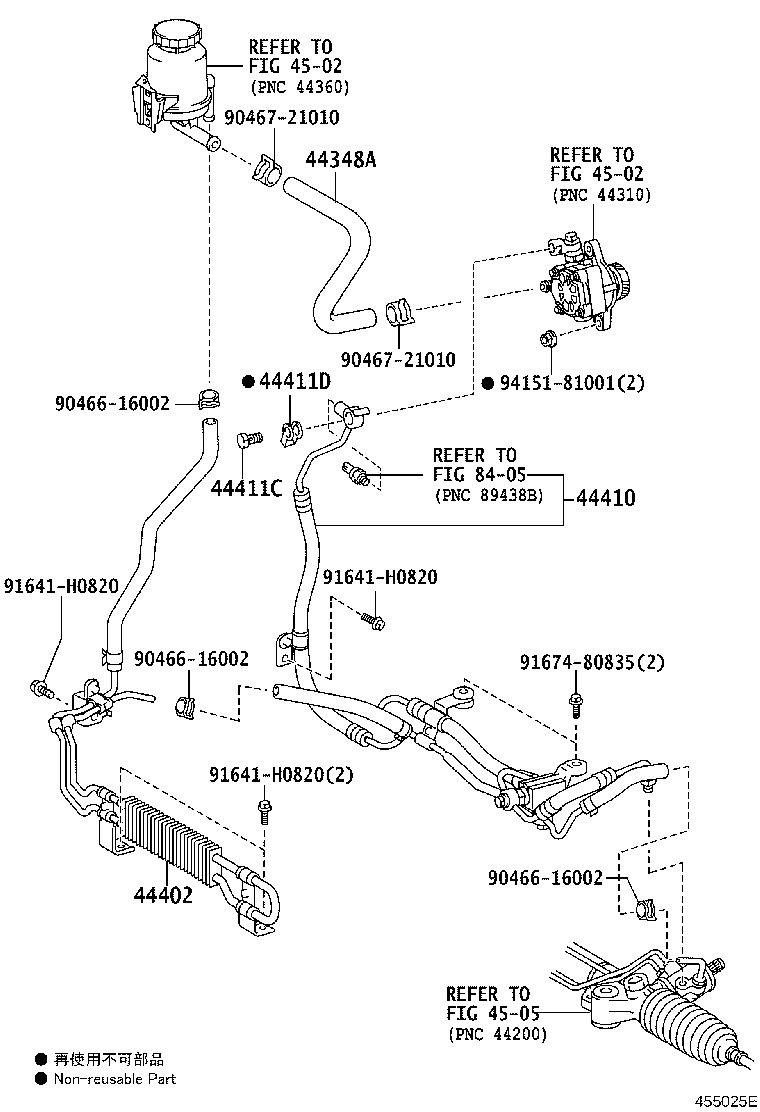

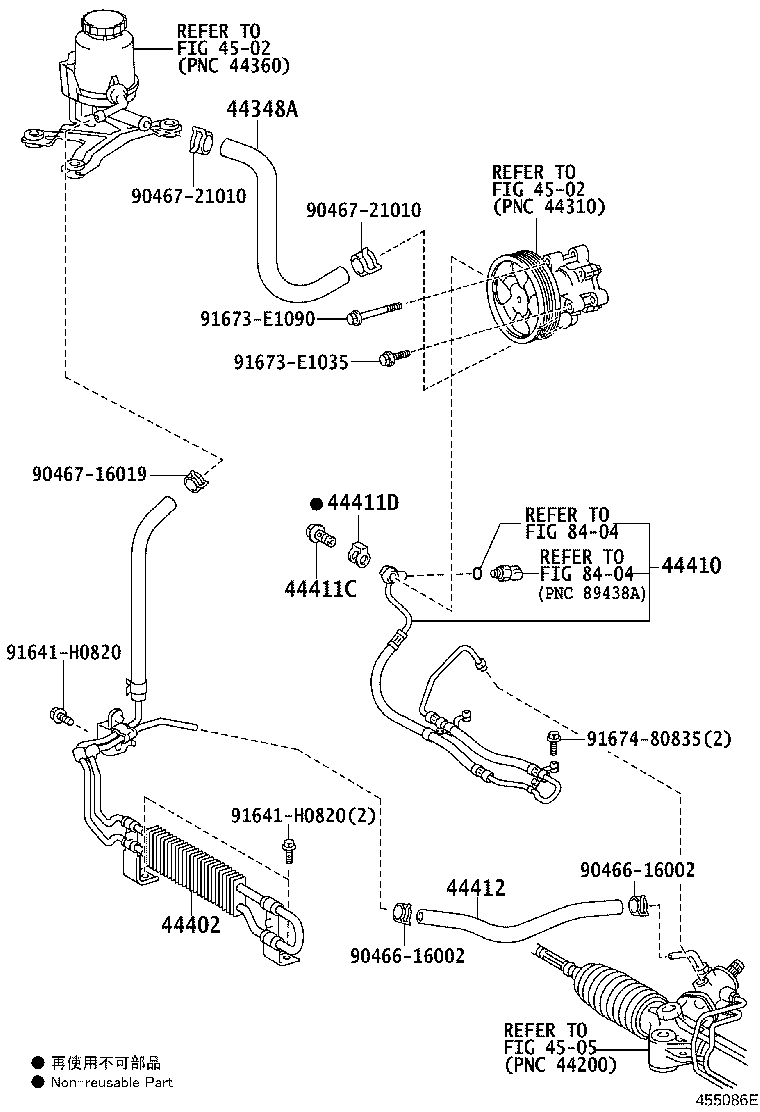

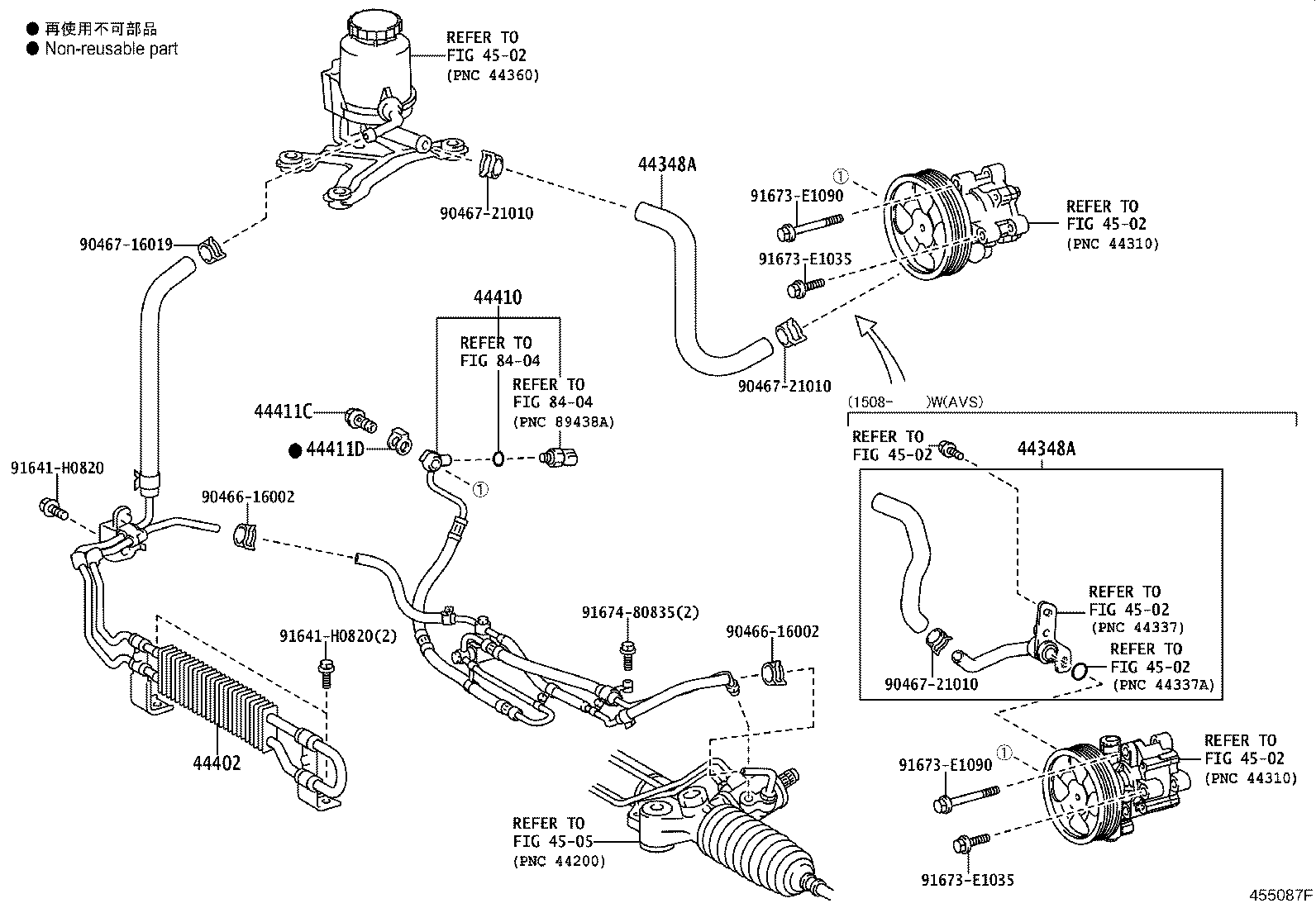

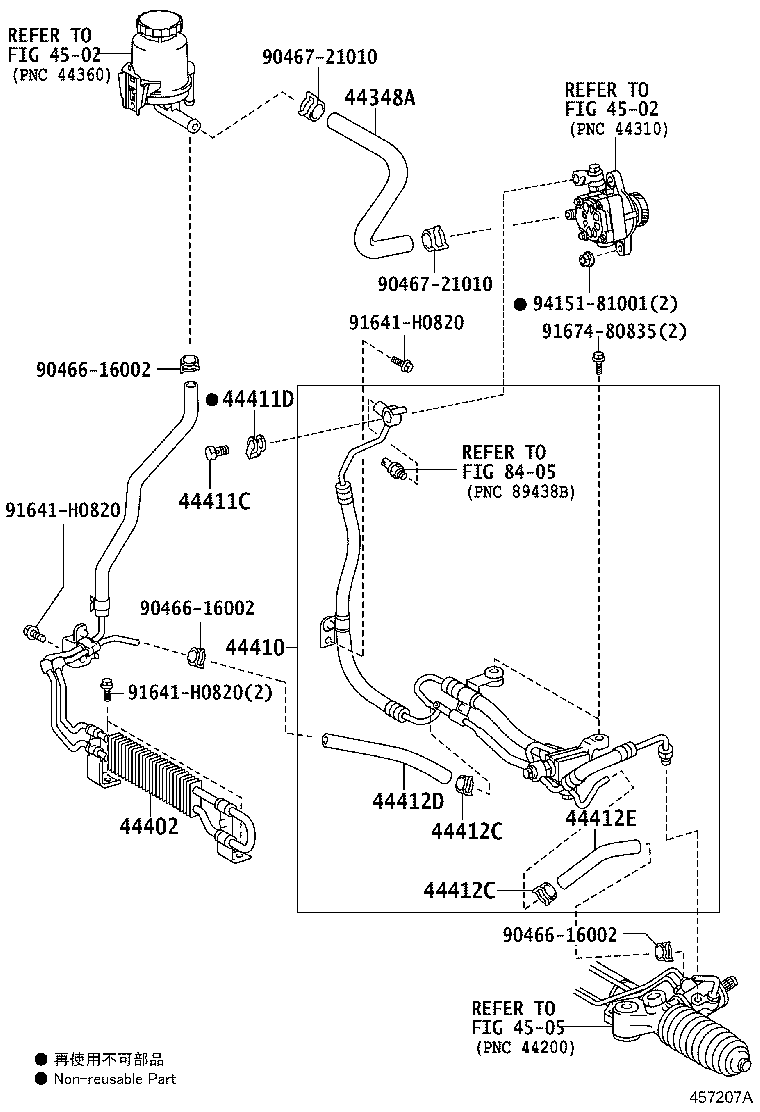

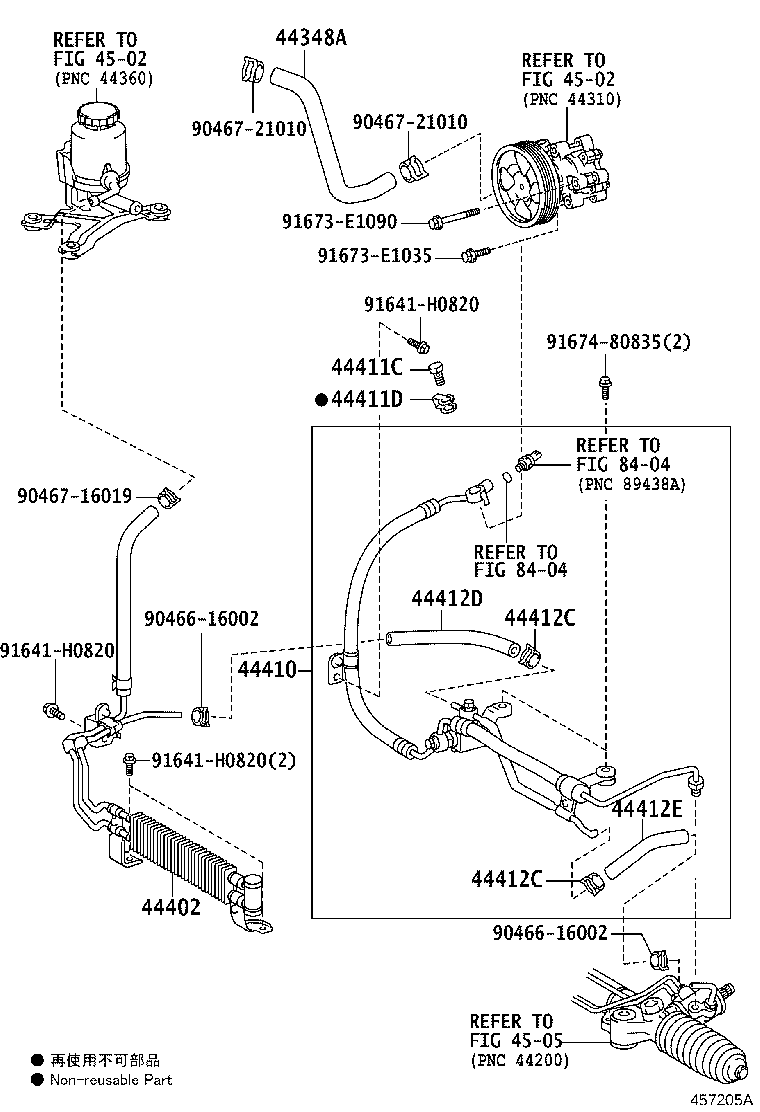

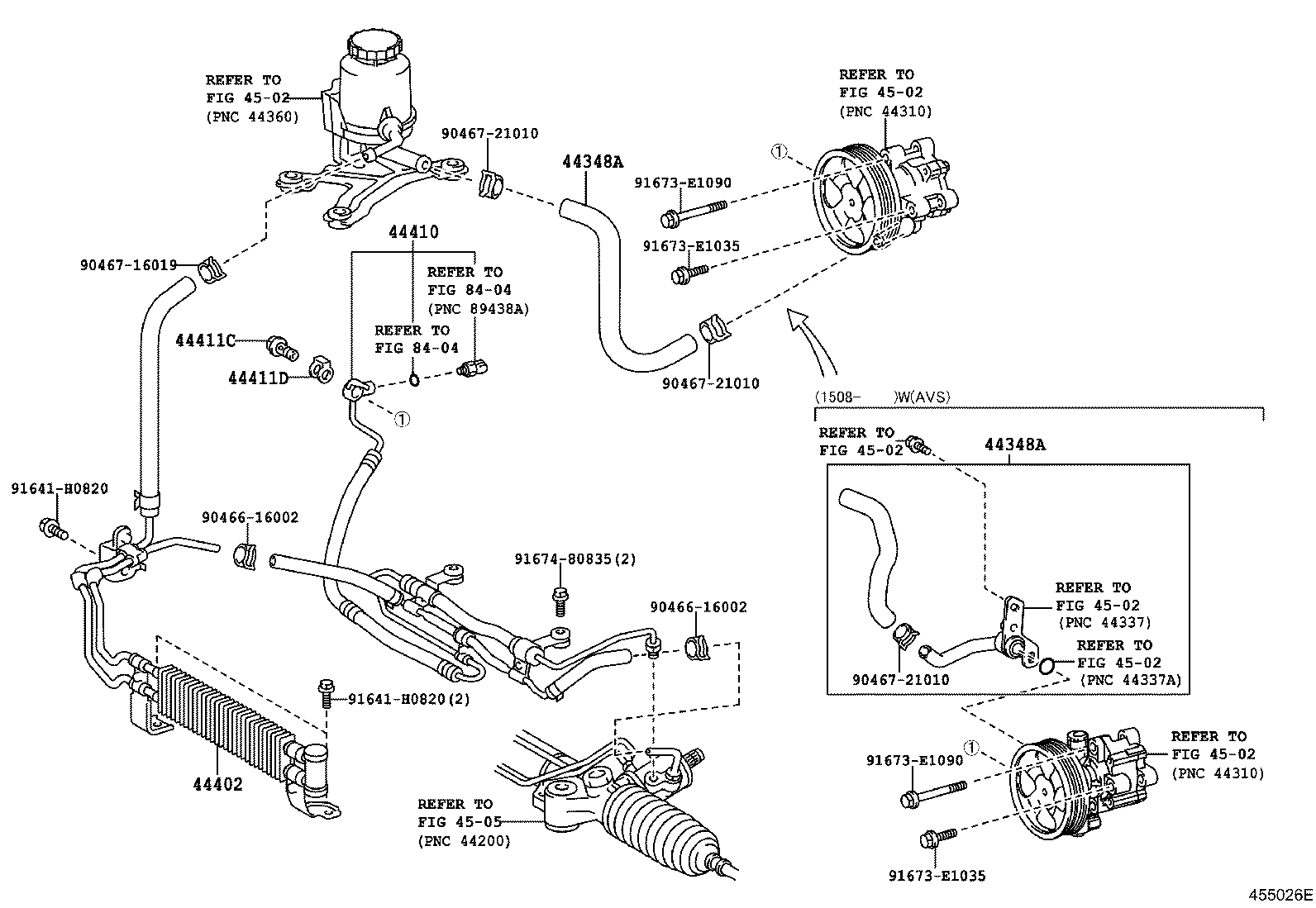

Figure 455019D 455019D 2007-09 → 2012-01 Figure 455022E 455022E 2007-09 → 2012-01 Figure 455018D 455018D 2007-09 → — Figure 457201A 457201A 2007-09 → 2012-01 Figure 455021D 455021D 2011-09 → 2012-01 Figure 455021D 455021D 2012-01 → — Figure 457205A 457205A 2007-09 → 2012-01 Figure 455024D 455024D 2011-09 → 2012-01 Figure 455024D 455024D 2012-01 → — Figure 455020E 455020E 2007-09 → — Figure 457206A 457206A 2007-09 → 2012-01 Figure 455023G 455023G 2011-09 → 2012-01 Figure 455023G 455023G 2012-01 → — Figure 457207A 457207A 2007-09 → 2012-01 Figure 455025E 455025E 2011-09 → 2012-01 Figure 455025E 455025E 2012-01 → — Figure 457208A 457208A 2010-07 → 2012-01 Figure 455087F 455087F 2012-01 → — Figure 455086E 455086E 2012-01 → — Figure 455026E 455026E 2012-01 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412C Clamp(FOR RETURN HOSE)
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
