Toyota Land Cruiser
2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General
Supported model
Data version 2018-08

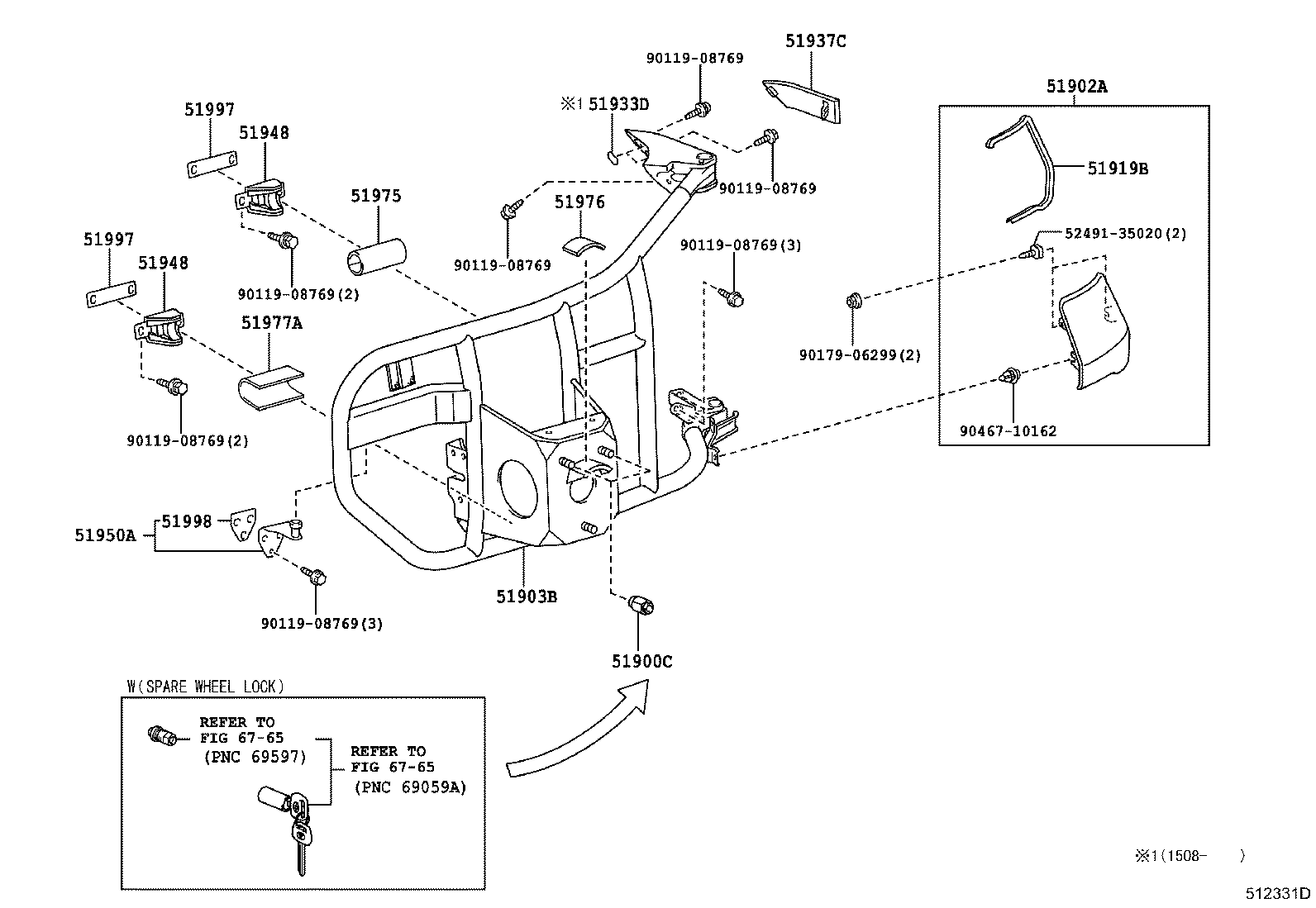

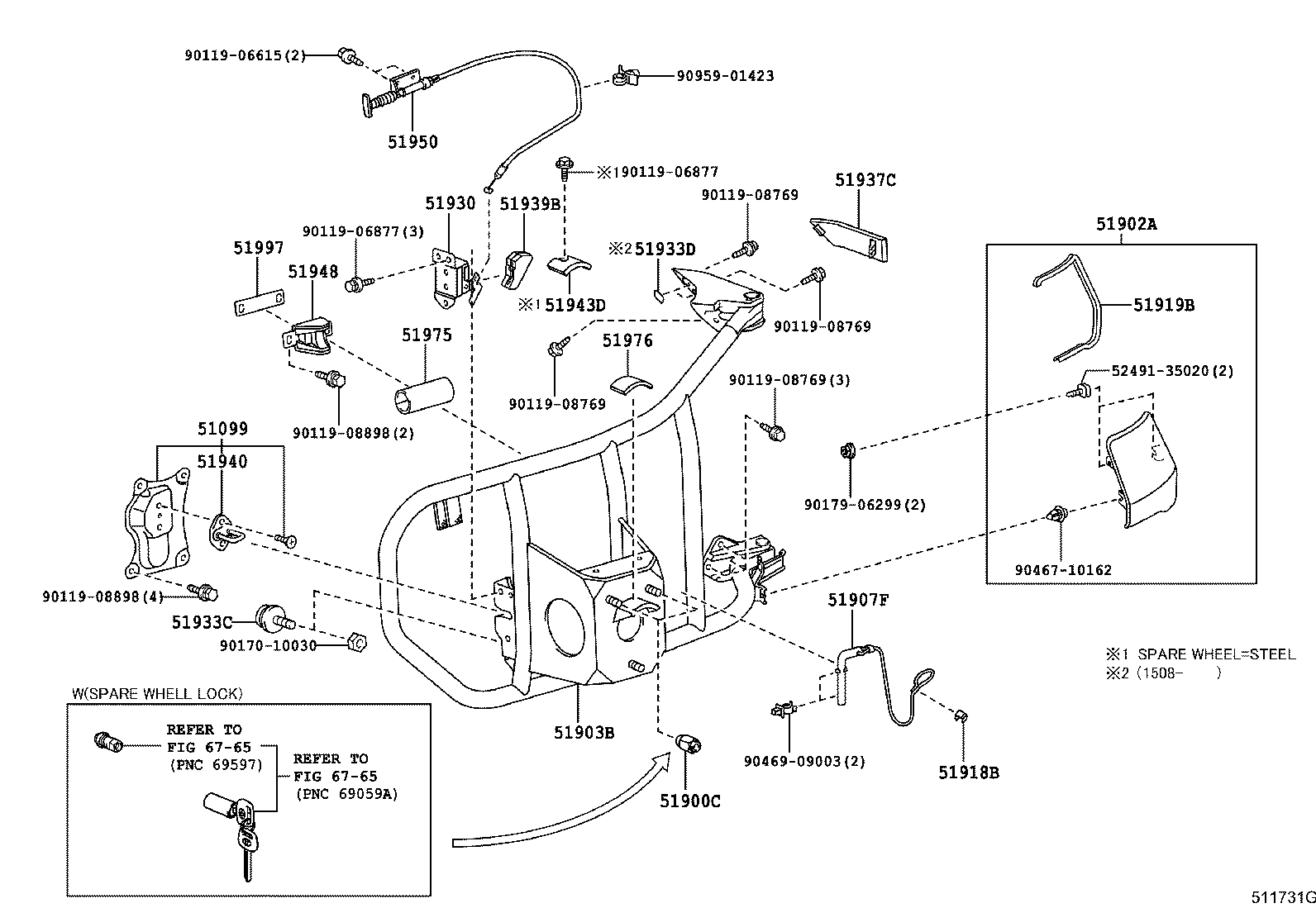

Spare Wheel Carrier
28 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51099 | Plate Sub-assy, Spare |
| 51900 | Carrier Assy, Spare Wheel |
| 51900C | Nut, Spare Wheel, Hub |
| 51902A | Cover Sub-assy, Spare Wheel |
| 51903B | Carrier Sub-assy, Spare Wheel |
| 51907F | Stopper Sub-assy, Spare Wheel Carrier |
| 51918A | Stopper, Spare Wheel Carrier |
| 51918B | Clamp, Spare Wheel Carrier Stopper Pin Cord |
| 51919B | Spacer, Spare Wheel Carrier |
| 51923A | Guide, Spare Whell Carrier Handle |
| 51930 | Lock Assy, Spare Wheel Carrier |
| 51933A | Stopper, Spare Wheel, NO.1 |
| 51933C | Stopper, Spare Wheel |
| 51933D | Stopper, Spare Wheel Carrier |
| 51937C | Bracket, Spare Wheel Carrier Hinge |
| 51939B | Cover, Spare Wheel Carrier Lock |
| 51940 | Striker Assy, Spare Wheel Carrier Lock |
| 51942A | Handle, Spare Wheel Carrier Bolt |
| 51943D | Patch, Spare Wheel Carrier Bracket |
| 51948 | Stopper, Spare Wheel Carrier Auxiliary |
| 51950 | Cable Assy, Spare Wheel Carrier Lock Control |
| 51950A | Roller Assy, Spare Wheel Carrier Guide |
| 51975 | Film, Spare Wheel Carrier |
| 51976 | Film, Spare Wheel Carrier, NO.2 |
| 51977A | Film, Spare Wheel Carrier, NO.3 |
| 51979B | Cushion, Spare Wheel Carrier Protector |
| 51997 | Pad, Spare Wheel Stopper |
| 51998 | Pad, Spare Wheel Bracket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
