Toyota Land Cruiser
2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General
Supported model
Data version 2018-08

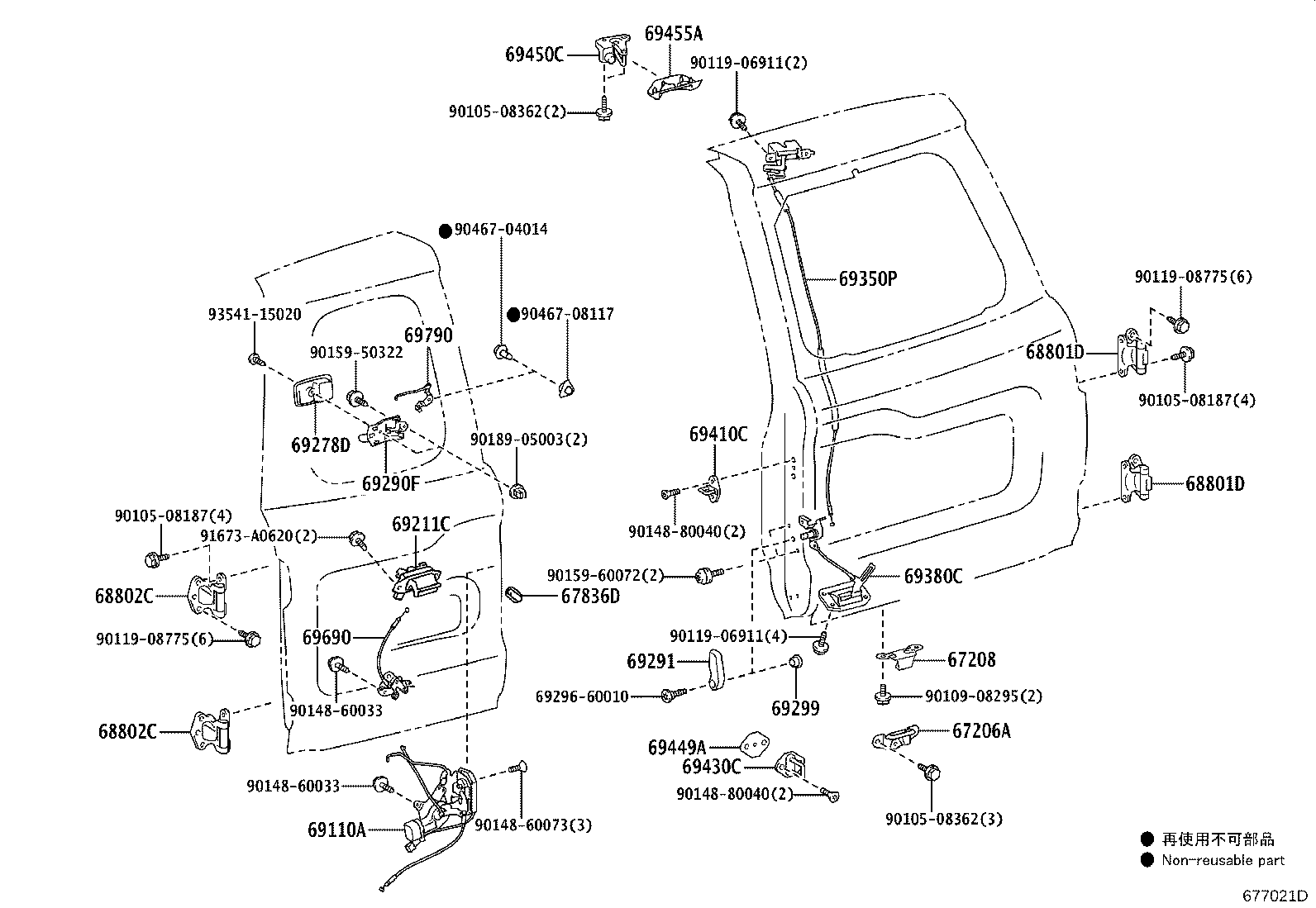

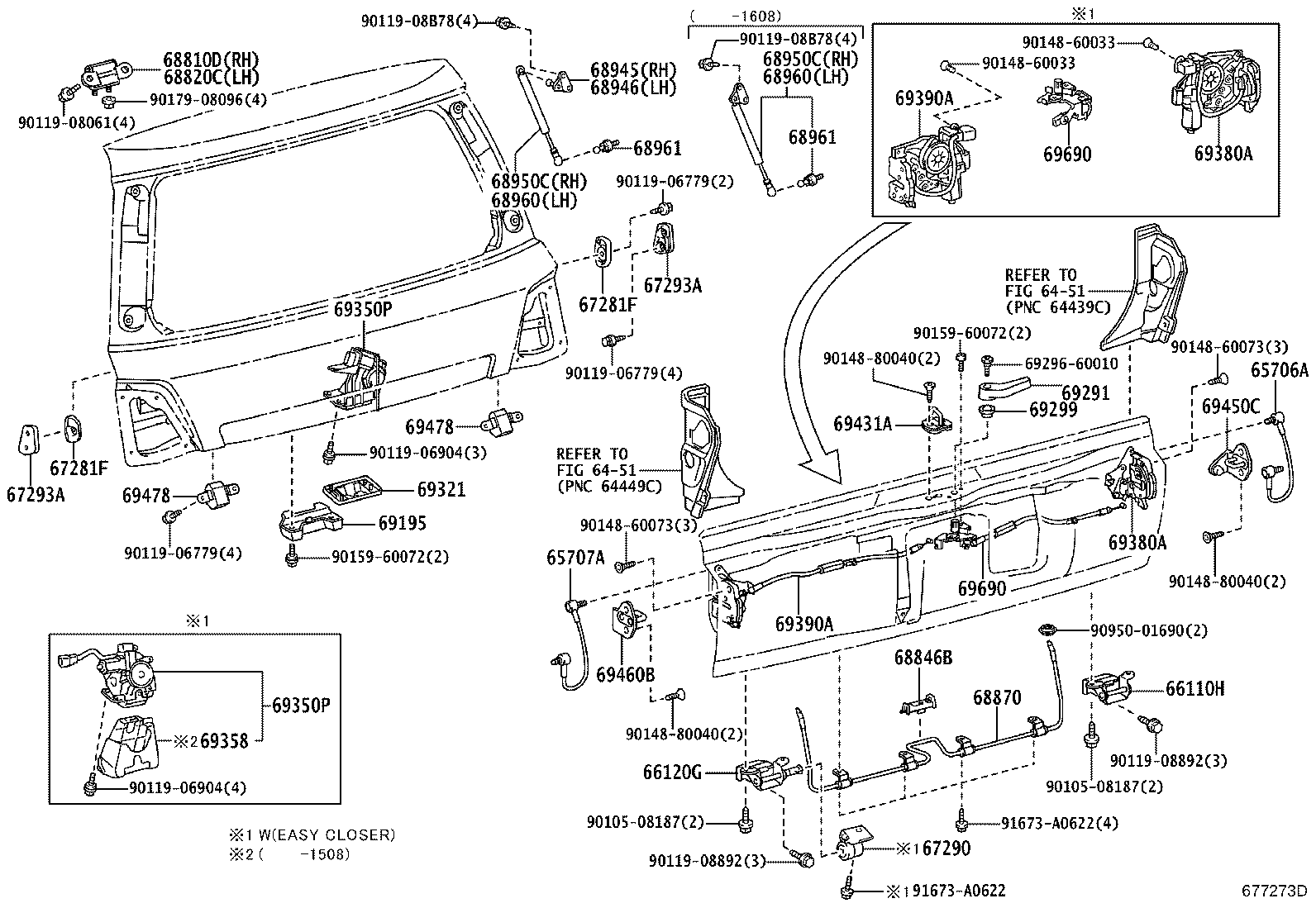

Back Door Lock & Hinge
50 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 65706A | Stay Sub-assy, Tail Gate, RH |
| 65707A | Stay Sub-assy, Tail Gate, LH |
| 66110H | Hinge Assy, Tail Gate, RH |
| 66120G | Hinge Assy, Tail Gate, LH |
| 67206A | Bracket Sub-assy, Back Door Stopper |
| 67208 | Stopper Sub-assy, Back Door, NO.2 |
| 67281F | Stopper, Back Door, Lower |
| 67290 | Damper Assy, Back Door |
| 67293A | Cushion, Back Door Stopper |
| 67836D | Cover, Rear Door Lock Child Protection |
| 68801D | Hinge Sub-assy, Back Door, RH |
| 68802C | Hinge Sub-assy, Back Door, LH |
| 68810D | Hinge Assy, Back Door, RH |
| 68820C | Hinge Assy, Back Door, LH |
| 68846B | Guide, Back Door Torsion Bar |
| 68870 | Bar Assy, Back Door Lower Torsion |
| 68910 | Unit Assy, Power Back Door |
| 68945 | Bracket, Back Door Damper Stay, Upper RH |
| 68946 | Bracket, Back Door Damper Stay, Upper LH |
| 68950C | Stay Assy, Back Door, RH |
| 68960 | Stay Assy, Back Door, LH |
| 68961 | Bolt, Back Door Stay |
| 68961F | Bolt, Back Door Stay |
| 68975 | Plate, Back Door Stay |
| 69110A | Lock Assy, Back Door W/Motor |
| 69195 | Grip, Back Door |
| 69211C | Handle, Back Door Outside |
| 69278D | Bezel, Door Inside Handle, LH |
| 69290F | Handle Assy, Back Door Inside |
| 69291 | Handle Assy, Back Door Inside |
| 69299 | Grommet, Back Door Handle |
| 69321 | Cover, Back Door Lock |
| 69350P | Lock Assy, Back Door, W/Courtesy Lamp Switch |
| 69358 | Protector, Back Door Lock |
| 69380A | Lock Assy, Tail Gate, Lower RH |
| 69380C | Lock Assy, Back Door, Lower |
| 69390A | Lock Assy, Tail Gate, Lower LH |
| 69410C | Plate Assy, Back Door Lock Striker |
| 69430C | Striker Assy, Back Door Lock |
| 69431A | Striker, Rear Swing Gate Lock |
| 69449A | Shim, Back Door Lock Striker |
| 69450C | Striker Assy, Back Door Lock, RH |
| 69455A | Cover, Back Door Upper Lock Striker |
| 69460B | Striker Assy, Back Door Lock, LH |
| 69478 | Cushion, Back Door Lower Stopper |
| 69690 | Control Assy, Back Door Remote |
| 69790 | Control Assy, Back Door Lock |
| 84270G | Sensor Assy, Power Back Door, RH |
| 84280D | Sensor Assy, Power Back Door, LH |
| 85475 | Rod, Power Back Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
