Toyota Land Cruiser
2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General
Supported model
Data version 2018-08
Seat & Seat Track
352 part groups · 43 illustrations
Illustrations

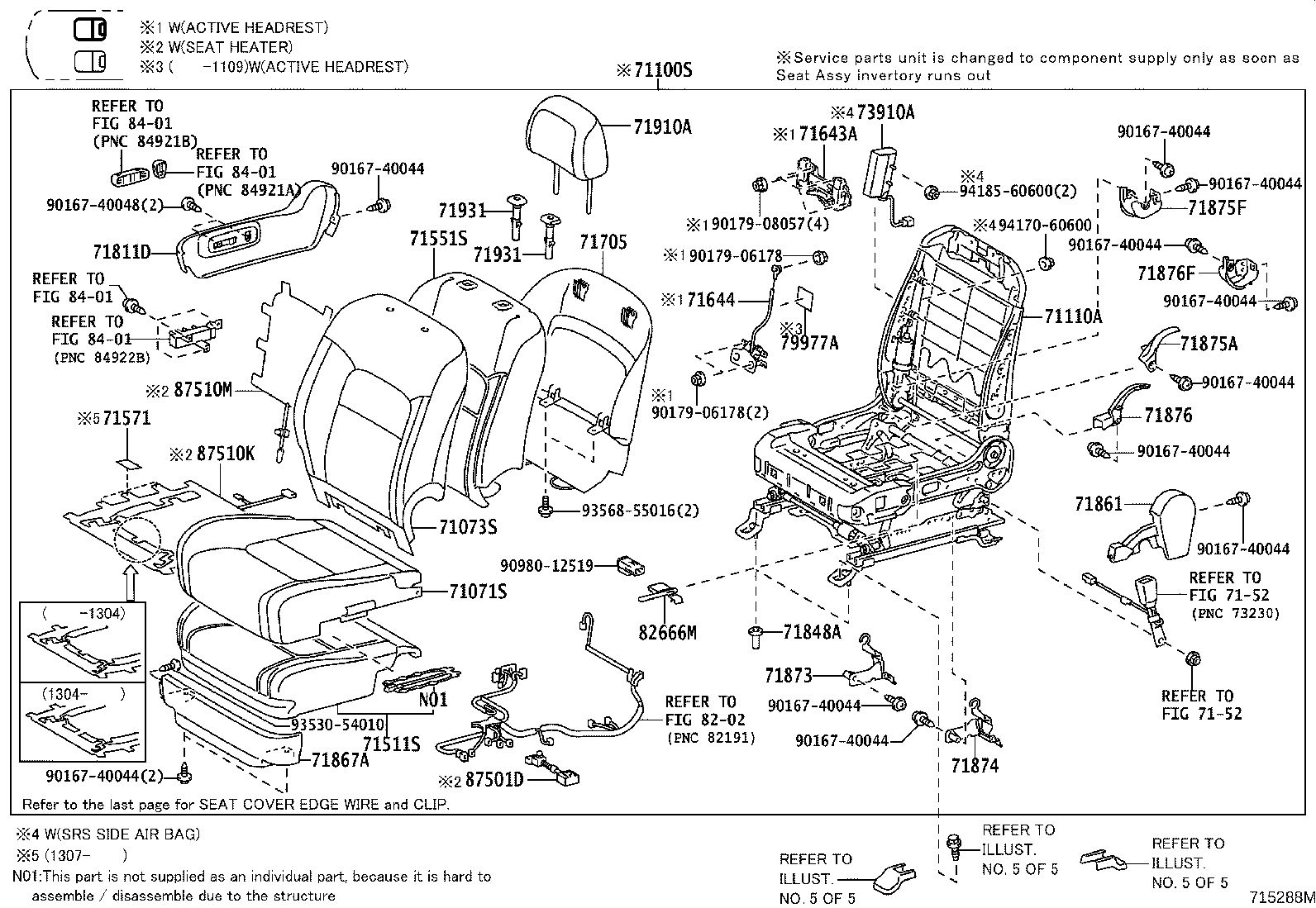

71A366A

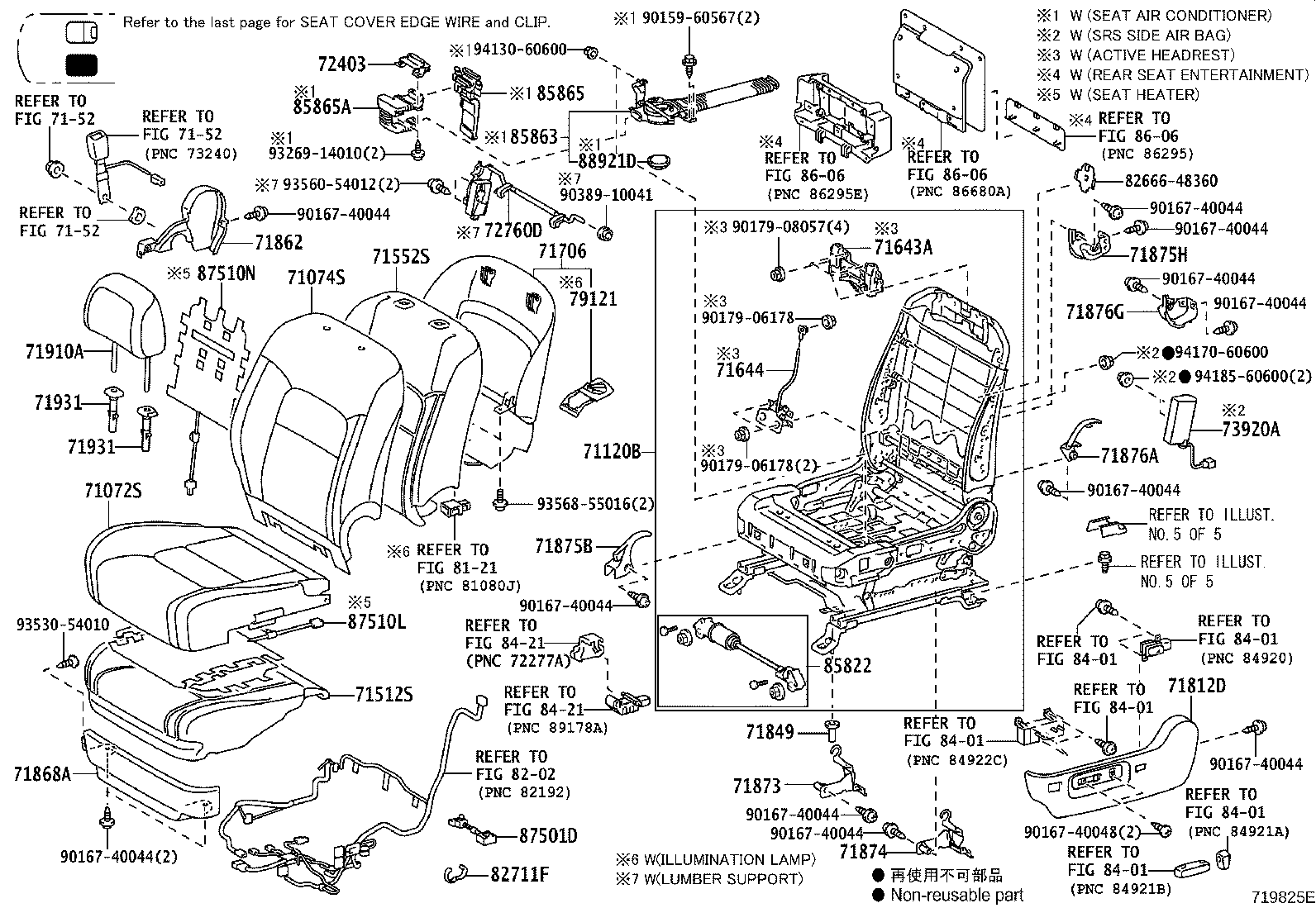

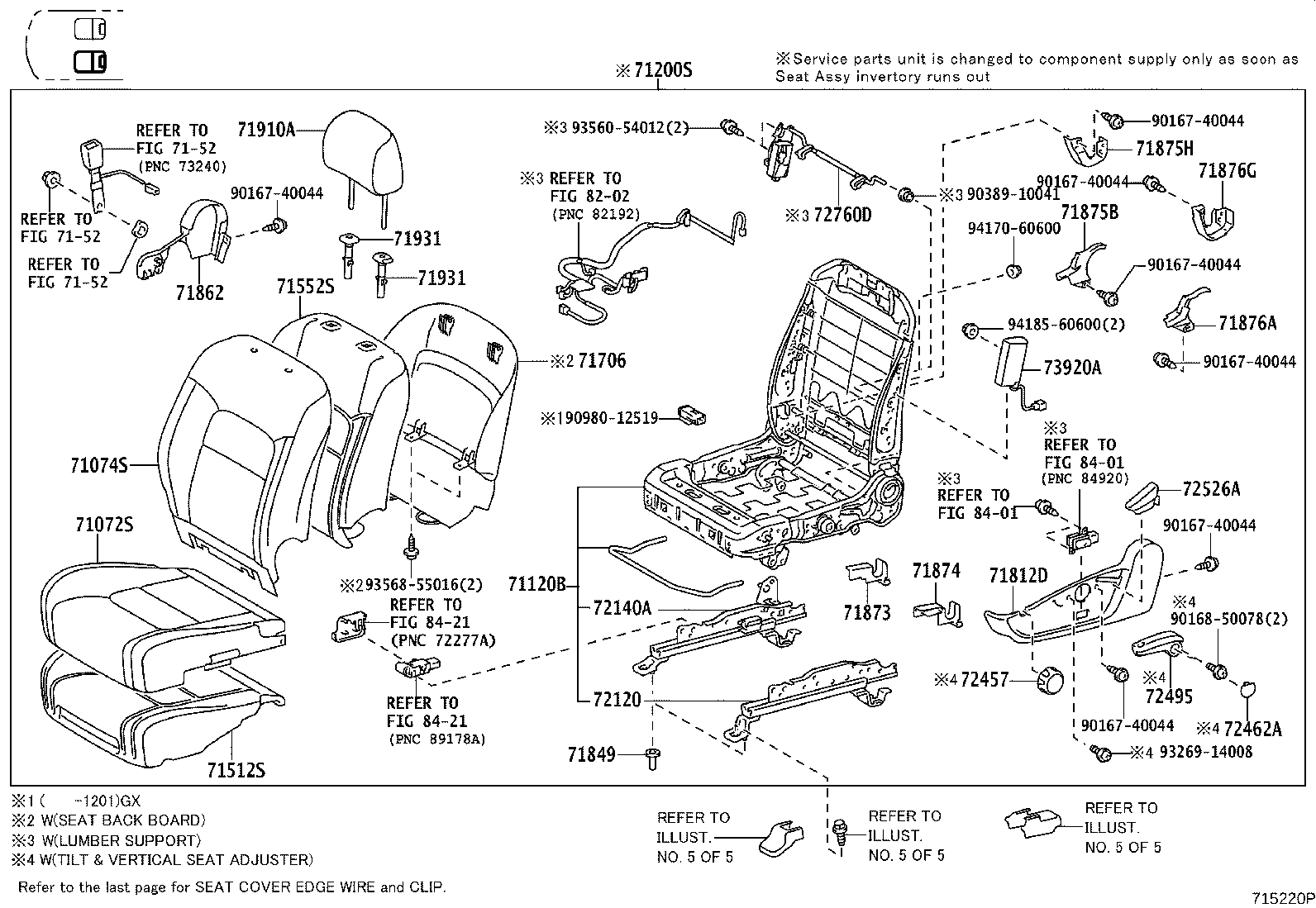

715220P

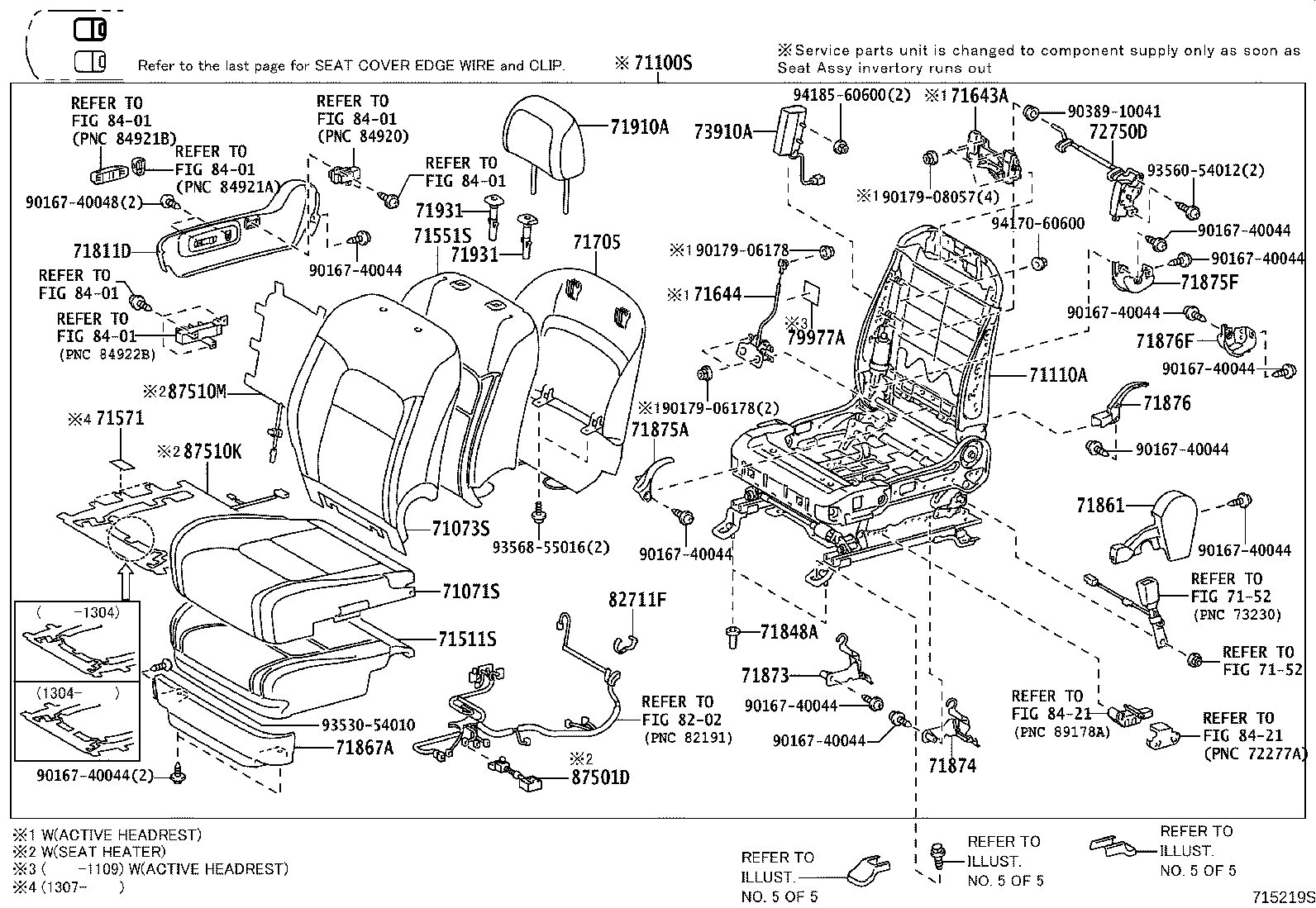

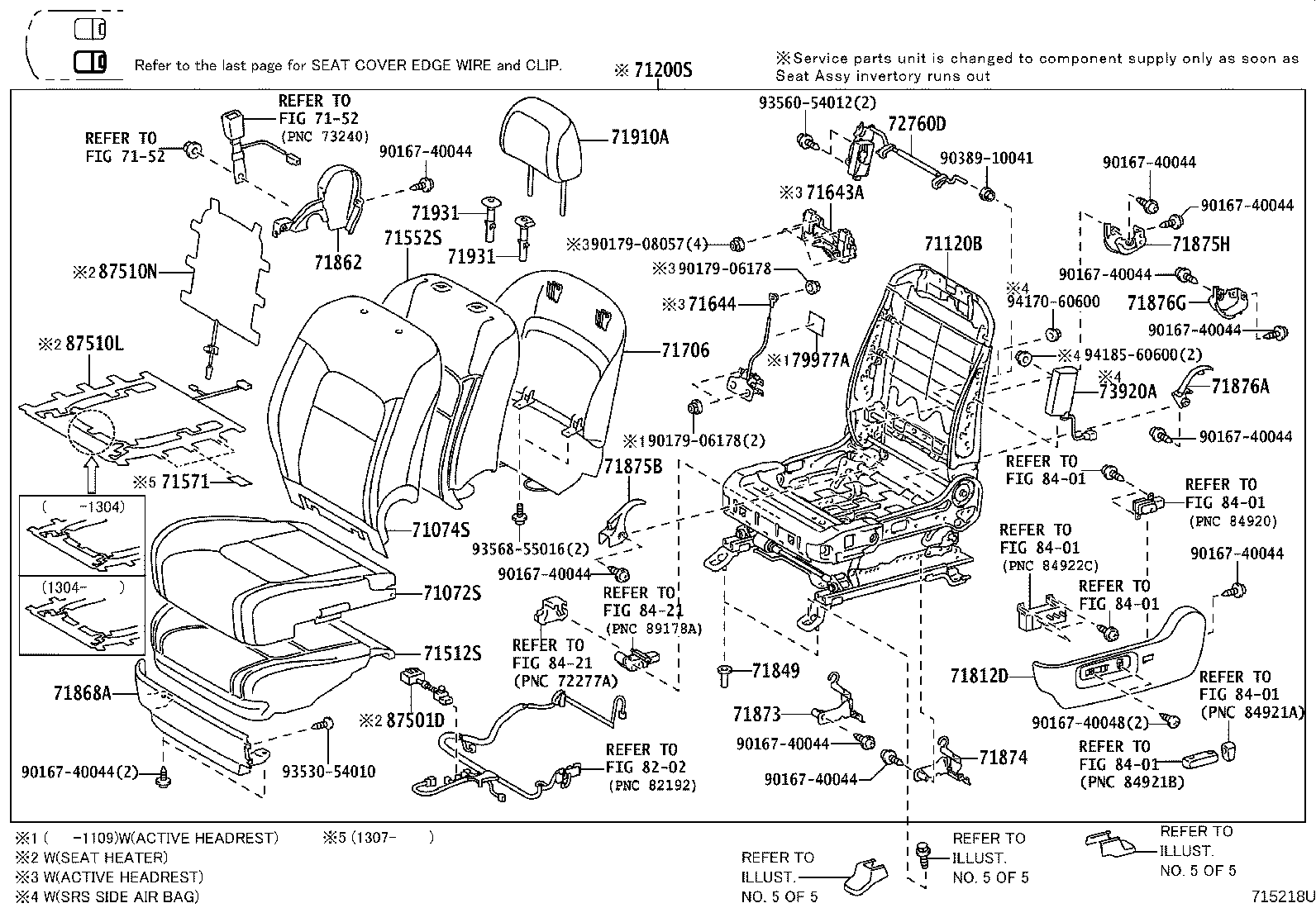

715218U

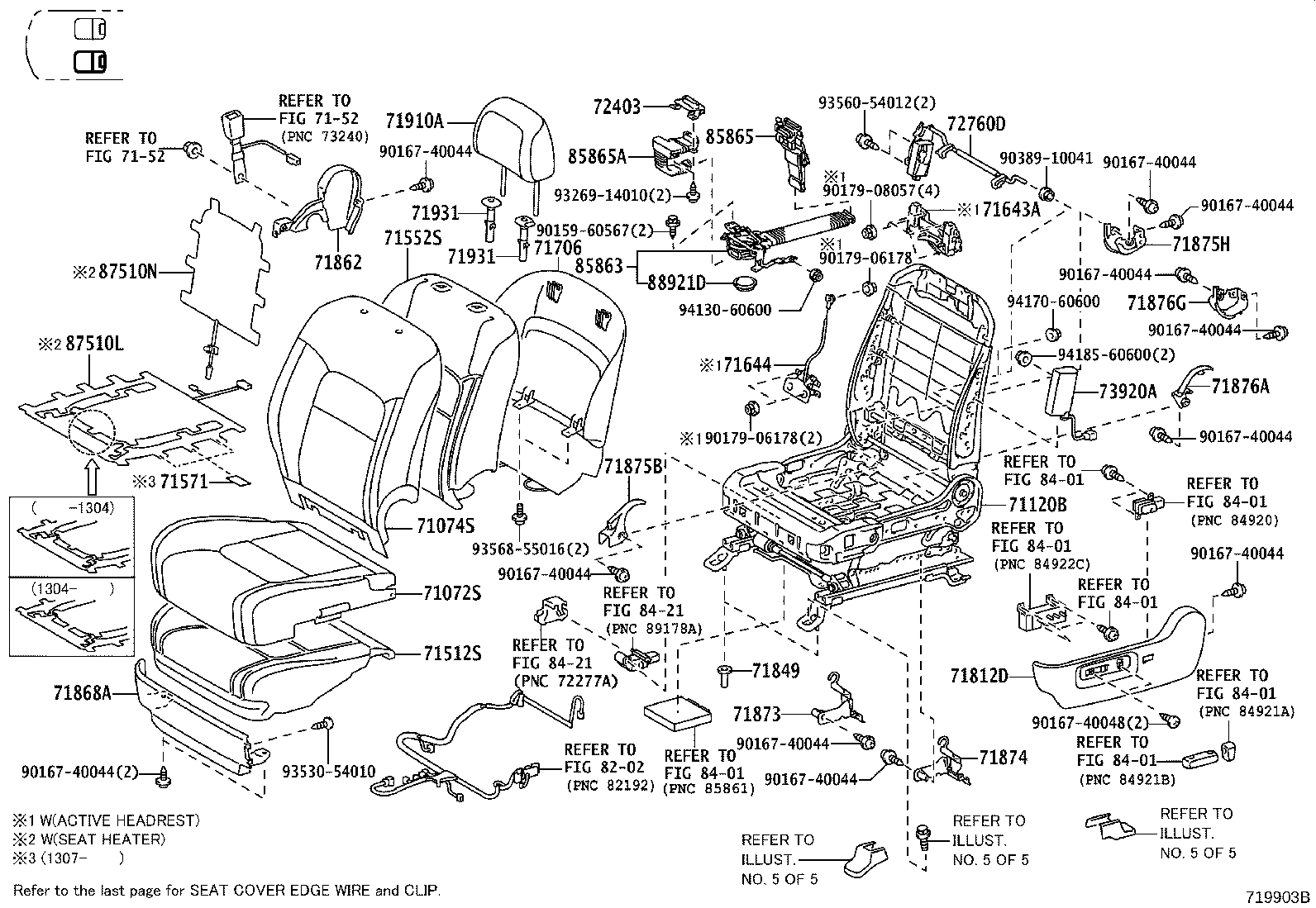

719903B
719825E

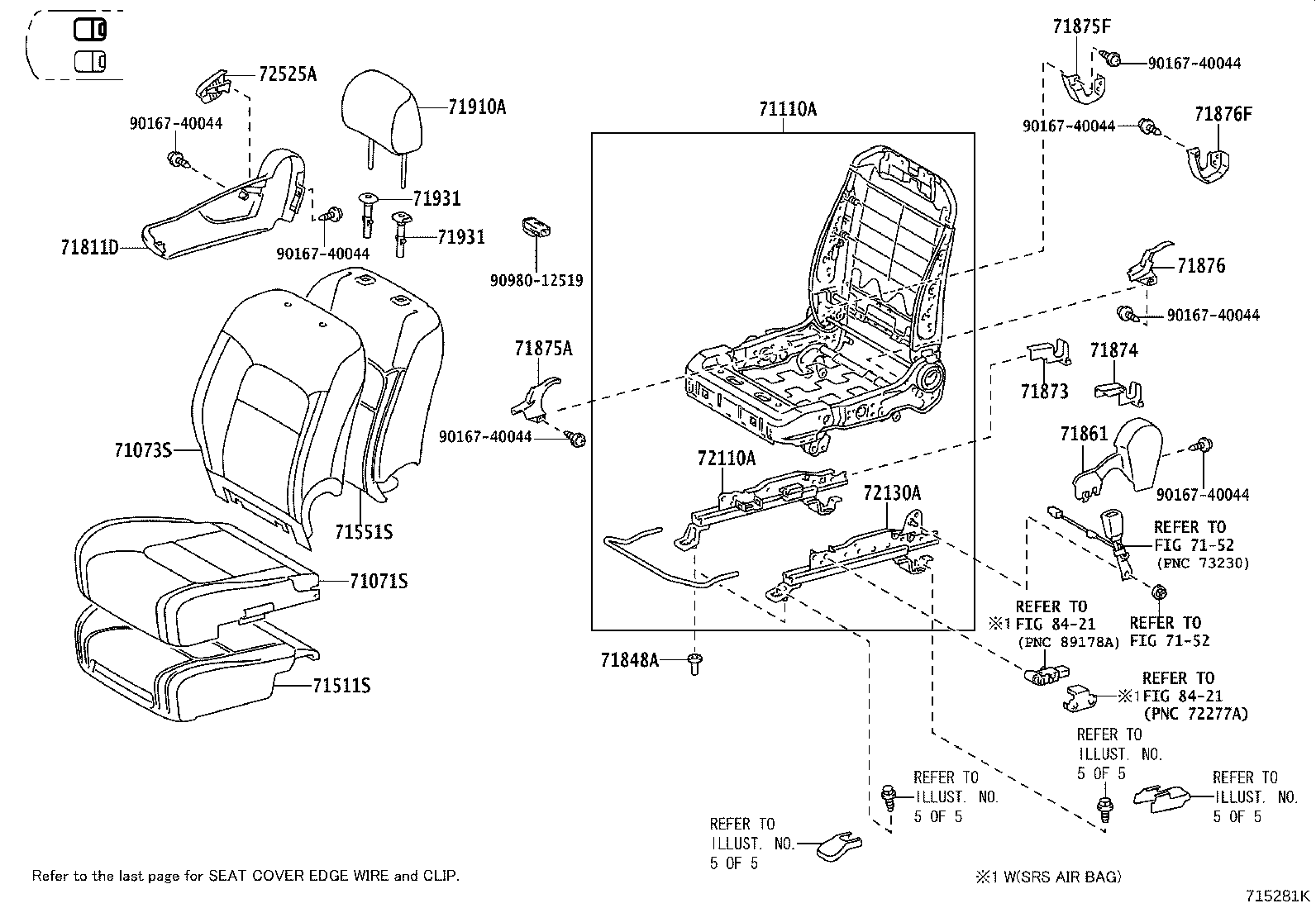

715281K

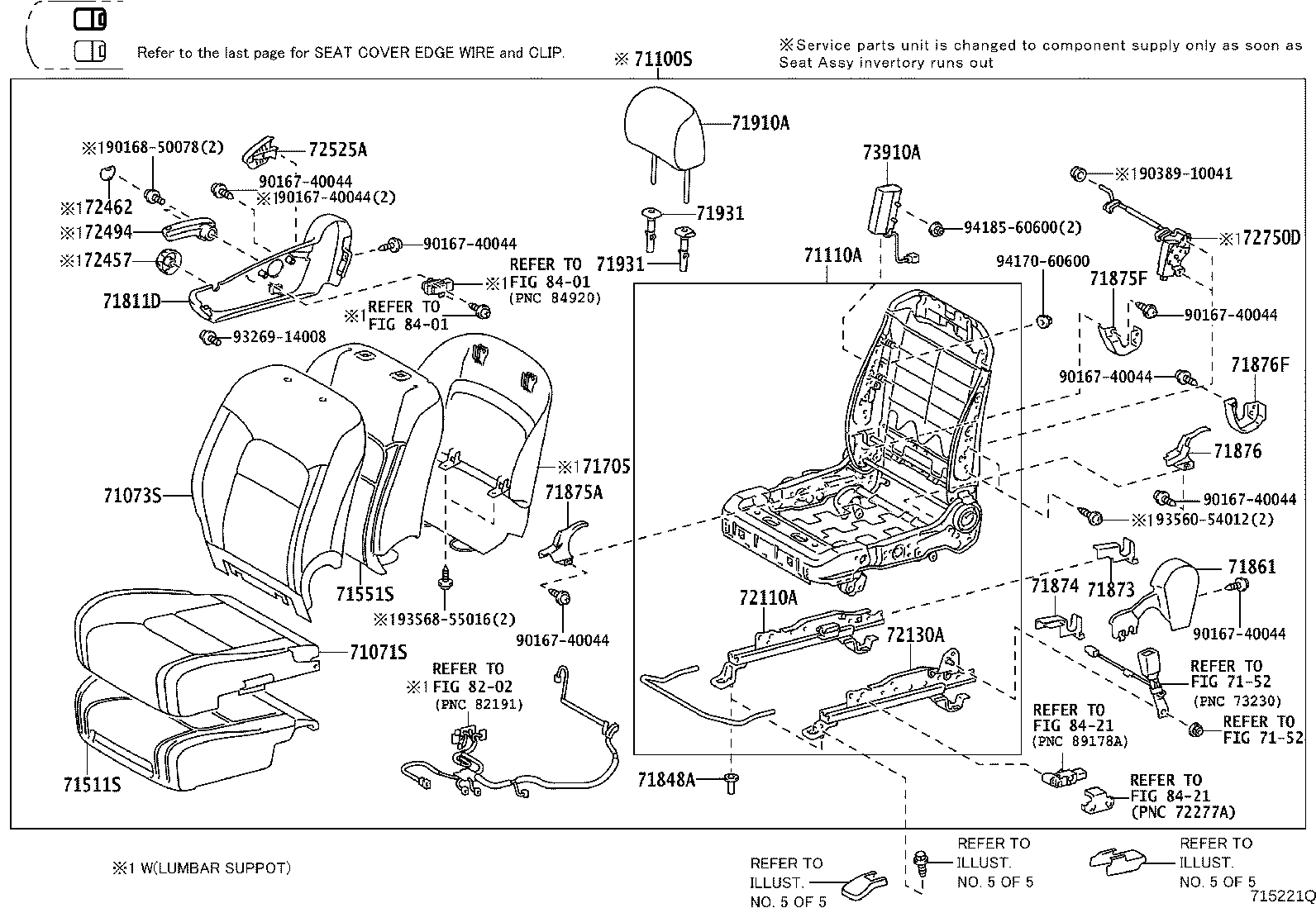

715221Q
715219S

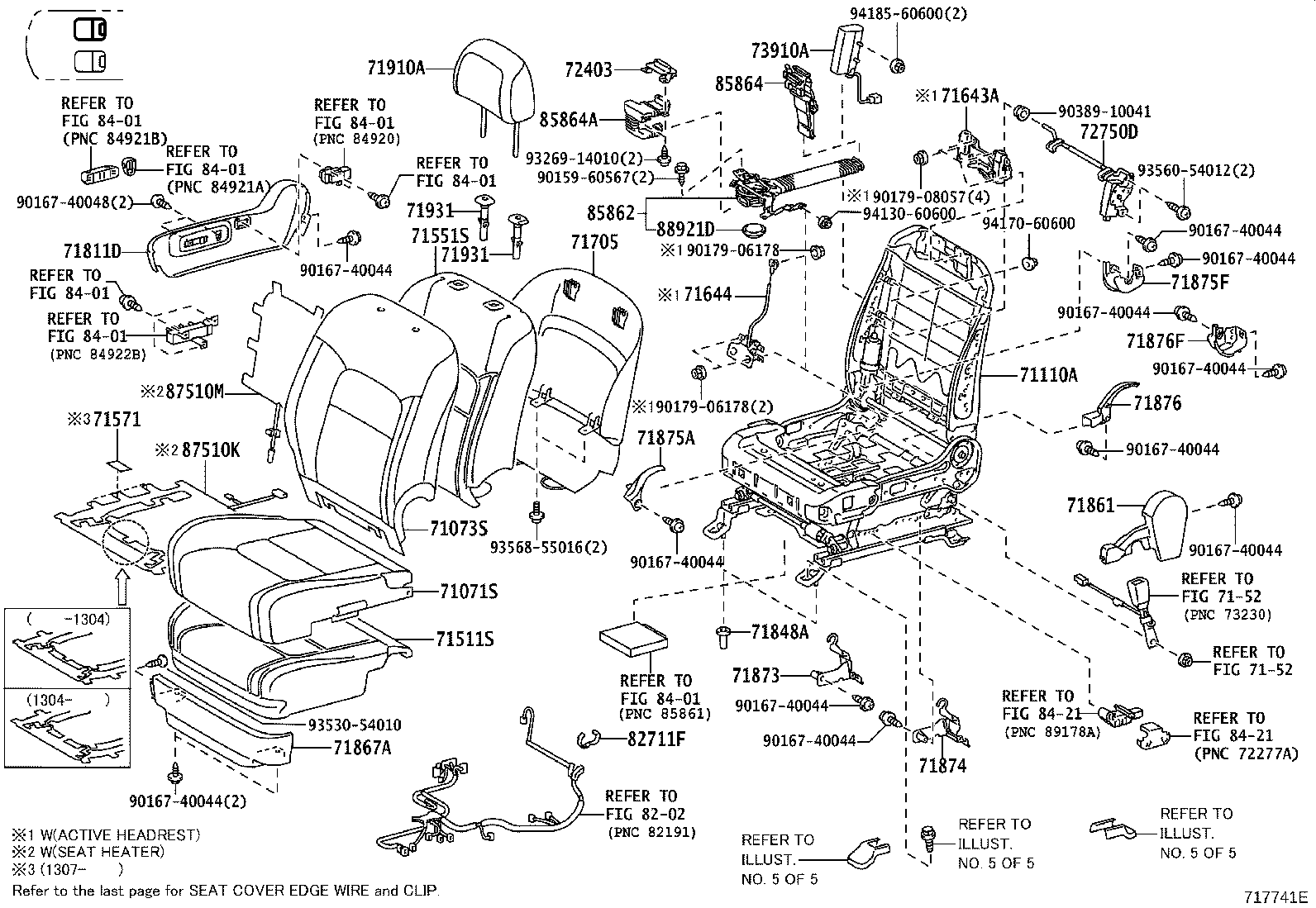

717741E

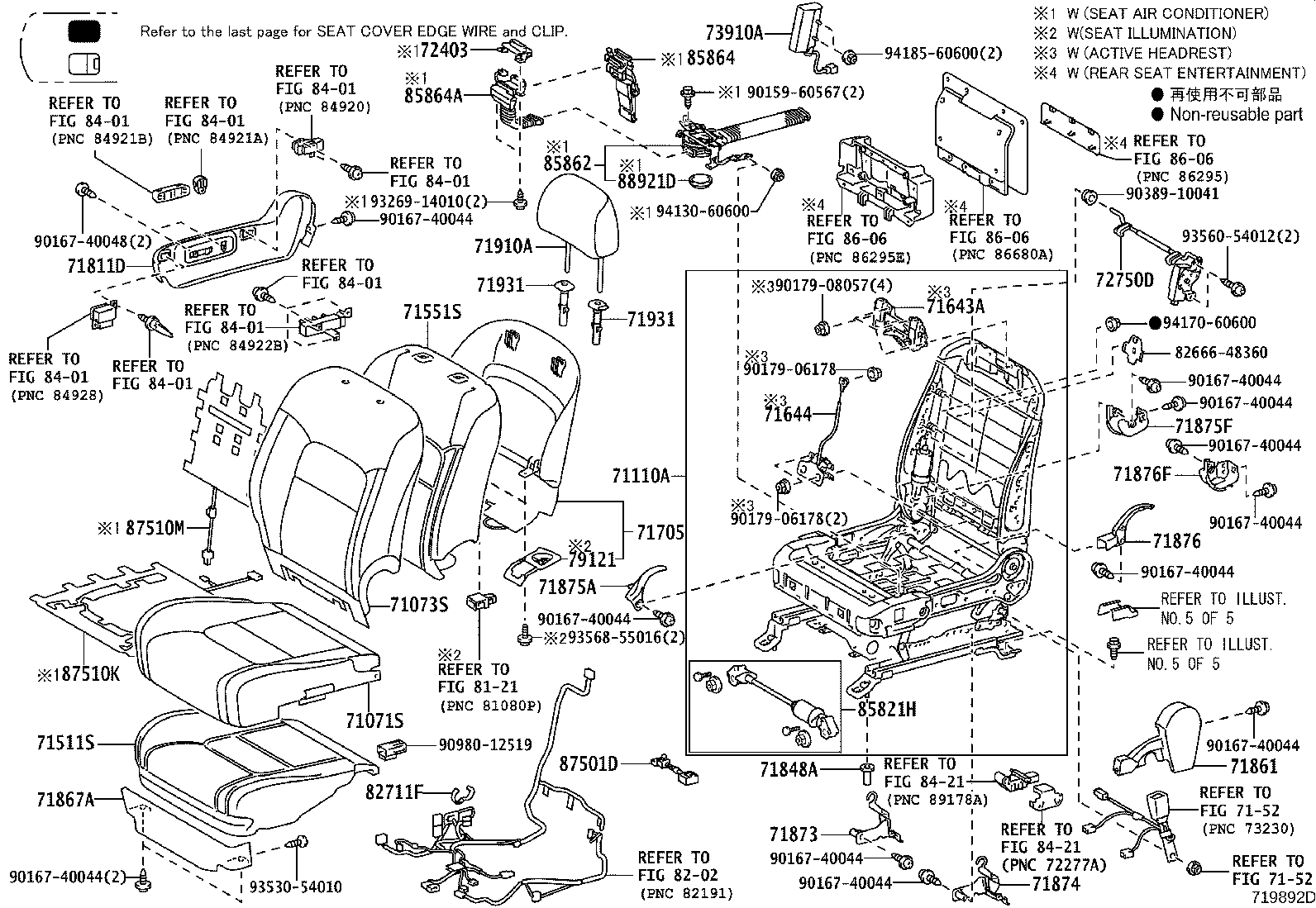

719892D

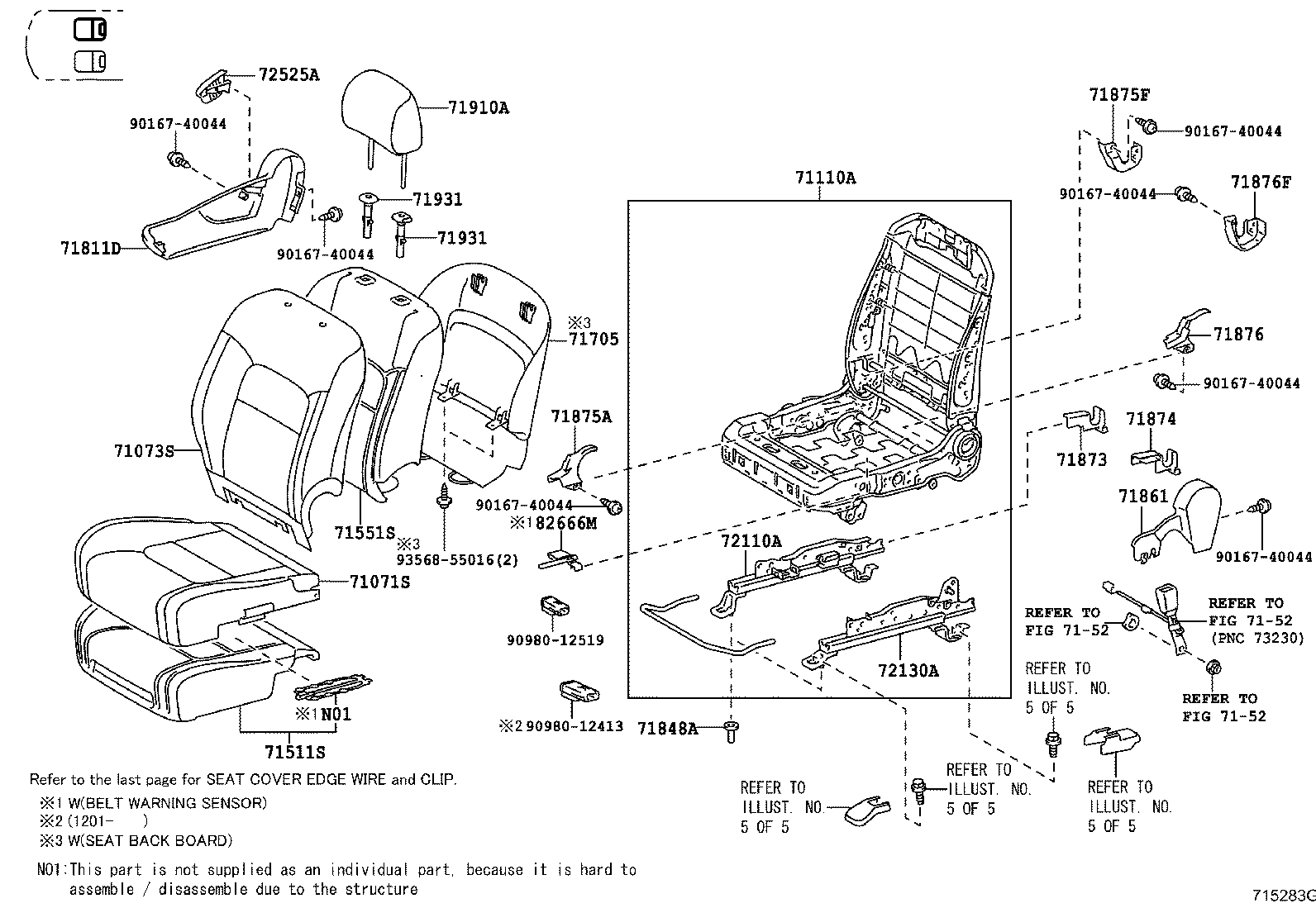

715283G
715286L

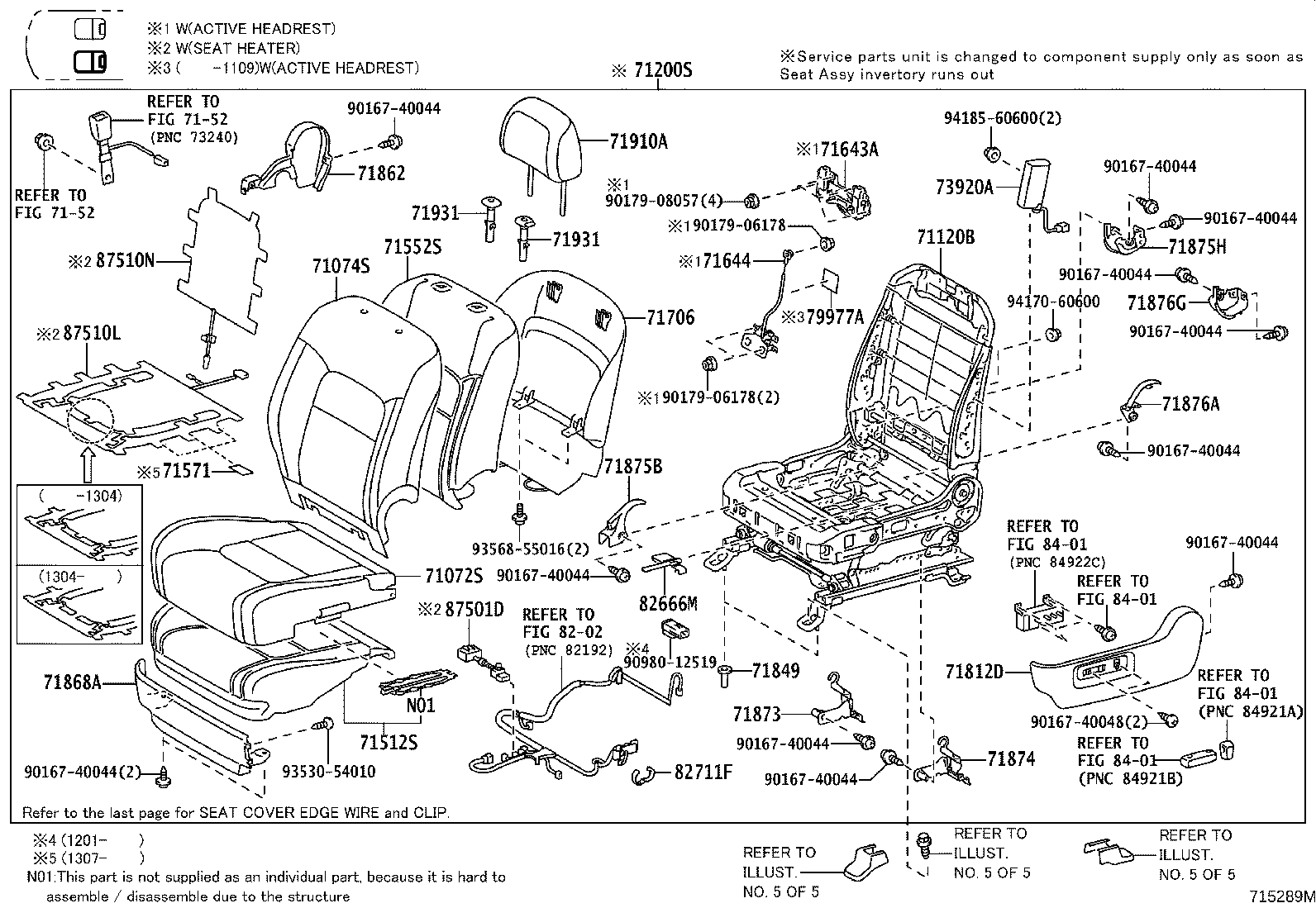

715288M
719826B

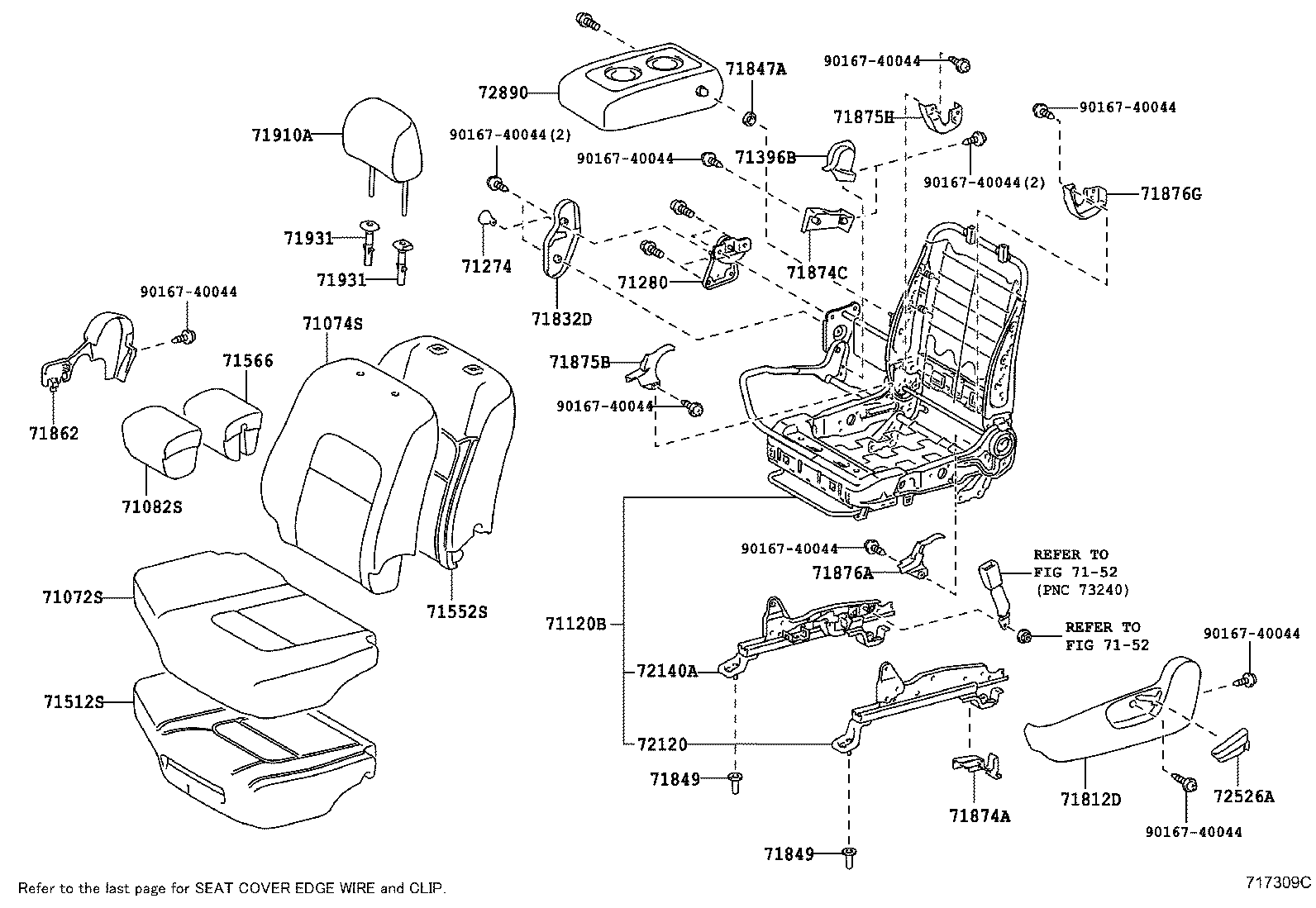

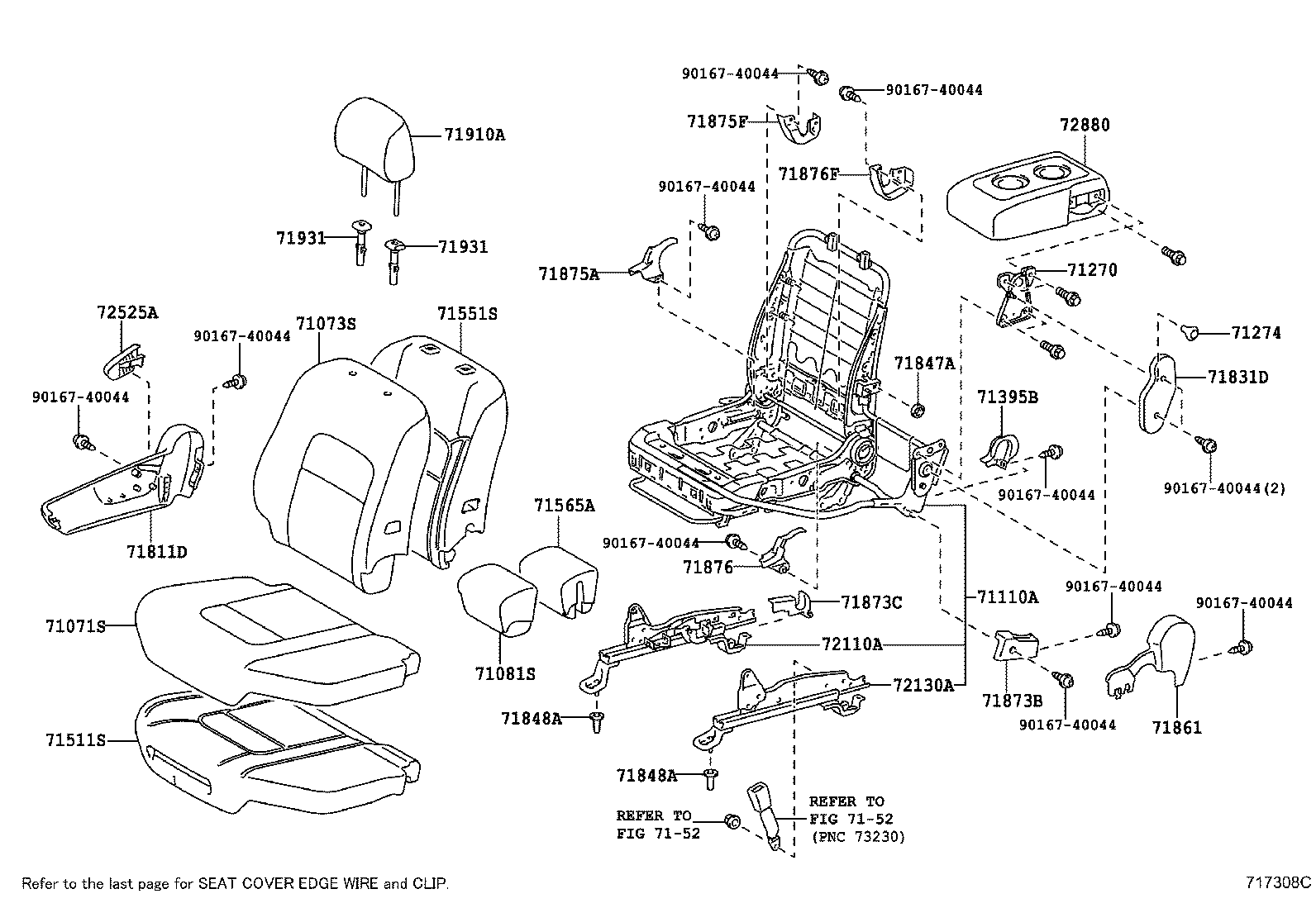

717308C

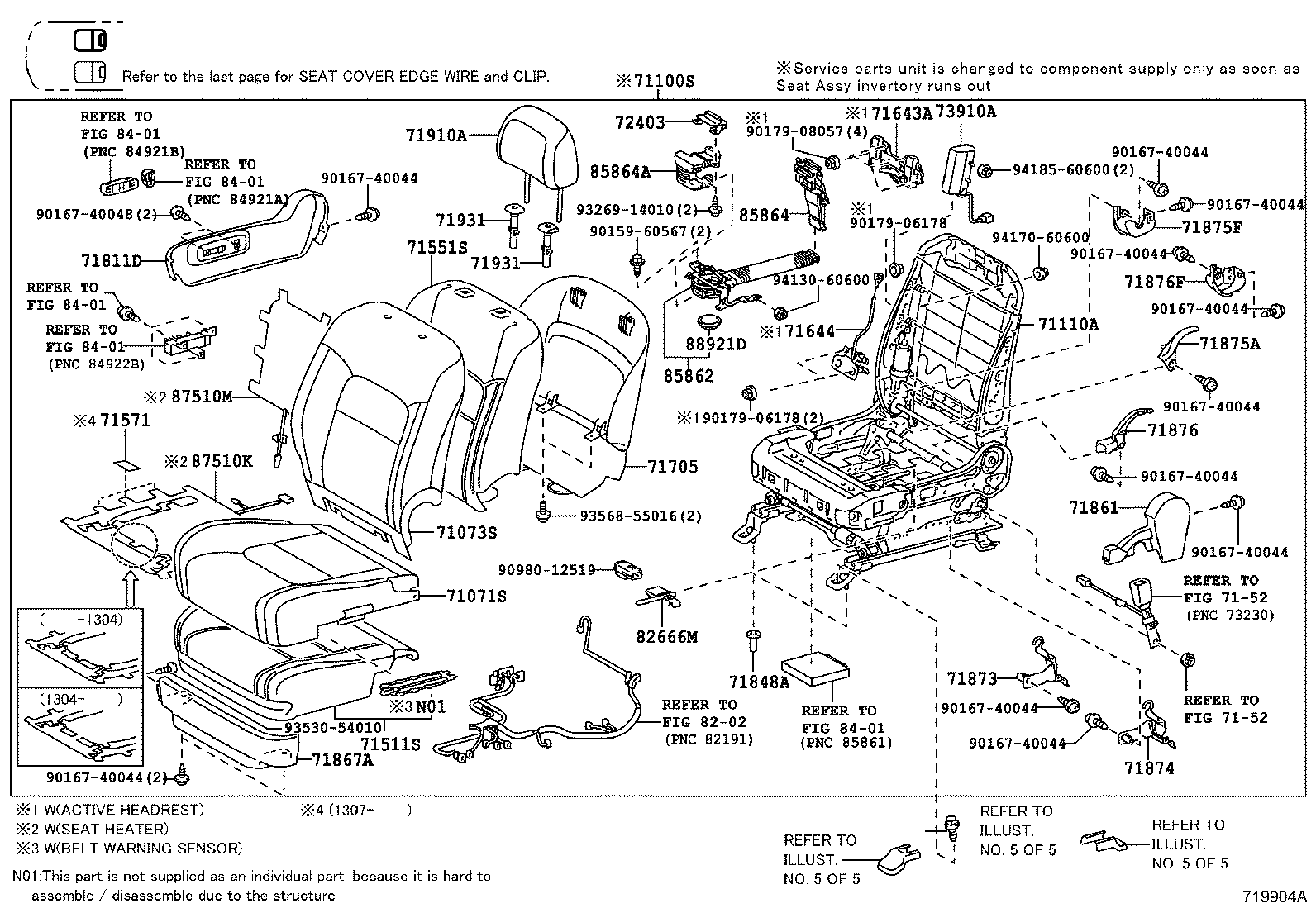

719904A

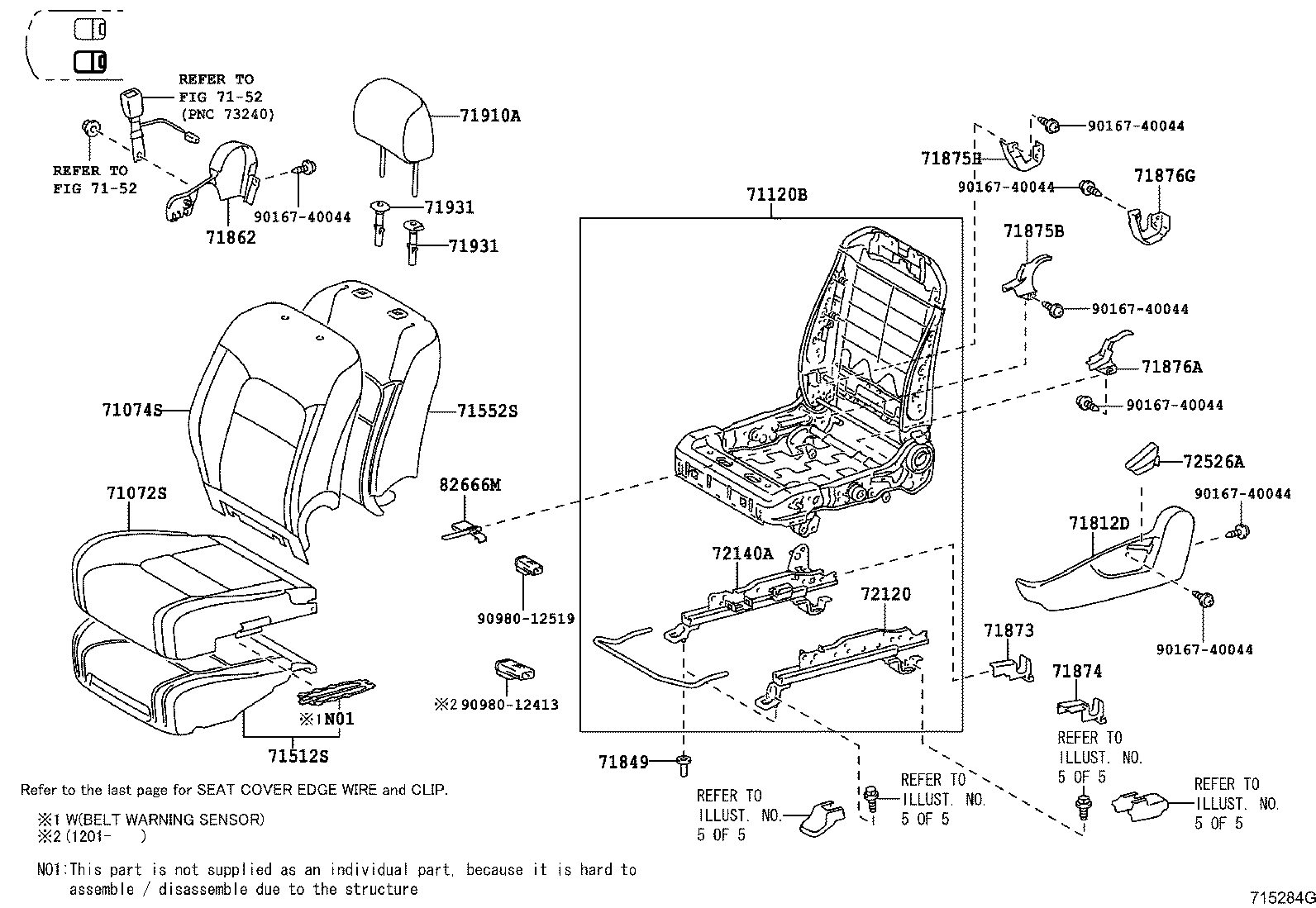

715284G

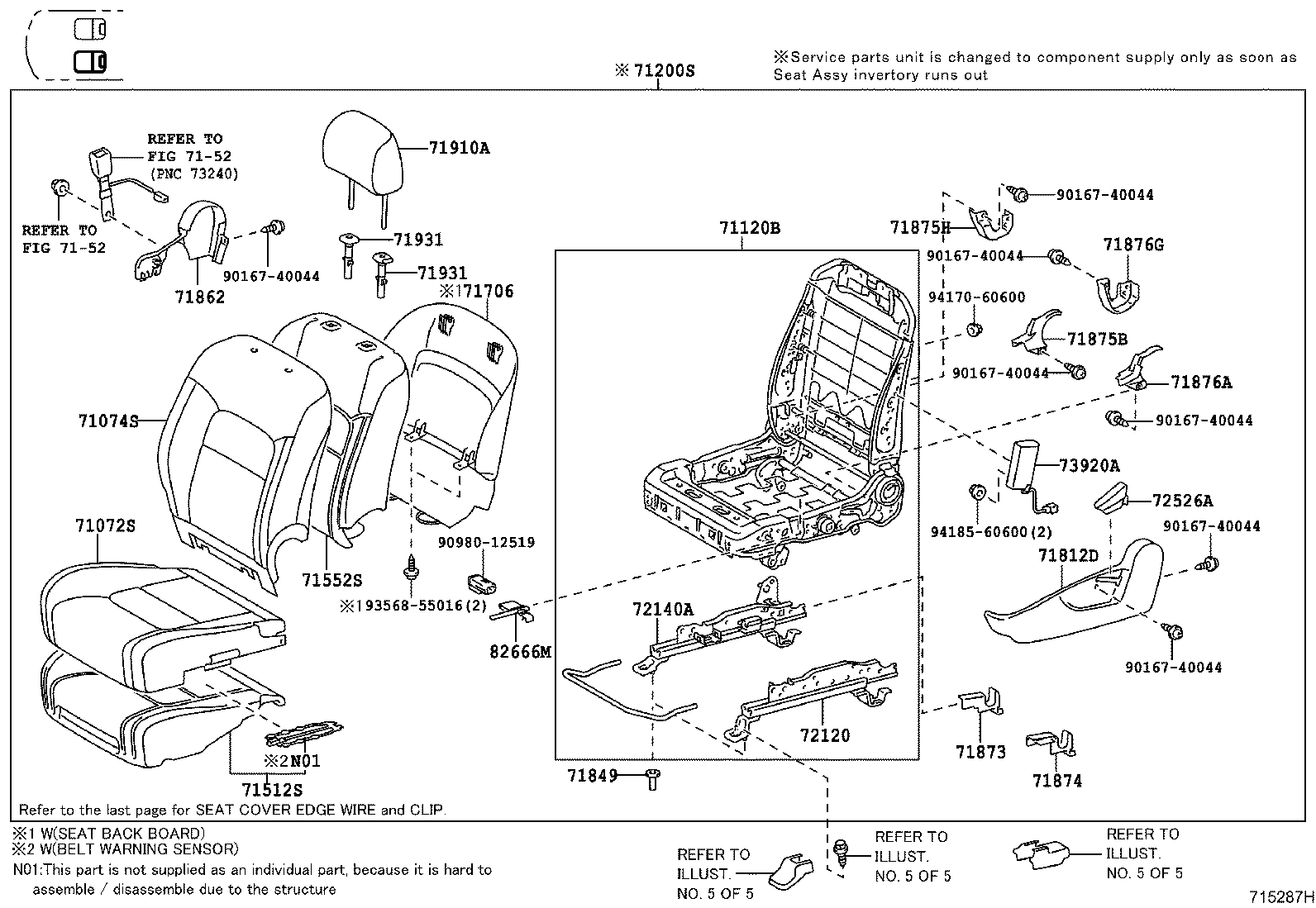

715287H
715289M
717309C

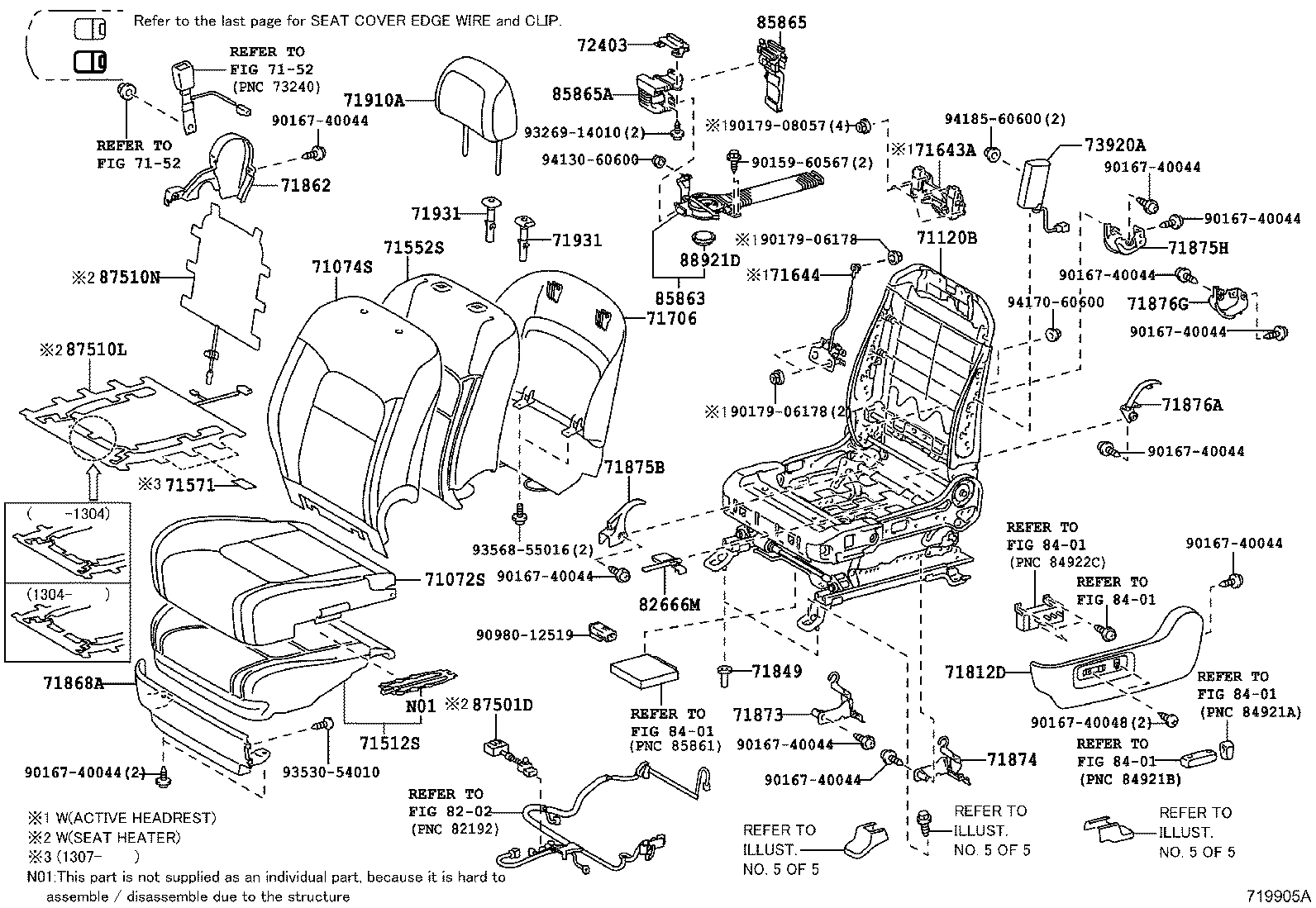

719905A

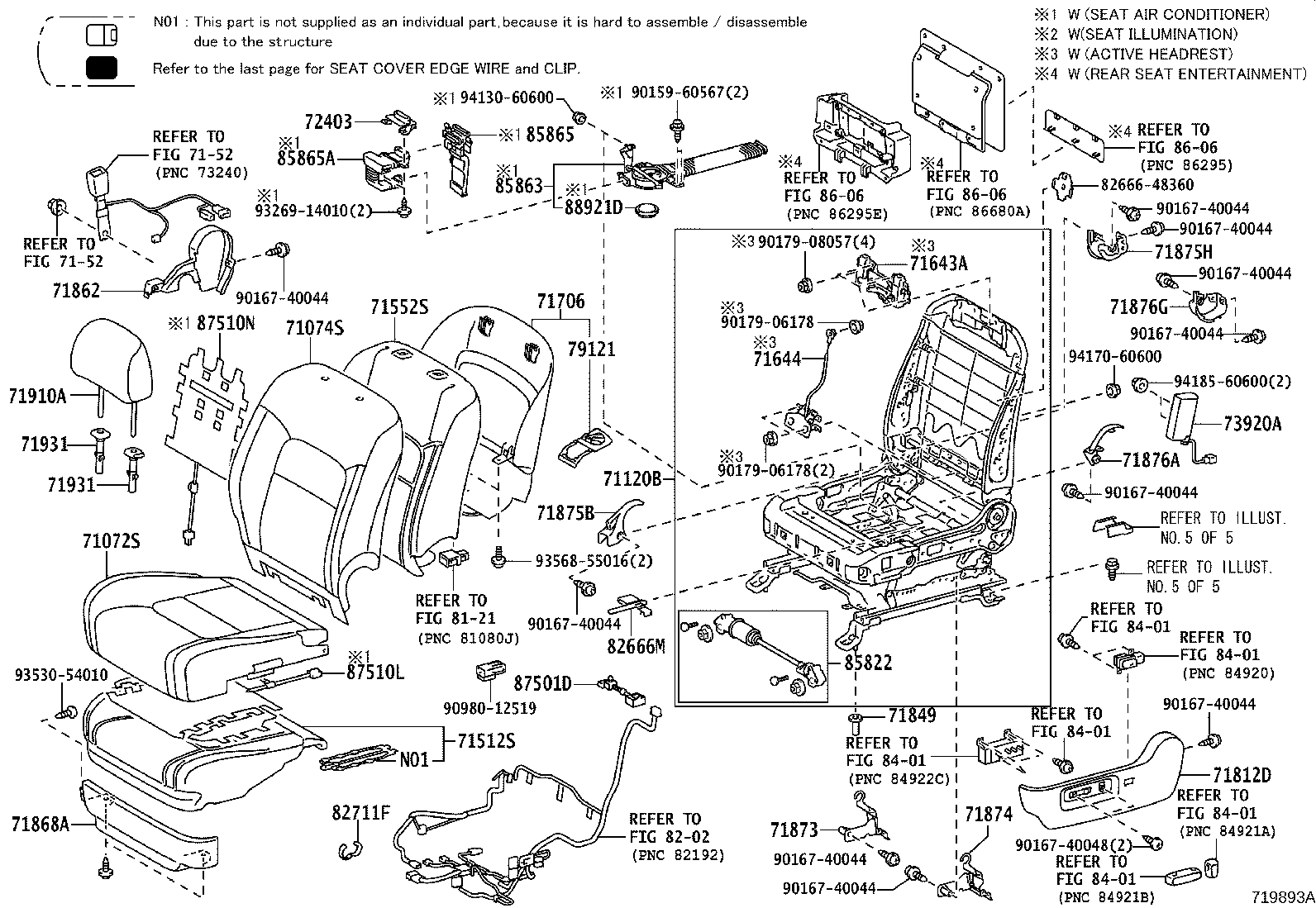

719893A

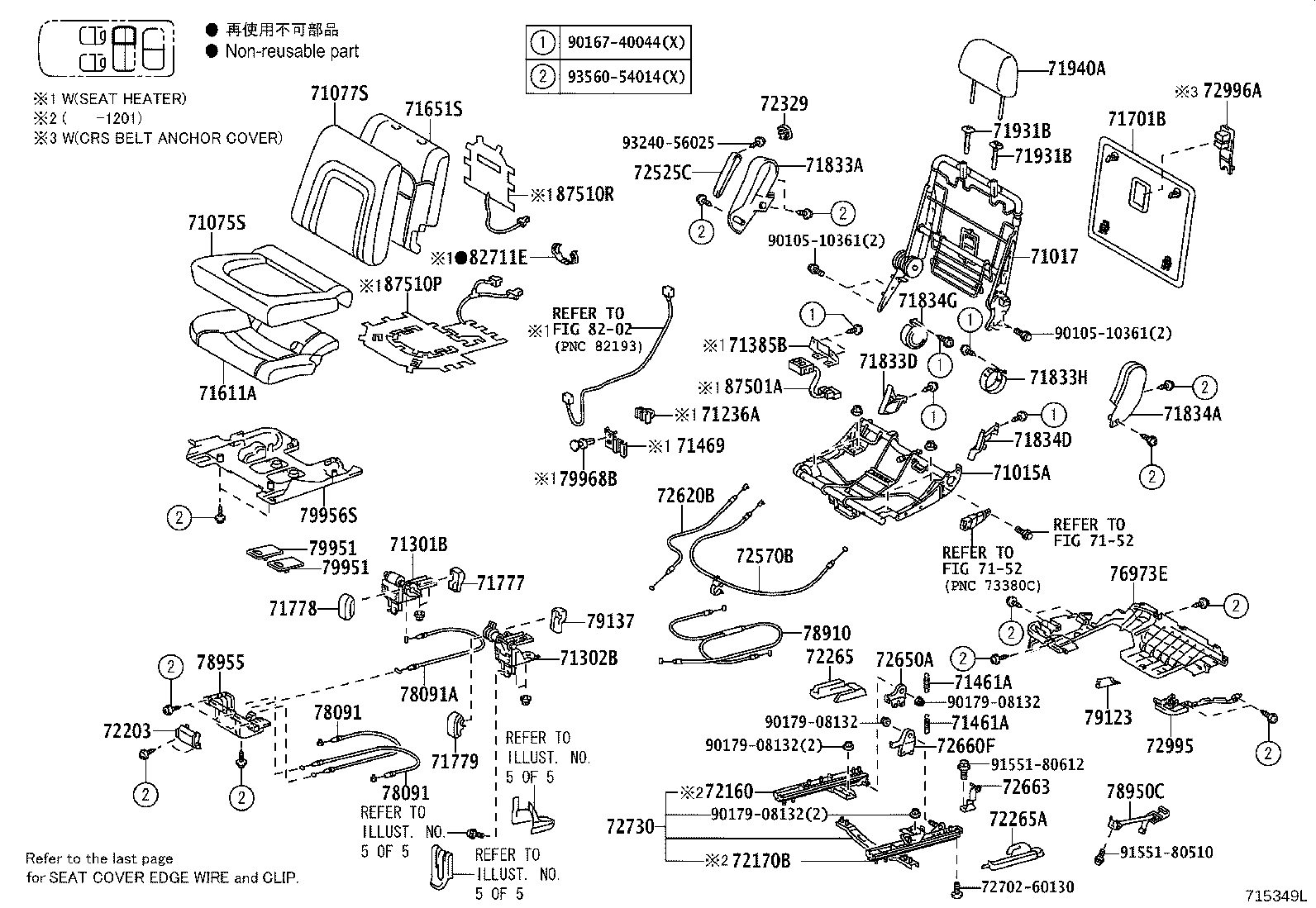

715349L
715359K
715231L

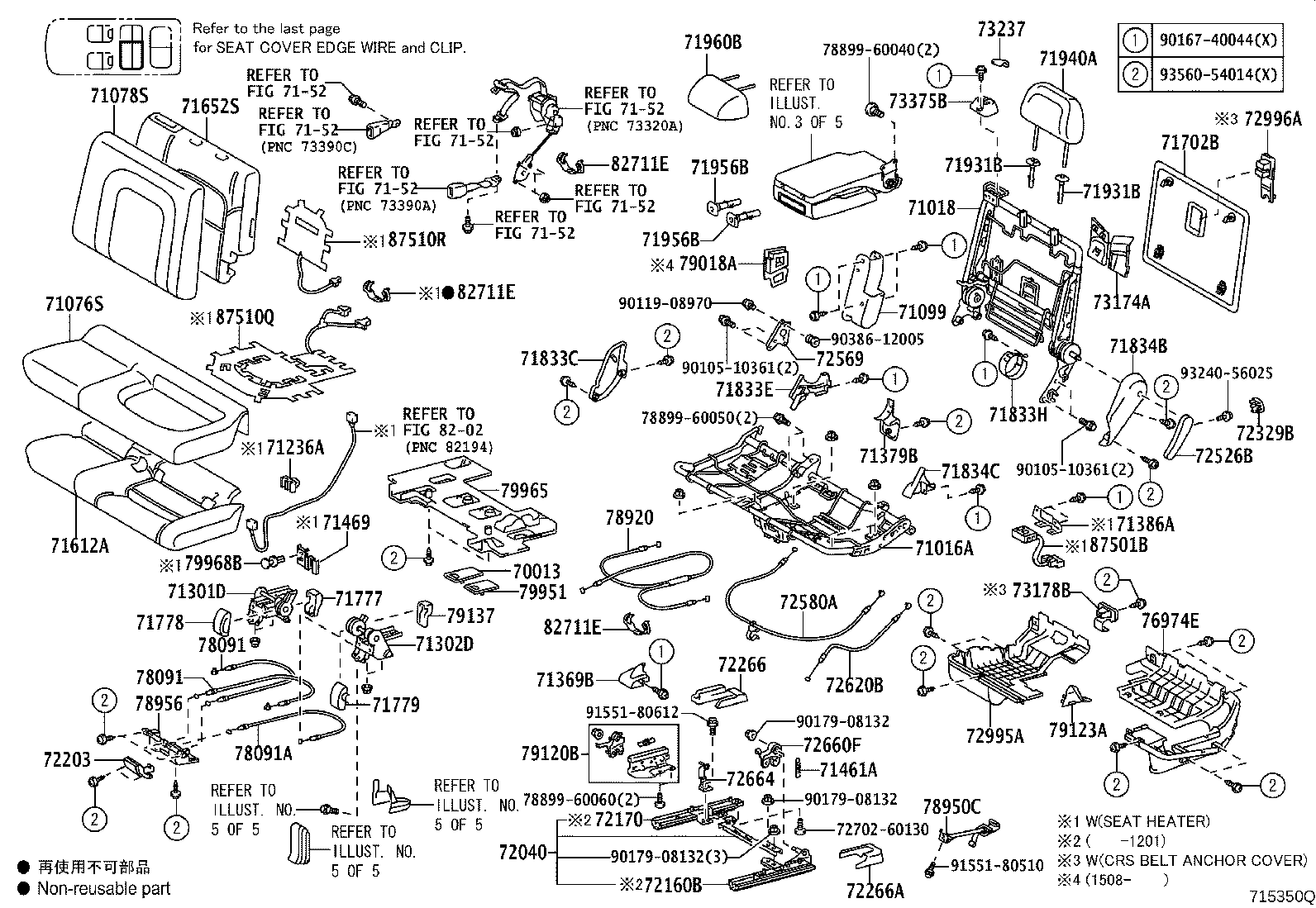

715350Q

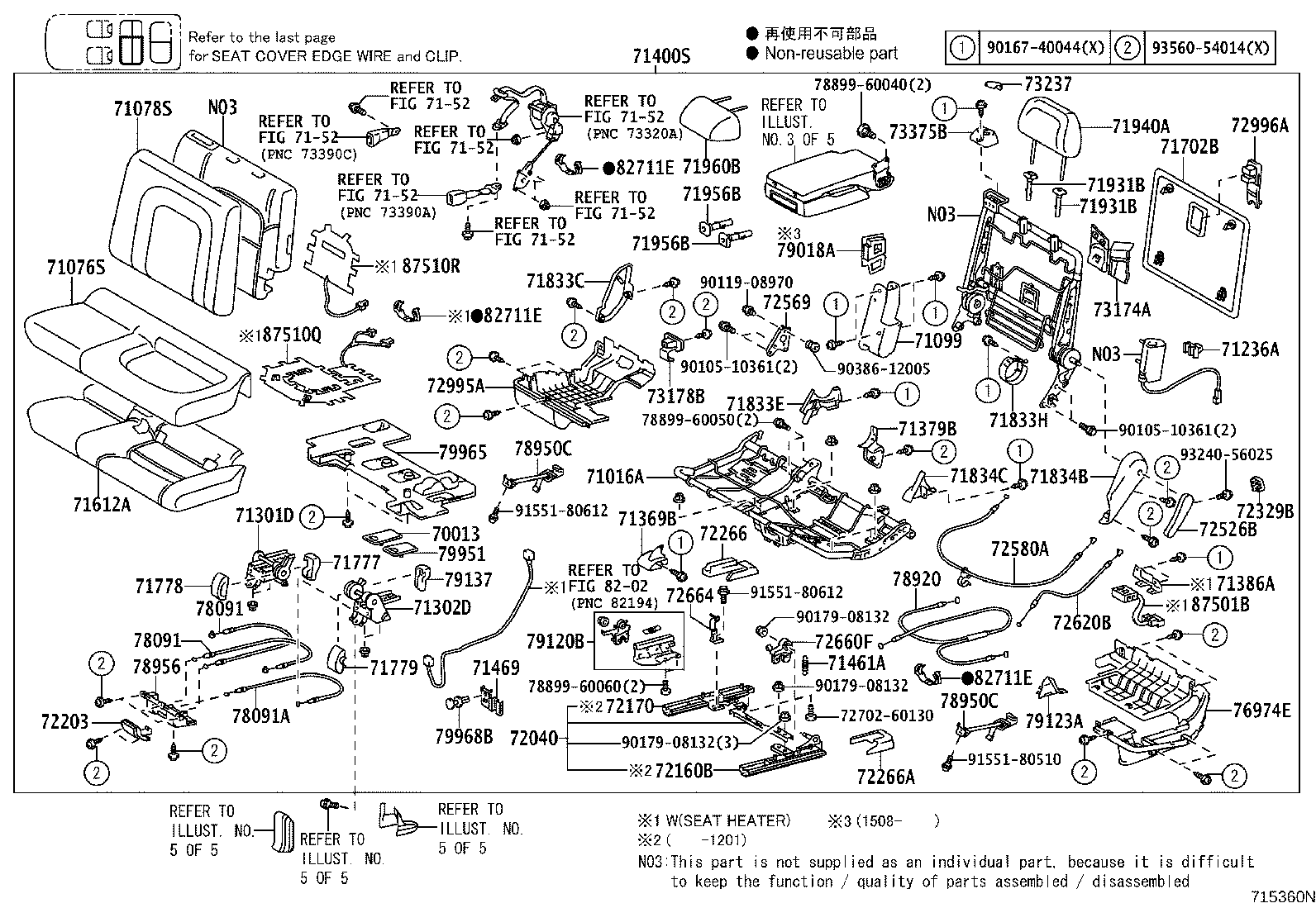

715360N

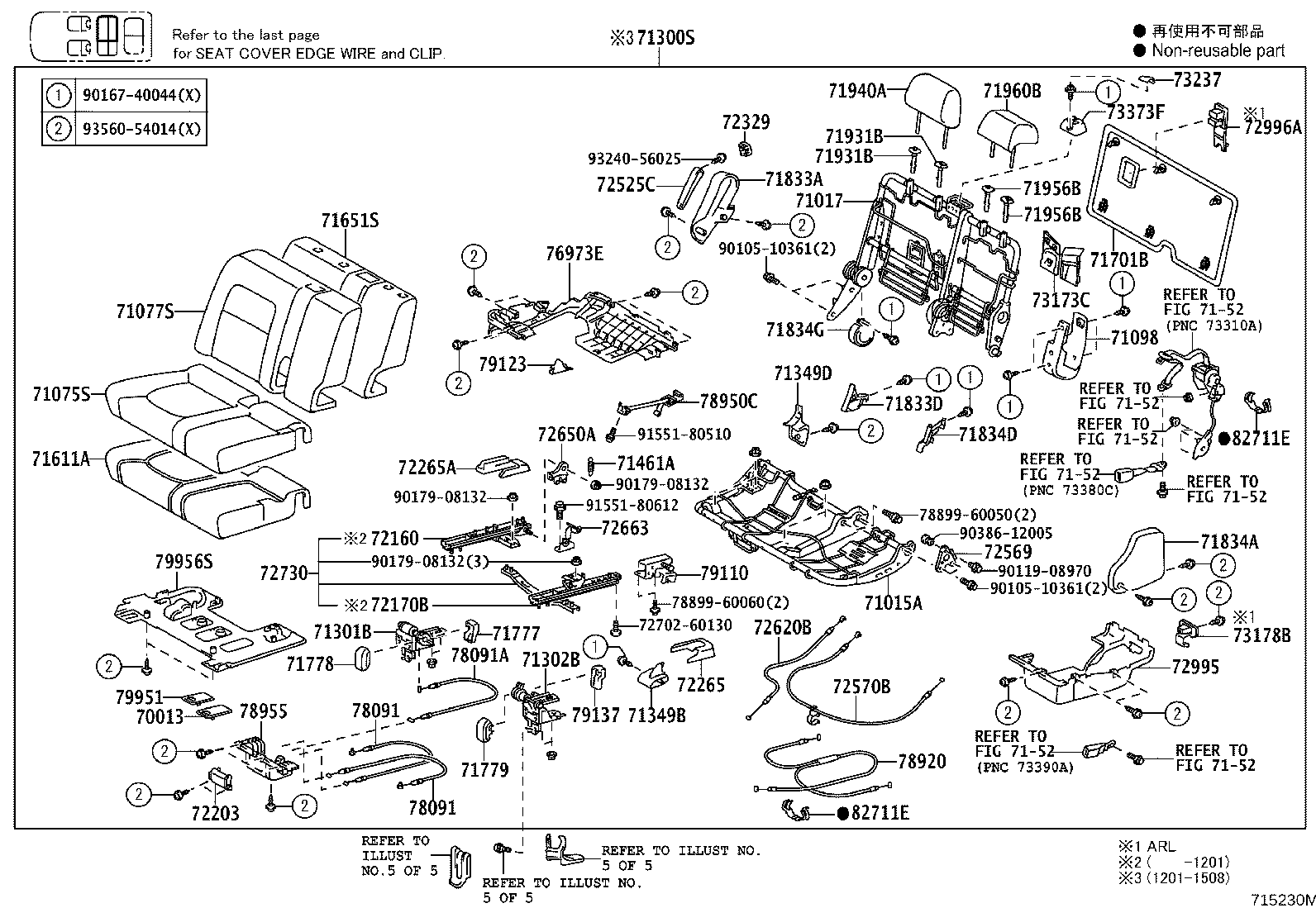

715230M

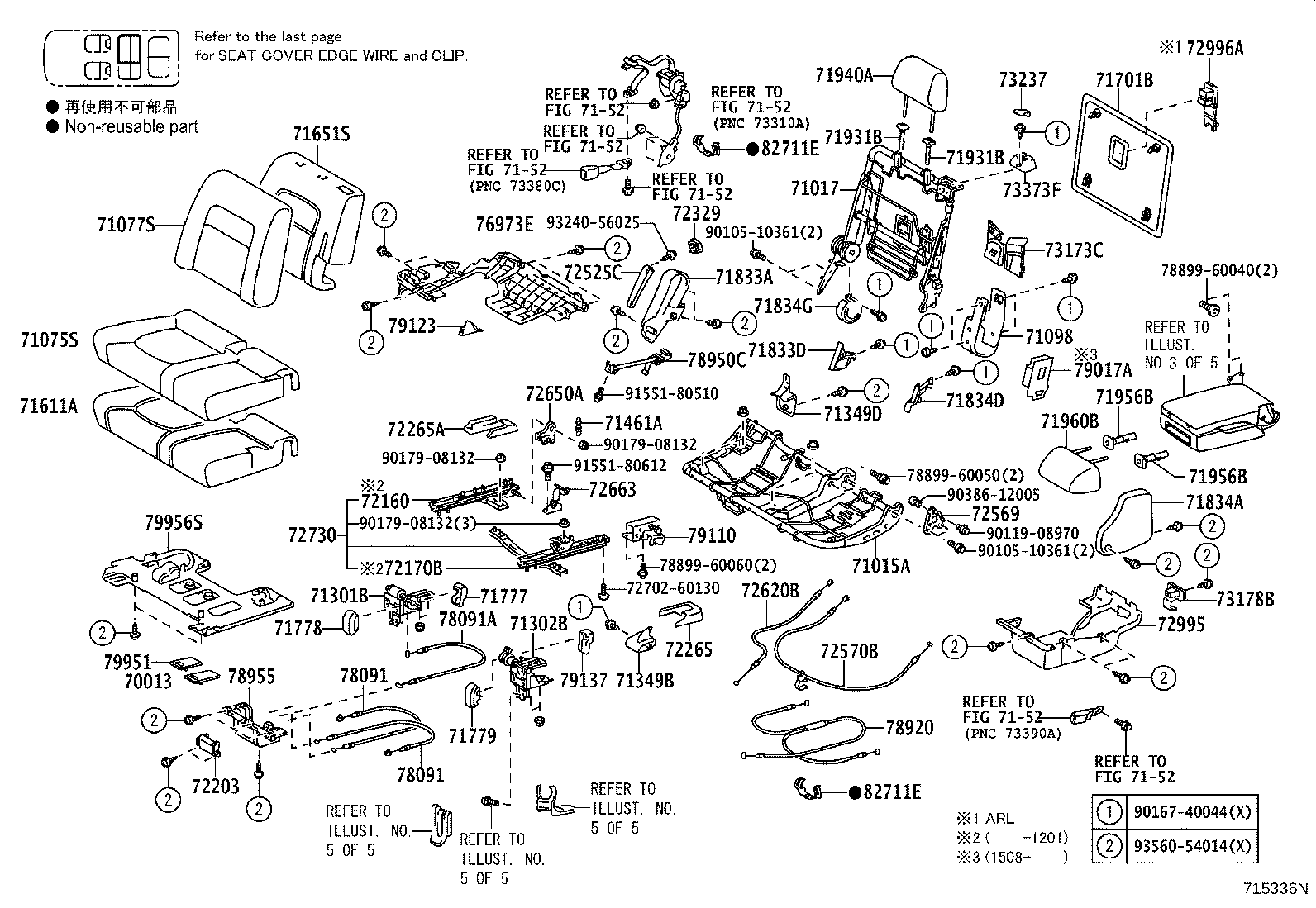

715336N

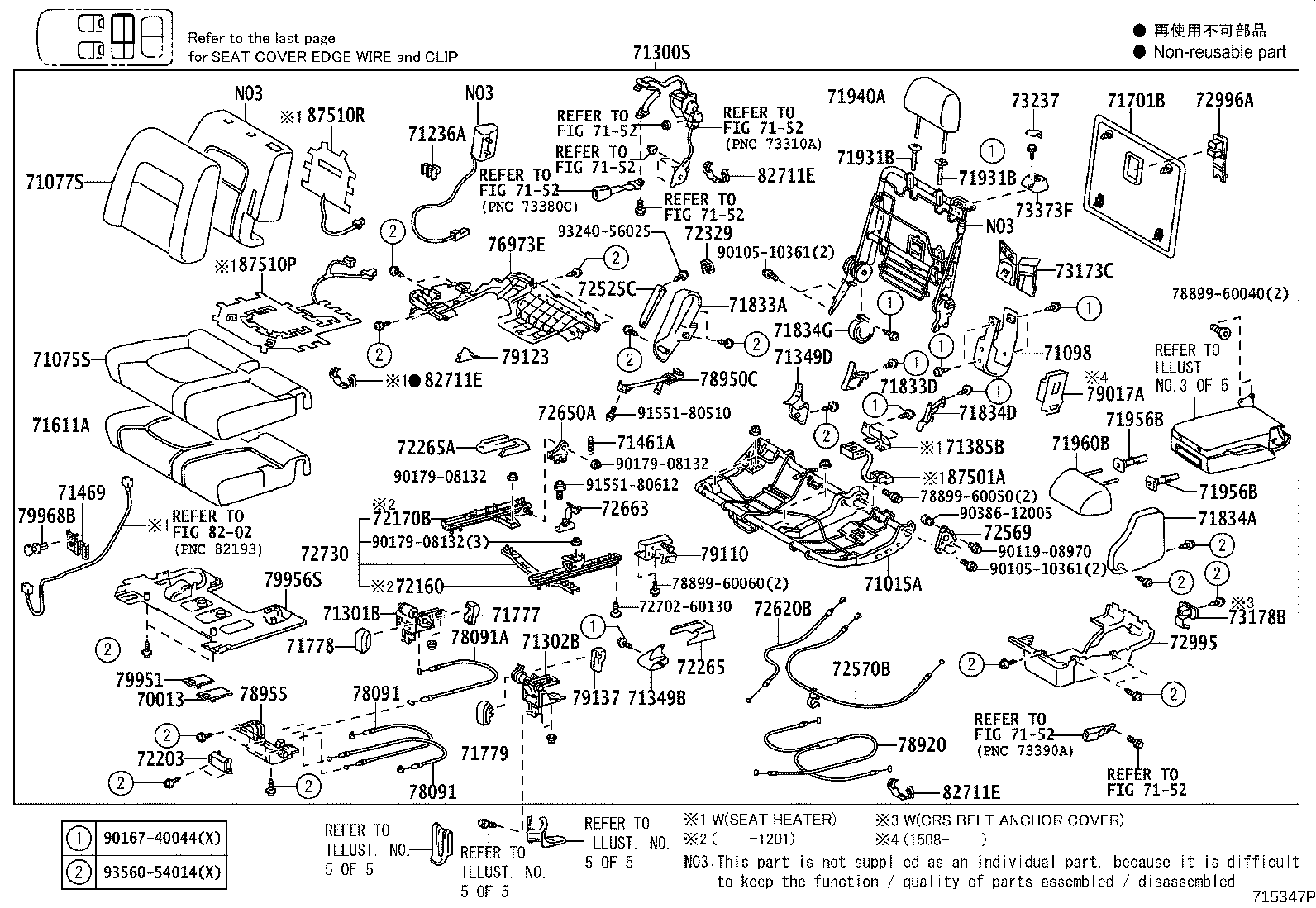

715347P

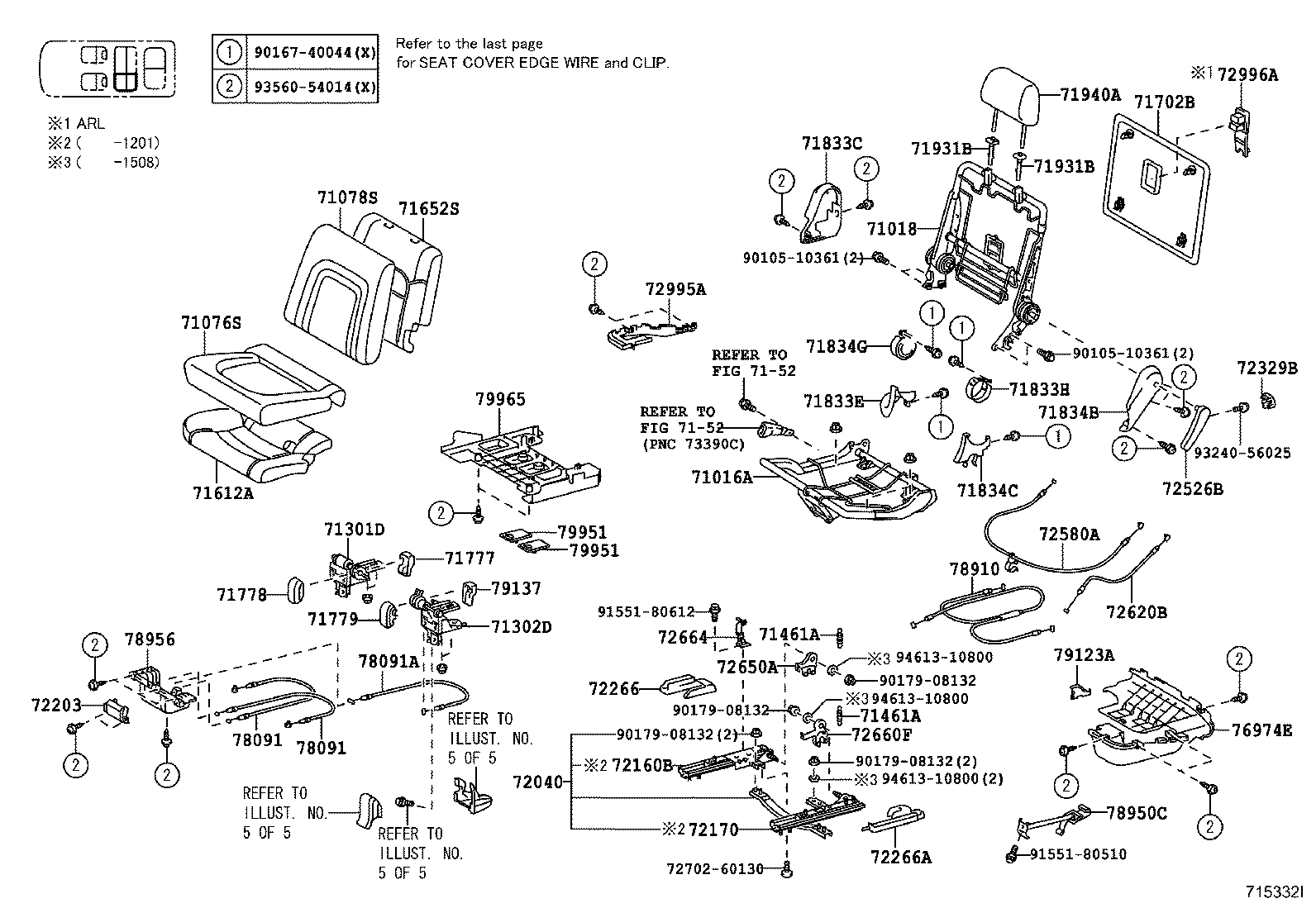

715332I

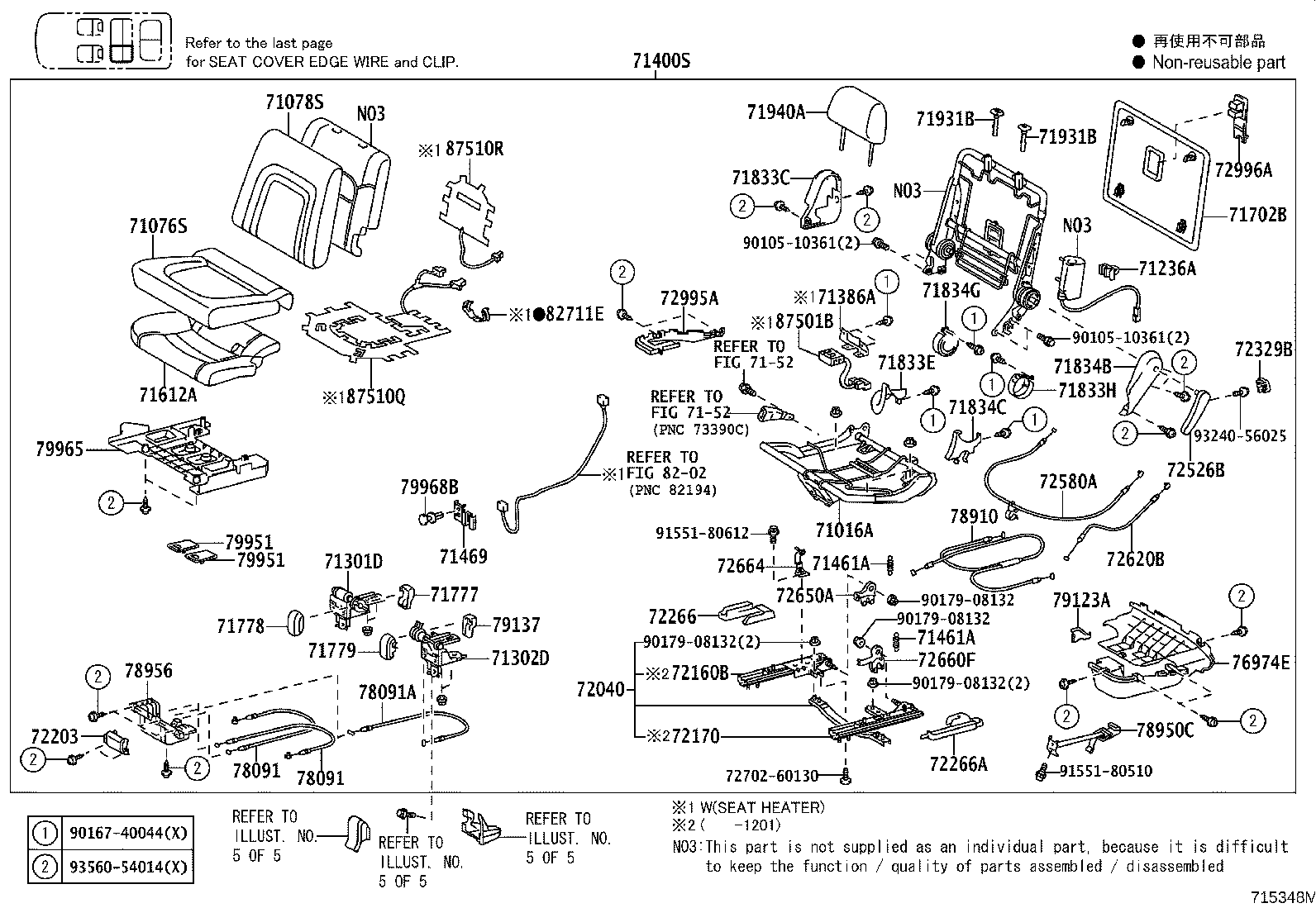

715348M

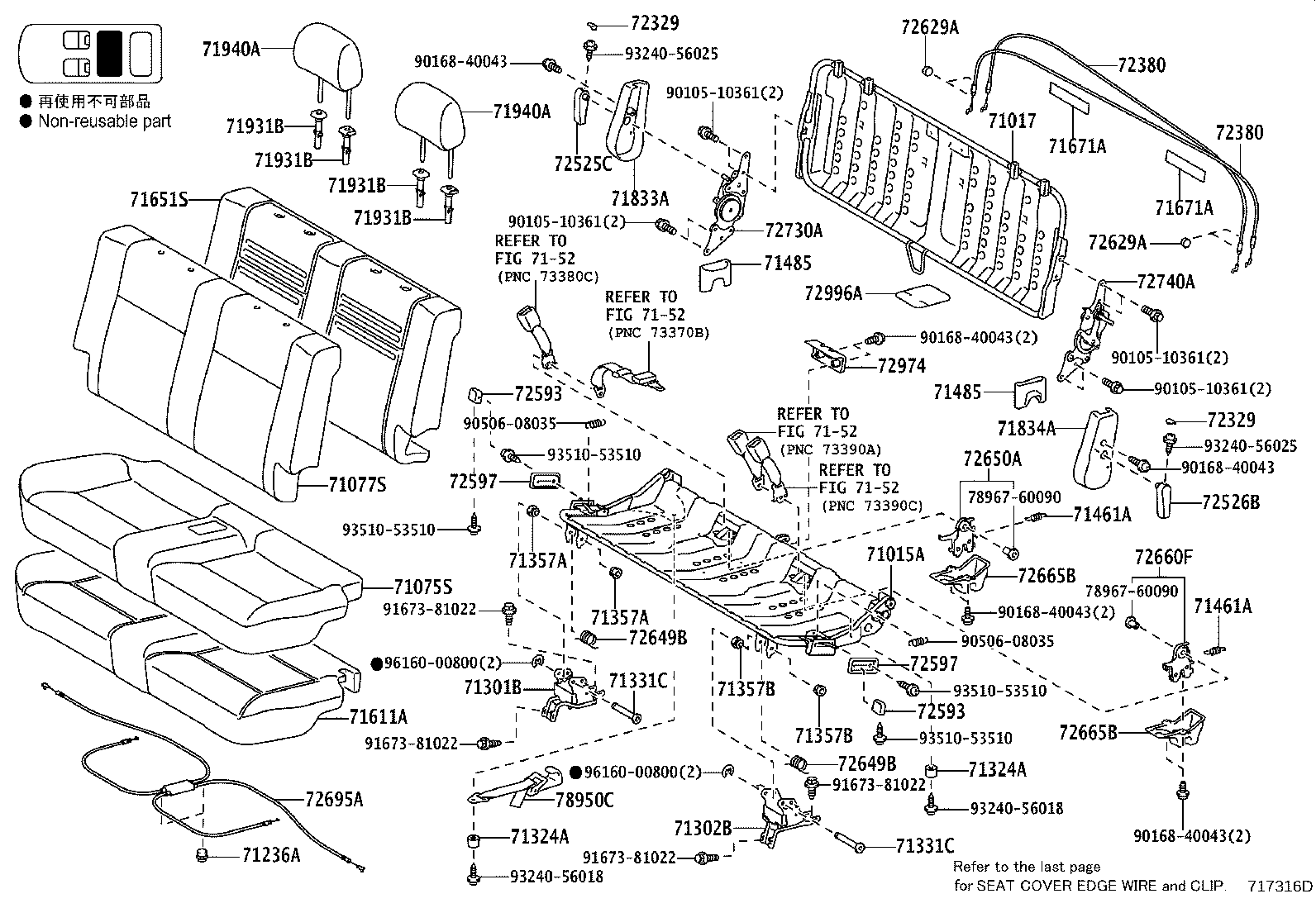

717316D

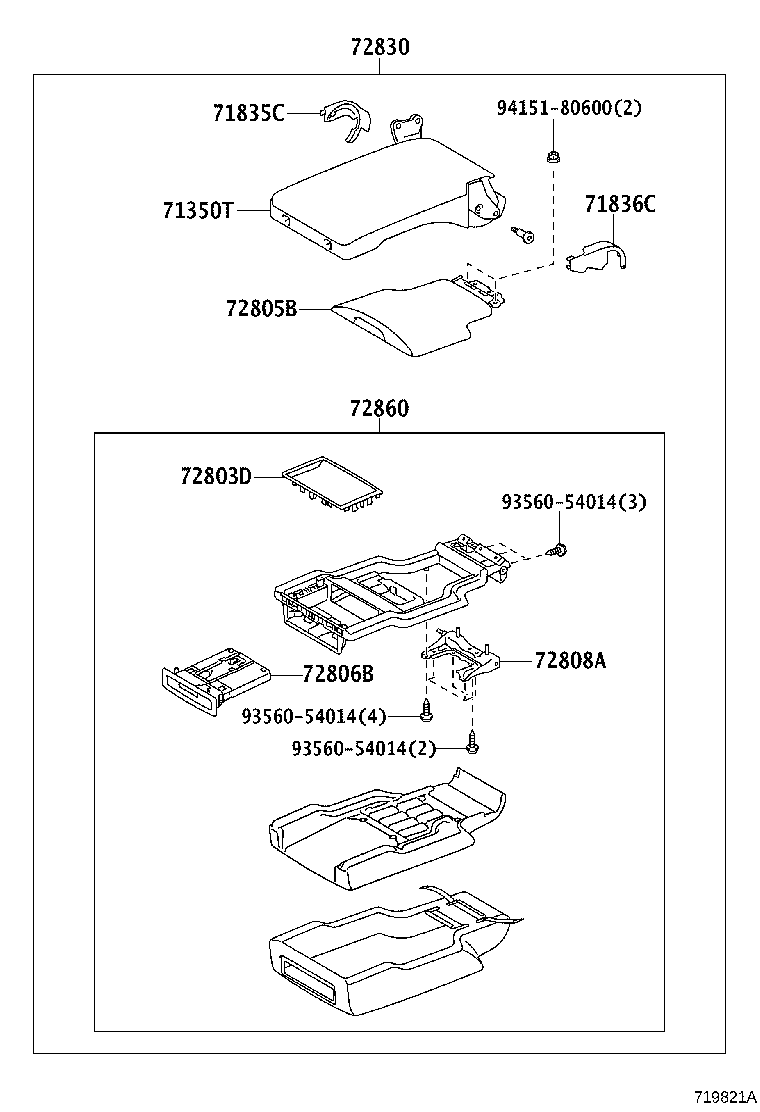

719819A
719820A
719821A

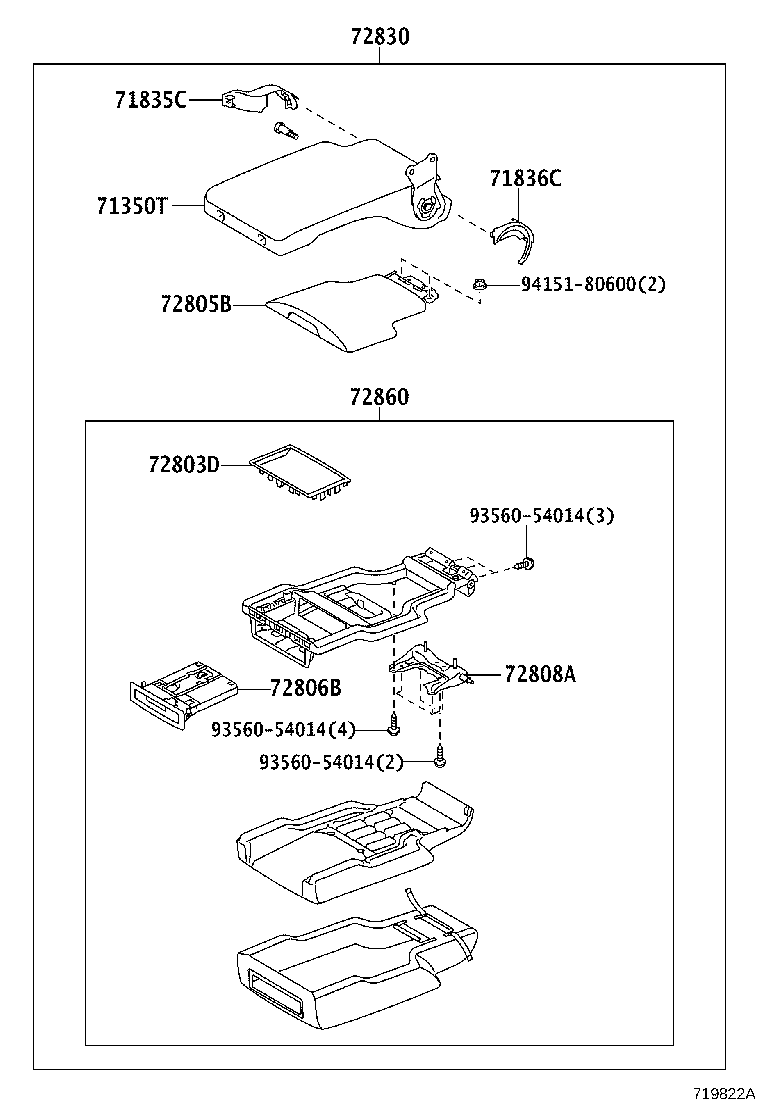

719822A
716289J
716290J

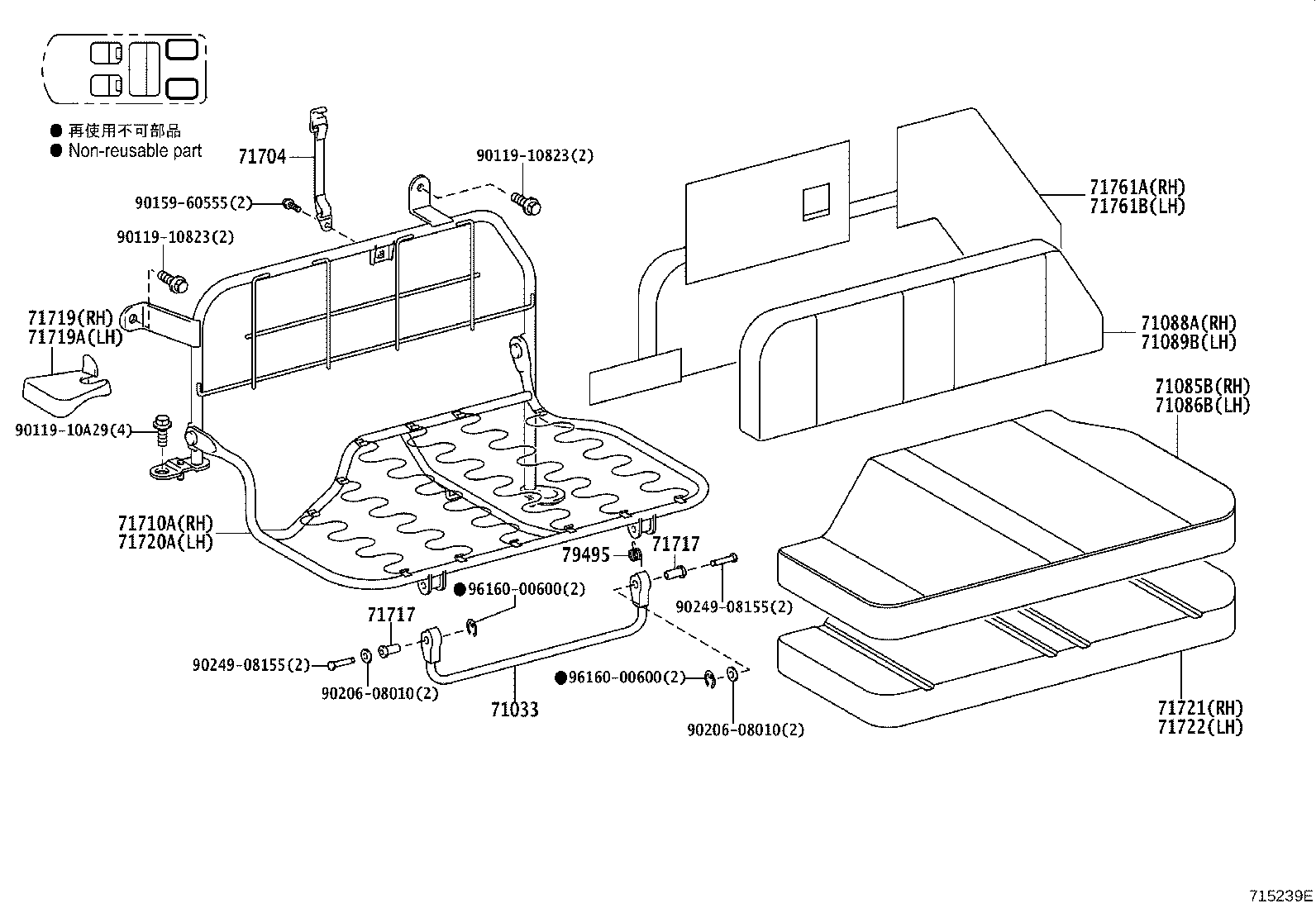

715239E
719877

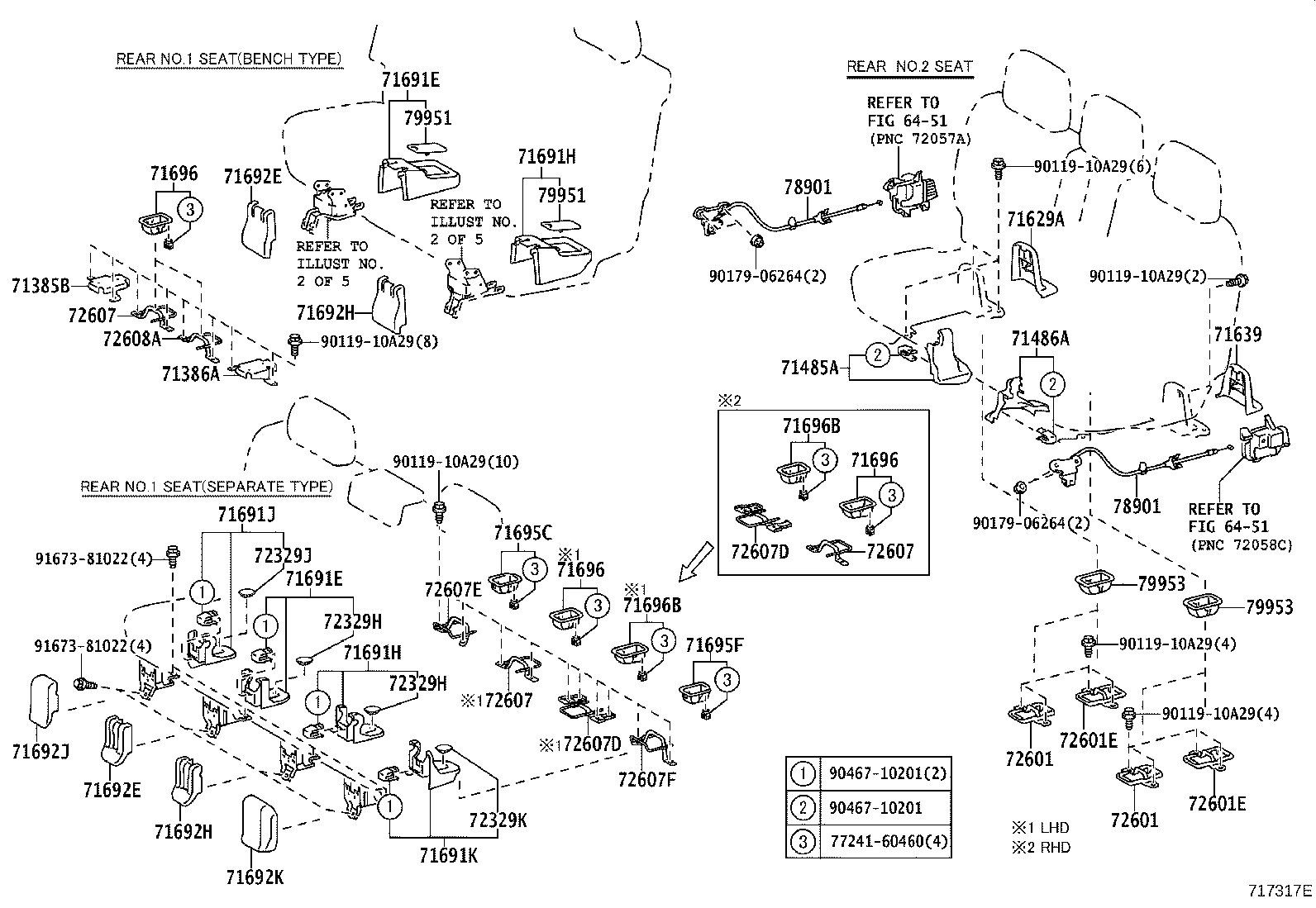

717317E
719024E
Part groups
| PNC | Description |
|---|---|
| 66990 | Holder Assy, Cup |
| 66990B | Holder Assy, Cup, NO.2 RH |
| 66990J | Holder Assy, Cup, NO.1 LH |
| 70013 | Cover Assy, NO.1 Seat Cushion |
| 71015A | Frame Sub-assy, Rear Seat Cushion, RH |
| 71016A | Frame Sub-assy, Rear Seat Cushion, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71033 | Leg Sub-assy, Rear Seat Cushion |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71081S | Cover Sub-assy, Front Seatback Side, RH |
| 71082S | Cover Sub-assy, Front Seatback Side, LH |
| 71085B | Cover Sub-assy, Rear Side Seat Cushion, RH |
| 71086B | Cover Sub-assy, Rear Side Seat Cushion, LH |
| 71088A | Cover Sub-assy, Rear Side Seatback, RH |
| 71089B | Cover Sub-assy, Rear Side Seatback, LH |
| 71098 | Cover Sub-assy, Rear Seatback, Lower RH |
| 71099 | Cover Sub-assy, Rear Seatback, Lower LH |

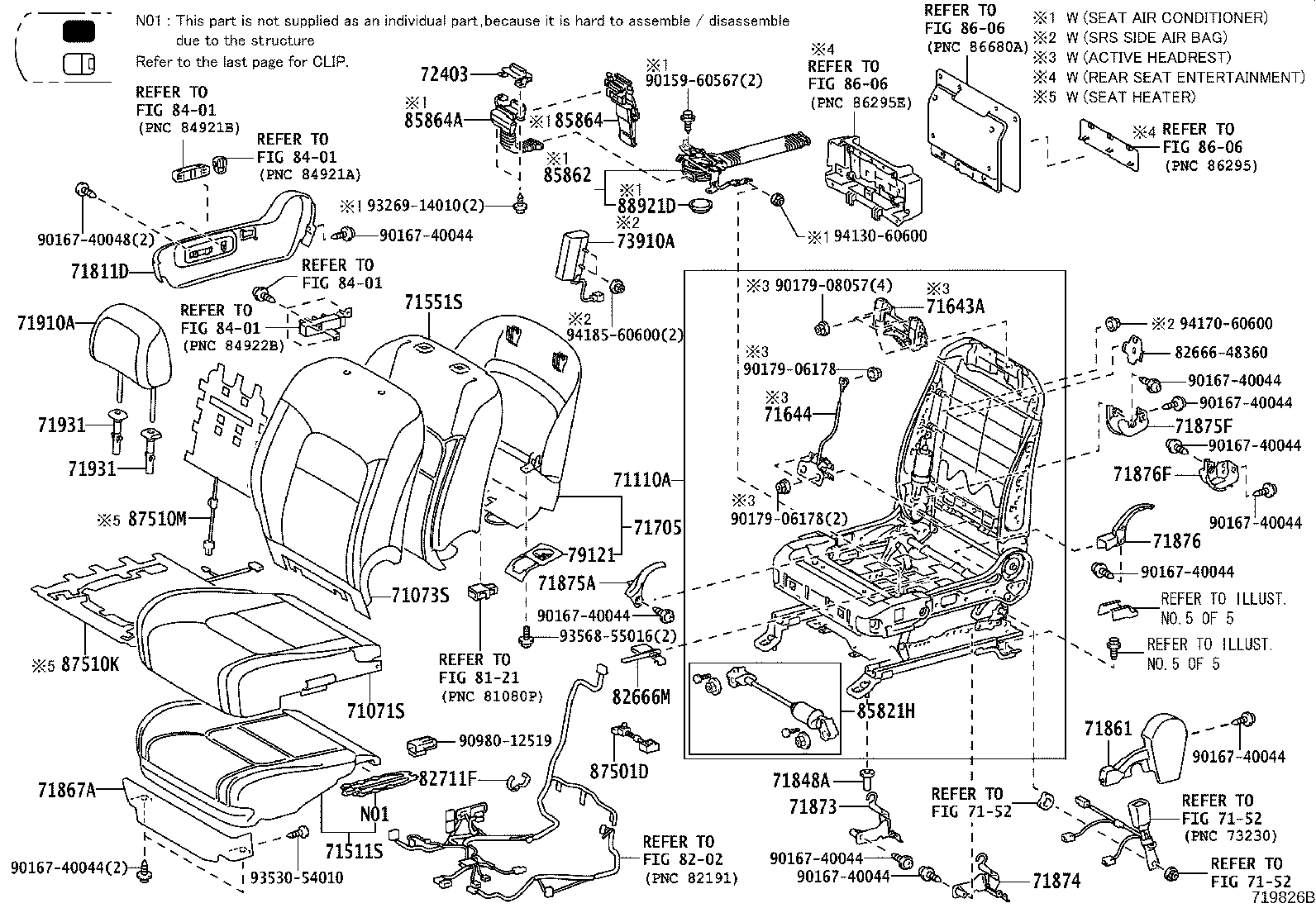

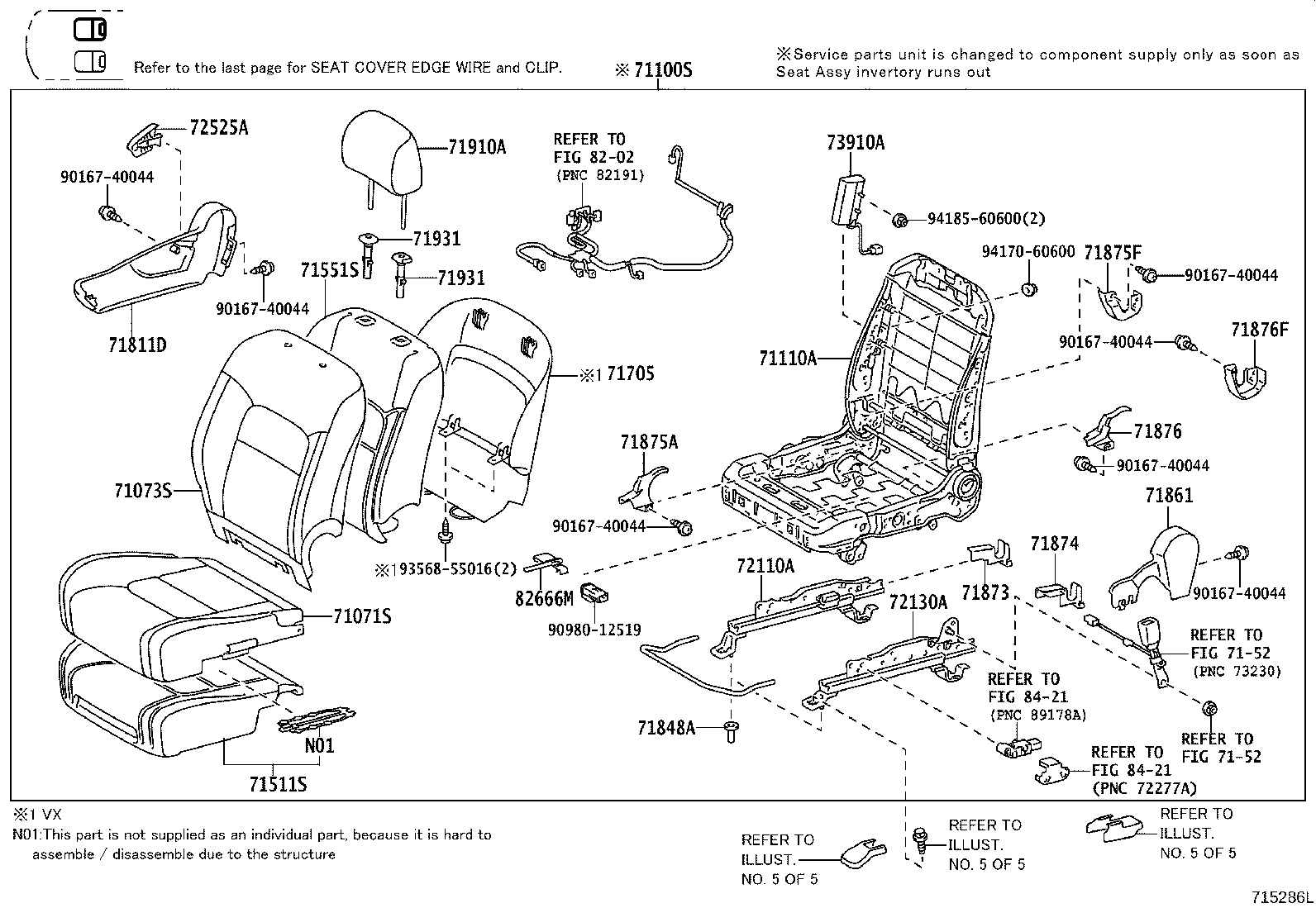

| 71100S | Seat Assy, Front RH |
| 71110A | Frame Assy, Front Seat W/Adjuster, RH |
| 71120B | Frame Assy, Front Seat W/Adjuster, LH |
| 71200S | Seat Assy, Front LH |
| 71236A | Clamp, Rear Seat Cushion Spring |
| 71270 | Bracket Assy, Seat, Inner RH |
| 71274 | Knob, Front Seat Hinge |
| 71280 | Bracket Assy, Seat, Inner LH |

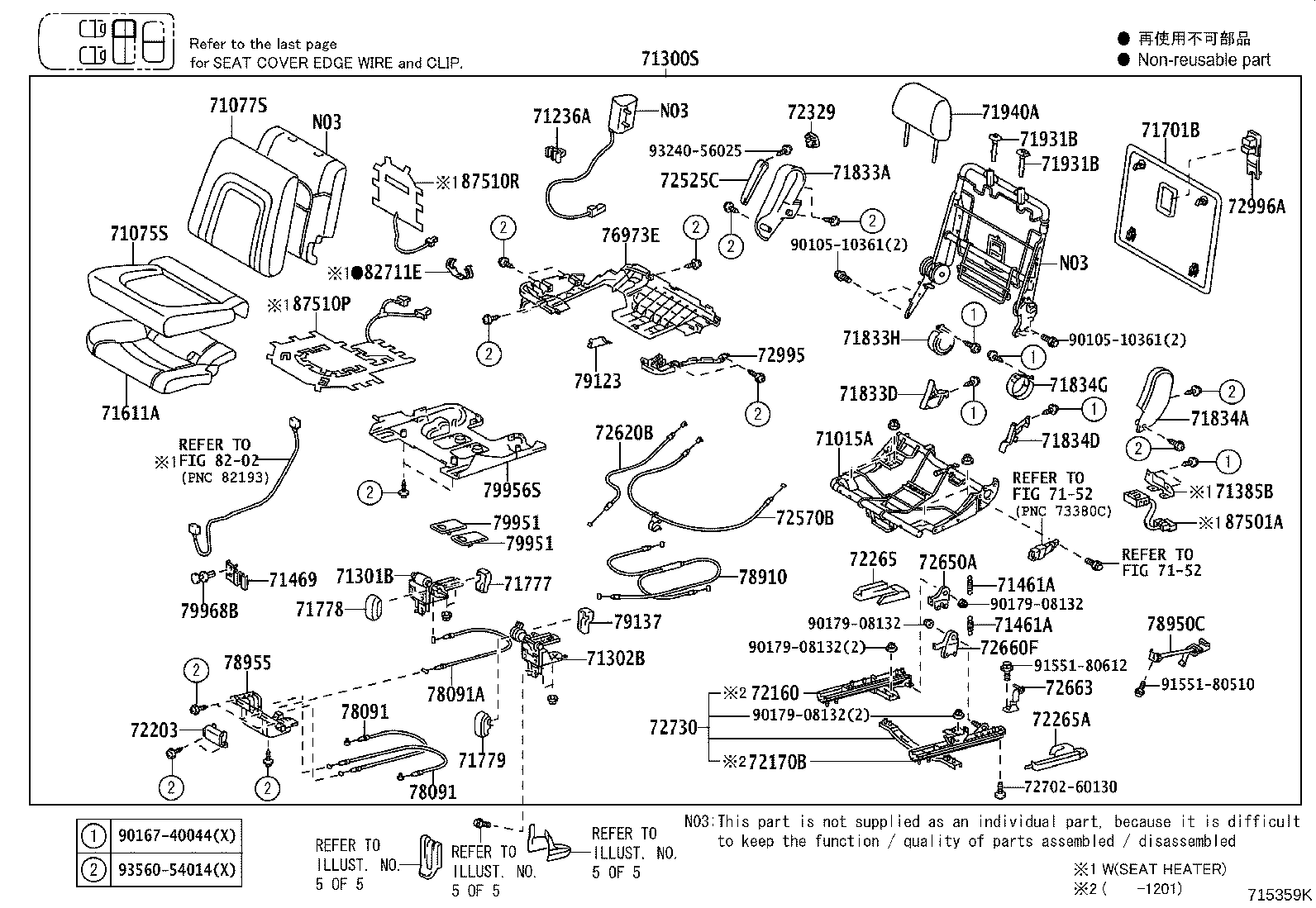

| 71300S | Seat Assy, Rear RH |
| 71301B | Hinge Sub-assy, Rear NO.1 Seat, RH |
| 71301D | Hinge Sub-assy, Rear Seat, RH |
| 71302B | Hinge Sub-assy, Rear NO.1 Seat, LH |
| 71302D | Hinge Sub-assy, Rear Seat, LH |
| 71324A | Cushion, Rear Seat |
| 71331C | Pin, Rear Seat Hinge, LH |
| 71349B | Cover, Rear Seatback Stay, RH |
| 71349D | Cover, Rear Seatback Hinge, RH |
| 71350T | Back Assy, Center Seat |
| 71357A | Plate, Rear Seat Hinge Set, RH |
| 71357B | Plate, Rear Seat Hinge Set, LH |
| 71369B | Cover, Rear Seatback Stay, LH |
| 71379B | Cover, Rear Seatback Hinge, LH |
| 71385B | Bracket, Rear Seat Cushion Holder, RH |
| 71386A | Bracket, Rear Seat Cushion Holder, LH |
| 71395B | Cover, Center Seat Hinge, RH |
| 71396B | Cover, Center Seat Hinge, LH |

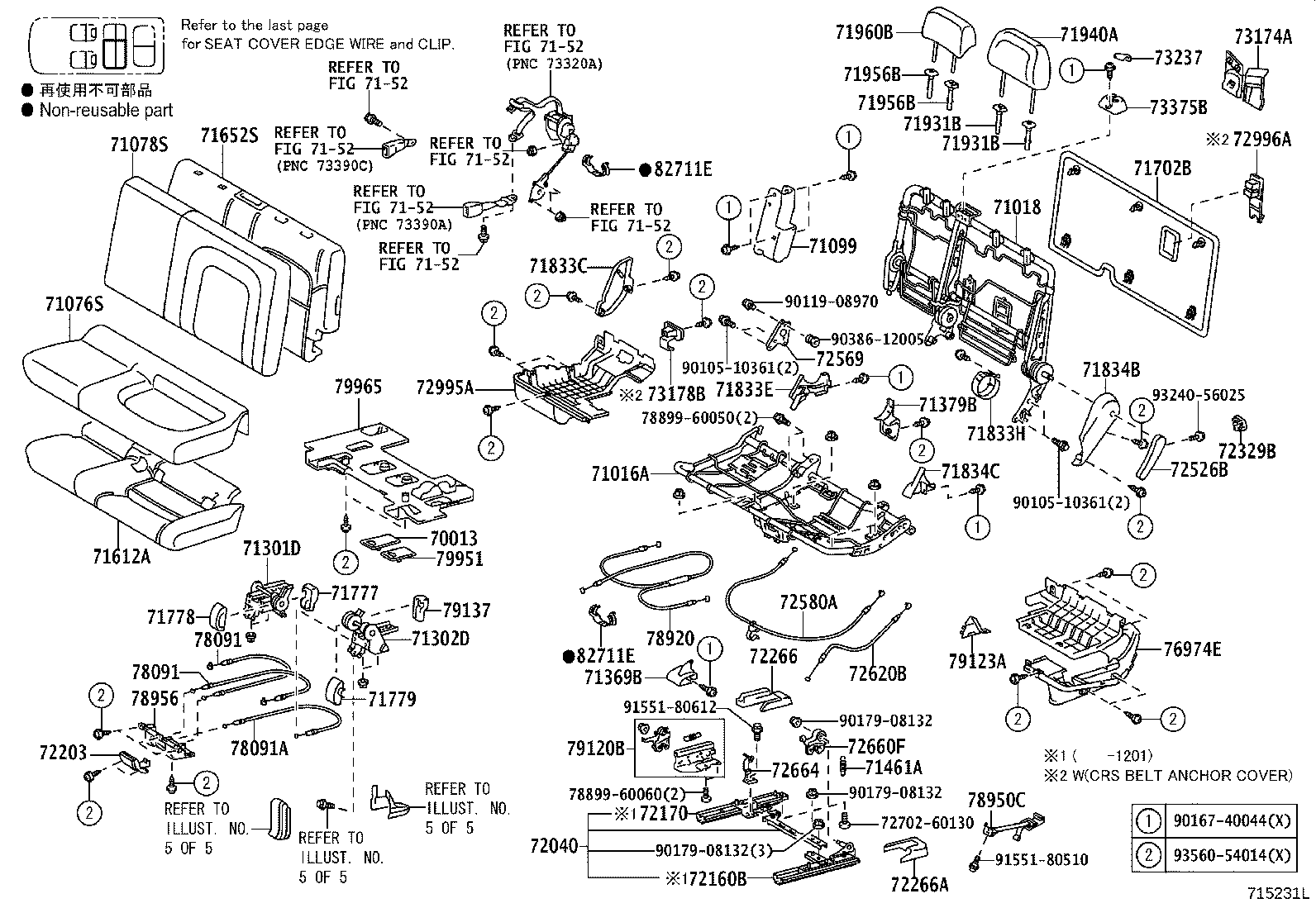

| 71400S | Seat Assy, Rear, LH (FOR SEPARATE TYPE) |
| 71461A | Spring, Rear Seat Cushion, NO.1 |
| 71469 | Protector, Rear Seat, NO.2 |
| 71485 | Cover, Rear Seat Hinge |
| 71485A | Cover, Rear Seat Hinge, NO.2 RH |
| 71486A | Cover, Rear Seat Hinge, NO.2 LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71565A | Pad, Front Seatback, Inside RH |
| 71566 | Pad, Front Seatback, Inside LH |
| 71571 | Pad, Front Seatback Silencer, A |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71629A | Cover, Rear Seat Cushion Hinge, RH |
| 71639 | Cover, Rear Seat Cushion Hinge, LH |
| 71643A | Unit, Active Headrest, Upr |
| 71644 | Unit, Active Headrest, Lwr |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71671A | Pad, Rear Seatback Silencer, A |
| 71691E | Cover, Rear Seat Cushion Hinge, NO.1 |
| 71691H | Cover, Rear Seat Cushion Hinge, NO.2 |
| 71691J | Cover, Rear Seat Cushion Hinge, NO.3 |
| 71691K | Cover, Rear Seat Cushion Hinge, NO.4 |
| 71692E | Cover, Rear Seat Cushion Hinge, NO.2 |
| 71692H | Cover, Rear Seat Cushion Hinge, NO.3 |
| 71692J | Cover, Rear Seat Cushion Hinge, NO.4 |
| 71692K | Cover, Rear Seat Cushion Hinge, NO.5 |
| 71695C | Protector, Rear Seat, NO.1 |
| 71695F | Protector, Rear Seat, NO.1 |
| 71696 | Protector, Rear Seat, NO.2 |
| 71696B | Protector, Rear Seat, NO.2 |
| 71701B | Board Sub-assy, Rear Seatback, RH |
| 71702B | Board Sub-assy, Rear Seatback, LH |
| 71704 | Band Sub-assy, Rear Side Seat |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71710A | Frame Assy, Rear Side Seat, RH |
| 71717 | Plate, Front Side Seat Leg |
| 71719 | Protector, Rear Side Seat Leg, RH |
| 71719A | Protector, Rear Side Seat Leg, LH |
| 71720A | Frame Assy, Rear Side Seat, LH |
| 71721 | Pad, Rear Side Seat Cushion, RH |
| 71722 | Pad, Rear Side Seat Cushion, LH |
| 71761A | Pad, Rear Side Seatback, RH |
| 71761B | Pad, Rear Side Seatback, LH |
| 71777 | Cover, Rear Seat Side Hinge Female |
| 71778 | Cover, Rear Seat Side Hinge Male, RH |
| 71779 | Cover, Rear Seat Side Hinge Male, LH |
| 71788B | Washer, Front Seatback Board Setting |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71833C | Cover, Rear Seat Reclining, NO.2 RH |
| 71833D | Cover Rear Seat Reclining, RH |
| 71833E | Cover, Rear Seat Reclining, NO.3 RH |
| 71833H | Cover, Rear Seat Reclining, NO.1 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71834B | Cover, Rear Seat Reclining, NO.2 LH |
| 71834C | Cover, Rear Seat Reclining, NO.3 LH |
| 71834D | Cover, Rear Seat Reclining, LH |
| 71834G | Cover, Rear Seat Reclining, NO.1 LH |
| 71835C | Moulding, Rear Seatback, RH |
| 71836C | Moulding, Rear Seatback, LH |
| 71843A | Cover, Rear Seat Reclining, NO.2 RH |
| 71843C | Cover, Reclining Adjuster, RH |
| 71843D | Cover, Rear Seat Reclining, NO.2 RH |
| 71844A | Cover, Rear Seat Reclining, NO.2 LH |
| 71844B | Cover, Reclining Adjuster, LH |
| 71844C | Cover, Rear Seat Reclining, NO.2 LH |
| 71847A | Cover, Front Seat Armrest Hole Board |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71848B | Cap, Seat Adjuster Cover, RH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71849A | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873B | Shield, Front Seat Cushion, Lower RH, NO.1 |
| 71873C | Shield, Rear Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71874C | Shield, Front Seat Cushion, Lower |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875H | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71878A | Cover, Rear Seat Reclining, Inner RH |
| 71878B | Cover, Rear Seat Reclining, Inner RH |
| 71878C | Cover, Rear Seat Reclining, Inner RH |
| 71879A | Cover, Rear Seat Reclining, Inner LH |
| 71879B | Cover, Rear Seat Reclining, Inner LH |
| 71879C | Cover, Rear Seat Reclining, Inner LH |
| 71887C | Carpet, Rear Seat Cushion |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 71931A | Support, Rear Seat Headrest |
| 71931B | Support Assy, Rear NO.1 Seat Headrest |
| 71931C | Support Assy, Rear NO.2 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71950F | Headrest Assy, Rear NO.2 Seat, LH |
| 71956B | Support, Rear Seat Headrest |
| 71960B | Headrest Assy, Rear Seat, Center |
| 71970 | Headrest Assy, Rear Seat |
| 71984A | Handle, Rear Seat Headrest |
| 72040 | Adjuster Assy, Rear NO.2 Seat |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72137J | Cover, Front Seat Track, RH Rear Outer |
| 72138J | Cover, Front Seat Track, LH Rear Outer |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72157B | Cover, Rear Seat Track Bracket, Inner RH |
| 72158A | Cover, Rear Seat Track Bracket, Inner LH |
| 72160 | Track Assy, Rear Seat, Outer RH |
| 72160B | Track Assy, Rear NO.1 Seat, RH |
| 72170 | Track Assy, Rear Seat, Outer LH |
| 72170B | Track Assy, Rear NO.1 Seat, LH |
| 72203 | Handle Sub-assy, Rear Seat Track |
| 72265 | Cover, Seat Track Upper Rail, RH |
| 72265A | Cover, Seat Track Upper Rail, RH |
| 72266 | Cover, Seat Track Upper Rail, LH |
| 72266A | Cover, Seat Track Upper Rail, LH |
| 72329 | Cover, Seat Adjuster Bolt |
| 72329B | Cover, Seat Adjuster Bolt, NO.1 |
| 72329H | Cover, Seat Adjuster Bolt, NO.1 |
| 72329J | Cover, Seat Adjuster Bolt, NO.2 |
| 72329K | Cover, Seat Adjuster Bolt, NO.3 |
| 72345 | Cap, Seat Stand Frame |
| 72380 | Cable Assy, Seat Adjuster Control, NO.2 |
| 72403 | Bracket Sub-assy, Seat Frame Set |
| 72457 | Knob, Vertical Seat Adjuster |
| 72462 | Cover, Vertical Adjuster RH |
| 72462A | Cover, Vertical Adjuster LH |
| 72494 | Handle, Vertical Adjusting, RH |
| 72495 | Handle, Vertical Adjusting, LH |
| 72507D | Handle Sub-assy, NO.2 Seat Reclining Release |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72525C | Handle, Reclining Adjuster Release, NO.1 RH |
| 72525D | Handle, Reclining Adjuster Release, NO.2 RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72526B | Handle, Reclining Adjuster Release, NO.1 LH |
| 72526C | Handle, Reclining Adjuster Release, NO.2 LH |
| 72558 | Stopper, Reclining |
| 72569 | Plate, Seatback Stopper |
| 72570B | Cable Assy, Reclining Adjusting, RH |
| 72580A | Cable Assy, Reclining Adjusting, LH |
| 72590B | Cable Assy, Reclining Remote Control |
| 72593 | Knob, Reclining Remote Control Lever |
| 72597 | Bezel, Reclining Remote Control |
| 72601 | Striker Sub-assy, Rear Seat Lock |
| 72601E | Striker Sub-assy, Rear Seat Lock, NO.2 |
| 72607 | Striker Sub-assy, Rear Seat Cushion Lock |
| 72607D | Striker Sub-assy, Rear Seat Cushion Lock, NO.2 |
| 72607E | Striker Sub-assy, Rear Seat Cushion Lock, NO.3 |
| 72607F | Striker Sub-assy, Rear Seat Cushion Lock, NO.4 |
| 72608A | Striker Sub-assy, Rear Seat Cushion Lock, LH |
| 72615A | Cover, Rear Seatback Lock Striker, RH |
| 72616A | Cover, Rear Seatback Lock Striker, LH |
| 72620B | Cable Assy, Rear NO.1 Seat Lock |
| 72622C | Bush, Rear Seatback Protector Shaft |
| 72629A | Silencer, Rear Seatback Lock |
| 72649B | Spring, Rear Seat Cushion Support |
| 72650A | Lock Assy, Rear Seat, RH |
| 72660F | Lock Assy, Rear Seat, LH |
| 72663 | Lever, Rear Seat Lock Control, NO.1 |
| 72664 | Lever, Rear Seat Lock Control, LH |
| 72665 | Cover, Rear Seatback Lock, RH |
| 72665B | Cover, Rear Seatback Lock |
| 72666 | Cover, Rear Seatback Lock, LH |
| 72666B | Cover, Rear Seat Lock, LH |
| 72668A | Bezel, Rear Seatback Lock, Lower |
| 72670A | Striker Assy, Rear Seatback Lock, RH |
| 72680A | Striker Assy, Rear Seatback Lock, LH |
| 72690B | Lever Assy, Seat Cushion Lock Release, RH |
| 72690C | Lever Assy, Seat Cushion Lock Release, LH |
| 72695A | Cable, Rear Seat Lock Control |
| 72730 | Adjuster Assy, Rear Seat Reclining |
| 72730A | Adjuster Assy, Rear Seat Reclining, RH |
| 72740A | Adjuster Assy, Rear Seat Reclining, LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 72779 | Guide, Rear Seat Hinge Pawl |
| 72779A | Guide, Rear Seat Hinge Pawl |
| 72803D | Panel Sub-assy, Rear Seat Center Armrest |
| 72805B | Door Sub-assy, Rear Seat Center Armrest |
| 72806B | Holder Sub-assy, Rear Seat Center Armrest Cup |
| 72808A | Bracket Sub-assy, Seat Center Armrest |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72832 | Plate, Rear Seat Armrest |
| 72832A | Plate, NO.1 Seat Armrest |
| 72860 | Box Assy, Rear Seat Center Armrest |
| 72880 | Armrest Assy, Seat, C RH |
| 72890 | Armrest Assy, Seat, C LH |
| 72905 | Link Sub-assy, 3RD Seat, RH |
| 72906 | Link Sub-assy, 3RD Seat, LH |
| 72918 | Cover, 3RD Seat Cushion Lock |
| 72927 | Cover, Rear Seat Cushion Under, RH |
| 72928 | Cover, Rear Seat Cushion Under, LH |
| 72974 | Cover, Rear Seat Turn Lock |
| 72995 | Cover, Rear Seat Cushion, RH |
| 72995A | Cover, Rear Seat |
| 72996A | Cover, Rear Seatback |
| 72996C | Cover, Rear NO.2 Seatback, RH |
| 72997C | Cover, Rear NO.2 Seatback, LH |
| 73173C | Cover, Rear Seat Belt Hole, RH |
| 73174A | Cover, Rear Seat Belt Hole, LH |
| 73178B | Cap, Seat Belt Anchor Cover |
| 73237 | Cover, Shoulder Belt Anchor |
| 73373F | Cover, Rear Seat Shoulder Belt Hole |
| 73375B | Cover, Rear Seat Shoulder Belt Hole, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 73949 | Cap |
| 76973E | Cover, Rear Under Side, RH |
| 76974E | Cover, Rear Under Side, LH |
| 78091 | Cable Sub-assy, Fold Seat Lock Control |
| 78091A | Cable Sub-assy, Fold Seat Lock Control |
| 78901 | Lock Sub-assy, Fold Seat Leg |
| 78910 | Cable Assy, Fold Seat Lock Control, NO.1 |
| 78920 | Cable Assy, Fold Seat Lock Control, NO.2 |
| 78930 | Cable Assy, Fold Seat Lock Control, NO.3 |
| 78950C | Band Assy, Fold Seat Stopper |
| 78955 | Cover, Rear Seat Under Tray RH |
| 78956 | Cover, Rear Seat Under Tray LH |
| 79017A | Pad Sub-assy, NO.1 Seatback, RH |
| 79018A | Pad Sub-assy, NO.1 Seatback, LH |
| 79029A | Stay Sub-assy, NO.2 Seat |
| 79031 | Cover Sub-assy, NO.3 Seat Cushion, RH |
| 79032 | Cover Sub-assy, NO.3 Seat Cushion, LH |
| 79033 | Cover Sub-assy, NO.3 Seatback, RH |
| 79034 | Cover Sub-assy, NO.3 Seatback, LH |
| 79110 | Leg Assy, NO.1 Seat |
| 79120B | Leg Assy, NO.1 Seat, LH |
| 79121 | Bracket, NO.1 Seat Cushion |
| 79123 | Plate, NO.1 Seat Cushion |
| 79123A | Plate, NO.1 Seat Cushion |
| 79137 | Cover, NO.1 Seat Hinge |
| 79137A | Cover, NO.2 Seat Hinge |
| 79236A | Cover, NO.2 Seat Leg |
| 79246A | Cover, NO.2 Seat Leg, NO.2 |
| 79260A | Spring Assy, NO.2 Seat Cushion, RH |
| 79270A | Spring Assy, NO.2 Seat Cushion, LH |
| 79335 | Pad, NO.3 Seat Cushion |
| 79335A | Pad, NO.3 Seat Cushion, RH |
| 79345A | Pad, NO.3 Seat Cushion, LH |
| 79366 | Cover, NO.3 Seat Leg, NO.1 |
| 79367 | Cover, NO.3 Seat Leg, NO.2 |
| 79372 | Cover, NO.3 Seat Front Bracket, RH |
| 79374 | Cover, NO.3 Seat Leg, Rear RH |
| 79375A | Pad, NO.3 Seatback, RH |
| 79382 | Cover, NO.3 Seat Front Bracket, LH |
| 79384 | Cover, NO.3 Seat Leg, Rear LH |
| 79385A | Pad, NO.3 Seatback, LH |
| 79393 | Cushion, Rear NO.2 Seatback |
| 79495 | Spring, Rear Side Seatback, NO.1 |
| 79951 | Cover, NO.1 Seat Cushion |
| 79953 | Cover, NO.3 Seat Cushion |
| 79956S | Cover, Rear Seat Leg Side |
| 79957 | Cover, Rear Seat Rear Bracket, Rear |
| 79965 | Cover, Rear Seat Leg Side, NO.2 |
| 79968B | Clip |
| 79977A | Felt, Seatback |
| 82666M | Holder, Connector |
| 82711E | Clamp, Wiring Harness |
| 82711F | Clamp, Wiring Harness |
| 82711G | Clamp, Wiring Harness |
| 82711H | Clamp, Wiring Harness |
| 85821H | Motor Assy, Power Seat Slide, RH |
| 85822 | Motor Assy, Power Seat Slide, LH |
| 85862 | Blower, Seat Climate Control, RH |
| 85863 | Blower, Seat Climate Control, LH |
| 85864 | Controller, Seat Climate Control,RH |
| 85864A | Controller, Seat Climate Control, RH |
| 85865 | Controller, Seat Climate Control,LH |
| 85865A | Controller, Seat Climate Control, LH |
| 87501A | Control Sub-assy, Seat Heater, RH |
| 87501B | Control Sub-assy, Seat Heater, LH |
| 87501D | Control Sub-assy, Seat Heater |
| 87510K | Heater Assy, Front Seat Cushion, RH |
| 87510L | Heater Assy, Front Seat Cushion, LH |
| 87510M | Heater Assy, Front Seatback, RH |
| 87510N | Heater Assy, Front Seatback, LH |
| 87510P | Heater Assy, Seat |
| 87510Q | Heater Assy, Seat |
| 87510R | Heater Assy, Seat |
| 88921D | Filter, Air, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
