Toyota Land Cruiser

2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Reflex Reflector

3 part groups · 3 illustrations

Illustrations

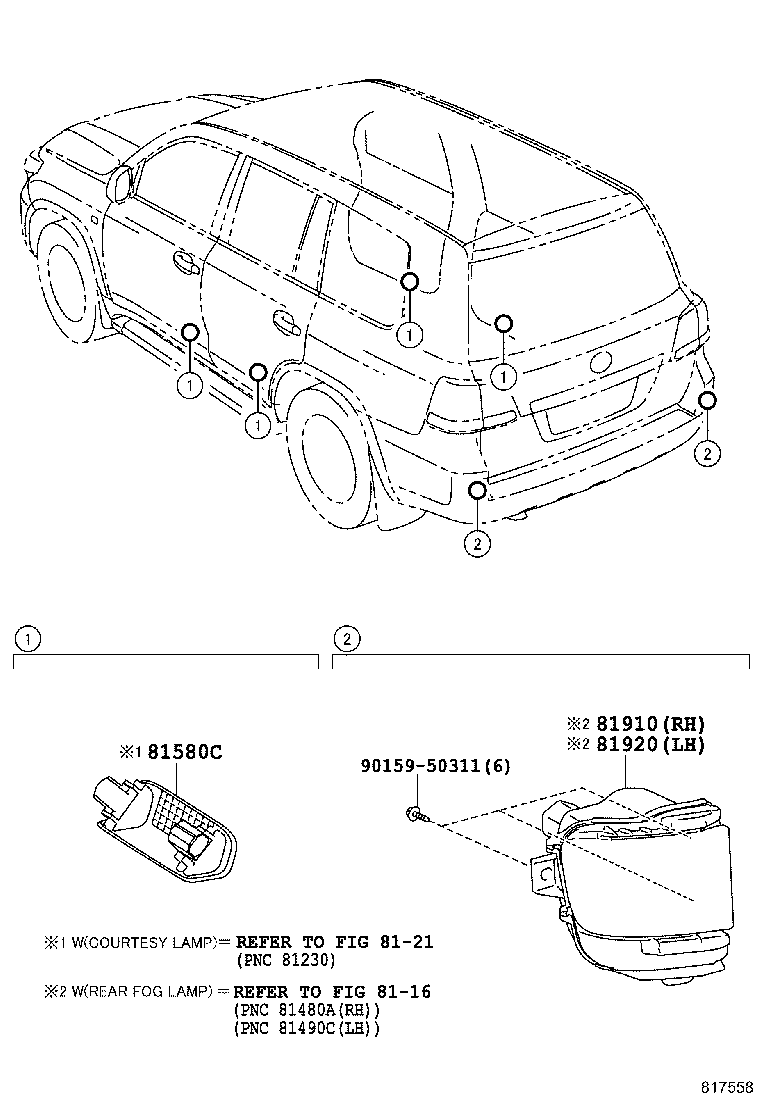

Figure 815819A 815819A 2007-09 → 2015-08 Figure 815819A 815819A 2015-08 → — Figure 817558 817558 2015-08 → —

Part groups

PNCDescription
81580C Reflector Assy, Reflex
81910 Reflector Assy, Reflex, RH
81920 Reflector Assy, Reflex, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
