Toyota Land Cruiser
2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General
Supported model
Data version 2018-08
Switch & Relay & Computer
185 part groups · 41 illustrations
Illustrations
849257B

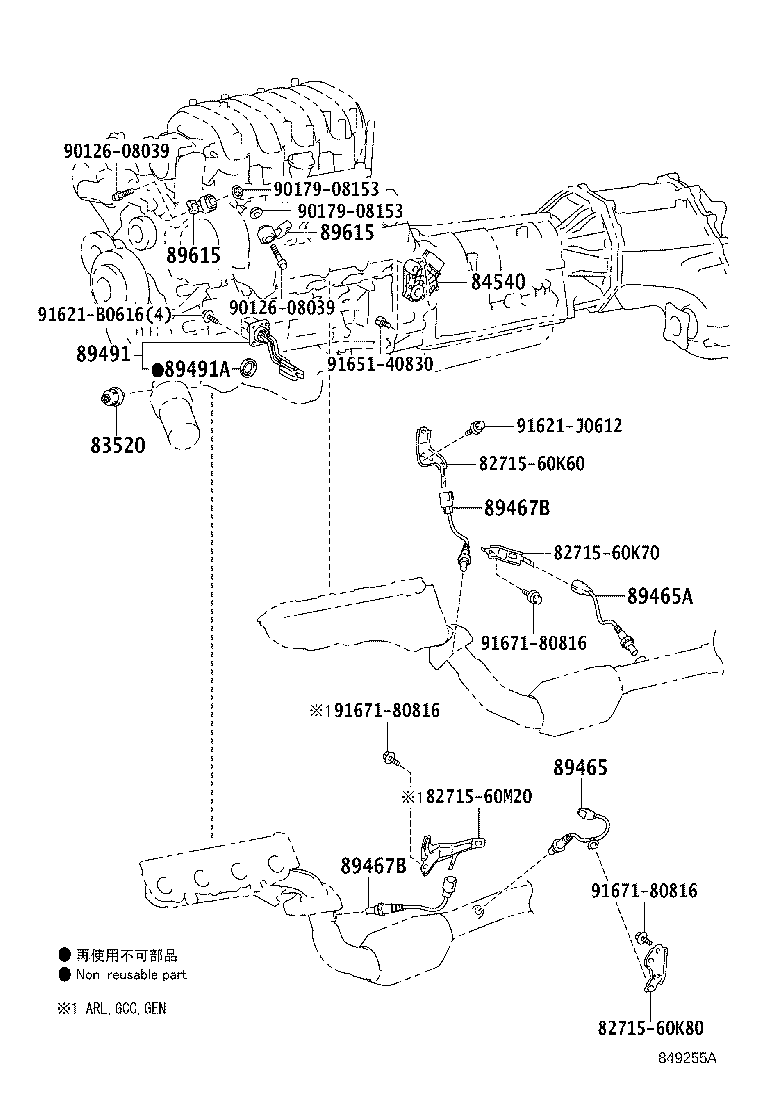

849255A

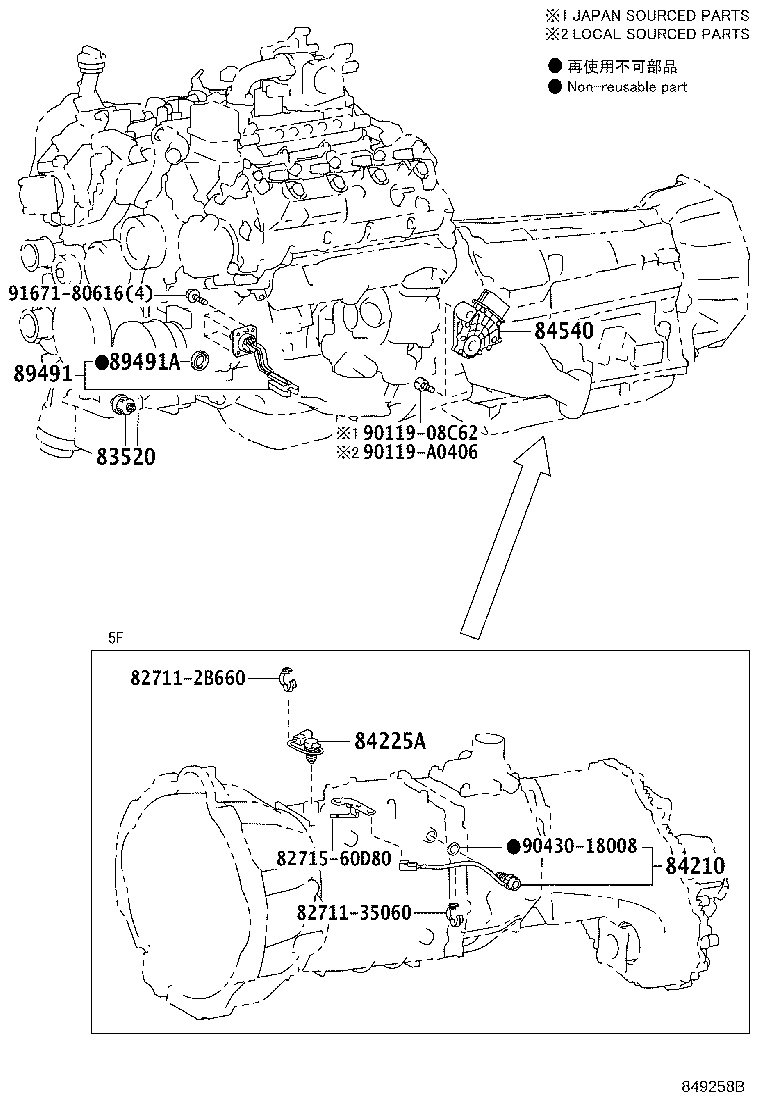

849258B
849258B

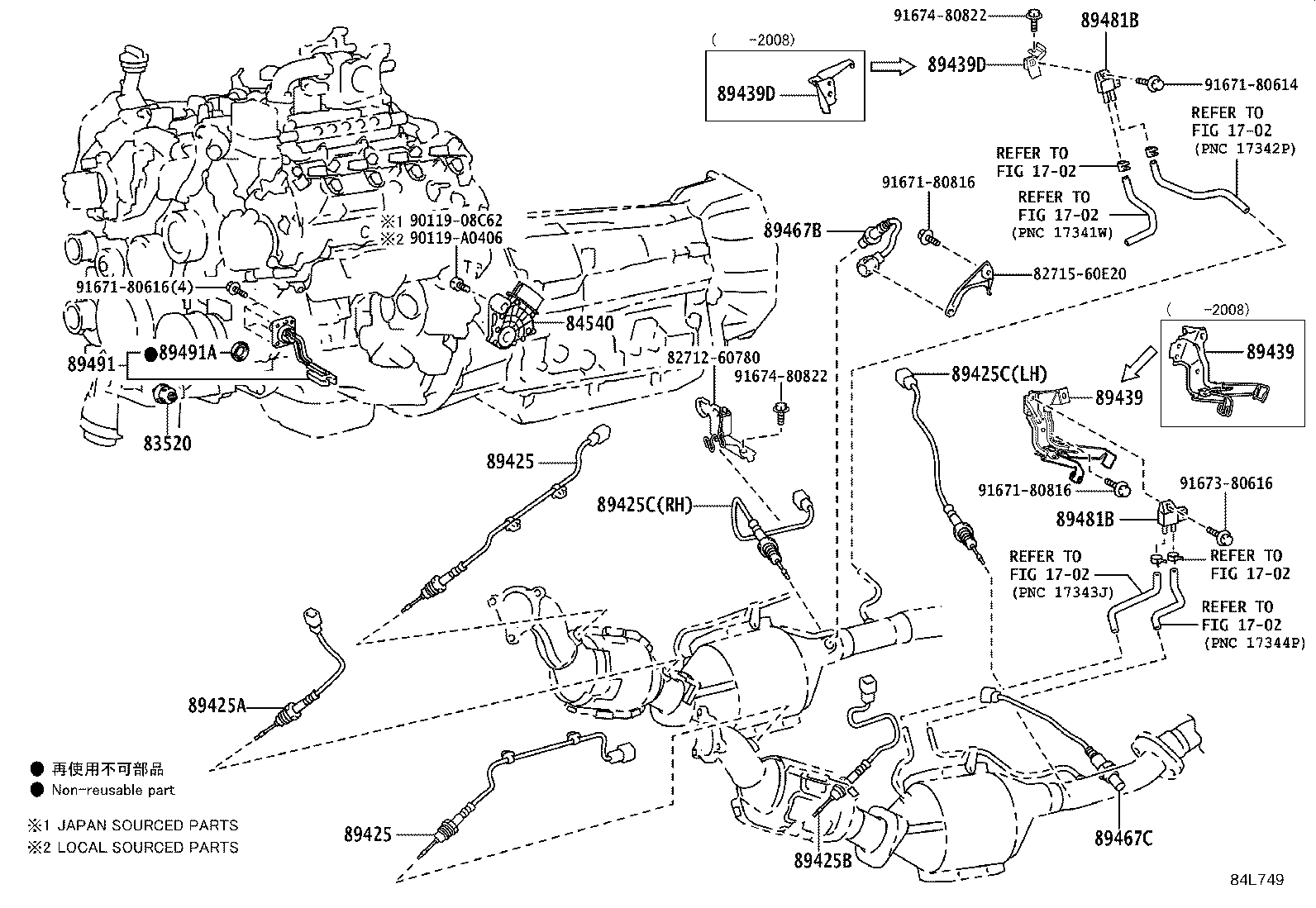

84L749
84L749

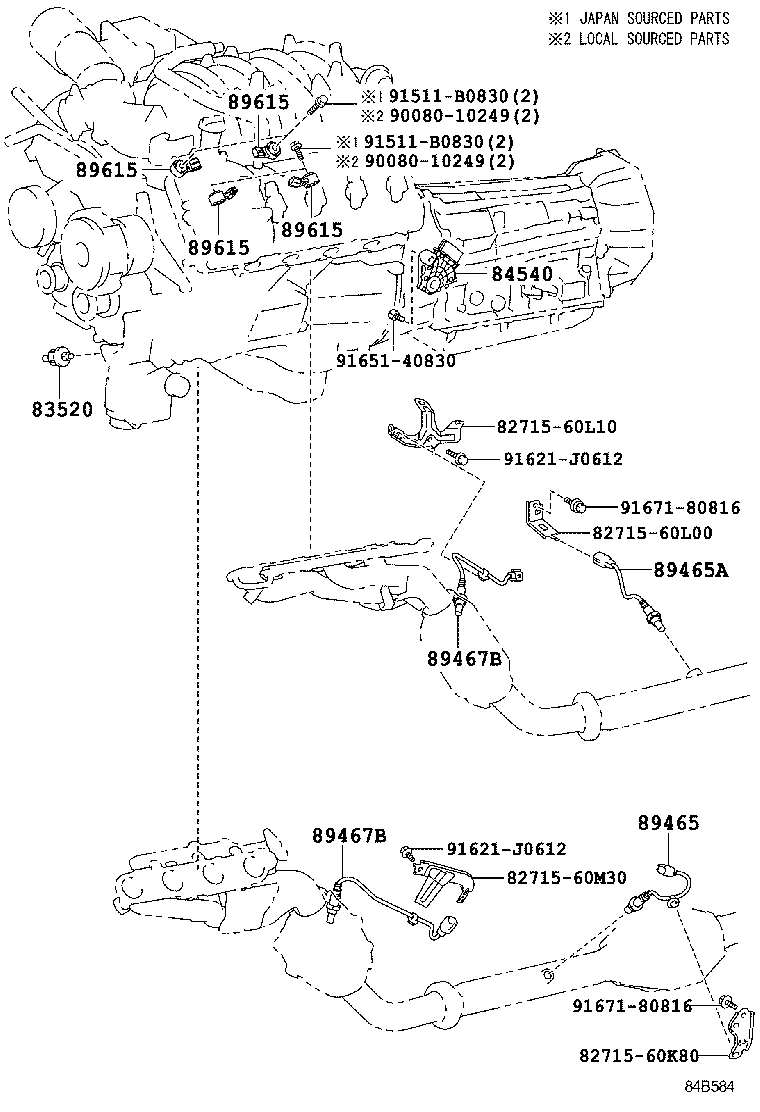

84B584

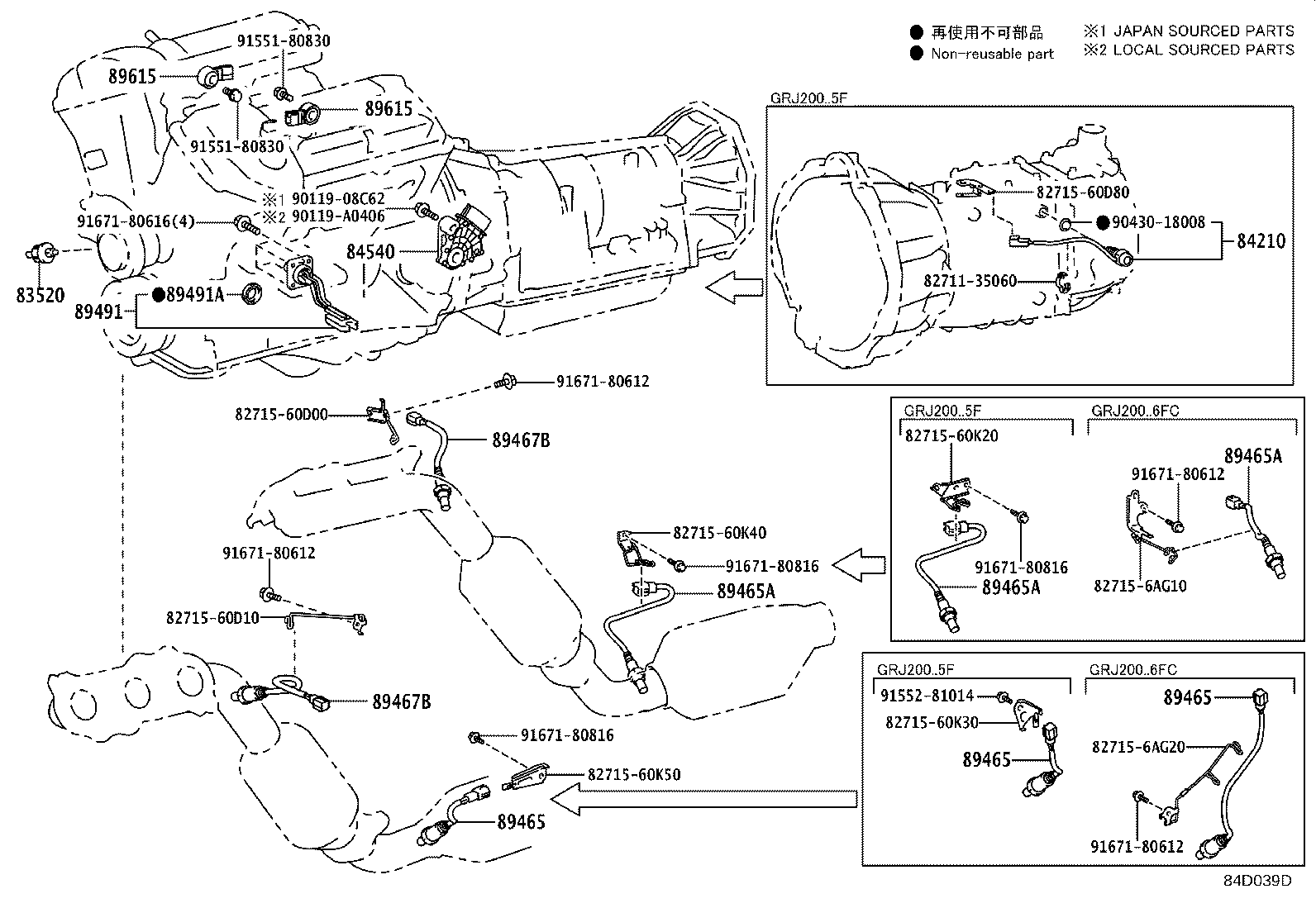

84D039D

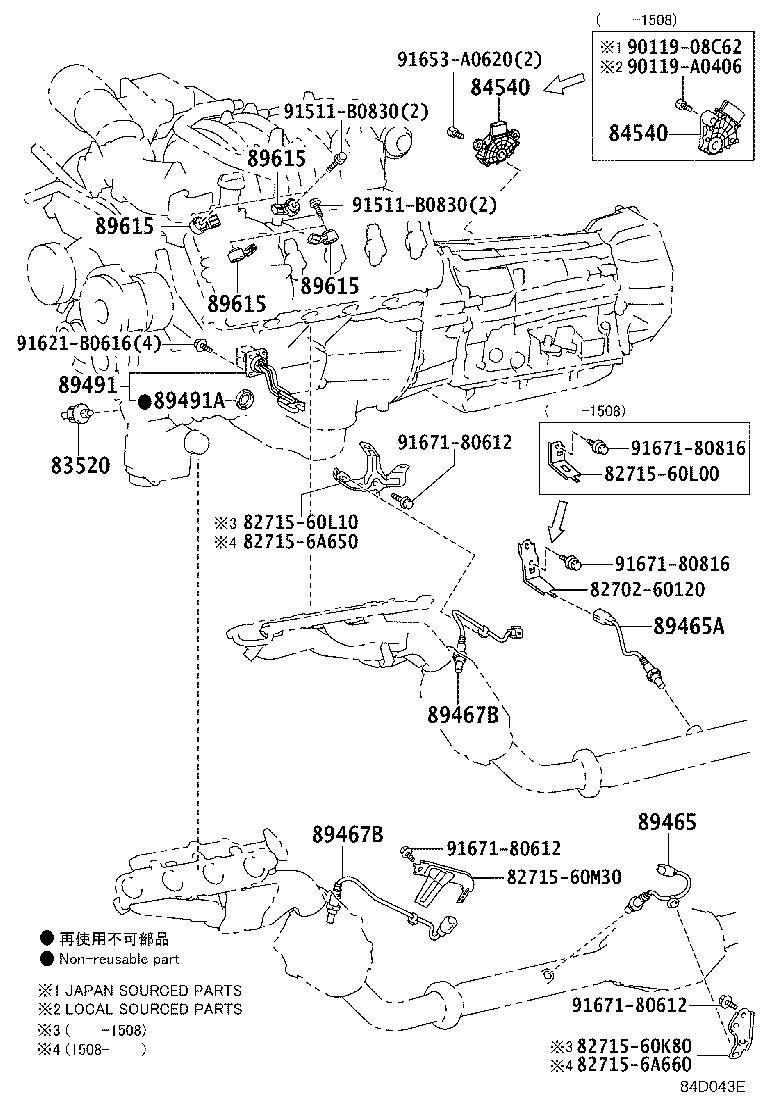

84D043E

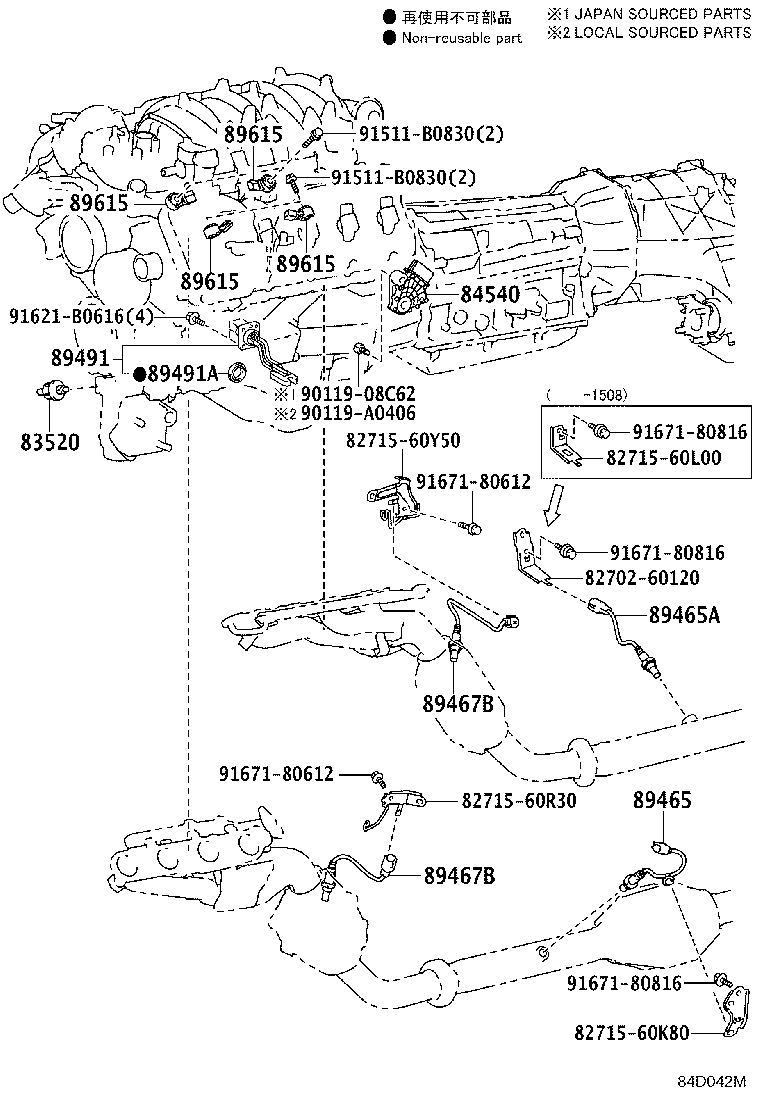

84D042M

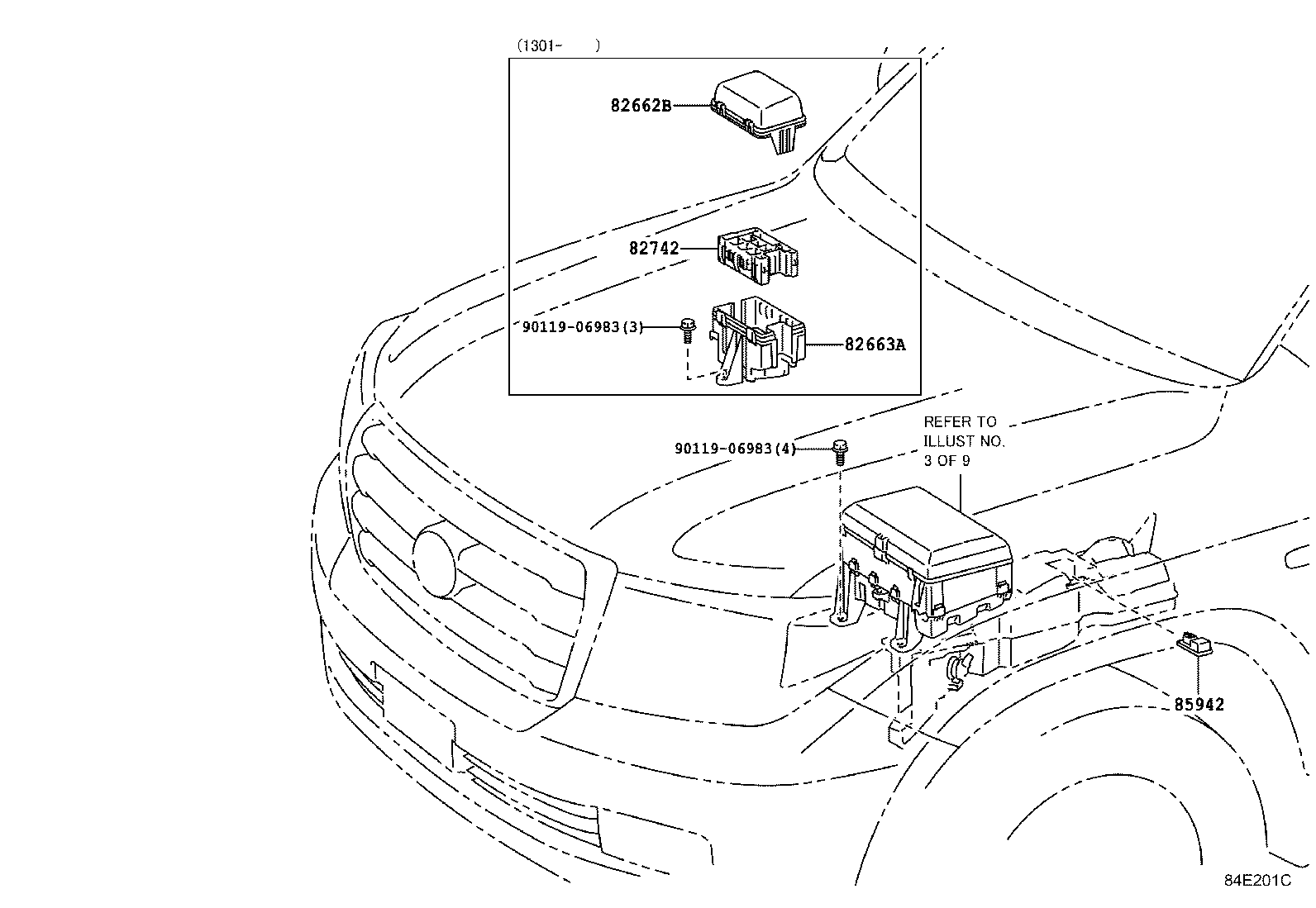

84E201C

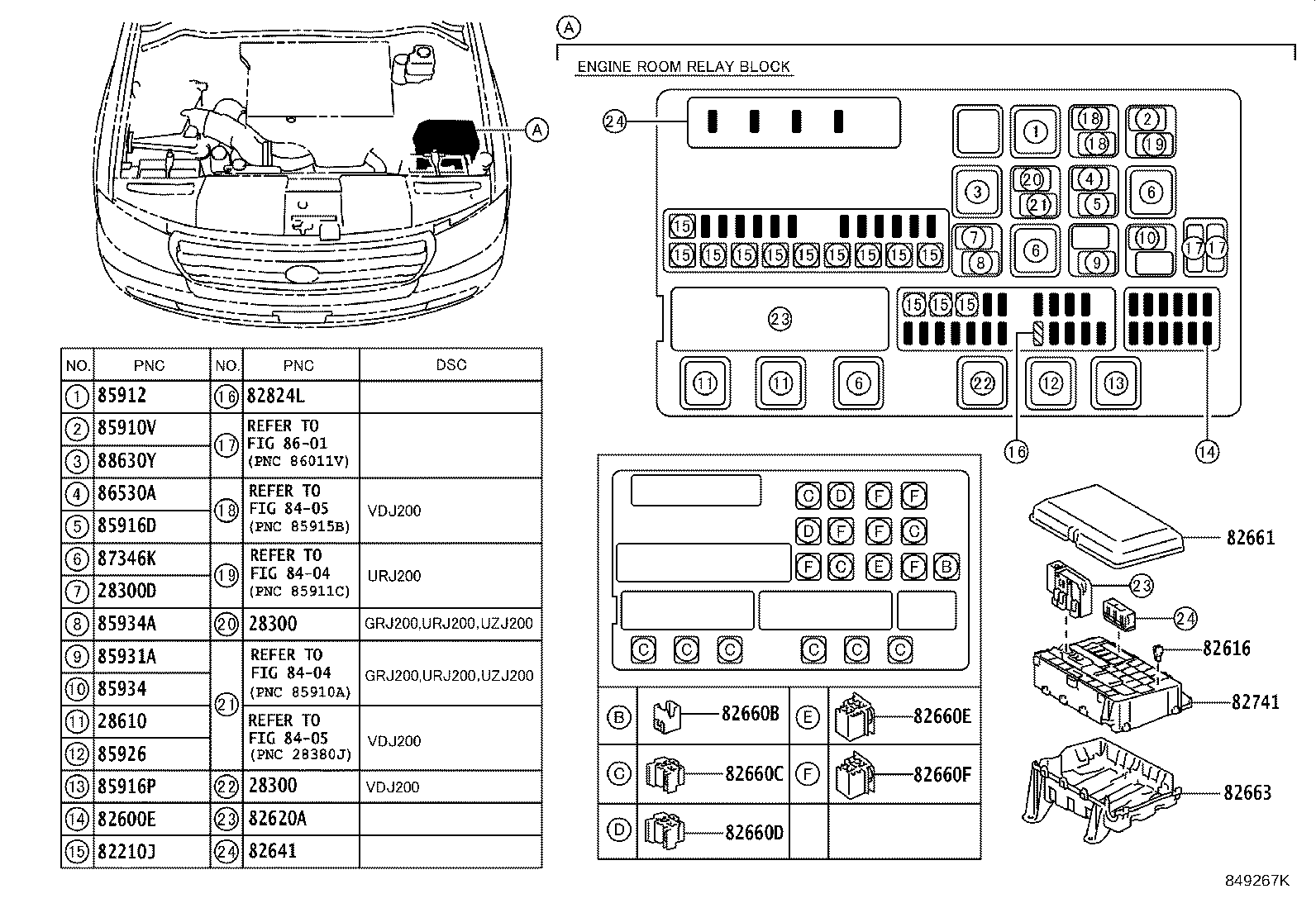

849267K

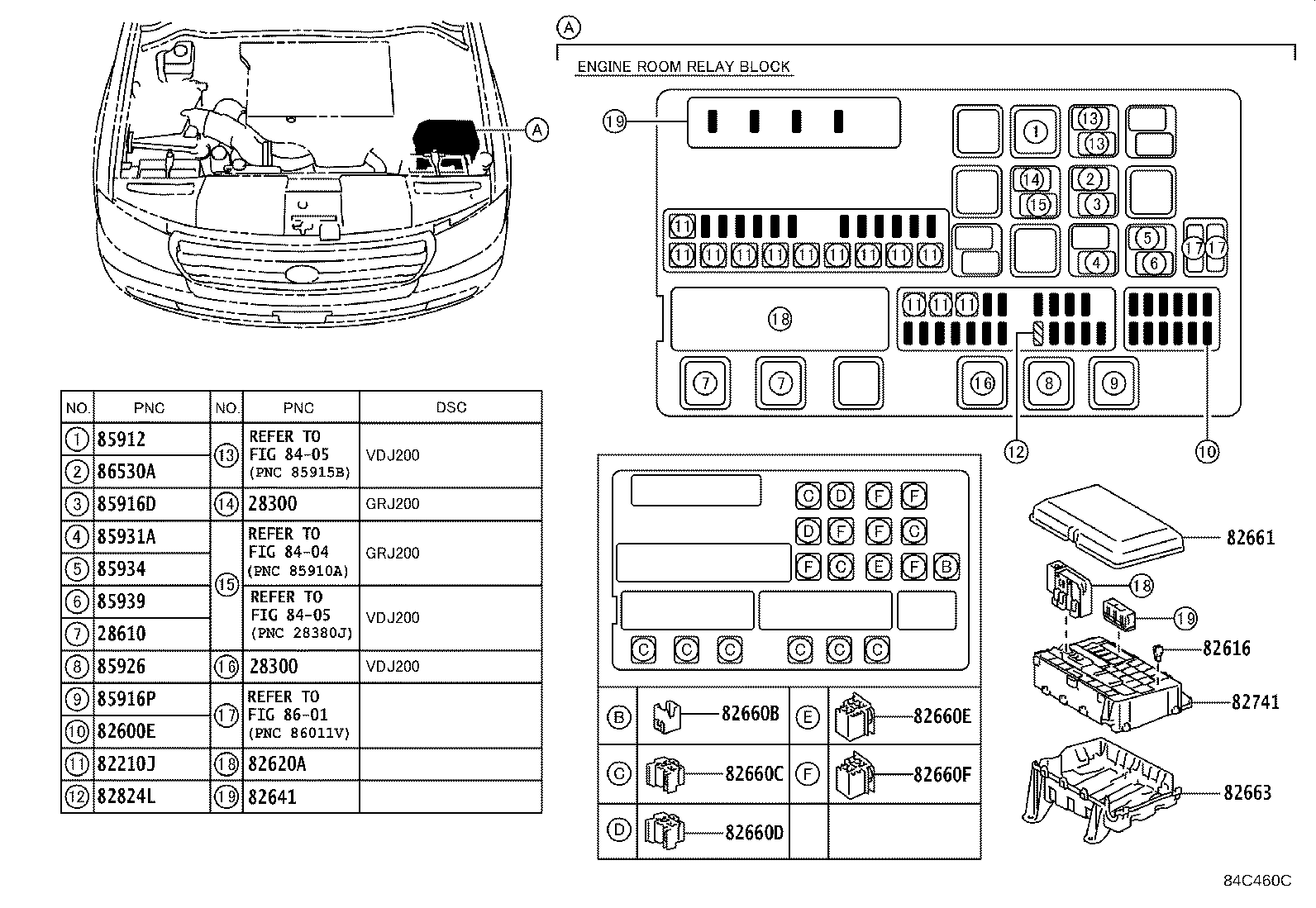

84C460C

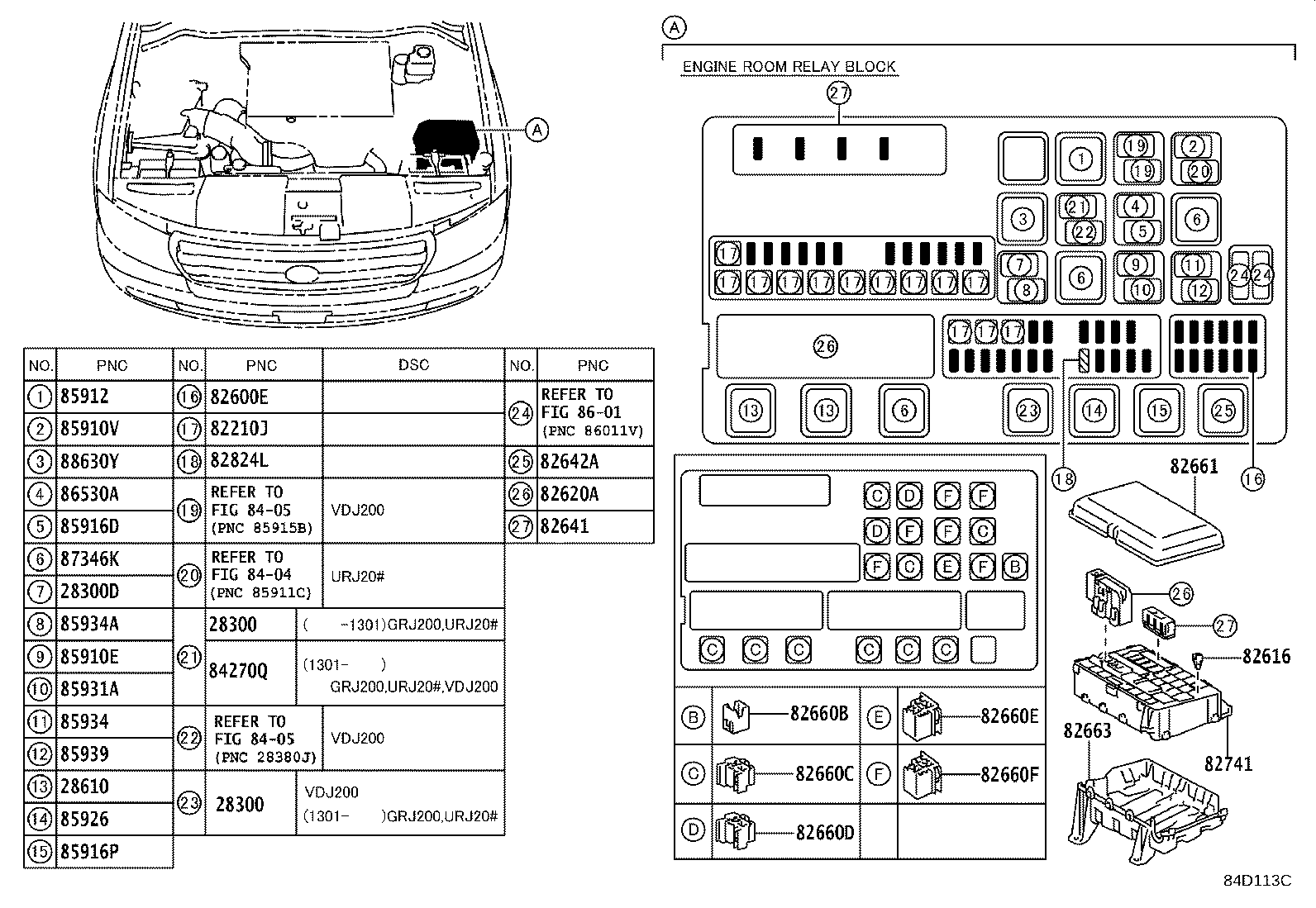

84D113C

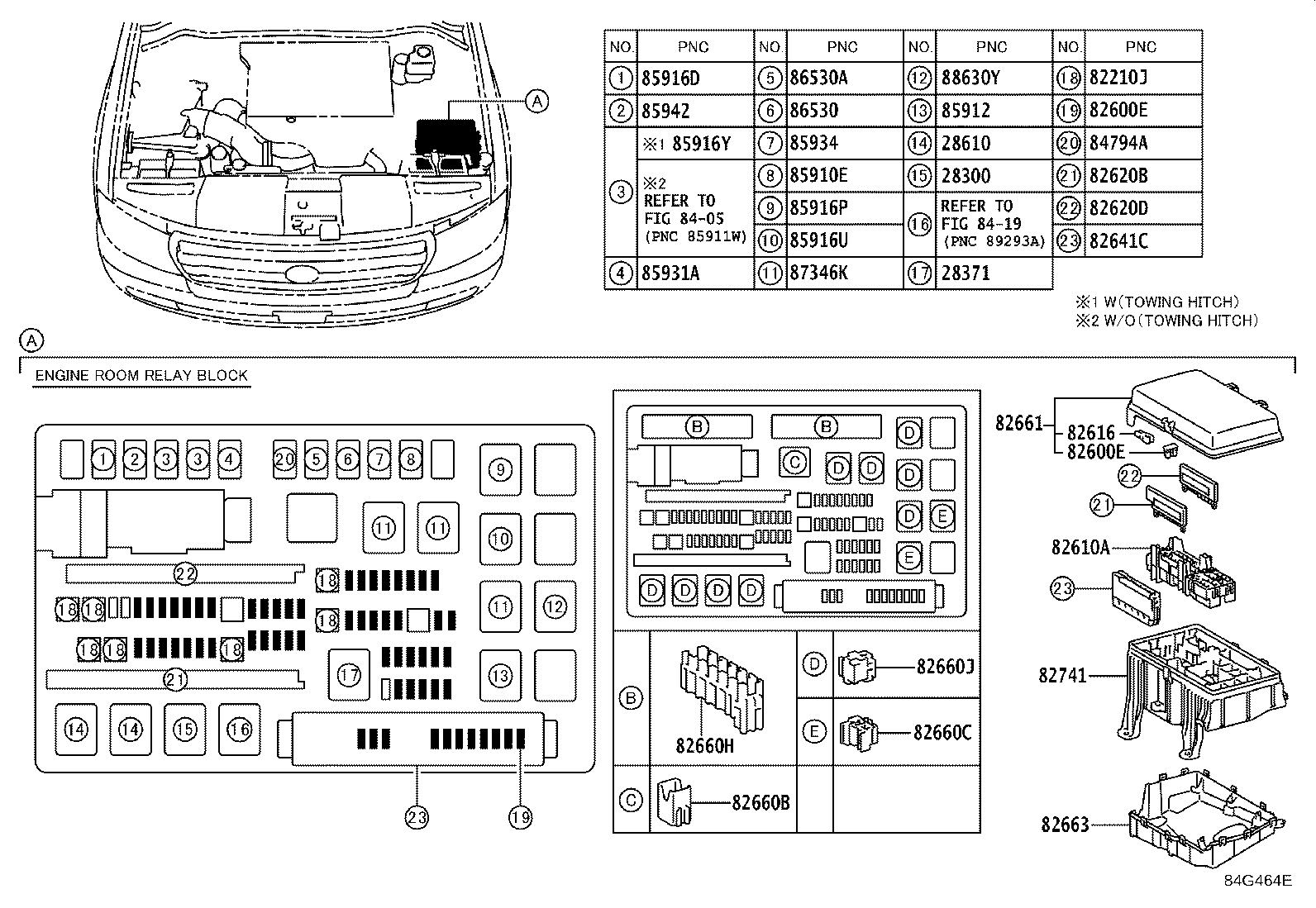

84G464E

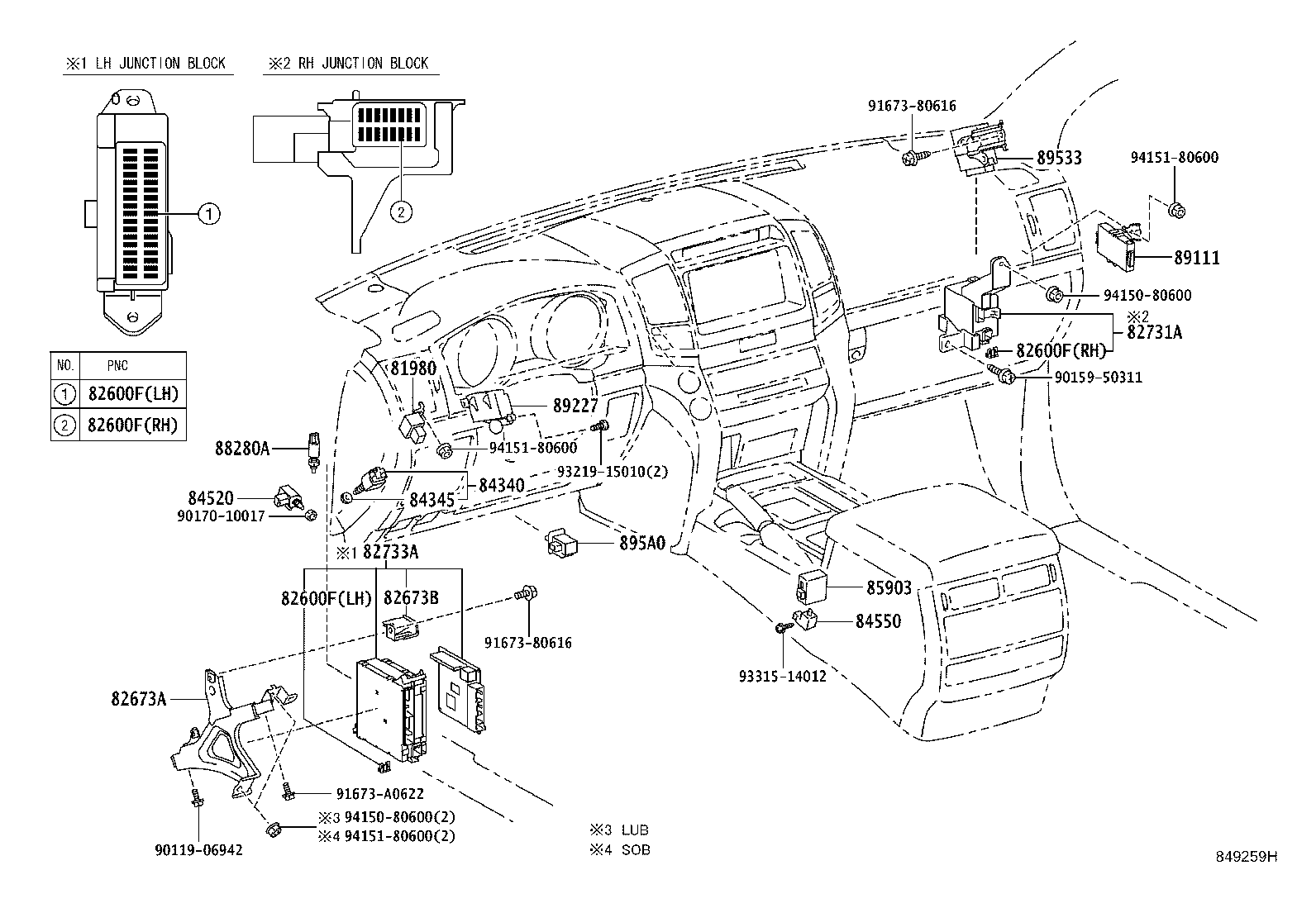

849259H

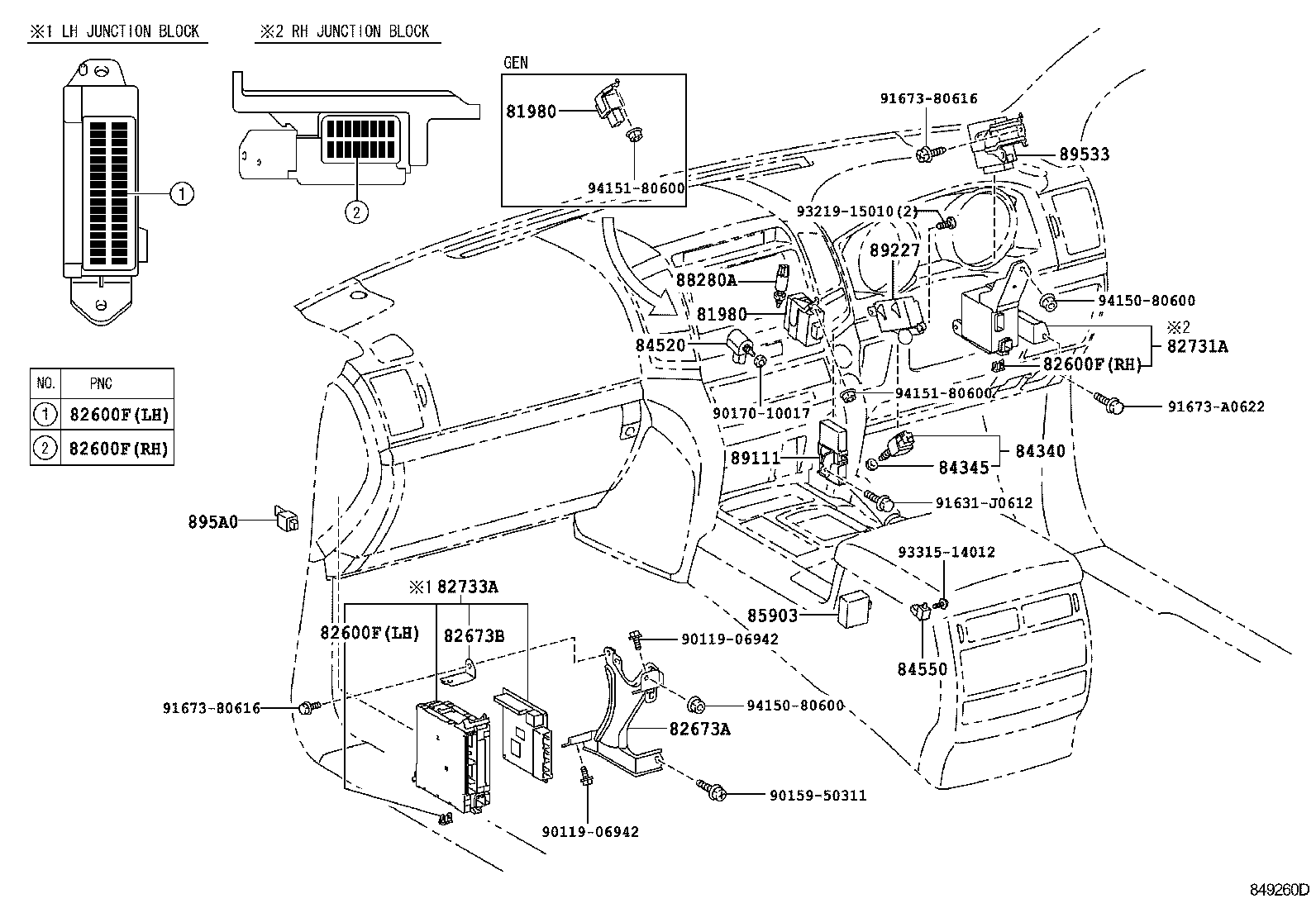

849260D

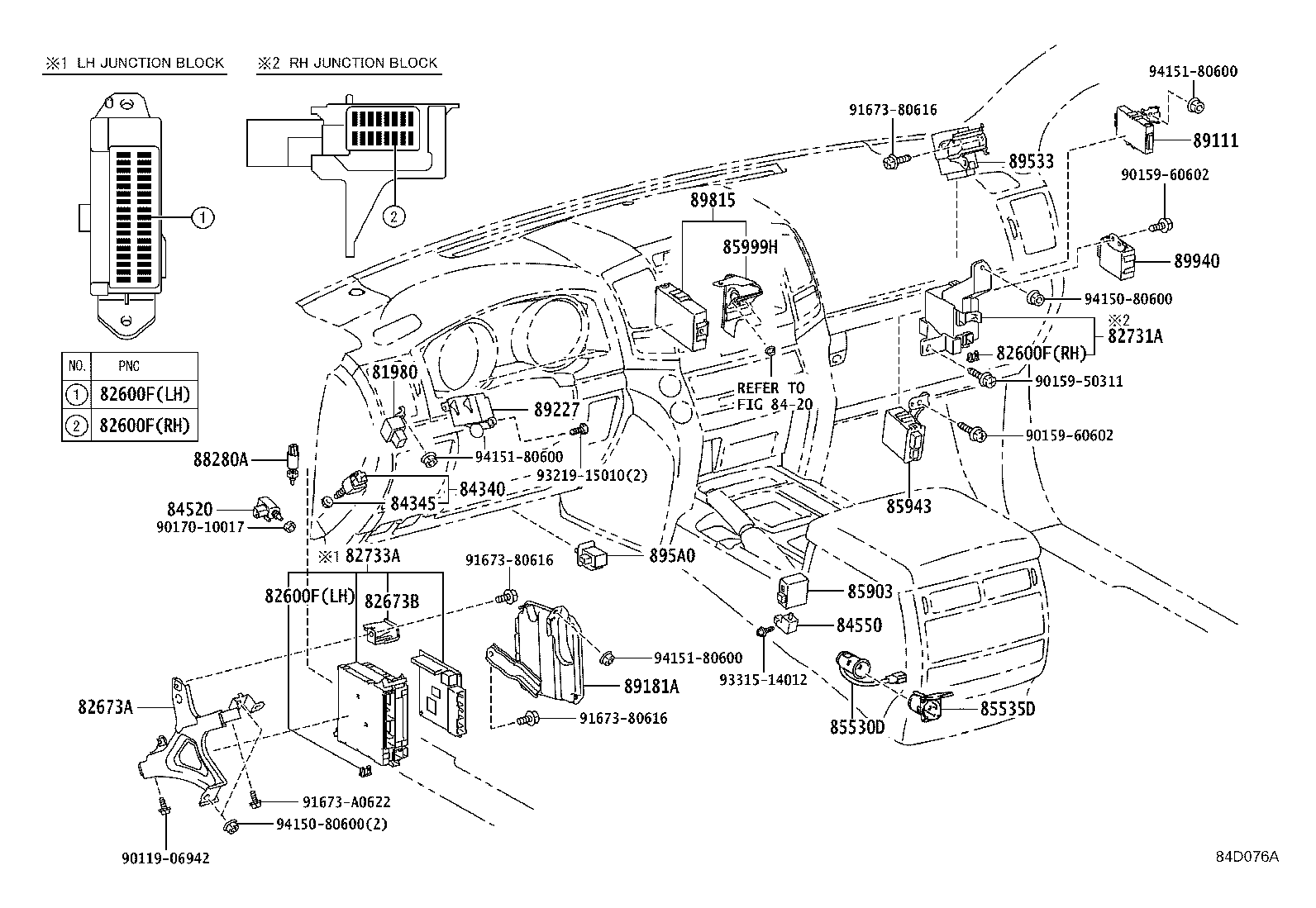

84D076A

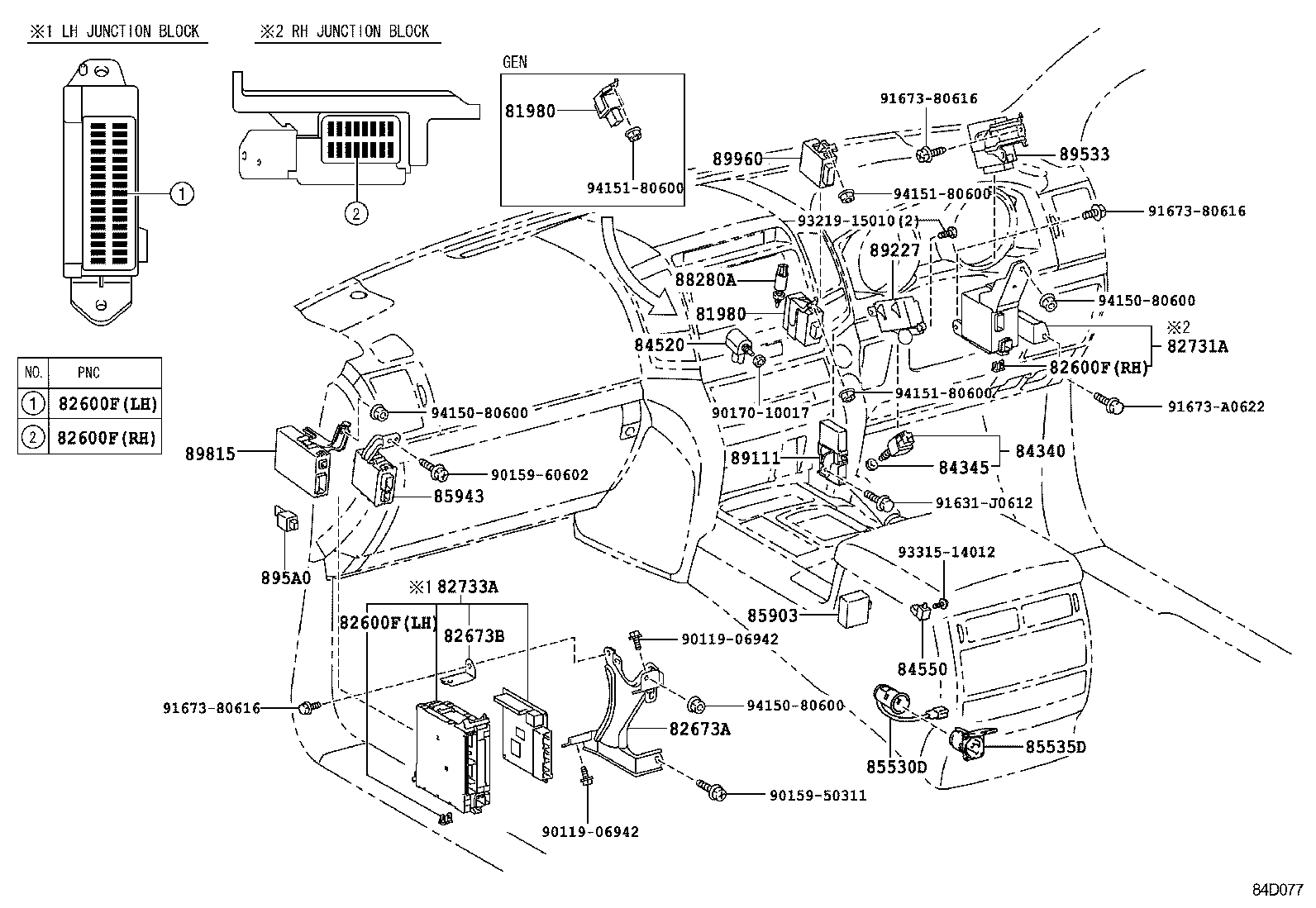

84D077

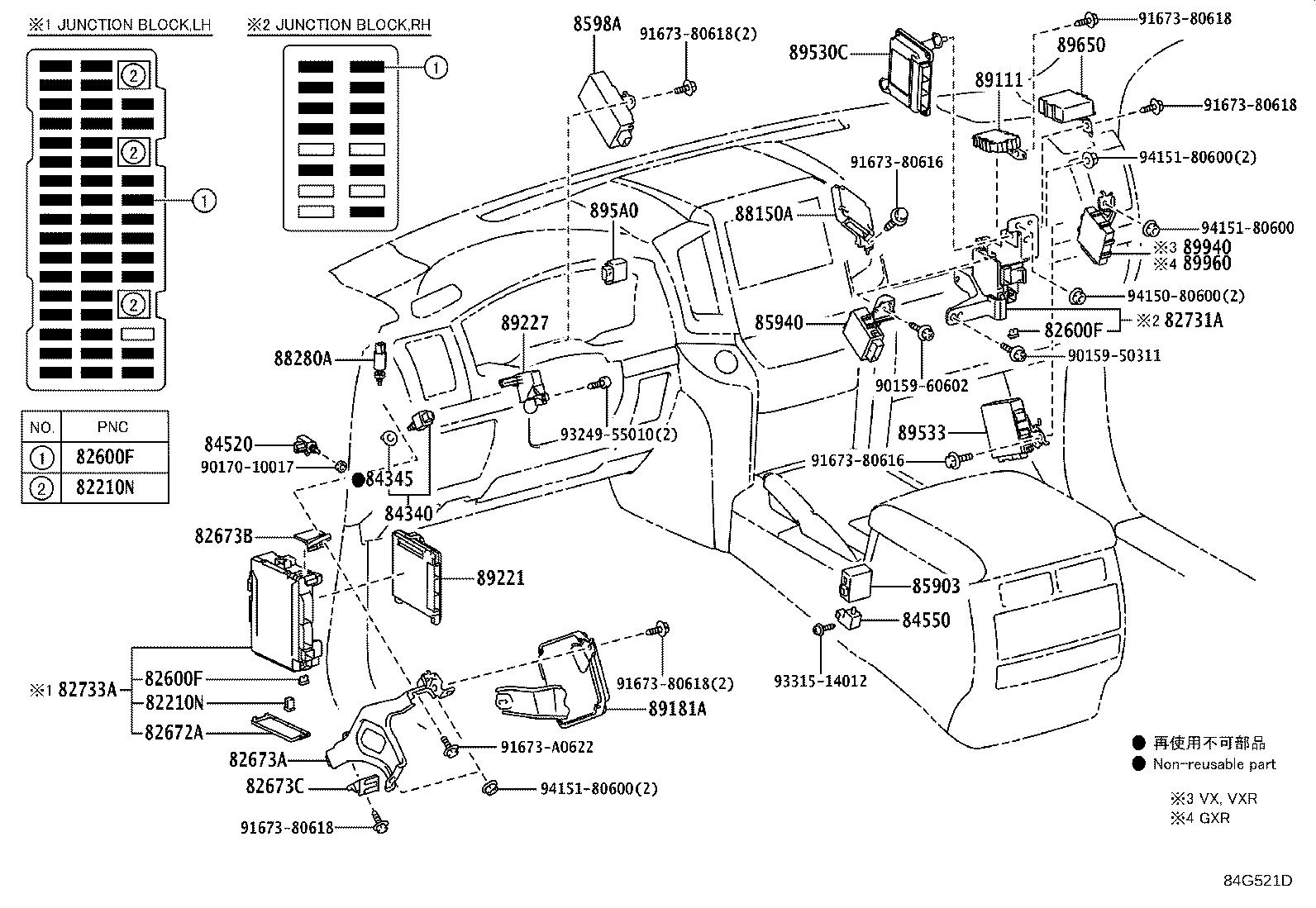

84G521D

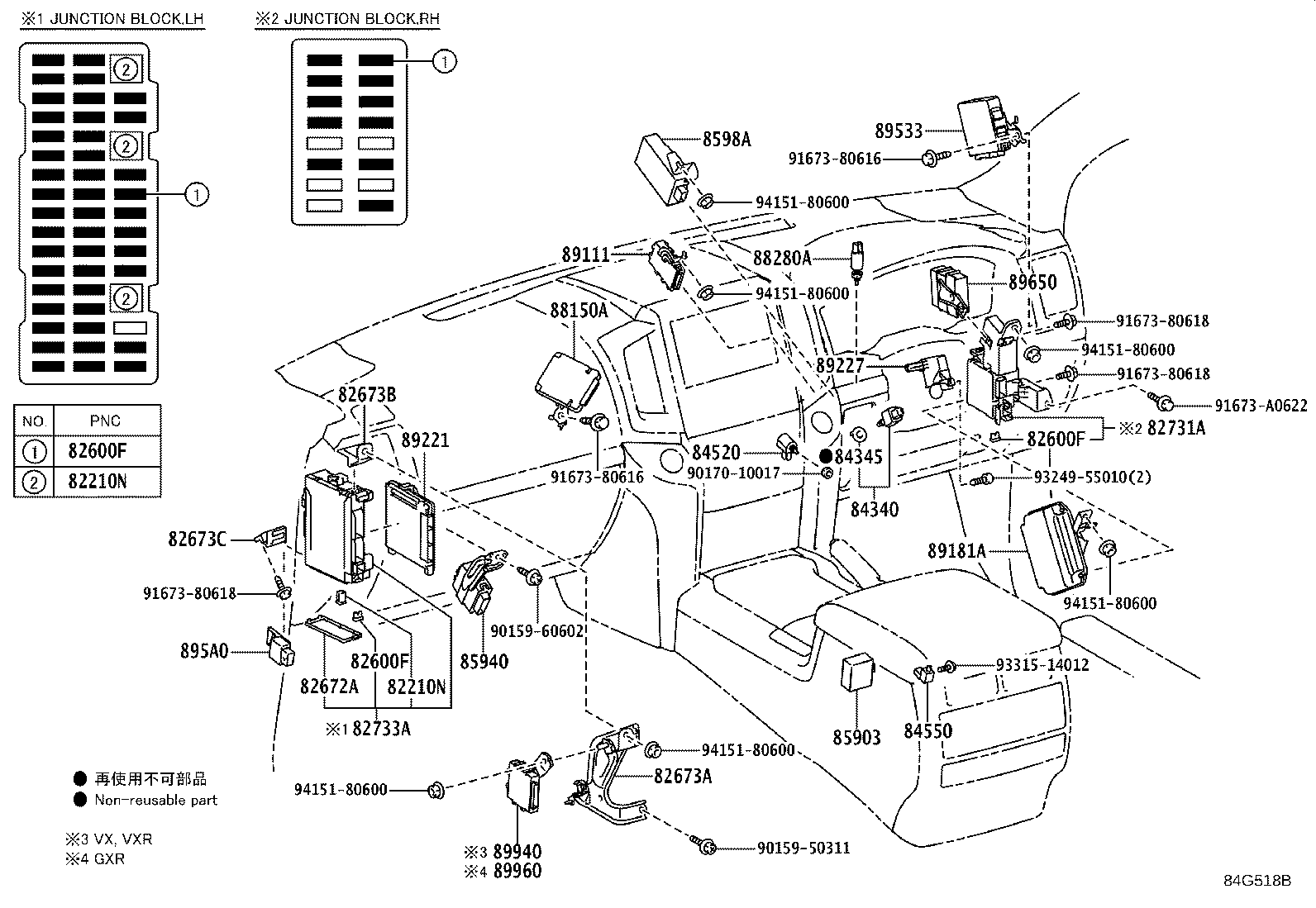

84G518B

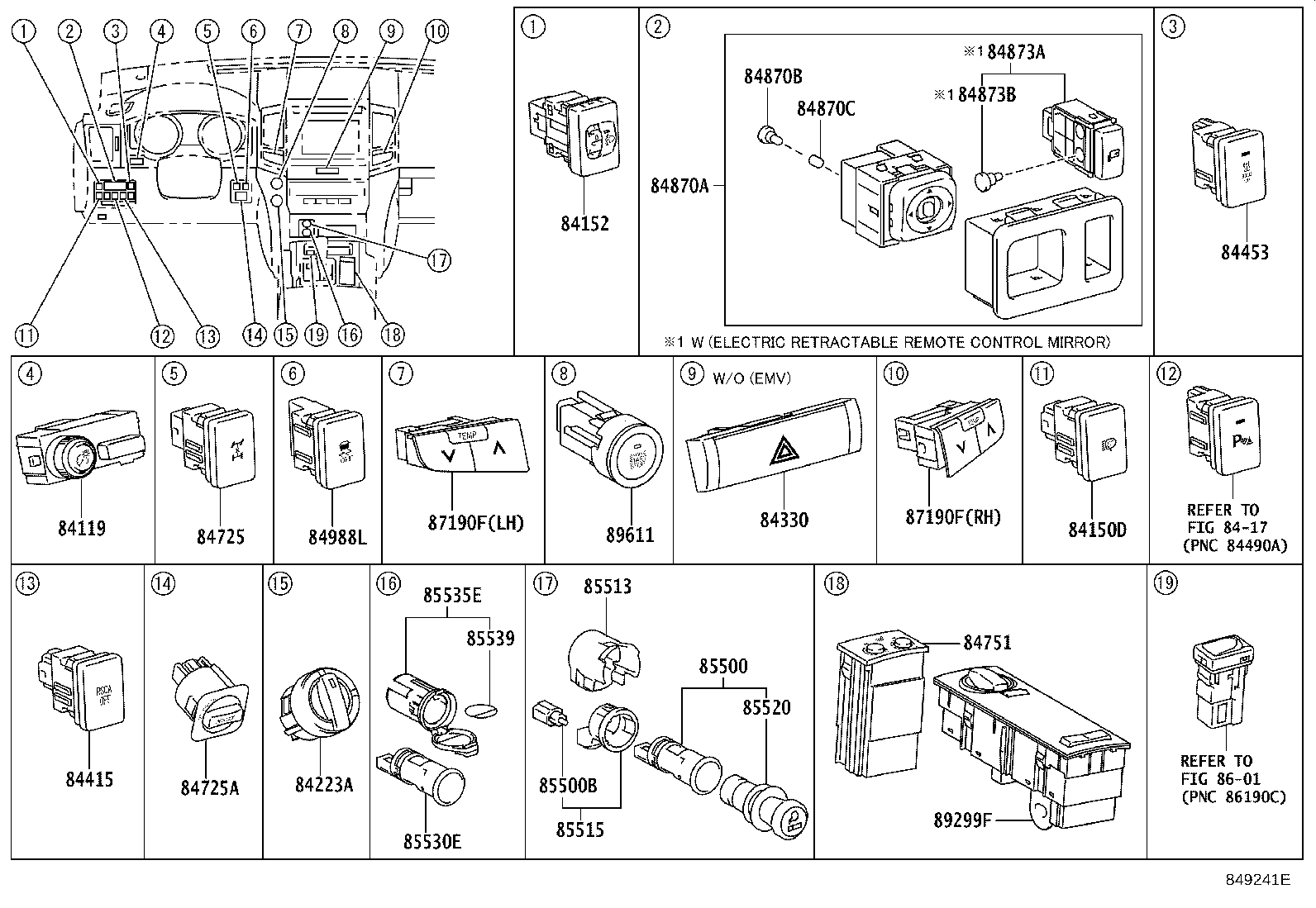

849241E

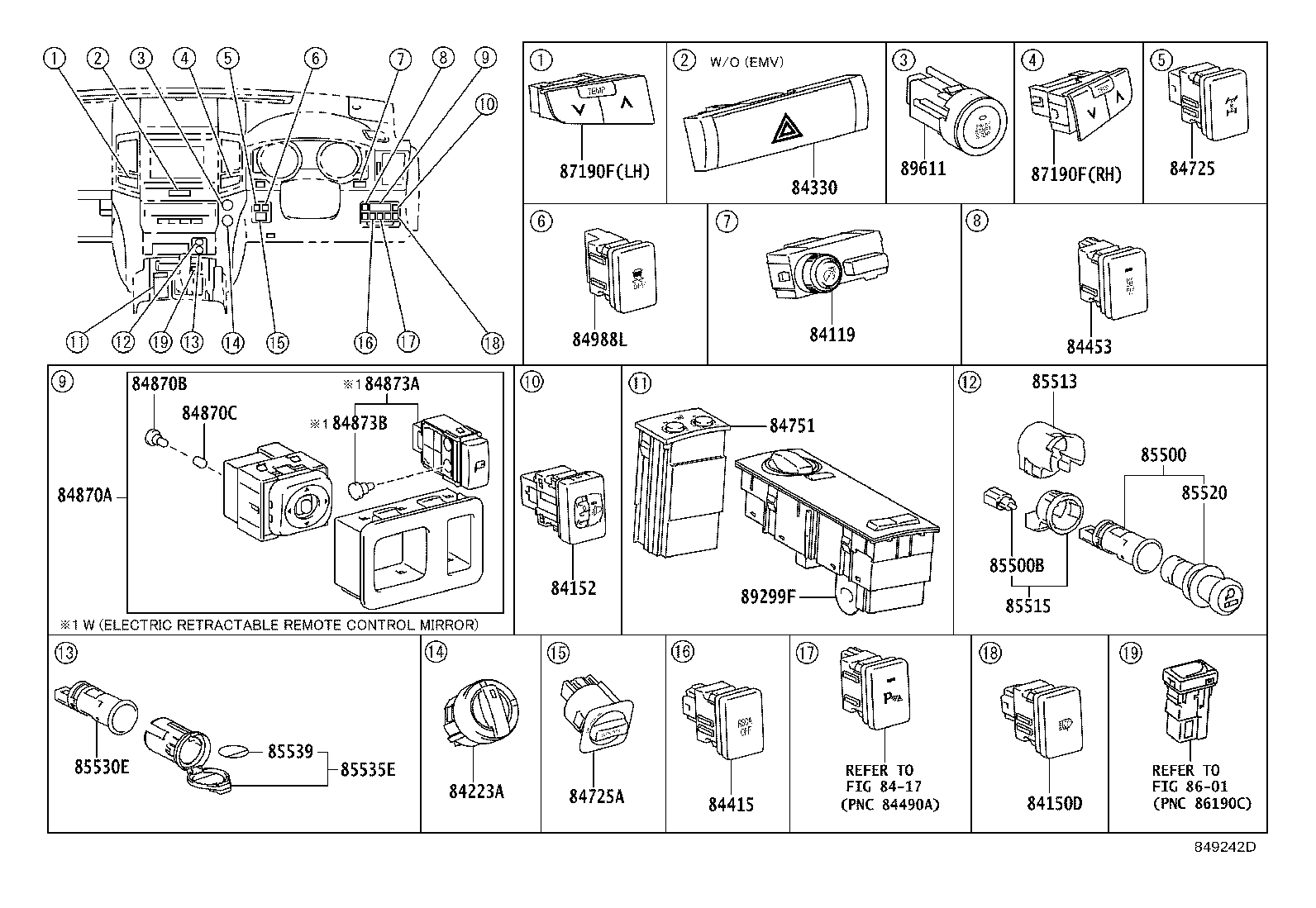

849242D

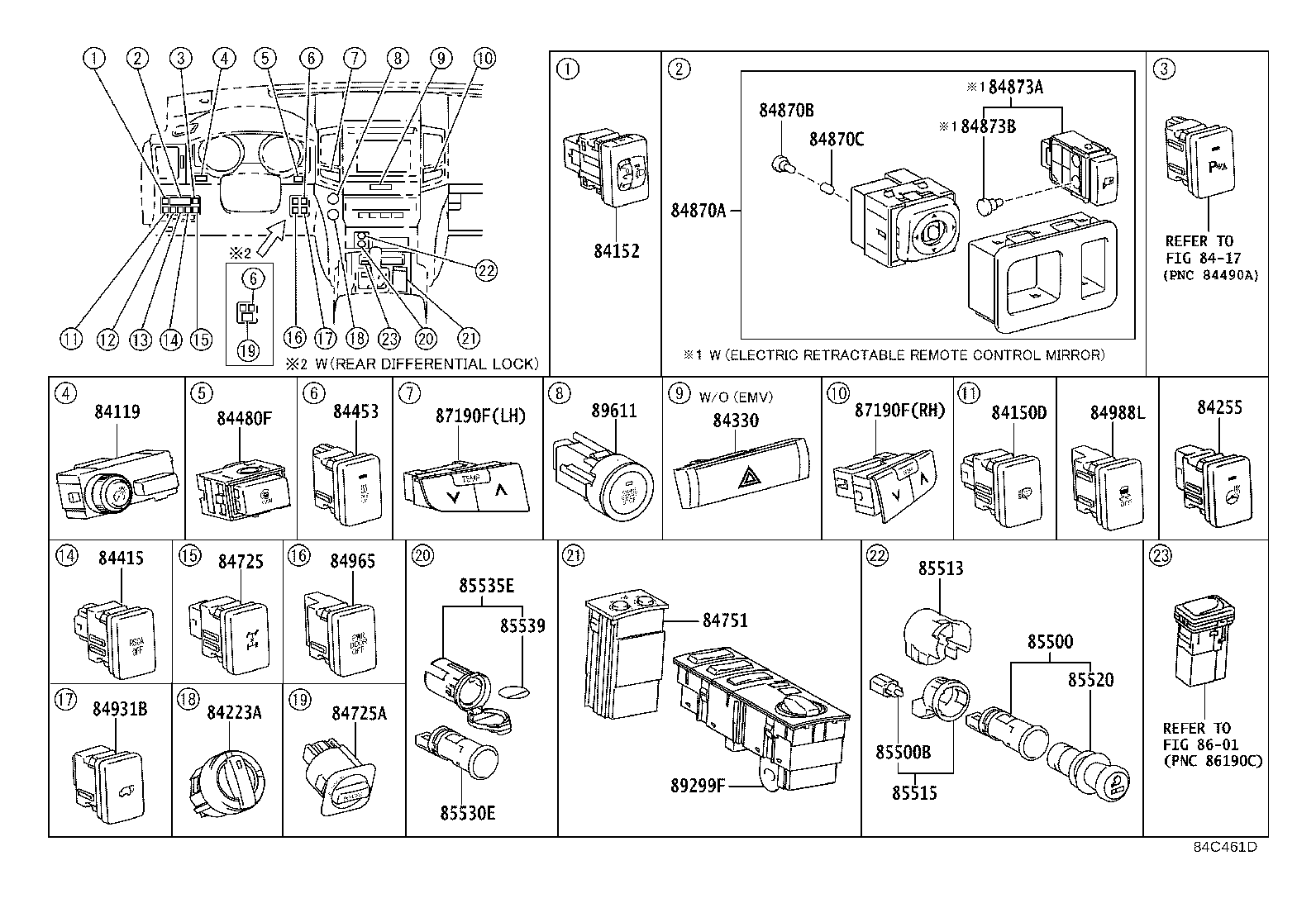

84C461D
84C461D

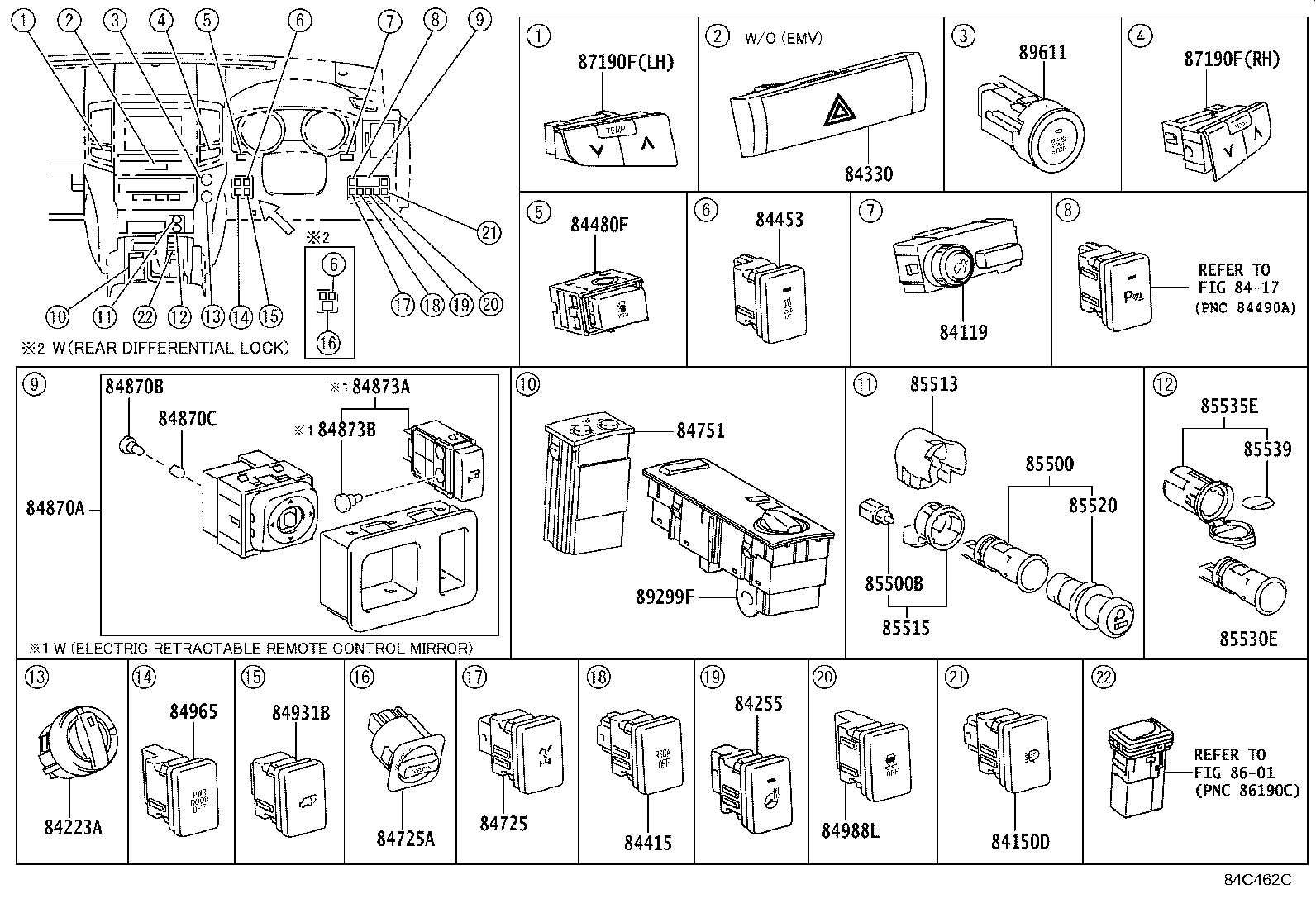

84C462C
84C462C

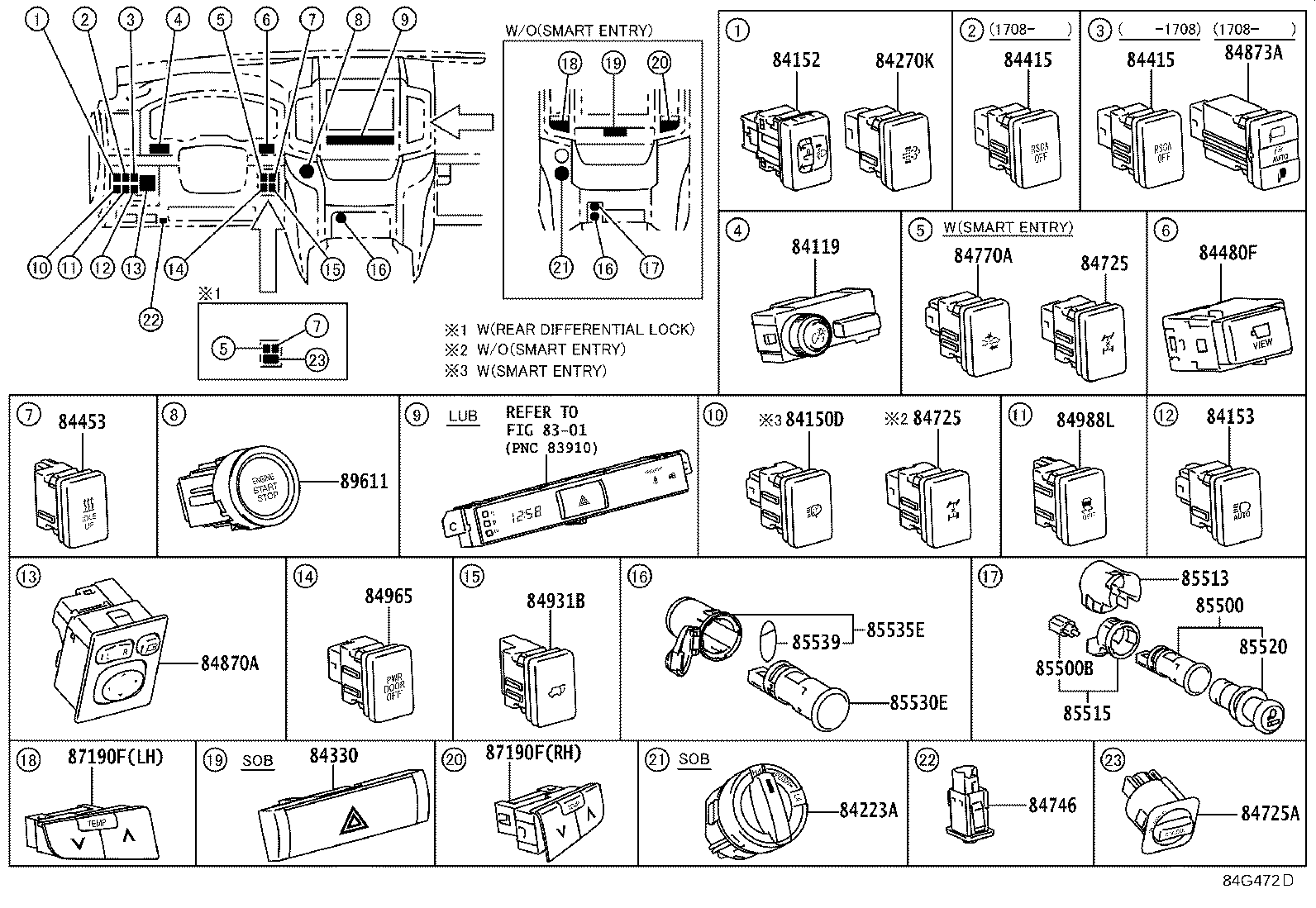

84G472D

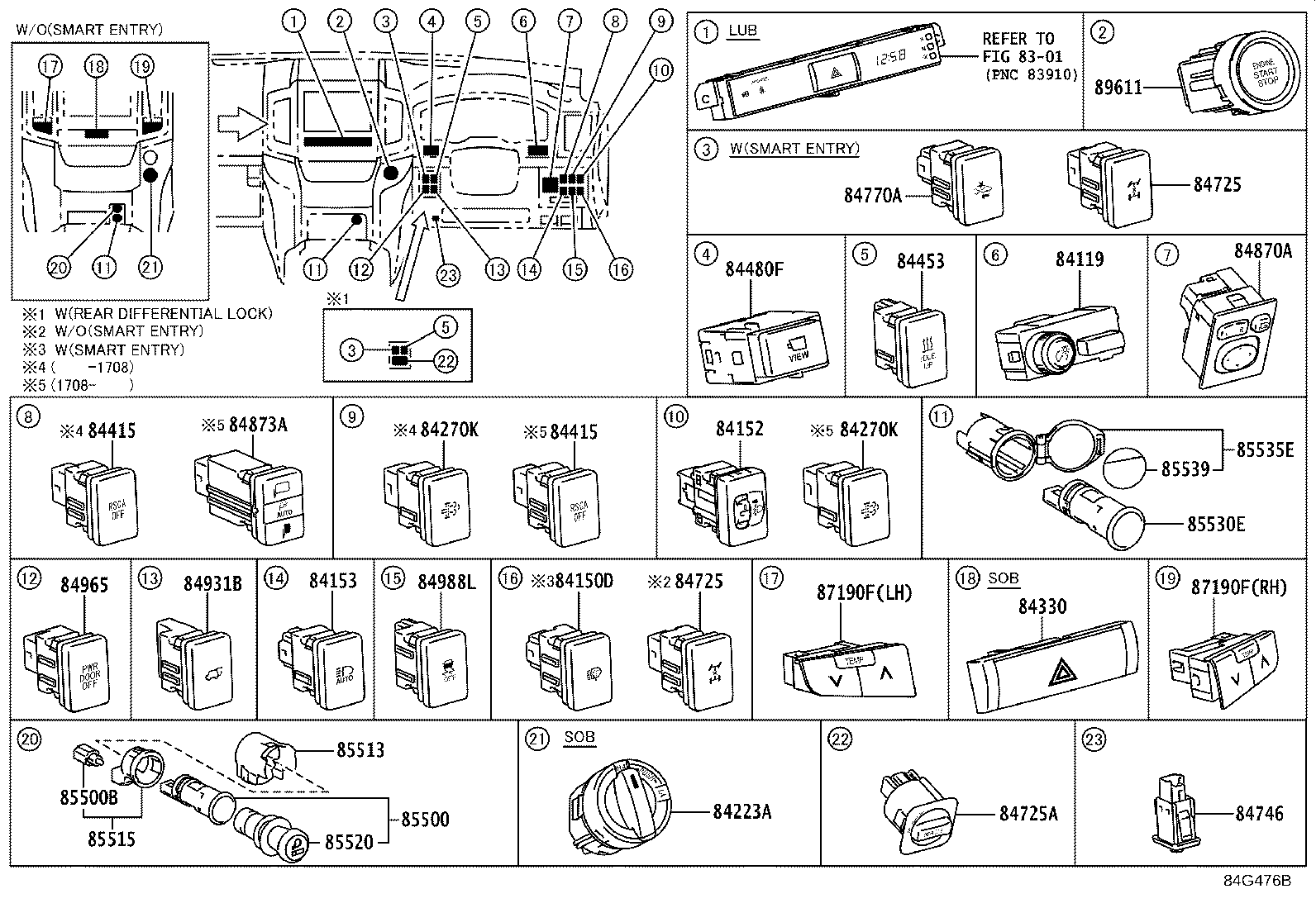

84G476B

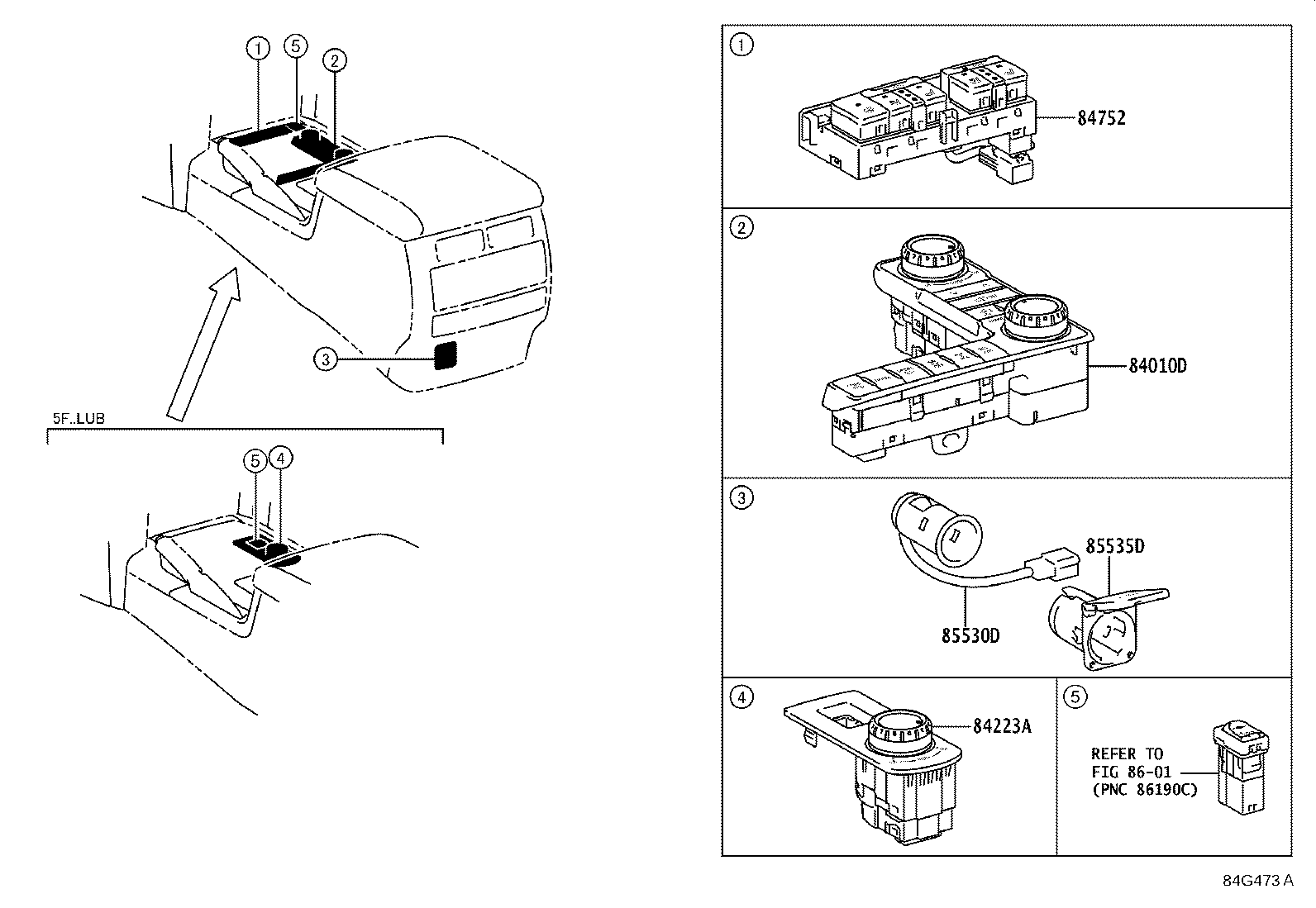

84G473A

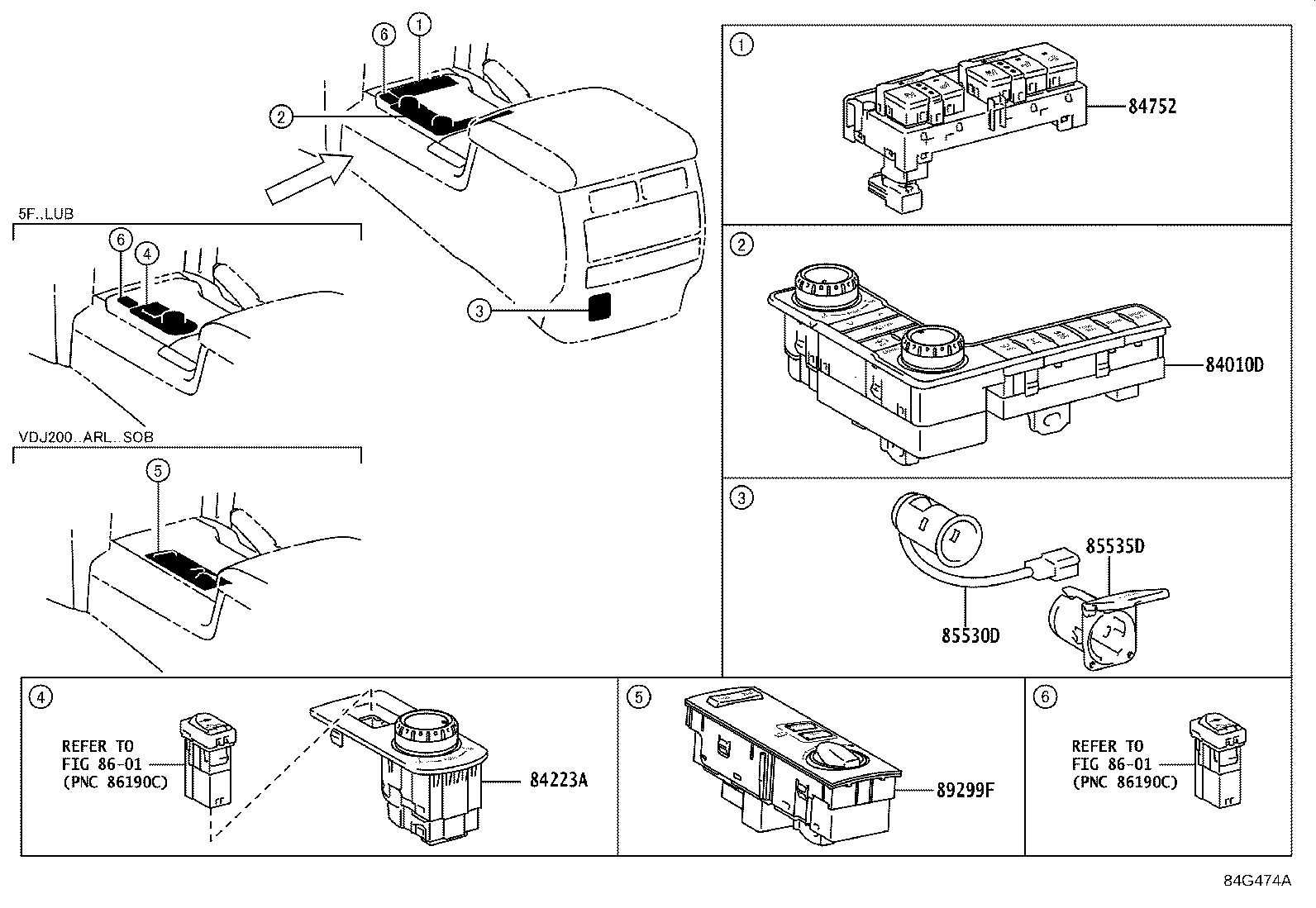

84G474A

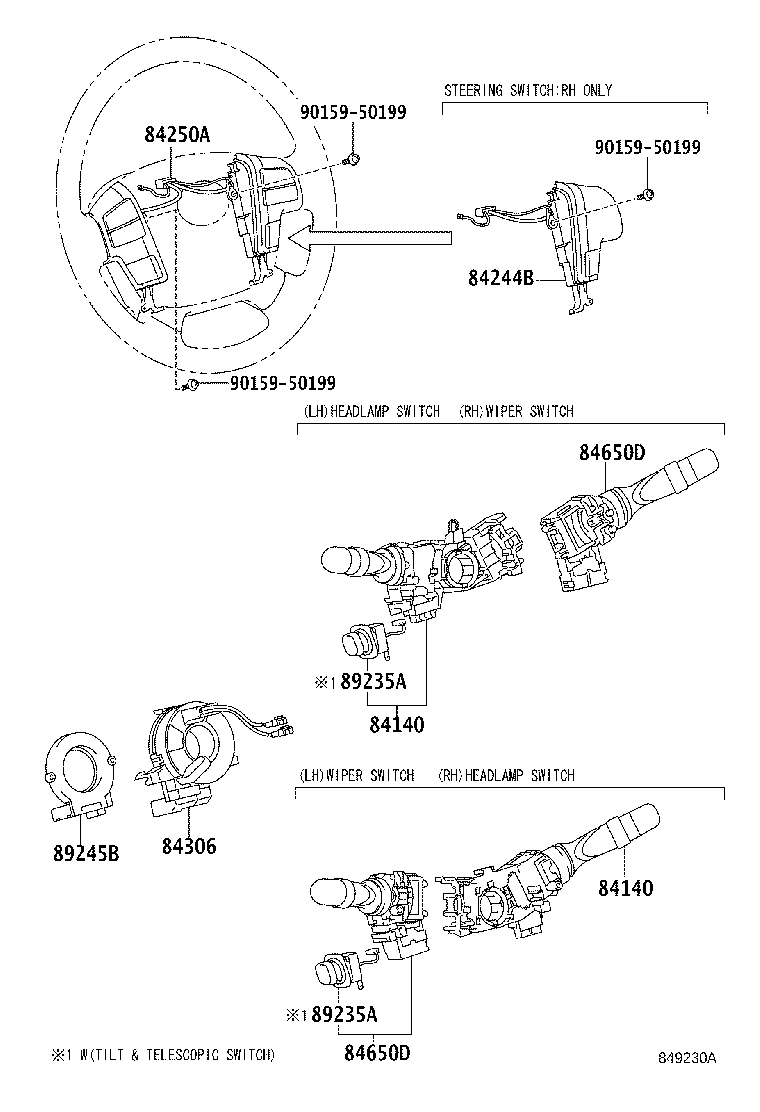

849230A

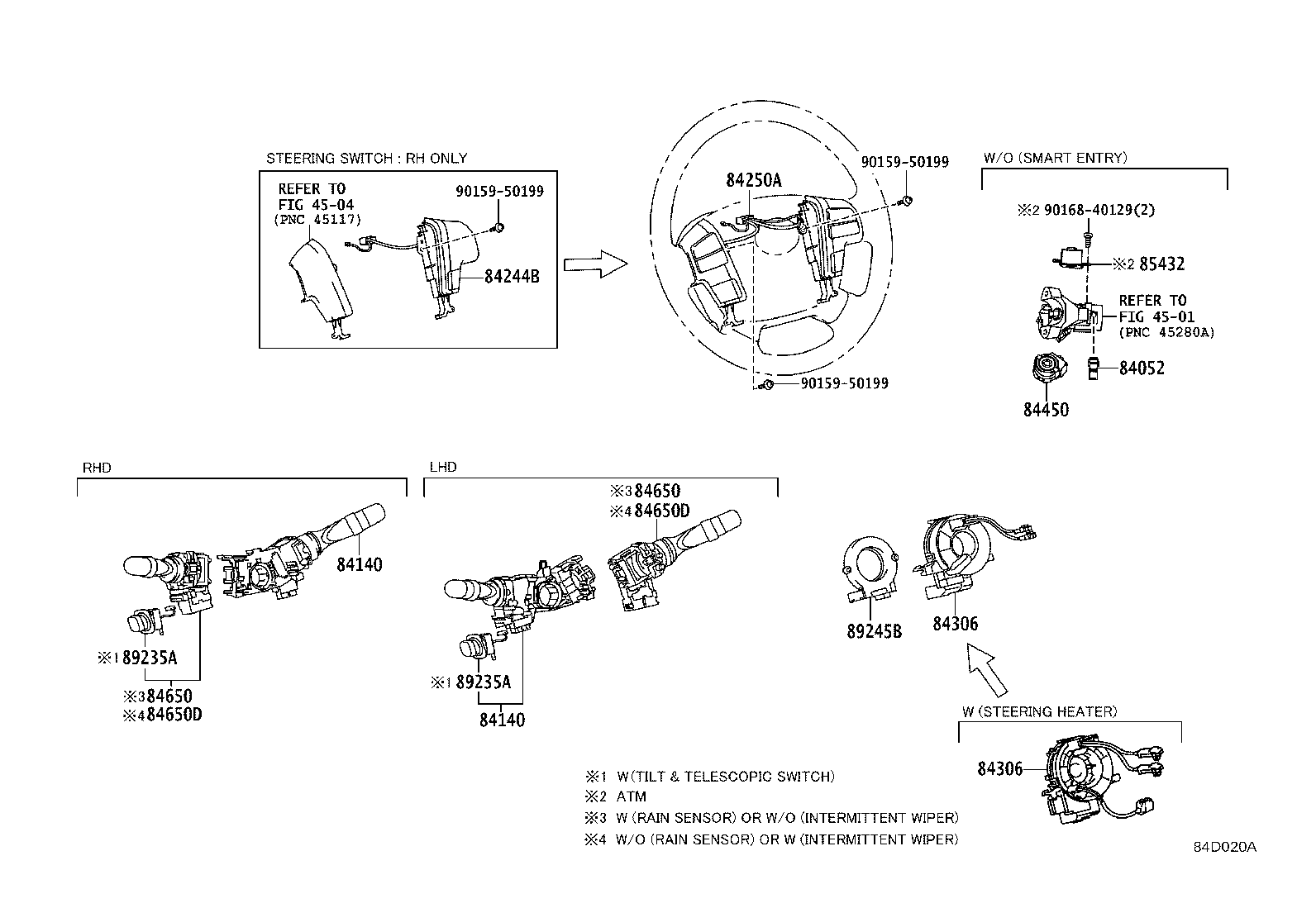

84D020A
84D020A

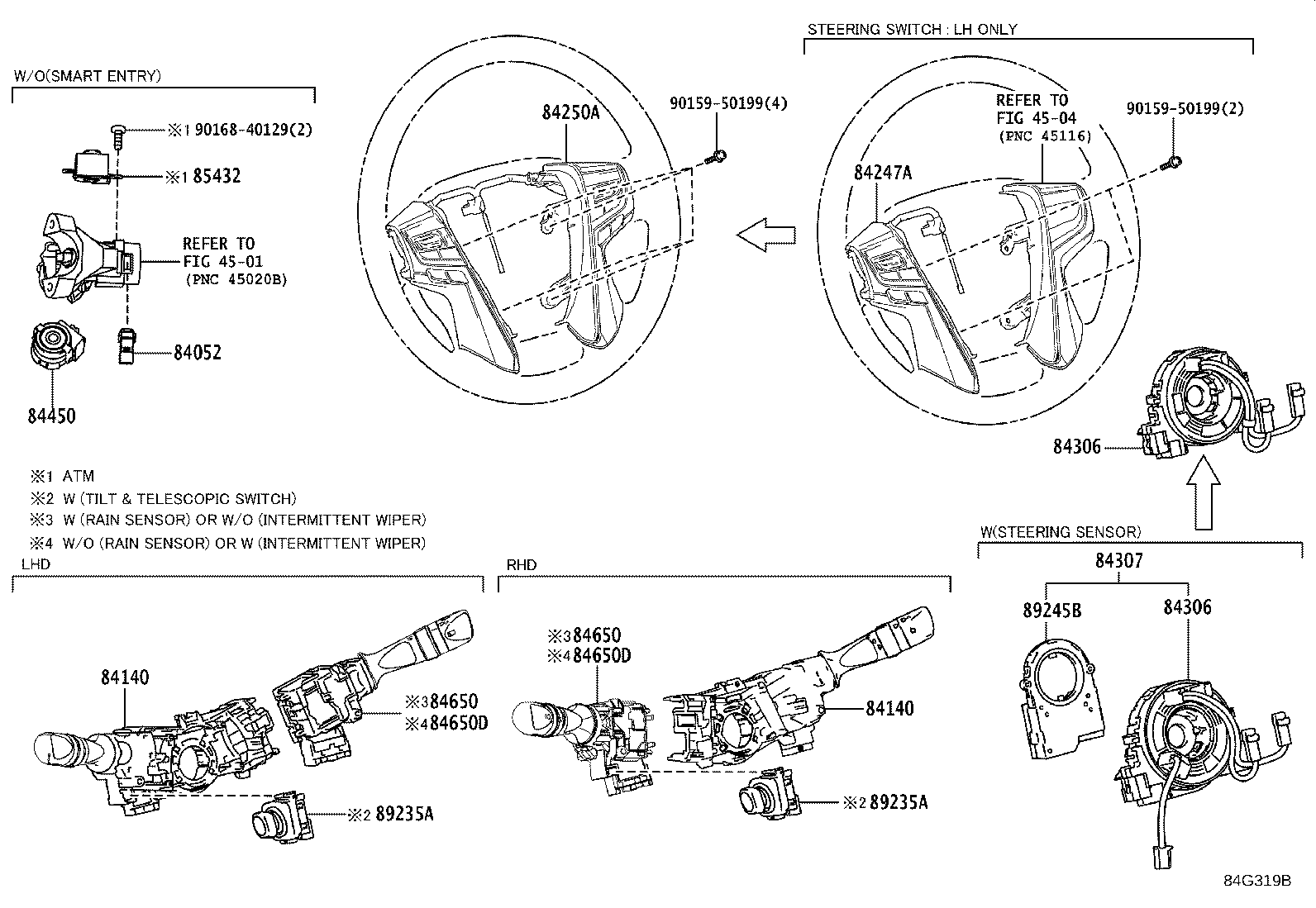

84G319B

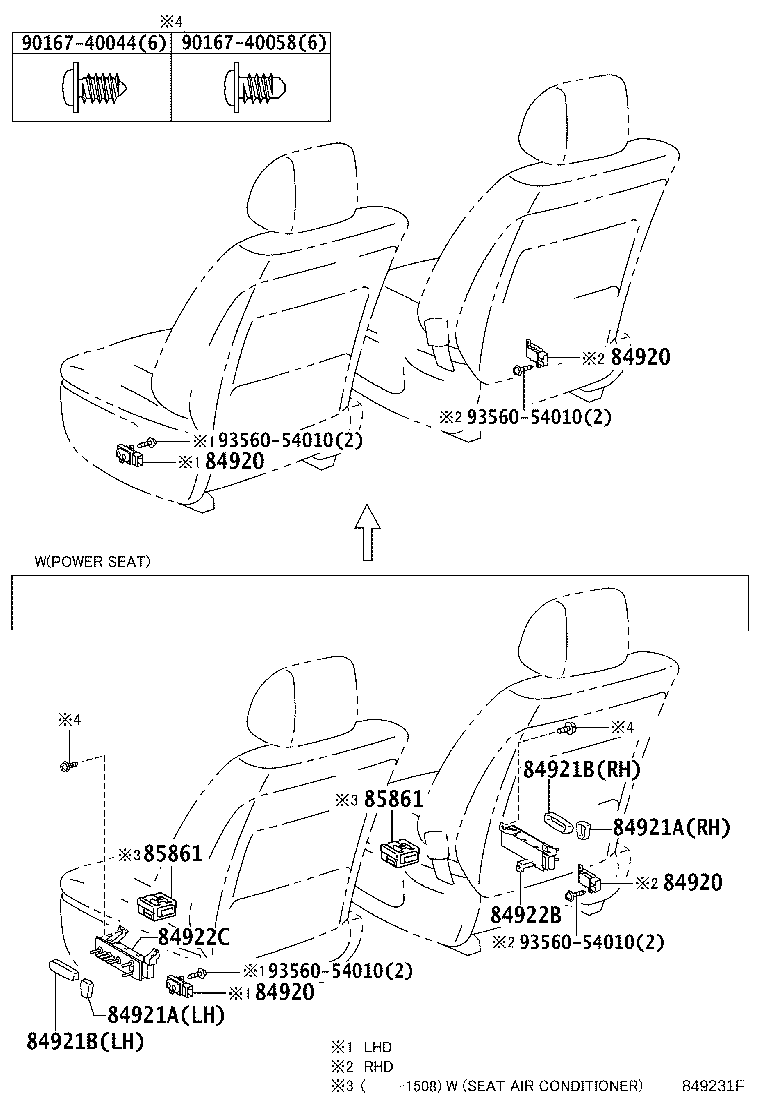

849231F

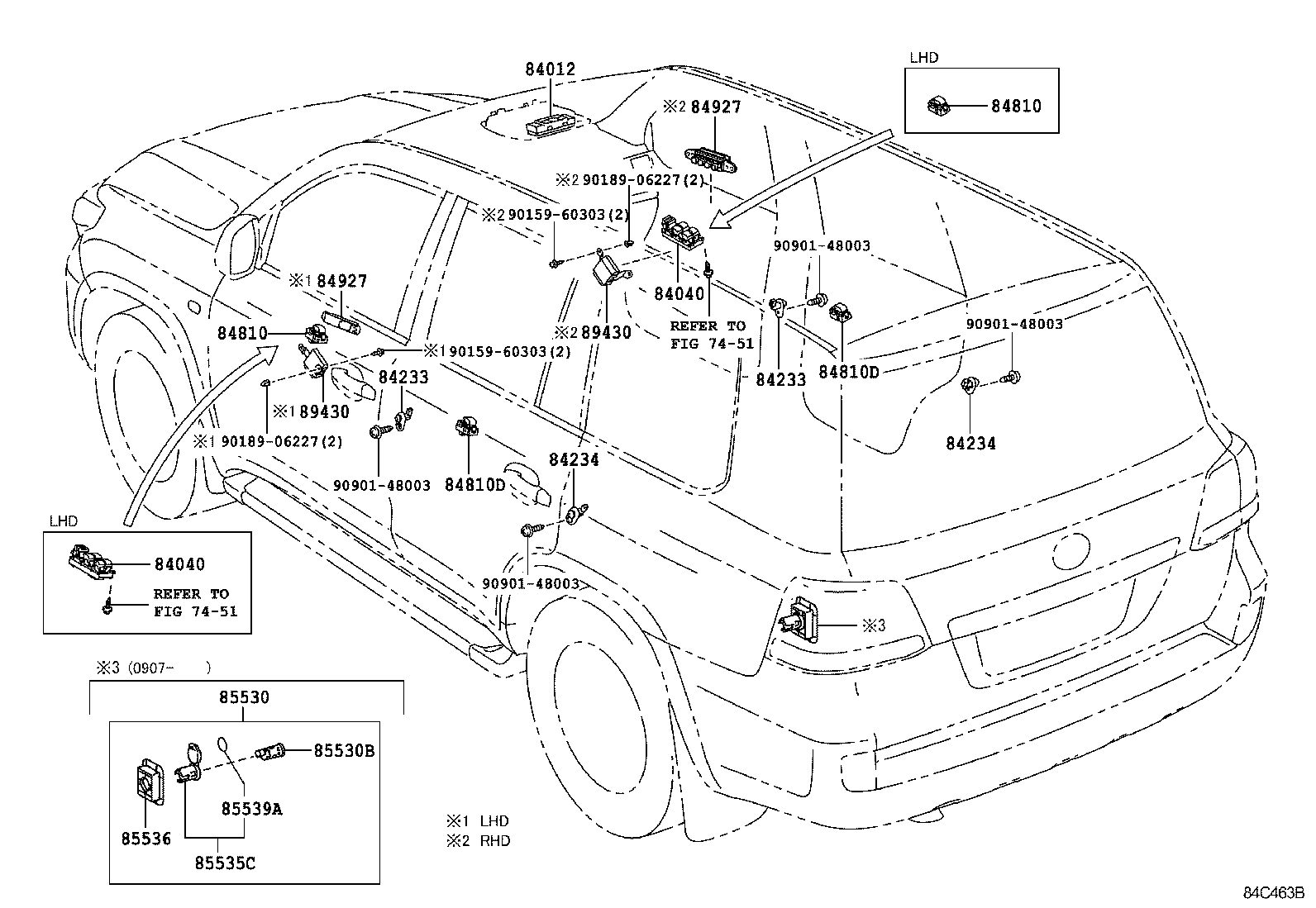

84C463B

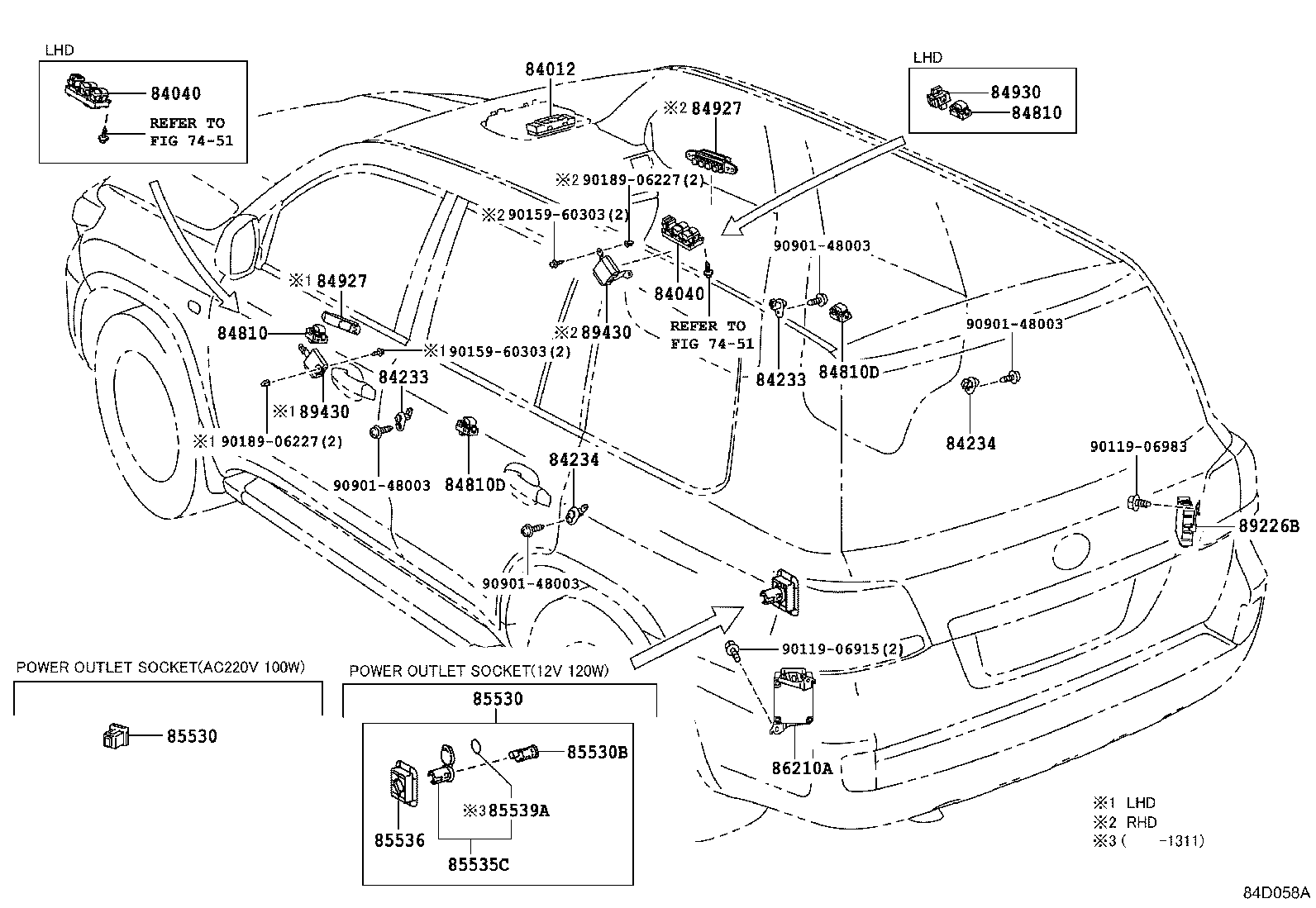

84D058A

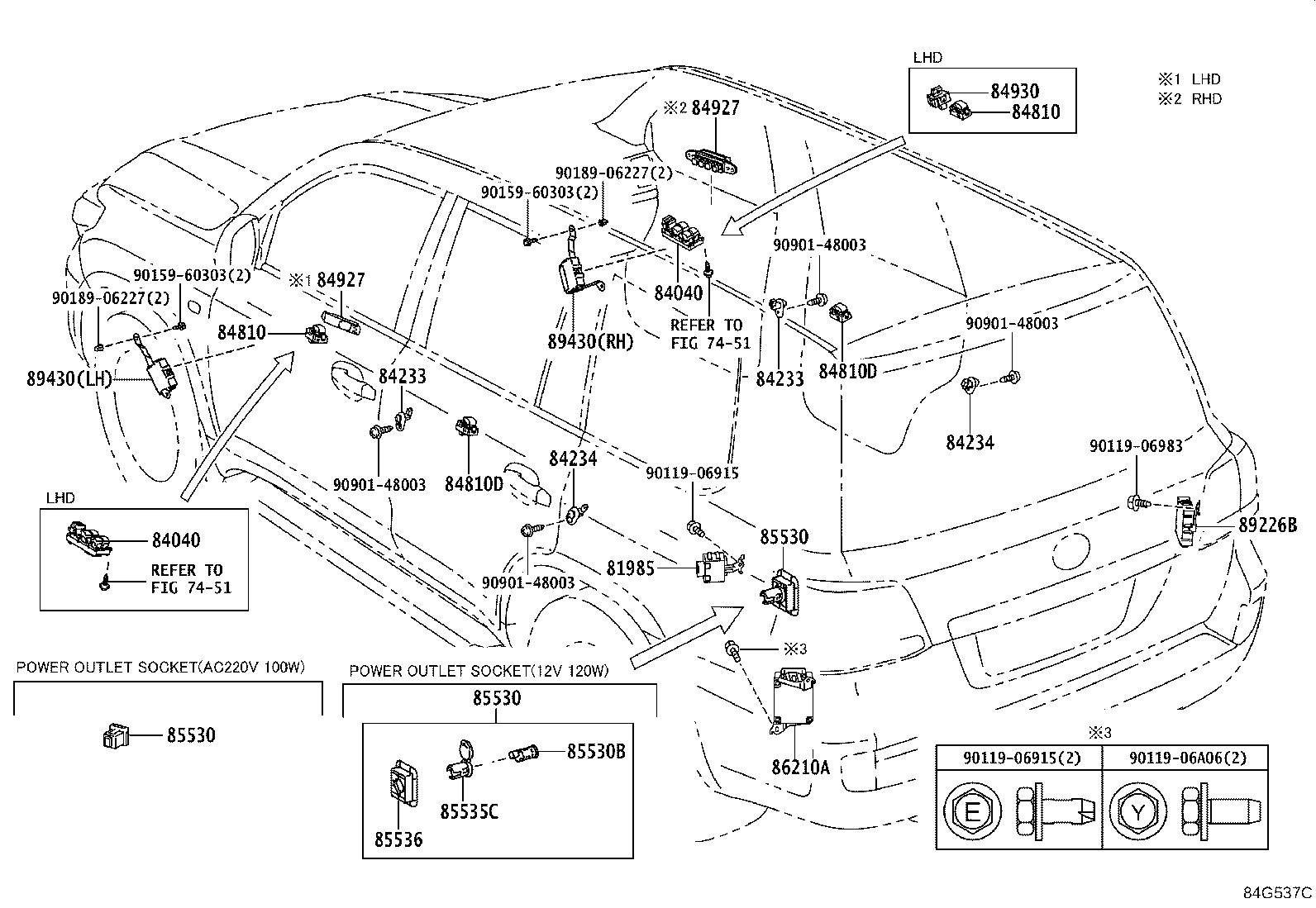

84G537C

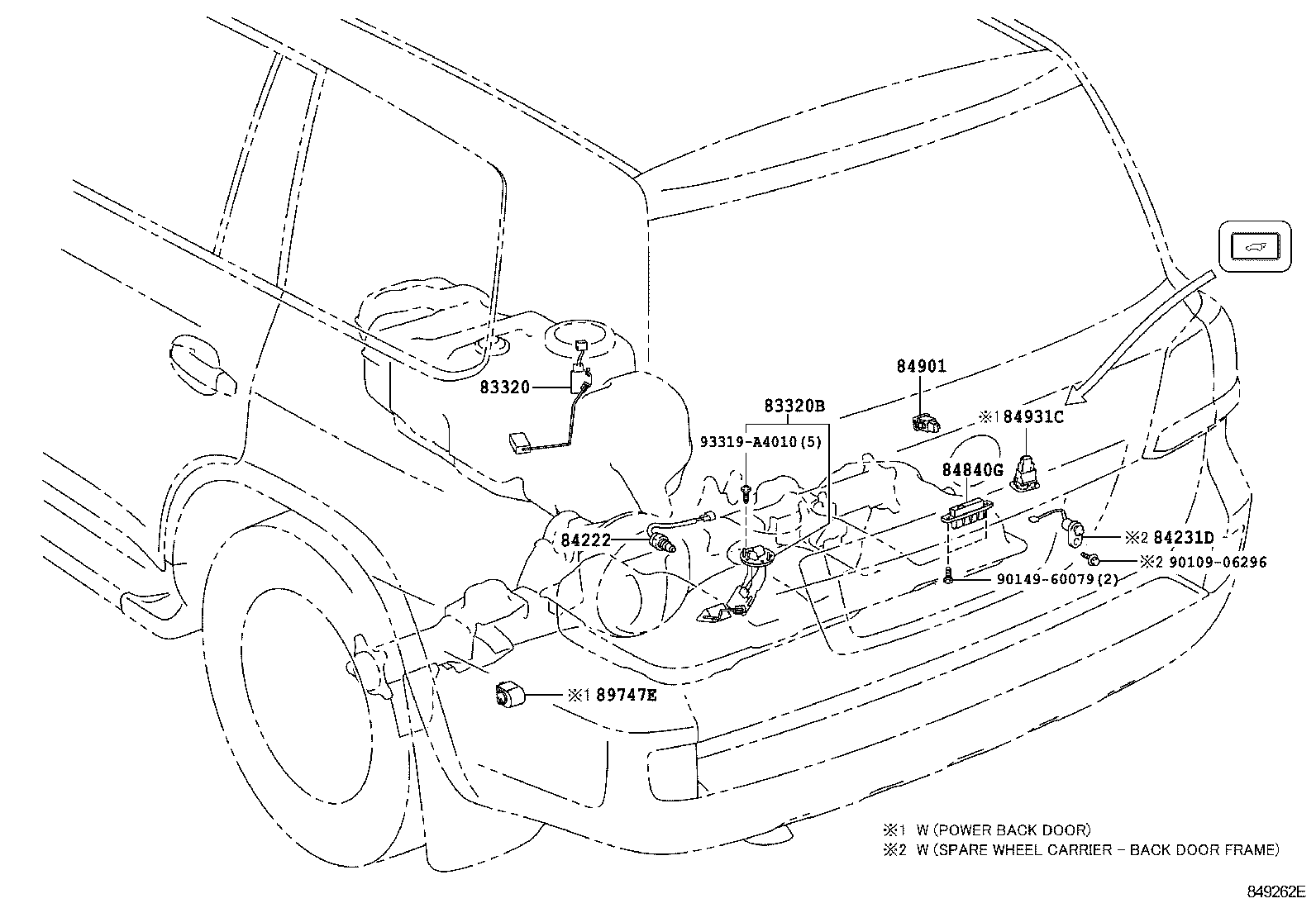

849262E

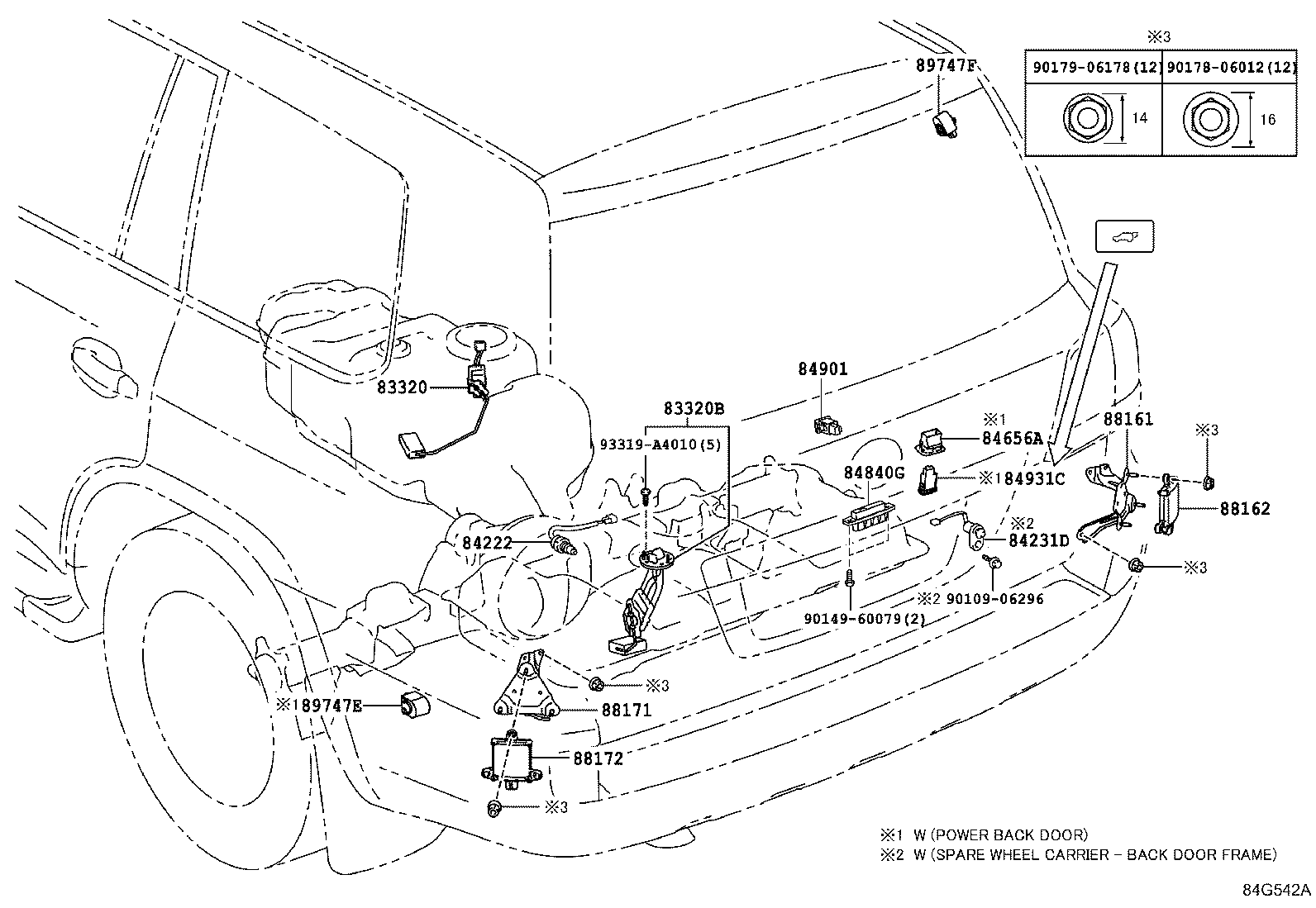

84G542A
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28300D | Relay, Starter Cut |
| 28371 | Relay, Ignition, NO.1 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 81980 | Flasher Assy, Turn Signal |
| 81985 | Relay, Towing Converter |
| 82210J | Fusible Link |
| 82210N | Instrument Panel Fusible Link |
| 82600E | Engine Room Fuse |
| 82600F | Fuse, Fuse Block |
| 82610A | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620B | Block Assy, Fusible Link |
| 82620D | Block Assy, Fusible Link |
| 82641 | Relay, Integration NO.1 |
| 82641C | Relay, Integration NO.2 |
| 82642A | Relay, Running Light |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82660H | Block Assy, Relay |
| 82660J | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82673C | Bracket, Junction Block |
| 82731A | Block, Cowl Side Junction, RH |
| 82733A | Block, Cowl Side Junction, LH |
| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82824L | Pin, Short |
| 83320 | Gage Assy, Fuel Sender |
| 83320B | Gage Assy, Fuel Sender, NO.2 |
| 83520 | Gage Assy,Oil Pressure Sender |
| 84010D | Control & Panel Assy, Integration |
| 84012 | Control & Panel Sub-assy, Integration |
| 84040 | Master Switch Assy,Multiplex Network |
| 84052 | Switch Assy, Un-lock Warning |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150D | Switch Assy, Headlamp Cleaner |
| 84152 | Switch, Headlamp Leveling |
| 84153 | Switch, Auto High Beam |
| 84210 | Switch Assy, Back-up Lamp |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84223A | Switch, Transfer Position |
| 84225A | Switch, Shift Position |
| 84231D | Switch, Courtesy Lamp (FOR TIRE CARRIER) |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84244B | Switch, Steering Pad, RH |
| 84247A | Switch, Steering Pad, LH |
| 84250A | Switch Assy, Steering Pad |
| 84255 | Switch, Steering Heater |
| 84270K | Switch Assy, Dpr |
| 84270Q | Relay, Lamp Cut |
| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84415 | Switch, Curtain Airbag Cutoff |
| 84450 | Switch Assy, Ignition OR Starter |
| 84453 | Switch, Idle UP |
| 84480F | Switch Assy, Main |
| 84520 | Switch Assy, Clutch Start |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84656A | Bezel, Switch |
| 84725 | Switch, Center Differential Lock |
| 84725A | Switch, Differential Lock |
| 84746 | Switch, Tire Pressure Warning |
| 84751 | Switch, Seat Heater |
| 84752 | Switch, Refreshing Seat |
| 84770A | Switch Assy, Pre-collision System Cancel |
| 84794A | Relay, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84870B | Bulb, Outer Mirror Switch |
| 84870C | Cap, Outer Mirror Switch Bulb |
| 84873A | Switch, Retractable Outer Mirror |
| 84873B | Bulb, Retractable Outer Mirror Switch |
| 84901 | Switch Sub-assy, Door Opening |
| 84920 | Switch Assy, Power Seat |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927 | Switch, Seat Memory |
| 84930 | Switch Assy, Door Control |
| 84931B | Switch, Door Control |
| 84931C | Switch, Back Door Control |
| 84965 | Switch, Power Back Door Main |
| 84988L | Switch, Vsc Off |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530B | Socket Assy, Power Outlet, Rear NO.1 |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85535C | Cover, Power Outlet Socket, Rear |
| 85535D | Cover, Power Outlet Socket, Center |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85536 | Bezel, Power Outlet Socket |
| 85539 | Label, Power Outlet Notice |
| 85539A | Label, Power Outlet Notice, Rear |
| 85861 | Computer, Seat Climate Control |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85910E | Relay, Injector |
| 85910V | Relay, Seat Heater |
| 85912 | Relay, Defogger |
| 85916D | Relay, Fog Lamp |
| 85916P | Relay, Headlamp |
| 85916U | Relay, Headlamp, NO.2 |
| 85916Y | Relay, Towing Tail |
| 85926 | Relay, Headlamp Dimmer |
| 85931A | Relay, Brake Lamp |
| 85934 | Relay, Magnet-clutch |
| 85934A | Relay Condenser Fan |
| 85939 | Relay, Power Window |
| 85940 | Relay Assy, Windshield Wiper |
| 85942 | Relay, Headlamp Cleaner Control |
| 85943 | Computer, Windshield Wiper |
| 8598A | Battery, Door Control |
| 85999H | Bracket, Relay |
| 86210A | Inverter Assy, Voltage |
| 86530 | Relay Assy, Horn |
| 86530A | Relay, Horn |
| 87190F | Switch Assy, Temperature Control |
| 87346K | Relay, Ptc Heater |
| 88150A | Computer Assy, Driving Support |
| 88161 | Bracket, Blind Spot Monitor, RH |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88171 | Bracket, Blind Spot Monitor, LH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 88280A | Switch Assy, Clutch |
| 88630Y | Relay, Rear Cooler |
| 89111 | Computer, Network Gateway |
| 89181A | Computer, Steering Control |
| 89221 | Computer, Multiplex Network Body |
| 89226B | Computer, Multiplex Network Body, NO.2 |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |
| 89299F | Switch, Suspension Control |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89425A | Sensor, Exhaust Gas Temperature, NO.2 |
| 89425B | Sensor, Exhaust Gas Temperature, NO.3 |
| 89425C | Sensor, Exhaust Gas Temperature, NO.4 |
| 89430 | Computer Assy, Outer Mirror Control |
| 89439 | Bracket, Sensor |
| 89439D | Bracket, Sensor, NO.1 |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 89481B | Sensor, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89530C | Computer Assy, Transmission Control |
| 89533 | Computer, 4 Wheel Drive Control |
| 895A0 | Relay Assy, Stop Lamp Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89747E | Buzzer, Power Back Door Warning |
| 89747F | Buzzer, Blind Spot Monitor |
| 89815 | Computer, Seat Belt Control |
| 89940 | Computer Assy, Headlamp Swivel |
| 89960 | Computer Assy, Headlamp Leveling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
