Toyota Land Cruiser

2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

14 part groups · 7 illustrations

Illustrations

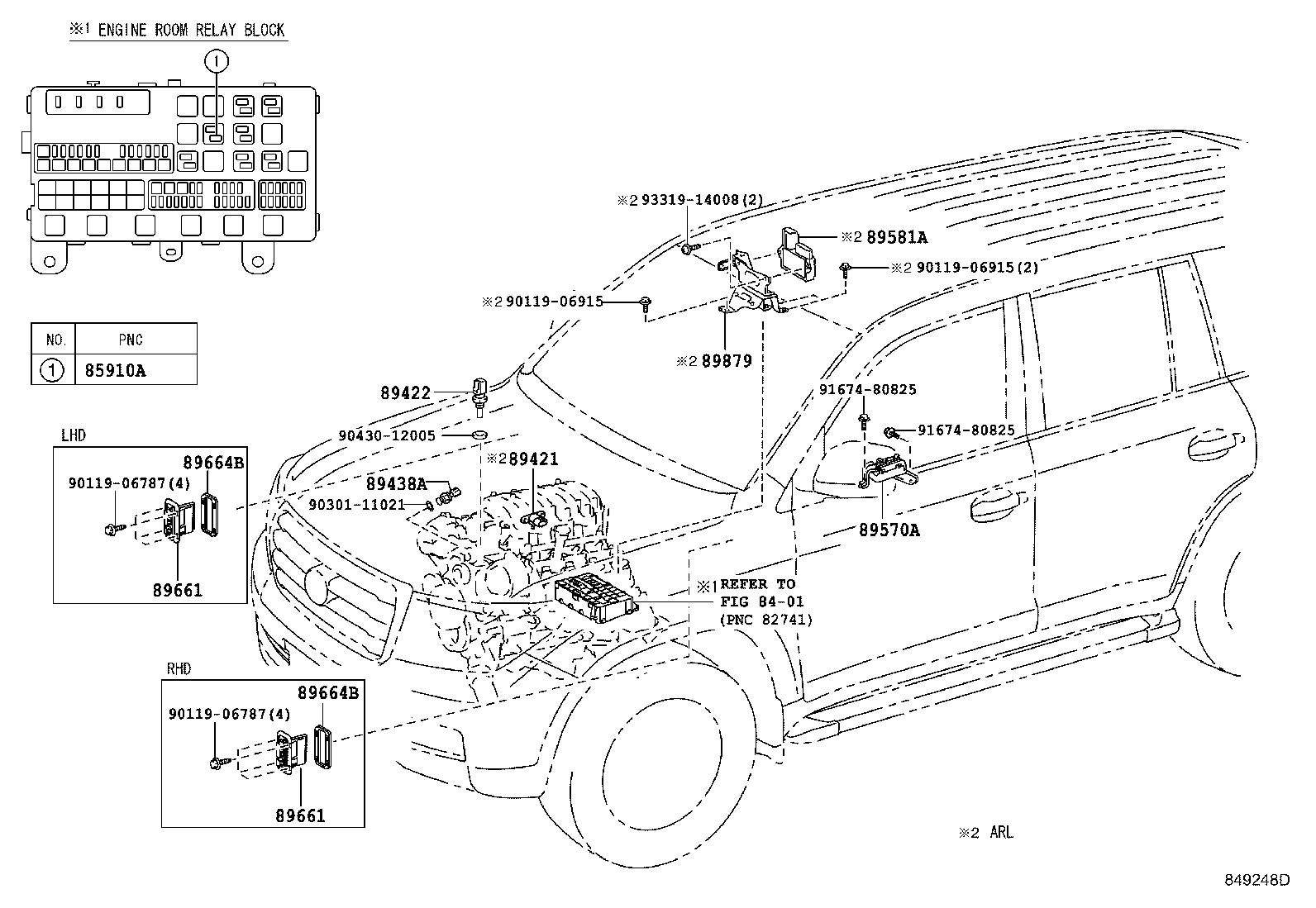

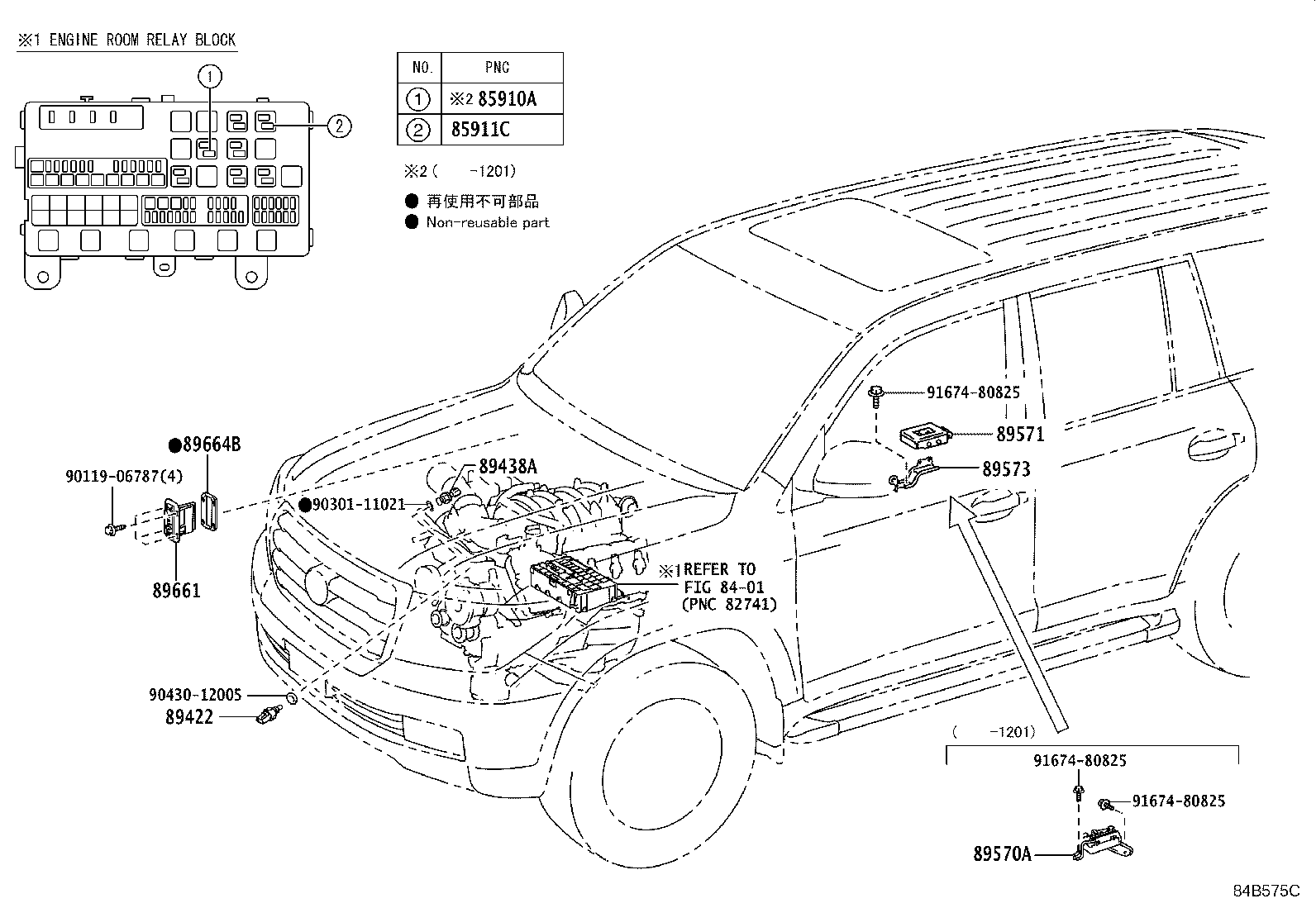

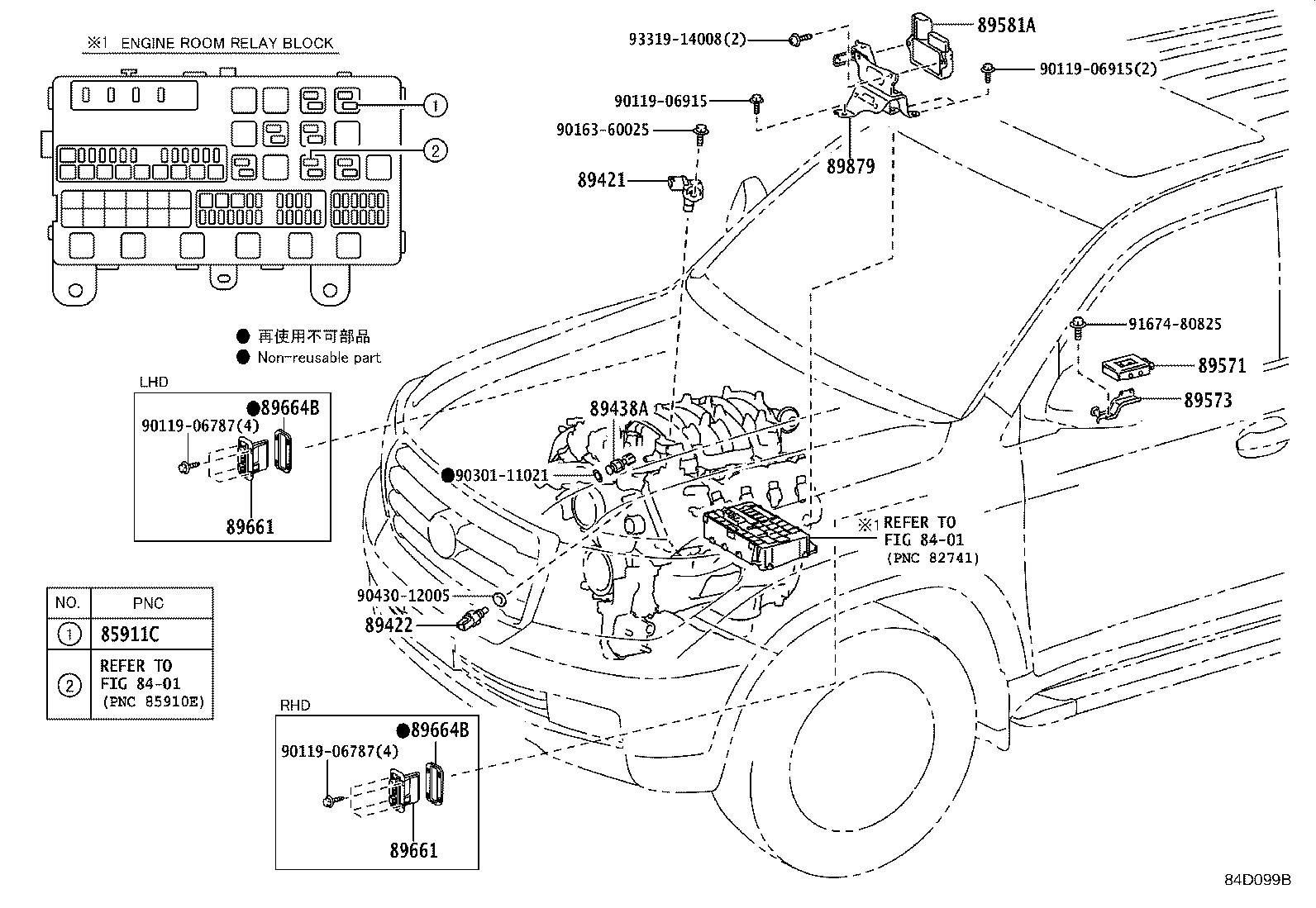

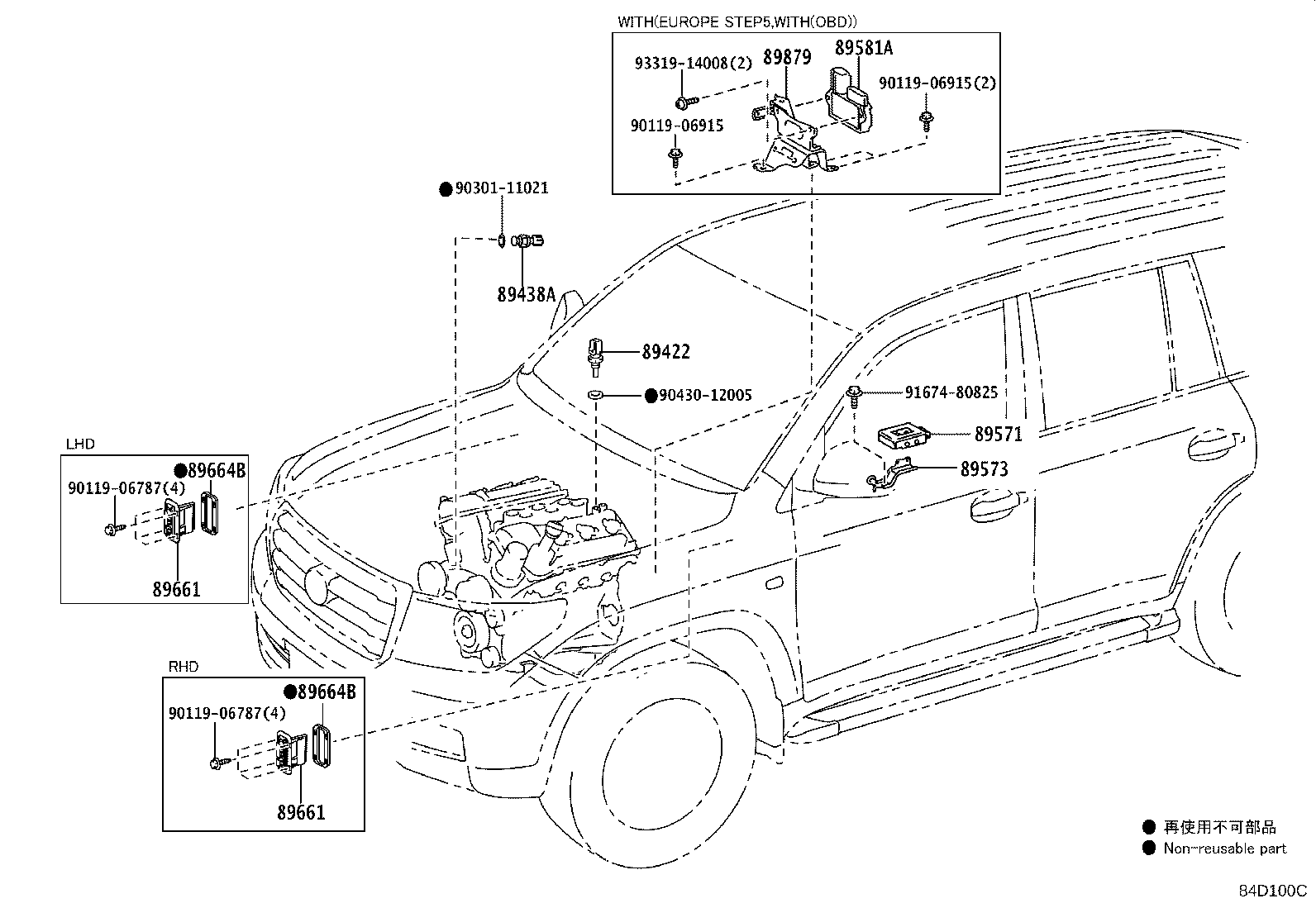

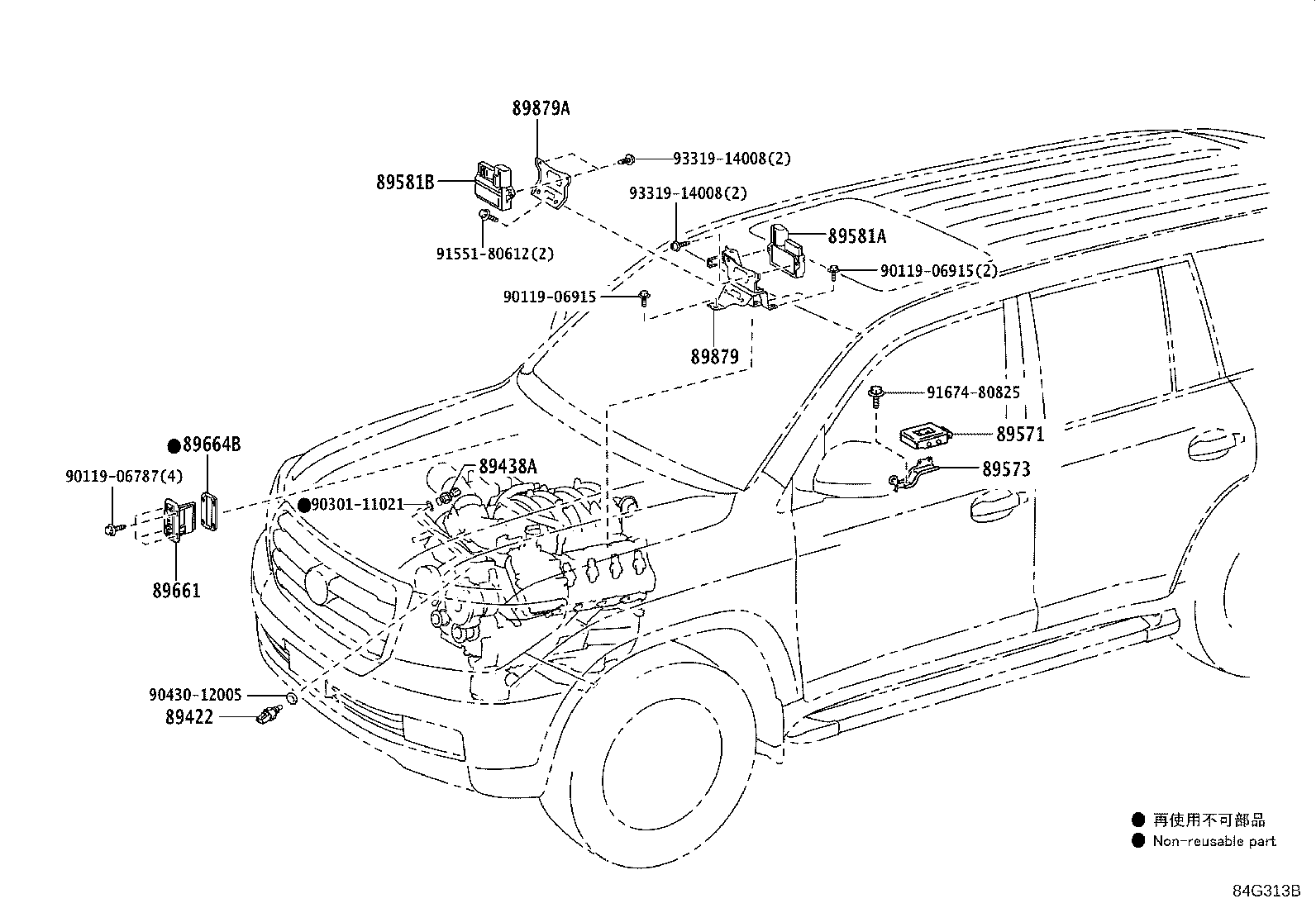

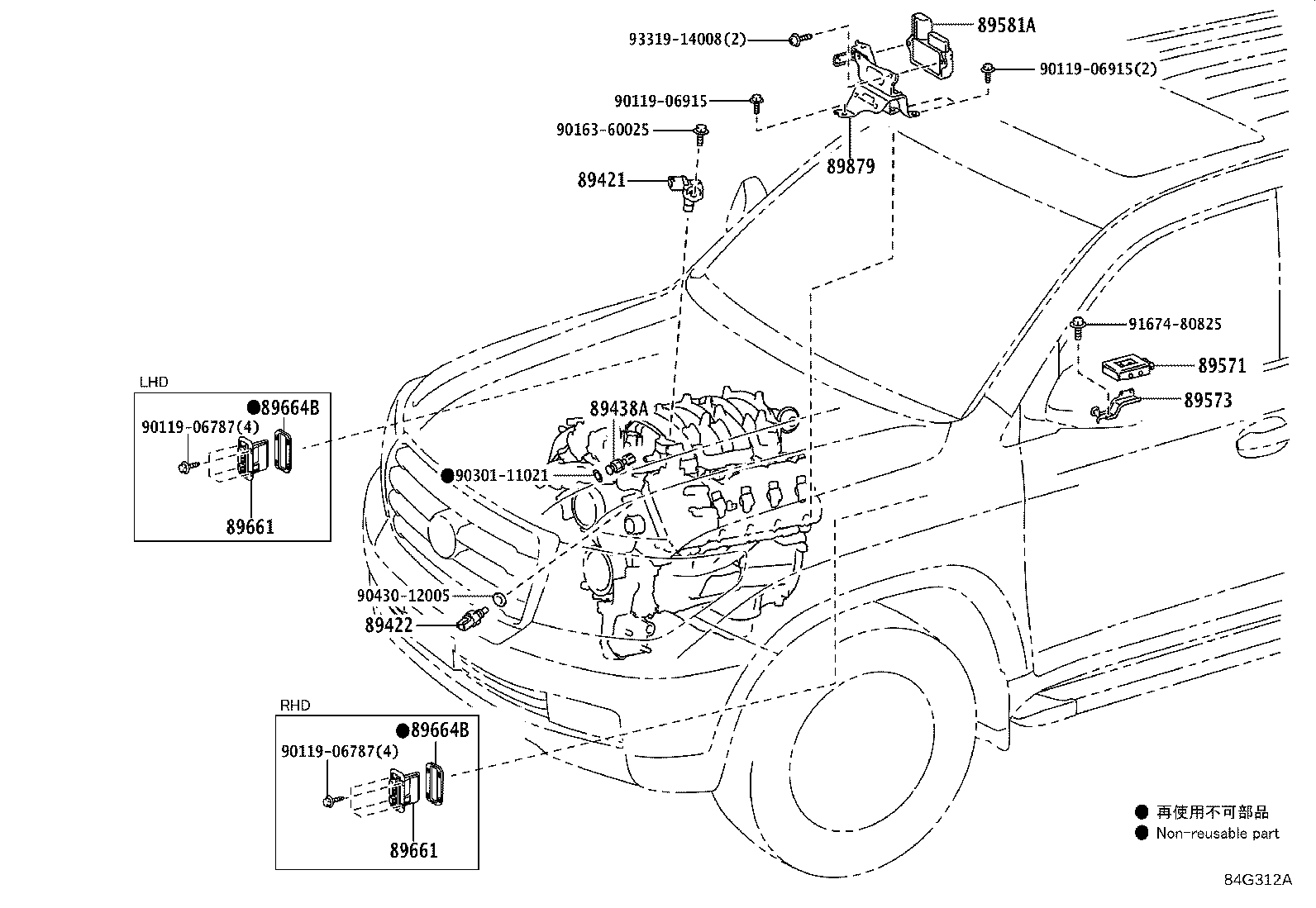

Figure 849250D 849250D 2007-09 → 2012-01 Figure 849248D 849248D 2007-09 → 2012-01 Figure 84B575C 84B575C 2010-07 → 2015-08 Figure 84D100C 84D100C 2012-01 → — Figure 84D099B 84D099B 2012-01 → 2015-08 Figure 84G313B 84G313B 2015-08 → — Figure 84G312A 84G312A 2015-08 → —

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
85911C Relay, Efi 2
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89438A Switch, Power Steering Oil Pressure
89570A Computer Assy, Fuel Pump Control
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89581A Driver, Air Injection Control
89581B Driver, Air Injection Control
89661 Computer, Engine Control
89664B Seal, Engine Control Computer
89879 Bracket, Injector Driver
89879A Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
