Toyota Land Cruiser

2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

4 part groups · 6 illustrations

Illustrations

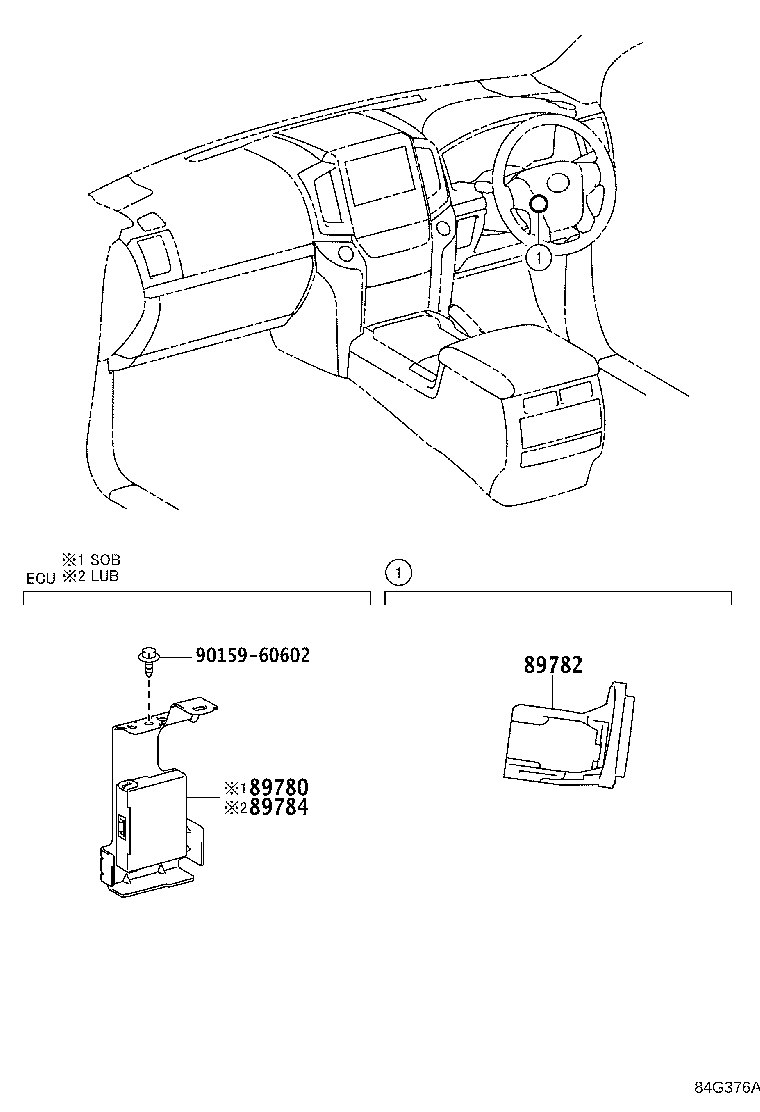

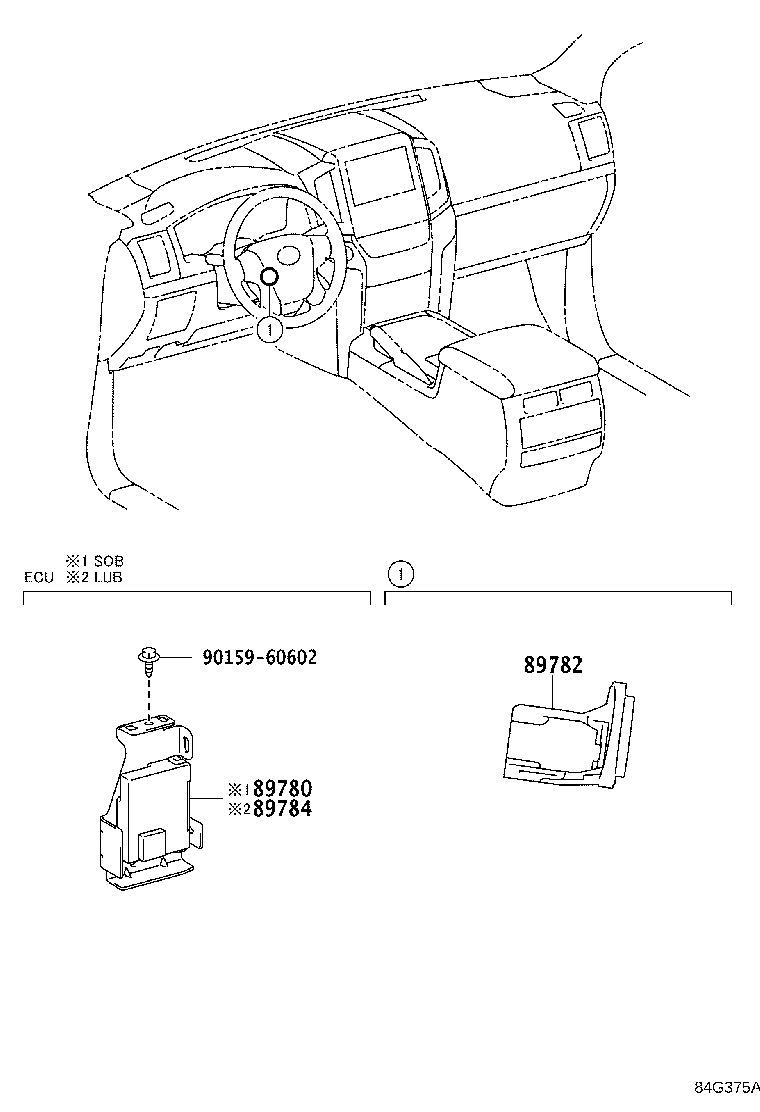

Figure 849137A 849137A 2007-09 → 2015-08 Figure 84C448A 84C448A 2011-09 → 2015-08 Figure 849222A 849222A 2007-09 → 2015-08 Figure 84C449A 84C449A 2011-09 → 2015-08 Figure 84G375A 84G375A 2015-08 → — Figure 84G376A 84G376A 2015-08 → —

Part groups

PNCDescription
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
