Toyota Land Cruiser

2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

17 part groups · 7 illustrations

Illustrations

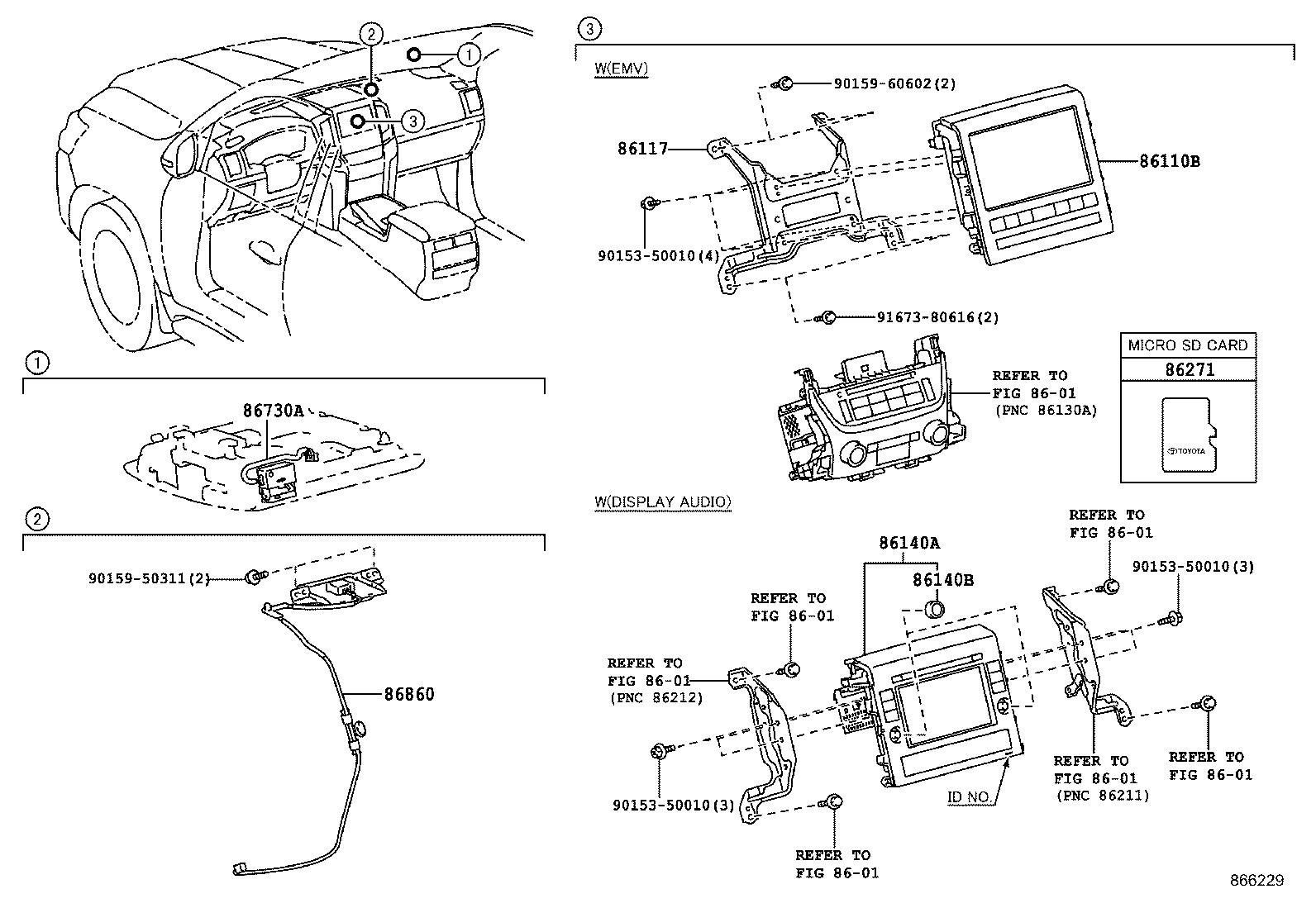

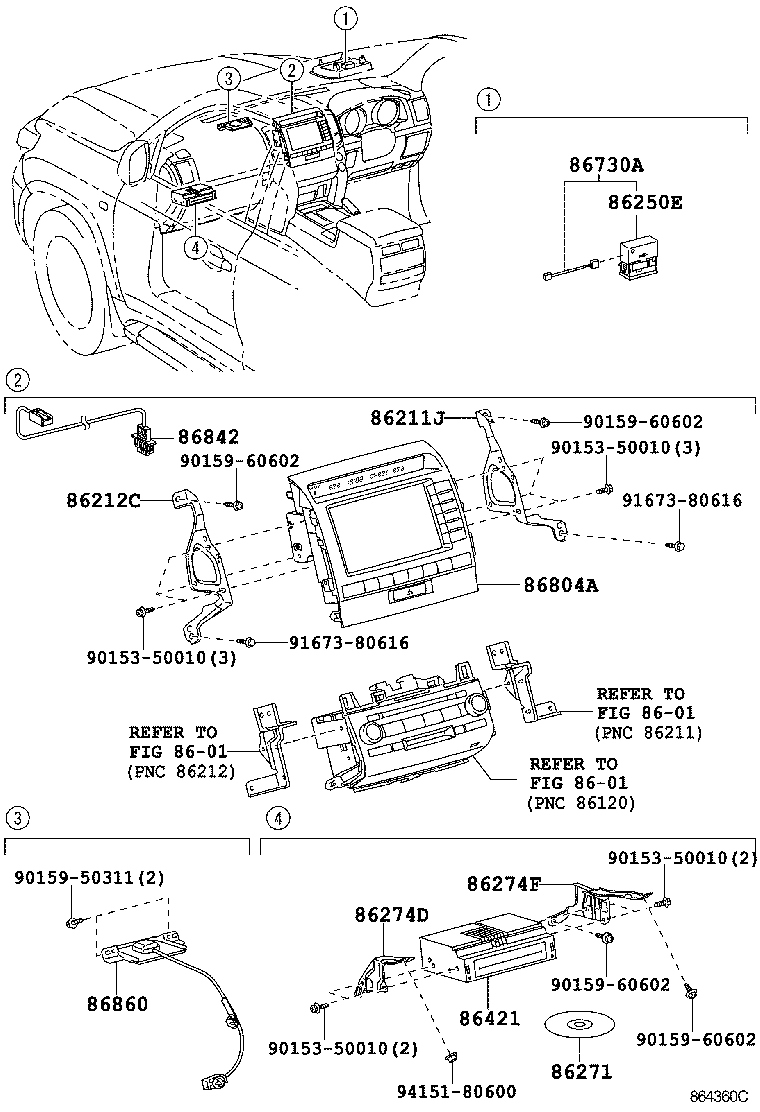

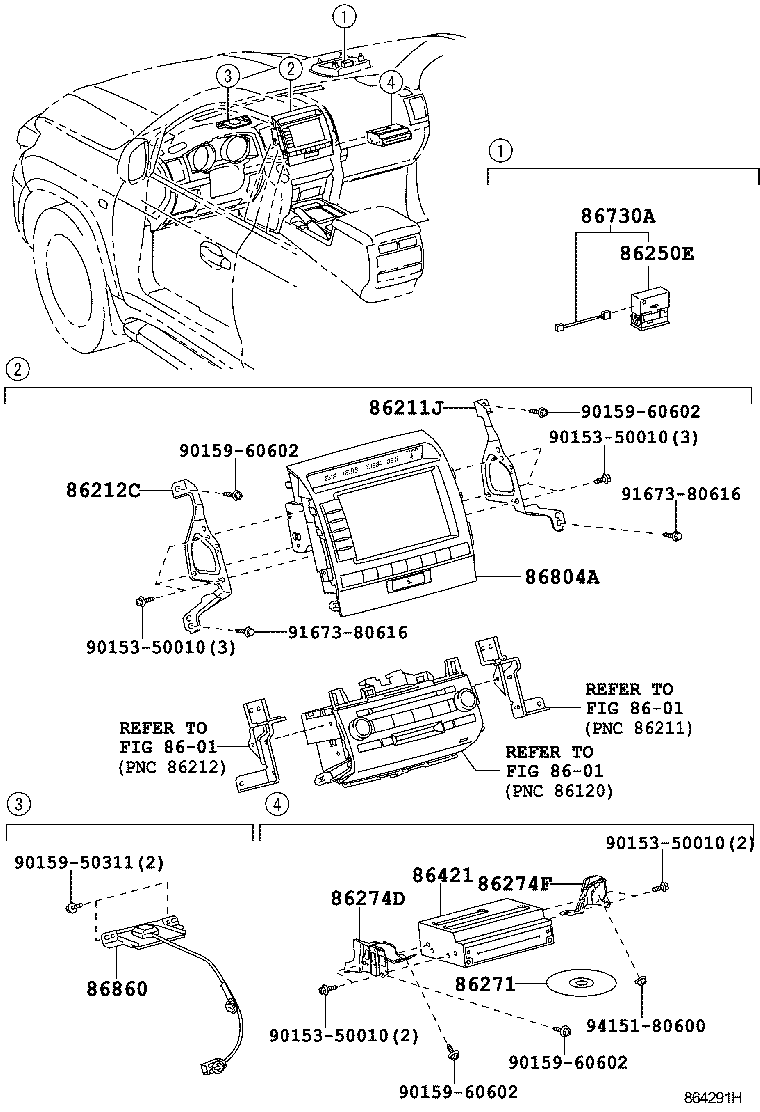

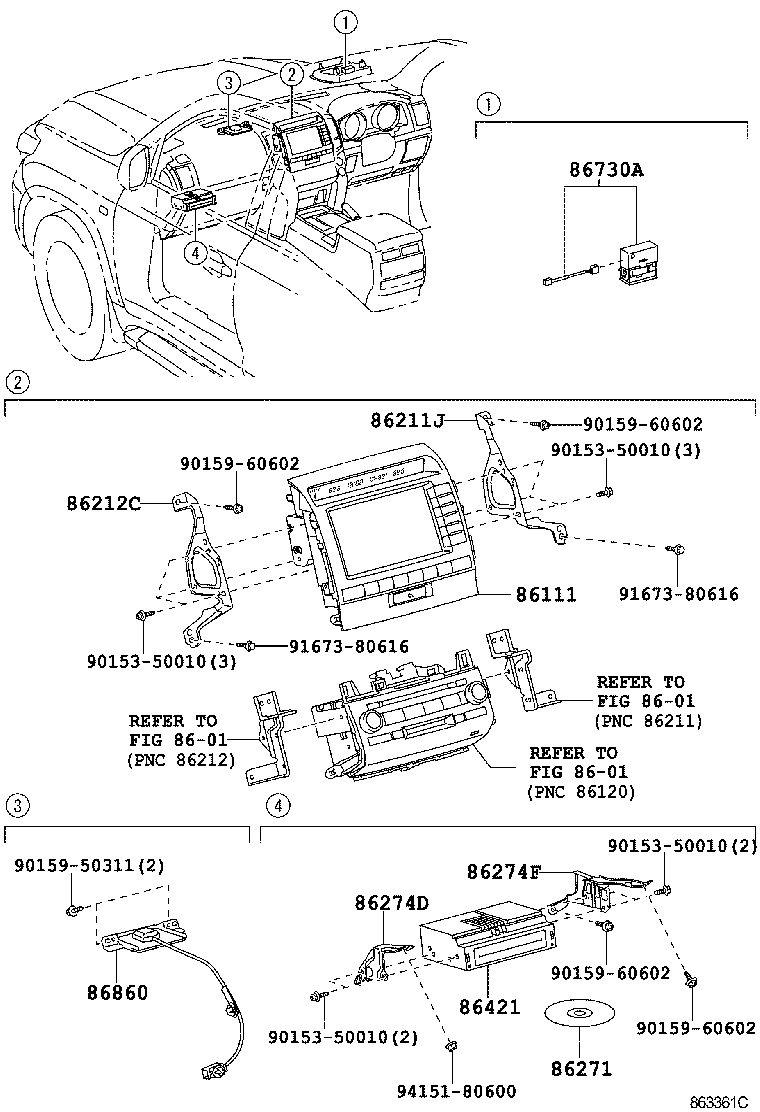

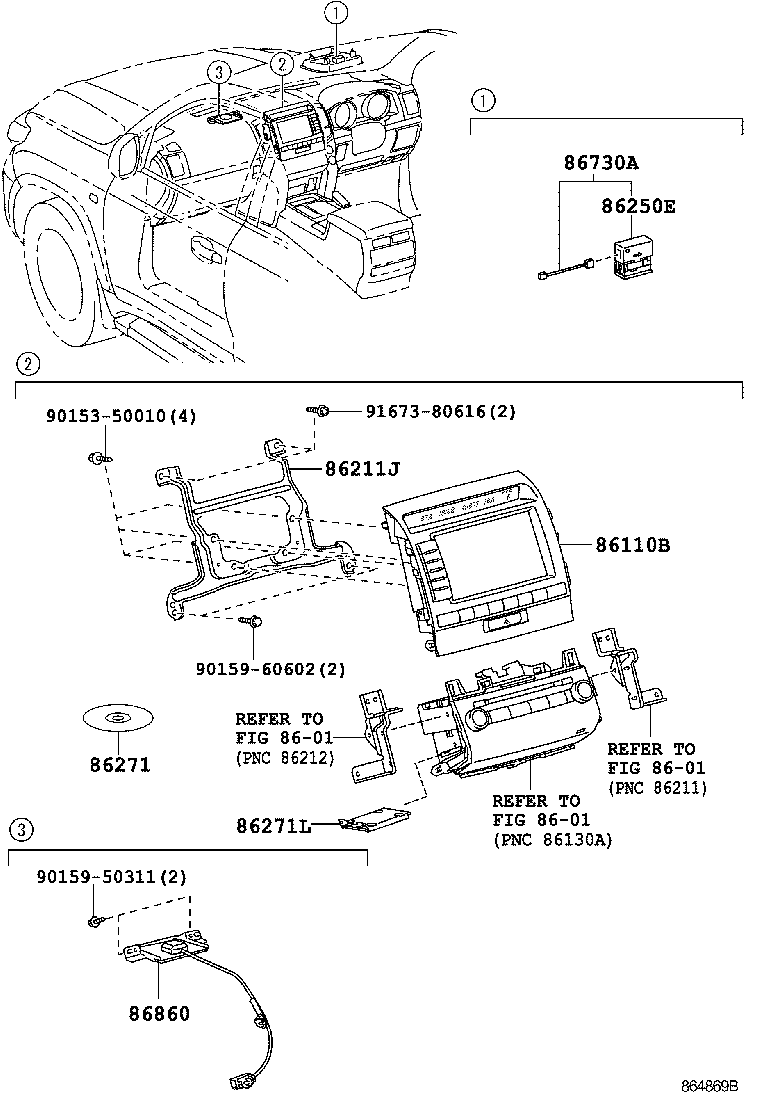

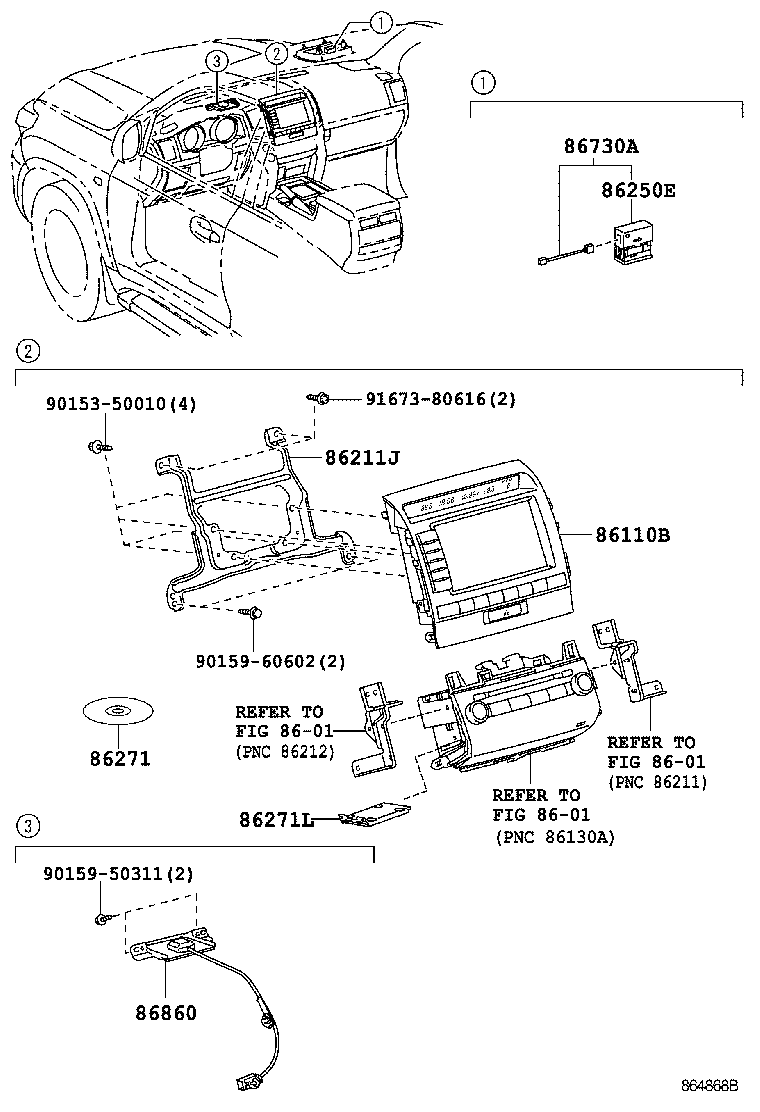

Figure 863360E 863360E 2007-09 → 2009-07 Figure 863361C 863361C 2007-09 → 2009-07 Figure 864291H 864291H 2009-07 → 2012-01 Figure 864360C 864360C 2009-07 → 2012-01 Figure 864868B 864868B 2012-01 → 2015-08 Figure 864869B 864869B 2012-01 → 2015-08 Figure 866229 866229 2015-08 → —

Part groups

PNCDescription
86110B Multi-display Assy
86111 Multi-display
86117 Bracket, Multi-display Controller, A
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86271L Hard Disc
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86421 Board, Navigation Module
86730A Microphone Assy, Telephone
86804A Sub-assy, Navigation Computer
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
