Toyota Land Cruiser

2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

9 part groups · 3 illustrations

Illustrations

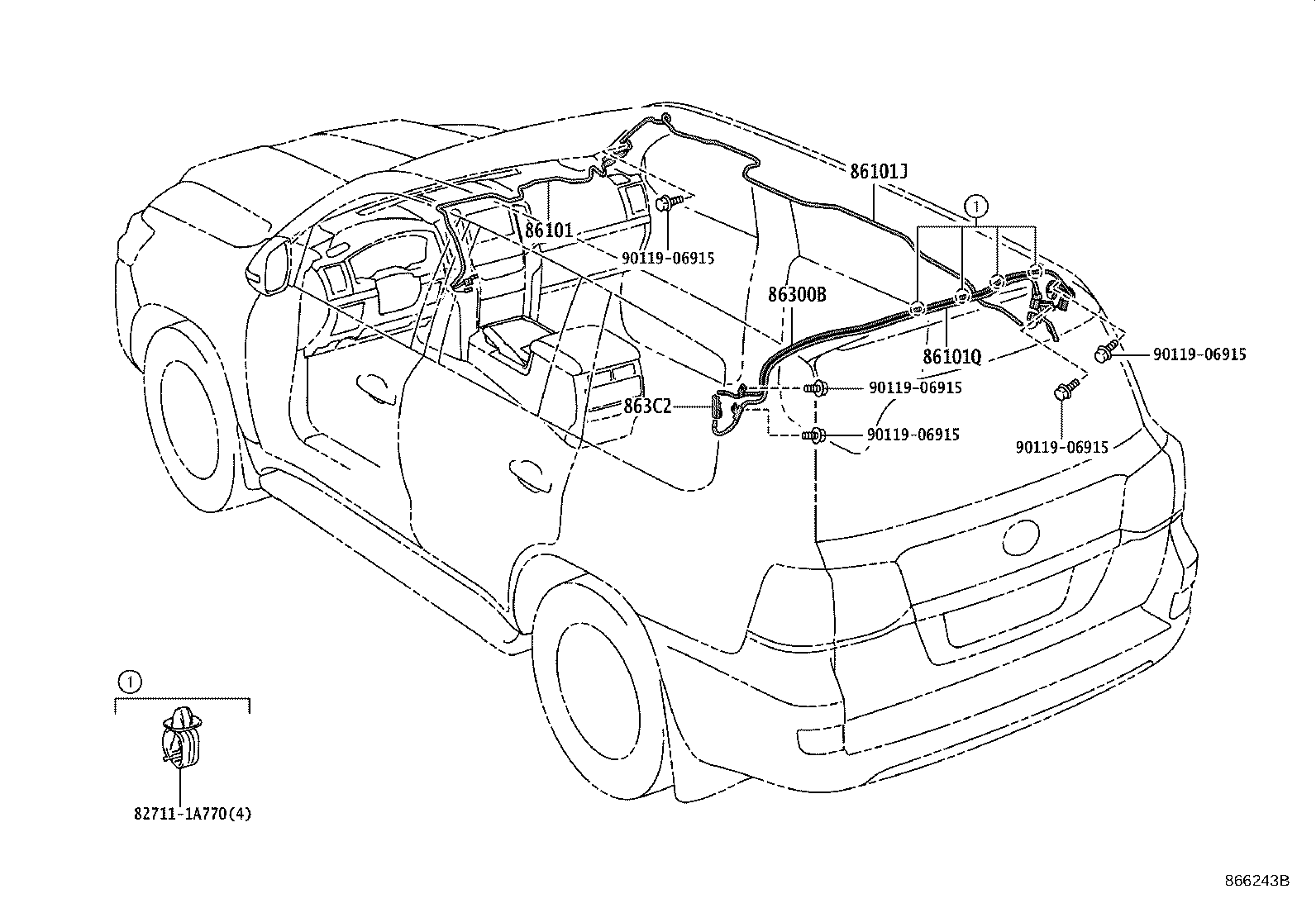

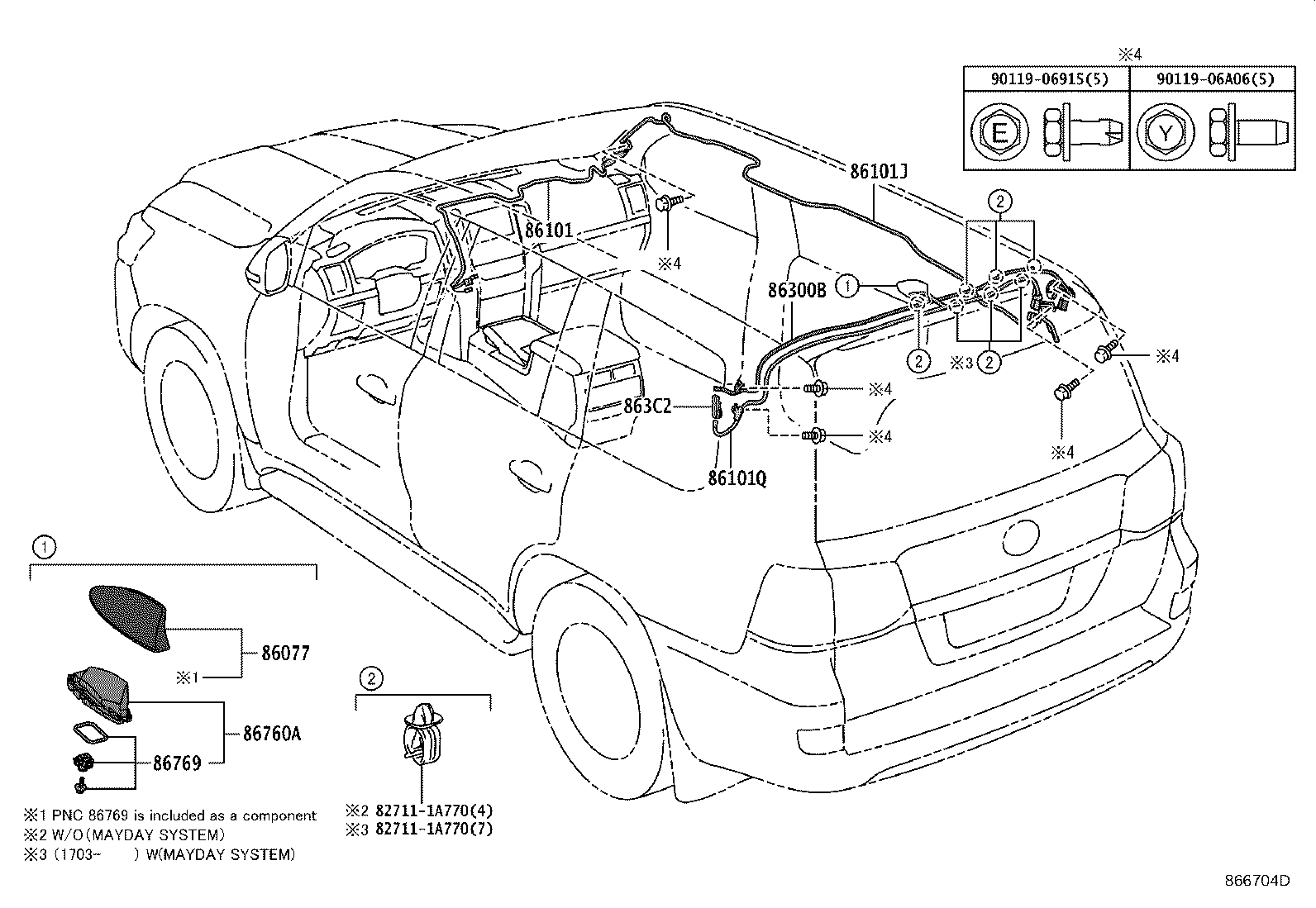

Figure 863353A 863353A 2007-09 → 2015-08 Figure 866243B 866243B 2015-08 → 2016-08 Figure 866704D 866704D 2016-08 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86300B Antenna Assy, Amplifier, NO.1
863C0 Antenna Assy, Digital Audio Broadcasting
863C2 Base, Digital Audio Broadcasting Antenna
86760A Antenna Assy, Telephone
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
