Toyota Land Cruiser

2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

19 part groups · 13 illustrations

Illustrations

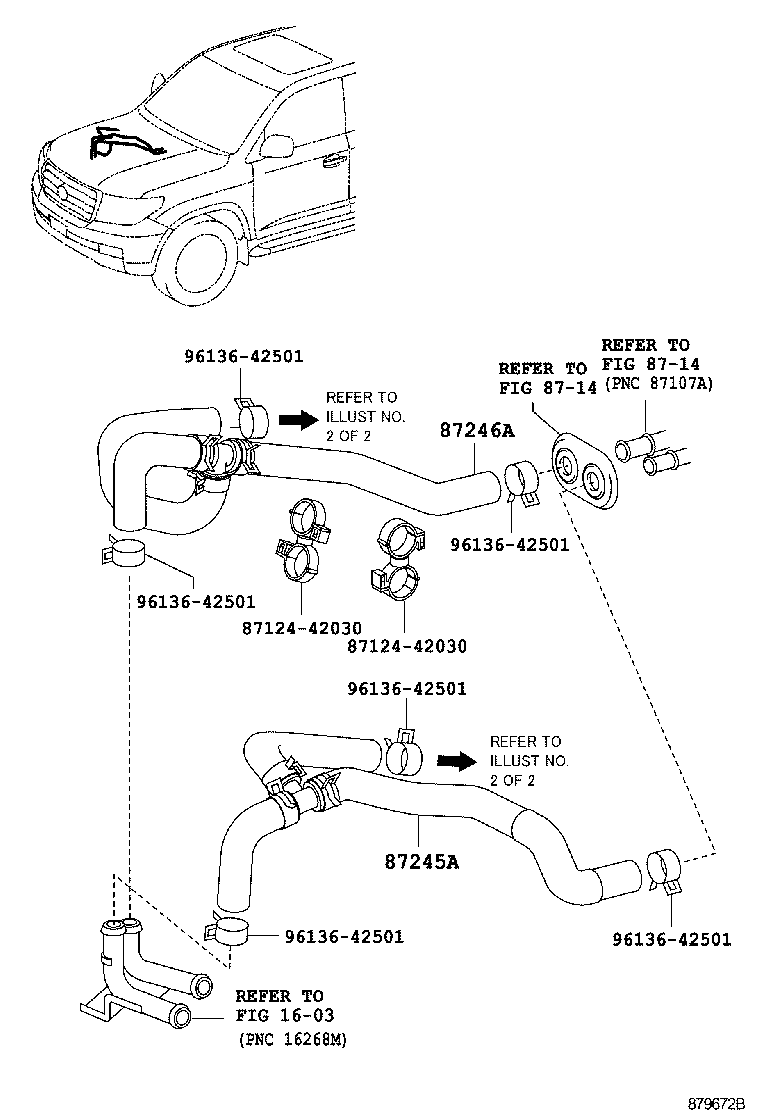

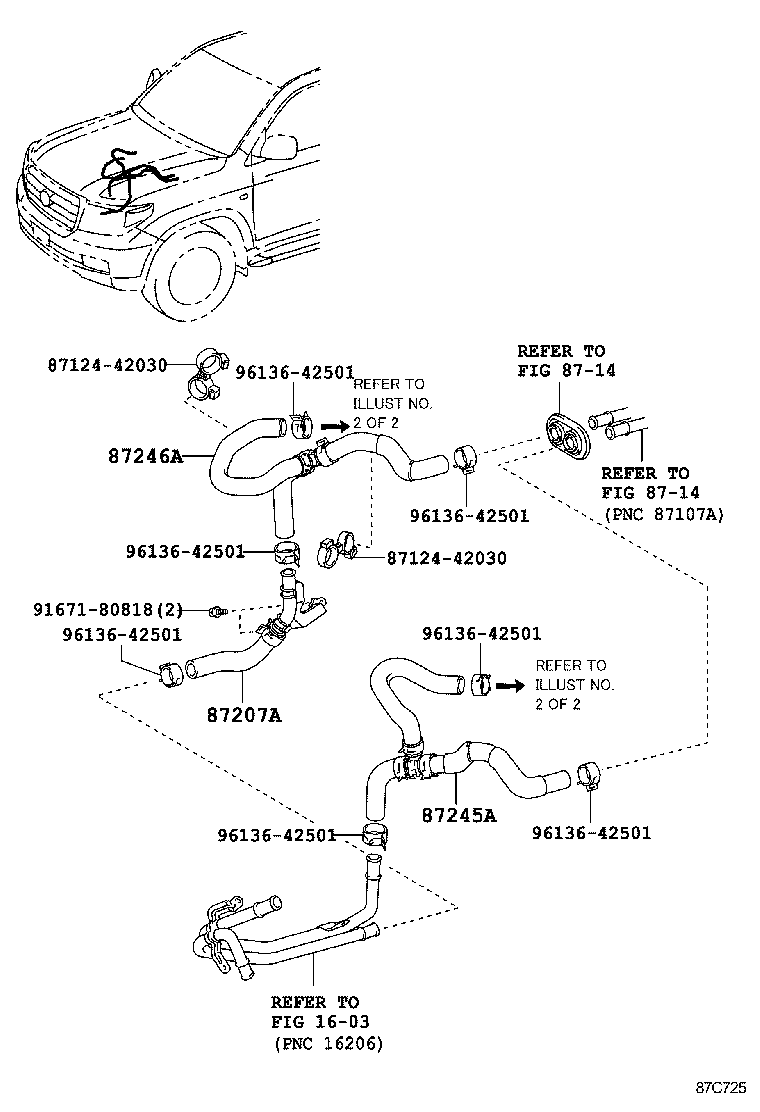

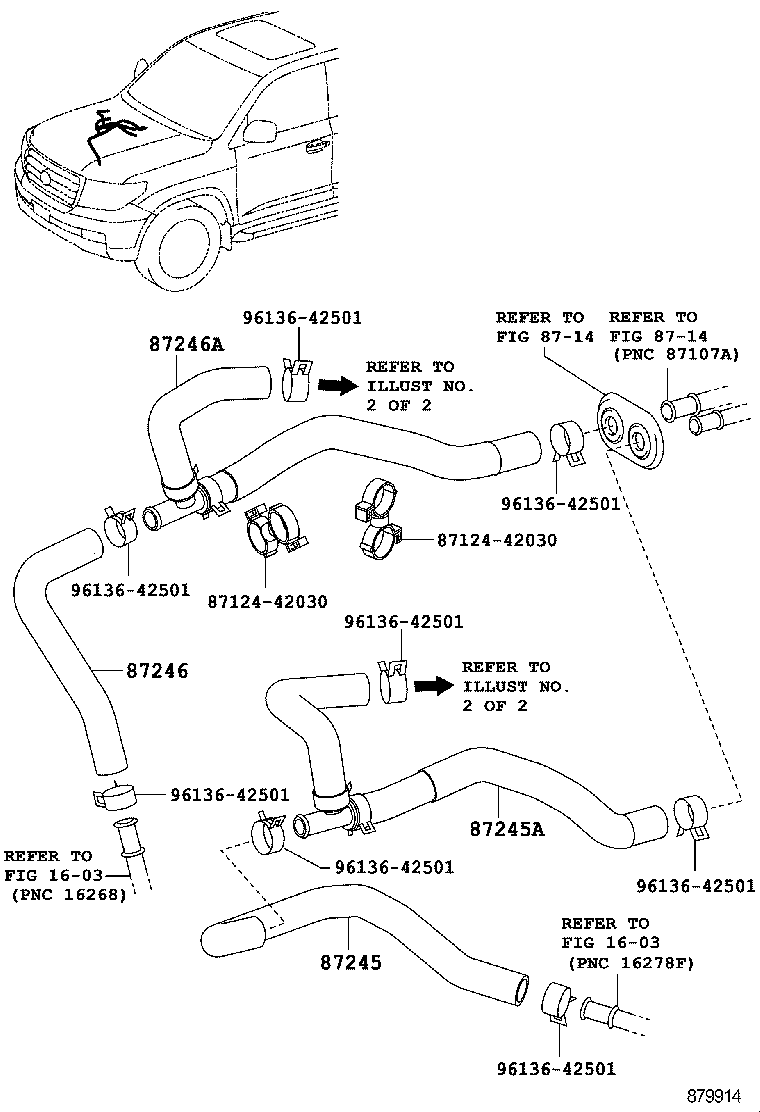

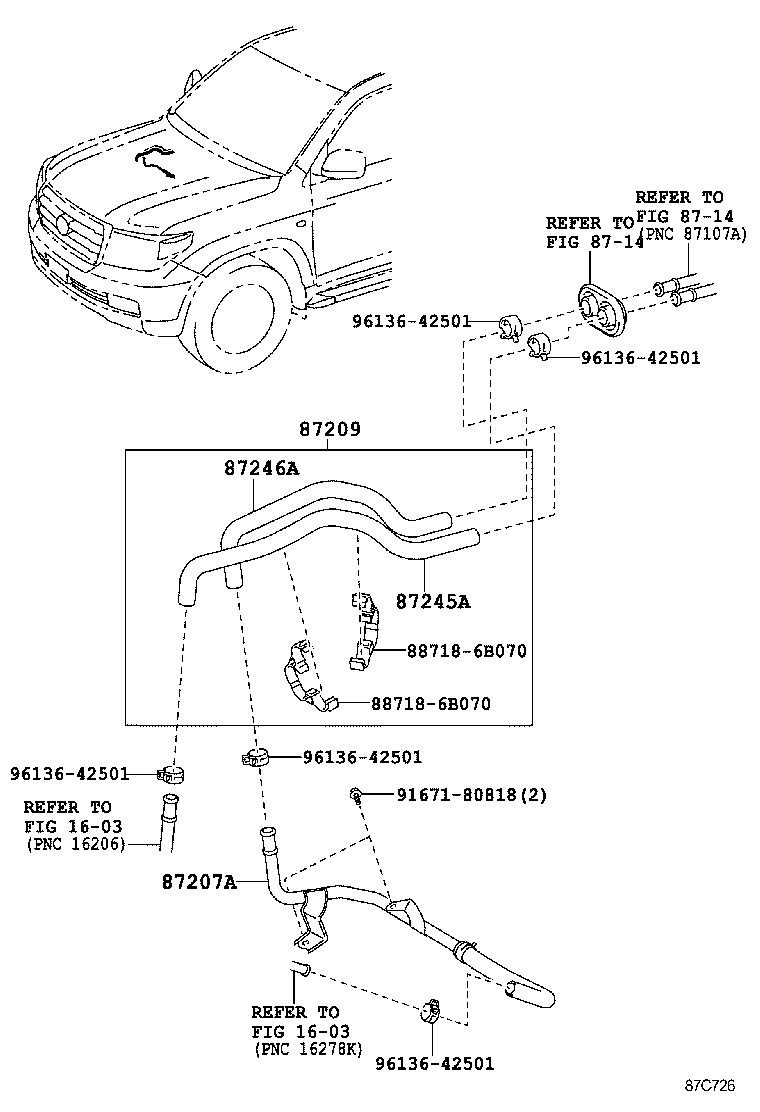

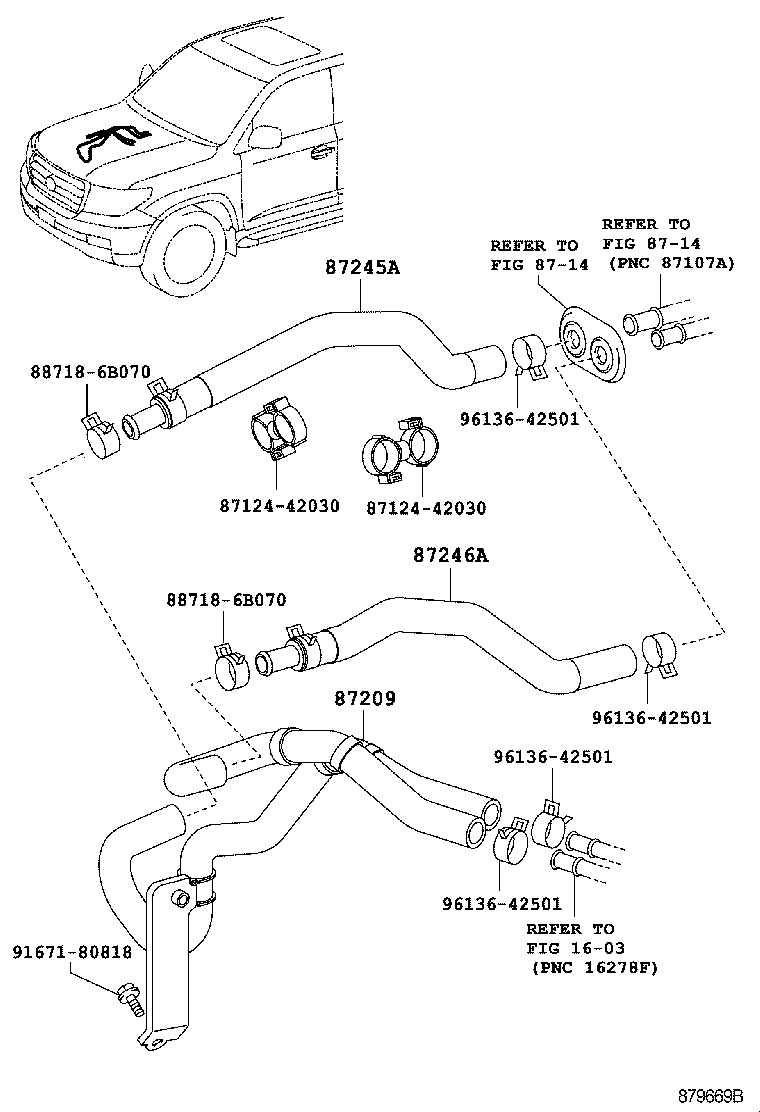

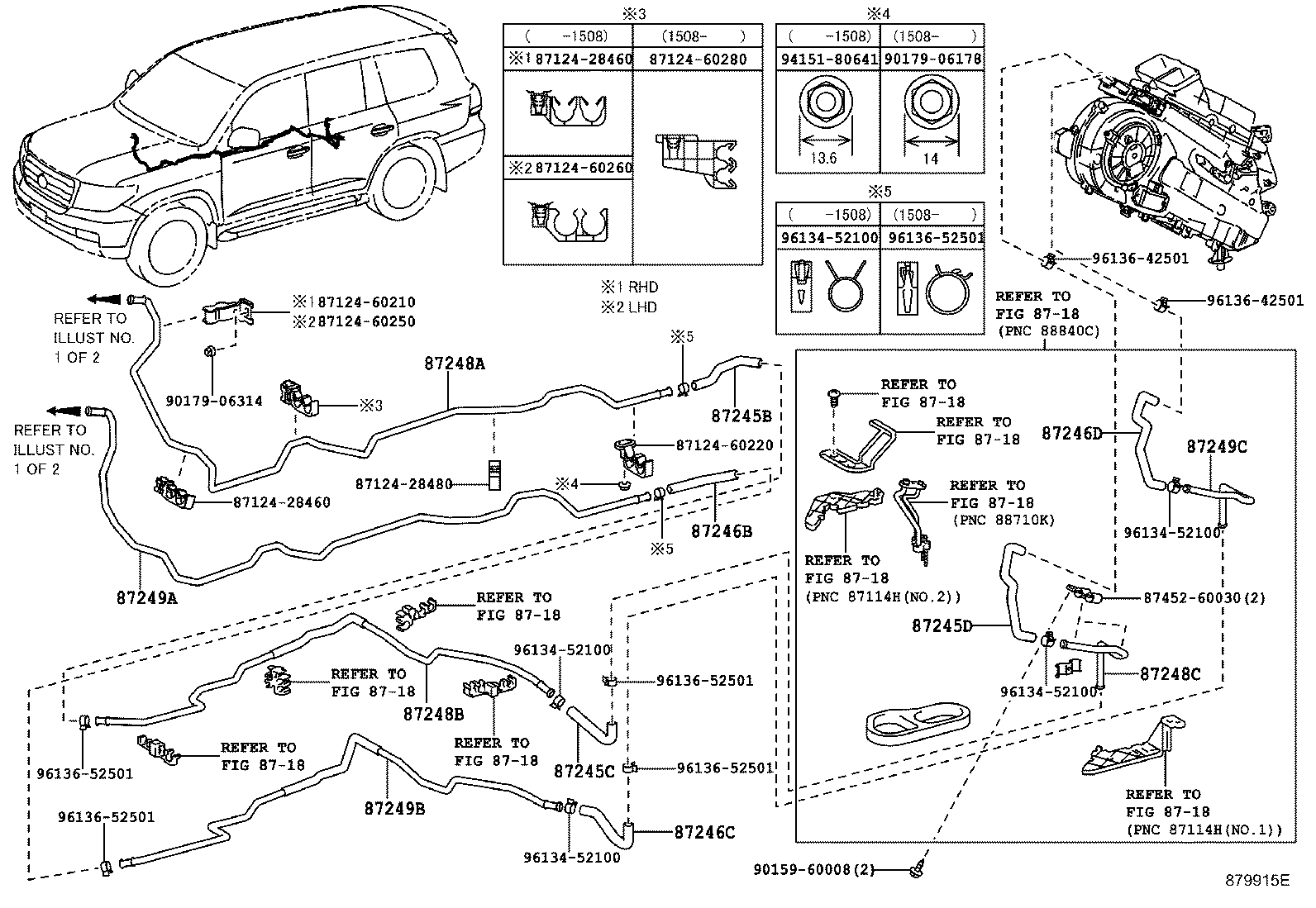

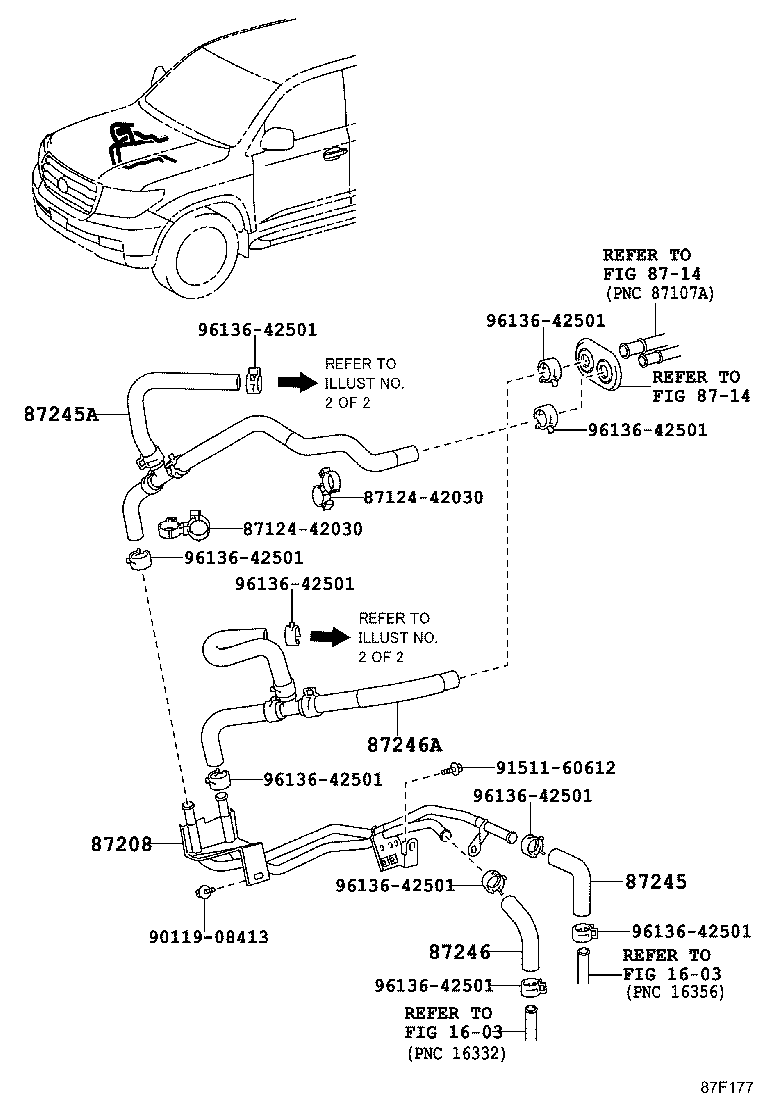

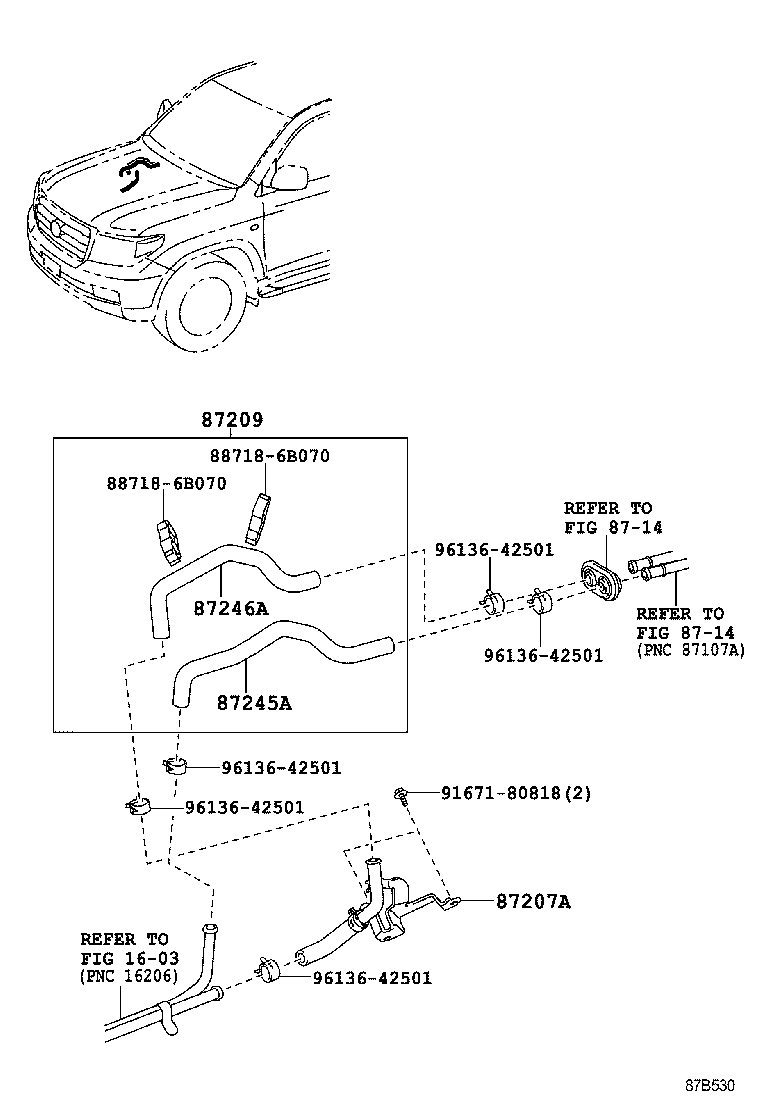

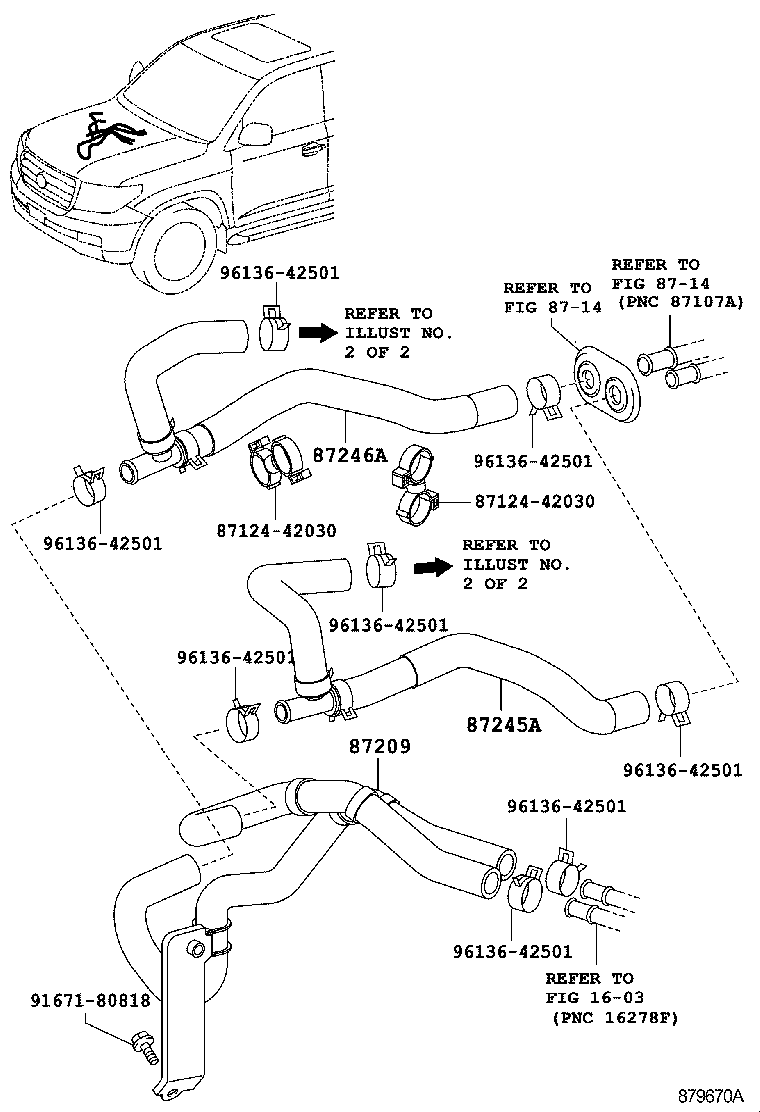

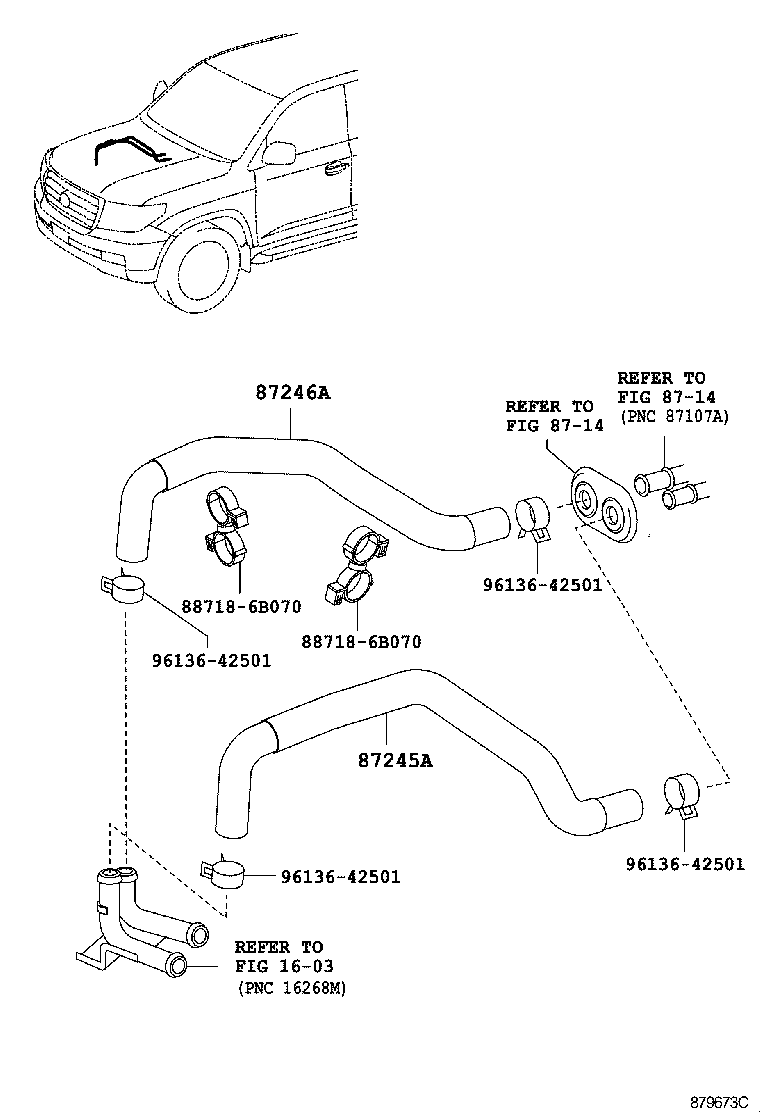

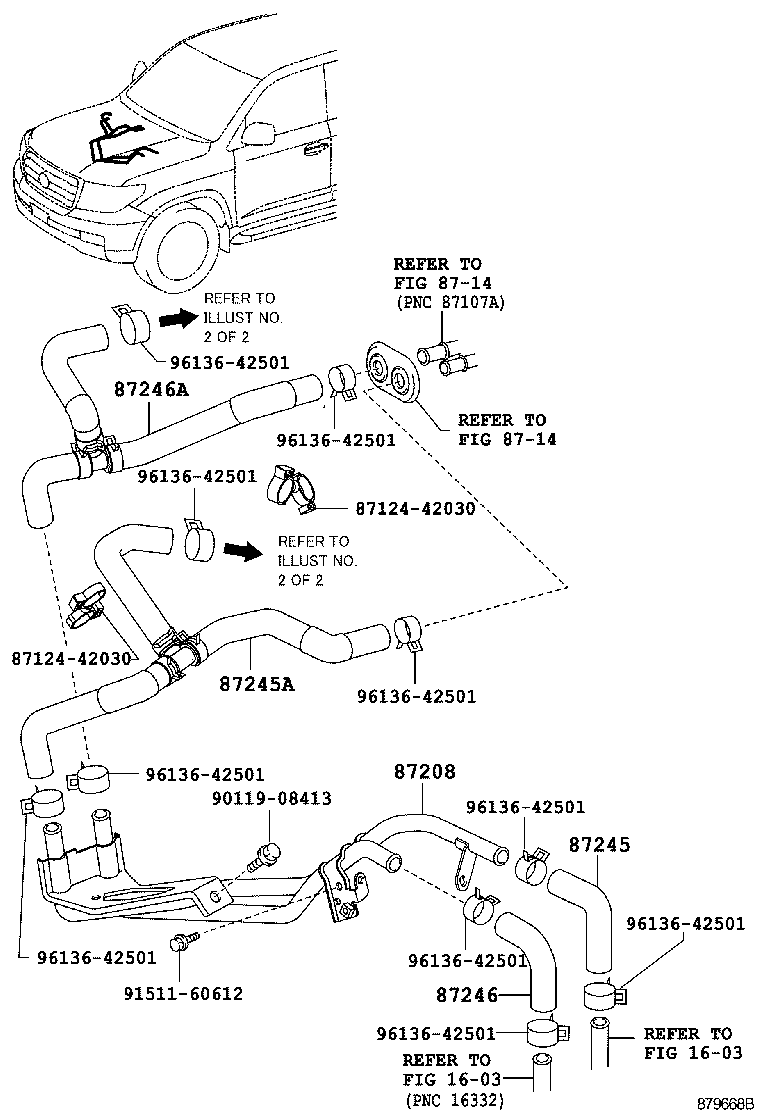

Figure 879666D 879666D 2007-09 → — Figure 879668B 879668B 2007-09 → 2012-01 Figure 879669B 879669B 2007-09 → 2012-01 Figure 879670A 879670A 2007-09 → 2012-01 Figure 879914 879914 2007-09 → 2012-01 Figure 879673C 879673C 2007-09 → — Figure 879672B 879672B 2007-09 → — Figure 87B530 87B530 2010-07 → — Figure 87C725 87C725 2010-07 → — Figure 87C726 87C726 2012-01 → — Figure 87C727 87C727 2012-01 → — Figure 87F177 87F177 2015-08 → — Figure 879915E 879915E 2007-09 → —

Part groups

PNCDescription
87207A Pipe & Hose Sub-assy, Water A
87208 Pipe Sub-assy, Heater Water
87209 Hose Sub-assy, Water
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
