Toyota Land Cruiser

2007-09 → present · chassis GRJ200,URJ20#,UZJ200,VDJ200 · catalogue 791360 · General

Supported model Data version 2018-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

5 part groups · 4 illustrations

Illustrations

Figure 879631A

879631A 2007-09 → —

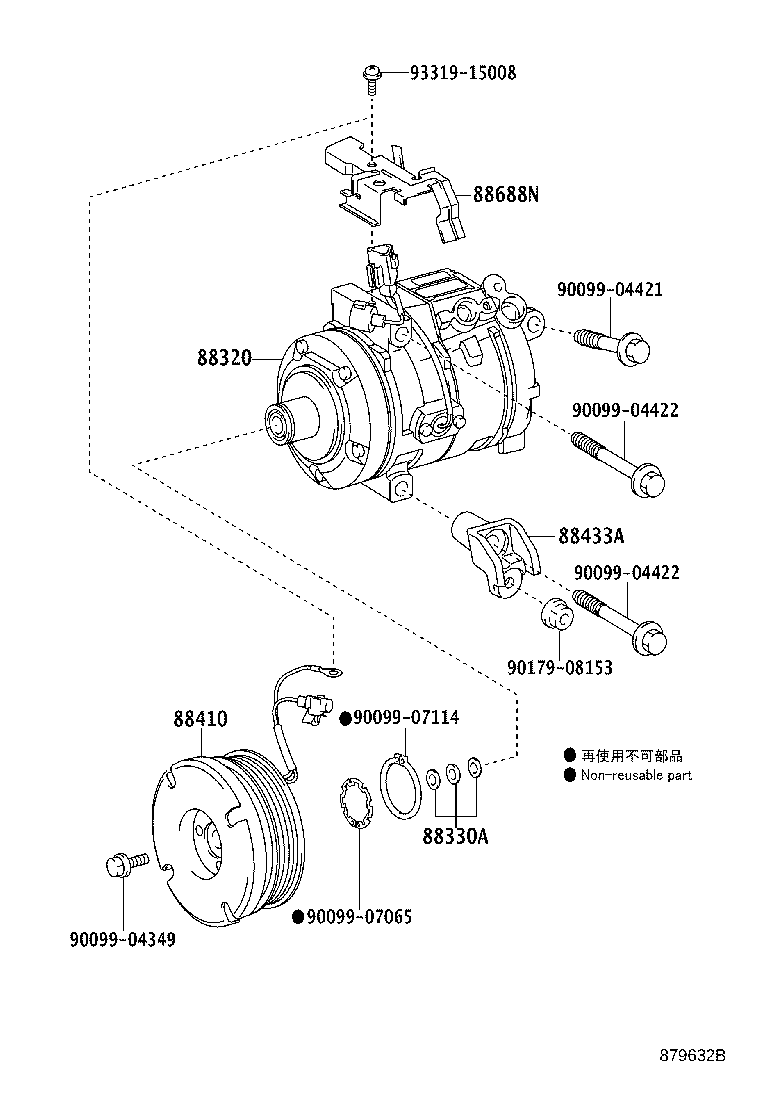

Figure 879632B

879632B 2007-09 → 2012-01

Figure 879633A

879633A 2007-09 → —

Figure 87A904A

87A904A 2010-07 → —

Part groups

PNC	Description
88320	Compressor Assy, Cooler
88330A	Washer (FOR MAGNET CLUTCH)
88410	Clutch Assy, Magnet
88433A	Stay, Compressor
88688N	Bracket, Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
