Toyota Lexus LX470

1998-01 → 2007-08 · chassis UZJ100 · catalogue 792350 · General

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

7 part groups · 3 illustrations

Illustrations

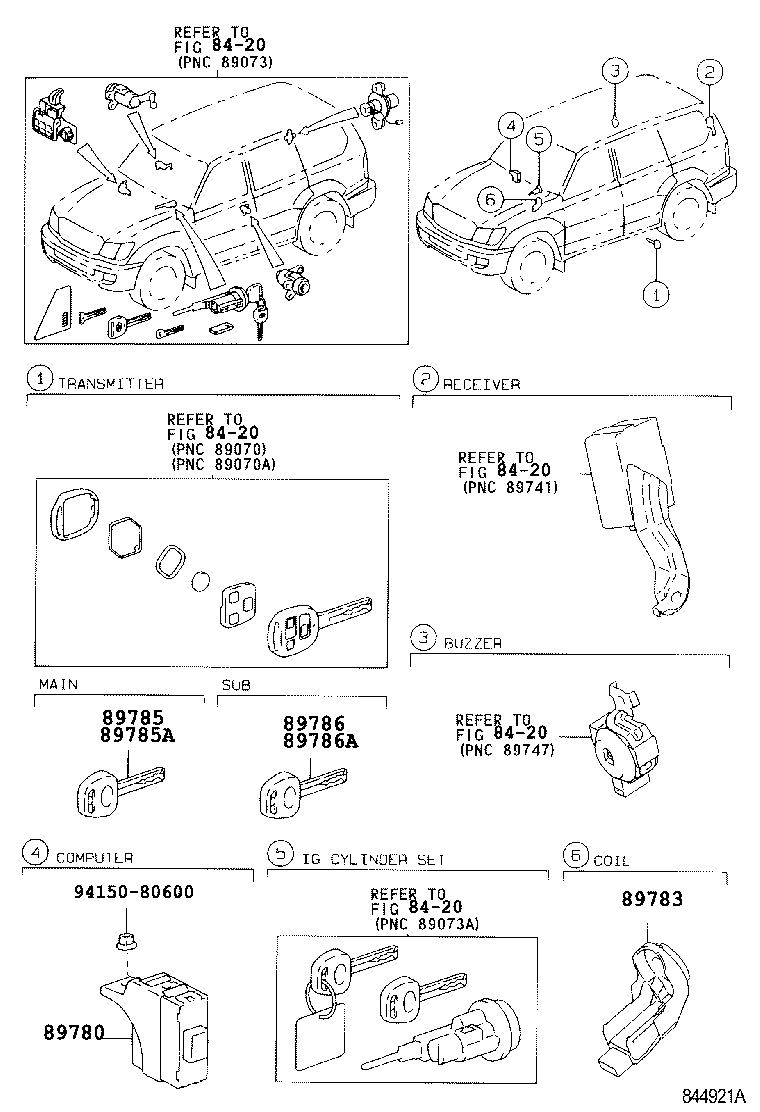

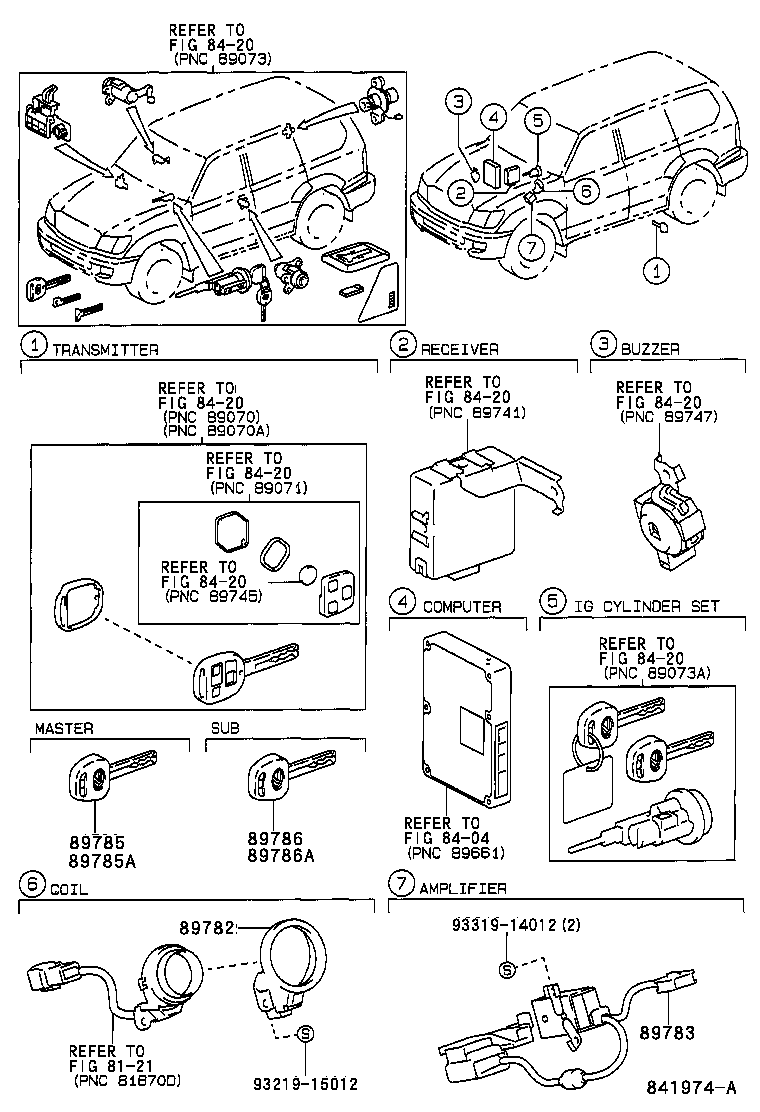

Figure 842385 842385 1998-01 → 2002-08 Figure 841974A 841974A 1998-01 → 2002-08 Figure 844921A 844921A 2002-08 → —

Part groups

PNCDescription
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
89785 Transmitter, Transponder Key Master
89785A Transmitter, Transponder Cut Key Master
89786 Transmitter, Transponder Key Sub
89786A Transmitter, Transponder Cut Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
