Toyota Lexus LX470

1998-01 → 2007-08 · chassis UZJ100 · catalogue 792350 · General

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

6 part groups · 4 illustrations

Illustrations

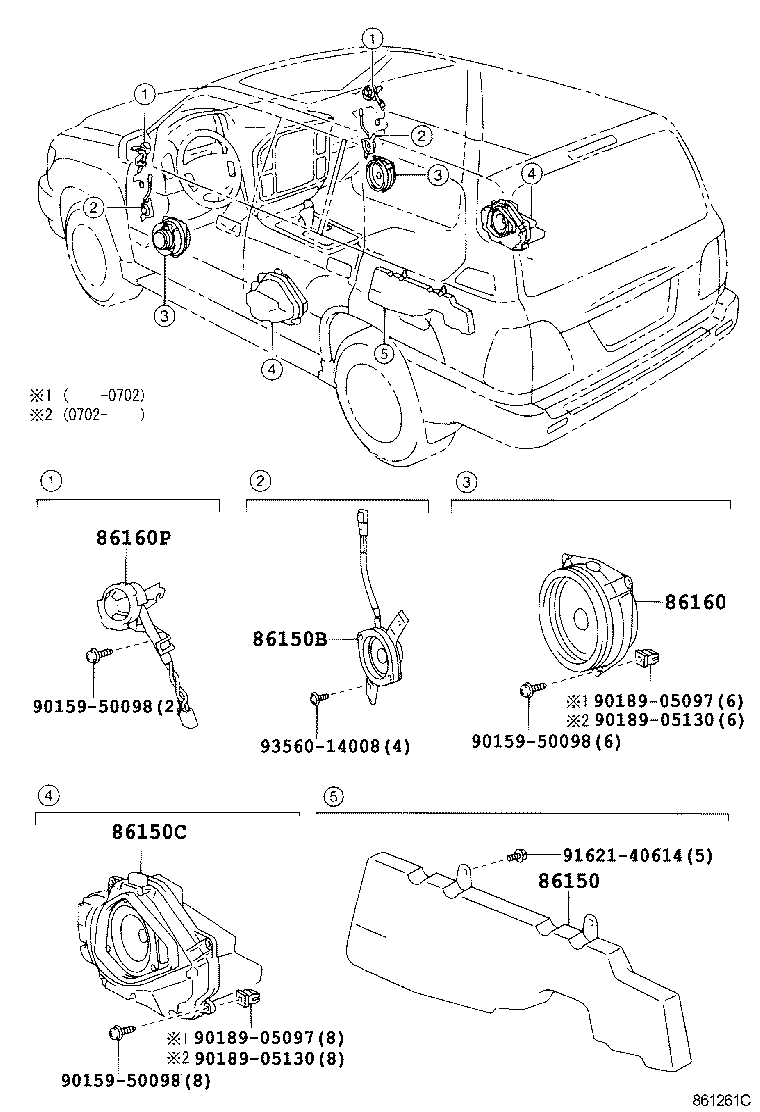

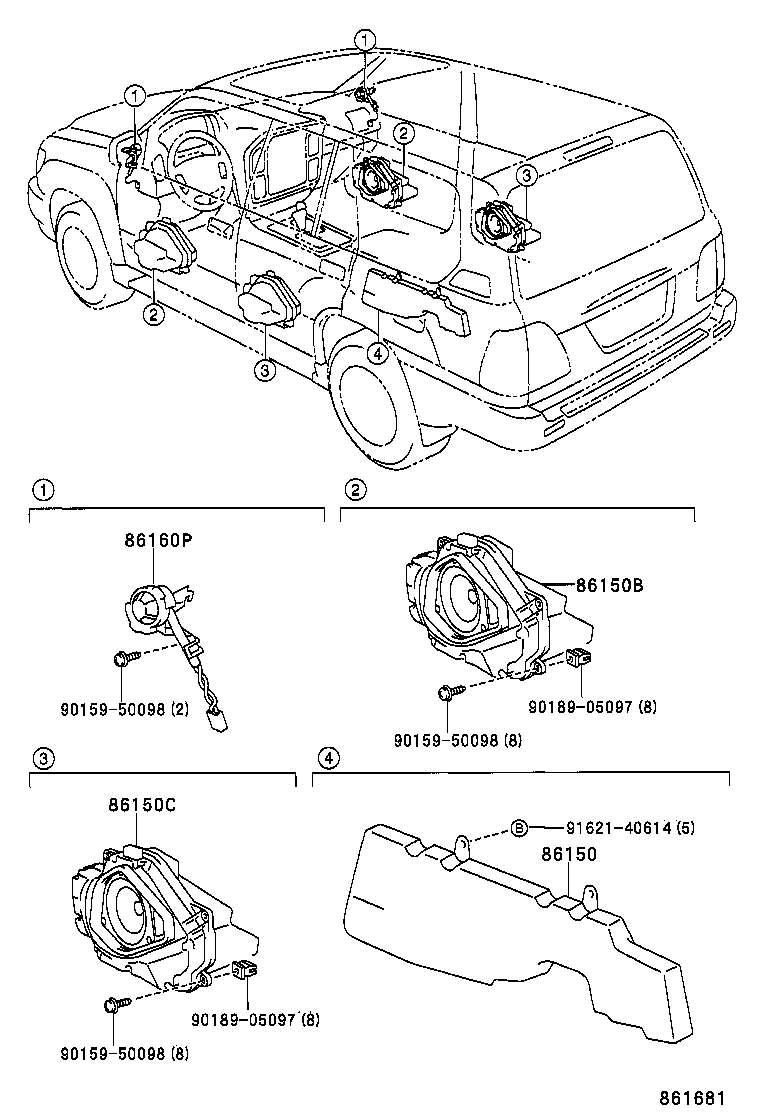

Figure 860634B 860634B 1998-01 → 2002-08 Figure 860634B 860634B 2002-08 → 2005-05 Figure 861681 861681 2002-08 → 2005-05 Figure 861261C 861261C 2005-05 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86150B Speaker Assy, W/Box, NO.2
86150C Speaker Assy, W/Box, NO.3
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160P Speaker Assy, Front NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
