Toyota Lexus LX470
1998-01 → 2007-08 · chassis UZJ100 · catalogue 792350 · General
Discontinued model
Data version 2008-04

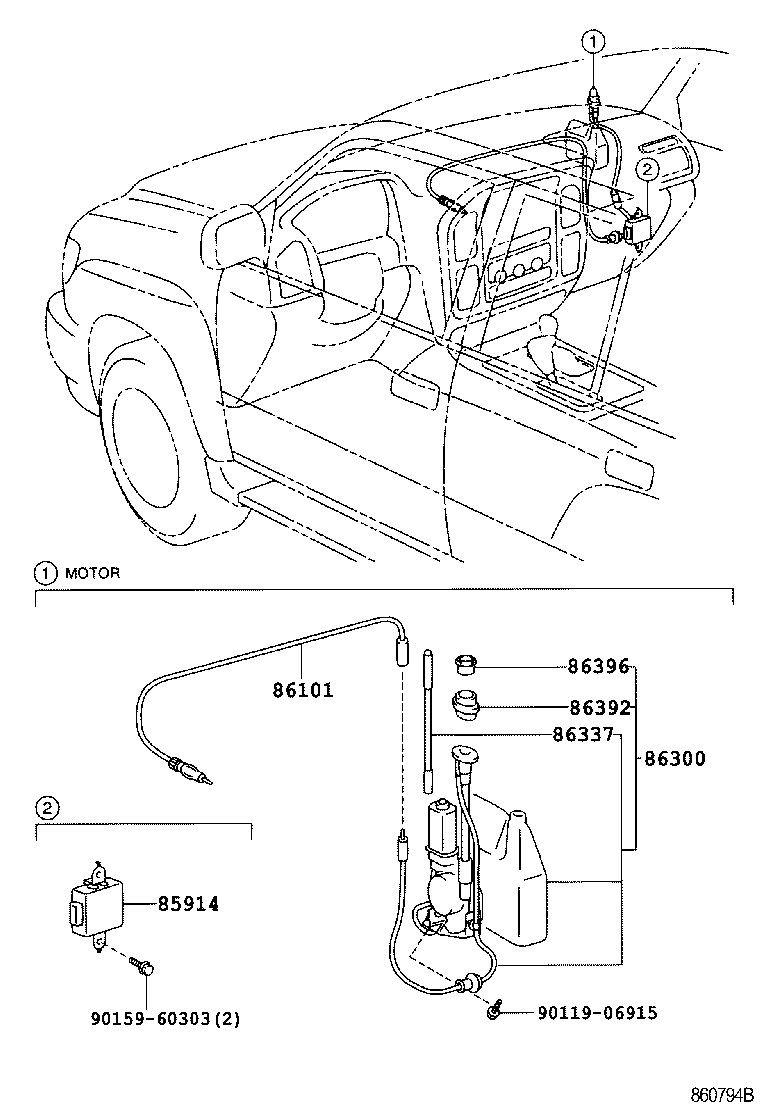

Antenna
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85914 | Relay, Motor Antenna Control |
| 86101 | Cord Sub-assy, Antenna |
| 86101B | Cover, Antenna Cord |
| 86300 | Antenna Assy, W/Holder |
| 86337 | Rod & Pipe, Sealed W/Cable |
| 86392 | Ornament, Antenna |
| 86396 | Nut, Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
