Toyota Lexus LX470

1998-01 → 2007-08 · chassis UZJ100 · catalogue 792350 · General

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

2 part groups · 2 illustrations

Illustrations

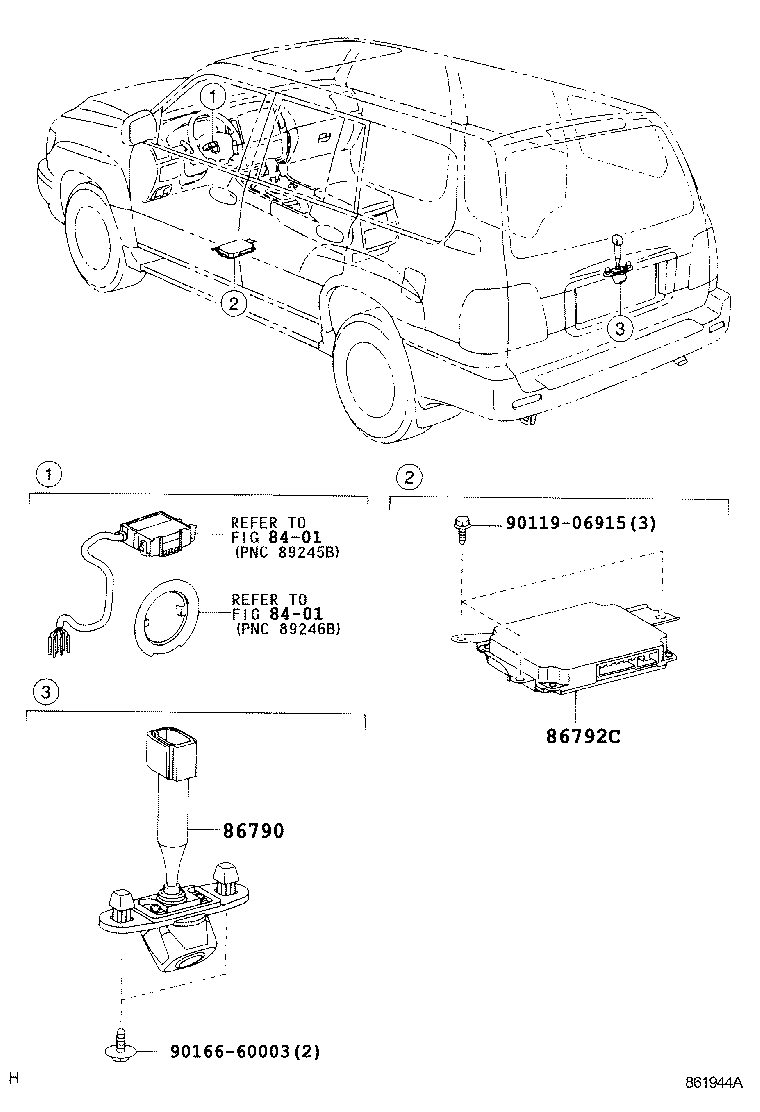

Figure 861943A 861943A 2003-08 → — Figure 861944A 861944A 2003-08 → —

Part groups

PNCDescription
86790 Camera Assy, Television
86792C Computer, Parking Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
