Toyota Lexus LX450D/460/570

2007-11 → present · chassis URJ20#,VDJ201 · catalogue 792360 · General

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 14 illustrations

Illustrations

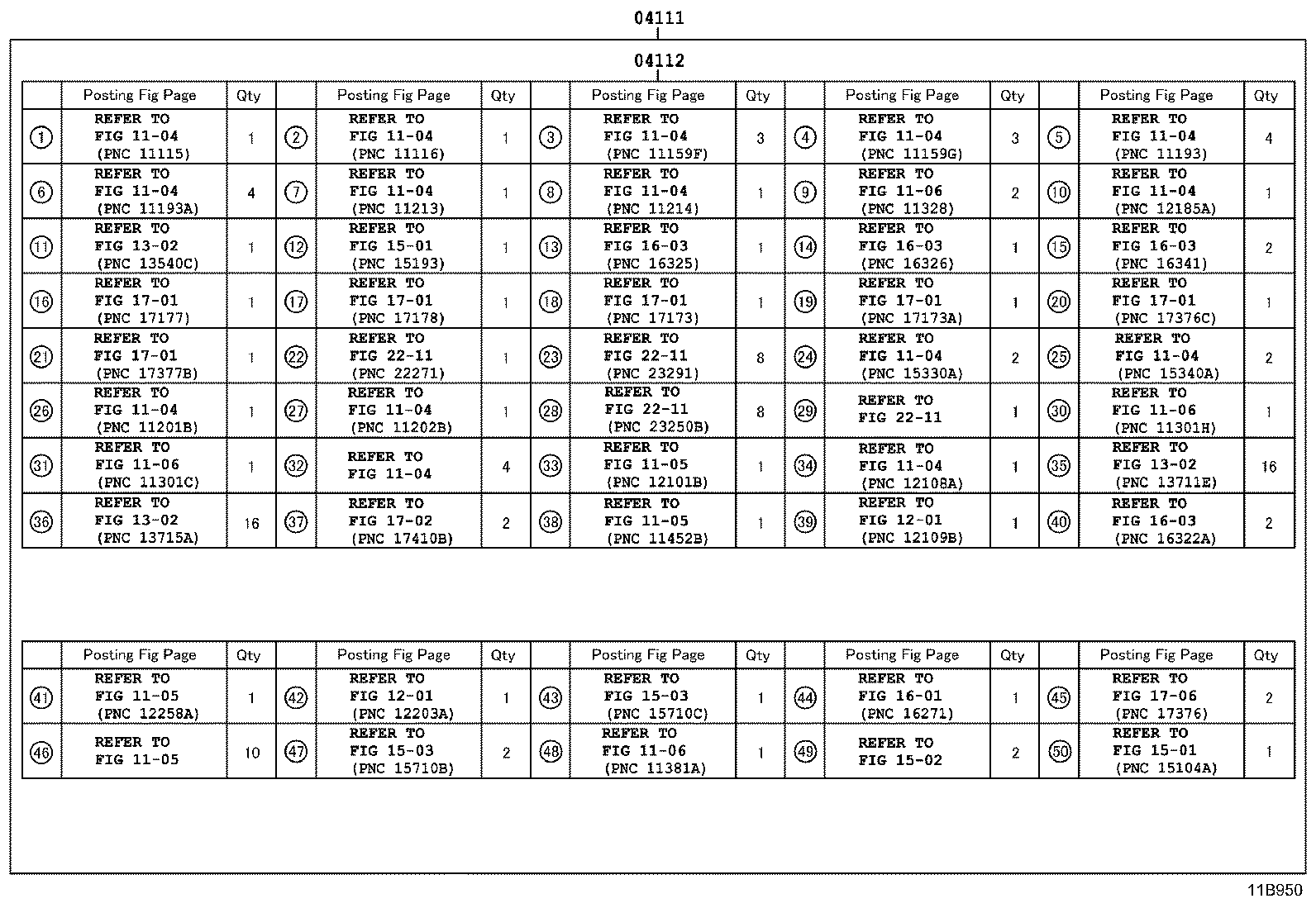

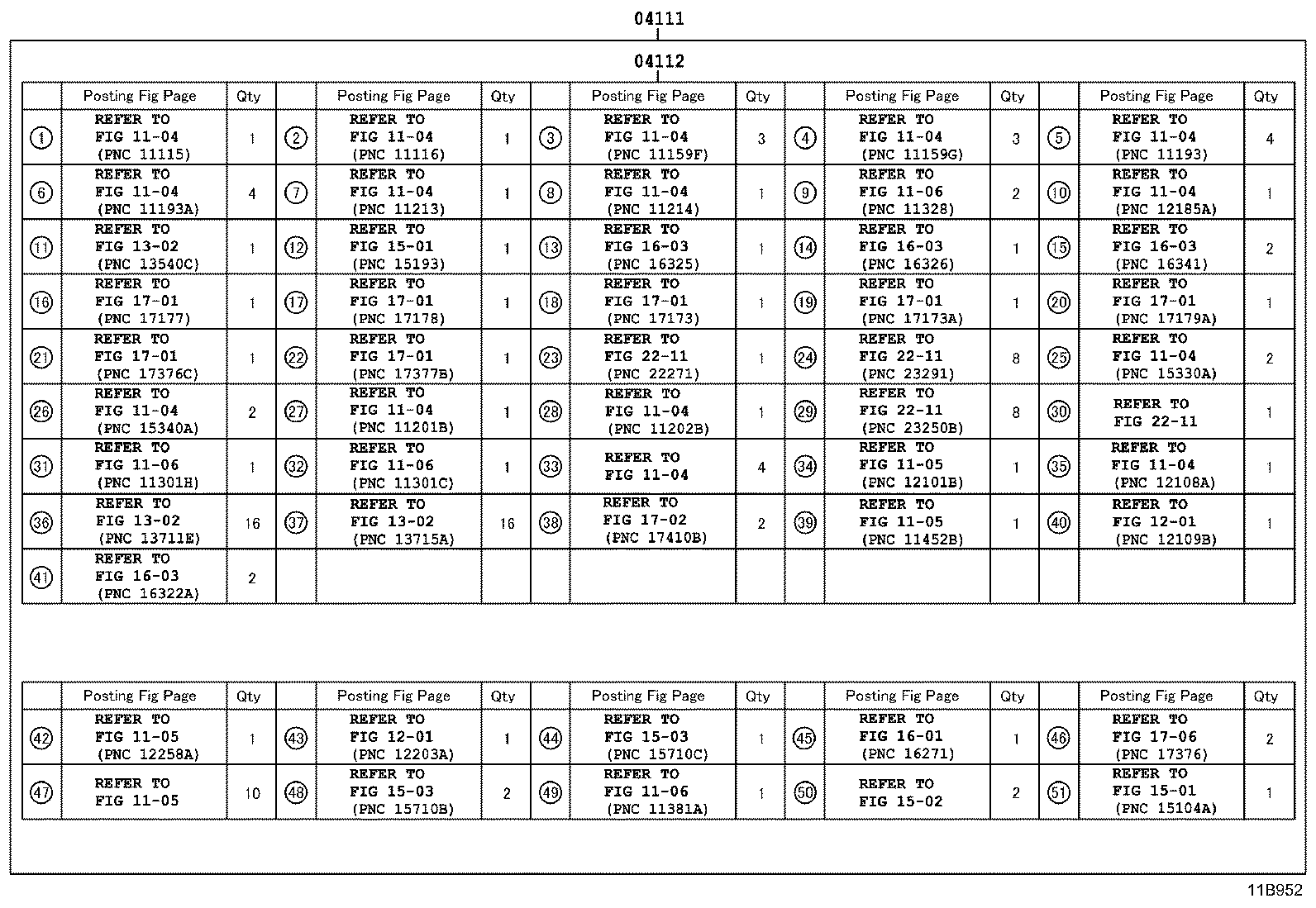

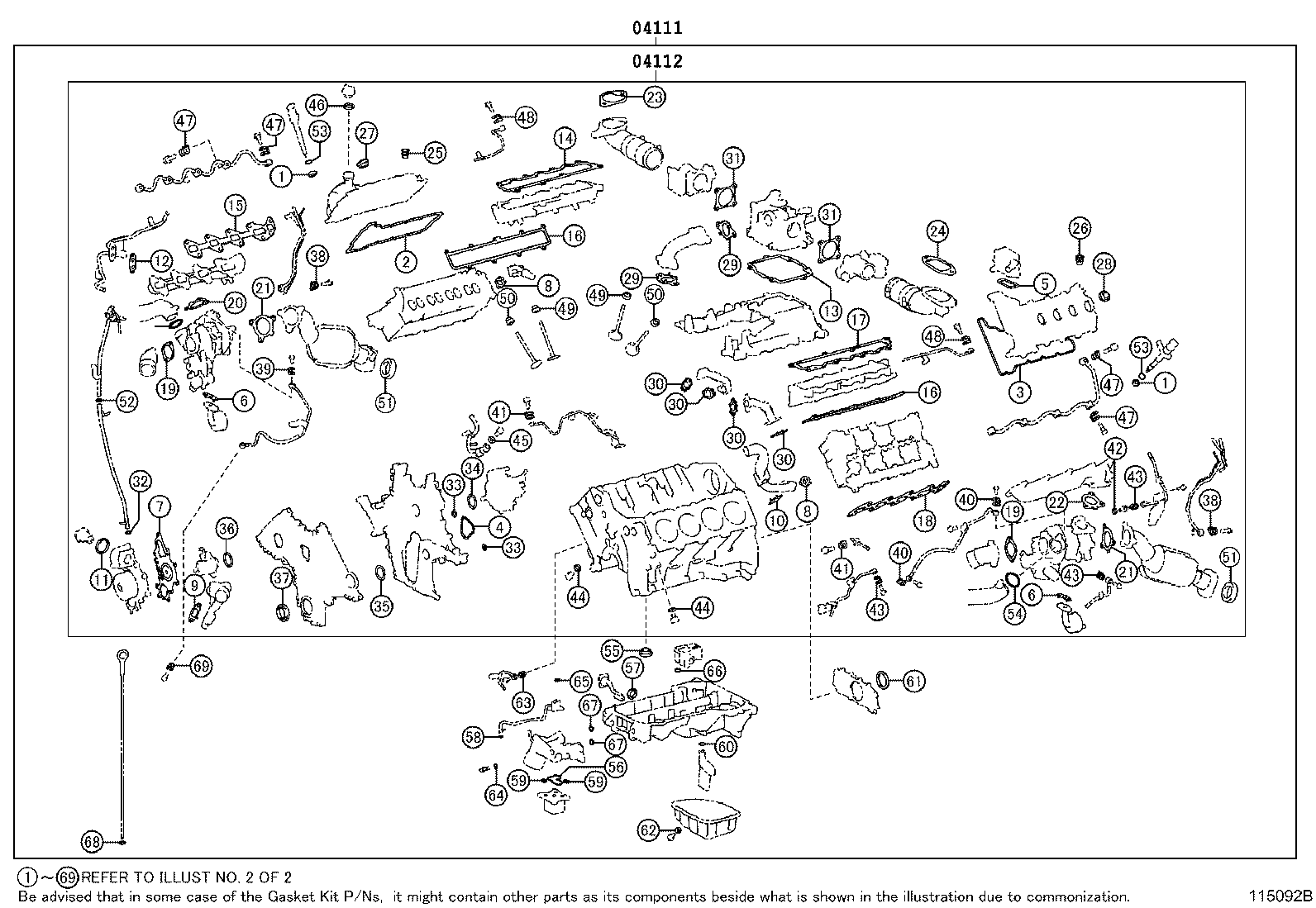

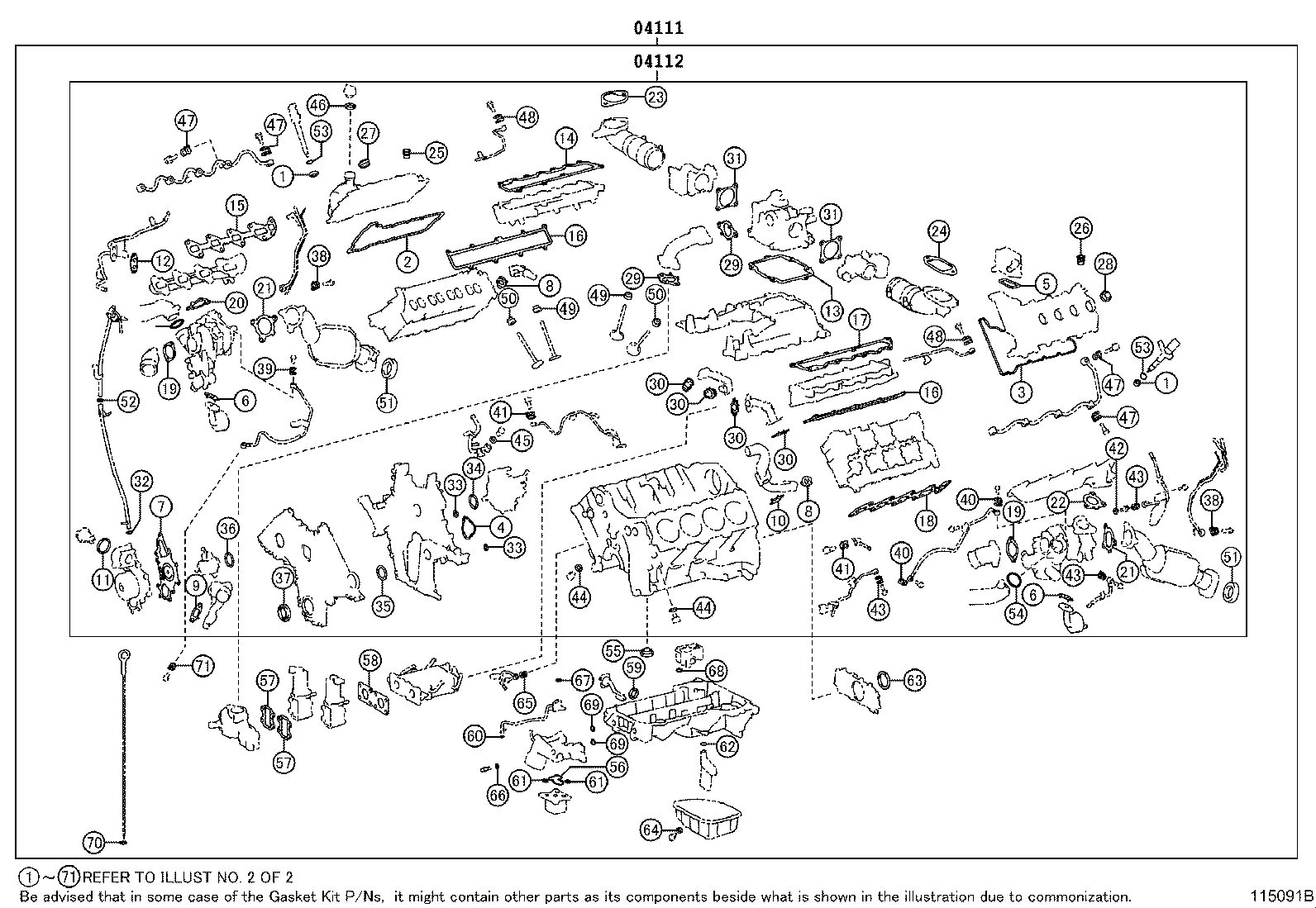

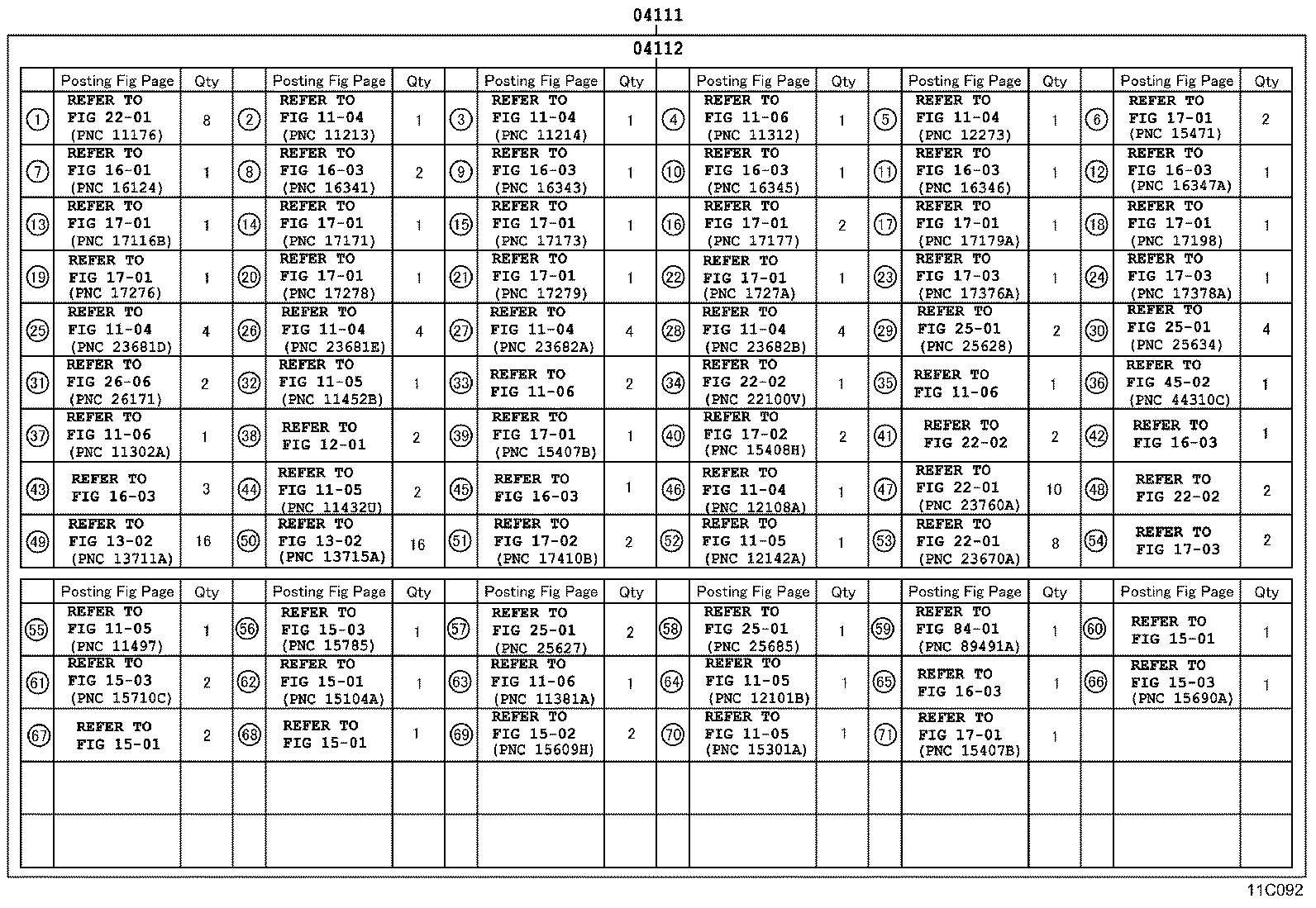

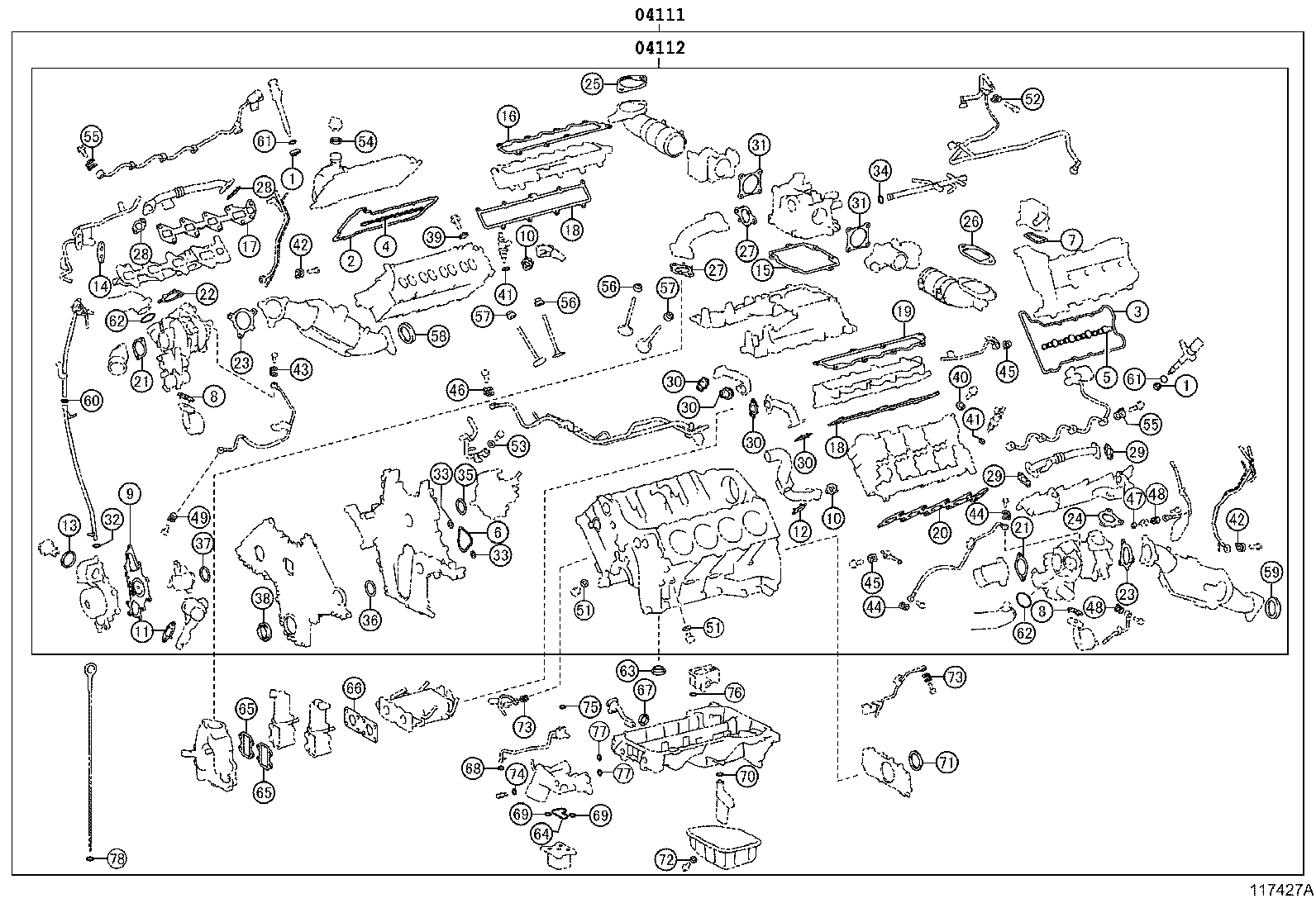

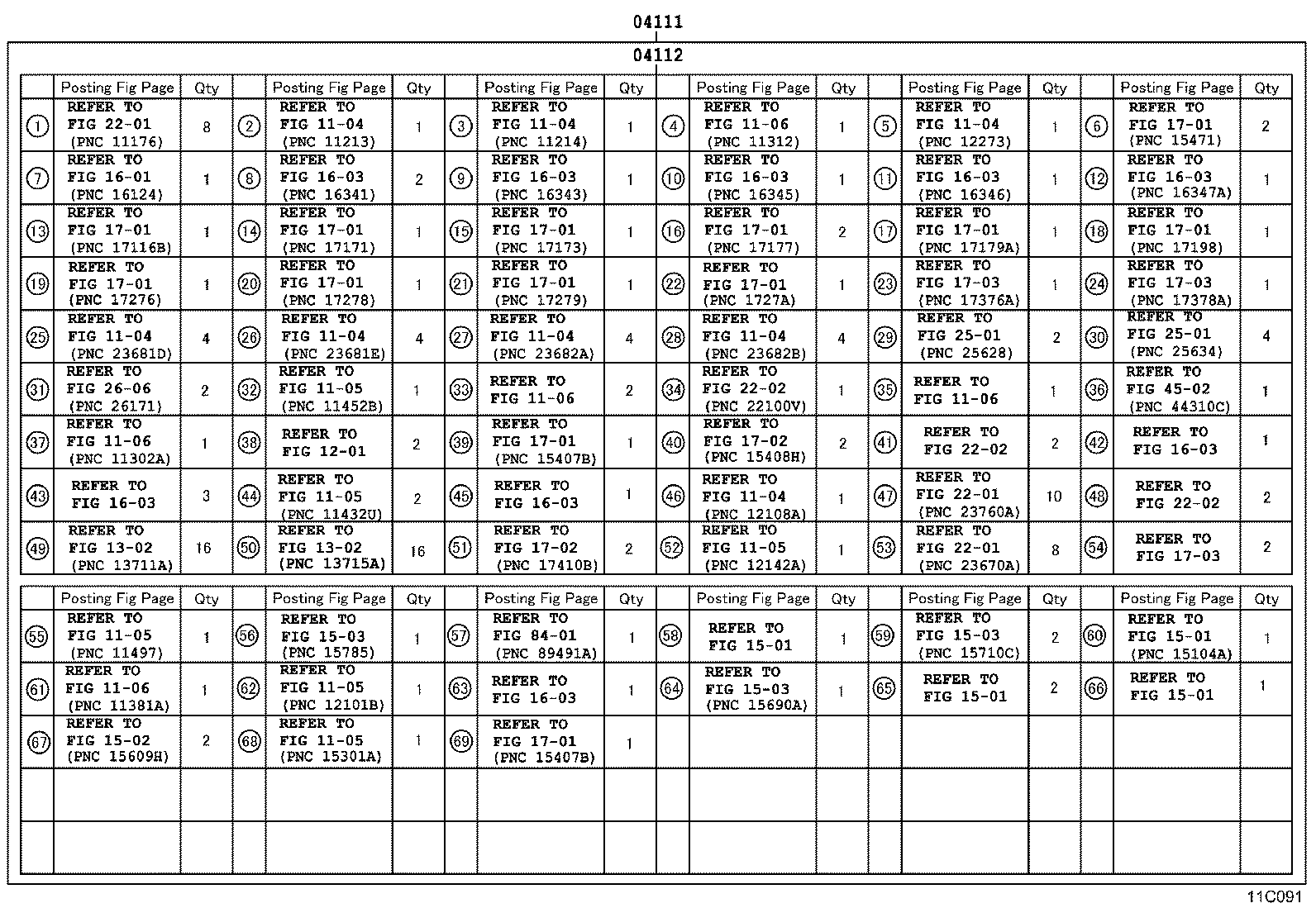

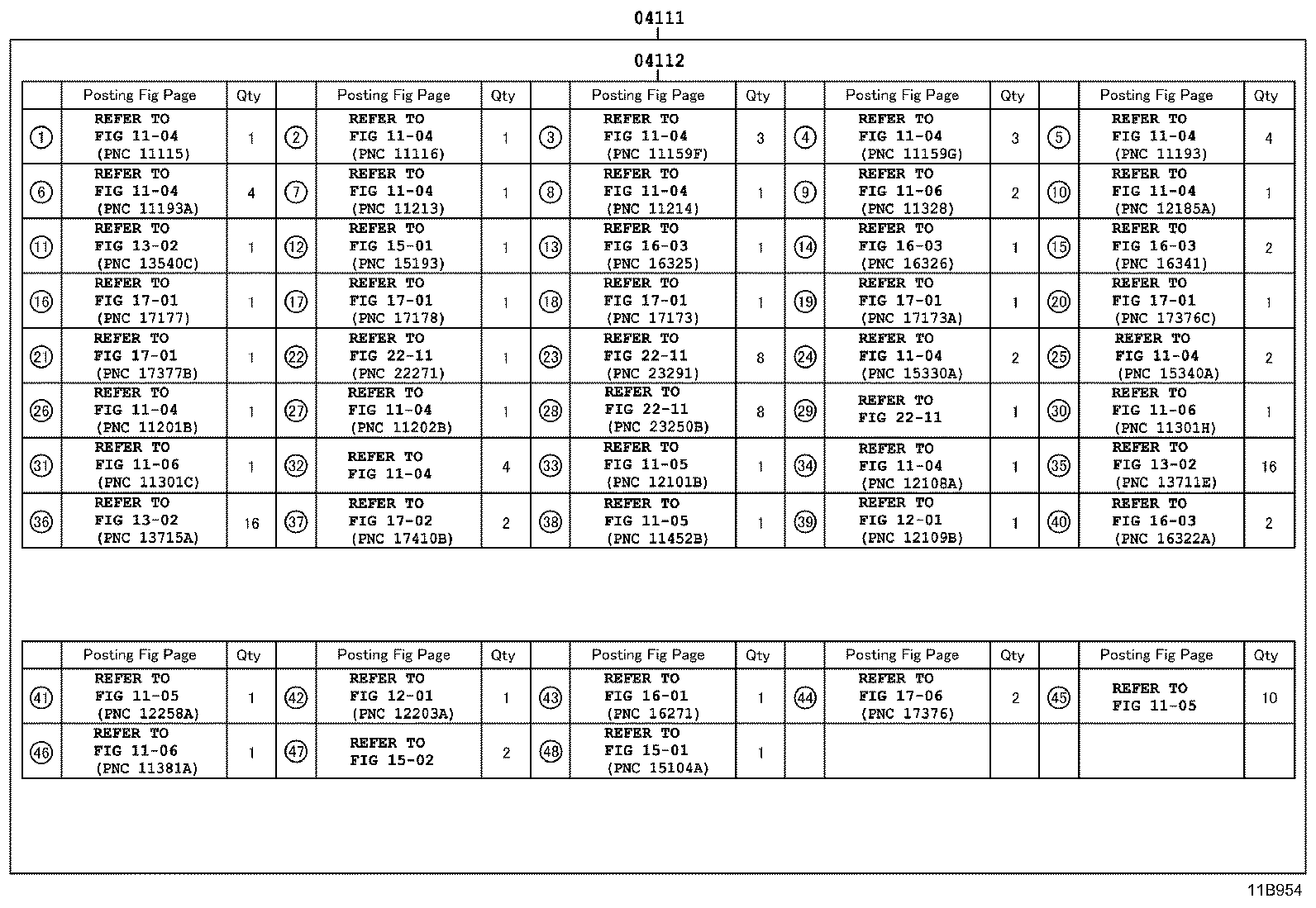

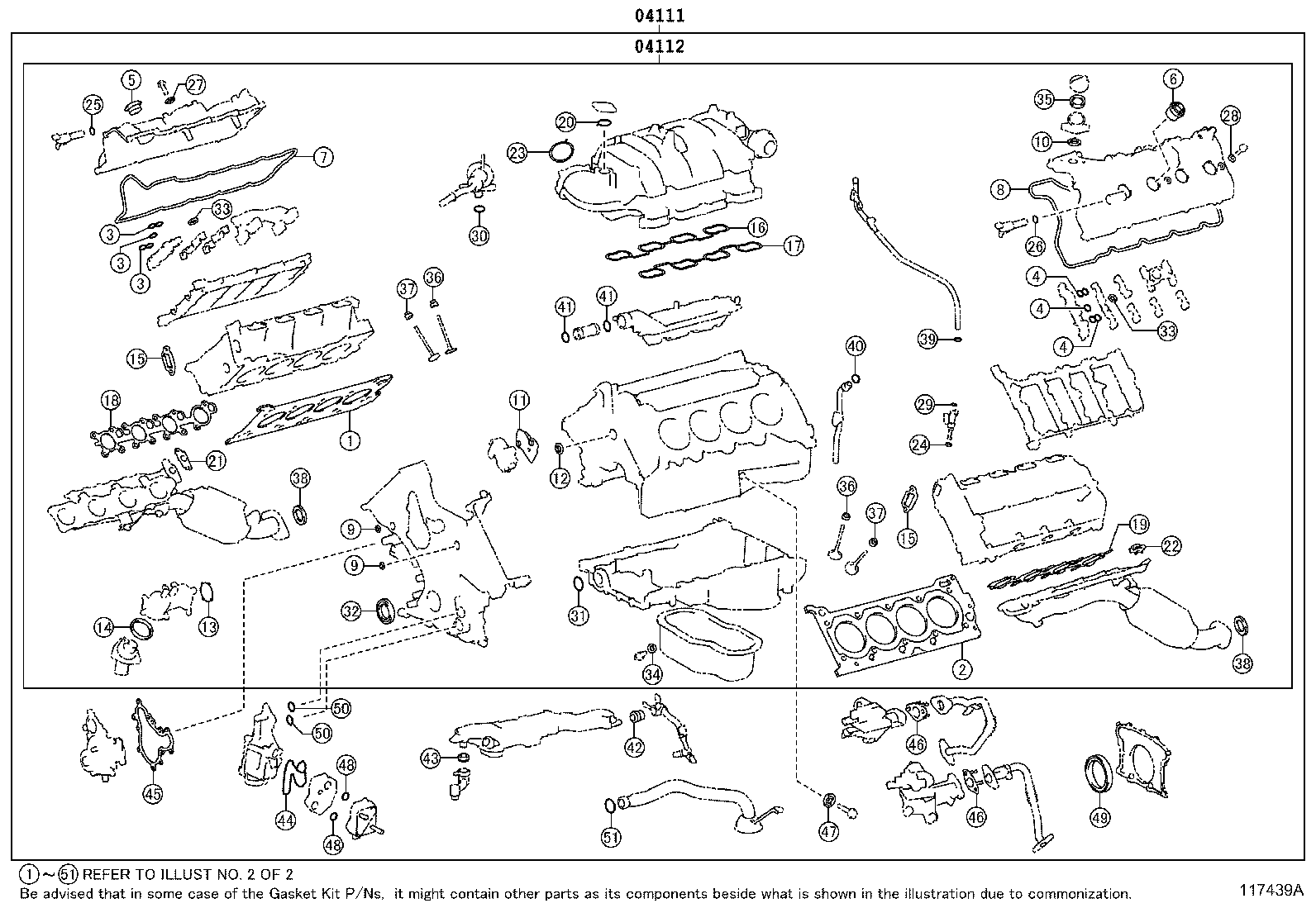

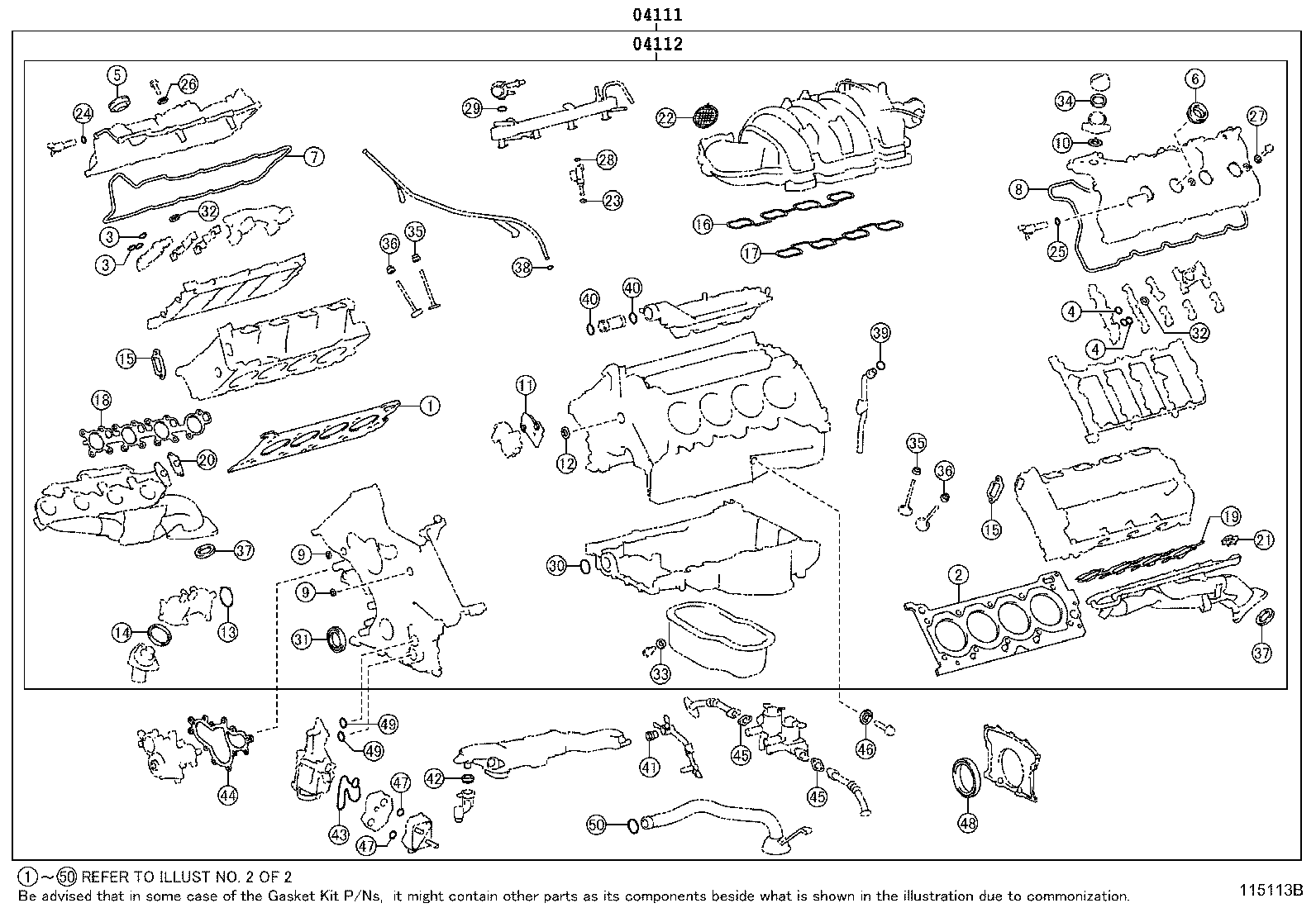

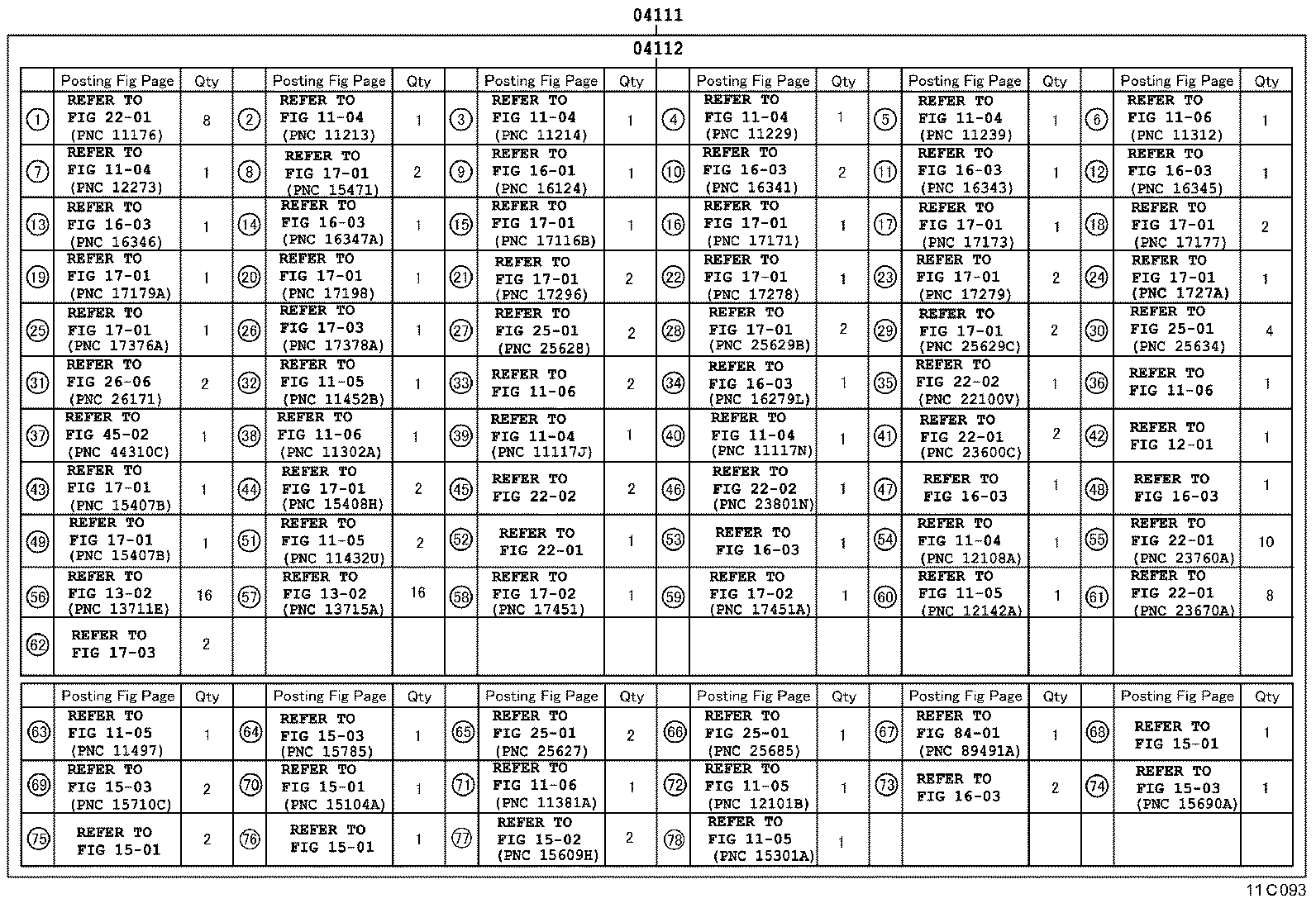

Figure 115222A 115222A 2007-11 → 2007-12 Figure 11B954 11B954 2007-11 → 2007-12 Figure 115113B 115113B 2007-11 → 2007-12 Figure 115113B 115113B 2007-12 → — Figure 11B950 11B950 2007-11 → 2007-12 Figure 11B950 11B950 2007-12 → — Figure 117439A 117439A 2012-01 → 2015-09 Figure 11B952 11B952 2012-01 → 2015-09 Figure 115092B 115092B 2015-09 → — Figure 11C091 11C091 2015-09 → — Figure 115091B 115091B 2015-09 → — Figure 11C092 11C092 2015-09 → — Figure 117427A 117427A 2015-09 → — Figure 11C093 11C093 2015-09 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
