Toyota Lexus LX450D/460/570

2007-11 → present · chassis URJ20#,VDJ201 · catalogue 792360 · General

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

1 part groups · 2 illustrations

Illustrations

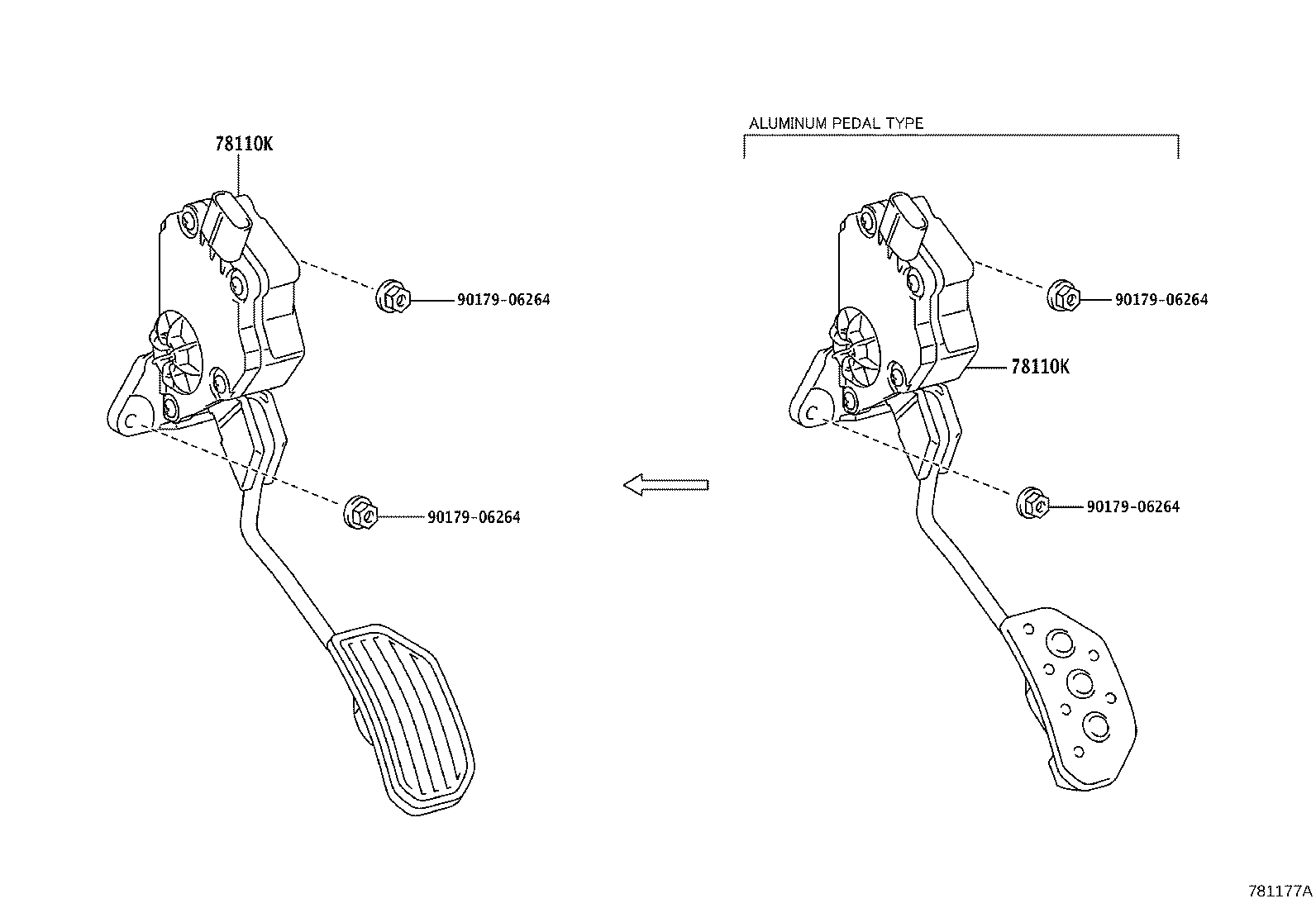

Figure 781600 781600 2007-11 → — Figure 781177A 781177A 2007-11 → —

Part groups

PNCDescription
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
